InfiRay Saim SCT35 Thermal (384x288) Scope w/WiFi - 2.85-11.4x 35mm Lens
Related Products & Accessories
Product Details
Manufacturer code: IRAYSCT35 | Our code: 135905

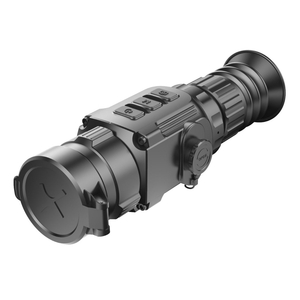

Infiray Saim SCT35 Thermal (384x288) Scope w/WiFi - 2.85-11.4x 35mm Lens. The Saim series thermal imaging scope is designed with portability and easy of operation in mind. Ergonomic design and excellent imaging quality make the Saim series an excellent companion for night observation, even in rainy or foggy weather.
Features
- 384*288 resolution
- 12μm VOx
- 50Hz
- 35mm manual lens
- 1280*960 Display
- WIFI
- IP67 waterproofing
- 16 GB Memory
High Image Quality
Built-in InfiRay detector and matched with Matrix ?TM powerful algorithm designed to increase imaging clarity and overall image detail. Matrix ?TM results in a sharper, more detailed field of view and enhanced object identifcation capabilities.the Saim series provides high image quality, improving the image contrast automatically, strengthening the image hierarchy, so to find target faster.
User-Friendly Interface
Simple and easy to operate is the initial design intention of the Saim series. Full icon design, easy to understand, and translucent background design of menu can effectively avoid occlusion vision. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.
Image Sharpness Adjustment
Image sharpness can be adjusted manually to fit individual preferences for high quality image, and there are four levels for option by short pressing menu key.
Ultraclear Mode
Ultraclear mode is specially for bad weather such as heavy fog and raining, that make Saim be more sensitive and get more details.
Compact Size and Lightweight
With reasonable layout, compact structure and light weight, the Saim series is more comfortable and convenient for outdoor use.
High Shock Resistance
The Saim series features exceptionally high shock resistance up to 1000G.
Built-in Video recorder and WIFI connection
The SCT is equipped with a 16GB recorder which enables video shooting and image capturing at the time of observation 16GB which can support to store about 20,000 pictures. Video and photo files saved in the internal memory can be transferred to a computer via wired connection or to a phone via WiFi. The wifi hotspot of the product supports simultaneous connection of four devices.
External Power Supply
The working time can be significantly prolonged by connecting with high capacity external power supply units, i.e. portable power source via Type-C cable presented in the package.
Picture-in-Picture Function
Picture-in-Picture improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps to magnify the target while retaining the rest of the field of view visible.
Long detection range 1800 meters
Actual range of detection of a human figure (1.8x0.5 m) in the field (human has outerwear, in the field against the background of the forest for the Saim thermal scopes up to 1818 meters, depending on the model.
Specifications
- Resolution 384x288
- Pixel Size, μm 12
- NETD, mk ≤50
- Frame Refresh Rate, Hz 50
- Objective Lens, mm 35
- Field of View 7.5°×5.7°
- Magnification, x 2.85-11.4
- Diopter Adjustment -5D?+5D
- Display Resolution 1280x960 LCOS
- WiFi & Recorder √
- Compass & Msensor √
- Amount of Built in Memory gb 16
- Battery Type CR123x2
- Max. Battery Life,(t=25?),h 3.5
- Weight, (without battery) g <410
- Dimension, mm 195x61x61
- Detection Range, m 1818
