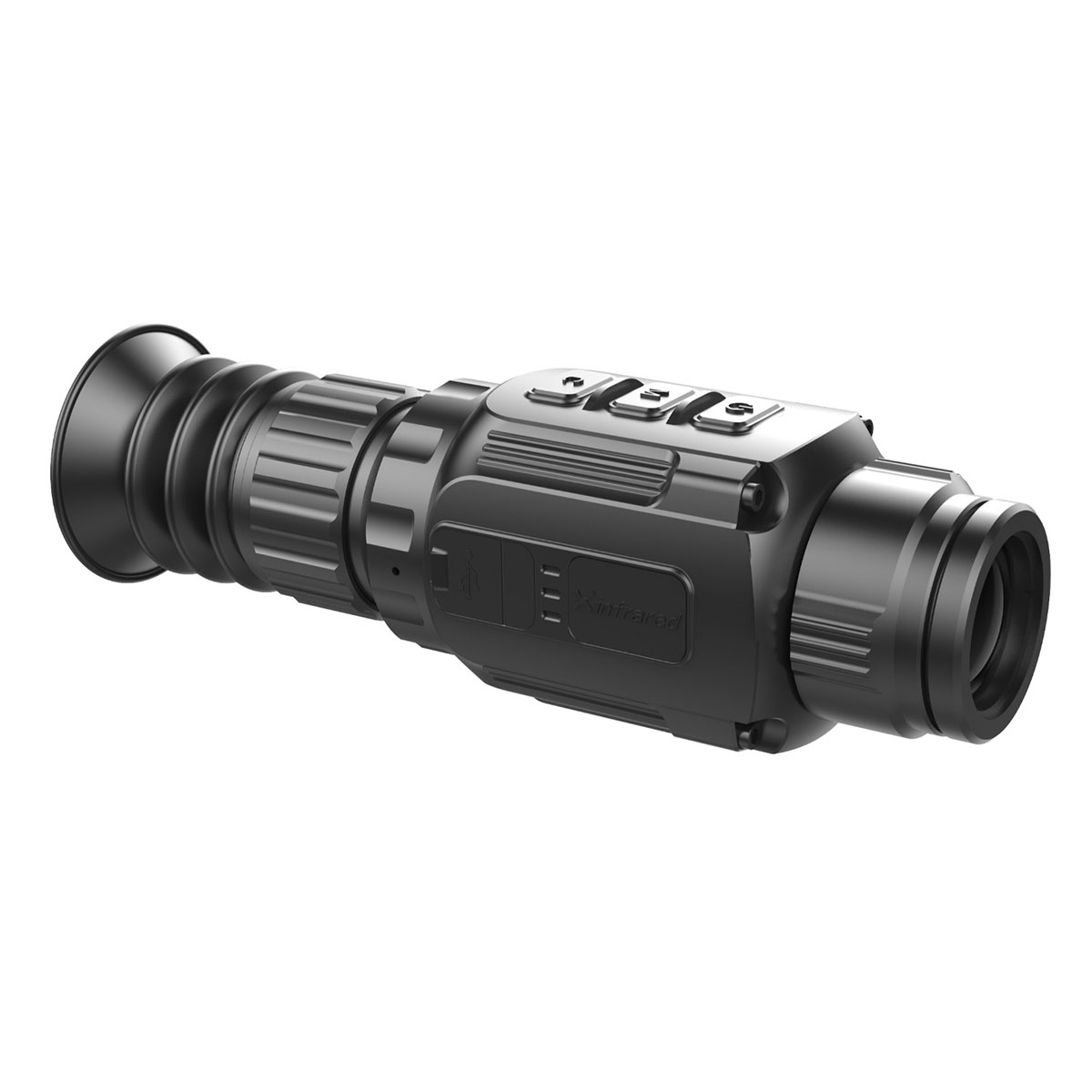

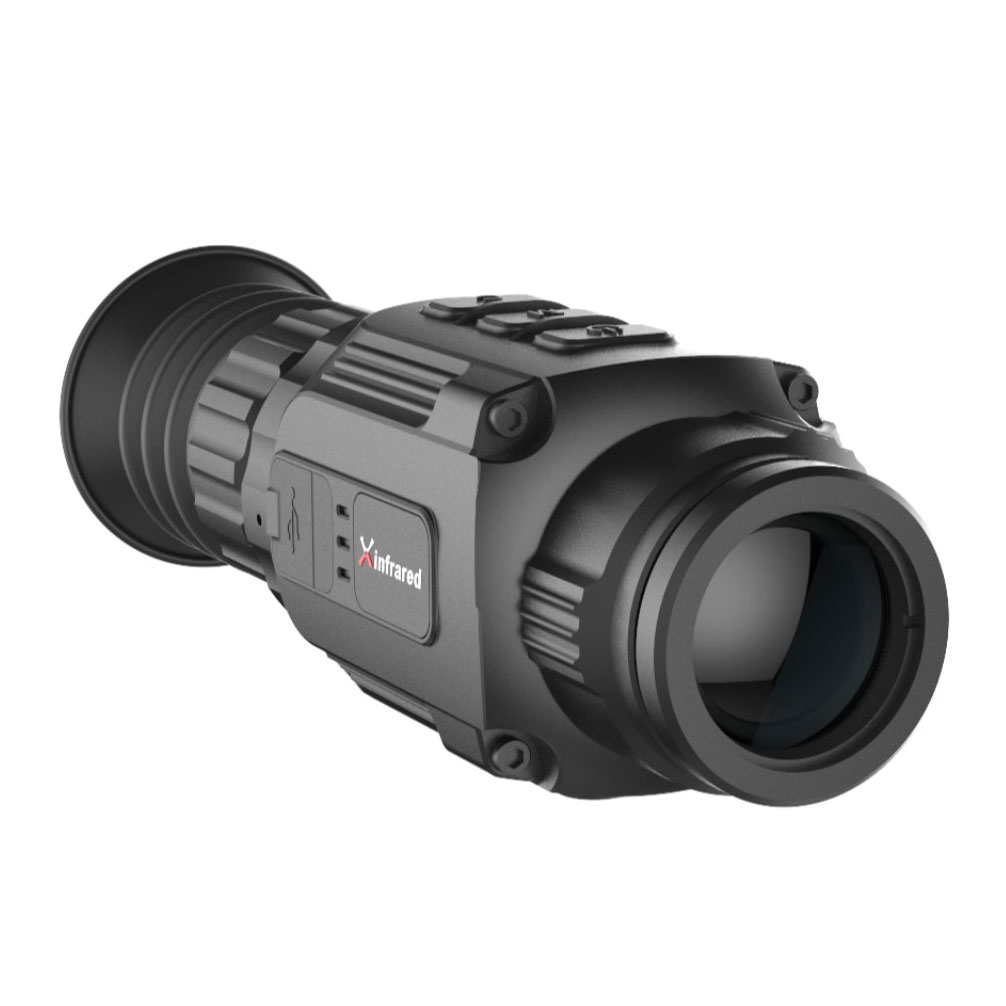

InfiRay Saim SCL25 Thermal (384x288) Scope - 1.4x-5.6 - 25mm Lens
Related Products & Accessories
Product Details
Manufacturer code: IRAYSCL25 | Our code: 135903
Infiray Saim SCL25 Thermal (384x288) Scope - 1.4x-5.6 - 25mm Lens. The Saim series thermal imaging scope is designed with portability and easy of operation in mind. Ergonomic design and excellent imaging quality make the Saim series an excellent companion for night observation, even in rainy or foggy weather.
Features
- 384*288 resolution
- 17μm VOx
- 50Hz
- 25mm manual lens
- Magnification 1.4-5.6X
- 1280*960 Display
- Eye relief 40mm
- IP67 waterproofing
High Image Quality
Built-in InfiRay detector and matched with Matrix ?TM powerful algorithm designed to increase imaging clarity and overall image detail. Matrix ?TM results in a sharper, more detailed field of view and enhanced object identifcation capabilities.the Saim series provides high image quality, improving the image contrast automatically, strengthening the image hierarchy, so to find target faster.
User-Friendly Interface
Simple and easy to operate is the initial design intention of the Saim series. Full icon design, easy to understand, and translucent background design of menu can effectively avoid occlusion vision. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.
Image Sharpness Adjustment
Image sharpness can be adjusted manually to fit individual preferences for high quality image, and there are four levels for option by short pressing menu key.
Ultraclear Mode
Ultraclear mode is specially for bad weather such as heavy fog and raining, that make Saim be more sensitive and get more details.
Compact Size and Lightweight
With reasonable layout, compact structure and light weight, the Saim series is more comfortable and convenient for outdoor use.
High Shock Resistance
The Saim series features exceptionally high shock resistance up to 1000G.
External Power Supply
The working time can be significantly prolonged by connecting with high capacity external power supply units, i.e. portable power source via Type-C cable presented in the package.
Picture-in-Picture Function
Picture-in-Picture improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps to magnify the target while retaining the rest of the field of view visible.
Long detection range 1800 meters
Actual range of detection of a human figure (1.8x0.5 m) in the field (human has outerwear, in the field against the background of the forest for the Saim thermal scopes up to 1818 meters, depending on the model.
Specifications
- Resolution 384x288
- Pixel Size, μm 17
- NETD, mk ≤50
- Frame Refresh Rate, Hz 50
- Objective Lens, mm 25
- Field of View 14.9°×11.2°
- Magnification, x 1.4-5.6
- Diopter Adjustment -5D?+5D
- Display Resolution 1280x960 LCOS
- WiFi & Recorder x
- Compass & Msensor x
- Amount of Built in Memory gb x
- Battery Type CR123x2
- Max. Battery Life,(t=25?),h 4
- Weight, (without battery) g <410
- Dimension, mm 186x61x61
- Detection Range, m 970
