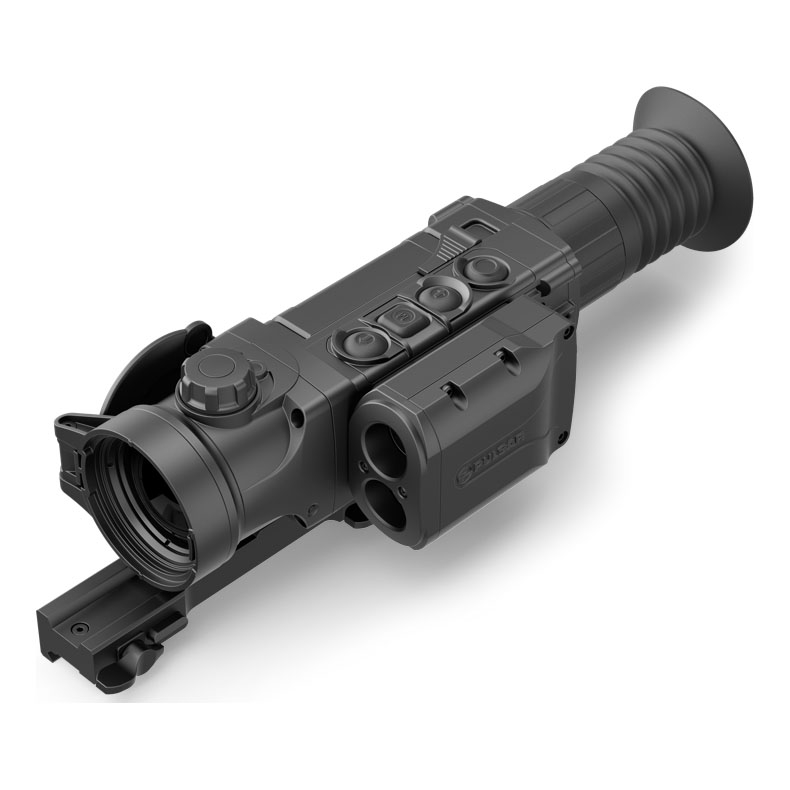

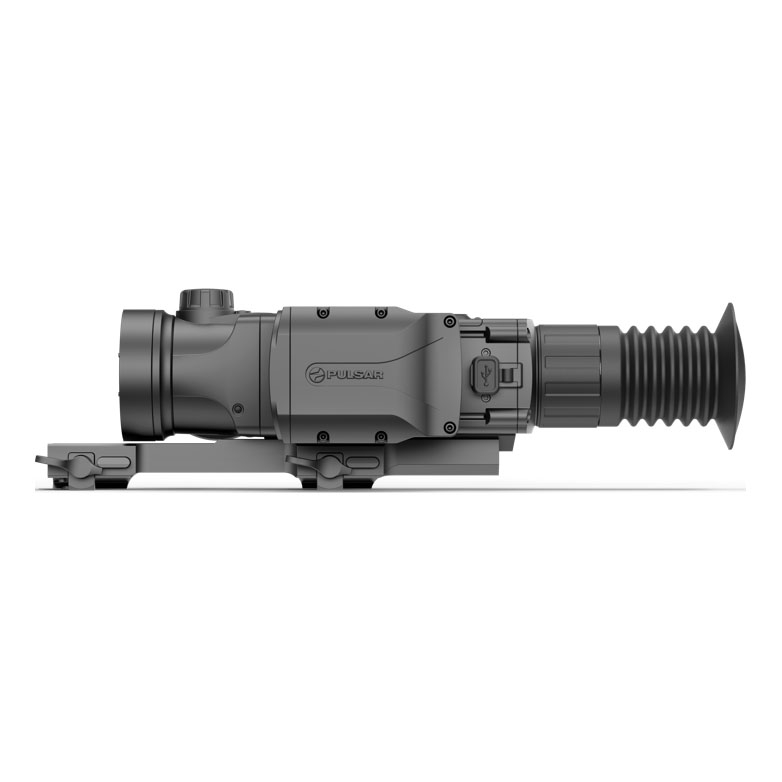

Pulsar Trail LRF XQ50 Thermal Weapon Scope
Related Products & Accessories
Product Details
Manufacturer code: PUL-76518 | Our code: 129477
August 2019 Firmware Update - Image And Video Enhancement - Click here for details
Pulsar Trail LRF XQ50 Thermal Weapon Scope. Thermal imaging sight with built in rangefinder. The Trail LRF Series of Thermal Imaging Weapon Scopes are designed for long distance, high accuracy shooting with an integrated laser rangefinder and either a 640x480 or 384x288 17μm thermal sensor, which offers detection ranges up to 1800m. The XP and XQ Series have identical features and software, it is only the sensor and digital magnification that vary. A 50Hz frame rate ensures smooth viewing of moving targets.
The XQ Series feature 4x digital magnification and have the same (PiP) functionality. The built-in accelerometer/gyroscope helps aid shooters by notifying them of a ‘cant’ greater than 5.0 degrees as well as performing an auto-shutdown when in a non-firing/ resting position for power conservation.
The Trail Series have a choice of reticles in a variety of colours and types, all of which have programmable brightness. Powered by the B-Pack power system and completely Stream Vision compatible the Trail Series is the most innovative thermal weapon scope to date. Please Note: The Trail is provided with a standard weaver mount.
Specifications
- Magnification: 2.7
- Built-in rangefinder
- Range of detection: 1800 meters
- Integration with iOS and Android devices
What's in the box
- Thermal imaging sight
- Battery Pack
- Battery Pack charging unit
- USB cable
- Charging unit 220v/USB
- Remote control with encode
- Weaver rail
- Hex wrench
- Cleaning cloth
- User manual
- Warranty card
- Carrying case
Built-in rangefinder
Precision shooting begins with knowing the distance to your target. The Trail LRF features an integrated laser rangefinder capable of capturing and displaying target distances accurately, within ±1 m., up to 1800 m.
The best image definition
A heat sink, located on the device's body, effectively prevents heat build-up from the sensor and other components while also significantly reducing temperature and noise sensitivity, especially between calibrations.
Variable magnification
Trail models include variable magnification, up to 8x depending on model, and feature both 2x step-up and smooth, graduated magnification for a truly optimum, customized field of view.
High image frequency
At a high refresh rate of 50Hz, the Trail provides comfortable viewing throughout dynamic, rapid motion.
Detection distance up to 1800 m
Depending on model, Trail thermal sights detect big-game-size heat signatures up to 1800 meters away
High recoil resistance rating
The Trail features exceptionally high shock resistance, capable of handling high-powered firearm recoil, up to .375-cal., including smoothbore and airsoft.
3 Zeroing Profiles / 15 Distances
Save three individual firearm/ammunition zeroing profiles, including different reticles, at up to five distances, in the Trail’s memory. Zoom zeroing support ensures precise zeroing accuracy.
10 Electronic reticles
A full complement of digitally displayed reticle solutions ensures quick target acquisition and a richly contrasting sight picture. Choose from an array of reticle patterns, colors and brightness settings.
Picture-in-Picture mode
Picture-in-Picture improves accuracy by providing a magnified image of the reticle area at the top of the display. With only 1/10 of the display area reserved for PiP, the field of view remains virtually unobstructed for simultaneous PiP and FOV viewing.
Built-in video recording
Capturing still images and video is seamless with the Trail’s built-in video recorder. Image and video content is stored internally and can easily be transferred to PC/laptop via wired connection or Wi-Fi.
Mobile-friendly (iOS, Android) with remote control and live internet streaming
The highlight of the Trail is the ability to link via Wi-Fi the device with Android and iOS based mobile units using the free mobile application Stream Vision. The Stream Vision software connects the device with Android/iOS mobile unit (smartphone or tablet) which enables you to receive footage in the real time mode, to distantly operate the device with your smartphone, as well to stream online the image captured by the device to Youtube.
Built-in accelerometer / gyroscope
A built-in accelerometer/gyroscope improves accuracy by precisely identifying cant and angles greater than 5° with an arrow indicating the direction and degree of lateral tilting. Increased angles are denoted with additional arrows.Moreover, the riflescope can be set to auto shutdown when resting in a non-shooting position. Unit operation may be disabled when the vertical angle is greater than 70° or horizontal angle is greater than 30°. The accelerometer feature may be temporarily disabled for continued use at excessive angles.
Quick-change B-Pack power units
Trail includes a progressive autonomous B-Pack power supply consisting of a quick-detach, rechargeable IPS5, 5.2A-h battery pack designed to deliver over 8 hrs. of operation on maximum mode. Higher-powered IPS10 battery packs, as well as CR123A and AA battery cases, also are available and provide a perfect off-the-grid power solution.
Fully waterproof
IPX7 waterproof-rated protection ensures the Trail performs perfectly in wet weather, even during intense rain, snowfall and submersion in 3 ft. of water for up to 30 min. (IEC 60529).
Wide range of operating temperatures
With a frost-resistant AMOLED display, the Trail thermal imaging sight is designed to deliver flawless performance at an extreme temperature range of -25° ... +50°?.
Fully-functional wireless control
The ergonomic, wireless remote control, with encoder wheel, puts the full range of the Trail’s capabilities at your fingertips for comfortable, convenient, hands-off operation.
Display-off mode
During short periods of inactivity and better concealment, Display Off powers down the display without interrupting other operating functions. Using Display Off means a much faster restart time when you need it most.
User-friendly interface
The Trail is designed with ease-of-operation in mind. User feedback has resulted in the most friendly interface to date, complete with an easy-to-read, icon-driven, alpha-numeric status bar at the bottom of the display. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.
Updatable software
For initial setup and additional updates, the iOS and Android compatible Stream Vision App ensures the most recent Trail software versions are available.
Specifications
| Electronic components | |
| Type of Microbolometer | Uncooled |
| Frame Rate, Hz | 50 |
| Microbolometer resolution, pixels | 384x288 |
| Pixel Pitch, µm | 17 |
| Display Resolution, pix. | 640x480 |
| Built-In Video Recorder Availability | Yes |
| Operation modes | 3 |
| Integrated Wi-Fi module | Yes |
| Optical characteristics | |
| Magnification, ? | 2.7 |
| Digital zoom, x | 2x, 4x |
| Objective Lens | F50/1.2 |
| Eye Relief, mm | 50 |
| Diopter adjustment, dptr. | +/-4 |
| Close-up distance, m | 5 |
| Range of Detection, m | |
| Range of detection, m (object high*width = 1.7*0.5m) | 1800 |
| Power Supply | |
| Power Supply, V | 3.0 - 4.2 |
| Battery type | B-Pack (Li-ion) |
| Power Supply | |
| Battery Life, hour | 8 |
| External Power Supply | 5V - USB |
| Using on weapon | |
| Reticle type | Variable electronic reticles |
| Windage & Elevation, 1 click, mm/ 100m | 20/20 |
| Shock-proofness, E0, joules (when used with rifled gun) | 6000 |
| Click range H/V, mm@100m | 4000/4000 |
| Mounting brackets on weapon | Weaver, Weaver Quick-release, CZ Quick-release |
| Physical & operational characteristics | |
| Remote control | Wireless |
| Operating Temperature,°? | - 25 … +50 |
| Level of Protection (acc. to IEC 60529) | IPX7 |
| Waterproofness | Yes |
| Dimensions, mm | 292x102x76 |
| Weight (without batteries), kg | 0.71 |
| Built-in rangefinder | |
| Laser wavelength, nm | 905 |
| Measurement range, m | 1000 |
| Accuracy of range measurement, m | +/-1 |
