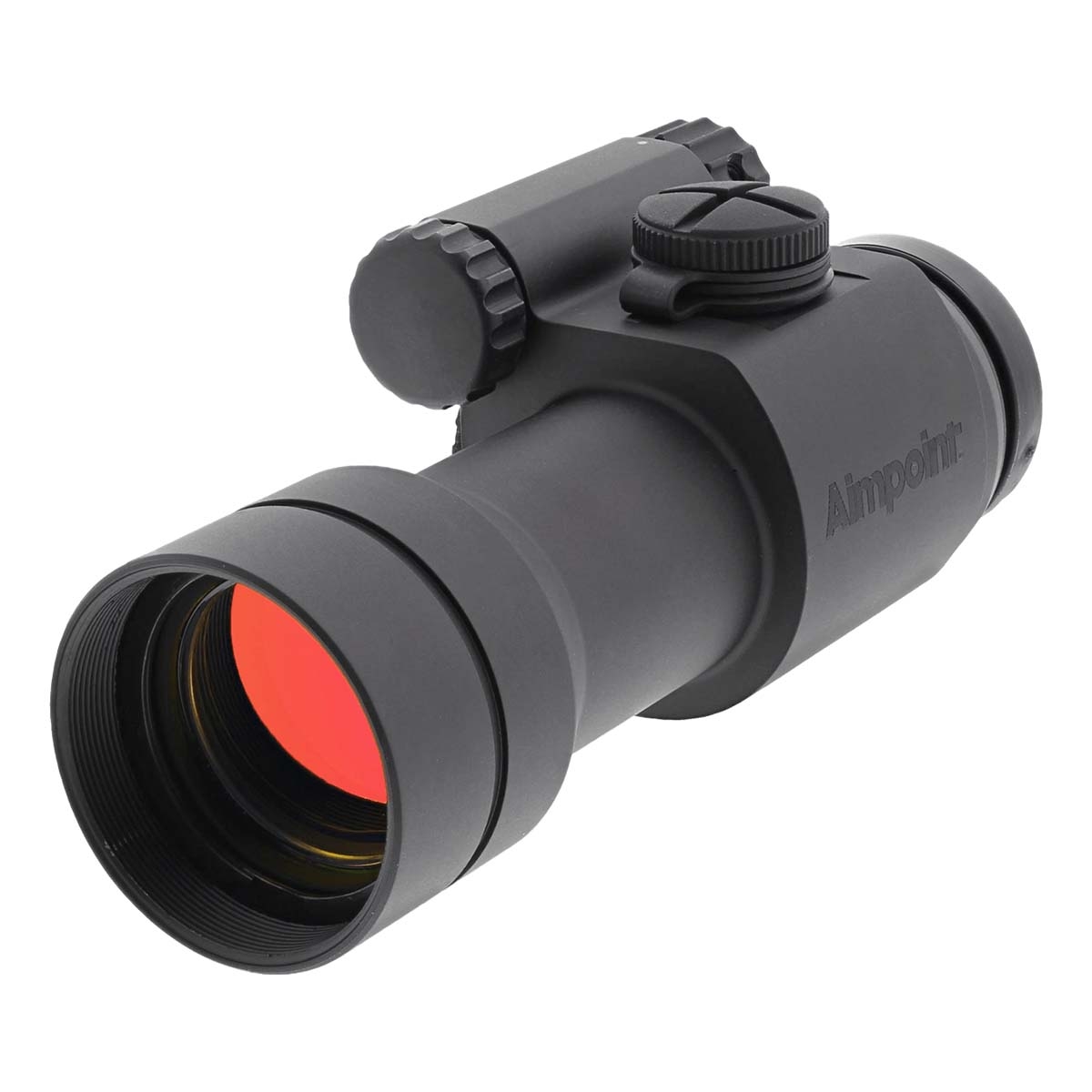

Aimpoint Comp C3 ACET 30mm Dot Sight - 2 MOA

Aimpoint Comp C3 ACET 30mm Dot Sight - 2 MOA. Aimpoint® CompC3 is the lightest sight in its class and is specifically designed to use whenever you need a compact sight with a 30 mm tube.

The Aimpoint CompC3 is designed to be used whenever you need a compact sight with a 30 mm tube diameter. This sight has a precise 2 MOA dot and a is member of the Comp series sights - recognized leader for the professional market. The CompC3 is a civilian version for use on scout rifles, bows, carbines and competition pistols.

The Aimpoint CompC3 is a compact sight with the same high quality and performance as sights for the professional market.

Features

• 2 MOA dot size
• 50,000 hours (over 5 years) of constant operation on one battery
• 9 position rotary intensity adjustment
• Weight 200 g (7.1 oz) sight only
• Submersible to 5 meters (15 feet)
• Ideal for use on rifles with short to standard actions, shotguns, semi-automatic rifles, and crossbows

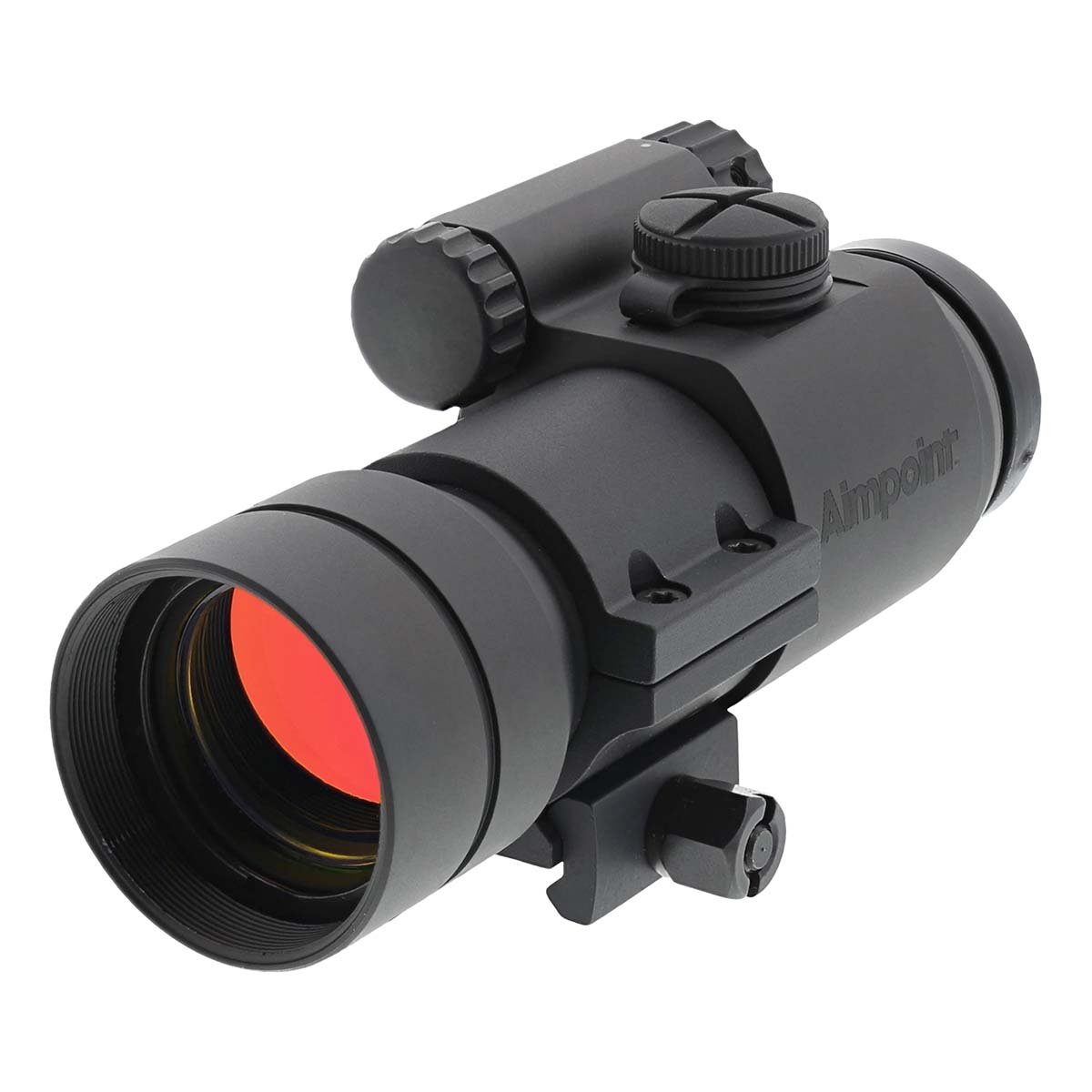

• Easy to mount, equipped with 30 mm ring that fits all Weaver/Picatinny bases
• Anodized high strength aluminum housing, semi-matte black
• The civilian version of the rugged Aimpoint Comp- series that is first to meet the requirement of MIL-SPEC

Specifications

Physical

• Size L x W x H 120 x 48 x 48 mm
• Weight 200 g
• Size L x W x H - Sight Only 120 x 48 x 48 mm
• Weight - Sight Only 200 g
• Material Housing and Tube High Strength Aluminum
• Surface Finish Housing Anodized, Semi-Matte
• Color Housing Black
• Tube Diameter 30 mm / 1.2 in
• Lens Covers Bikini Lens Cover, Rubberband
• Adjustment 1 Click = 16 mm at 100 m / 0.6 in at 100 yds

Optical

• Dot Size 2 MOA
• Magnification 1X - No Magnification
• Night Vision Device (NVD) Compatible No
• Transmission Average 60% in the range 420 - 700 nm
• Eye Relief Unlimited
• Diode LED (Light Emitting Diode) totally eye safe
• Dot Color Peak Wavelength: 655 ± 15 nm
• Light Source Wavelength 650 nm red light
• Clear Aperature 23 mm / 0.9 in
• Parallax Operationally parallax free – No centering required

Power Source

• Battery Life 50,000 h at daylight setting 7 (15,000 Lux, room temperature)
• Battery Type 1/3N, 3V, Lithium
• Power Switch Rotary Switch
• Daylight (DL) Settings 9

Mounting

• Mounting Solution Ring, 30 mm Wide
• Mounting Platform Weaver /Picatinny Rail
• Torque - Mount to Sight 1.35 Nm / 12 in-lbs (Torx T10)
• Torque - Mount to Rail 2.8 Nm / 25 in-lbs

Environmental

• Submersible to 5 m / 15 ft
• Laser None
• Radioactive Material None
• Temperature Range Operation - 30°C to + 60°C / - 20°F to + 140°F
• Temperature Range Storage - 51°C to + 71°C / - 60°F to + 160°F
• Temperature Shock Operable after a temperature shock between - 30°C and + 60°C / - 22°F and + 140°F
• Humidity Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
• Shock Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
• Vibration Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
• Chemical Resistance Withstands occasional contamination by weapons cleaners, lubricants, fuels and insect repellents.
