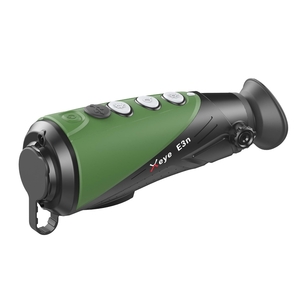

InfiRay Eye3n Thermal (384x288) Monocular - 19mm Lens
Related Products & Accessories
Product Details
Manufacturer code: IRAYE3N | Our code: 135895
Infiray Eye3n Thermal (384x288) Monocular - 19mm Lens. The compact & elegant design and easy operational functions make the Eye series thermal imaging monocular the ideal target observation tool in darkness.
Features
- 384*288 resolution
- 17μm VOx
- 50Hz
- 19mm lens
High Image Quality
The Eye series are is embedded with IRay independently developed high performance VOx detector which allows you to get high detailed thermal images, so as to make it simpler to search targets in darkness. Comprised of advanced software algorithms EYE is designed to increase imaging clarity and overall image detail which results in a sharper, more detailed field of view and enhanced object identifcation capabilities.
High Frame Rate
The 50Hz frame rate guarantees you to capture every moment that you want to catch. Smooth, fluent and crystal clear views offers excellent observation for all your outdoor adventures.
Pocket-Sized Thermal Vision Monocular
The InfiRay EYE series is a pocket-sized thermal vision monocular for exploring the outdoors—at night and in lowlight conditions. EYE reveals your surroundings and helps you see people, objects and animals over hundreds meters away. Simple to use, with still image and video recording, EYE is the perfect companion, whether in the back country or your own backyard.
17um Thermal Imaging Sensor
High performance 17μm pixel pitch detectors are embedded in the compact body.
Friendly Electrical Interface
The EYE is designed with ease-of-operation in mind. The monocular can be connected to specified APP via USB cable which allows user to watch the real-time video, take picture and record video on mobile devices based on Android and iOS such as smartphone or tablet. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.
Standby Function
When it is necessary to temporarily stop observation the user can apply standby function. It provides the necessary level of camouflage (no light from the eyepiece of the device) between observation sessions as well as the fast restart of observation (when display is turned off, all other systems are working; for normal operation it is enough just to power on the display again).
Compact Size and Lightweight
Compact size and lightweight becomes important in outdoor using, which ensure the highest level of comfort and usability.
5 Color Palettes
The Eye series provides more than 5 color palettes for true colorized temperature mapping, including “white hot”,“black hot”,“red hot”,“color” and “hot target highlight”. Switching between different color palettes is fast and easy.
Long Detection Range
Powerful objective lens in combination with professional grade thermal imaging sensor with NETD 50 mK provides exceptional detection capabilities. An average human-size target can be detected at a 1300m distance in complete darkness.
Specifications
- Resolution, pixels 384x288
- Pixel Size, μm 17
- NETD, mk ≤50
- Frame Rate, Hz 50
- Objective Lens, mm 19
- Field of View 19.5°×14.7°
- Display 720×540 LCOS
- Optical Magnification, x 0.85-1.7
- Digital Zoom, x 2x - 4x
- Max. Battery Life, h 15
- Wi-Fi ×
- Photo & Video ×
- Laser ×
- LED Indicator √
- Dimension, mm 160×62×62
- Weight, g <320
- Detection Range, m 739
