Guide IR TrackIR TK50 Thermal Imaging (400x300) Monocular

« View all Thermal Imagers


Guide IR TrackIR TK50 Thermal Imaging (400x300) Monocular

Price £1929.95
In stock
Log in to add to Wish List

FINANCE OPTIONS
  per month
Finance option:
Deposit:
Monthly Payment
Cash Price
Deposit to Pay
Loan Amount
Loan Repayment
Cost of Loan
Total Amount Payable
Number of Payments

HOW TO APPLY
Add products to basket and click 'apply for finance' on basket page.

Subject to terms and conditions.

Available to UK residents aged 18 or over only.

HUKD


Product Details

Manufacturer code: GUI-TRACKIR-50     |     Our code: 135441

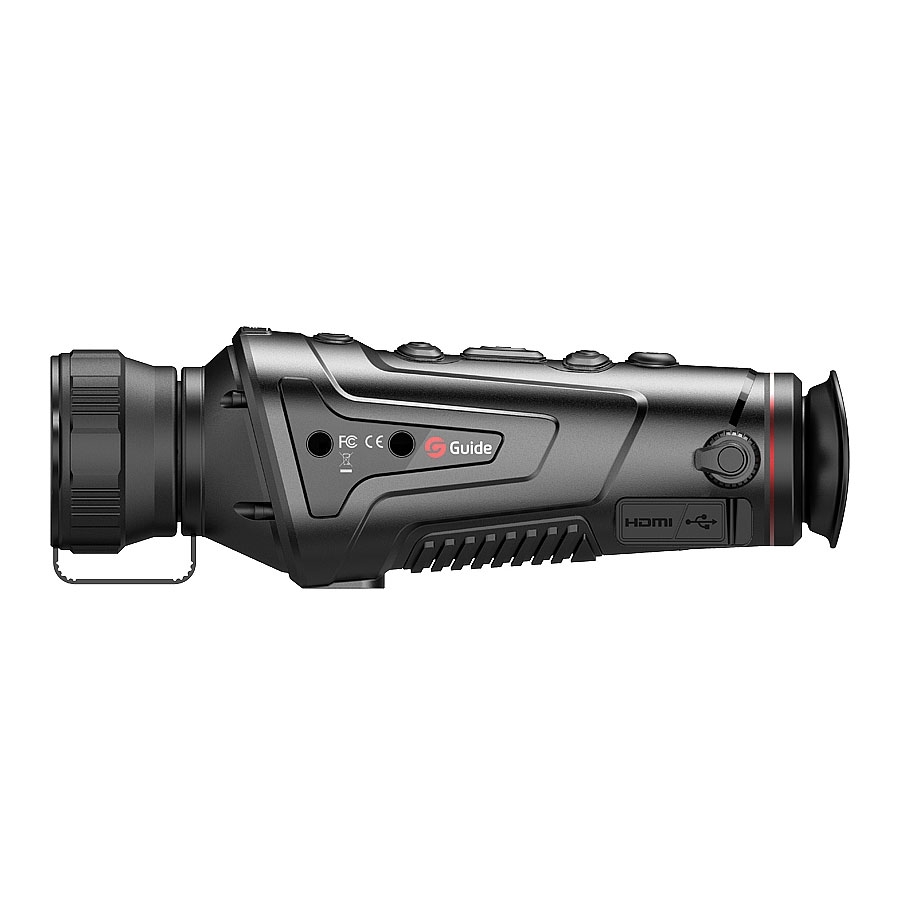

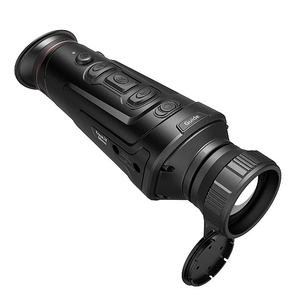

Guide IR TrackIR TK35 Thermal Imaging (400x300) Monocular. The TrackIR Series of thermal imaging monocular features a 400x300 17µm <50mK NETD thermal sensor & image enhancement for performance imaging combined with a 50Hz refresh rate and a 1280x960 HD LCOS display resulting in a smooth & crisp viewing experience. The TrackIR 50 has a native magnification of 3.3x, with a digital zoom of 4x, resulting in a 13.2x total magnification which alongside the units long distance detection (Humans: 1400m, Vehicles: 3000m) makes this unit perfect as a thermal spotter.

Features a built-in stadiametric rangefinder for measuring the distance of known objects as well as Picture-in-Picture (PiP) mode which adds a zoomed-in display-box within the main viewfinder, this allows the user to hone-in on their subject whilst maintaining full awareness of the wider field of view.

The unit has an internal Li-Ion battery pack with an operating time of up to 5 hours and can be recharged via USB Cable.

The TrackIR Series can also connect to a smartphone via a dedicated App, this allows the unit to be operated remotely, share captured photos & videos as well as be live viewed.

Specifications

  • Thermal Sensor: 400x300 17µm <50mK NETD
  • Spectral Range: 8µm-14µm
  • Detection Range: 1400m (Human: 1.8mx0.5m), 3000m (Vehicle: 2.3mx2.3m)
  • Magnification: 3.3x-13.2x
  • Digital Zoom: 1x-4x (Smooth)
  • Focus: 50mm/F1.2 (Manual)
  • Field of View: 7.8°x5.8°
  • Display: 1280x960 (0.4") LCOS Colour
  • Dioptre: -4 to +2
  • Frame Rate: 50Hz
  • Colour Palettes: White hot, black hot, iron red, blue hot, red hot
  • Scene Modes: Enhanced, Highlight, Natural
  • Picture-in-Picture Mode: Yes
  • Power: Internal Li-Ion (2x18650 6000mAh)
  • Operating Time: >5h
  • Ports: Micro-USB-C, Video Out, Memory Card Slot
  • Internal Memory: 16GB
  • Operating Temperature: -10? to 50?
  • Protection: IP66
  • Drop Rating: 1m
  • Weight: 535g
  • Dimensions: 114x65x71mm

Additional Functions

  • Photo & Video Capture
  • Hotspot Tracking
  • Stadiametric Rangefinder
  • Wi-Fi/ App
  • Compensation Modes: Auto comp./ shutter comp./ scene comp.
  • Indicate Box: Red, yellow, green (coordinates of the indicator box are adjustable)
  • Image Enhancement
  • Brightness & contrast
  • Auto power-off
  • Auto sleep
  • Super power-save mode
  • Indicator off

Includes

  • Thermal Imager
  • USB Cable
  • Micro HDMI Cable
  • Lens Cover
  • Wrist Strap
  • Lining Package
  • Quick Start Guide
