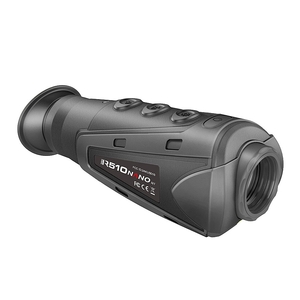

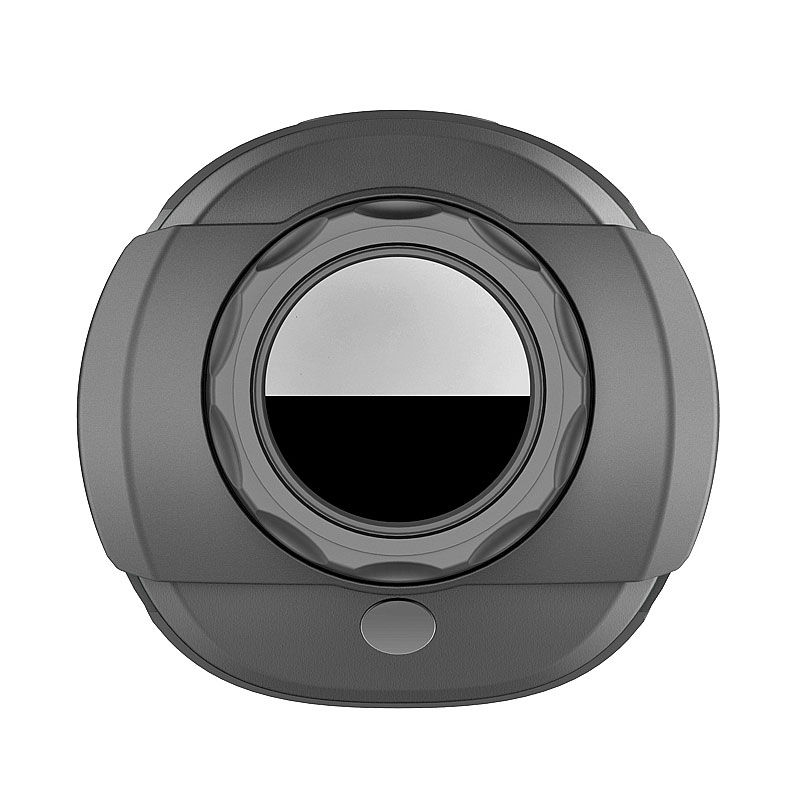

Guide IR 510 Nano N1 (19mm) Thermal Imaging (400x300) Monocular
Related Products & Accessories
Product Details
Manufacturer code: GUI-IR510N1 | Our code: 135435
Guide IR 510 Nano N1 (19mm) Thermal Imaging (400x300) Monocular. The IR510 Nano Series from Guide incorporates thermal technology, advanced algorithms and innovation into a compact and easy to use device. Features a 400x300 17µm thermal sensor and a LCOS colour display with 50Hz frame rate for smooth & crisp viewing and is capable of detecting a human up to 500m. Users can select from up to five different colour palettes for a more customised experience.
The unit operates silently and is easy to use, featuring four control buttons all of which are placed within the users natural hand-placement for easy reach.
Power is supplied via an internal battery which provides up to 5 hours of operation time and can be recharged via a standard USB cable.
Specifications
- Thermal Sensor: 400x300 17µm
- Spectral Range: 8µm-14µm
- Detection Range: 500m (Human: 1.8mx0.5m), 1300m (Vehicle: 2.3mx2.3m)
- Digital Zoom: 2-4x
- Focus: 19mm (Free)
- Dioptre: ±4
- Field of View: 19.0° x 14.5°
- Display: 0.2" LCOS Colour
- Colour Palettes: Black hot, white hot, red hot 1, red hot 2, red hot 3
- Frame Rate: 50Hz
- Operating Temperature: -10? to 50?
- Protection: IP66
- Drop Rating: 1m
- Weight: 350g
- Size: 160x67x62mm
- Battery: Internal Li-Ion (3.7v, 3200mAh)
- Operating Time: >5
- Ports: USB (Charging) & MCX Connector (PAL/NTSC)
- Adaptor: Standard USB power adaptor (Max 10w)
Additional Functions
- Built in torch
- Cross cursor
- Zoom
- Freeze
- Charging indicator
- Active indicator
Includes
- Thermal imager
- Power adapter
- USB cable
- Video cable
- lens cap
- Wrist strap
- Shoulder strap
- Soft drawstring bag
- User manual
