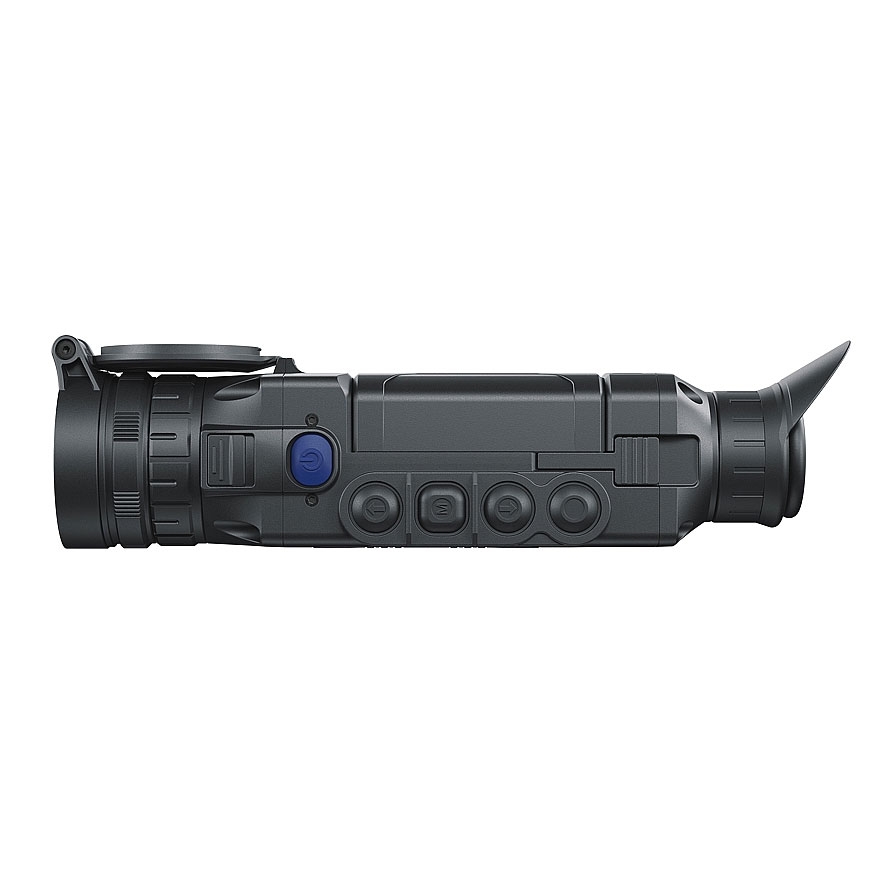

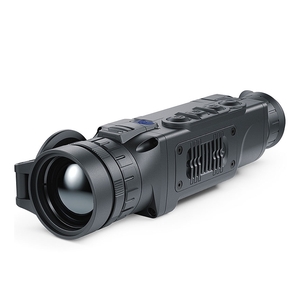

Pulsar Helion 2 XP50 Thermal Imager

Price £2949.95
In stock
Log in to add to Wish List

FINANCE OPTIONS
  per month
Finance option:
Deposit:
Monthly Payment
Cash Price
Deposit to Pay
Loan Amount
Loan Repayment
Cost of Loan
Total Amount Payable
Number of Payments

HOW TO APPLY
Add products to basket and click 'apply for finance' on basket page.

Subject to terms and conditions.

Available to UK residents aged 18 or over only.

HUKD


Related Products & Accessories




Product Details

Manufacturer code: PUL-77402     |     Our code: 134828

Pulsar Helion 2 XP50 Thermal Imager. The Helion 2 XP50 has a generation 2 thermal sensor, providing even more detail in difficult environmental conditions such as cold mornings, rain or fog.

New <40mK Thermal Sensor

By now, most thermal users are familiar with the sensor resolution of a device e.g. 640x480, and also the pixel pitch e.g. 17µm. The improvement of these new Series 2 devices concentrates on a key specification of thermal sensor technology – the NETD value.

The NETD (Noise Equivalent of Temperature Differential), expressed in millikelvins (mK) is one of the most important parameters for thermal sensors as it describes their sensitivity. The lower the NETD value, the higher the sensitivity.

In existing Helion, Trail and Accolade series models the NETD value was sub 60mK. The new <40mK sensor, exclusively manufactured by ULIS for Pulsar puts Pulsar devices at the forefront of the market with the devices all featuring a better image in conditions where there is a low-temperature difference such as during rainfall, fog or cold mornings. These environmental conditions are the most difficult for thermal imagers and this new sensor will provide a clearer image for users.

The Helion 2 XP50 series features a 640x480 17µm thermal sensor and a F50/1.2 lens that provides a detection range of up to 1800m for a deer-sized object. The lens is interchangeable and can be replaced with an F38/1.2 lens (PUL-79054 F38 Thermal Len) allowing the device to satisfy the need to have a spotter with a wide field of view (with the 38mm lens fitted) or by switching the lens, a high magnification unit (with a 50mm lens fitted).

Helion XP50

  • Magnification: 2.5x - 20x (Digital)
  • Horizontal Field of View: 12.4°
  • Detection Range: 1800m
  • Thermal Sensor: 640x480 17µm
  • View Finder: 640x480 HD AMOLED
  • Dimensions: 234x55x58mm
  • Frame rate: 50Hz
