Fenix HP12R-T Rechargeable Headlamp - Red
Related Products & Accessories
Product Details
Manufacturer code: HP12R-T-RED | Our code: 145743

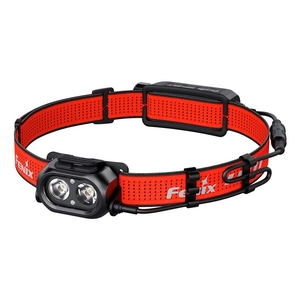

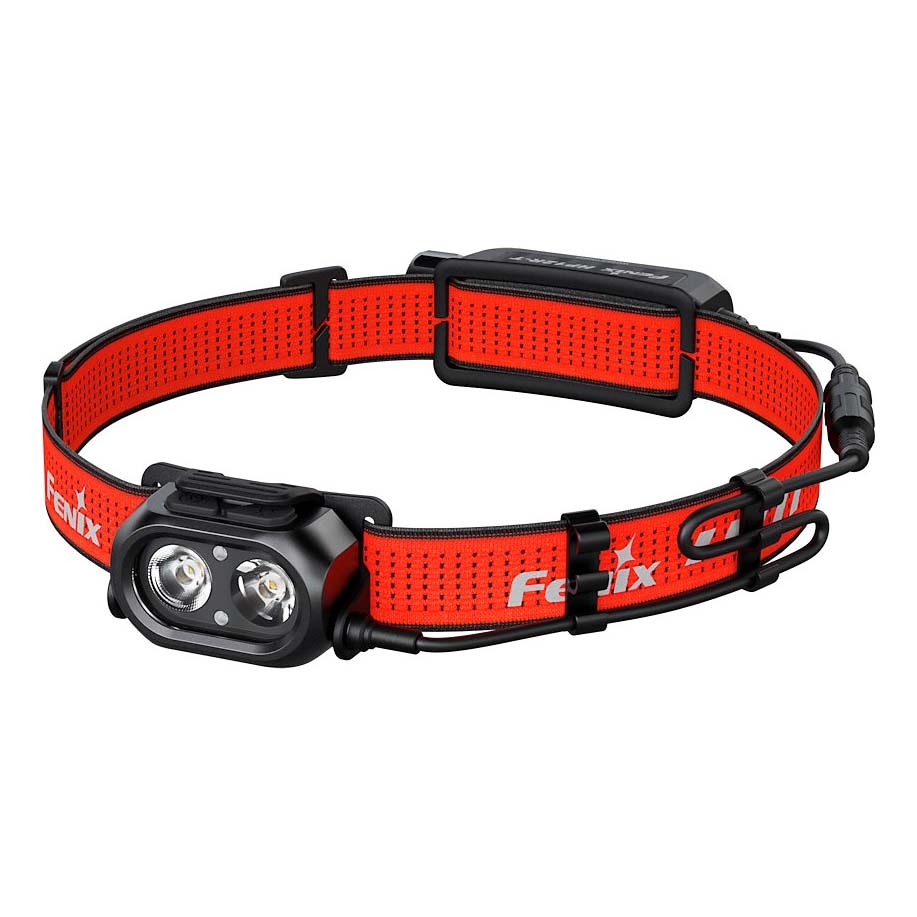

Fenix HP12R-T Rechargeable Headlamp. Fenix HP12R-T is a versatile, fully weatherproof outdoor headlamp that features a cool-white beam for normal use, a neutral-white beam to penetrate rain and fog, and a red beam to preserve night vision. The cool and neutral-white beams can be operated individually or combined for a maximum output of 1300 lumens with a 200m beam range.

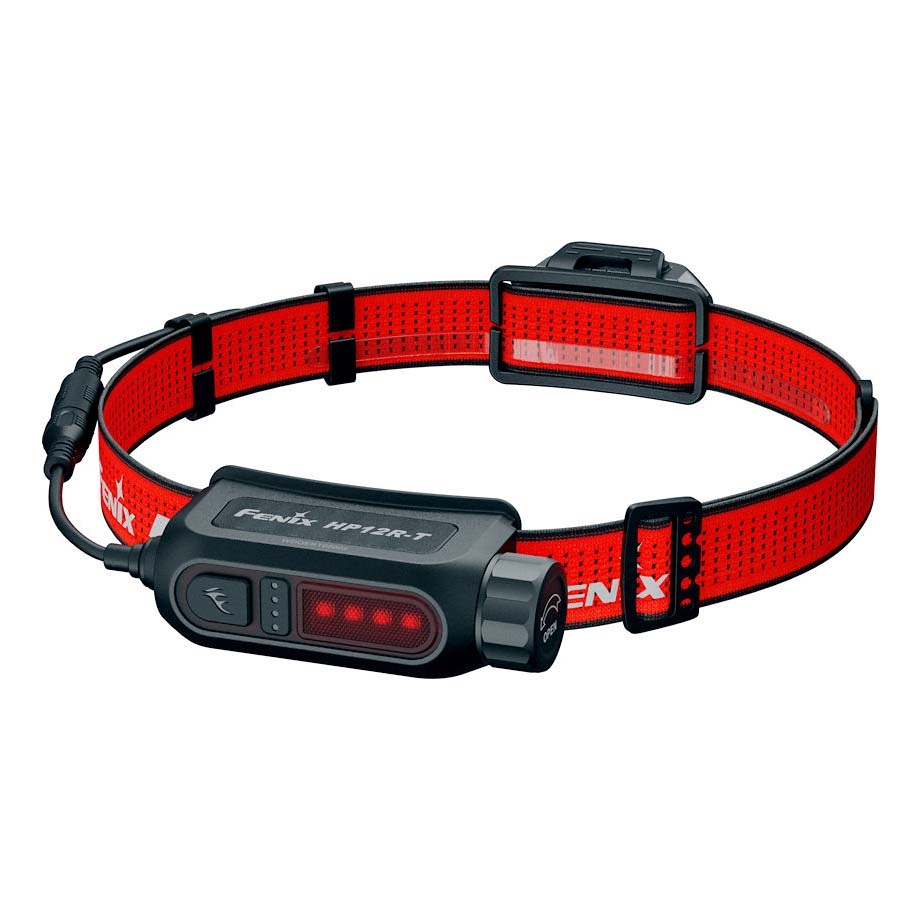

A light weight aluminium head unit is powered by a headband mounted 4000mAh rechargeable 18650 battery for great balance and comfort, with the battery case featuring a red light that offers constant-on and flashing functions for added user safety.
HP12R-T headlamp is operated via dual switches for simple control, each main beam having its own switch. To prevent accidental activation, the light incorporates both mechanical and electronic switch locks.
Fenix HP12R-T head torch is ideal for a multitude of tasks including running, fishing, mountaineering, wild camping and industrial maintenance.
Performance
White beam (6500K colour temperature):
- Low: 5 lumens (310 hrs) - 12m beam
- Med: 70 lumens (30 hrs) - 44m beam
- High: 350 lumens (16 hrs 20 min total) - 98m beam
- Turbo: 1000 lumens (5 hrs total) - 170m beam
Neutral white beam (4000K colour temperature):
- Low: 70 lumens (24.5 hrs) - 47m beam
- Med: 200 lumens (16 hrs) - 79m beam
- High: 500 lumens (6 hrs 10 min total) - 46m beam
Combined beams:
- Low: 70 lumens (18 hrs 20 min) - 47m beam
- Turbo: 1300 lumens (4 hrs 40 min total) - 200m beam
Red light:
- Constant-on: 5 lumens (160 hrs)
- SOS: 5 lumens (320 hrs)
Battery case red light:
- Constant-on: 3 lumens (108 hrs)
- Flash: 3 lumens (216 hrs)
Features

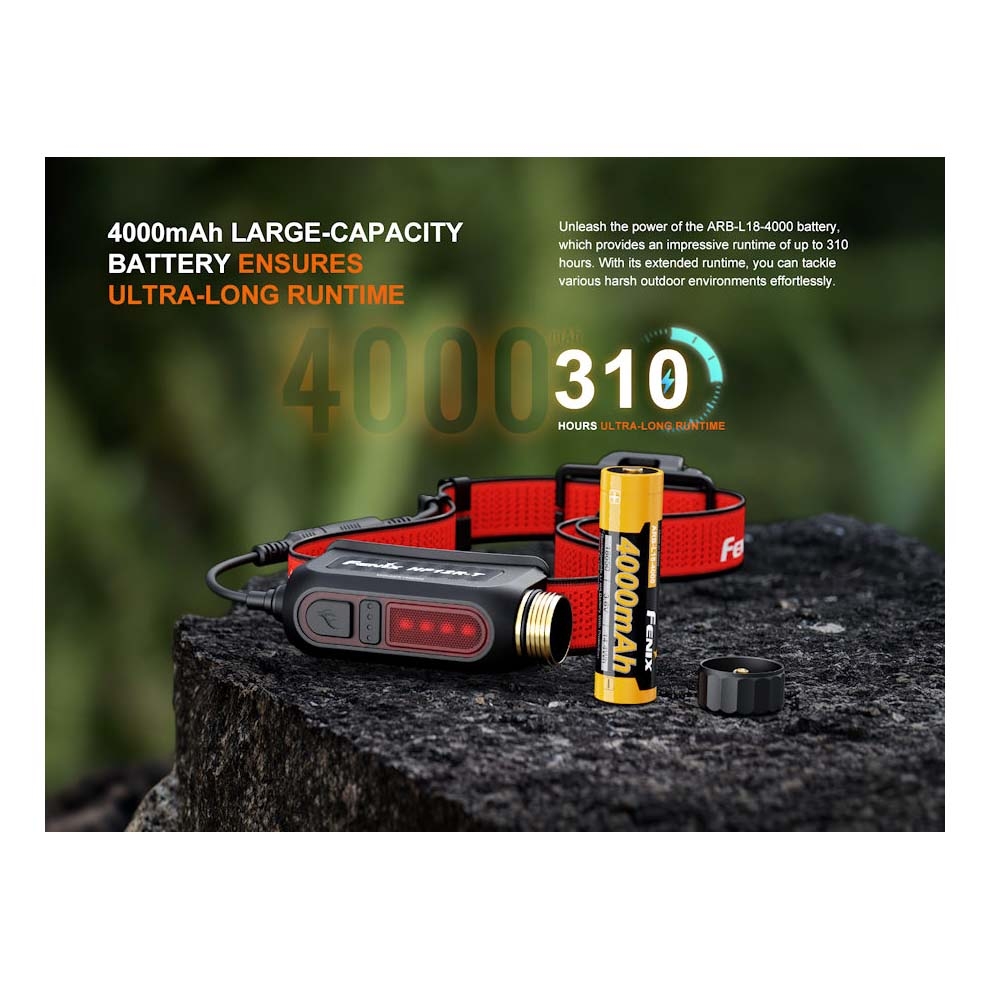

- Powered by a 4000mAh 18650 battery (included)
- USB-C charging - 3.5 hour recharge time
- 13 days emergency run time at 5 lumens !
- Aluminium lamp head provides excellent heat dissipation
- Individual switches for each beam
- Memory mode remembers your last used output level
- Red light built into battery case provides rear safety lighting
- 60 degree tilt mechanism puts light where you need it
- Intelligent memory circuit remembers your last used output level
- Electronic and mechanical lock-out to prevent accidental activation
- Over-heat protection activates at 60c head temperature reducing output until the lamp cools
- Perforated, highly reflective headband for comfort and visibility (easily removed for cleaning)
- Battery level indicator

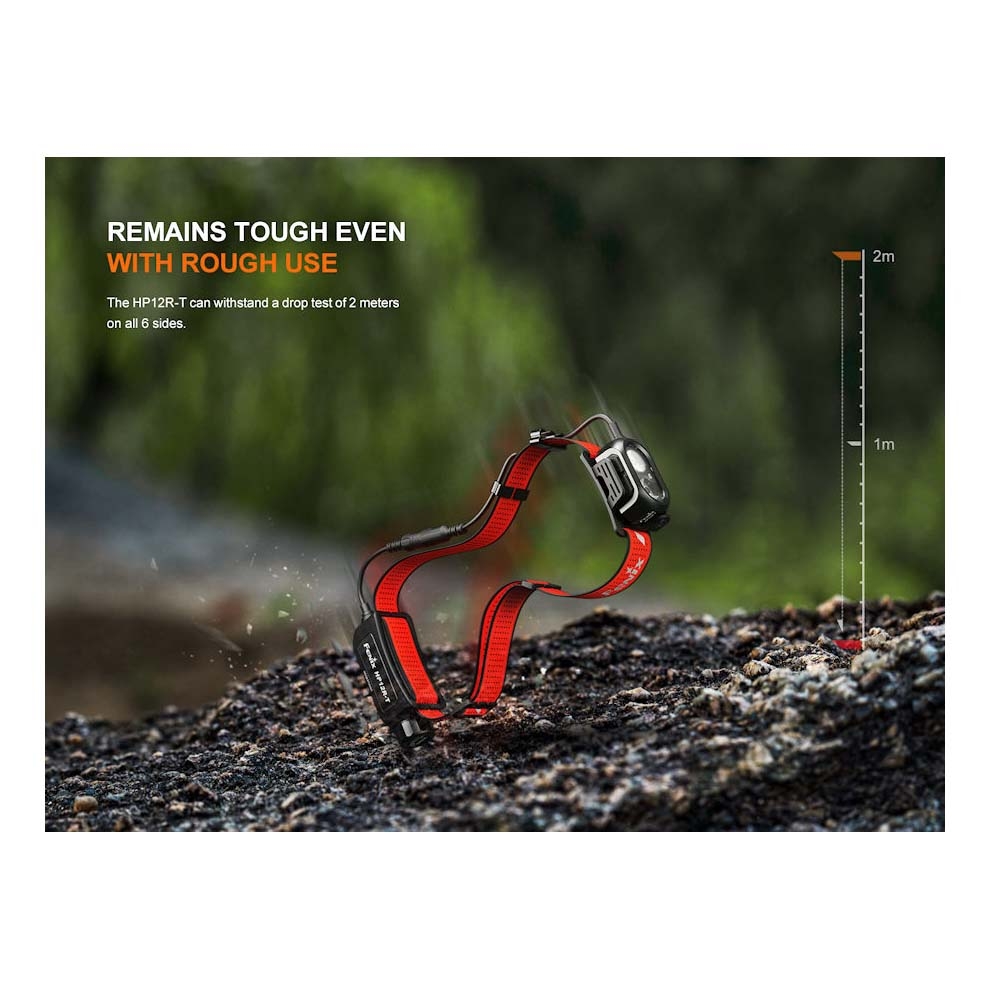

- 2m drop tested
- IP66 weatherproof

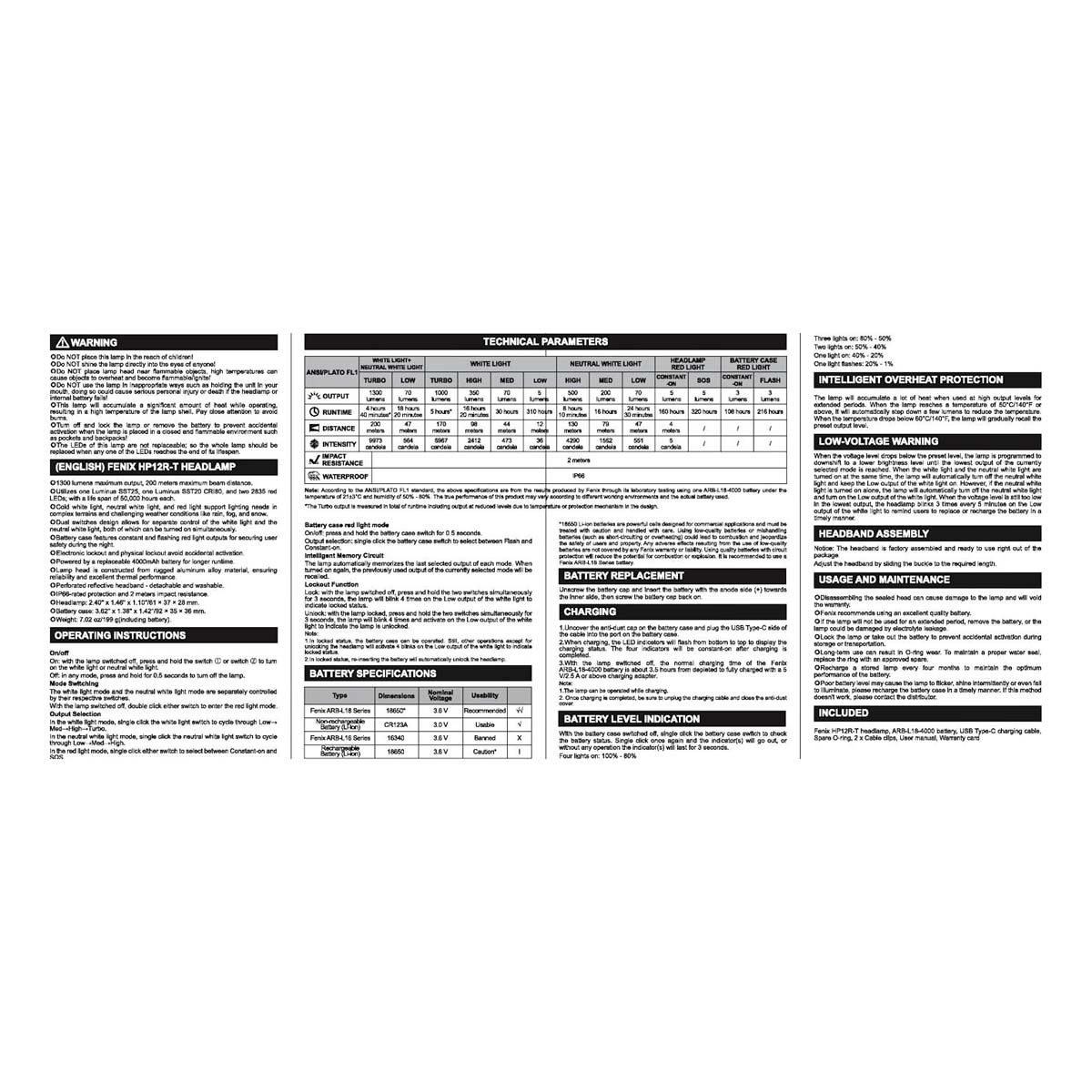

Specifications
- Battery Type: 18650
- Battery Quantity: 1
- Additional Battery Type: 2 x CR123 non-rechargeable batteries (Do not use 3.7v 16340 / RCR123 batteries in this product)
- LED Type: Luminus SST25 White, SST20 CRI180 Warm White, and 2 x 2835 Red LED's
- Output/Runtime: Please refer to product description
- Flashing Modes: Head unit: Red constant and red SOS. Battery case: Red constant and red flash
- Max Beam Distance: 200m
- Reflector: TIR Lens
- Lens Type: TIR Lens
- Switch Type: Dual on - off mode switches (separate controls for cool white and neutral white LED's)
- Construction: Durable aircraft-grade aluminum and quality plastics
- Finish: Premium Type III hard-anodized anti-abrasive finish (aluminium surfaces)
- Tail Stand: No
- Pocket Clip: No
- Waterproofing: IP66, weatherproof and dustproof
- Dimensions/Weight: Headlamp including mount: 61mm (Length) x 37mm (Height) x 28mm (Depth) Battery case including mount: 92mm (Length) x 35mm (Width) x 36mm (Depth) 199 grams (including headband and battery)

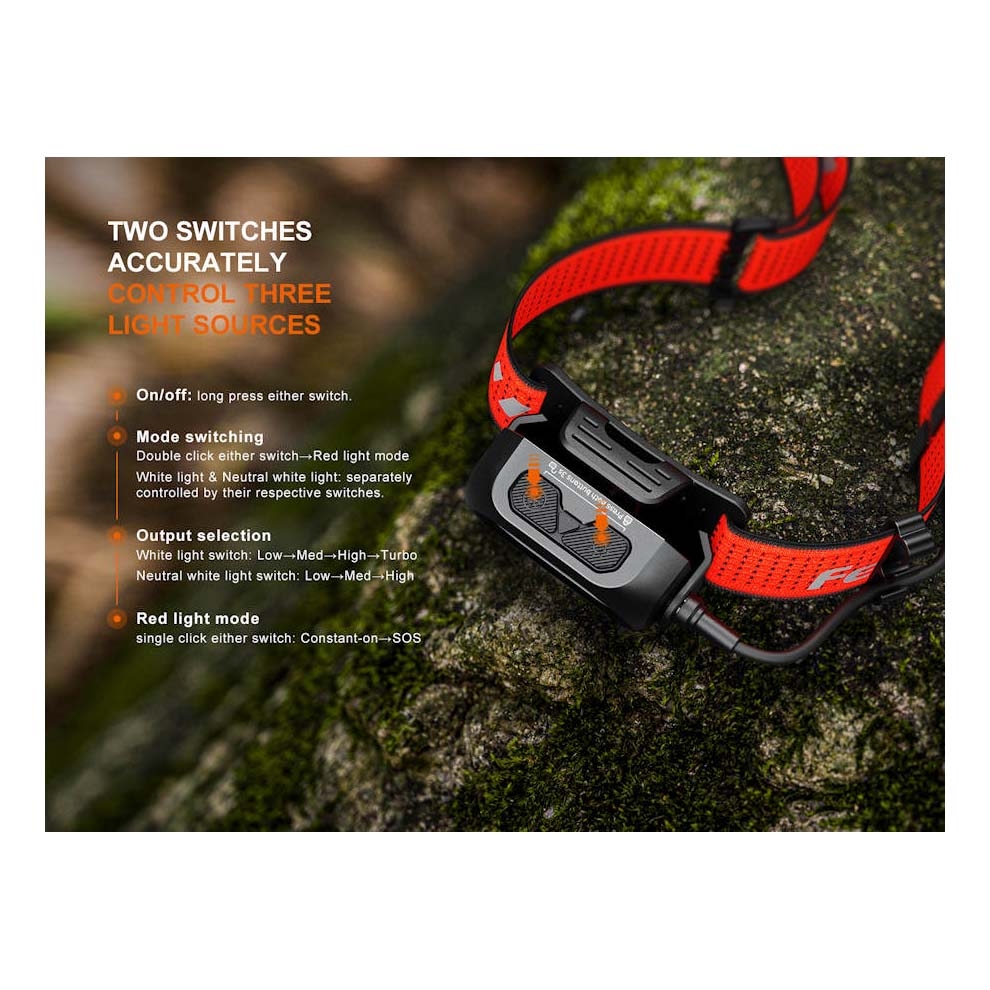

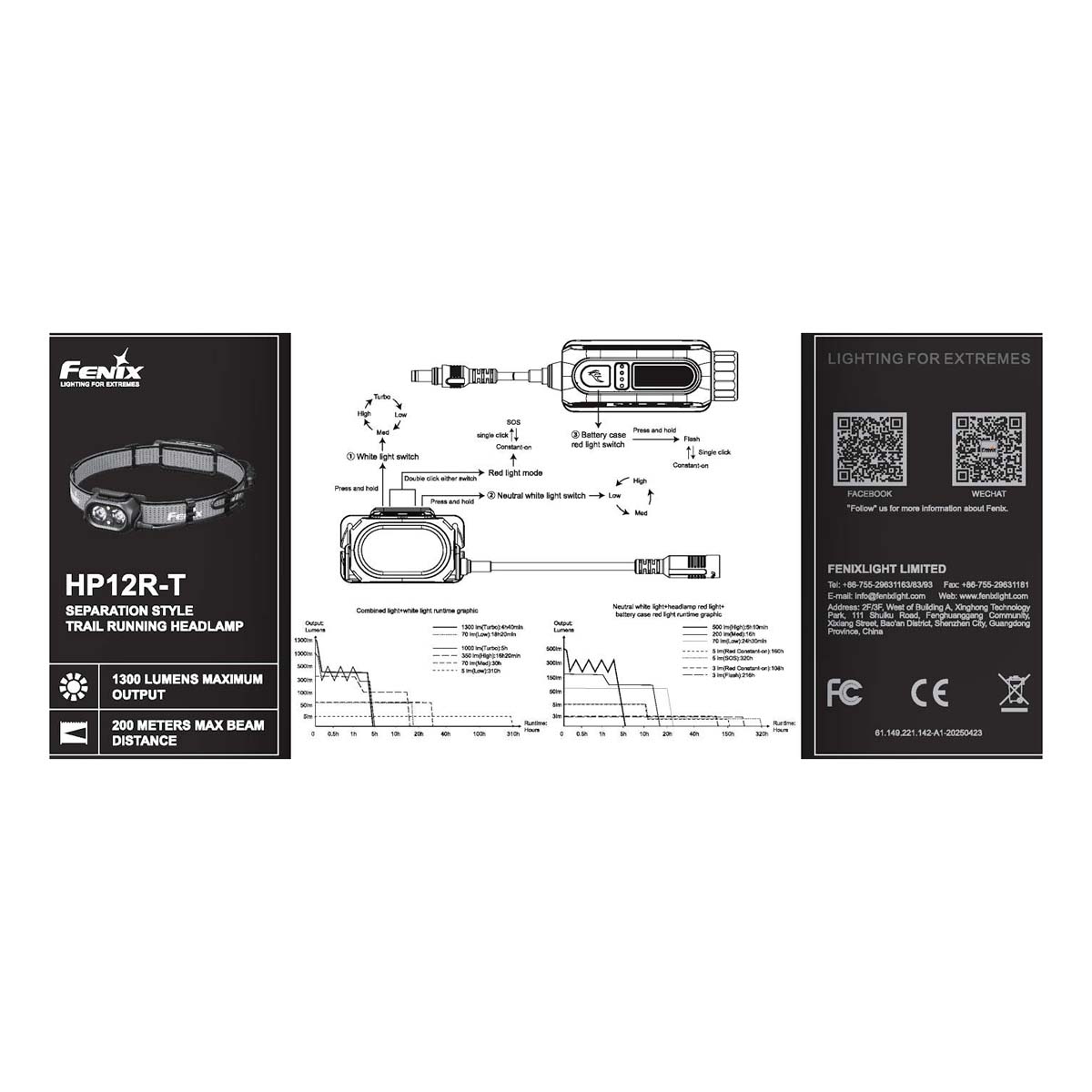

Operation
On/off:
- On: With the lamp switched off, press and hold the appropriate switch to turn on the white light or neutral white light.
- Off: In any mode, press and hold the switch for 0.5 seconds to turn off the lamp.
Mode Switching:
- The white light mode and the neutral white light modes are separately controlled by their respective switches.
- With the lamp switched off, double click either switch to enter the red light mode.
Output Selection:
- In the white light mode, single click the white light switch to cycle through Low→Med→High→Turbo.
- In the neutral white light mode, single click the neutral white light switch to cycle through Low→Med→High.
- In the red light mode, single click either switch to select between Constant-on and Flash.
Battery case red light mode:
- On/off: Press and hold the battery case switch for 0.5 seconds.
- Output selection: Single click the battery case switch to select between Flash(3 lumens) and Constant-on (3 lumens).
Intelligent Memory Circuit:
- The lamp automatically memorizes the last selected output of each mode. When turned on again, the previously used output of the currently selected mode will be recalled.

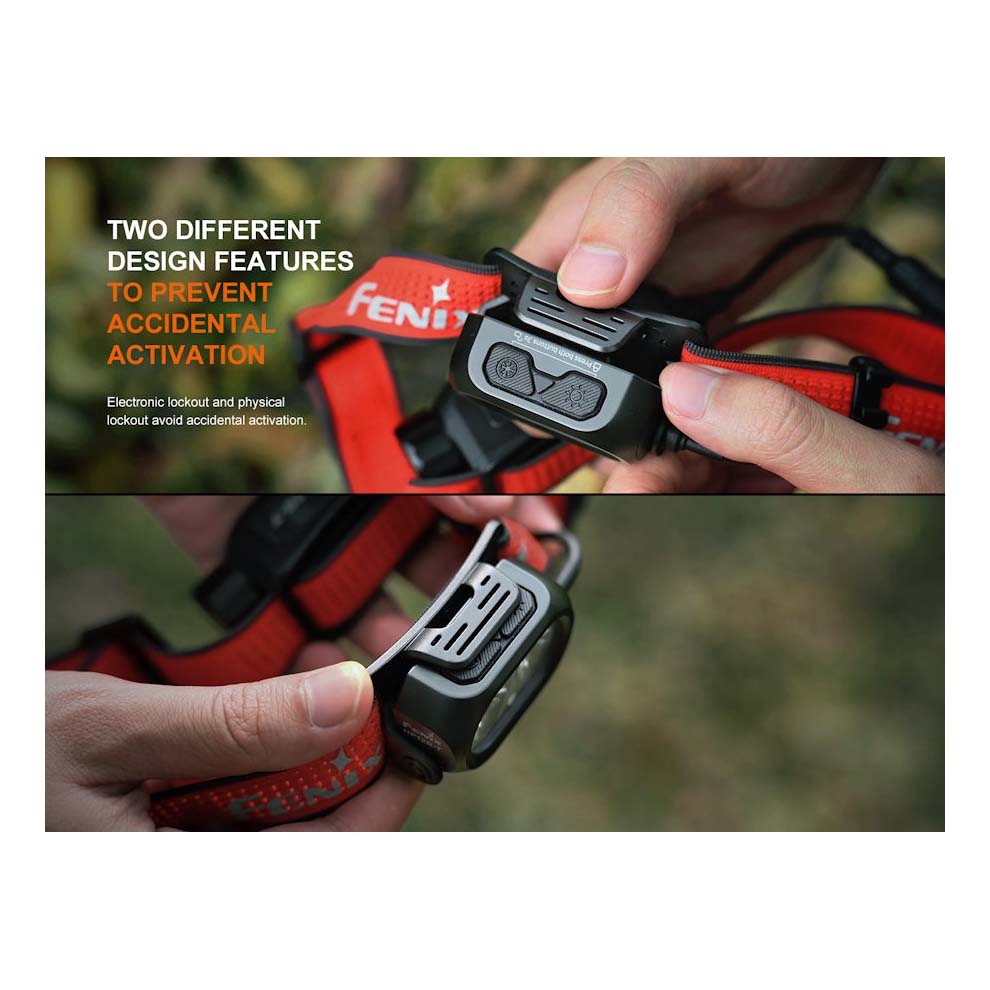

Lockout Function:
- Lock: with the lamp switched off, press and hold the two switches simultaneously for 3 seconds, the lamp will blink 4 times on the Low output of the white light to indicate locked status.
- Unlock: with the lamp locked, press and hold the two switches simultaneously for 3 seconds, the lamp will blink 4 times and activate on the Low output of the white light to indicate the lamp is unlocked.
Note:
1. In locked status, the battery case can be operated. Other operations except for unlocking the headlamp will activate 4 blinks on the Low output of the white light to indicate locked status.
2. In locked status, re-inserting the battery will automatically unlock the headlamp.
Battery Specifications:
- Fenix ARB-L18 Series 18650* 3.6 V Recommended √√
- Non-rechargeable Battery (Li-ion) CR123A 3.6 V Usable √
- Fenix ARB-L16 Series 16340 3.0 V Banned ×
- Rechargeable Battery (Li-ion) 18650 3.6 V Caution*!
*18650 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Using low-quality batteries or mishandling batteries (such as short-circuiting or overheating) could lead to combustion and jeopardize the safety of users and property. Any adverse effects resulting from the use of low-quality batteries are not covered by any Fenix warranty or liability. Using quality batteries with circuit protection will reduce the potential for combustion or explosion. It is recommended to use a Fenix ARB-L18 Series battery.
Battery Replacement:
Unscrew the battery cap and insert the battery with the anode side (+) towards the inner side, then screw the battery cap back on.
Charging:
1. Uncover the anti-dust cap on the battery case and plug the USB Type-C side of the cable into the port on the battery case.
2. When charging, the LED indicators will flash from bottom to top to display the charging status. The four indicators will be constant-on after charging is completed.
3. With the lamp switched off, the normal charging time of the Fenix ARB-L18-4000 battery is about 3.5 hours from depleted to fully charged with a 5 V/2.5 A or above charging adapter.
Note:
1. The lamp can be operated while charging.
2. Once charging is completed, be sure to unplug the charging cable and close the anti-dust cover.

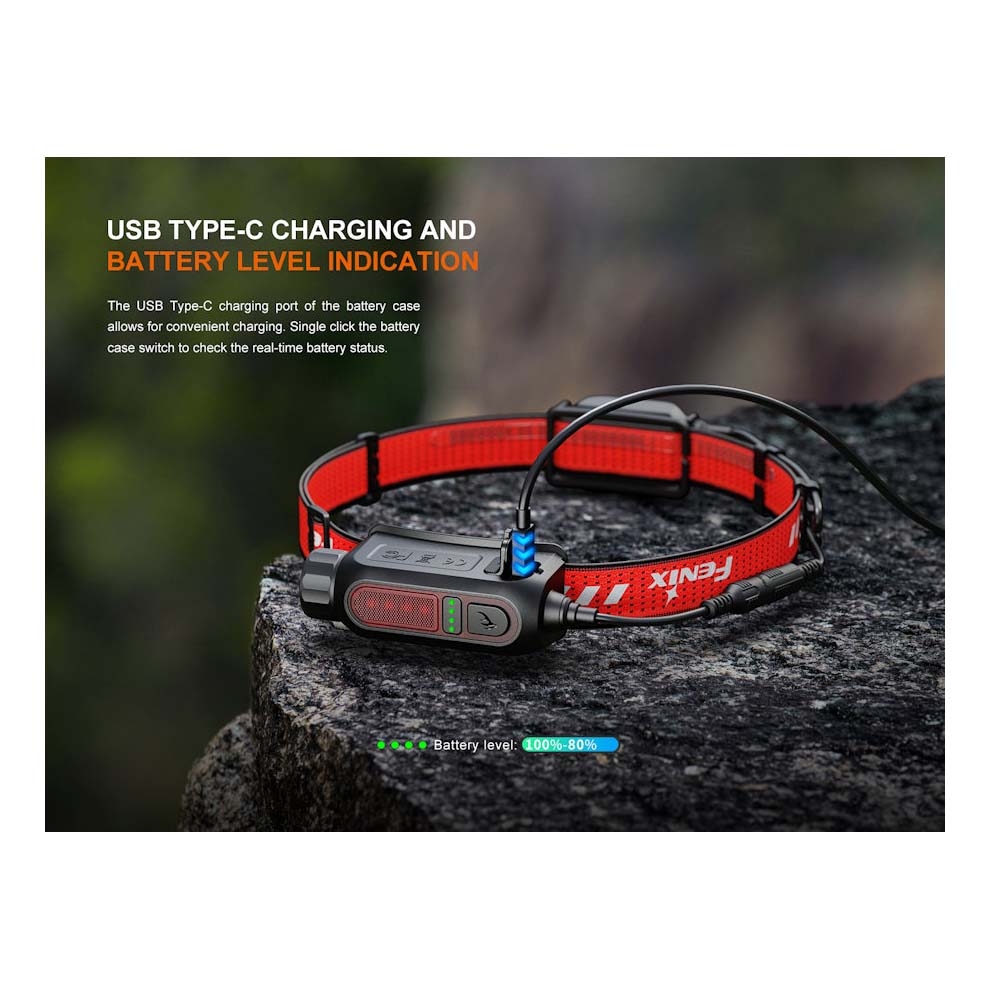

Battery Level Indication:
With the battery case switched off, single click the battery case switch to check the battery status. Single click once again and the indicator(s) will go out, or without any operation the indicator(s) will last for 3 seconds.
- Four lights on: 100% - 80%
- Three lights on: 80% - 50%
- Two lights on: 50% - 40%
- One light on: 40% - 20%
- One light flashes: 20% - 1%
*Note: This feature only works with a Fenix ARB-L18-4000 battery.
Intelligent Overheat Protection:
The lamp will accumulate a lot of heat when used at high output levels for extended periods. When the lamp reaches a temperature of 60°C/140°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C/140°F, the lamp will gradually recall the preset output level.
Low-voltage Warning:
When the voltage level drops below the pre-set level, the lamp is programmed to downshift to a lower brightness level until the lowest output of the currently selected mode is reached. When the white light and the neutral white light are turned on at the same time, the lamp will automatically turn off the neutral white light and keep the Low output of the white light on. However, if the neutral white light is turned on alone, the lamp will automatically turn off the neutral white light and turn on the Low output of the white light. When the voltage level is still too low in the lowest output of the currently selected mode, the headlamp blinks 3 times every 5 minutes on the Low output of the white light to remind users to replace or recharge the battery in a timely manner.
Headband Assembly:
Notice: The headband is factory assembled and ready to use right out of the package.
Adjust the headband by sliding the buckle to the required length.
Usage and Maintenance:
- Disassembling the sealed head can cause damage to the lamp and will void the warranty.
- Fenix recommends using an excellent quality battery.
- If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
- Lock the lamp or take out the battery to prevent accidental activation during storage or transportation.
- Long-term use can result in O-ring wear. To maintain a proper water seal, lubricate the O-ring with a tiny amount of silicone oil or grease. Replace the ring with an approved spare if it wears after extended use.
- Recharge a stored lamp every four months to maintain the optimum performance of the battery.
- Poor battery level or dirty contacts in the battery compartment / on the battery may cause the lamp to flicker, shine intermittently or even fail to illuminate, please recharge the battery case in a timely manner and clean the contacts as required. If this method doesn't work, please contact the distributor.
What's Included
- Retail Packaged Fenix HP12R-T headlamp
- Fenix ARB-L18-4000 Battery
- USB-C charging cable
- 2 x Cable clip
- Spare O-ring
- User manual
- Warranty card
