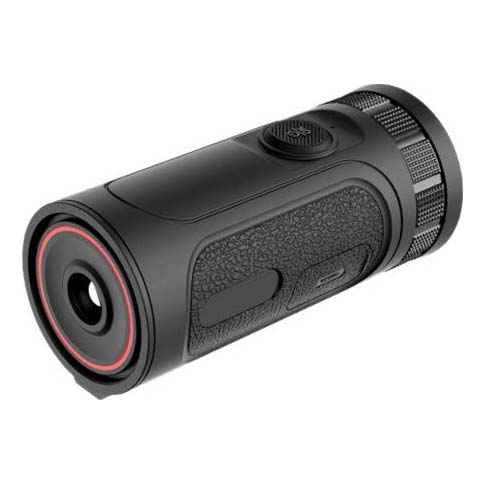

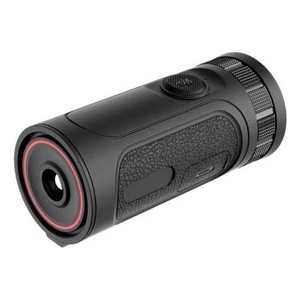

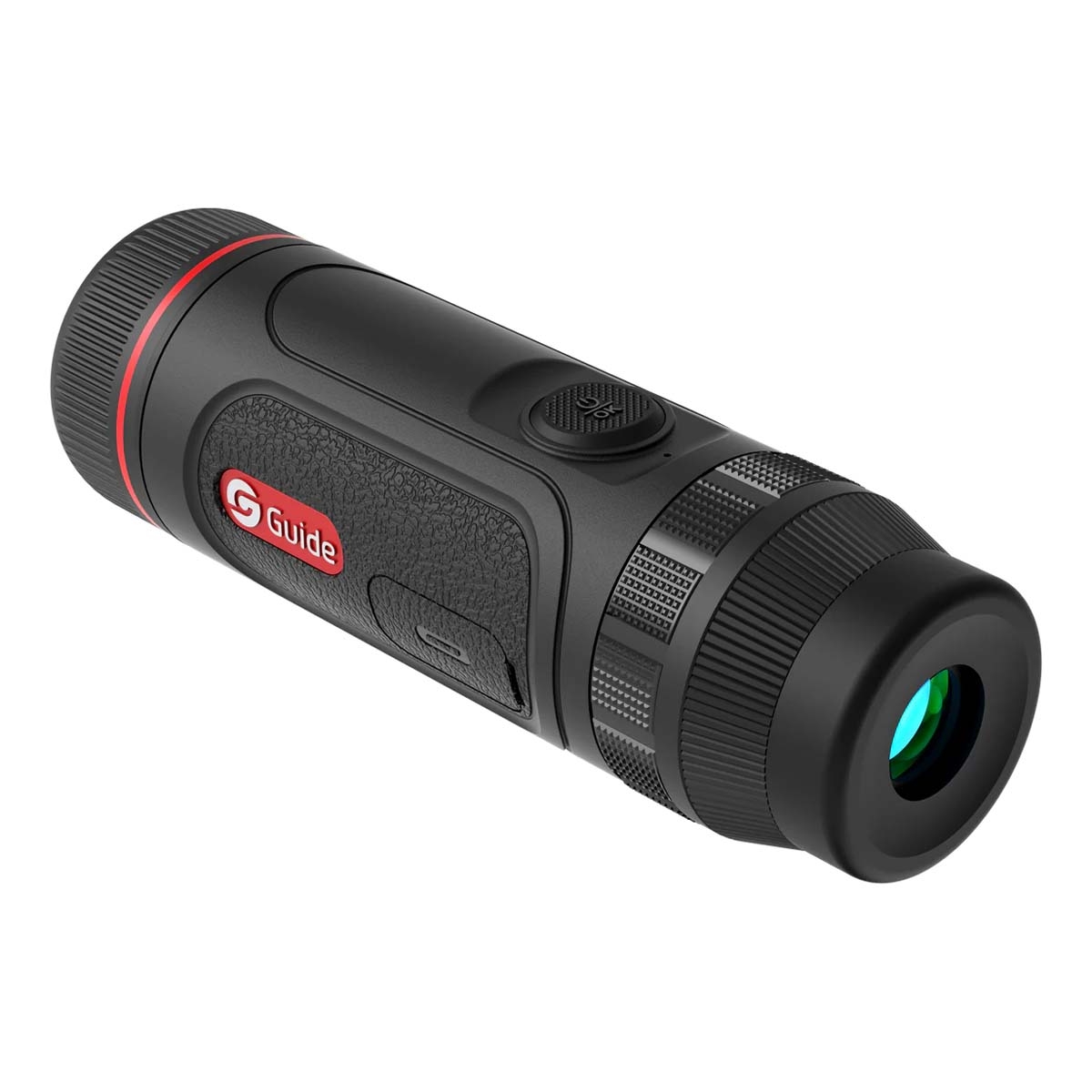

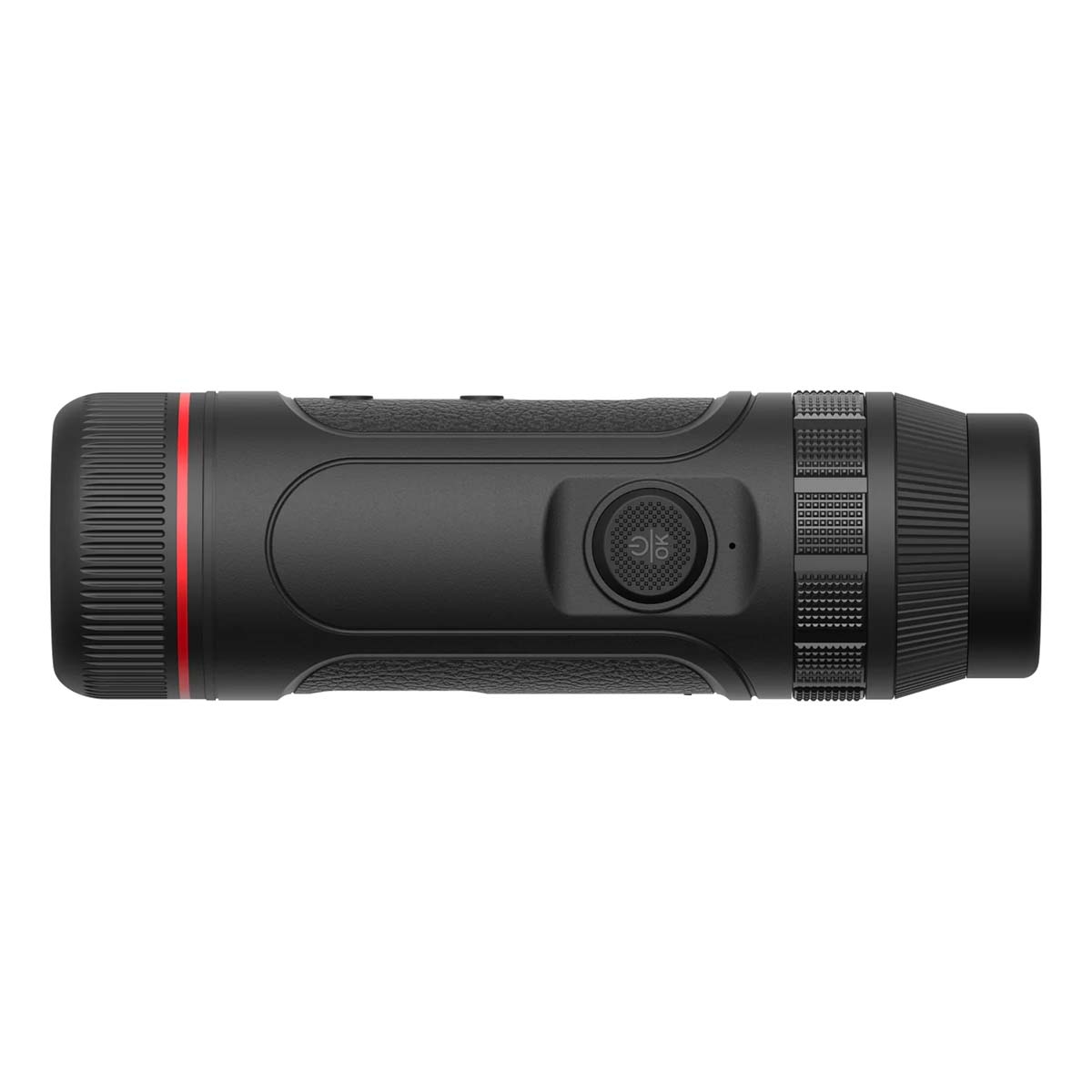

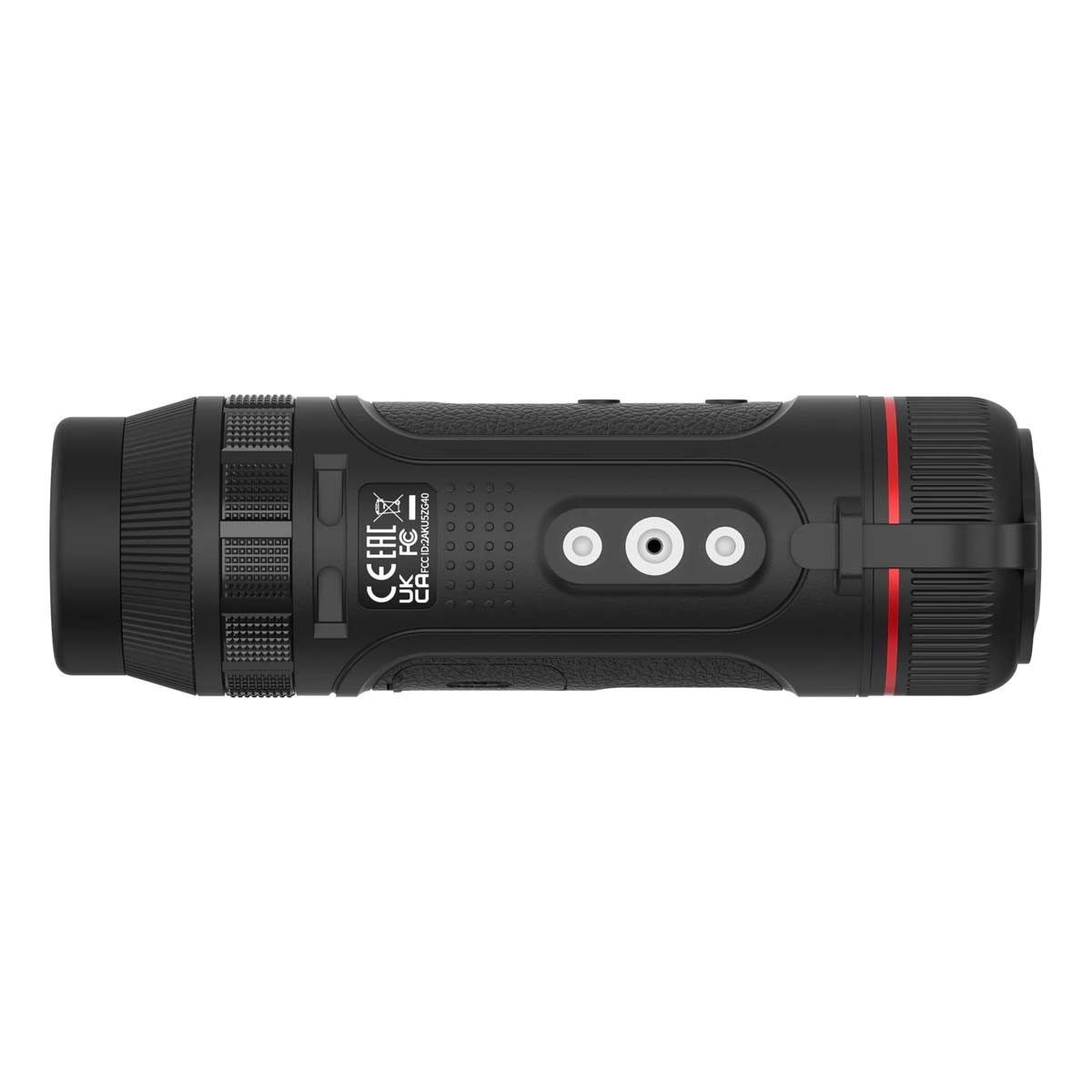

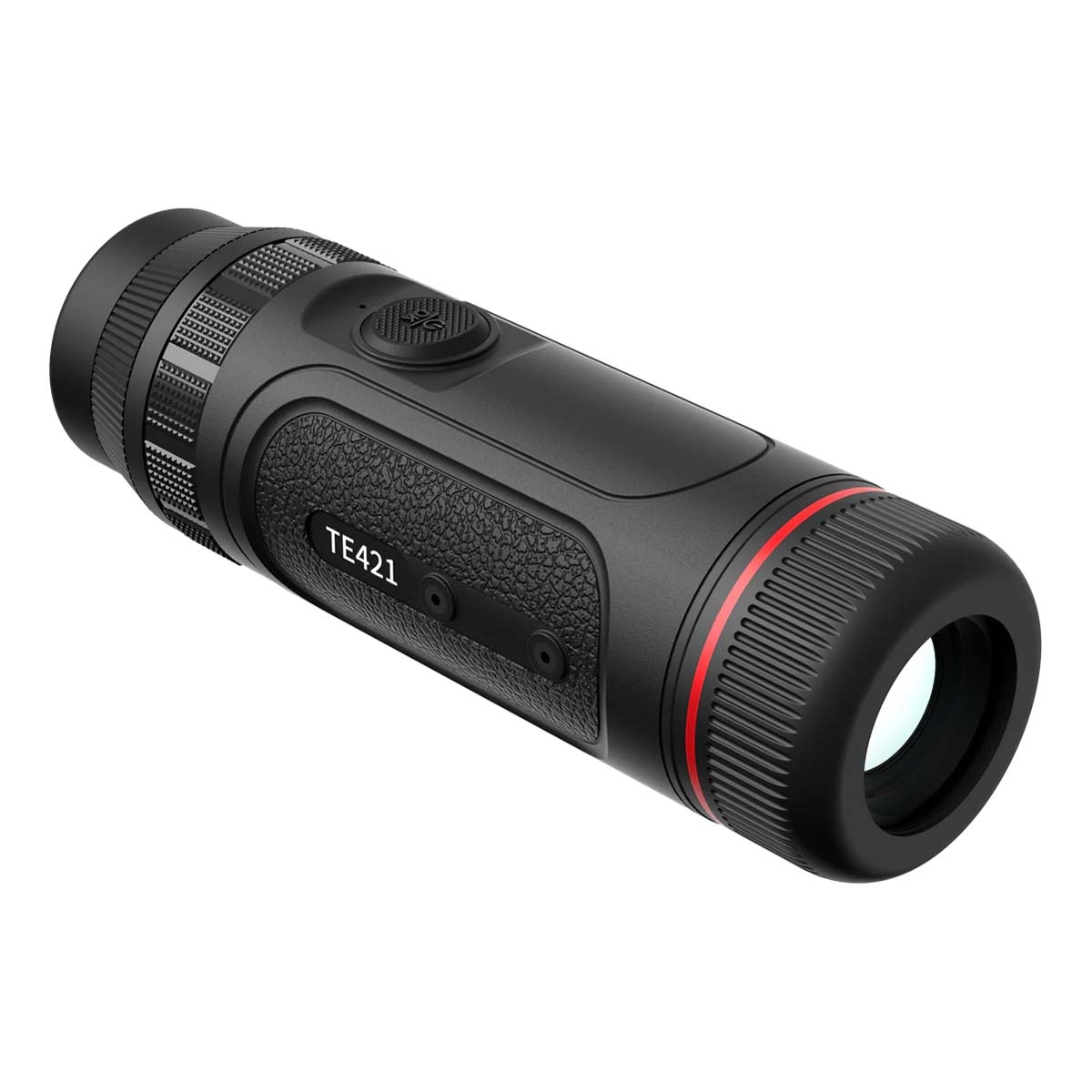

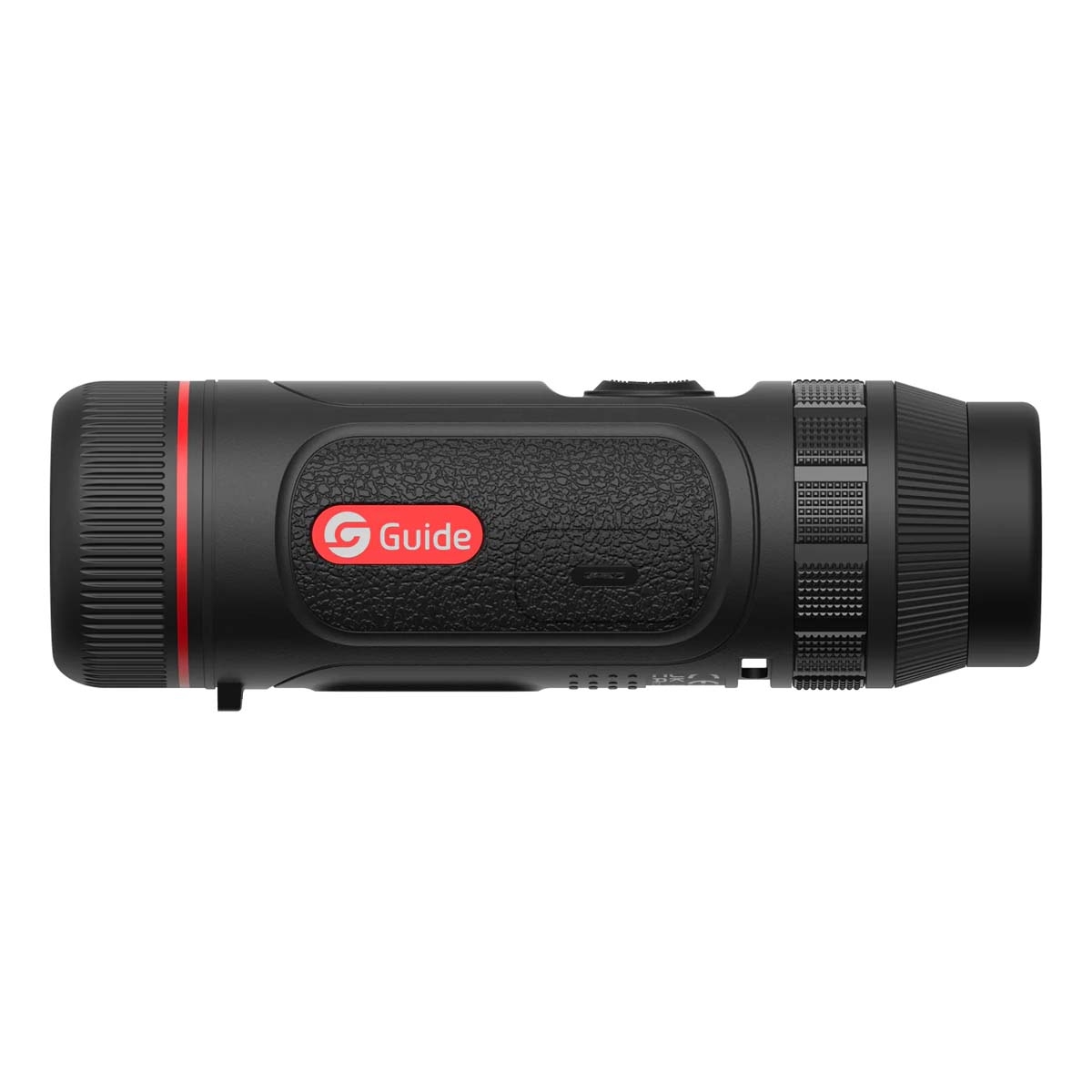

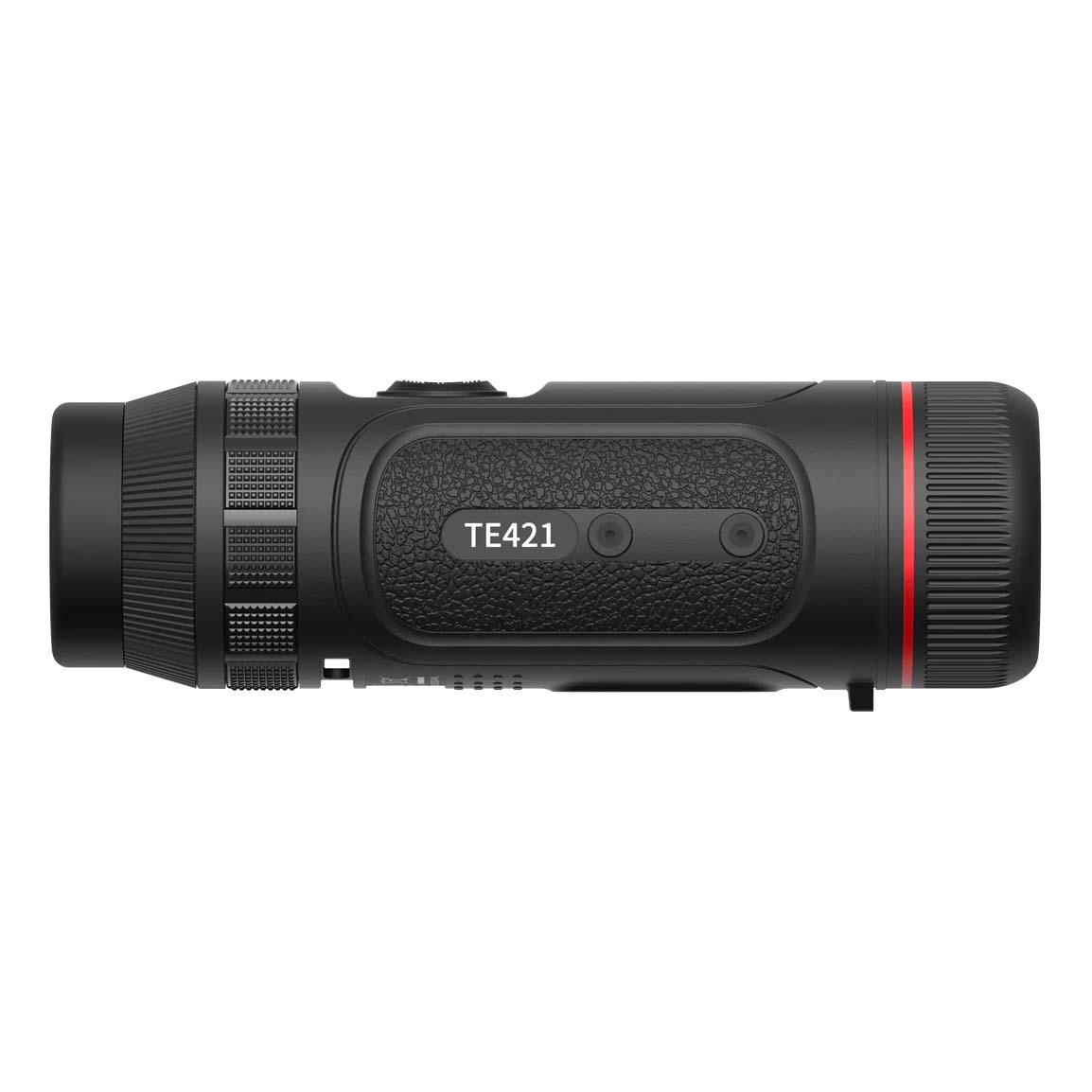

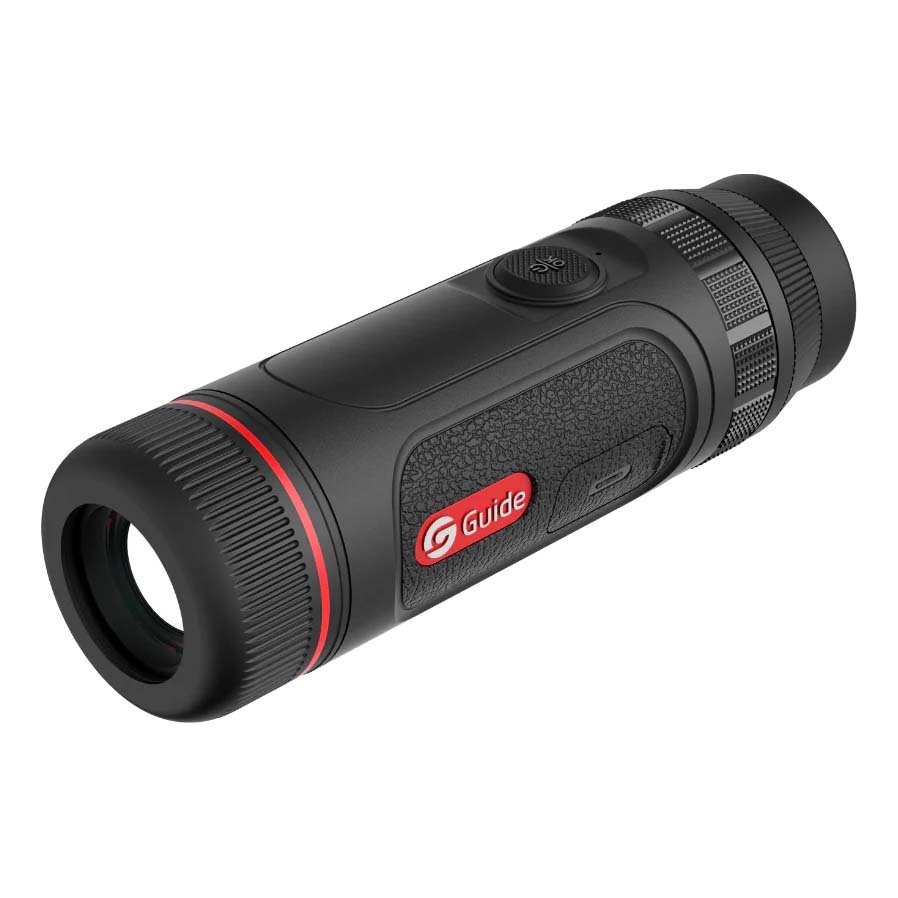

Guide IR Sensmart Thermal (400x300) Monocular - 25mm
Related Products & Accessories
Product Details
Manufacturer code: GSTE421 | Our code: 145181
Guide IR Sensmart Thermal (400x300) Monocular - 25mm. The TE Series Handheld Thermal Imaging Monocular is a pocket-sized night vision powerhouse, offering exceptional performance at an affordable price. It is equipped with a highly sensitive infrared detector, providing multiple resolutions and lens options to meet your diverse needs in various environments. A 10-minute quick charge gives you an hour of continuous use, making it the perfect companion for your outdoor explorations.
Features
- Ultra-Lightweight: Only 200+ grams, effortlessly portable.
- Comfortable Viewing: 0.32-inch screen for clear and smooth visuals.
- Extended Battery: Up to 6 hours of use, 20W quick charging for worry-free power.
- Audio-Visual Sync: Record video with synced audio.
- Smooth Operation: One-button, one-ring design for seamless control.
- Rugged Design: IP67-rated for all-weather durability.
- Smart Connectivity: Control via mobile APP, OTA firmware updates.
Specifications
| Item | TE211M | TE411 | TE421 |
|---|---|---|---|
| Sensor Type | Uncooled VOx Infrared Detector, 8 to 14 μm | ||
| Resolution | 256×192@12μm | 400×300@12μm | |
| NETD | 30mK | 25mK | |
| Frame Rate | 50Hz | ||
| Objective Lens | 10mm, F1.0 | 19mm, F1.0 | 25mm, F1.0 |
| Field of View | 13.1°×13.1° (TE211M) 17.5°×13.1° (TE211) |
14.4°×10.8° | 11°×8.2° |
| FOV m@100m | 23×23 (TE211M) 31×23 (TE211) |
25×19 | 19×14 |
| Magnification | 1.2x~4.8x | 1.4x~5.6x | 1.9x~7.6x |
| Detection Range | 500m/550yd | 1000m/1090yd | 1300m/1400yd |
| Focus | Focus-free | Manual | |
| Display Type | Touch screen, 1.43'' AMOLED 466×466 | 0.32'' AMOLED 800×600 | |
| Color Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | ||
| Eyepiece | Eye relief: 25mm; Diopter: -5 to +5; Zoom: 14x | ||
| WiFi | 2.4G, 5G | ||
| Interface | USB-C (Support charging) | ||
| Others | Microphone, Bluetooth | ||
| Recording Function | Photo/Video (Audio recording included) | ||
| Memory Capacity | 16GB | ||
| Battery Type | Built-in battery | ||
| Operating Time | 6 hours (Support 20W quick charging) | 5 hours (Support 20W quick charging) | |
| Operating Temperature | -20°C to 50°C / -4°F to +122°F | ||
| Encapsulation | IP67 | ||
| Weight (g/oz) | 205/7.23 (TE211M) 228/8.04 (TE211) |
288/10.16 | 295/10.41 |
| Size (mm/in) | 49×49×111/1.93×1.93×4.37 (TE211M) 47×47×132/1.85×1.85×5.20 (TE211) |
47×47×148/1.85×1.85×5.83 | 47×47×155/1.85×1.85×6.10 |
| Standard Accessories | Device, Lens cover, Wrist strap, USB-A to USB-C Cable, Quick use guide, Safety Information Manual, Warranty card | Device, Lens cover, Eye mask, Wrist strap, Quick charging adapter, USB-C to USB-C Cable, Quick use guide, Safety Information Manual, Warranty card | |
| Optional Accessories | Bluetooth remote control, Quick charging adapter, USB-C to USB-C Cable | Bluetooth remote control, USB-A to USB-C Cable | |
| Trade Price | £225.00 | £437.00 | £500.00 |
| SRP | £359.99 | £699.99 | £799.99 |
