Pulsar Oryx LRF XG35 Thermal (640x480) Imager
Related Products & Accessories
Product Details
Manufacturer code: PUL-77504 | Our code: 144897

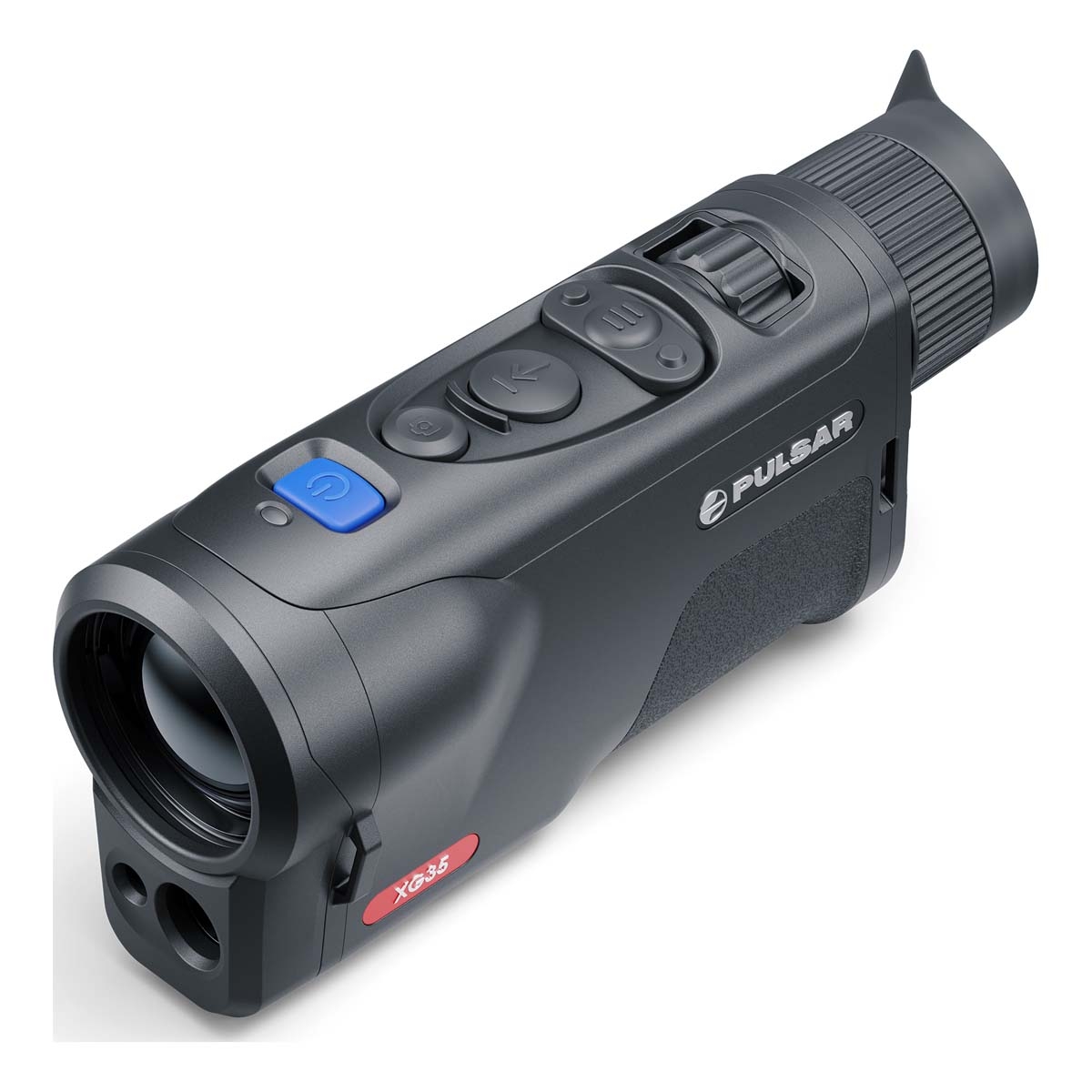

Pulsar Oryx LRF XG35 Thermal (640x480) Imager. Compact and lightweight, this new spotter is packed full of all the intuitive digital features and functionalities you could need to keep your observations going through the day and into the night. The Oryx may be palm-sized and light as a feather, but it stands shoulder to shoulder with current high-performance entries in the Pulsar range. A highly sensitive 640x480, 12µm, <20mK sNETD thermal sensor, combined with a powerful 35mm f1.0 objective lens, provides remarkable levels of image detail — enabling easy detection and identification at distances reaching up to 1800m.

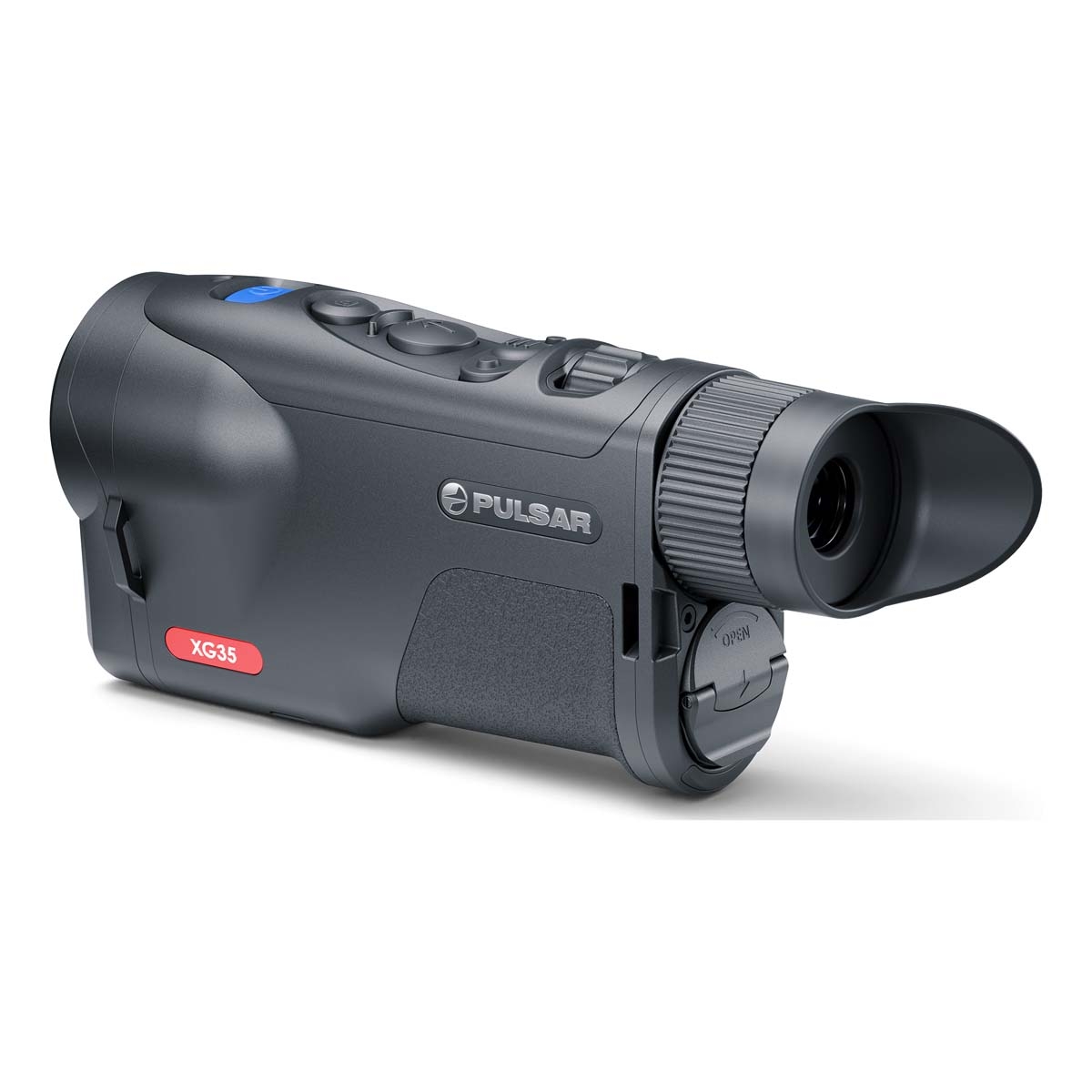

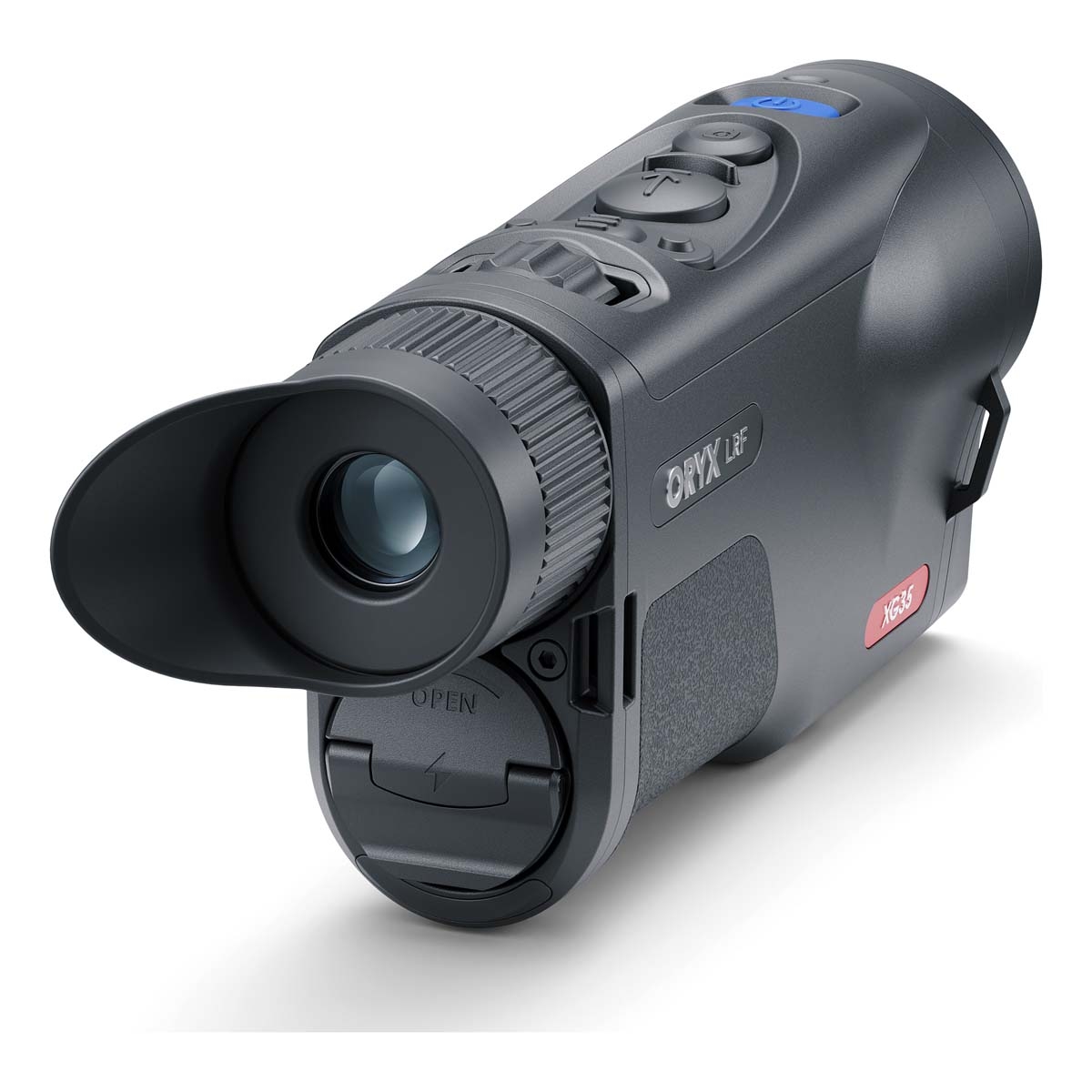

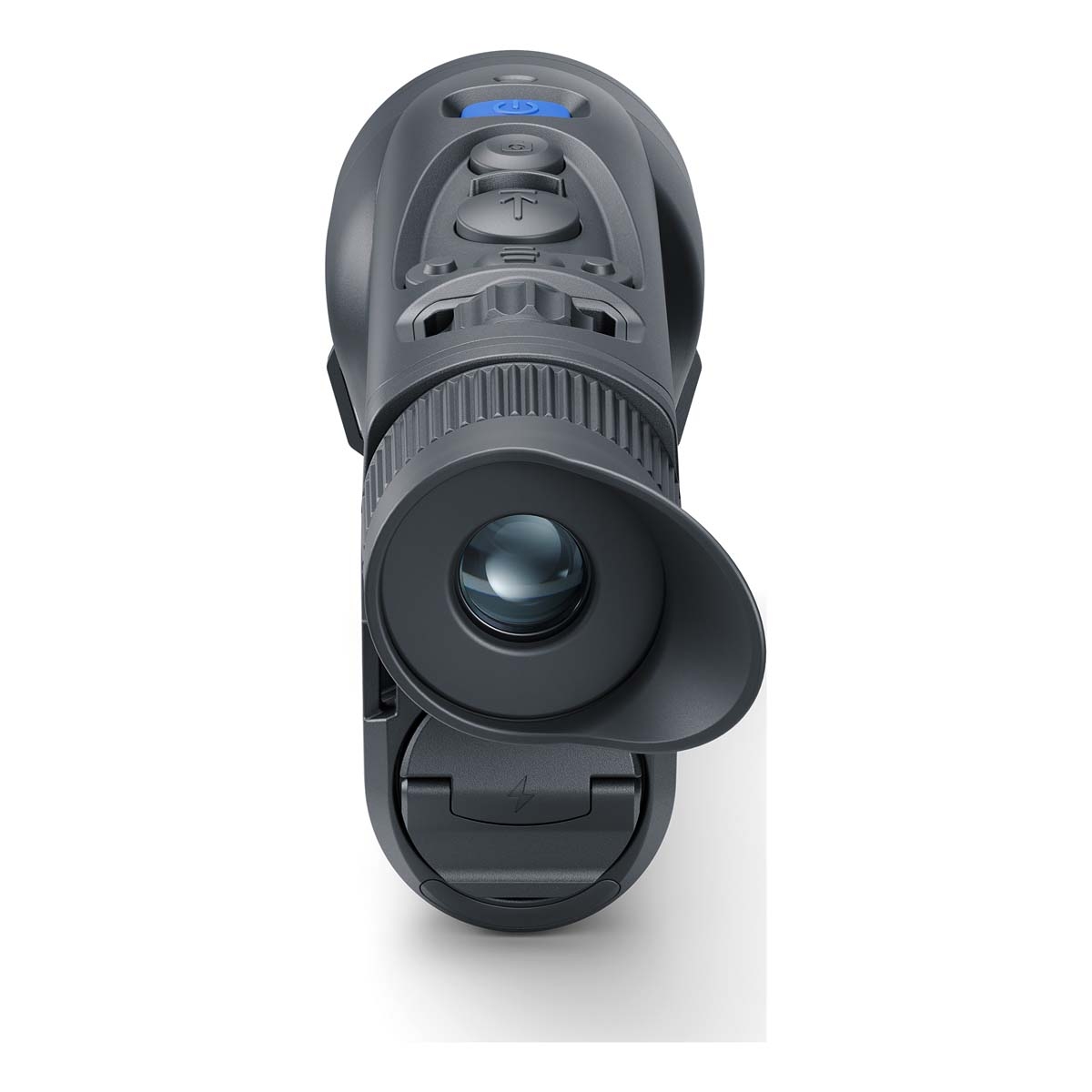

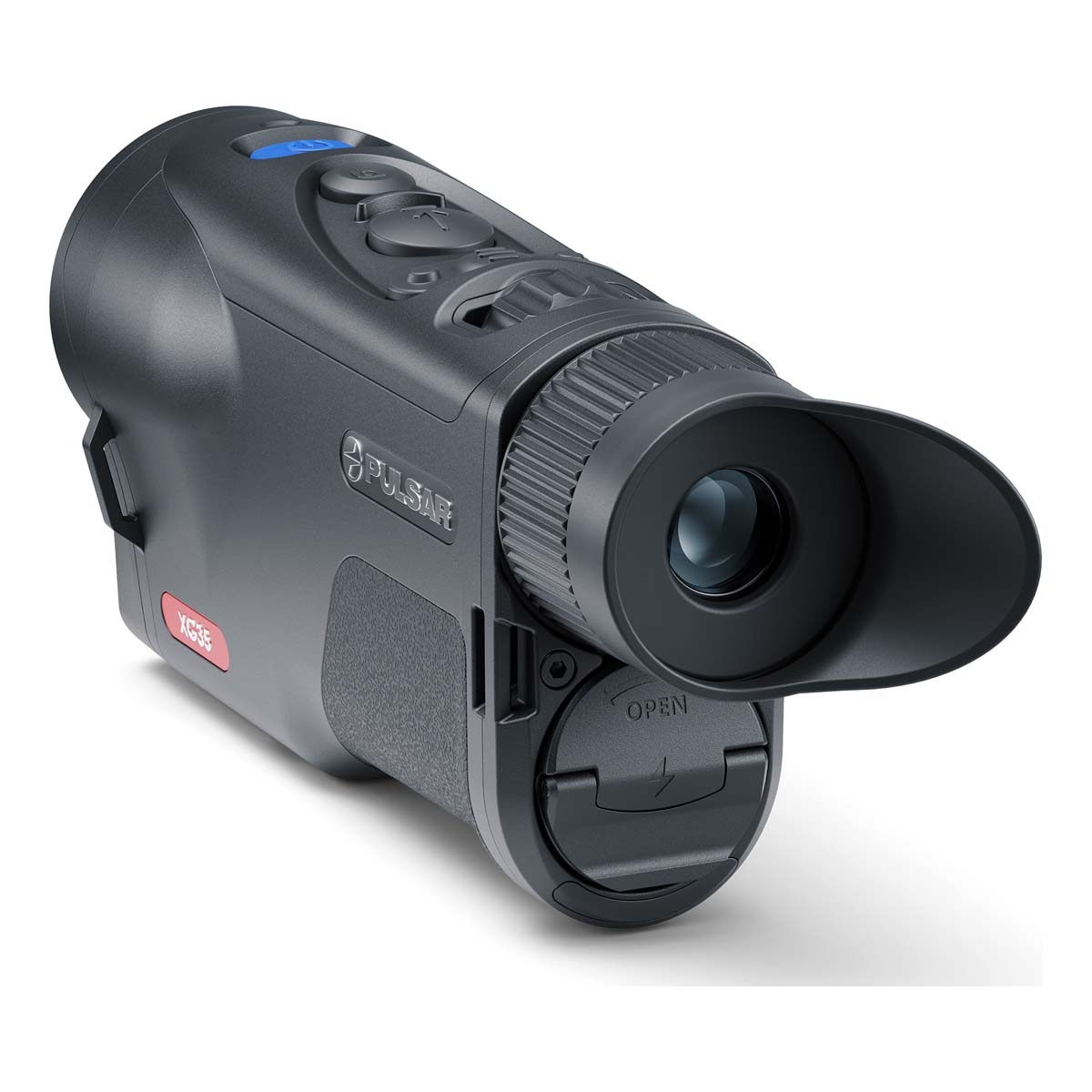

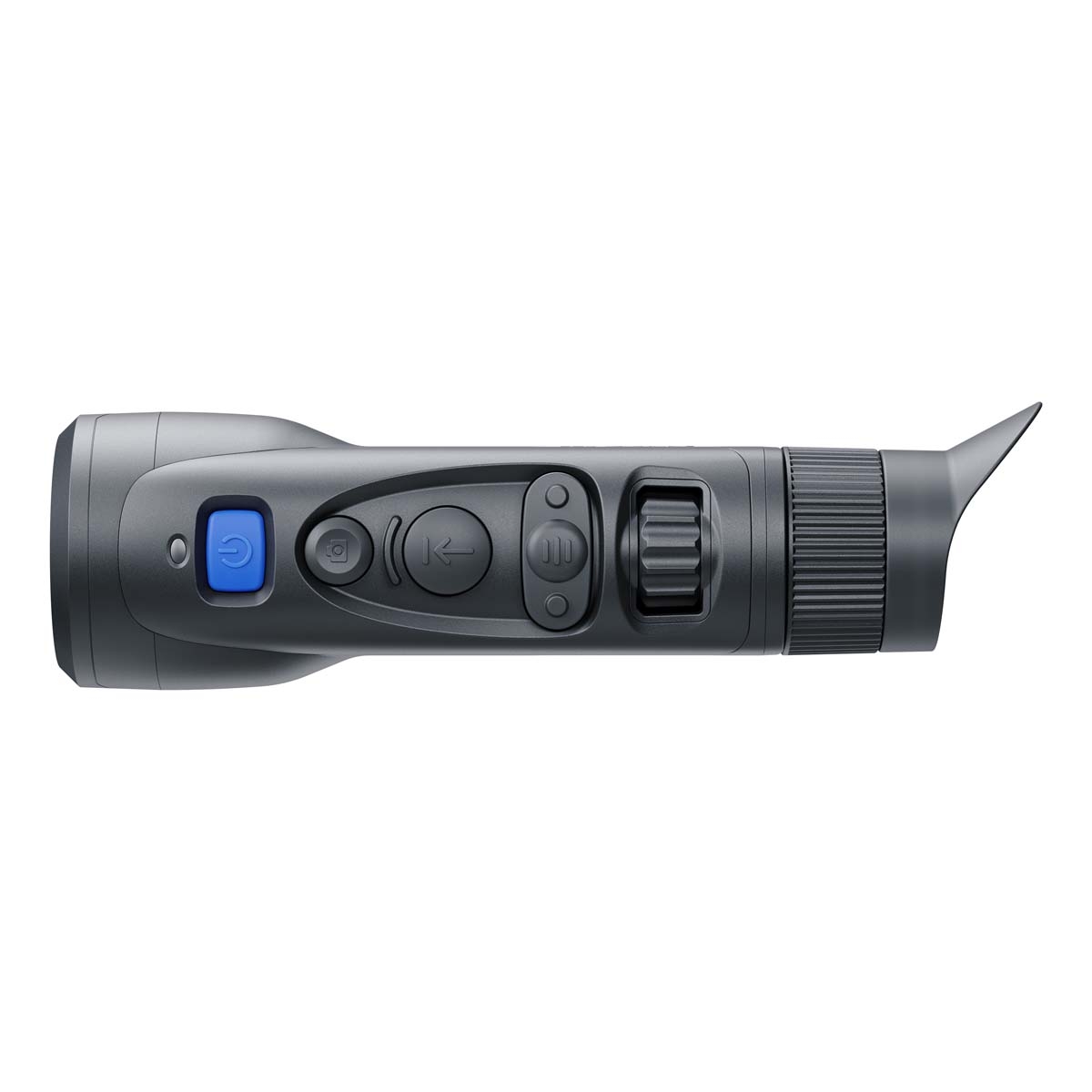

The Oryx LRF XG35’s focus wheel is located just in front of the viewfinder, allowing for one-handed focus adjustments, ushering in a new era of single-handed thermal observation. A four-button arrangement has been ergonomically considered to achieve comfortable operation, offering control over all of the most commonly-used digital functions.
A wide 12.5° field of view is perfect for searching and scanning, providing a clear view of your surroundings.
A 2.5-20x magnification range and 8x digital zoom allows for closer inspection and enhanced identification.
Digital image stabilisation reduces the effects of camera shake and image blur caused by shaking hands or bumpy terrain, enhancing image quality when scanning the FOV or observing objects and animals at long range.

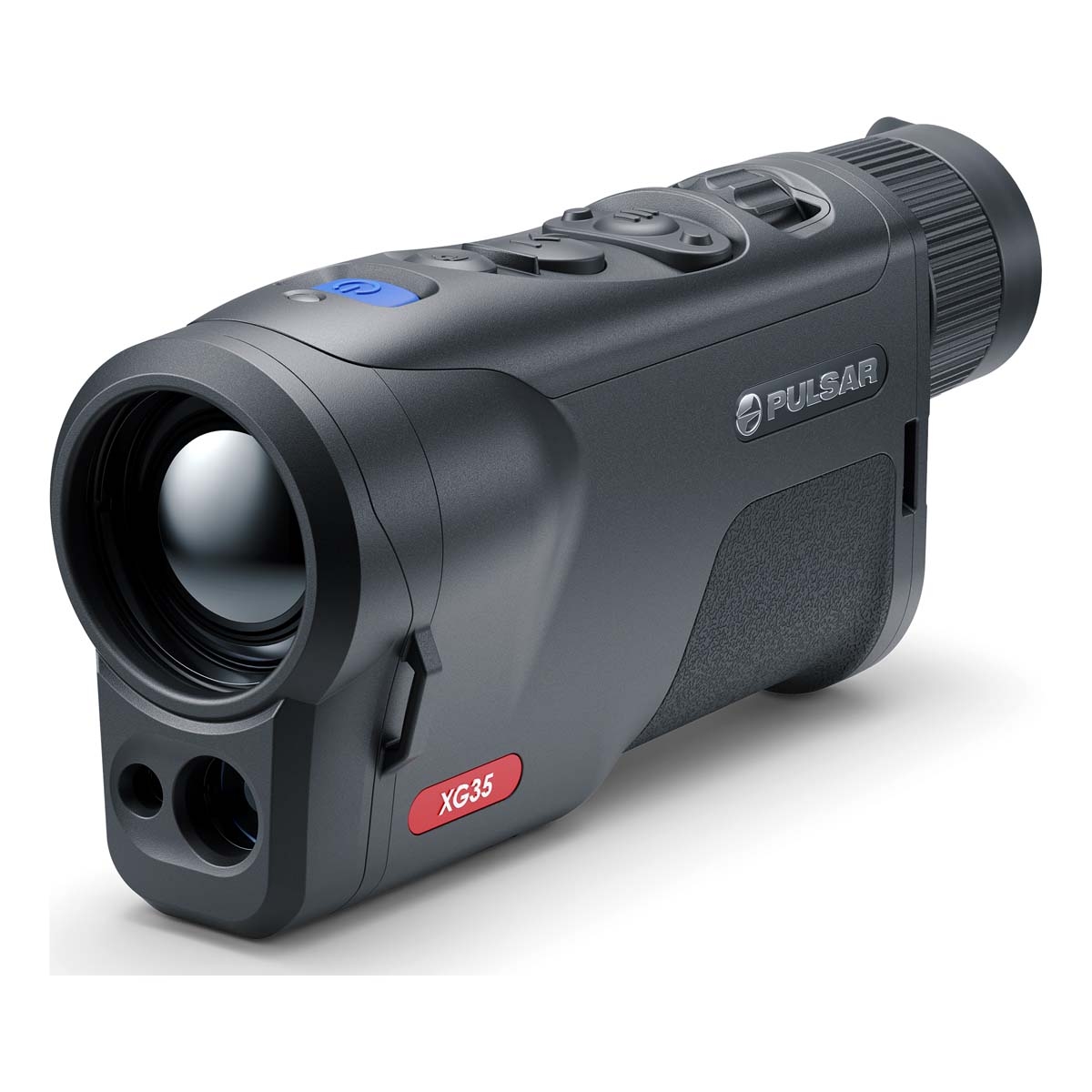

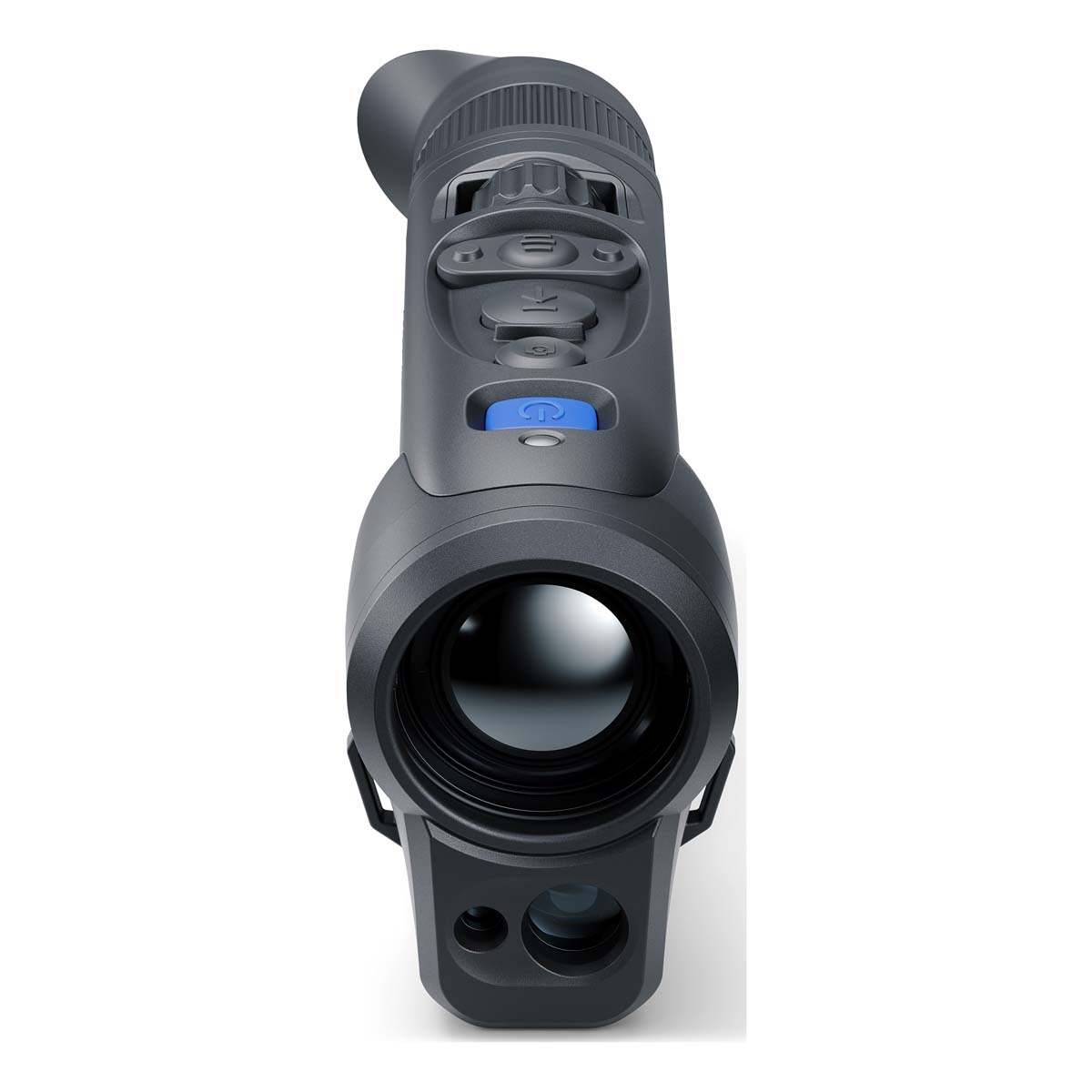

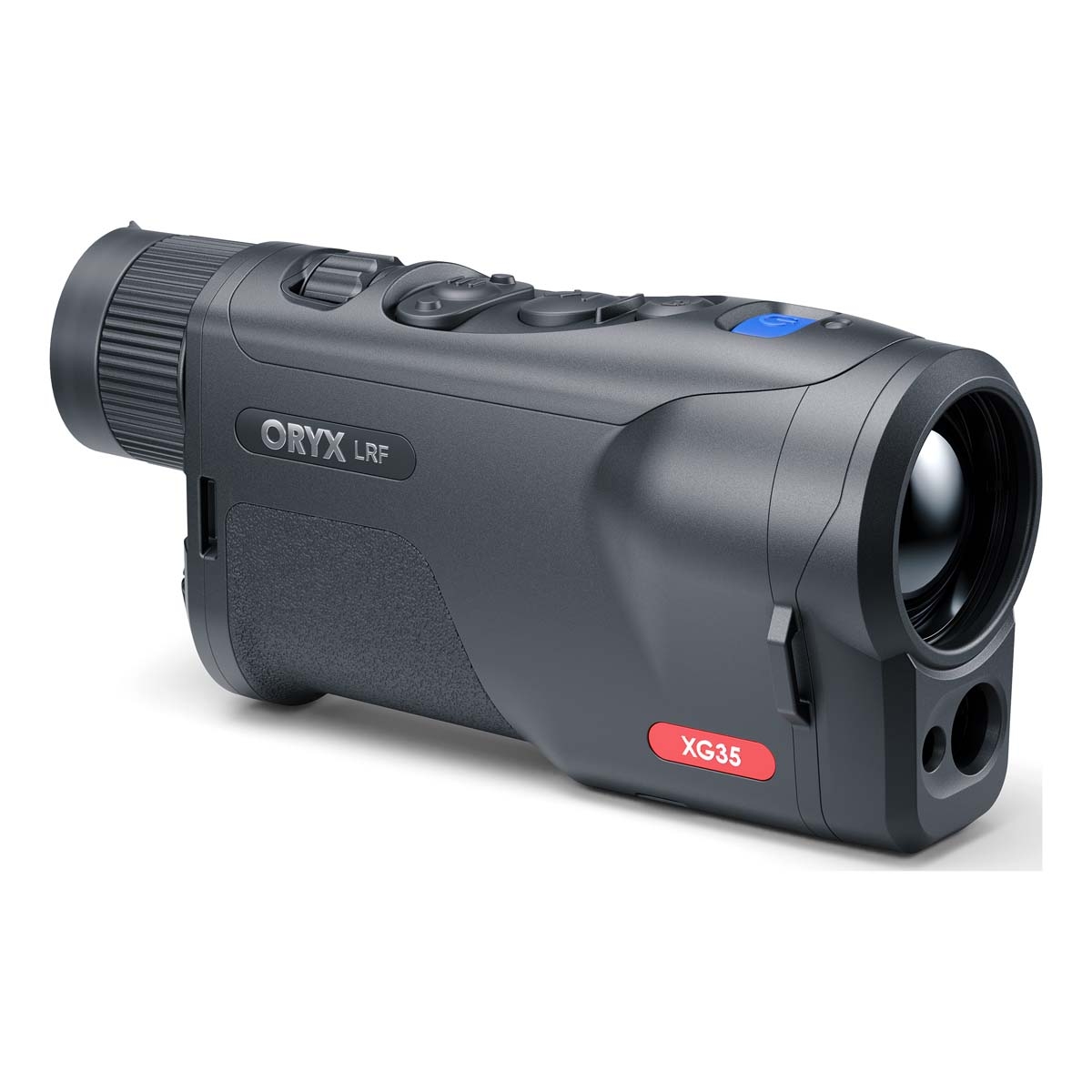

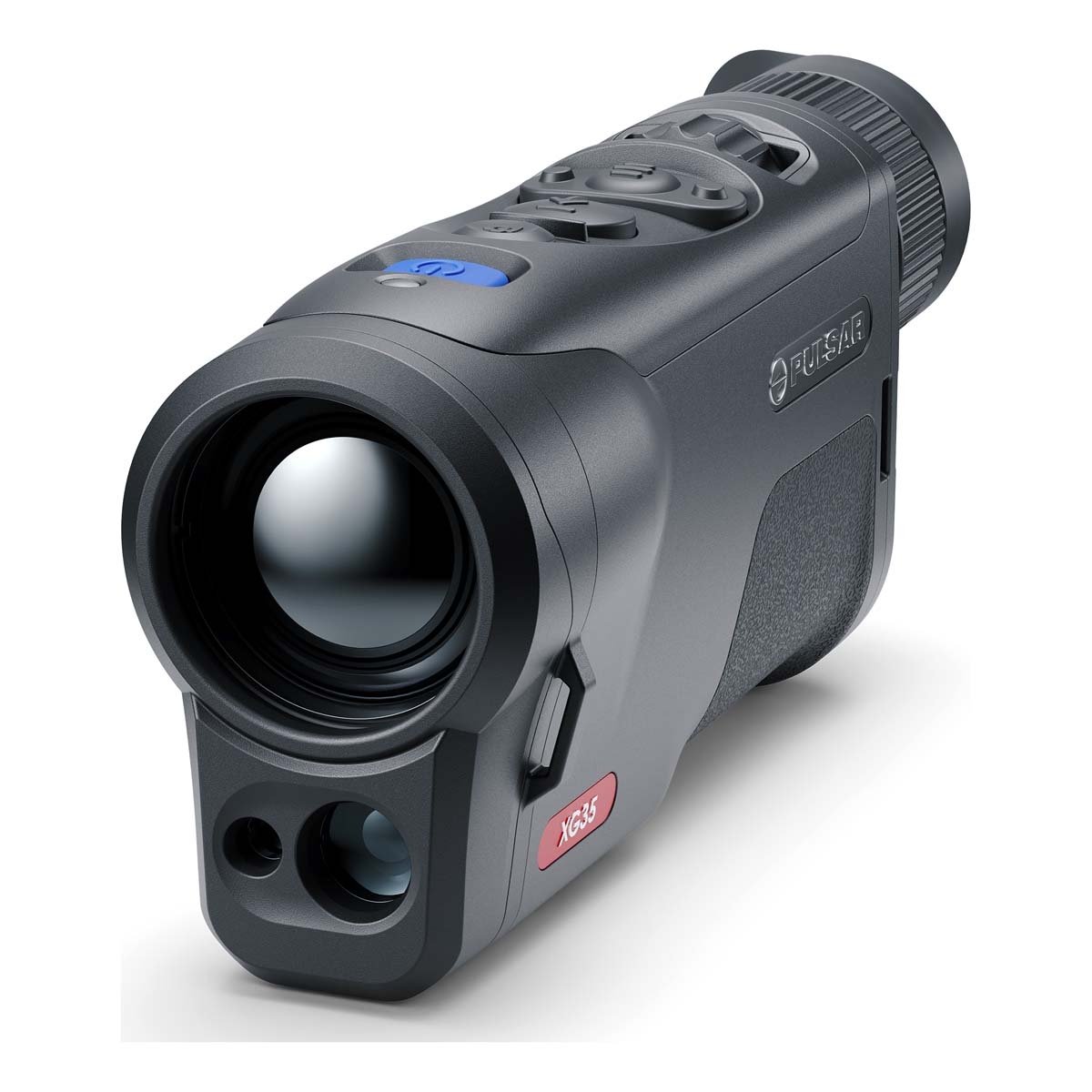

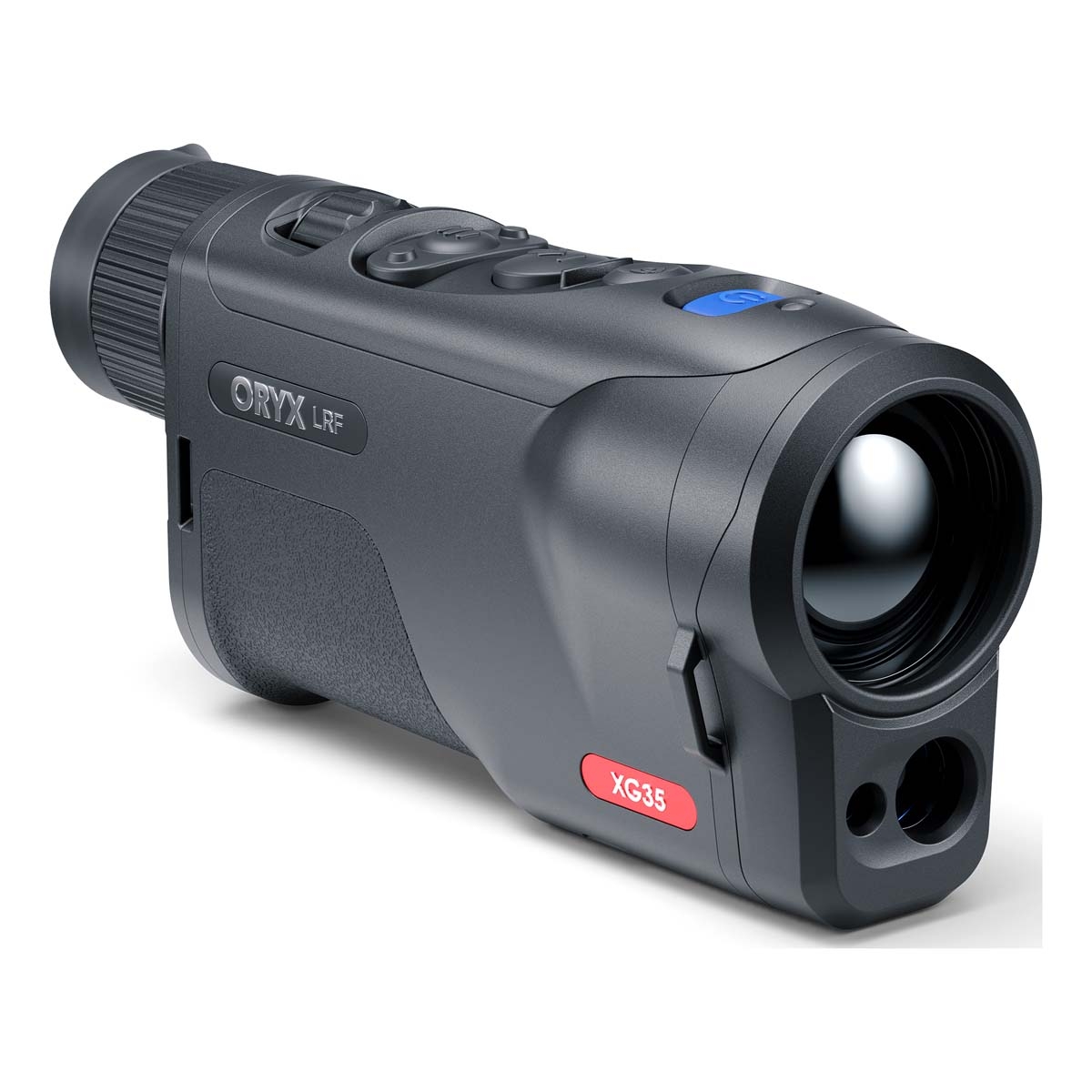

Blink and you’d miss it… A seamlessly integrated precision laser rangefinder can be found under the objective lens, providing an incredible 1500m distance measuring range with an accuracy of ±1m, whilst taking up a fraction of the footprint found on previous LRF-equipped monoculars. These distance measurements can prove crucial in the field, providing valuable distance data and allowing you to make informed decisions.
Haptic feedback will provide a short vibration when a button is pressed — confirming or alerting you to any button presses.
An ambidextrous wrist strap and symmetrical bodyshell design enables comfortable left- or right-handed operation.
Equipped with Pulsar’s innovative dual-battery system, the Oryx LRF combines an internal rechargeable battery with a removeable, rechargeable APS5 battery for up to 12 hours of uninterrupted power distribution. Both batteries will display their charge percentage on-screen, allowing for accurate power monitoring. Each battery can be charged via the USB-C port.
Built-in recording with audio and still image capture ensures memorable moments are stored to the device's generous 64GB of internal memory at the press of a button.
Compatible with Stream Vision 2 — Use your phone as a remote control, update your firmware, view a gallery of images and videos taken through the device, and much more.
Specifications
- Sensor resolution, pixels @ pixel pitch, μm: 640x480 px @ 12 μm
- System NETD, mK: <20
- Sensor NETD, mK: <40
- Display, type / resolution, pixel: AMOLED 1024x768
- Objective lens: F35/1.0
- Magnification, x: 2.5 – 20
- Field of view, °: 12.5
- Range of detection, m: 1750
- Measurement range, m: 1500
- Battery life, h: 12
- Level of Protection: IP67
- Dimensions, mm: 179x52x77
- Weight (with removable battery), kg: 0.5
