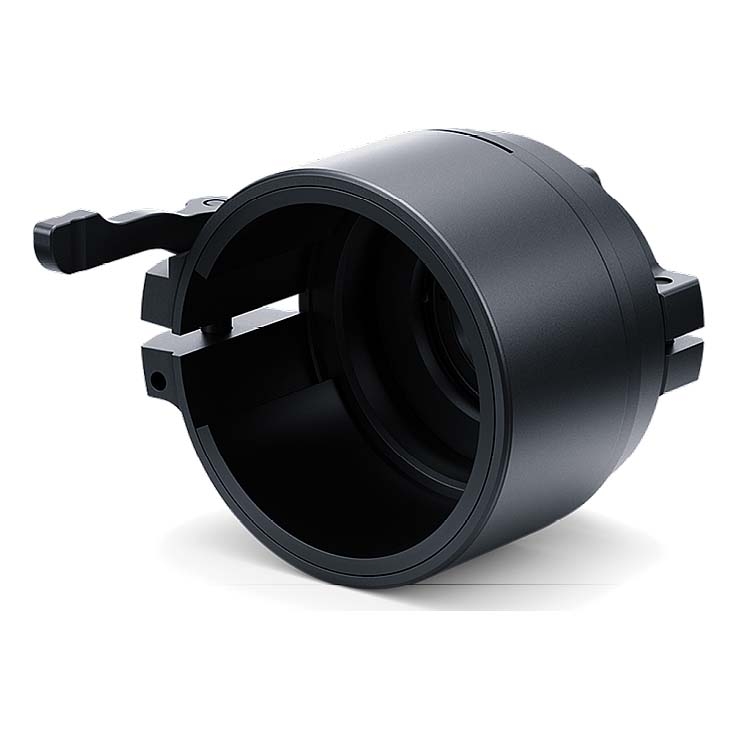

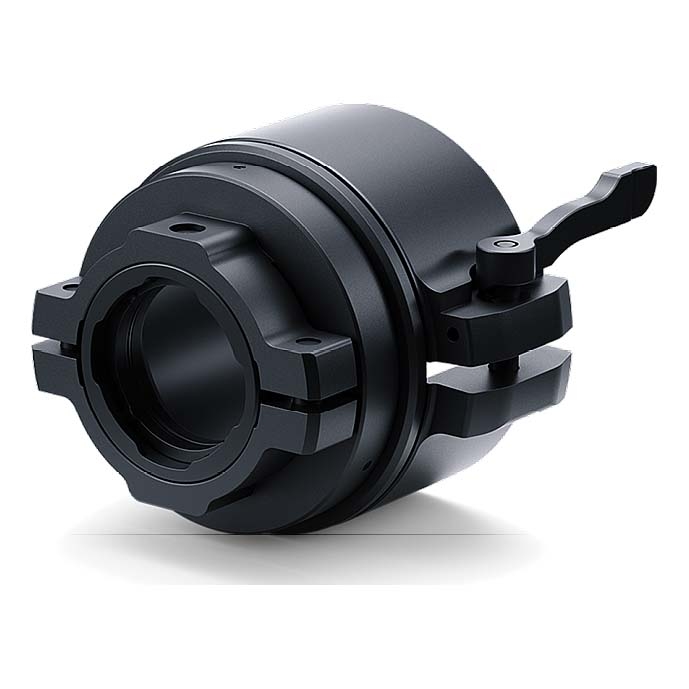

Pulsar PSP-B Ring Adaptor - Bayonet Ring Adaptor for Krypton2/Proton2

Pulsar PSP-B Ring Adaptor - Bayonet Ring Adaptor. The Pulsar PSP-B ring adaptors facilitate the quick removal and reattachment of Krypton 2 and Proton thermal imaging front attachments, with a precise screen positioning mechanism that ensures maximum comfort via the perfect alignment of the thermal image in the day optics' field of view.

Mounting the thermal imaging front attachment to the PSP-B adaptor has been made nice and easy, and had removed the need for any specialist tools via its highly reliable four-point bayonet system, which ensures an incredibly secure fit. The attachment is then fixed onto the lens of traditional day optics via its retainer clip in just a few seconds, enabling fast transitioning from day optics to thermal imager, and vice versa.

Designed to last, the PSP-B ring adaptors are milled from aluminium, offering high levels of durability whilst remaining incredibly lightweight, and ensuring long-lasting reliability, even when mounted on large calibre hunting weapons. For an extra layer of reliability, these ring adaptors remain unaffected by extreme temperature differences, operating effectively in severely hot or frosty conditions without any adjustments required (when installed indoors).

These ring adaptors allow the Krypton 2 and Proton thermal imaging front attachments to be used with almost any daytime optical riflescope with a lens diameter of 40-56mm (monocular), as well as with riflescopes manufactured in the form of enclosed tubes with a 30mm diameter (riflescopes used for driven hunting).

One of the supplied insert rings must be inserted into the adaptor before it can be mounted onto the lens of a daylight optical device (spotting scope, binocular, sight, etc.), and the selection of which ring adaptor to use can be determined by the outer diameter of the optical device's lens housing.

Which PSP-B Ring Adaptor Do You Need?

PSP-42B:
Used for installation of Proton and Krypton 2 thermal imaging front attachments on most riflescopes with a 40-42 mm optical diameter. Inserts with inner diameters of 46 mm (for mounting the adapter on daytime optics with an outer lens diameter of 46 mm), 46.5 mm (46.5 mm), 47 mm (46.7-47.6 mm), 48 mm (47.7-48.6 mm), 49 mm (48.7-49.6 mm), 50 mm (49.7-50.6 mm) are provided as a standard accessory.

PSP-50B:
Used for installation of Proton and Krypton 2 thermal imaging front attachments on most riflescopes with a 50 mm optical diameter. Inserts with an inner diameter of 51.6 mm (for mounting the adapter on daytime optics with an outer lens diameter of 51.6 mm), 53.4 mm (53.4 mm), 55 mm (54.7-55.6 mm), 56 mm (55.7-56.6 mm), 57 mm (56.7-57.6 mm), 58 mm (57.7-58.6 mm), 59 mm (58.7-59.6 mm) are provided as a standard accessory.

PSP-56B:
Used for installation of Proton and Krypton 2 thermal imaging front attachments on most riflescopes with a 56 mm optical diameter. Inserts with an inner diameter of 60 mm (for mounting the adapter on daytime optics with an outer lens diameter of 59.7 - 60.6 mm), 61 mm (60.7 - 61.6 mm), 62 mm (61.7 - 62.6 mm), 63 mm (62.7 - 63.6 mm), 64 mm (63.7 - 64.6 mm), 65 mm (64.7 - 65.6 mm) are provided as a standard accessory.
