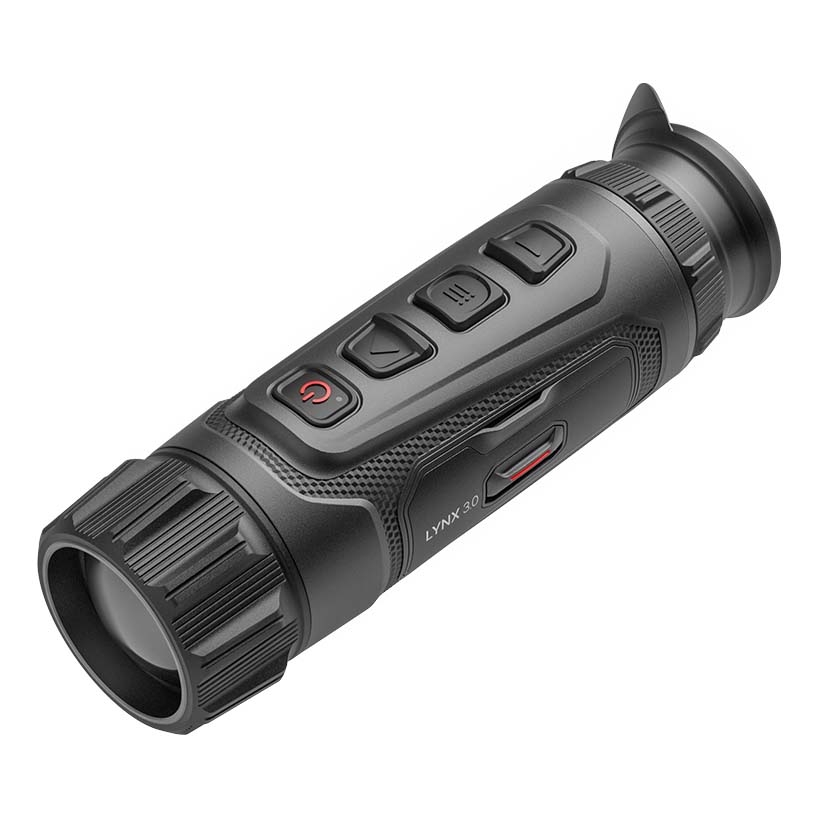

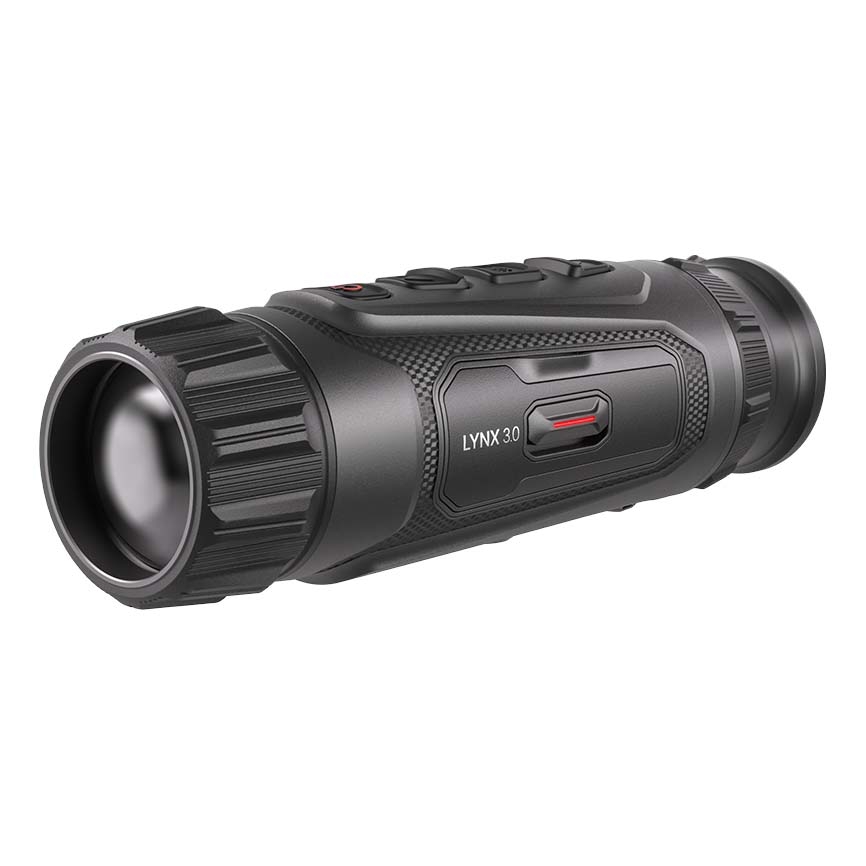

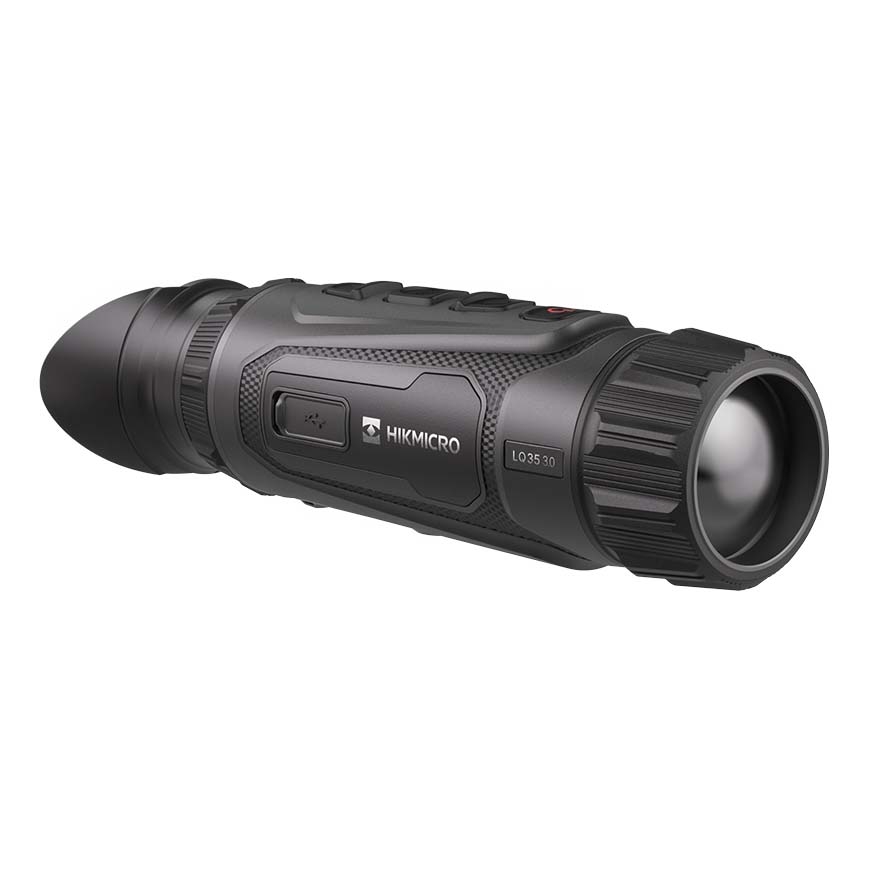

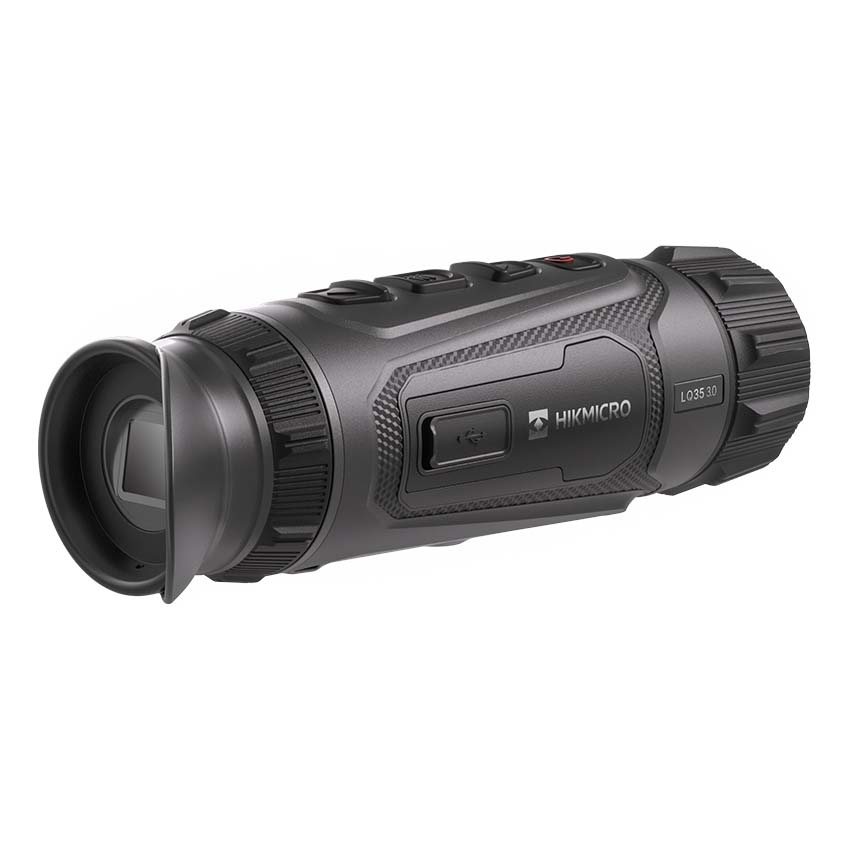

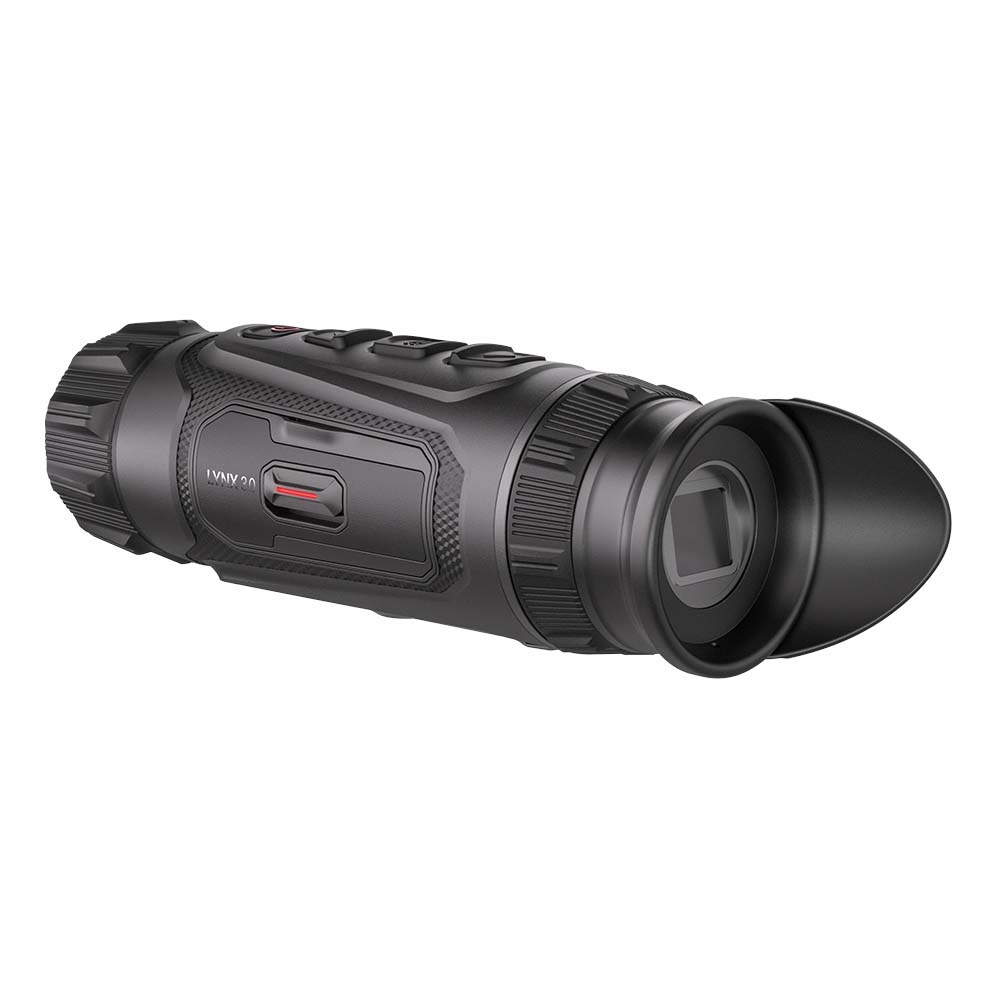

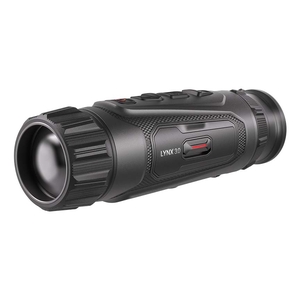

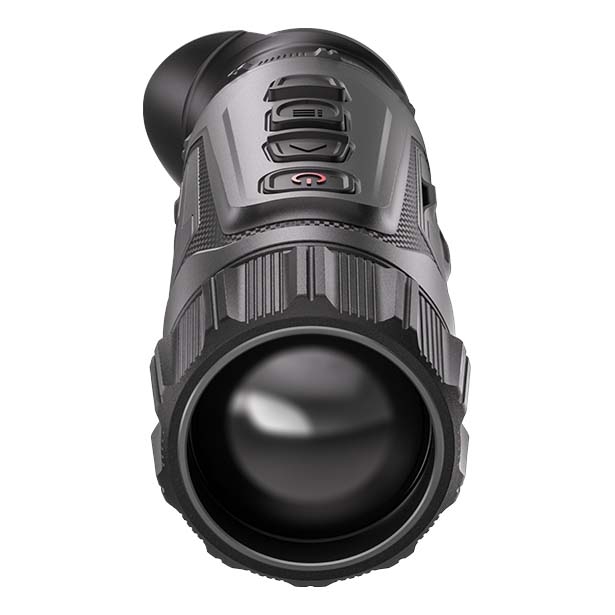

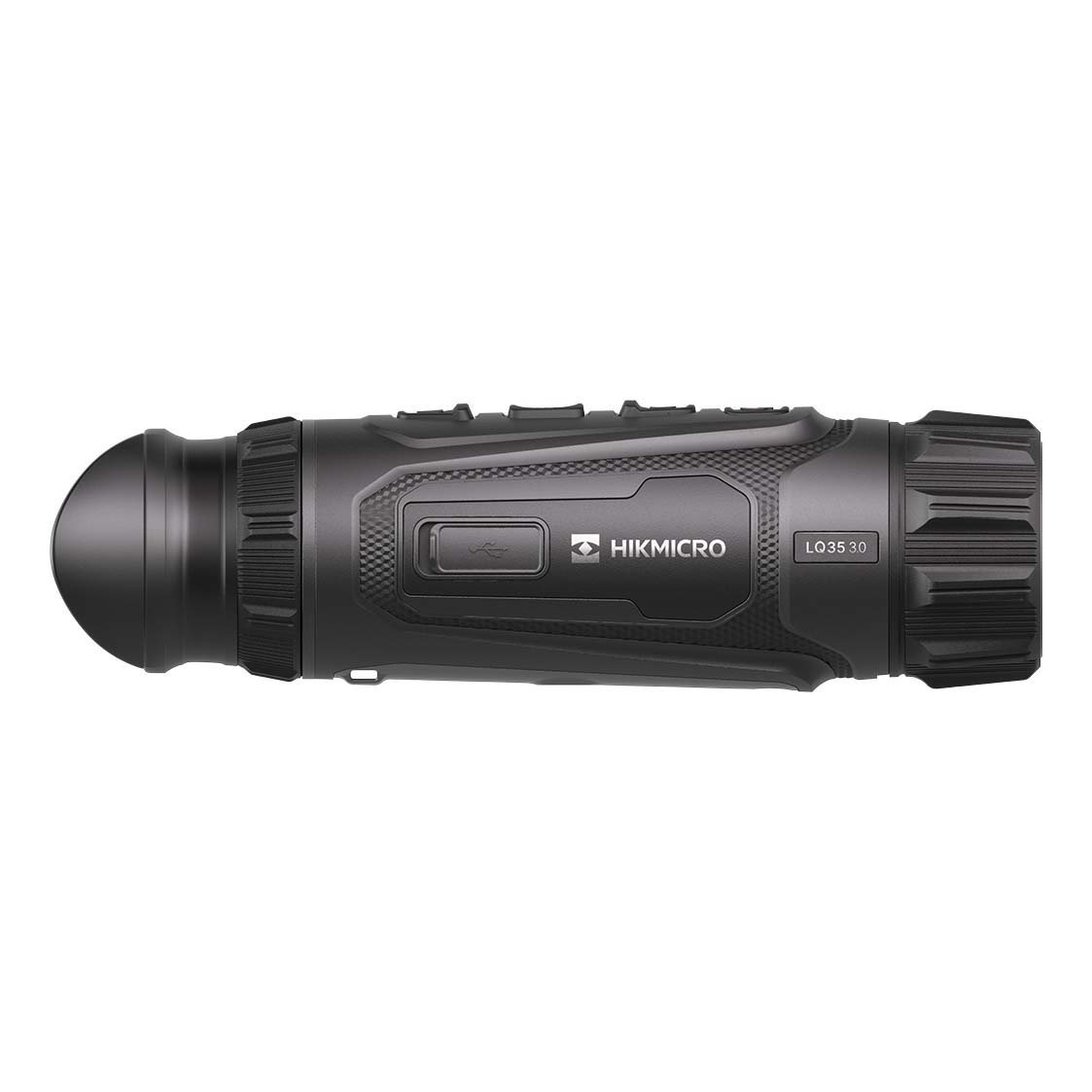

HIKMicro Lynx 3.0 LQ35 Thermal (640x512) Monocular
Related Products & Accessories
Product Details
Manufacturer code: HM-LQ353.0 | Our code: 147039
HIKMICRO LQ35 3.0 Thermal Monocular
The HIKMICRO LQ35 3.0 Thermal Monocular is a high-performance thermal imaging device designed for professional hunters and users requiring reliable mid-to-long-range detection. Combining a powerful 640×512 thermal sensor with a 35mm F1.0 lens, it delivers exceptional clarity and detection capabilities in challenging environments. Its extended detection range of up to 1800 metres and wide field of view make it particularly suited to scanning large, open terrain.
Engineered with advanced imaging technologies including shutterless operation and AI-enhanced image processing, this compact monocular offers a refined viewing experience while maintaining a lightweight, pocket-friendly design.
Craftsmanship & Construction
The LQ35 3.0 is built around a robust VOx uncooled focal plane array sensor, delivering a high-resolution thermal image with a 50Hz refresh rate for smooth real-time viewing. Its 35mm F1.0 lens is designed for optimal light intake and thermal sensitivity, ensuring strong performance across varying conditions.
With a compact housing measuring 169.6 × 53.6 × 49.5 mm and a weight of just 354.5g, the monocular balances durability with portability. The IP67-rated construction provides protection against dust and water ingress, supporting reliable operation in demanding outdoor environments.
Fit & Comfort
Designed for handheld use, the monocular features a focus ring for precise manual adjustment, allowing users to fine-tune clarity quickly in the field. The 0.49-inch AMOLED display with 1920 × 1080 resolution offers a clear and comfortable viewing experience, supported by a 20mm eye relief and adjustable diopter range from -5D to +3D.
Its lightweight and compact form factor ensures easy carrying and extended use without fatigue, making it well suited for prolonged observation sessions.
Waterproof Performance
The LQ35 3.0 features an IP67 protection rating, ensuring resistance to dust and water ingress. This level of sealing allows the monocular to perform reliably in wet, muddy, or dusty environments, supporting consistent use in challenging outdoor conditions.
Key Features
- 640 × 512 thermal resolution with VOx uncooled sensor
- 35mm F1.0 lens with detection range up to 1800 metres
- NETD less than 15 mK for high thermal sensitivity
- 1.9x to 15.2x magnification range with digital zoom
- 1920 × 1080 AMOLED display for clear image output
- HIKMICRO Shutterless Imaging System (HSIS)
- Image Pro 3.0 and Zoom Pro image enhancement algorithms
- Multiple colour palettes including Black Hot and White Hot
- Built-in 64GB memory with video, image, and audio recording
- Wi-Fi hotspot capability (2.4 GHz / 5 GHz)
- Replaceable 18650 rechargeable battery
Materials & Care
The monocular is constructed with durable electronic and optical components housed within a sealed body designed for outdoor use. Care should include keeping the lens clean and dry, ensuring the device is stored in appropriate conditions, and maintaining the battery according to standard rechargeable battery practices.
Specifications
- Sensor: VOx Uncooled Focal Plane Array
- Resolution: 640 × 512
- Frame Rate: 50 Hz
- Lens: 35mm, F1.0
- Detection Range: 1800 m
- Magnification: 1.9x – 15.2x
- Field of View: 12.5° × 7.5°
- Display: 0.49-inch AMOLED, 1920 × 1080
- Battery Life: Up to 5 hours (25°C), 4.5 hours (-20°C)
- Memory: 64GB built-in
- Protection Rating: IP67
- Weight: 354.5 g
- Dimensions: 169.6 × 53.6 × 49.5 mm
HIKMICRO LQ35 3.0 Thermal Monocular Review
The HIKMICRO LQ35 3.0 Thermal Monocular is a premium thermal imaging solution aimed at professional users who require dependable performance over extended distances. With its high-resolution sensor and long detection range, it is designed for serious observation tasks in open environments.
Combining advanced imaging systems with a compact, lightweight build, it offers a balance of performance and usability for demanding field applications.
HIKMICRO LQ35 3.0 Thermal Monocular Performance & Key Features
The device delivers strong thermal imaging performance, supported by high sensitivity and advanced processing technologies.
- High-resolution 640 × 512 sensor ensures detailed thermal imaging
- Detection range up to 1800m supports long-distance observation
- AI-powered Image Pro 3.0 enhances clarity and contrast
- Shutterless imaging system reduces interruptions during use
- Wide magnification range provides flexibility across scenarios
Build Quality & Handling
The compact and lightweight design makes the monocular easy to carry and handle during extended use. Its IP67-rated housing provides durability in harsh outdoor conditions, while the focus ring allows for precise manual adjustments.
The overall construction supports both portability and reliability, making it suitable for field-based applications.
Is the HIKMICRO LQ35 3.0 Thermal Monocular Easy to Use?
The monocular is designed with user-friendly operation in mind, offering intuitive controls and straightforward functionality. The AMOLED display provides clear visual feedback, while the adjustable diopter and focus ring help fine-tune the viewing experience.
- Simple manual focus adjustment via focus ring
- Clear, high-resolution AMOLED display
- Integrated recording and memory functions
- Wi-Fi hotspot enables connectivity and sharing
Key Takeaways of the HIKMICRO LQ35 3.0 Thermal Monocular
The HIKMICRO LQ35 3.0 stands out for its combination of high-resolution imaging, long detection range, and advanced processing features. Its lightweight, durable design supports use in demanding outdoor conditions, while the integrated recording and connectivity functions add practical versatility. Battery life is moderate depending on temperature, but the replaceable battery design offers flexibility. It is best suited to experienced users seeking reliable performance for mid-to-long-range observation.
HIKMICRO LQ35 3.0 Thermal Monocular FAQs
What is the detection range of the HIKMICRO LQ35 3.0 Thermal Monocular?
The device offers a detection range of up to 1800 metres, making it suitable for observing targets over long distances in open environments.
What magnification does the HIKMICRO LQ35 3.0 provide?
The monocular features a magnification range from 1.9x to 15.2x, allowing users to adjust zoom levels based on observation needs.
How sensitive is the thermal sensor?
The thermal module has a NETD of less than 15 mK, providing high sensitivity and enabling detection of subtle temperature differences.
Is the HIKMICRO LQ35 3.0 suitable for use in harsh weather?
With an IP67 protection rating, the device is resistant to dust and water ingress, supporting reliable operation in demanding outdoor conditions.
What type of display does the monocular use?
It features a 0.49-inch AMOLED display with a resolution of 1920 × 1080, delivering clear and detailed image output.
Can the HIKMICRO LQ35 3.0 record images and video?
Yes, it supports video recording, snapshot capture, and audio recording, with a built-in 64GB memory for storage.
What is the battery life of the HIKMICRO LQ35 3.0?
The device provides up to 5 hours of continuous operation at 25°C and approximately 4.5 hours at -20°C using a replaceable 18650 battery.
Does the monocular support wireless connectivity?
Yes, it includes Wi-Fi hotspot functionality supporting both 2.4 GHz and 5 GHz bands for connectivity and data transfer.
What is the field of view of the HIKMICRO LQ35 3.0?
The monocular offers a field of view of 12.5° × 7.5°, allowing effective scanning of wide areas.
For more options, explore the full range of HIKMICRO thermal binoculars here.
