Product Details
Manufacturer code: HM-THUNDER-3.0-E | Our code: 146843

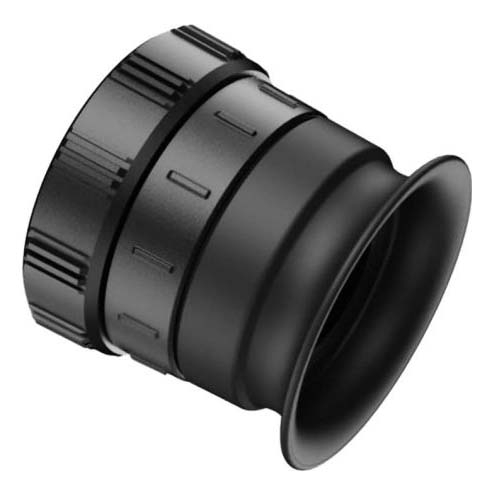

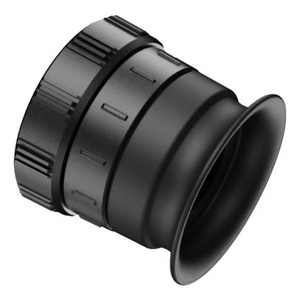

HIKMICRO Thunder 3 Eyepiece
The HIKMICRO Thunder 3 Eyepiece is a compact optical accessory designed to expand the versatility of the Thunder thermal clip-on series. By attaching directly to compatible Thunder clip-on devices, it transforms the unit into a handheld thermal monocular, offering a convenient way to observe and scan your surroundings without mounting it to a rifle scope.
Whether used for wildlife observation, night-time field work, or general thermal viewing, this practical accessory allows users to switch quickly between mounted and handheld viewing. Lightweight and compact, it integrates seamlessly with the Thunder platform while maintaining comfort and clarity during extended observation sessions.
Craftsmanship & Construction
The eyepiece is designed to integrate securely with compatible Thunder clip-on devices through a standard M52 × 0.75 mm thread, ensuring a precise and reliable attachment. Its compact form factor keeps the setup streamlined while maintaining durability for field use.
Constructed with portability in mind, the eyepiece measures 58 × 58 × 52.3 mm and weighs just 104.5 grams. This lightweight build makes it easy to carry and install while preserving the overall balance of the thermal unit when used as a handheld observation device.
Fit & Comfort
Designed for comfortable viewing, the eyepiece features a 5 mm exit pupil and 15 mm eye relief. These specifications help maintain a clear and relaxed viewing experience, even during longer observation periods.
An adjustable dioptre range from -5D to +5D allows users to fine-tune the image to suit individual eyesight, ensuring a sharp and personalised viewing experience.
Key Features
- Transforms a Thunder clip-on device into a handheld thermal monocular
- 5 mm exit pupil for clear image presentation
- 15 mm eye relief designed for comfortable viewing
- Adjustable dioptre range from -5D to +5D for personalised focus
- Secure M52 × 0.75 mm threaded attachment
- Compact and lightweight design for easy field use
Materials & Care
The eyepiece is engineered for durability and practical use in outdoor environments. Its compact housing is built to withstand regular field handling while maintaining reliable optical alignment when attached to the Thunder device.
Specific cleaning or maintenance instructions are not provided. Standard care practices for optical accessories—such as keeping lenses clean and storing the unit safely when not in use—are recommended.
Specifications
- Model: HM-THUNDER 3.0-E
- Compatible Devices: Thunder 3.0 clip-on series
- Exit Pupil: 5 mm
- Eye Relief: 15 mm
- Dioptre Adjustment Range: -5D to +5D
- Thread: M52 × 0.75 mm

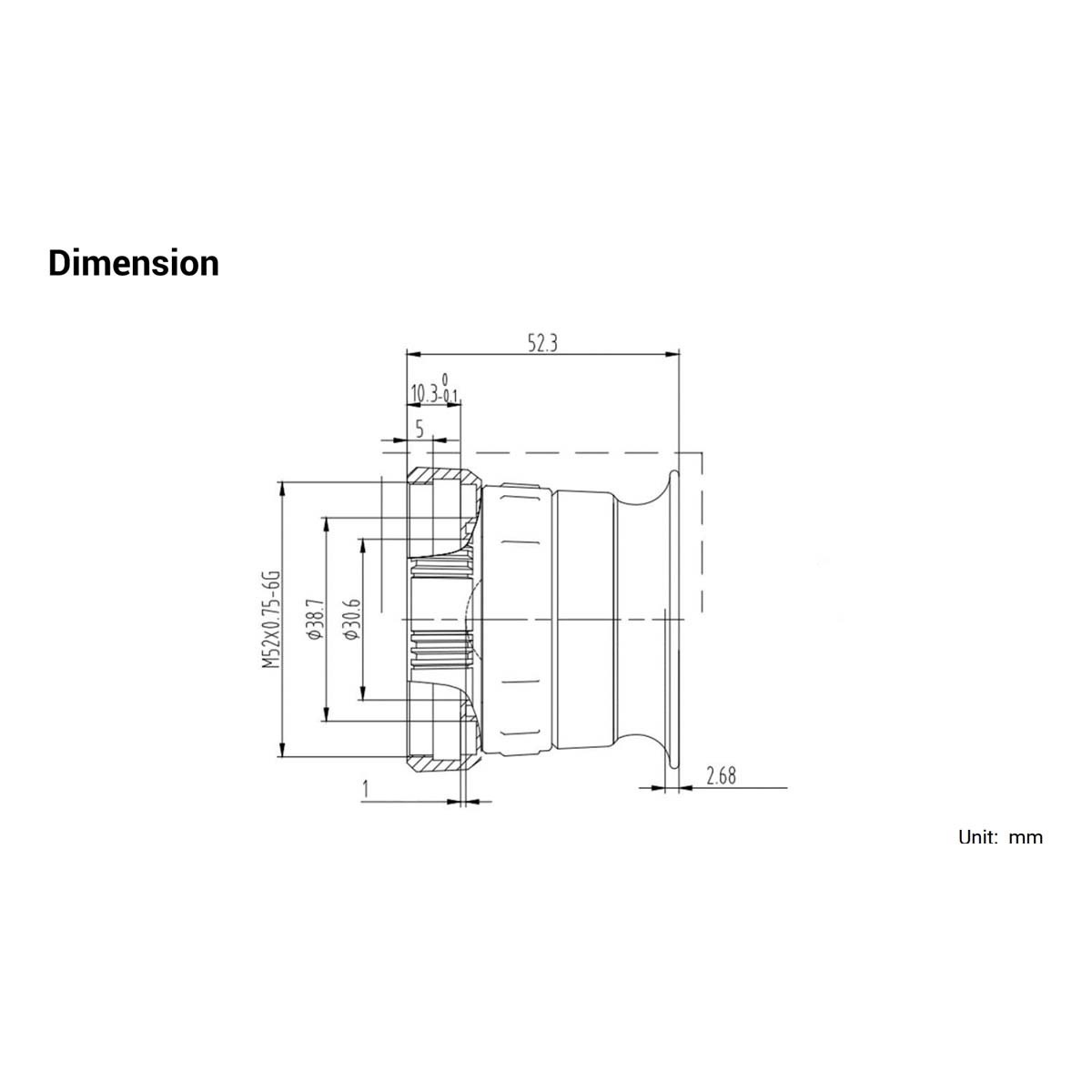

- Dimensions: 58 × 58 × 52.3 mm
- Weight: 104.5 g
HIKMICRO Thunder 3 Eyepiece Review
The HIKMICRO Thunder 3 Eyepiece is a purpose-built accessory designed to enhance the flexibility of the Thunder thermal clip-on series. By converting the clip-on device into a handheld thermal monocular, it allows users to switch easily between mounted shooting applications and mobile observation.
Compact, lightweight and easy to attach, this accessory is particularly useful for hunters and outdoor observers who want to scan terrain before mounting their device. Its ergonomic viewing specifications and adjustable dioptre help ensure clear and comfortable use in the field.
HIKMICRO Thunder 3 Eyepiece Performance & Key Features
The eyepiece is designed to maximise the practical versatility of the Thunder platform. By enabling handheld viewing, it allows users to observe and scan areas quickly without mounting the thermal device to a rifle.
- Converts compatible Thunder clip-on devices into handheld monoculars
- 5 mm exit pupil supports clear image viewing
- 15 mm eye relief designed for comfortable observation
- Adjustable dioptre range helps tailor the image to the user’s eyesight
Build Quality & Handling
The compact design keeps the overall setup lightweight and easy to handle, weighing just over 100 grams. Its threaded M52 × 0.75 mm connection ensures a secure fit while maintaining stable alignment with the thermal unit.
With dimensions of 58 × 58 × 52.3 mm, the eyepiece adds minimal bulk, making it well suited for field carry and quick installation when switching from mounted to handheld observation.
Is HIKMICRO Thunder 3 Eyepiece Easy to Use?
The eyepiece is designed for straightforward attachment and intuitive operation. Once connected to the Thunder device, it immediately allows handheld observation with the same thermal imaging capabilities.
- Simple threaded attachment for quick installation
- Dioptre adjustment allows personalised viewing clarity
- Comfortable eye relief supports extended observation
Key Takeaways of the HIKMICRO Thunder 3 Eyepiece
The HIKMICRO Thunder 3 Eyepiece is a practical accessory for users who want to expand the functionality of their Thunder clip-on device. By converting the system into a handheld monocular, it provides greater flexibility for scanning and observation in the field. Its lightweight construction, adjustable dioptre, and comfortable viewing specifications make it a useful addition for hunters and outdoor observers. For anyone already using the Thunder platform, it offers a simple and effective way to add handheld thermal viewing capability.
HIKMICRO Thunder 3 Eyepiece FAQs
What does the HIKMICRO Thunder 3 Eyepiece do?
The eyepiece converts a compatible Thunder clip-on thermal device into a handheld monocular. This allows the user to observe surroundings without mounting the device to a rifle scope.
Which devices is the HIKMICRO Thunder 3 Eyepiece compatible with?
The eyepiece is designed to attach to compatible Thunder clip-on devices in the Thunder series, allowing them to be used as handheld thermal viewing units.
What is the eye relief of the HIKMICRO Thunder 3 Eyepiece?
The eyepiece provides 15 mm of eye relief. This helps create a comfortable viewing distance between the eye and the optical system during extended observation.
What exit pupil does the HIKMICRO Thunder 3 Eyepiece provide?
The eyepiece has a 5 mm exit pupil. This specification supports a clear image presentation and contributes to comfortable viewing conditions.
Does the HIKMICRO Thunder 3 Eyepiece support dioptre adjustment?
Yes, it features an adjustable dioptre range from -5D to +5D. This allows users to fine-tune the image to match their eyesight for sharper viewing.
How does the HIKMICRO Thunder 3 Eyepiece attach to the device?
The eyepiece attaches using a standard M52 × 0.75 mm thread. This threaded design ensures a secure and stable connection to the compatible Thunder device.
How heavy is the HIKMICRO Thunder 3 Eyepiece?
The eyepiece weighs approximately 104.5 grams. Its lightweight construction makes it easy to carry and adds minimal weight to the thermal system.
What are the dimensions of the HIKMICRO Thunder 3 Eyepiece?
The eyepiece measures 58 × 58 × 52.3 mm. Its compact size allows it to remain portable and easy to integrate into a field kit.
Is the HIKMICRO Thunder 3 Eyepiece suitable for handheld thermal observation?
Yes. Once attached to the Thunder device, it allows the thermal unit to be used as a handheld monocular, making it suitable for scanning terrain and observing wildlife.
For more options, explore the full range of HIKMICRO thermal accessories here.
