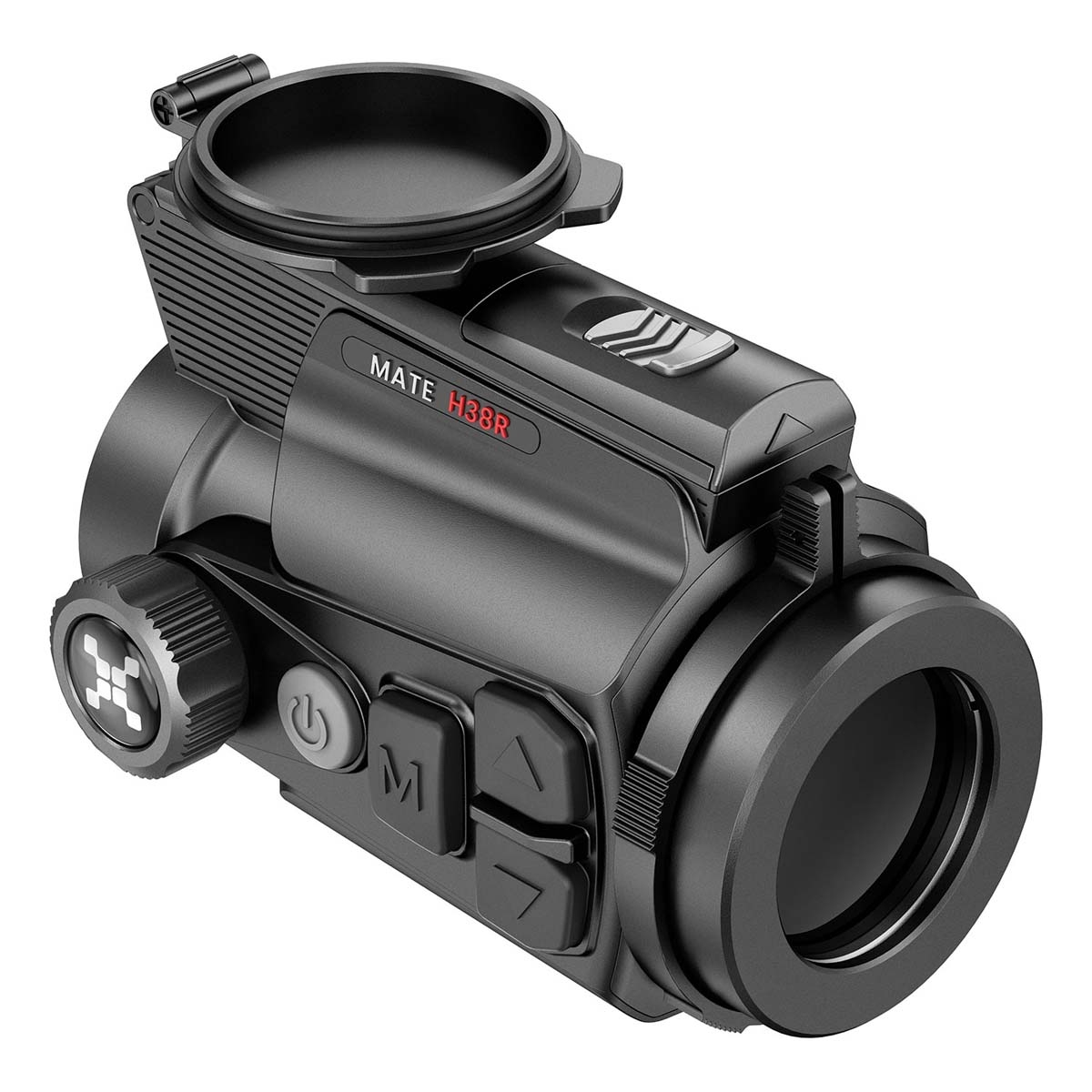

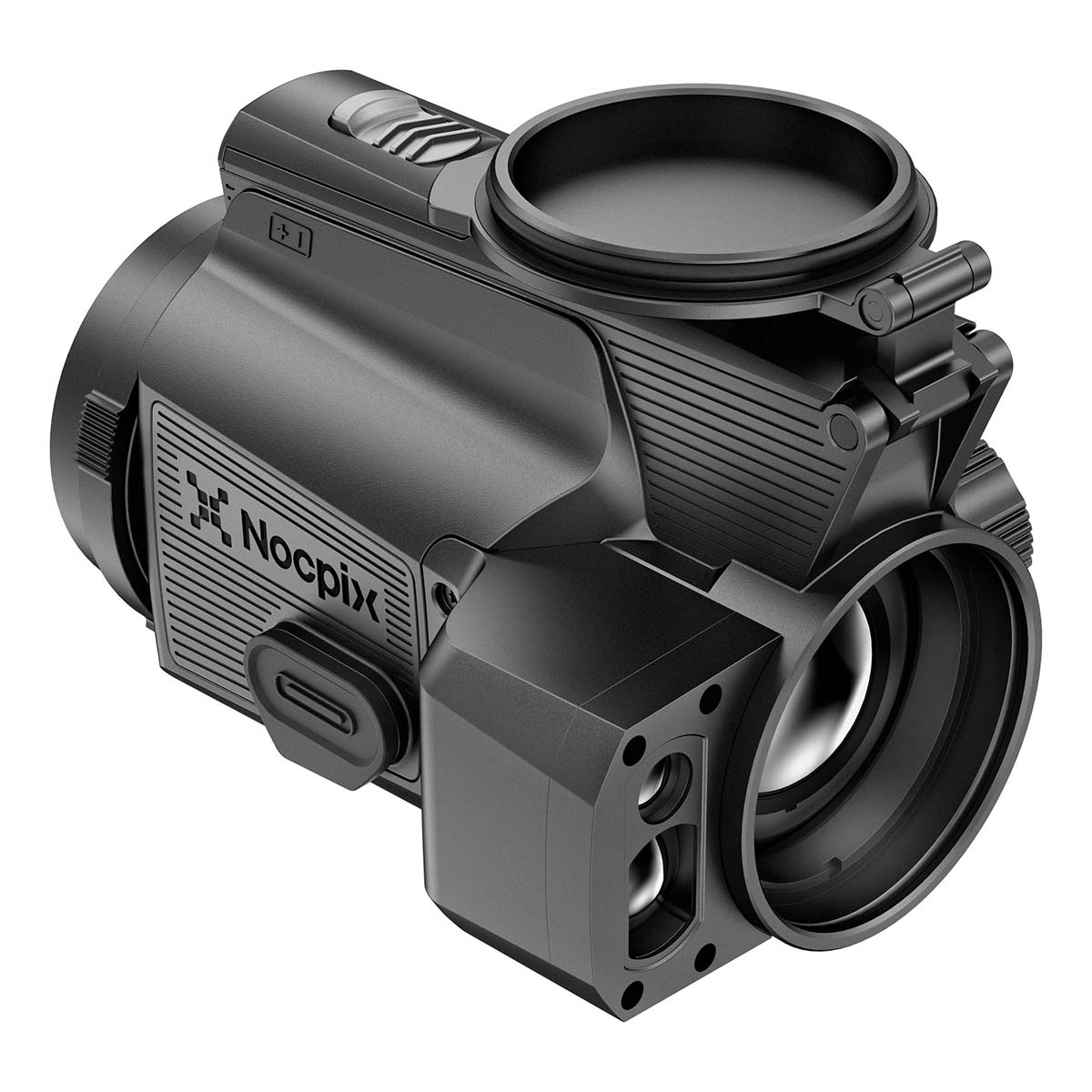

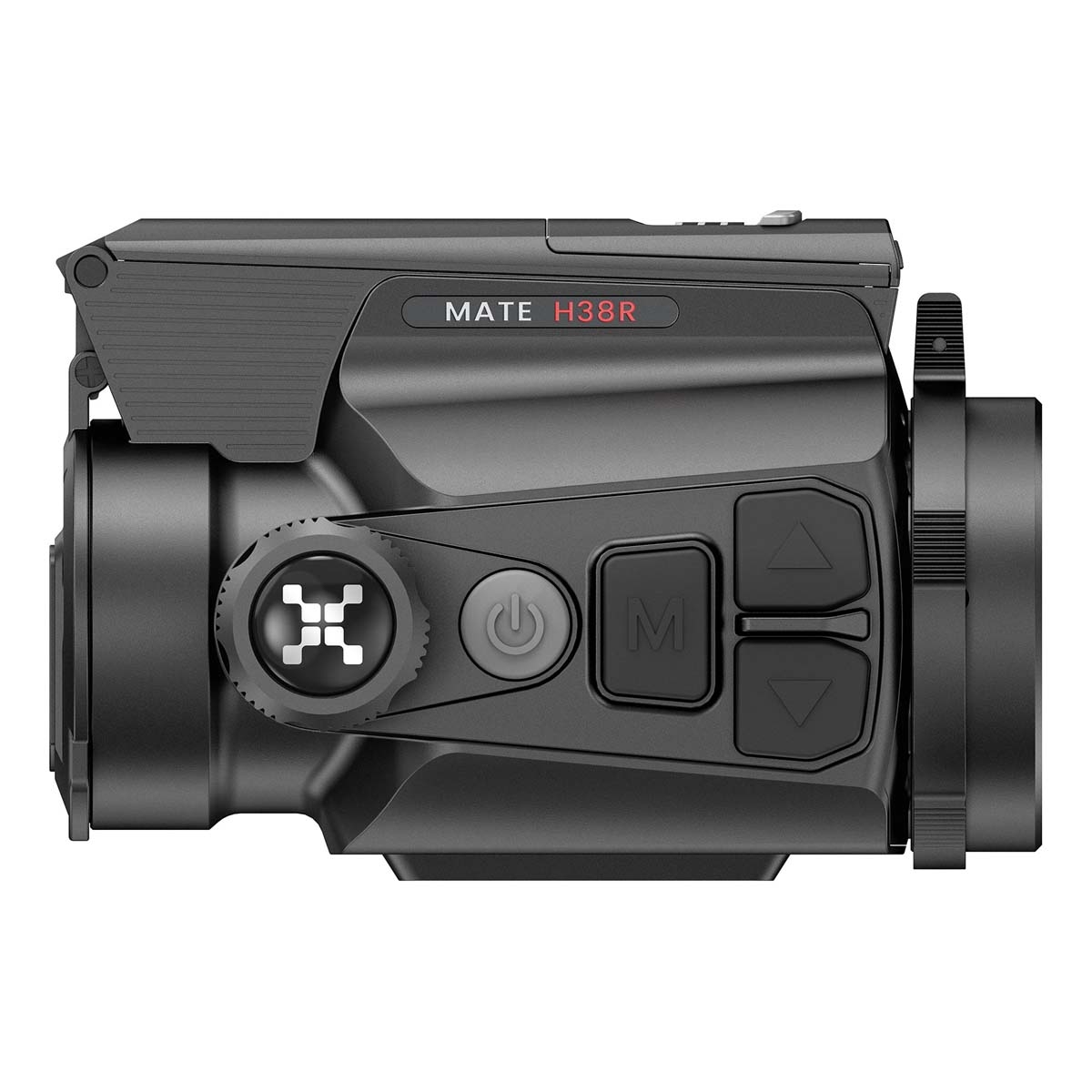

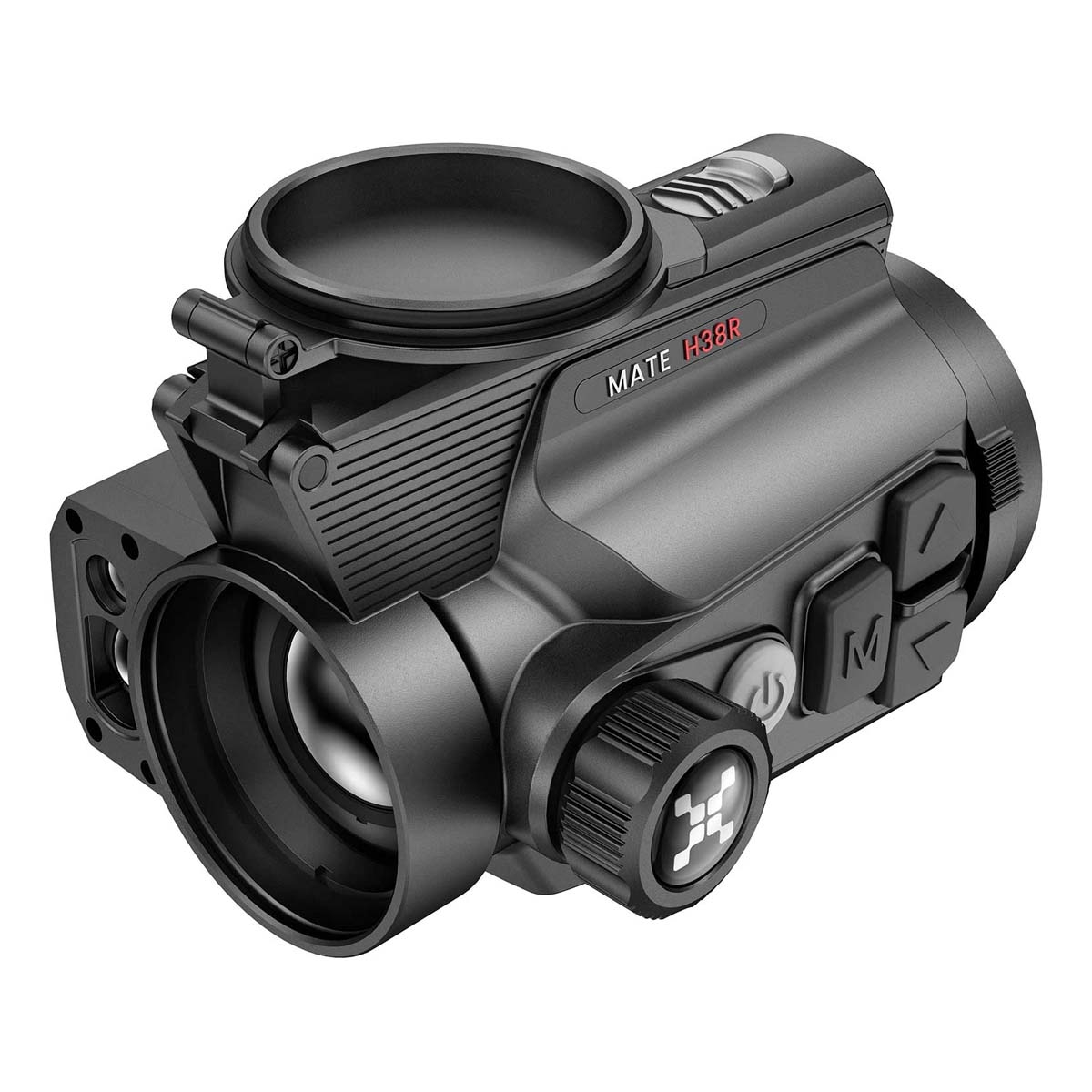

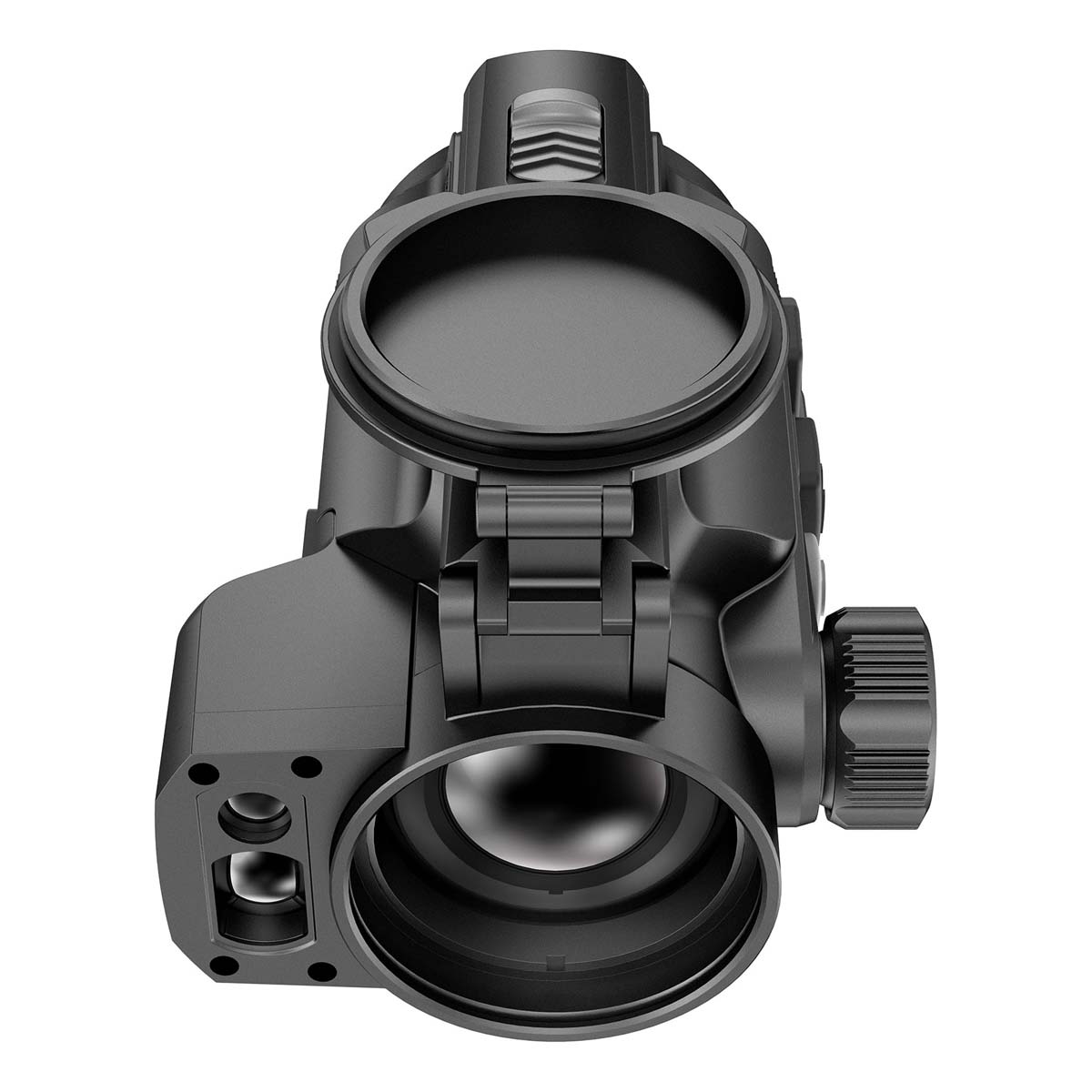

Nocpix MATE H38R Thermal (640x512) Clip-On with LRF

Nocpix MATE H38R Thermal (640x512) Clip-On with LRF. The MATE series is a front mounted thermal imaging attachment with an integrated LRF (excluding LITE) and built-in ballistic calculation. Featuring our high-end Gen-2 thermal sensors, advanced image algorithms, Magic Zoom function (excluding LITE), and replaceable 18650 battery. It’s stronger, lighter, and built for the hunt.

With a 1280×1024 resolution, 12 μm pixel pitch, and NETD ≤15mK Gen-2 HD Sensor, which can detect even the finest heat signatures. The 60mm lens pulls in more thermal energy for unmatched long-range detection and striking image clarity– giving you the power to spot and identify game with absolute confidence, even in the toughest environments.

Powered by dual algorithms– an advanced image engine and intelligent Reality+ technology that adjusts to your scope’s magnification– MATE keeps your image sharp and detailed, even in fog, drizzle, or low light. Clear visuals, no matter the conditions.

35mm eyepiece with ultra-low <1% distortion to maintain image accuracy–even at up to 16× magnification. This ensures a stable point of impact and consistent visual alignment.

Magic Zoom automatically adjusts the thermal image and interface in real time to match your riflescopes zoom for seamless scaling and perfect alignment. (Excl. LITE)

Built-in LRF measures distances up to 1200m and PIP form. With built-in ballistic calculation, it supports ethical, informed shots–no matter the weather. (Excl. LITE)

Features

• Gen-2 1280 60Hz Sensor (Ultra)
• F1.0 Lens
• Upto 3100m Detection
• Integrated 1200m Laser Range Finder (excl. LITE)
• Reality+ AI Image Algorithms
• Ballistic Calculation
• Photo/Video/MIC/64GB
• Shutterless Technology
• Replacebable 18650 battery (Supplied with
• 4x for ULTRA, 2x for LITE and 3x for others.)
• Magic Zoom (excl. LITE)
• 1920 x 1080 AMOLED Display
• 7 Distinct Colour Palettes
• Recoil Activated Video (RAV)
• WiFi/Remote
• N-Link

Specifications

• Thermal Sensor Resolution: 640 × 512 px
• Thermal Sensor Pixel Pitch: 12 μm
• NETD: ≤15 mK
• Frame Rate: 60 Hz
• Objective Lens: 38 mm F1.0
• Field of View (HxV): 11.6 × 8.7°
• Detection Range: –
• LRF Ranging Distance: 1200 m
• Display (AMOLED): 1920 × 1080 px
• Battery: Replaceable li-ion battery 18650
• Batteries Supplied: 3
• Max. Operating Time: –
• Weight: 457 g
• Dimensions: 115 × 85 × 76 mm
• Adapter Interface: M52
• Memory Capacity: 64 GB
• IP Rating: IP67
