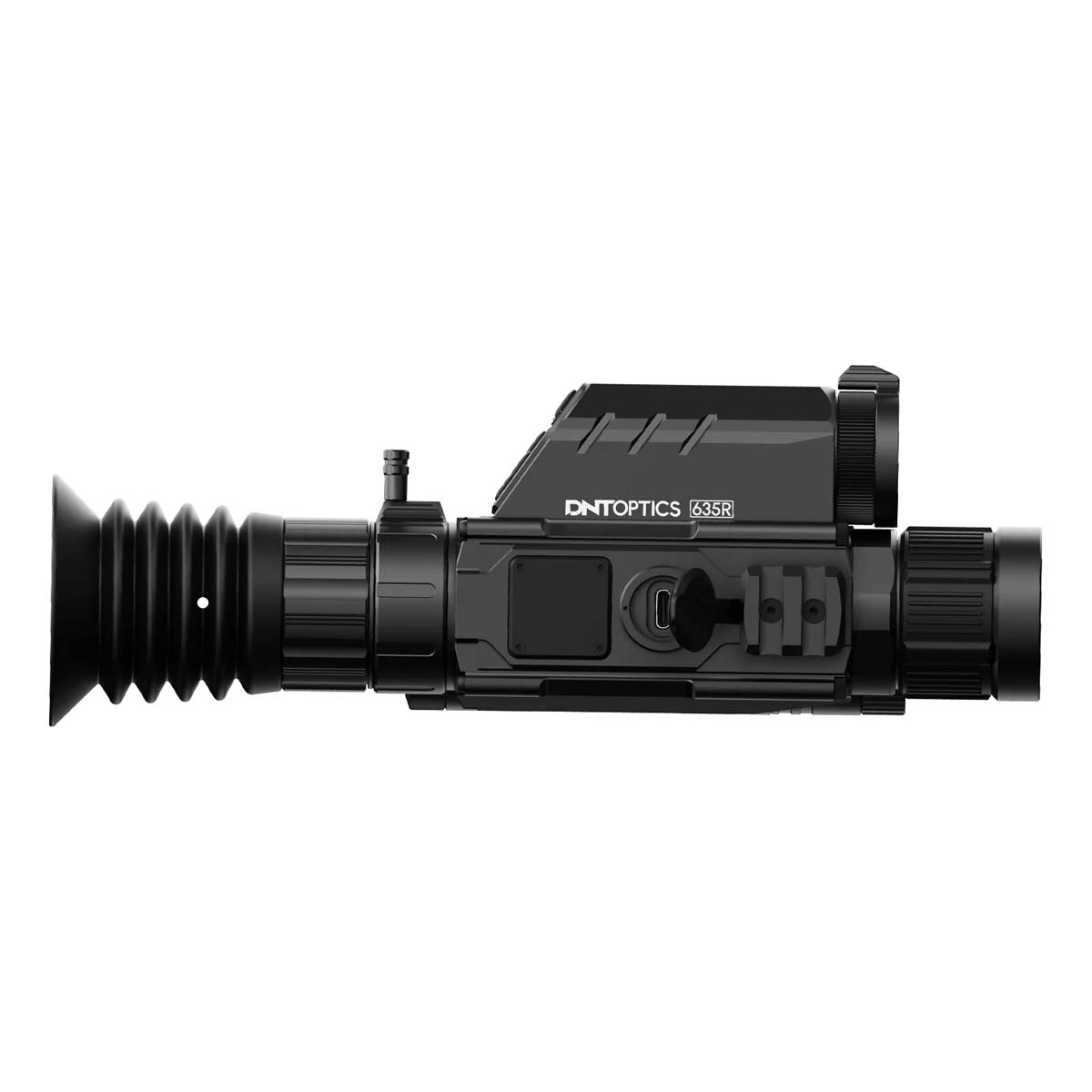

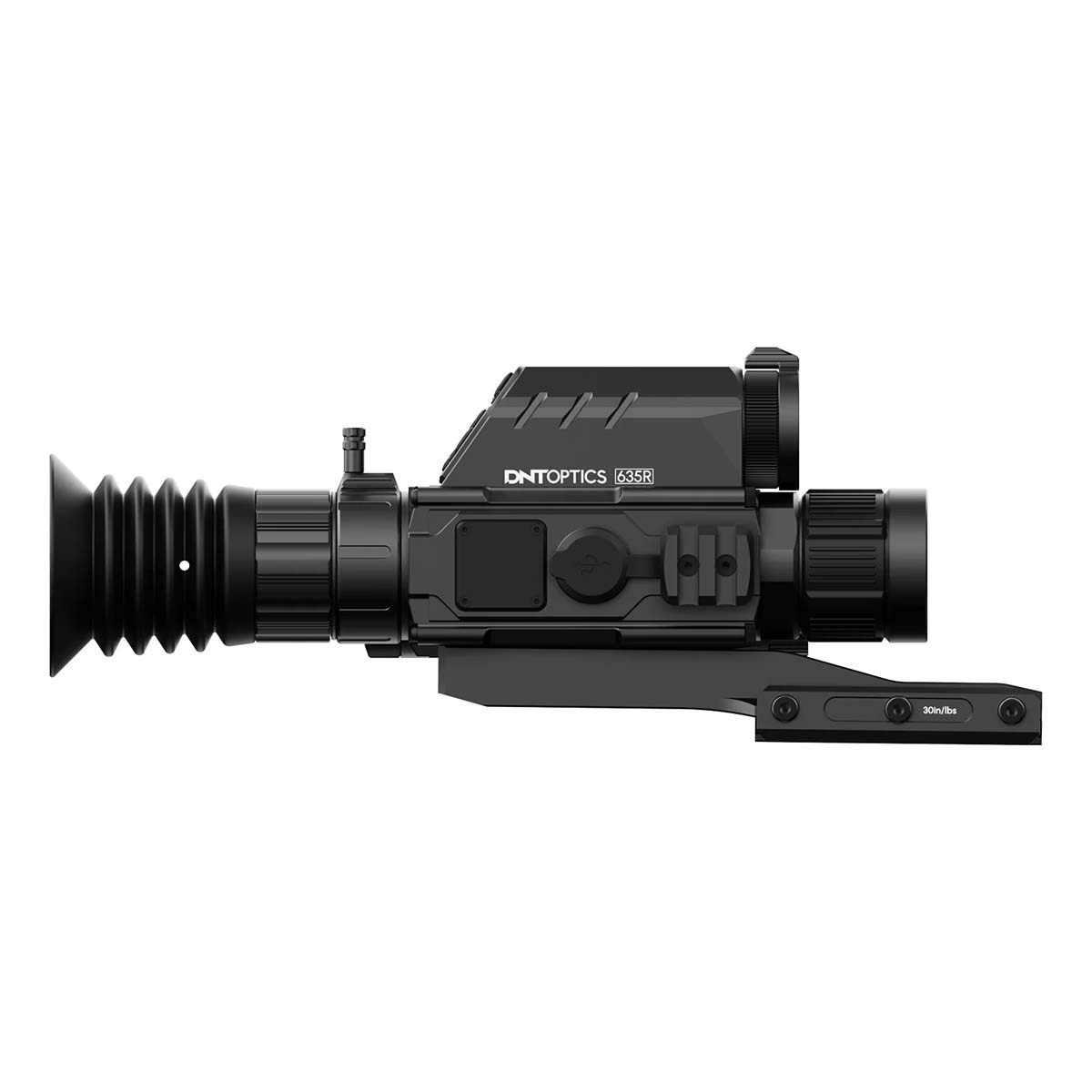

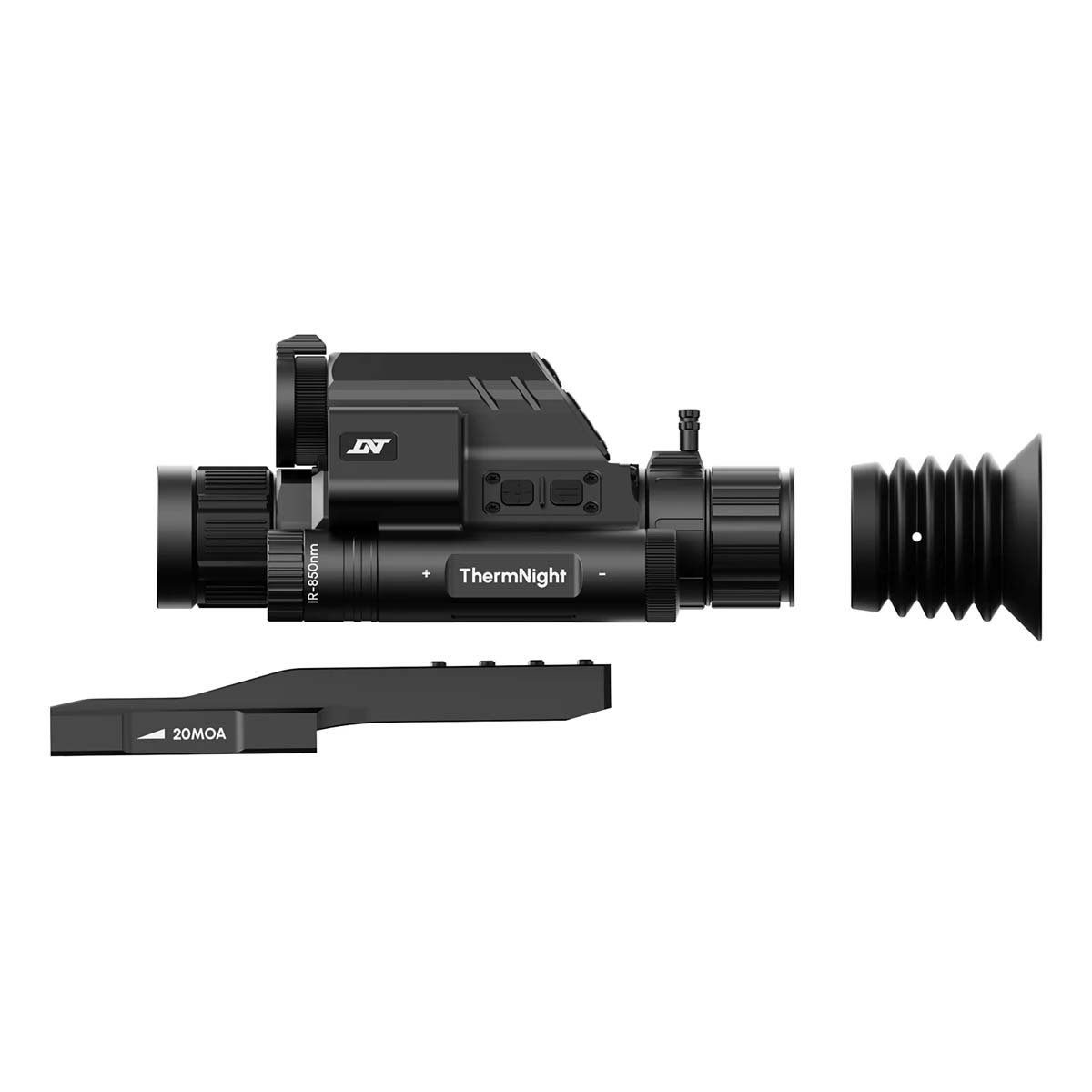

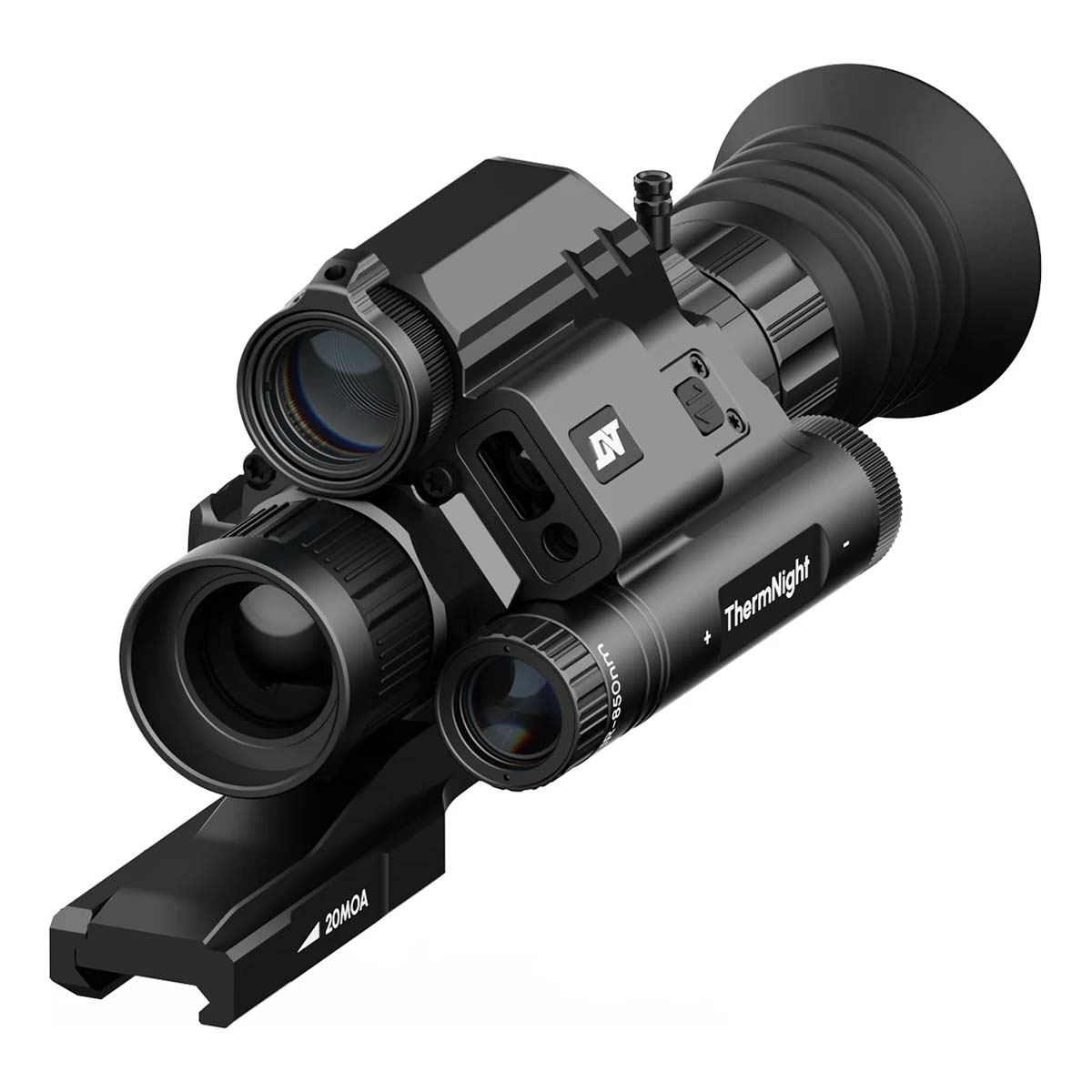

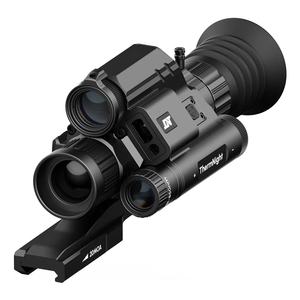

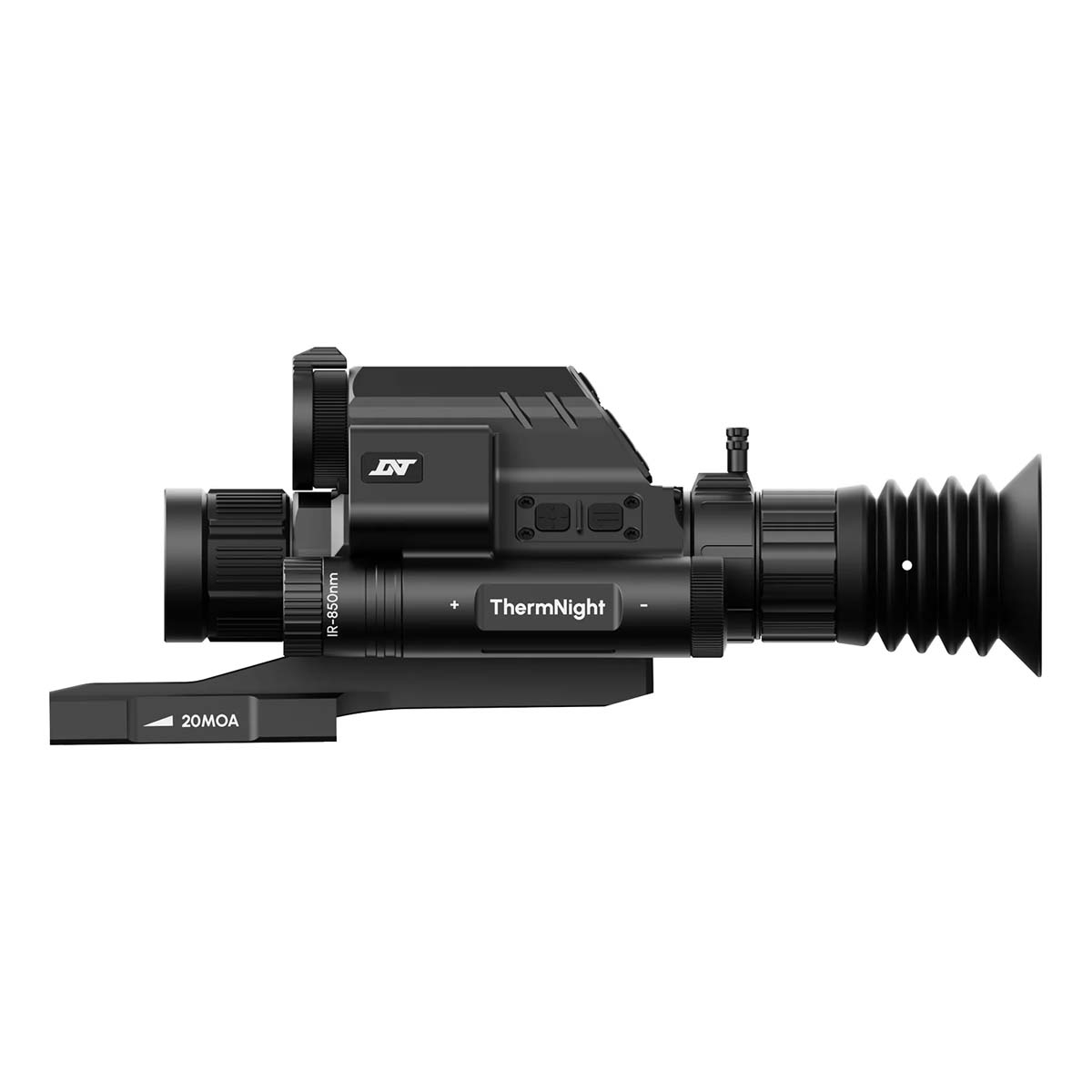

DNT Optics Thermnight Thermal (640x512) & Night Vision Multispectral Riflescope - 35mm with LRF

DNT Optics Thermnight Thermal (640x512) & Night Vision Multispectral Riflescope - 35mm with LRF. The ThermNight Multispectral series of scopes is the culmination of technology to create the perfect aiming solution. It can be used in all weather & lighting conditions. The thermal and night vision combination allows for faster detection of targets and provides high-quality digital image for identification.

The TNC335R features a 640 thermal sensor, while the TNC635R offers a 640 x 512 thermal sensor, delivering superior clarity with a wider field of view (FOV) for easier target detection. Both models use uncooled VOx microbolometers with a 12um pixel pitch, ≤18mk@25°C sensitivity, and a 50Hz refresh rate for optimal performance in the field.

Utilization of SONY's latest CMOS Starvis2 Technology, as well as ED glass lenses, cutting edge AI imaging algorithms and a world-leading 60Hz 1920x1080 Micro-OLED display ensures the DNT ThermNight to be perfect for day or night.

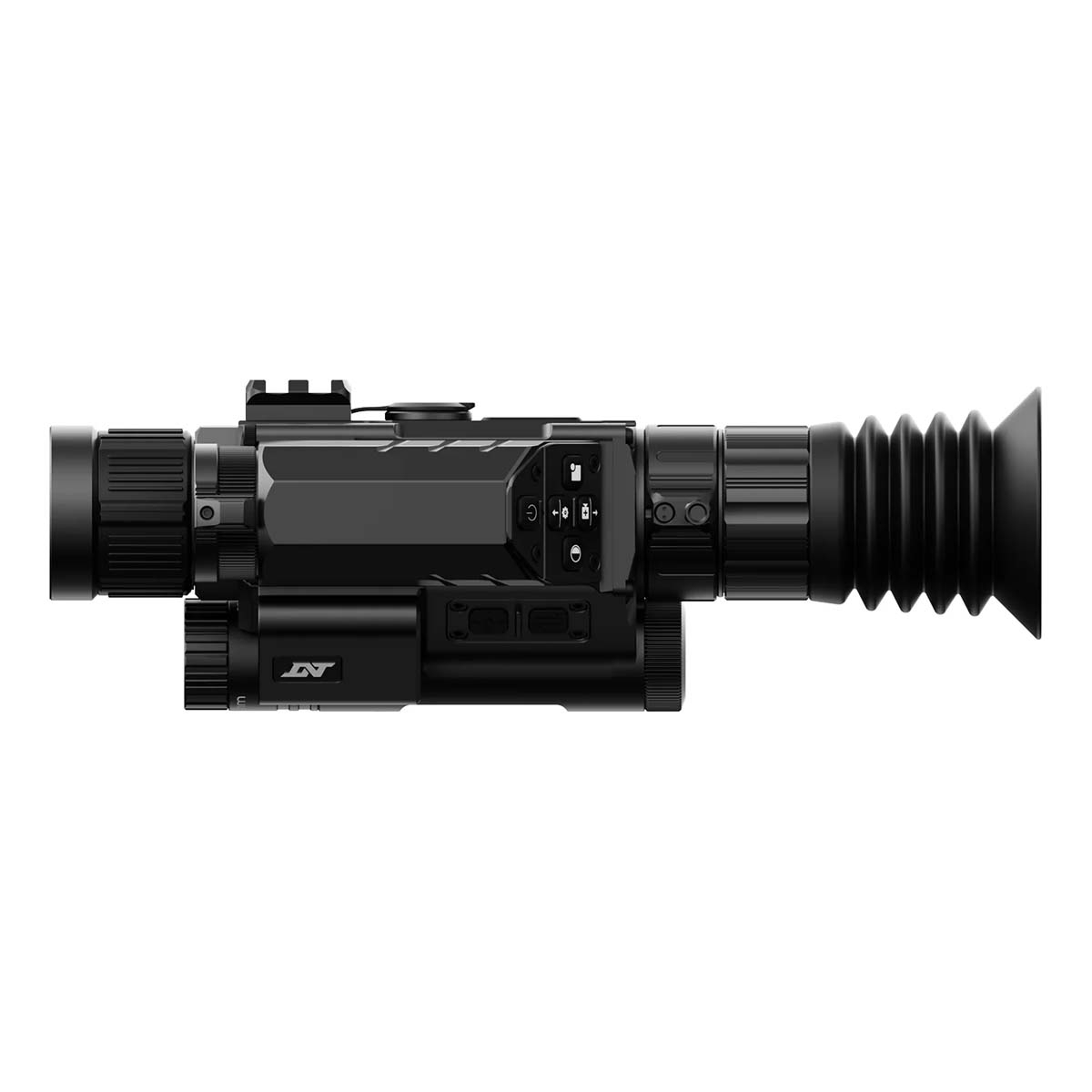

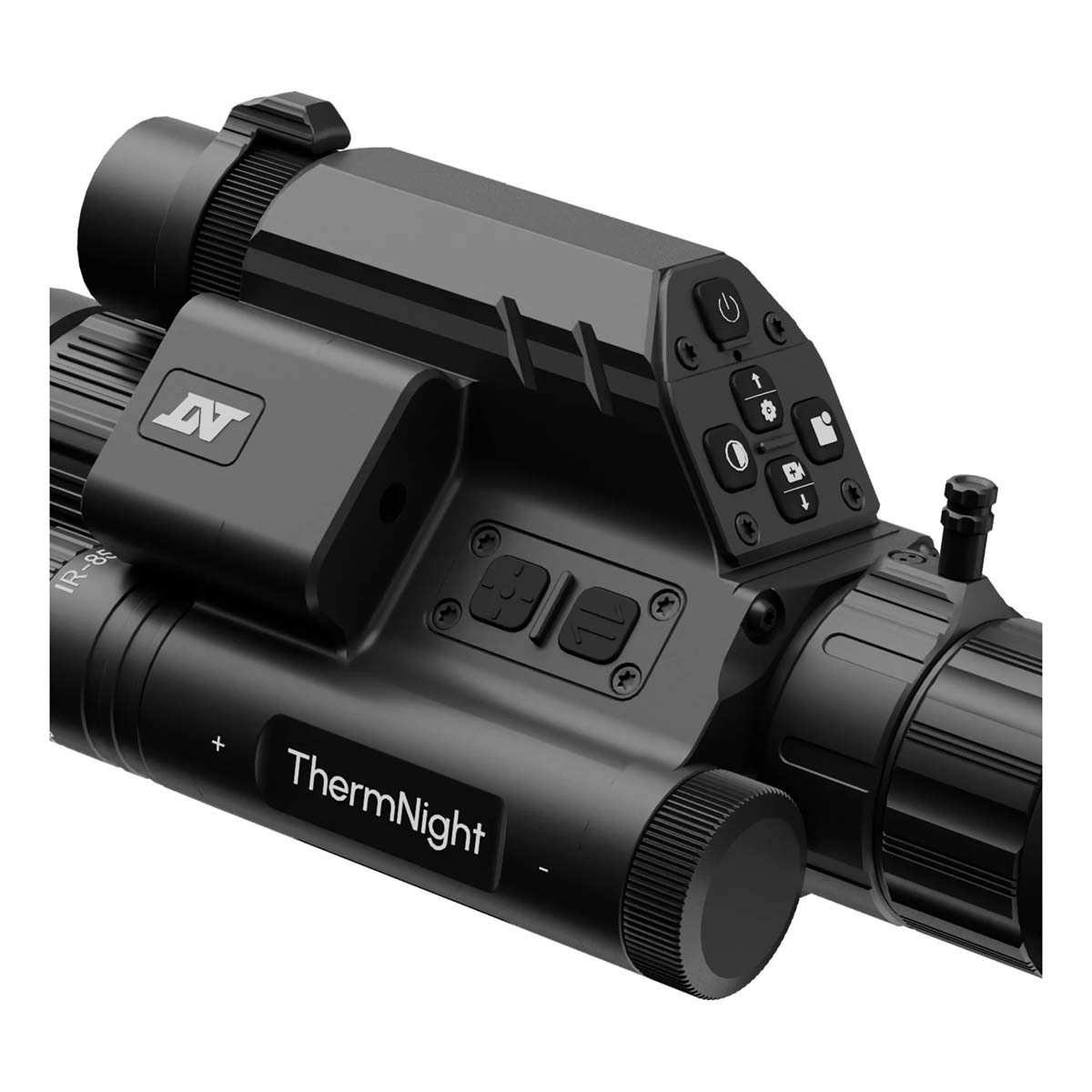

Switching between thermal and digital channels is as easy as the press of a button, conveniently positioned on the side of the scope. You can also enable Picture-in-Picture so you can see both channels at the same time, saving you time to focus on your target.

Features

• Thermal ZOOM Lock
• One-shot Zeroing

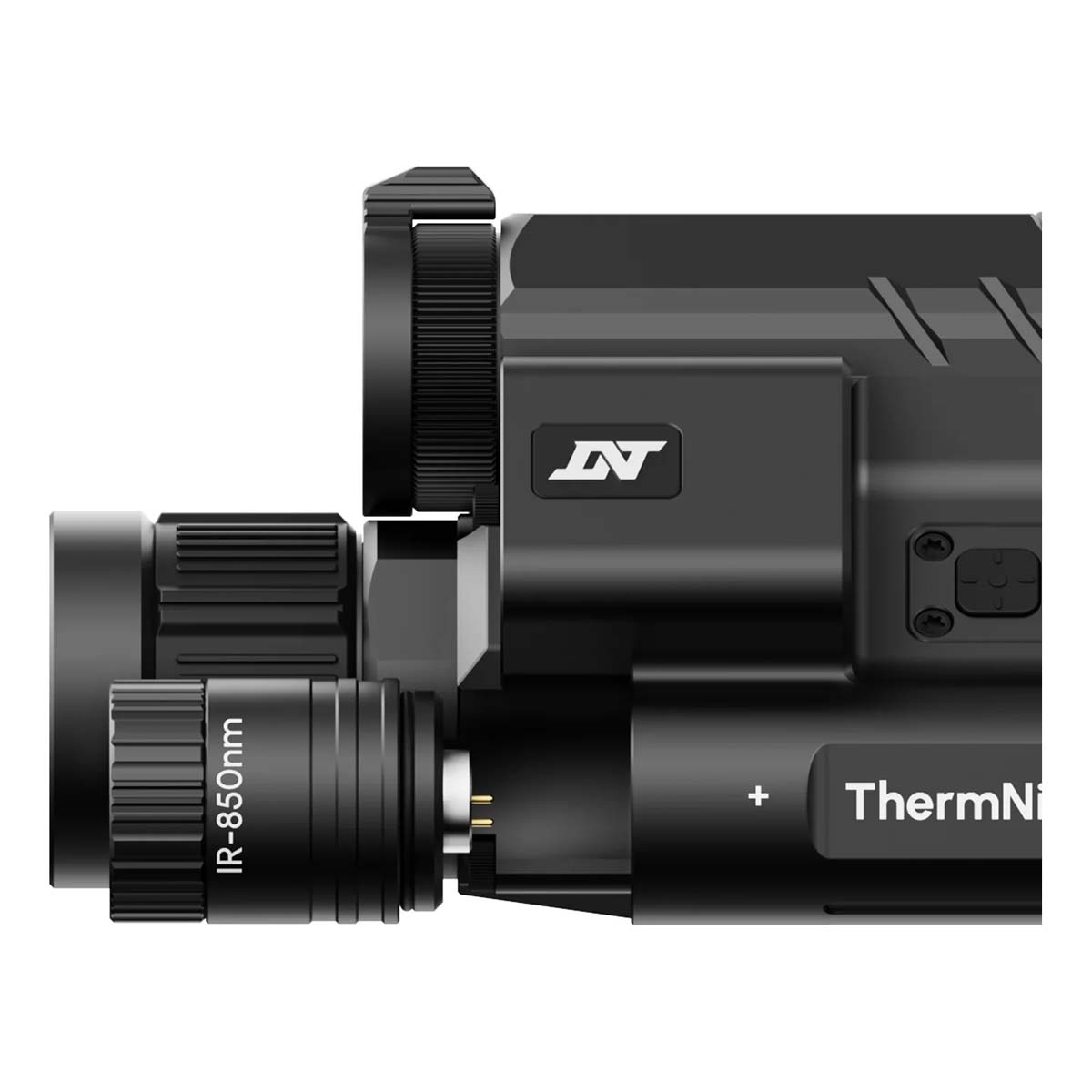

• Detachable IR llluminator
• Up to 5 hrs Battery Life
• Built-in 64Gb Storage
• Reticles: 8 Styles and 5 Colors
• Precise aiming even in the Picture-In-Picture mode
• Wireless Updates

Specifications

Physical Specifications

• Net Weight: 724g/25.6oz
• Dimensions: 232x82x78mm/9.2x3.2x3.0inches
• Storage: Internal Storage, 32GB

Connectivity & Range

• LRF Maximum Measuring Range: 5-1100m
• WIFI/APP: Yes
• Bluetooth: Yes

Environmental

• Ingress Protection: IP67
• Operating Temperature: -4~122°F
• Shock Resistance: 800Gs

Display Specifications

• Type: Micro-OLED
• Display Resolution: 1024×768 pixels
• Frame Rate: 50FPS

Battery Power Supply

• Battery Type: 18650 Battery (flat top)
• Operating Time: 5h
• External Power Supply: 5V - Type C USB

Thermal Channel - Sensor Specifications

• Resolution: 640*512pixels
• Field of View (FOV): 12.52° x 10.02°
• Frame Rate: 50FPS
• Pixel Size: 12×12um
• NETD: ≤18mk@25c
• Focal Length of Objective Lens: 35mm
• Base Magnification: 1.5X
• Digital Zoom: 1.5x, 2.25x, 3x, 3.75x, 4.5x, 5.25x, 6x
• Image Sensor: Uncooled Infrared Image Sensor

Visible Light Channel - Sensor Specifications

• Resolution: 1920×1080 pixels
• Sensor Frame Rate: 60FPS
• Video Record Resolution: 1800×1080pixels

Visible Light Channel - Optical Specifications

• Detection range: 400m
• Field of view: 5.31° x 2.99°
• Eye relief: 65mm
• Base magnification: 5x
• Digital zoom: 5x, 7,5x, 10x, 12x, 15x, 17.5x, 20x
• Diopter adjustment: +/- 3D

IR Specifications

• IR Wavelength: 850/940nm
• Infrared Power: Class 3R Eye Safe
