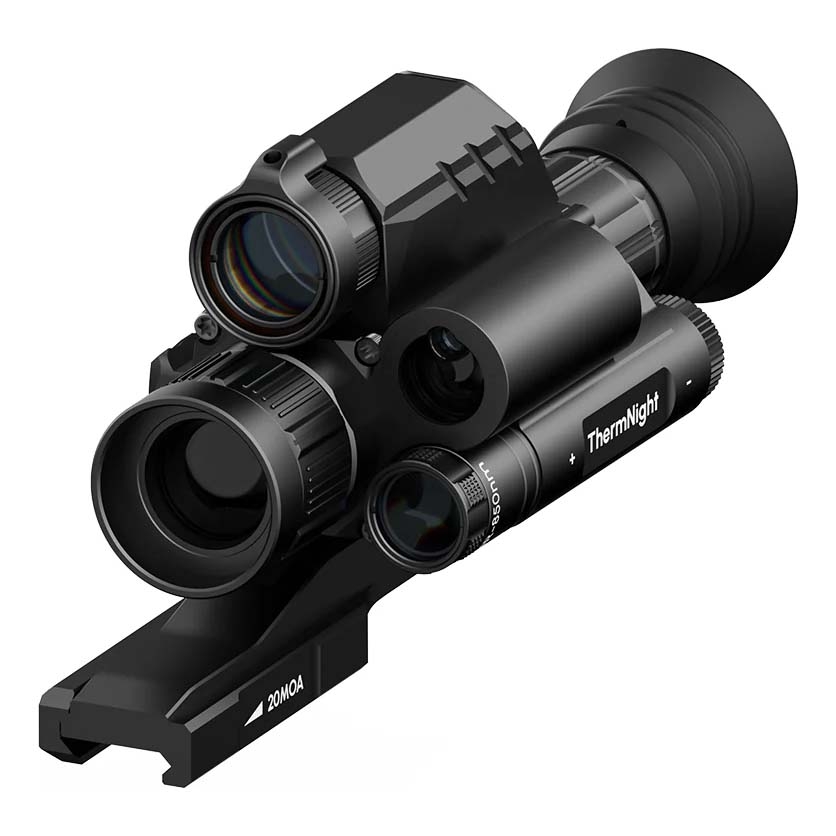

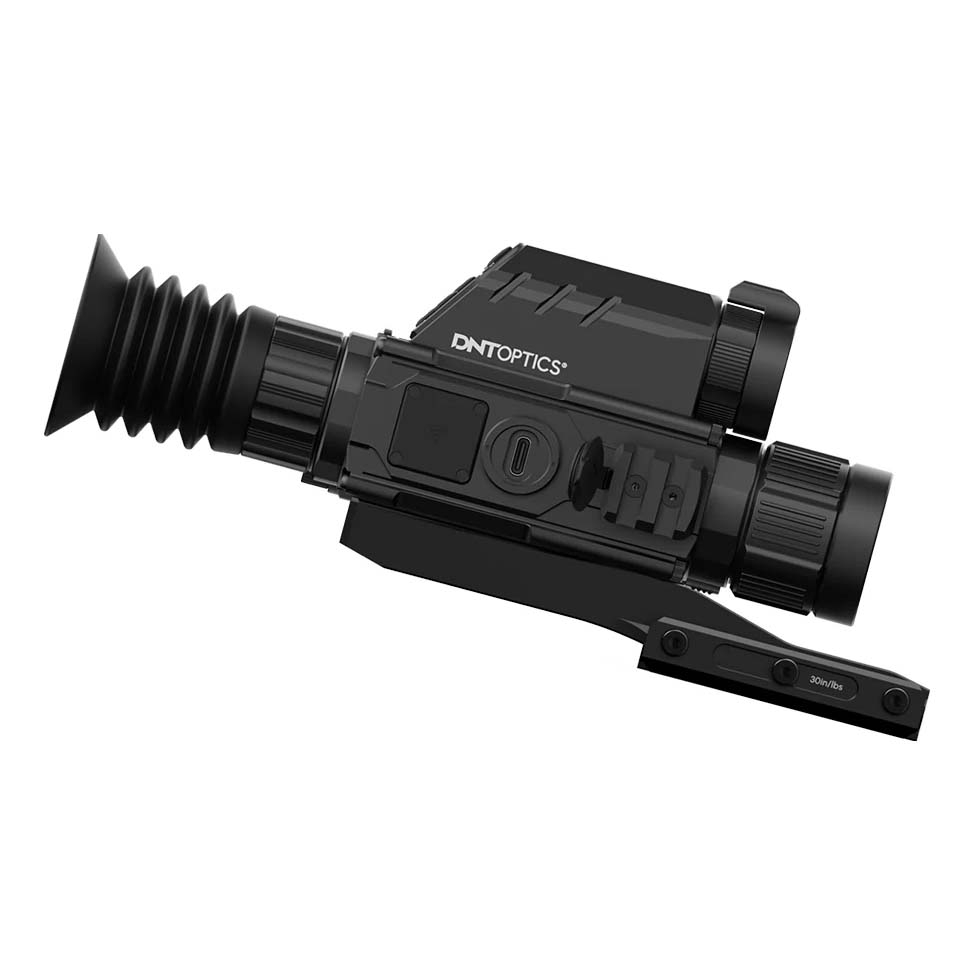

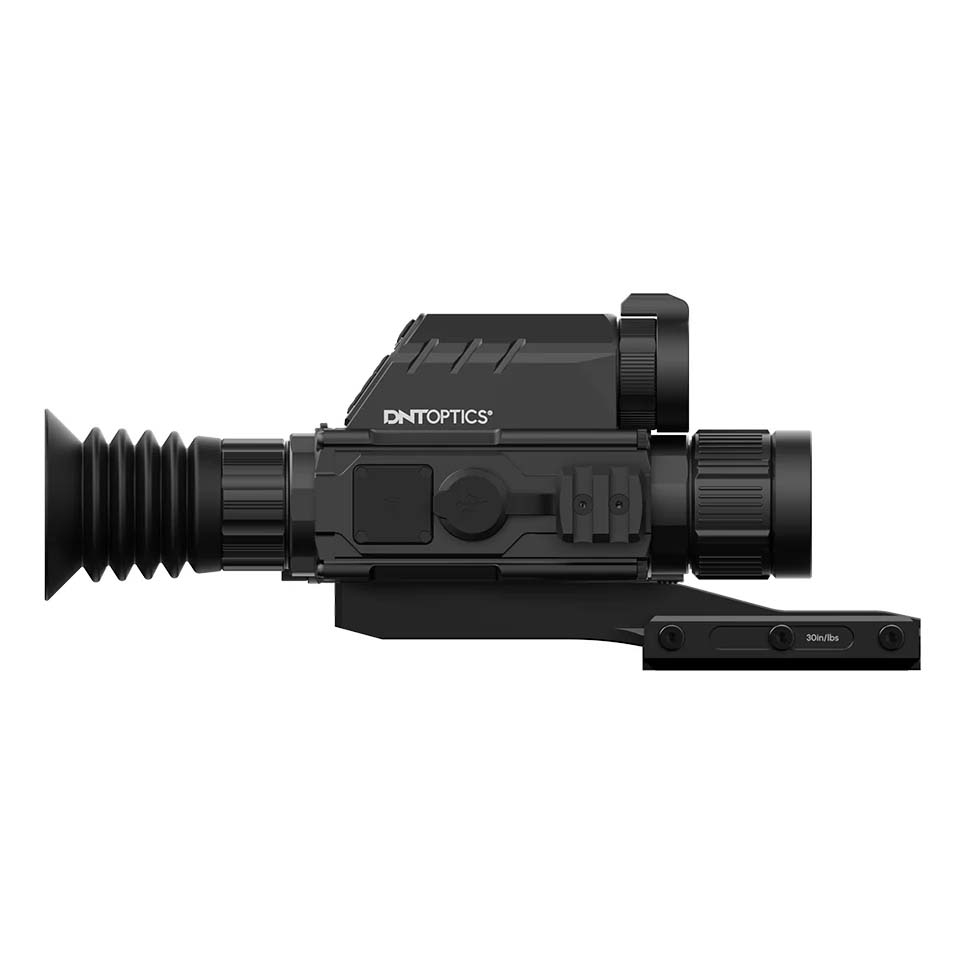

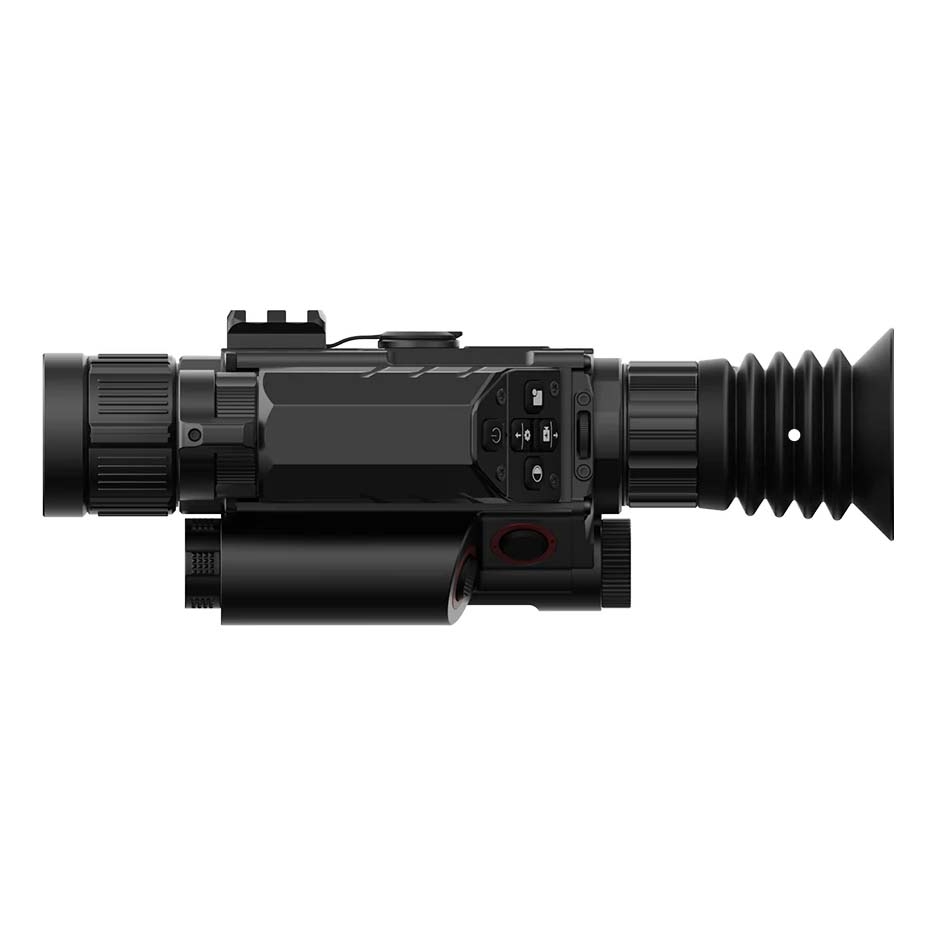

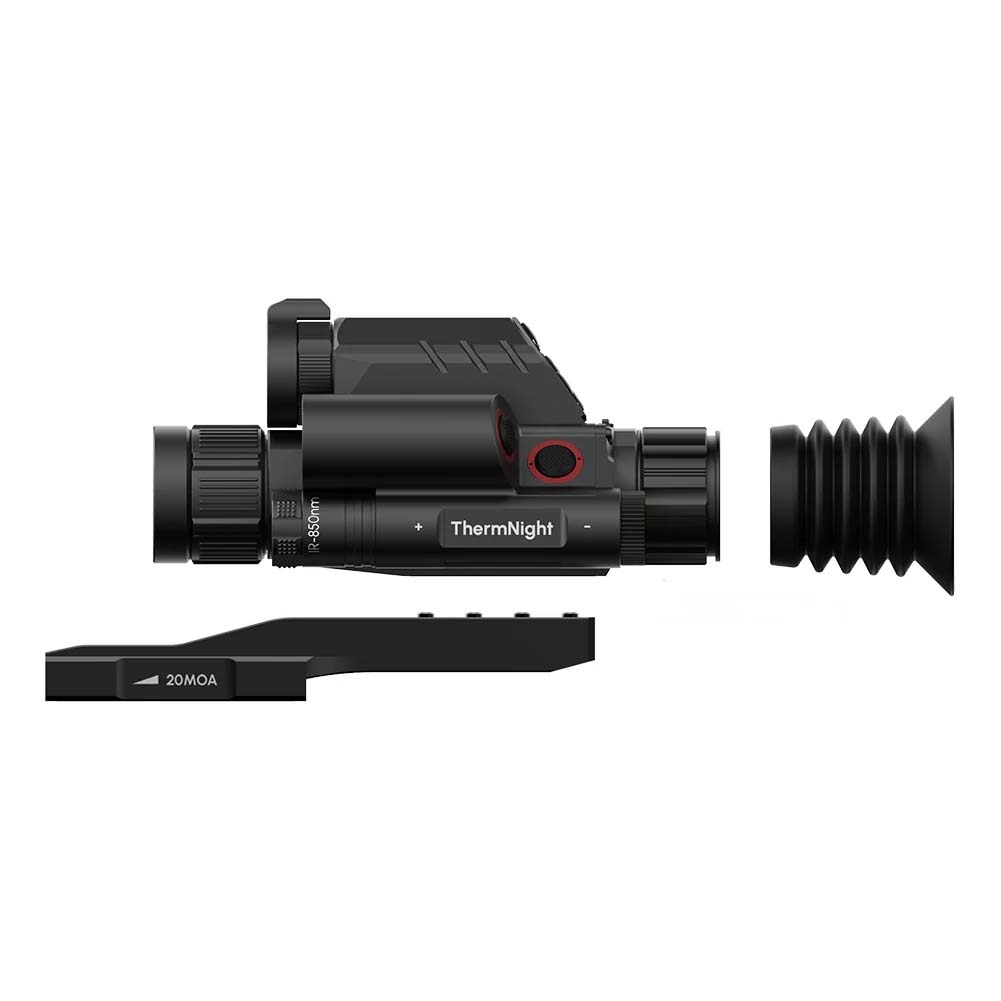

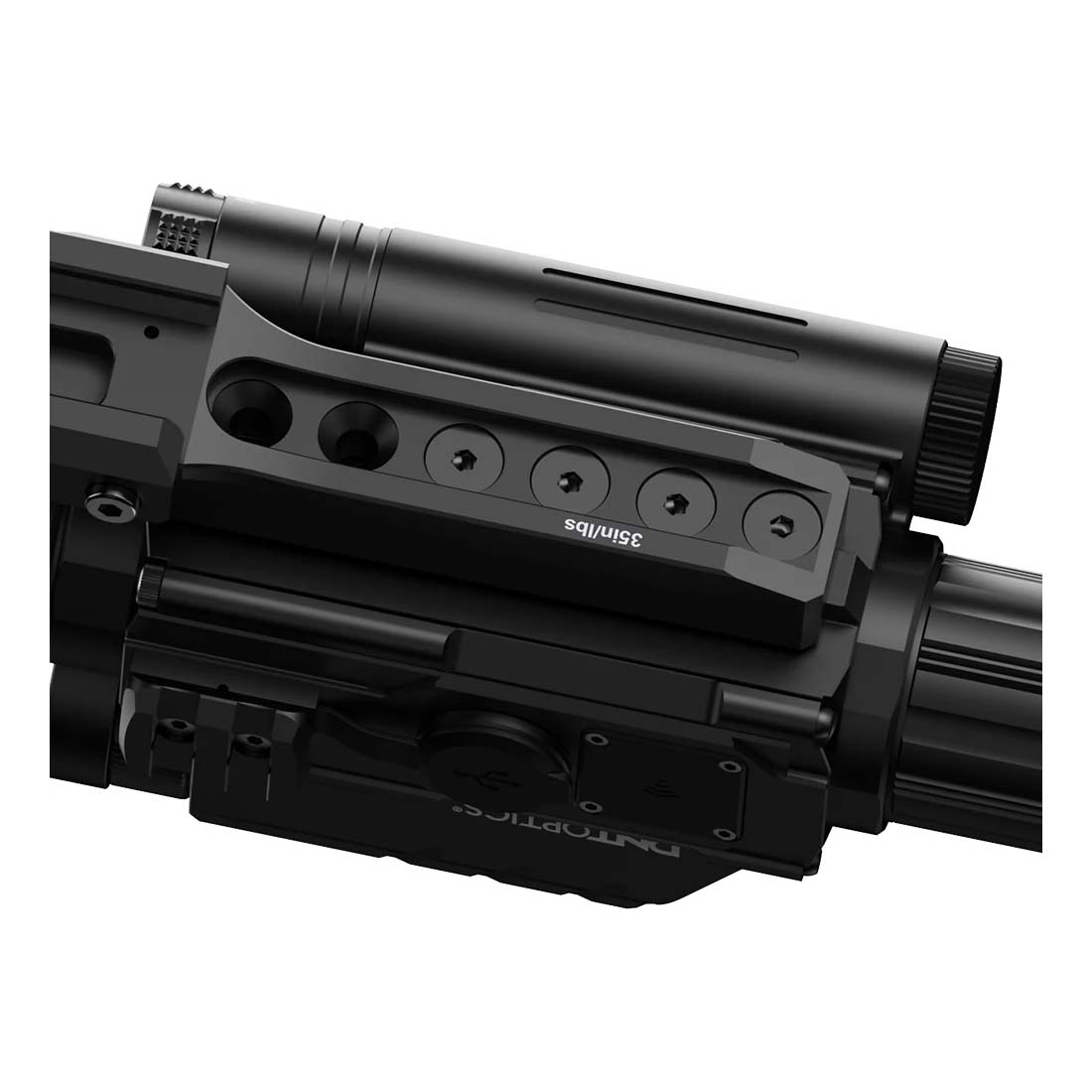

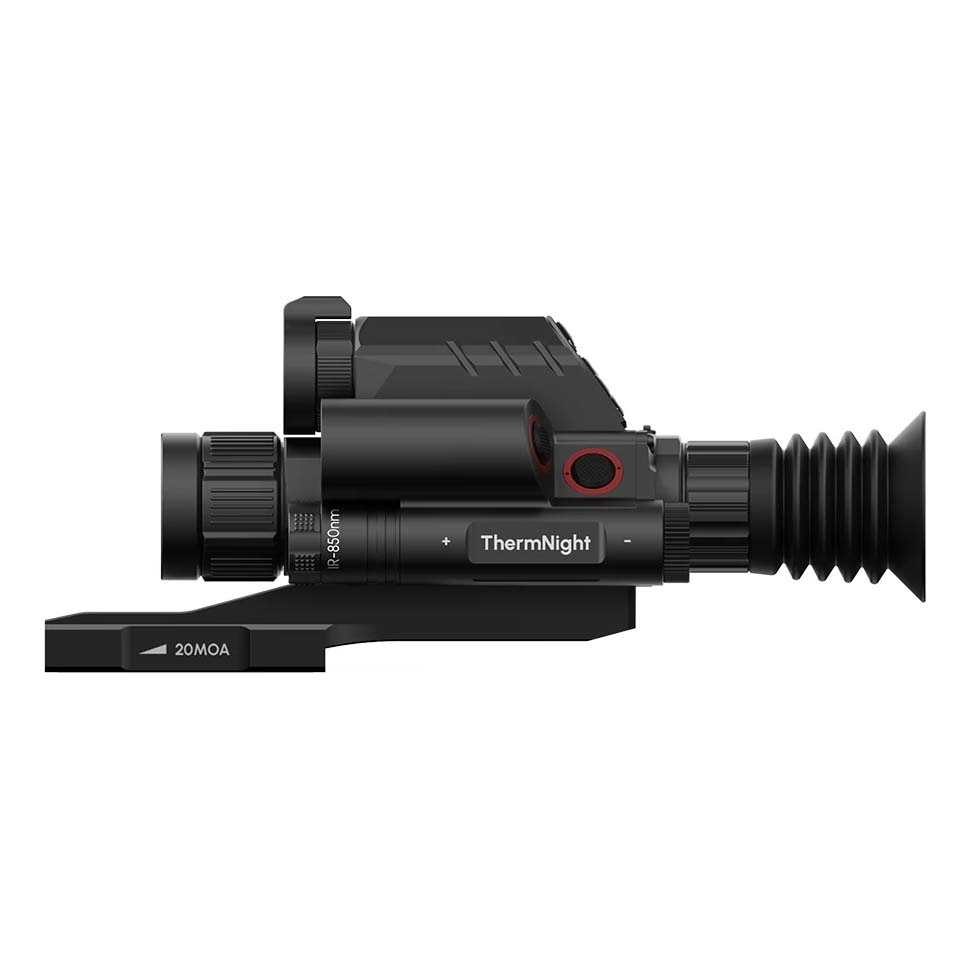

DNT Optics Thermnight Thermal (256x192) & Night Vision Multispectral Riflescope - 25mm with LRF

DNT Optics Thermnight Thermal (256x192) & Night Vision Multispectral Riflescope - 25mm with LRF. Featuring state-of-the-art thermal sensors for detecting targets and advanced high-definition digital night vision for identifying them, the TNC225R excels in delivering superior operational effectiveness in various environments and conditions.

ThermNight TNC225R comes with a highly sensitive 12um pixel detector and an advanced algorithm enhanced 256x192 resolution combined with NETD ≤ 25mK. This allows you to detect heat signatures at further distances and positive lD your target with digital NV before engaging.

The Picture-In-Picture (PIP) feature integrates thermal detection and night vision identification into a single image. enabling confident engagement of intended targets with the Multi-Spectral ThermNight TNC225R.

With a simple press of the mode the TNC225R allows for quick toggling between thermal and night vision, even when using Picture-In-Picture, making it a versatile solution for any task.

Equipped with the state-of-the-art SONY STARVIS 2 sensor, celebrated for its exceptional sensitivity in low-light conditions and remarkable image clarity, the ThermNight TNC225R delivers unmatched capabilities for detection and identification.

With a deliberate emphasis on compact design and lightweight construction, the ThermNight TNC225R is engineered to thrive in all environments, measuring just 7 inches long and weighing a mere 22.8oz.

The ThermNight TNC225R's "one shot zeroing" function is available in both thermal imaging and day/night vision channel. With only one shot using the day/night vision, you can easily switch to the thermal and adjust the reticle to be zeroed to the same point of impact (POl) as your day/night vision, saving you time so you can focus on your hunt.

With a focus on enhancing detection and identification processes, the ThermNight TNC225R offers unparalleled convenience: toggle effortlessly between display modes (Day/Night Vision, Thermal, or a hybrid) via Picture-in-Picture (PIP) at the touch of a button. Accelerate target recognition capabilities with the advanced Multi-Spectral ThermNight TNC225R.

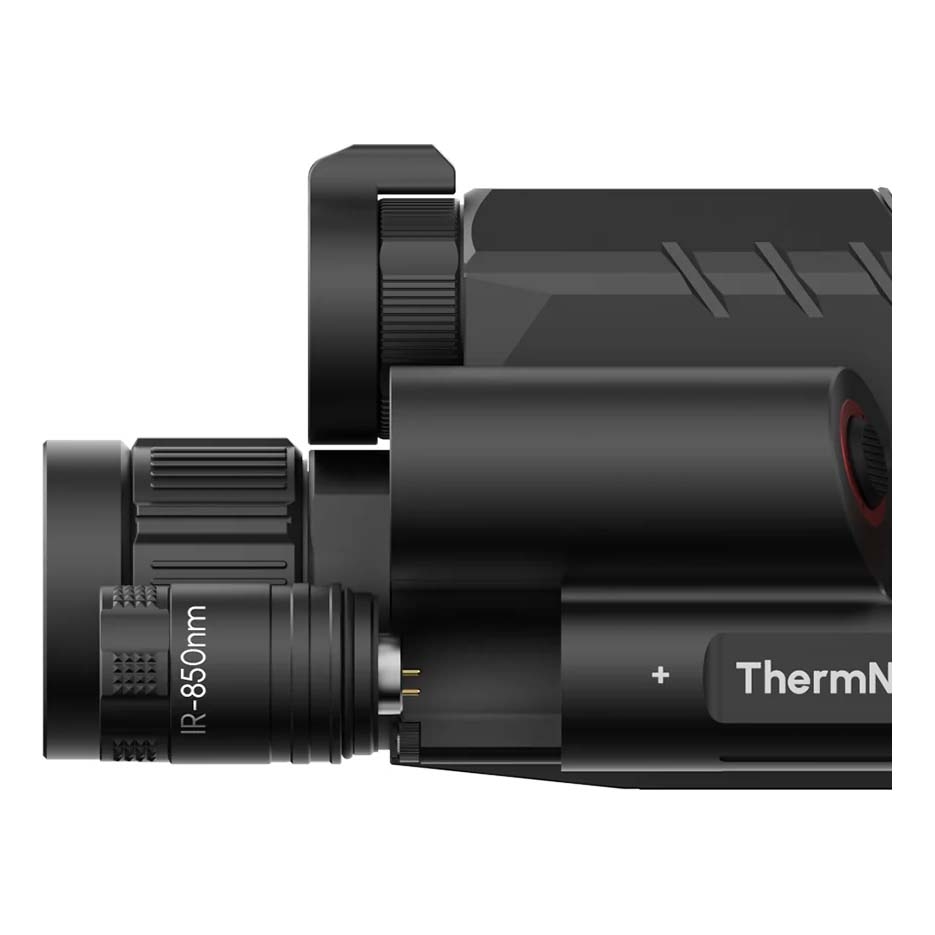

The removable IR Illuminator allows you to switch between 850nm or 940nm.
(940nm IR illuminator can be purchased separately.)

Features

• Built in 32Gb Storage
• Detachable Eye Cup Designed With Metal Threads
• Digital Zoom Wheel
• Digital Gyroscope For Accurate Inclination And Cant Angle
• Up to 5 hour Battery Life
• Aiming Methods:Dial-In Or Holdover

Specifications

Physical Specifications

• Net Weight: 22.8oz
• Dimensions: 6.7×3.3×3.1 inches
• Storage: Internal Storage, 32GB

Connectivity & Range

• LRF Maximum Measuring Range: 5-1100 yards
• WIFI/APP: Yes
• Bluetooth: Yes

Environmental

• Ingress Protection: IP67
• Operating Temperature: -4~122°F
• Shock Resistance: 800Gs

Display Specifications

• Type: Micro-OLED
• Display Resolution: 1024×768 pixels
• Frame Rate: 50FPS

Battery Power Supply

• Battery Type: 18650 Battery (flat top)
• Operating Time: 5h
• External Power Supply: 5V - Type C USB

Thermal Channel - Sensor Specifications

• Resolution: 256×192px
• Field of View (FOV): 7.03°×5.28°
• Frame Rate: 50FPS
• Pixel Size: 12×12um
• NETD: ≤25mk@25?
• Focal Length of Objective Lens: 25mm
• Base Magnification: 3X
• Digital Zoom: 3X, 6X, 9X, 12X
• Image Sensor: Uncooled Infrared Image Sensor

Visible Light Channel - Sensor Specifications

• Resolution: 1920×1080 pixels
• Sensor Frame Rate: 60FPS
• Video Record Resolution: 1024×768 pixels

Visible Light Channel - Optical Specifications

• Objective Lens Focal Length: 52mm
• Field of View (FOV): 6.13°×3.45°
• Eye-Relief: 45mm/1.8 inches
• Base Magnification: 5X
• Digital Zoom: 5X, 7.5X, 10X, 12X, 15X, 17.5X, 20X
• Diopter Adjustment: ±5D

IR Specifications

• IR Wavelength: 850/940nm
• Infrared Power: Class 3R Eye Safe
