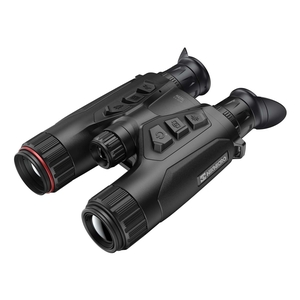

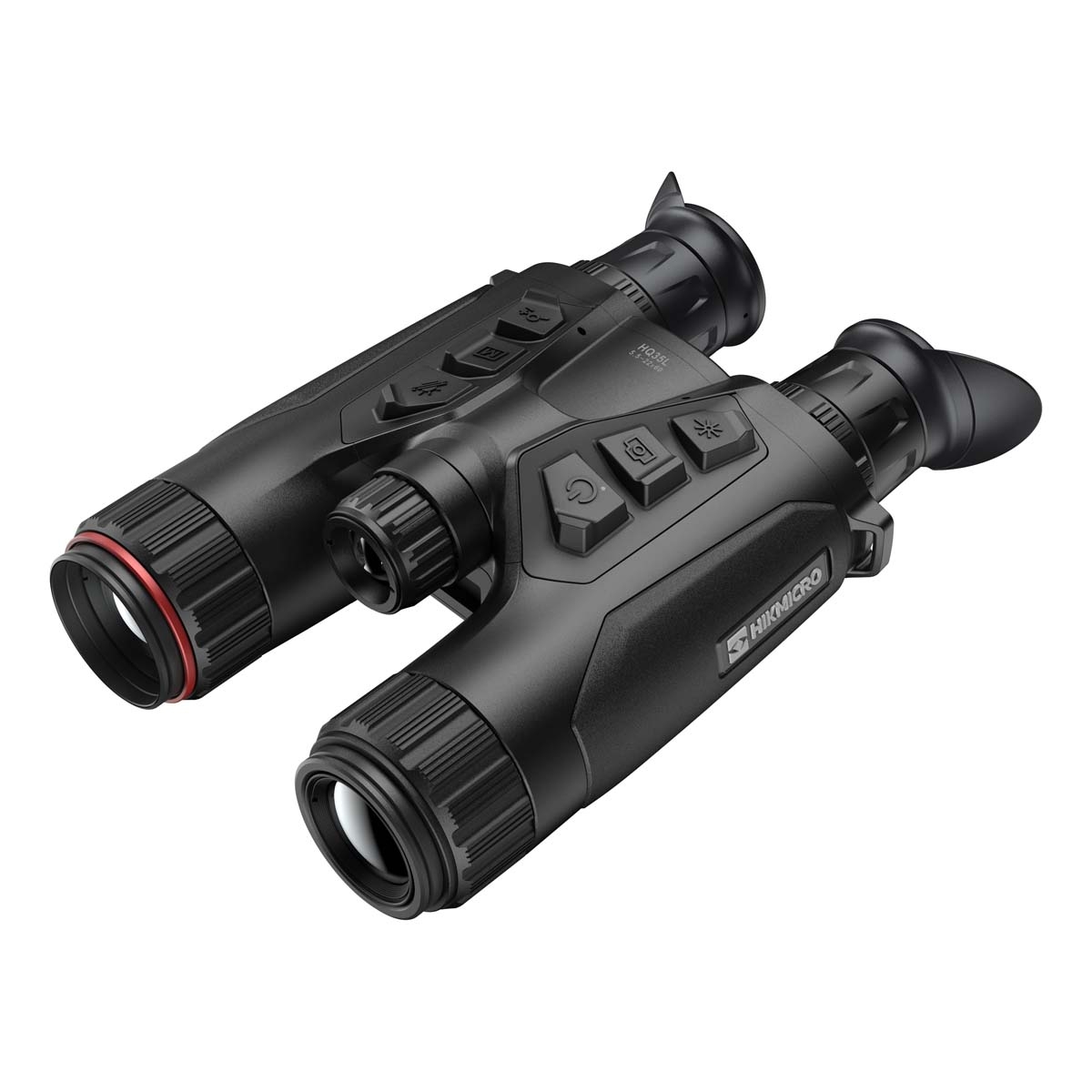

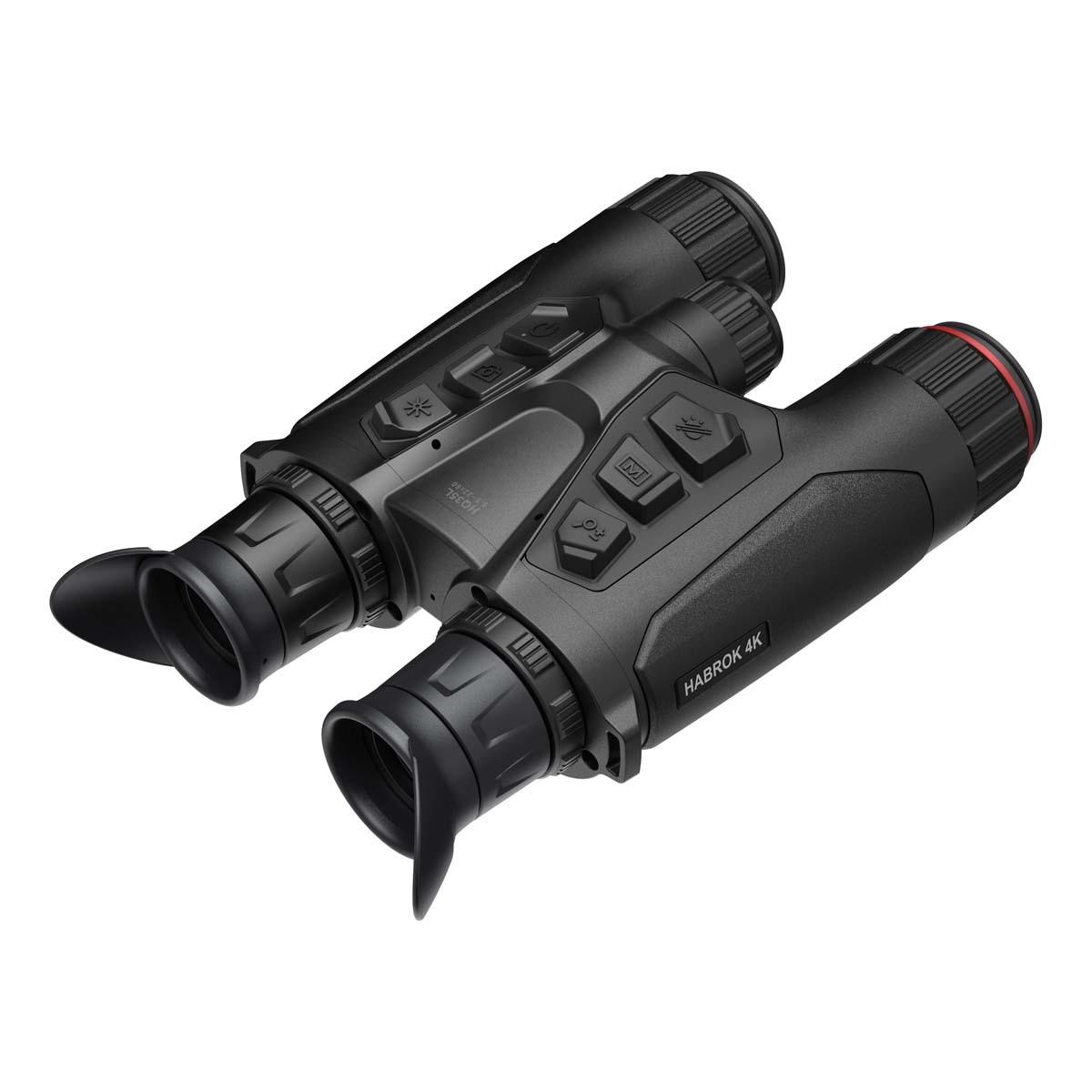

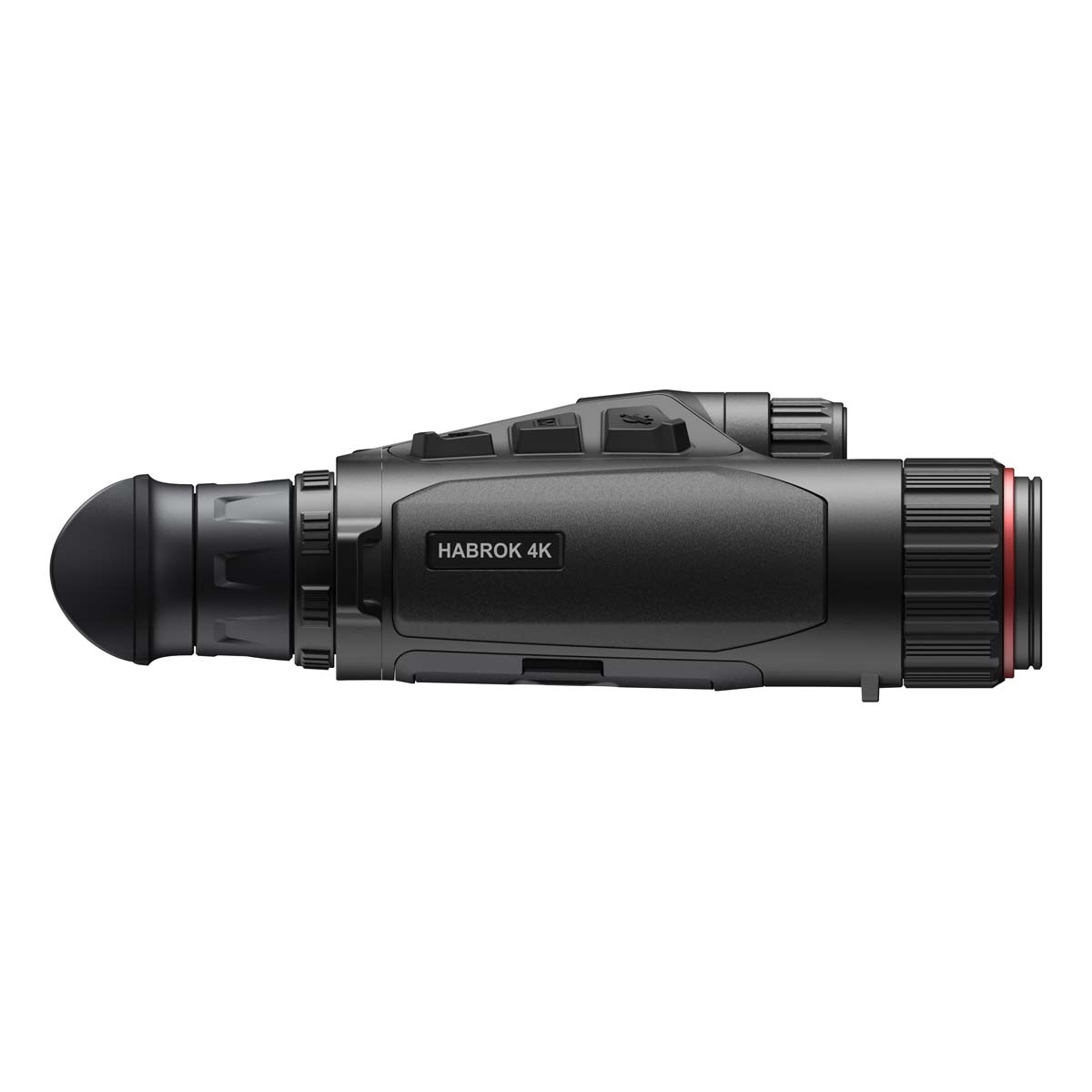

HIKMicro Habrok Pro 4K 35mm Thermal (640x512) Binoculars with LRF

HikMicro Habrok Pro 4K 35mm Thermal (640x512) Binoculars with LRF. HIKMICRO have upped the ante again, by taking the proven Habrok 4K chassis and putting it on steroids by upgrading to a 640x512 sub 20mK NETD Thermal Detector coupled to a 35mm F1.0 lens, added EIS Image Stabilisation. Topped off by supplying additional wavelength IR illuminator and a bino harness to the package.

Features

• 4K UHD 3840x2160px CMOS detector for incredible detail and 400m night detection range.
• 60mm F2.2 digital lens with 5.5-22.0x magnification. 12.6m FOV at 100m
• EIS Electronic Image Stabilisation
• Integrated 940nm IR Illuminator, with additional swappable 850nm unit
• 640x512px sub 20mK NETD Thermal Detector with 1800m detection range
• 35mm F1.0 thermal lens with 3.0-22.0x magnification. 22.0m FOV at 100m
• 1920x1080px 0.49” OLED sub-round display
• Integrated Laser Range Finder with 10-1000m range
• 8h+ run time 18650 battery system
• Black Hot, White Hot, Red Hot & Fusion Thermal Palettes
• Day, Night & Auto Optical modes
• 60-74mm adjustable interpupillary distance and foldable eyepieces
• Rugged and compact magnesium construction. Less than 800g weight

Specifications

Thermal Module

• Sensor Type: VOx Uncooled Focal Plane Array
• Resolution: 640 × 512
• Frame Rate: 50 Hz
• Pixel Pitch: 12 μm
• Spectral Range: 8 μm – 14 μm
• Thermal Sensitivity (NETD): < 20 mK (@25°C, F#=1.0)
• Lens: 35 mm, F1.0
• Focus Mode: Manual (Focus Ring)
• Detection Range: 1800 m
• Minimum Focusing Distance: 3.5 m
• Magnification: 3.0× to 22.0× (7.3× base)
• Field of View (H × V):
  • 12.5° × 10.1°
  • 22.0 m × 17.6 m @ 100 m

Optical Module

• Sensor Type: 1/1.8" Progressive Scan CMOS
• Resolution: 3840 × 2160
• Lens: 60 mm, F2.2
• Minimum Working Distance: 3 m
• Focus Mode: Manual (Focus Ring)
• Magnification: 5.5× to 22.0× (4× base)
• Field of View (H × V):
  • 7.3° × 4.1°
  • 12.6 m × 7.2 m @ 100 m

Infrared Illumination

• Smart IR: Yes
• IR Illuminator: Replaceable
  • Default: 940 nm
  • Optional: 850 nm
• Night Viewing Range: 400 m

Image Display

• Display: 0.49 inch OLED, 1920 × 1080
• Thermal Palettes: Black Hot, White Hot, Red Hot, Fusion
• Optical Modes: Day, Night, Auto
• Flat Field Correction (FFC): Auto / Manual / External
• Exit Pupil: 8 mm
• Eye Relief: 15 mm
• Diopter Adjustment: -5 D to +3 D
• Adjustments:
  • Brightness: Yes
  • Contrast: Yes
  • Tone: Cold / Warm
• Zoom Pro: Yes

System Features

• Video Recording: Yes
• Snapshot Capture: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Onboard Storage: 64 GB Built-in EMMC
• Picture-in-Picture (PIP): Yes
• Wi-Fi Hotspot: Yes
• Hot Track: Yes
• Digital Magnetic Compass: Yes
• GPS Module: Yes
• Local Album Access: Yes

Power Supply

• Battery Type: Replaceable & Rechargeable 18650 Li-ion
• Operating Time: ≥8 hours (@25°C, Hotspot off)
• Charging & Power:
  • USB Type-C: 5 V DC, 2 A
  • Supports external power and direct charging

General

• Protection Level: IP67
• Dimensions: 138.1 mm × 68.5 mm × 222.4 mm (5.44" × 2.7" × 8.75")
• Weight: 798 g (without battery)
• Interpupillary Adjustment Range: 60 mm – 74 mm
• Mounting: 1/4"-20 UNC Adapter
• Operating Temperature: -30°C to +55°C

Laser Rangefinder

• Laser Class: Class 1
• Wavelength: 905 nm
• Measuring Range:
  • Minimum: 10 m
  • Maximum: 1000 m
• Accuracy: ±1 m
