Guide IR Sensmart Thermal (400x300) Monocular - 19mm
Related Products & Accessories
Product Details
Manufacturer code: GSTE411 | Our code: 145180

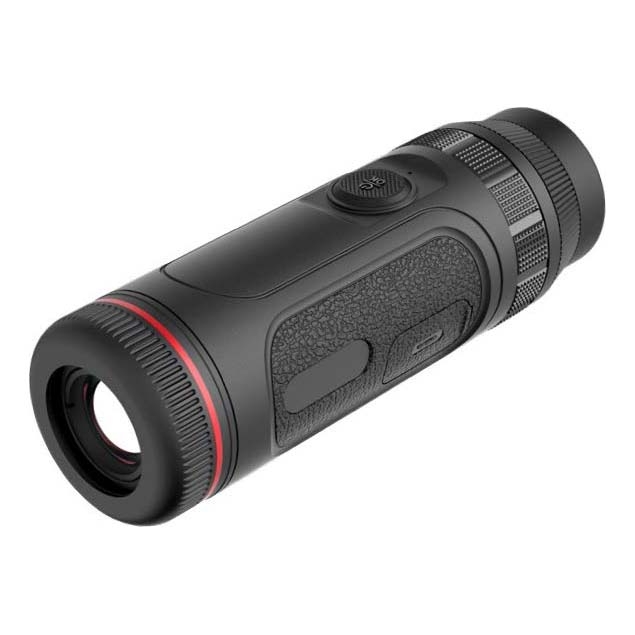

Guide IR Sensmart Thermal (400x300) Monocular - 19mm. The TE Series Handheld Thermal Imaging Monocular is a pocket-sized night vision powerhouse, offering exceptional performance at an affordable price. It is equipped with a highly sensitive infrared detector, providing multiple resolutions and lens options to meet your diverse needs in various environments. A 10-minute quick charge gives you an hour of continuous use, making it the perfect companion for your outdoor explorations.
Features
- Ultra-Lightweight: Only 200+ grams, effortlessly portable.
- Comfortable Viewing: 0.32-inch screen for clear and smooth visuals.
- Extended Battery: Up to 6 hours of use, 20W quick charging for worry-free power.
- Audio-Visual Sync: Record video with synced audio.
- Smooth Operation: One-button, one-ring design for seamless control.
- Rugged Design: IP67-rated for all-weather durability.
- Smart Connectivity: Control via mobile APP, OTA firmware updates.
Specifications
Item | TE211M | TE411 | TE421 |
---|---|---|---|
Sensor Type | Uncooled VOx Infrared Detector, 8 to 14 μm | ||
Resolution | 256×192@12μm | 400×300@12μm | |
NETD | 30mK | 25mK | |
Frame Rate | 50Hz | ||
Objective Lens | 10mm, F1.0 | 19mm, F1.0 | 25mm, F1.0 |
Field of View | 13.1°×13.1° (TE211M) 17.5°×13.1° (TE211) |
14.4°×10.8° | 11°×8.2° |
FOV m@100m | 23×23 (TE211M) 31×23 (TE211) |
25×19 | 19×14 |
Magnification | 1.2x~4.8x | 1.4x~5.6x | 1.9x~7.6x |
Detection Range | 500m/550yd | 1000m/1090yd | 1300m/1400yd |
Focus | Focus-free | Manual | |
Display Type | Touch screen, 1.43'' AMOLED 466×466 | 0.32'' AMOLED 800×600 | |
Color Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | ||
Eyepiece | Eye relief: 25mm; Diopter: -5 to +5; Zoom: 14x | ||
WiFi | 2.4G, 5G | ||
Interface | USB-C (Support charging) | ||
Others | Microphone, Bluetooth | ||
Recording Function | Photo/Video (Audio recording included) | ||
Memory Capacity | 16GB | ||
Battery Type | Built-in battery | ||
Operating Time | 6 hours (Support 20W quick charging) | 5 hours (Support 20W quick charging) | |
Operating Temperature | -20°C to 50°C / -4°F to +122°F | ||
Encapsulation | IP67 | ||
Weight (g/oz) | 205/7.23 (TE211M) 228/8.04 (TE211) |
288/10.16 | 295/10.41 |
Size (mm/in) | 49×49×111/1.93×1.93×4.37 (TE211M) 47×47×132/1.85×1.85×5.20 (TE211) |
47×47×148/1.85×1.85×5.83 | 47×47×155/1.85×1.85×6.10 |
Standard Accessories | Device, Lens cover, Wrist strap, USB-A to USB-C Cable, Quick use guide, Safety Information Manual, Warranty card | Device, Lens cover, Eye mask, Wrist strap, Quick charging adapter, USB-C to USB-C Cable, Quick use guide, Safety Information Manual, Warranty card | |
Optional Accessories | Bluetooth remote control, Quick charging adapter, USB-C to USB-C Cable | Bluetooth remote control, USB-A to USB-C Cable | |
Trade Price | £225.00 | £437.00 | £500.00 |
SRP | £359.99 | £699.99 | £799.99 |
