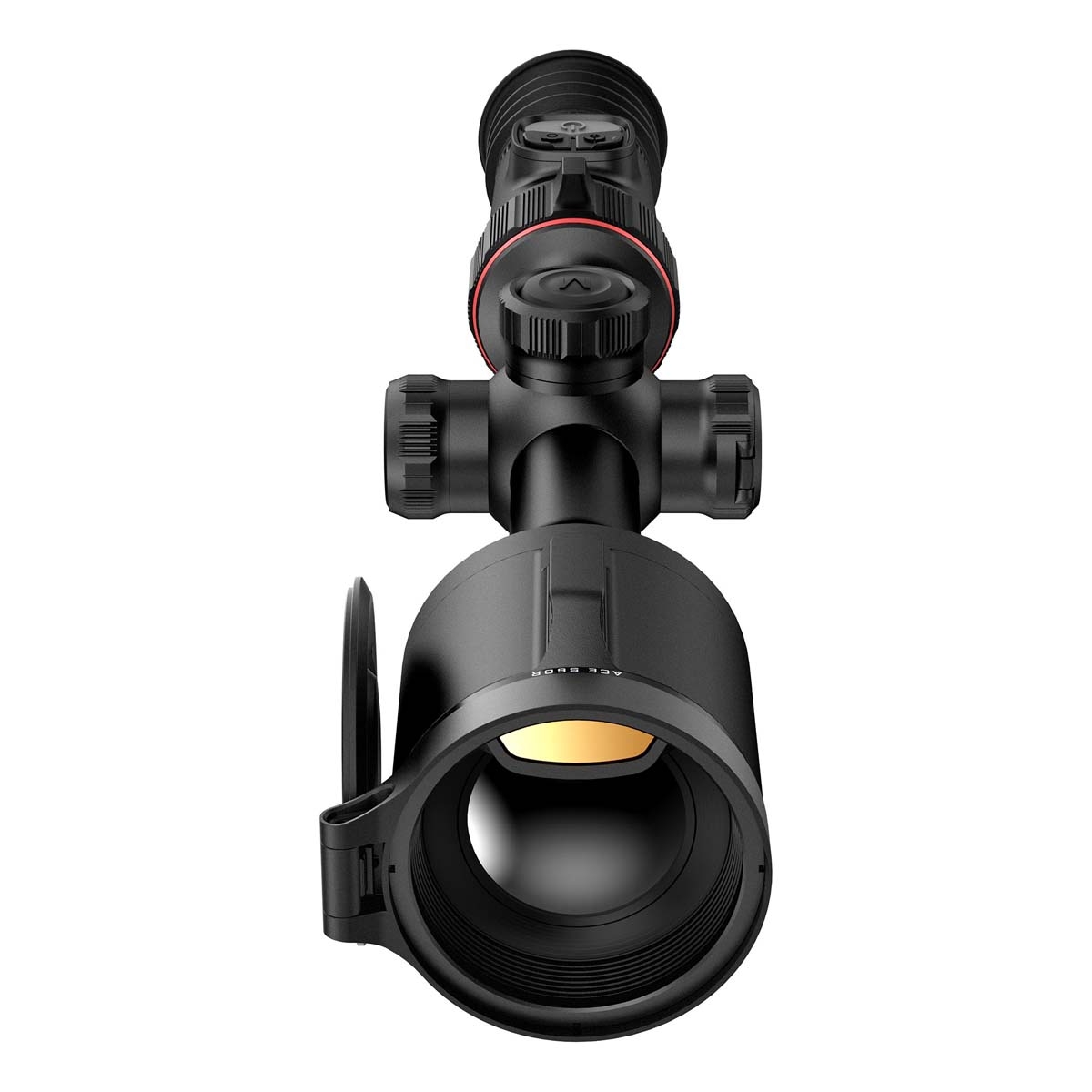

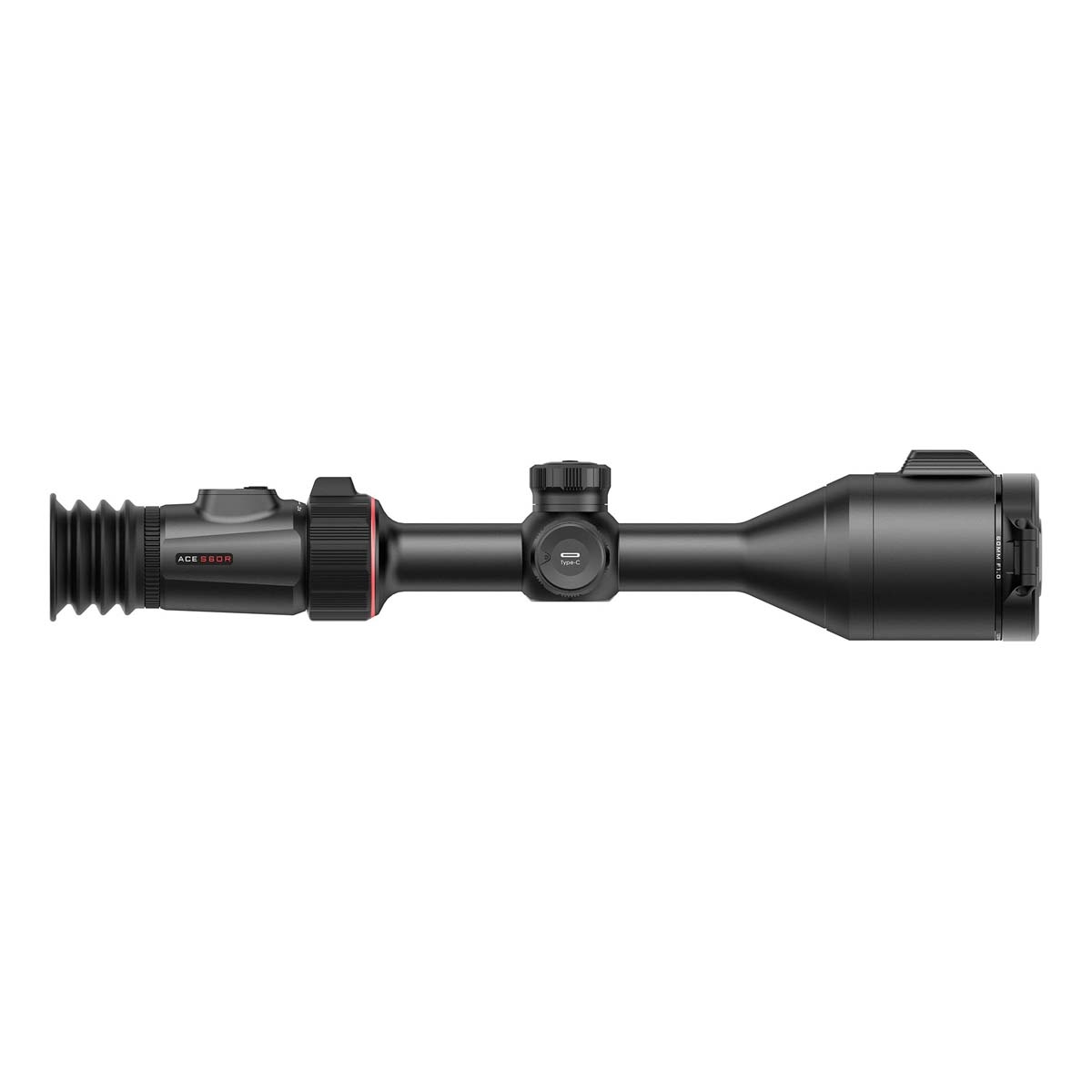

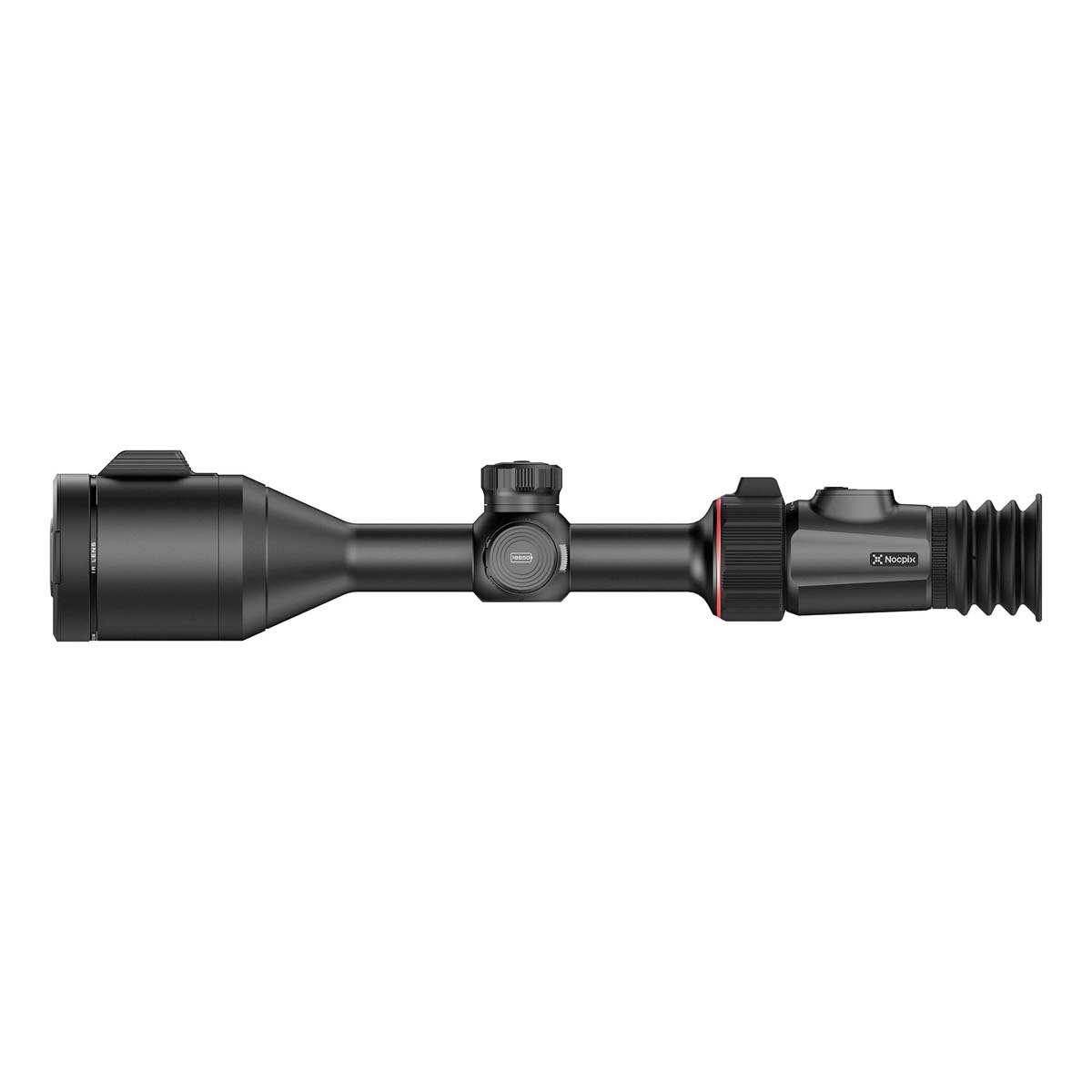

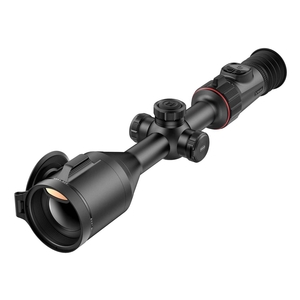

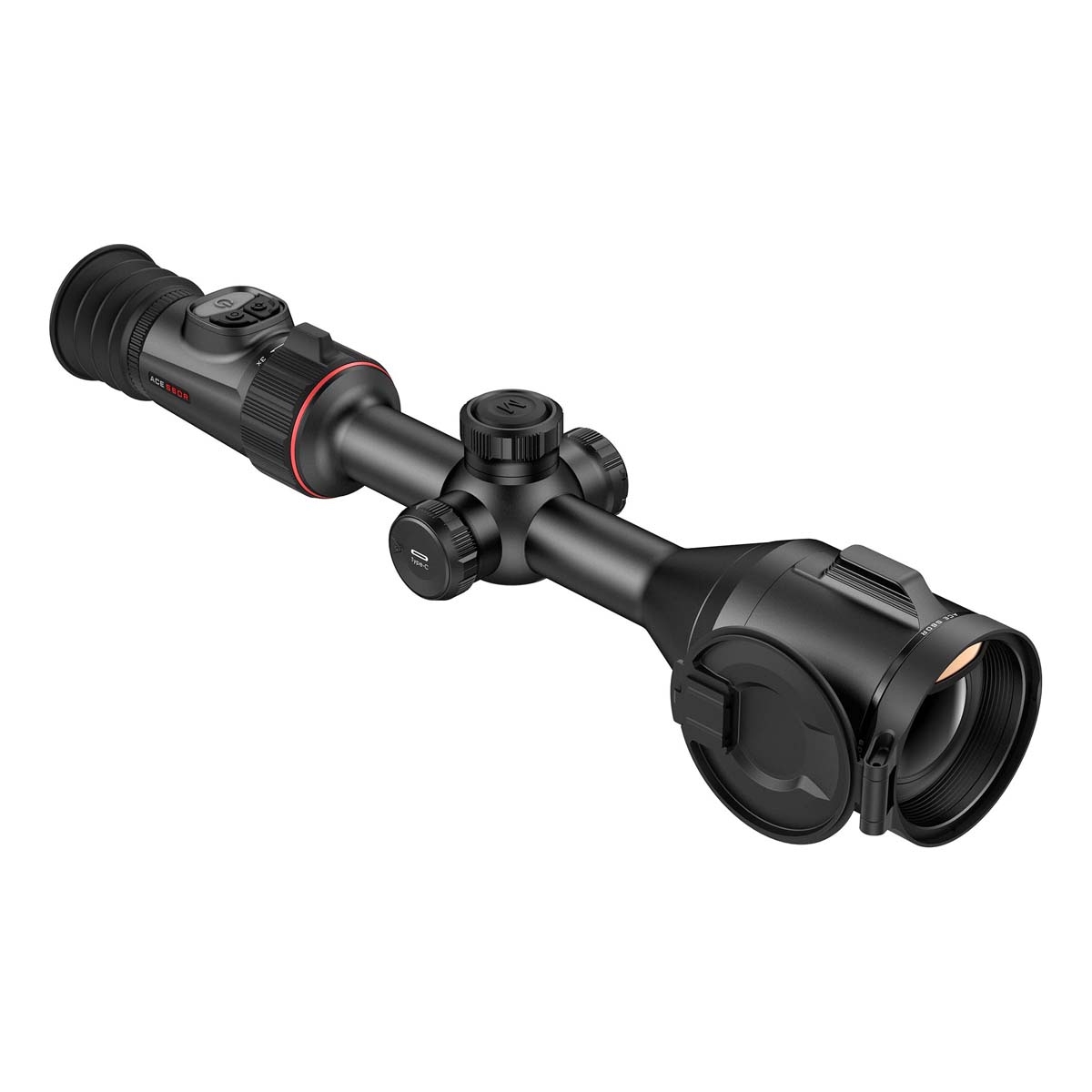

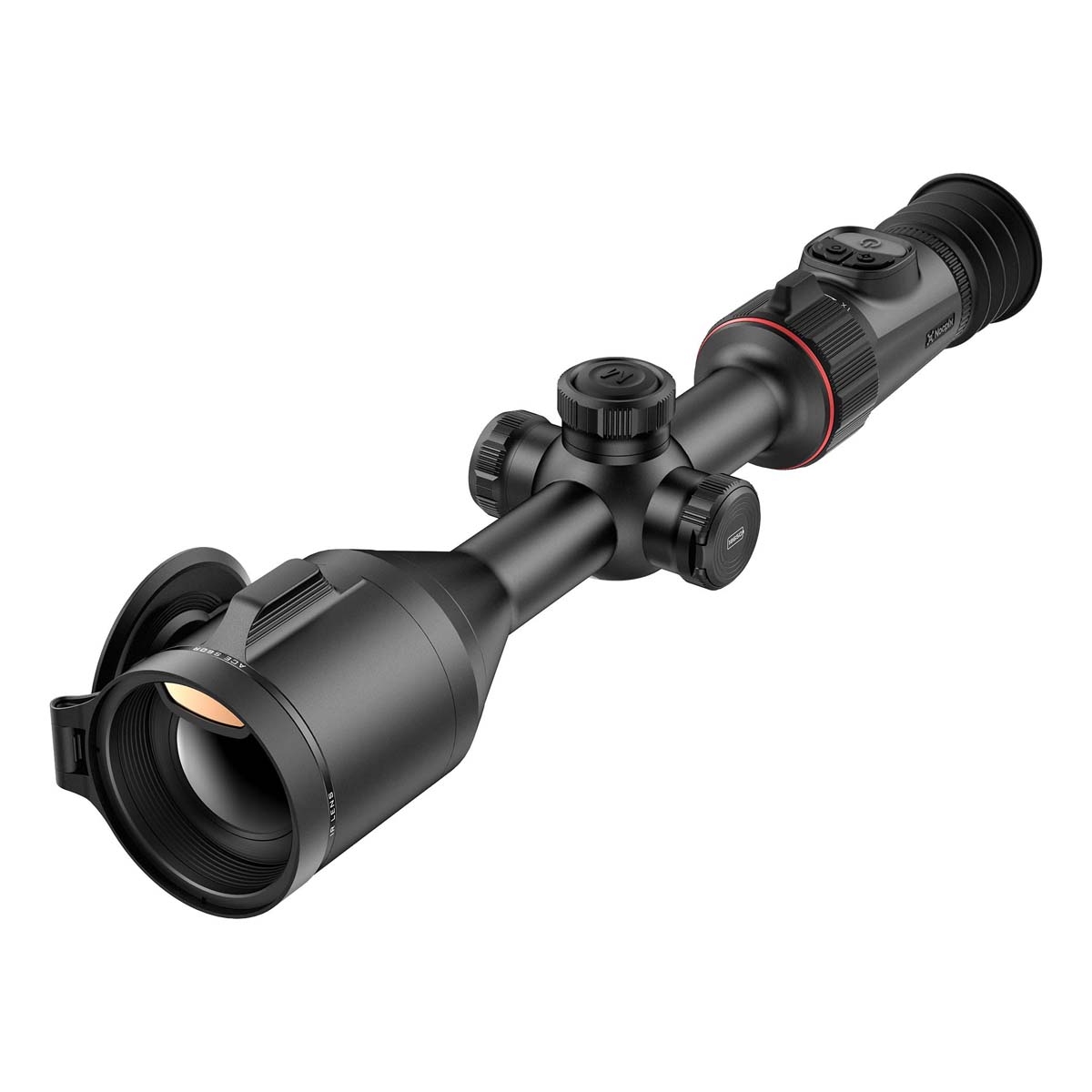

Nocpix ACE S60R Thermal (1280x1024) Riflescope w/LRF
Related Products & Accessories
Product Details
Manufacturer code: NPRIF-ACE-S60R | Our code: 144081
Nocpix ACE S60R Thermal (1280x1024) Riflescope w/LRF. Introducing the ACE series, the flagship thermal riflescope designed for all hunting environments. It features a self-developed high-resolution thermal sensor, integrated LRF, and advanced Reality+ and Vision+ systems. Deliver unparalleled image quality and superior performance.
ACE series is an infrared scope for outdoor hunting. Designed based on infrared thermal imaging principles, it requires no external light sources during the day and at night, in all hard weather conditions (such as rain, snow, fog, and haze). It can be used without being affected by strong light and to observe even targets behind obstacles (such as branches, grass, and shrubs). ACE series has a variety of battery-powered solutions with long operating hours, and can be widely used for hunting, observation and positioning in low visibility conditions.
Features
- 15mK NETD
- Ocular zoom
- Built-in LRF (ACE H50R / ACE S60R)
- Ballistic Calculation (ACE H50R / ACE S60R)
- Recoil Activated Video function
- Gallery function
- Dual power supply system
- Built-in memory, supporting photographing, video recording
- Built-in Wi-Fi module, supporting APP connection
- Built-in compass and motion sensor
- PIP (picture-in-picture) function
- Pixel defect correction
- Convenient operation interface
Specifications
- Type: Vox
- Resolution: 1280 x 1024
- Pixel Size: 12
- Thermal Sensor:
- NETD, mK: ≤15
- Frame Rate: 50
- Objective Lens: 60mm F1.0
- Field of View: 14.7 x 11.7
- Field of View (Linear): 25.6 x 20.5
- Magnification: 2~24
- Detection Range: 3100
- Eye Relief: 50
- Exit pupil Diameter: 8
- Diopter: -5 ~ +5
- Display Type: AMOLED
- Display Resolution: 2560 x 2560
- Battery: Built-in battery/4000mAh + Replaceable 18650 battery
- Max. operating Time: 6
- Range Finding Distance: 1200
- Laser: Class 1
- Ballistic Calculation: YES
- External Power Supply: 5V (Type C)
- Wi-Fi/APP: YES
- MIC: YES
- Photo / Video Recorder: YES
- Recoil Activated Video: YES
- Memory Capacity: 64GB
- IP rating: IP67
- Max. recoil power on rifled weapon: 6000
- Max. Operating Temperature: -20 ~ +50
- Compatible mount: 30mm
- Weight (oz): 45.86
- Weight (g): 1300
- Dimensions (in): 15.35 x 3.54 x 2.8
- Dimensions (mm): 390 x 90 x 71
