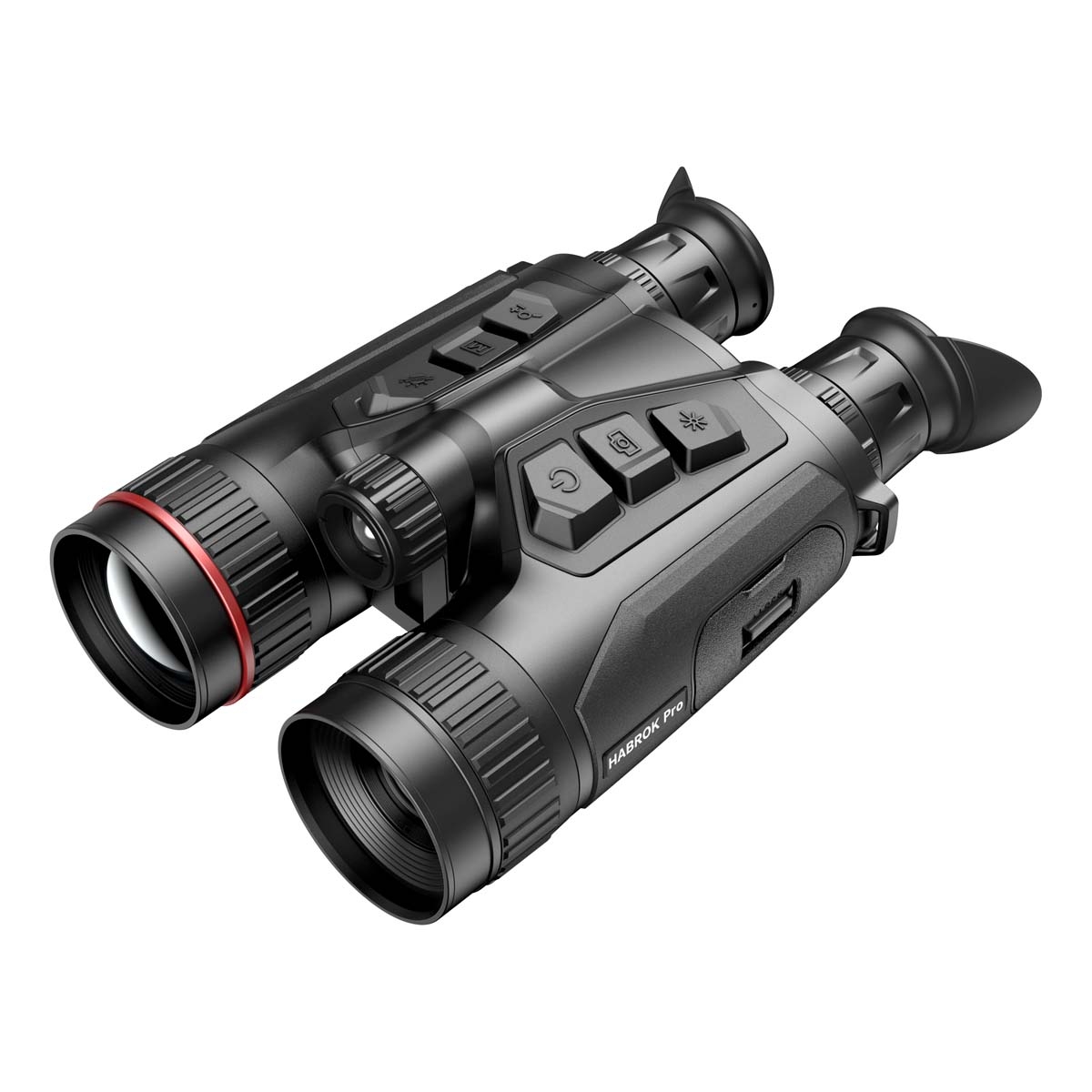

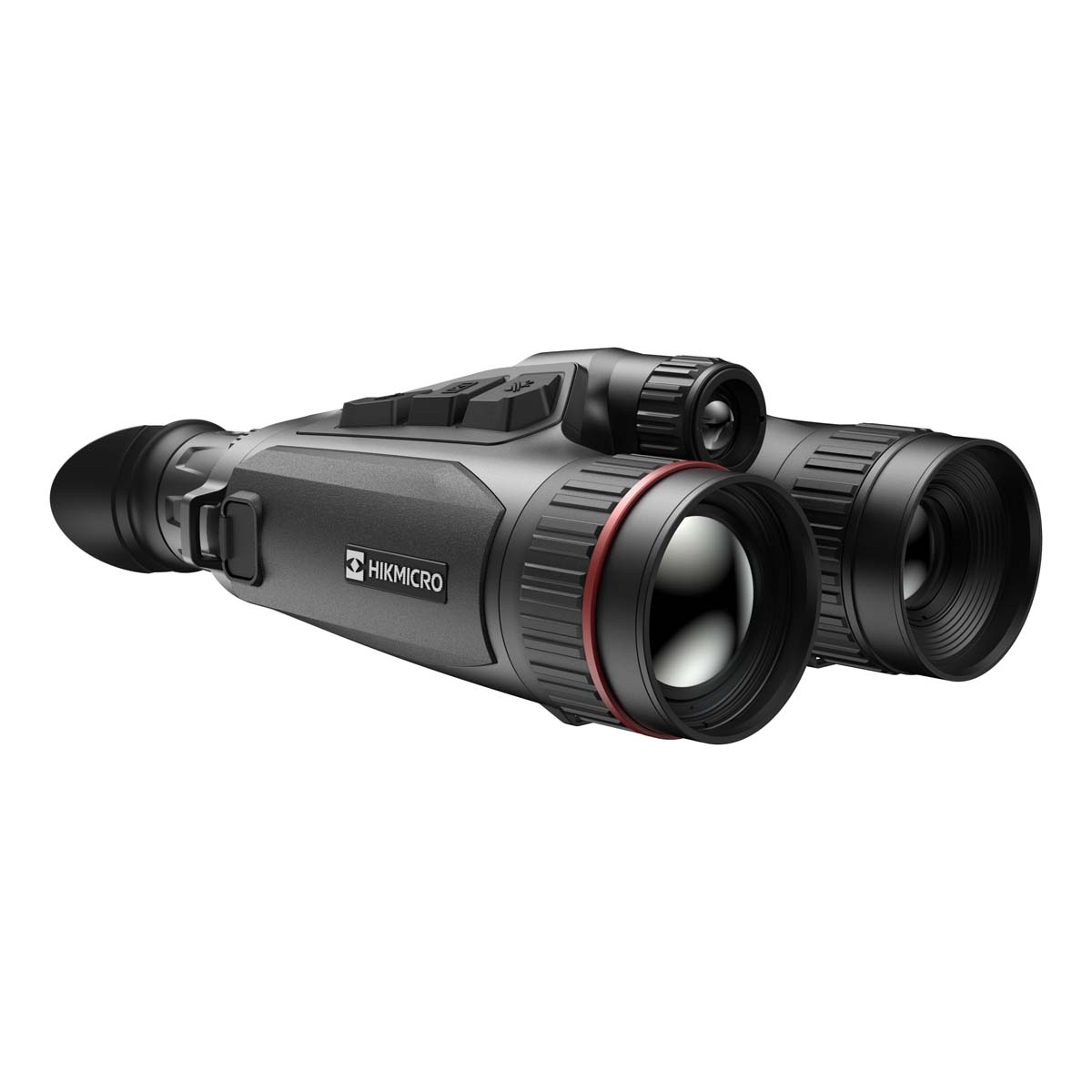

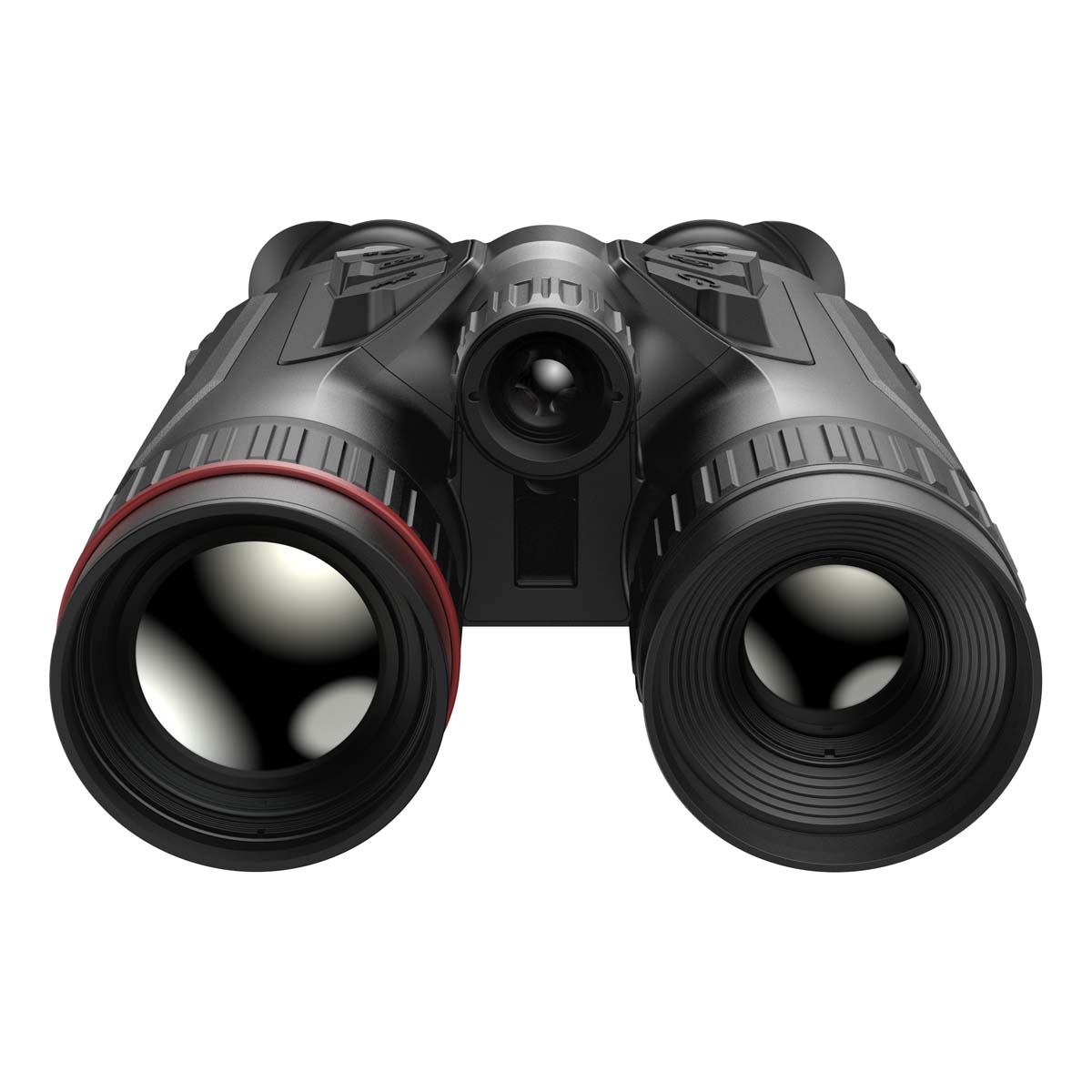

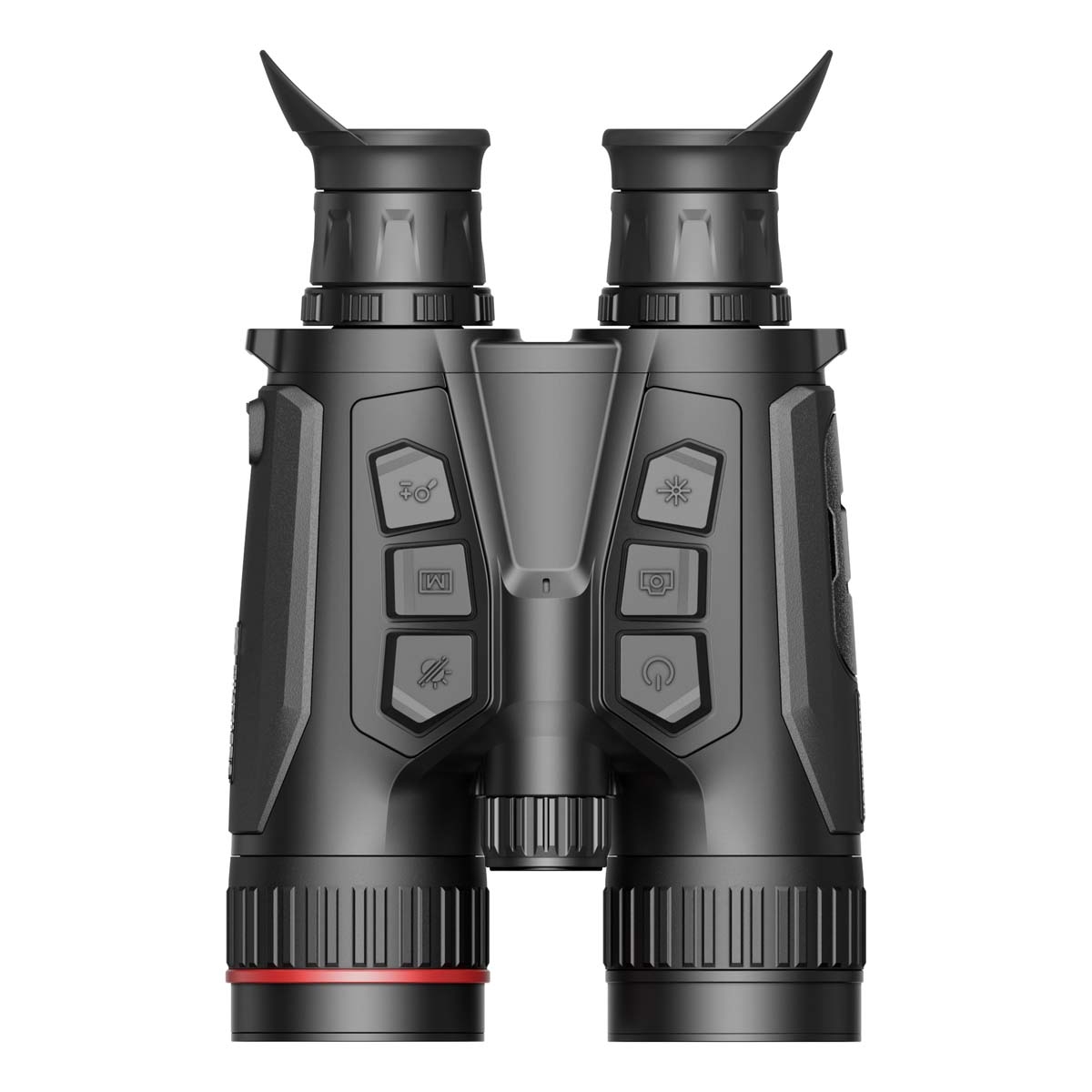

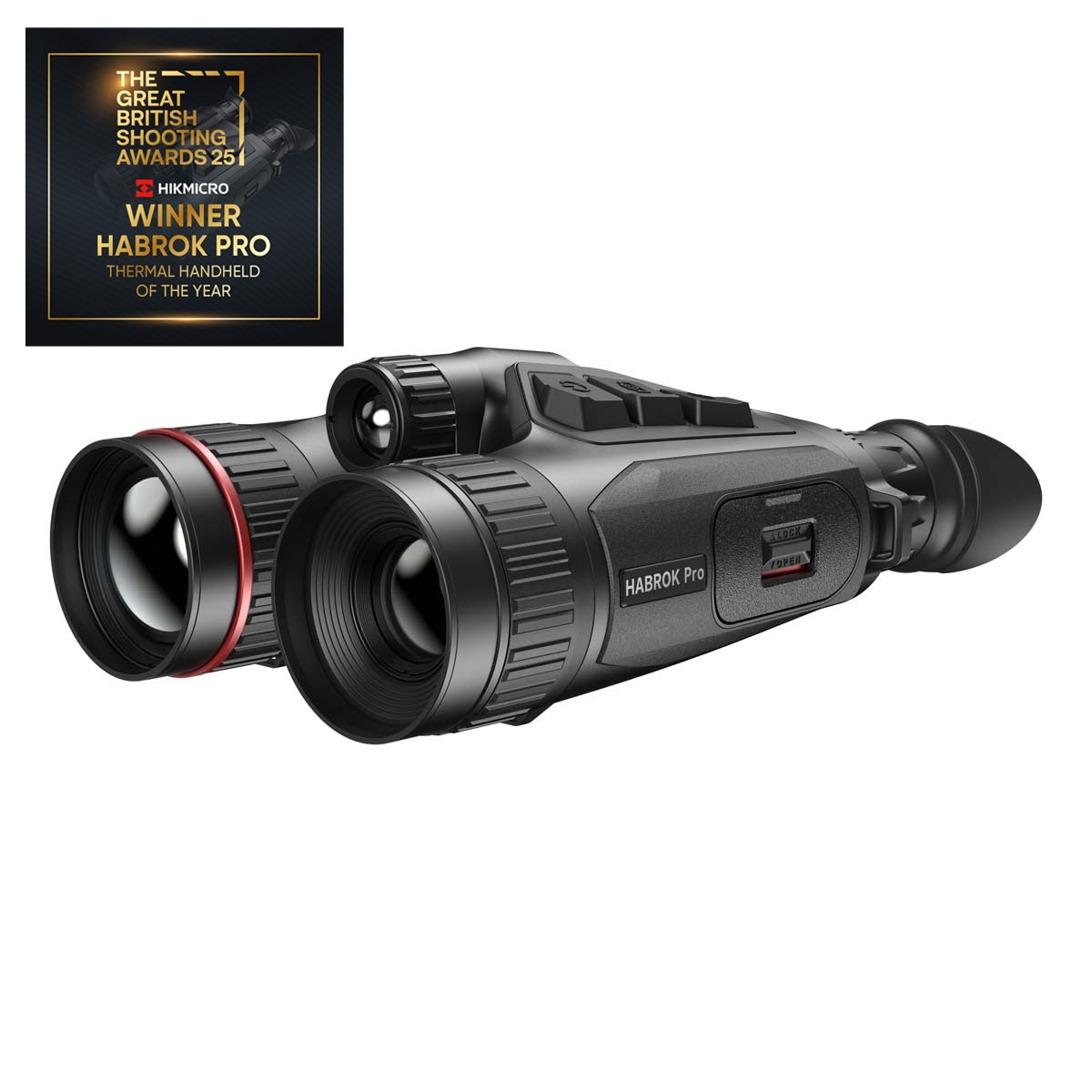

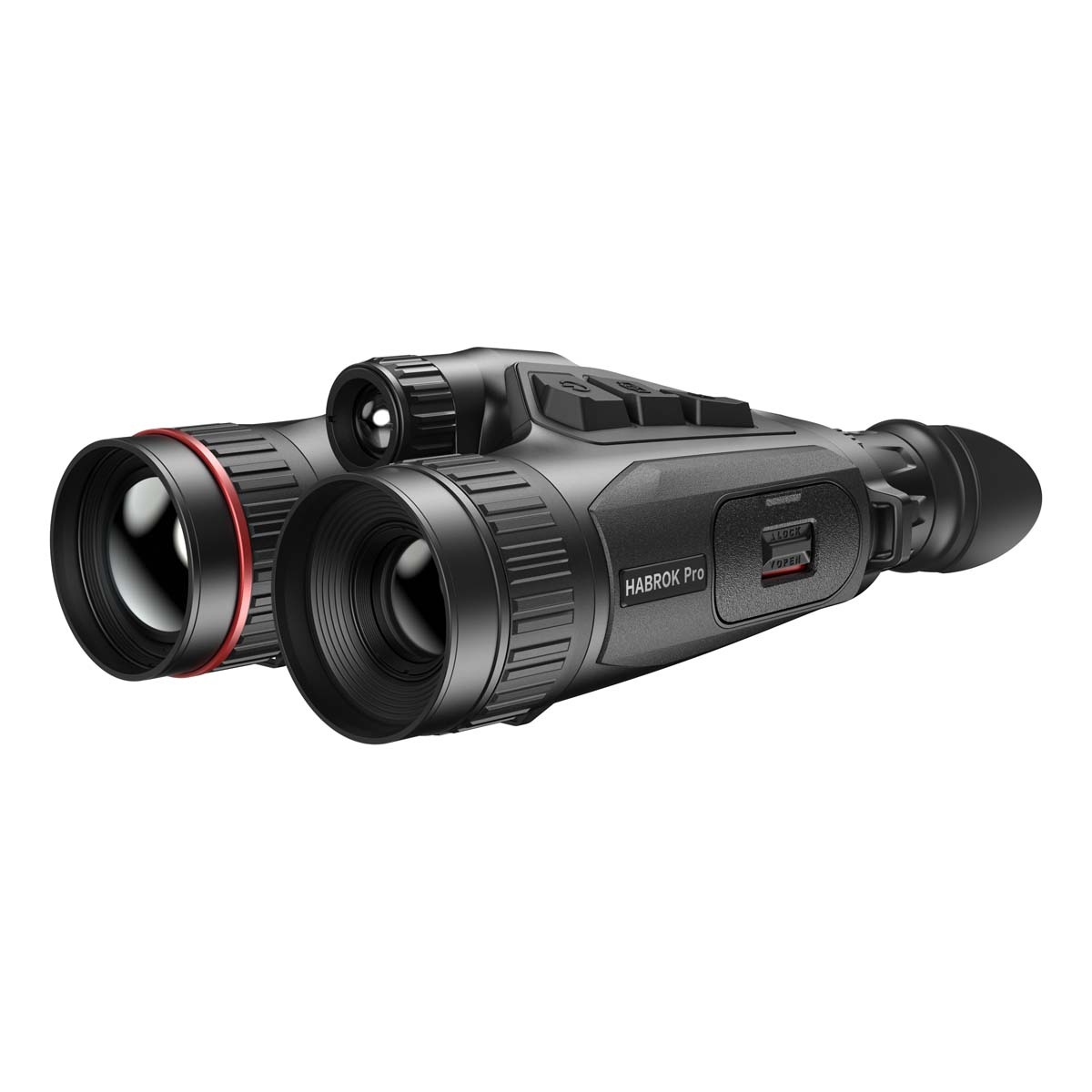

HIKMicro Habrok PRO HQ50L Thermal (640x512) Binoculars w/LRF

HIKMICRO Habrok PRO HQ50L Thermal (640x512) Binoculars w/LRF. HIKMICRO HABROK Pro HQ50L multi-spectrum binocular is equipped with an 15 mK NETD, 640 × 512 thermal detector @50 mm thermal lens and an advanced 4K digital detector with 60mm lens, ensuring perfect image quality and detail recognition in various weather and light conditions. Combined with a 1000 m Laser rangefinder and replaceable IR emitter @850 nm wavelength, this all-in-one binocular can be applied mainly in forest & field hunting, birding, animal searching, rescuing and marine scenario.

Loaded with cutting-edge technology, the latest generation HIKMICRO Habrok Pro thermal binoculars offer the detection power of high resolution thermal alongside the observation power of the latest 4K day & night camera – all in a compact and ergonomic binocular chassis.

Built around HIKMICRO’s incredible new 640x512px, Sub 15mK NETD sensor, the Habrok Pro redefines what is possible from a thermal binocular. The high resolution sensor delivers an unbelievably crisp and detailed image at base mag while also allowing you to use the digital magnification to zoom in without pixilation.  This industry leading thermal sensor provides the detail you need to positively locate and identify animals, people or birds while also giving you a clear view of the surroundings and background. This highly accurate thermal sensor will also continue to deliver in the most challenging conditions, such as rain and fog.

With the press of the button the Habrok switches to its 4K Day & Night camera to deliver a bright, vibrant, full colour image in daylight that allows you to view your surroundings in mind blowing detail. As twilight sets in and the ambient light drops the Habrok continues to shine with unparalleled light gathering capacity. The built in IR torch will activate in total darkness and the camera continues to deliver a high resolution, black and white image. New for the Habrok Pro is image stabilisation to minimise hand shake when observing at high magnification.

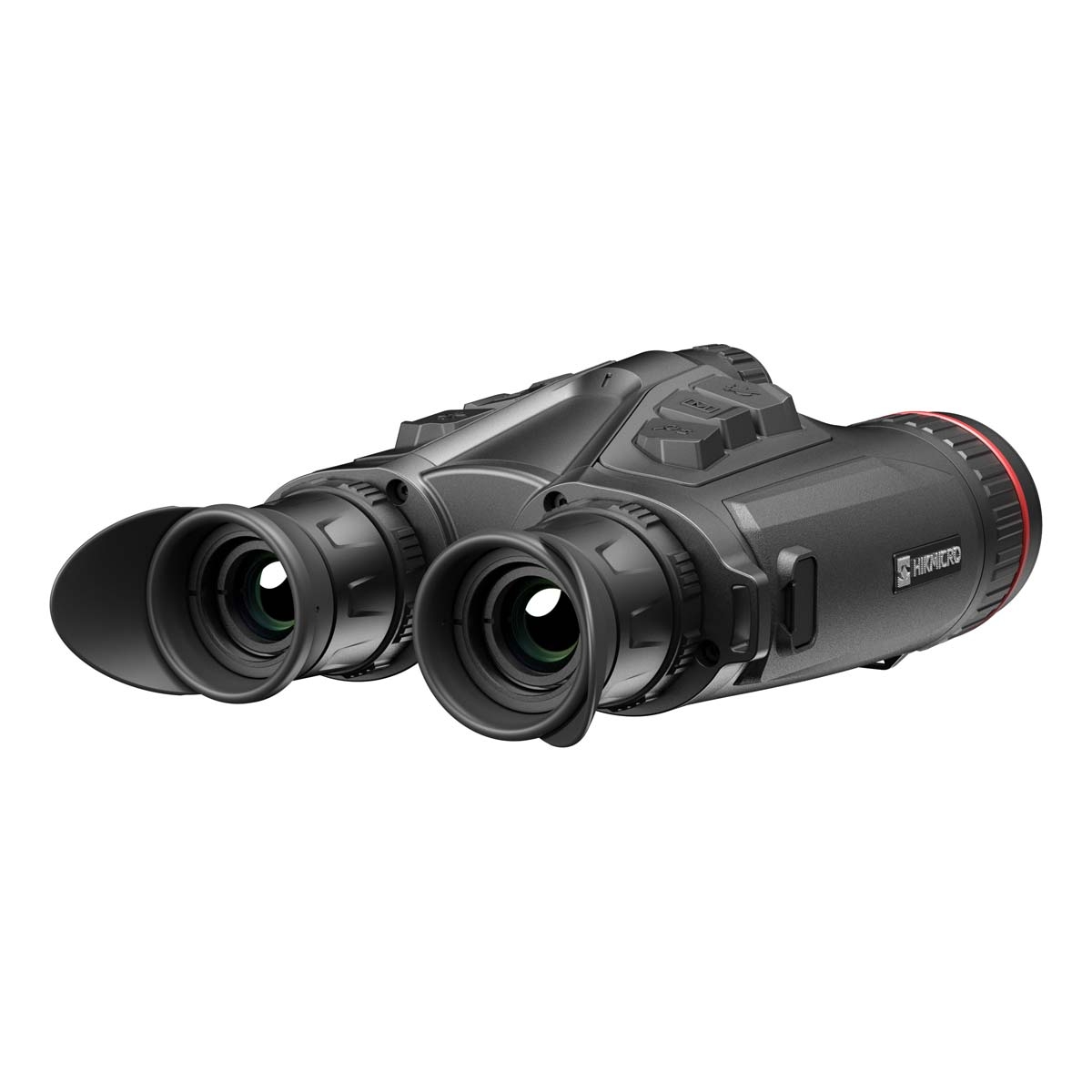

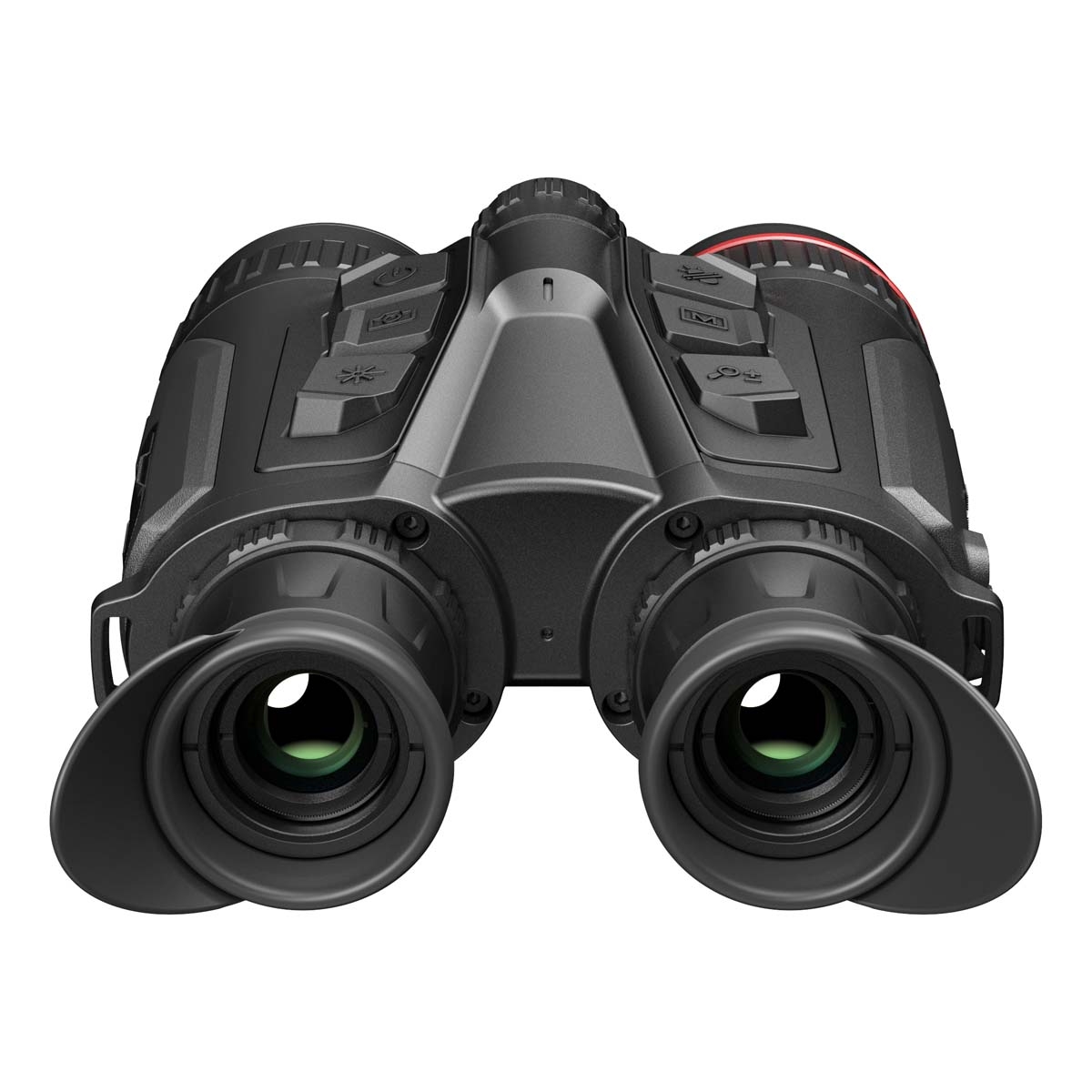

The eyepieces offer a wide and immersive viewing experience of the massive OLED display. You can quickly and easily adjust the interpupillary distance and focus so each eyepiece perfectly matches your eyes. The soft rubber eyecups can be folded back which makes it easy for glasses wearers and comfortable for extended periods of use.

The removable battery pack will power the Habrok Pro for up to 9 hours and there are two batteries supplied in the box so you can be confident that you will never be caught without power. The Habrok Pro is also supplied with HIKMICRO’s new binocular harness which makes the perfect way to carry your binoculars on adventures or a secure way to store them when not in use.

The Habrok Pro will also record and playback thermal and optical images, video and audio in its internal memory, and share it to nearby mobile devices via the dedicated HIKMICRO Sight App. Also on-board is 1000m laser range-finding, GPS and digital compass. The Habrok Pro is HIKMICRO’s new flagship device for many diverse applications, with unrivalled image detail, thermal sensitivity, performance and features.

Features

• 640 × 512 resolution @12 μm thermal detector
• High sensitivity thermal module NETD < 15 mK (@25°C, F# = 1.0)
• 50 mm, F1.0 lens with thermal detection range up to 2600 m
• 3840 × 2160 4K ultra high-resolution CMOS detector
• 1920 × 1080 resolution 0.49-inch OLED display
• Built-in 850 nm IR illuminator and Laser Rangefinder of 1000 m measuring distance
• 7 h+ continuous operation time with replaceable battery pack
• 975 g lightweight, with a compact and ergonomic design

Specifications

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Max. Resolution: 640 × 512
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 15 mK (@25°C), F#=1.0
• Lens (Focal Length): 50 mm, F1.0
• Focus Mode: Focus Ring
• Detection Range: 2600 m
• Min. Focusing Distance: 5 m
• Magnification: 4.3x to 25.8x (6x)
• Field of View(H × V), Degrees/m @100 m: 8.8° × 5.3°/ 15.4 m × 9.3 m

Optical Module

• Image Sensor: 1.88'' Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Focal Length: 60 mm, F2.2
• Min. Working Distance: 3 m
• Focus Mode: Focus Ring
• Magnification: 5.5x to 22.0x?4x)
• Field of View (H × V), Degrees/m @100 m: 7.3°× 4.1° / 12.6 m × 7.2 m
• Smart IR: Yes
• IR Illuminator Wavelength: 850 nm
• Viewing Range at Night: 400 m

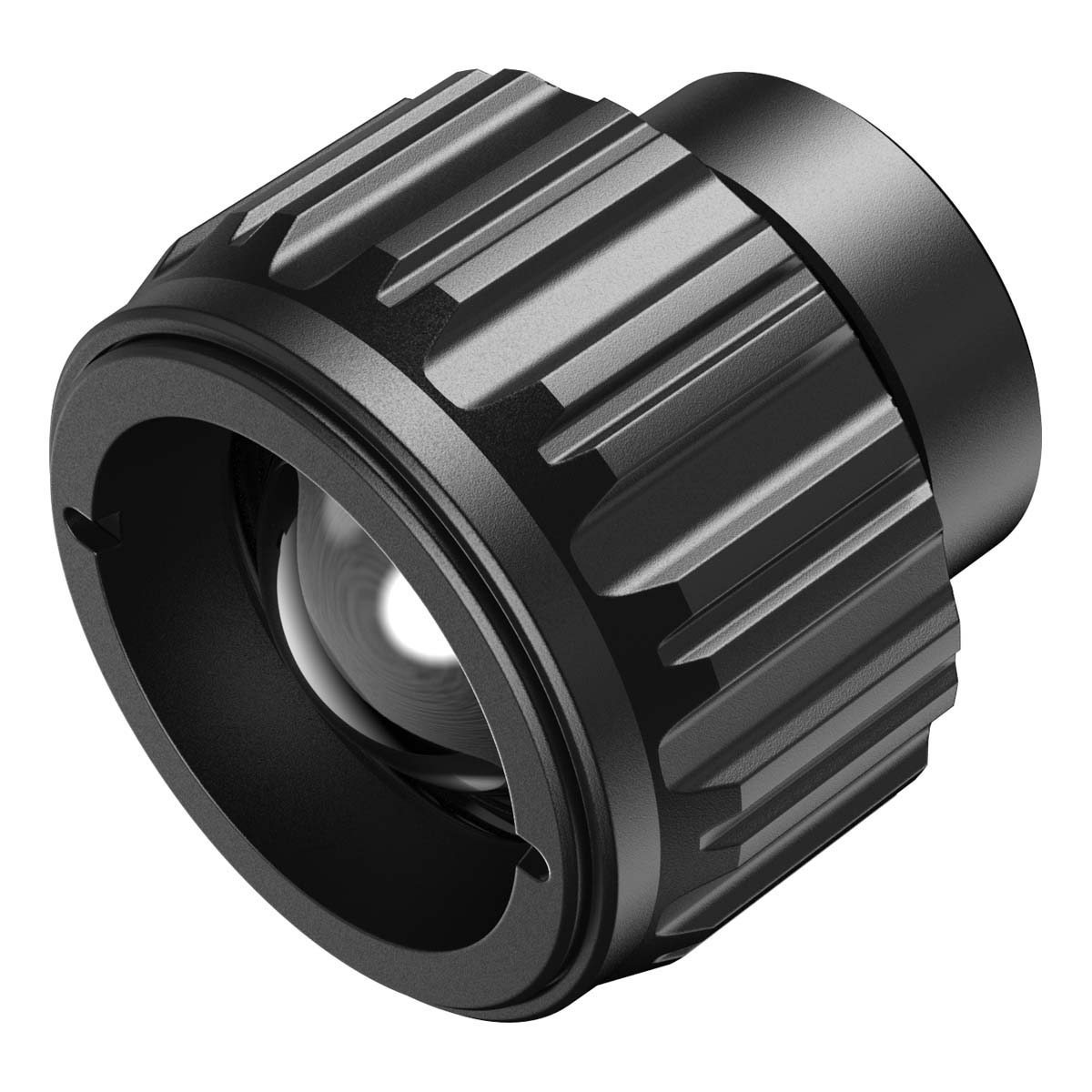

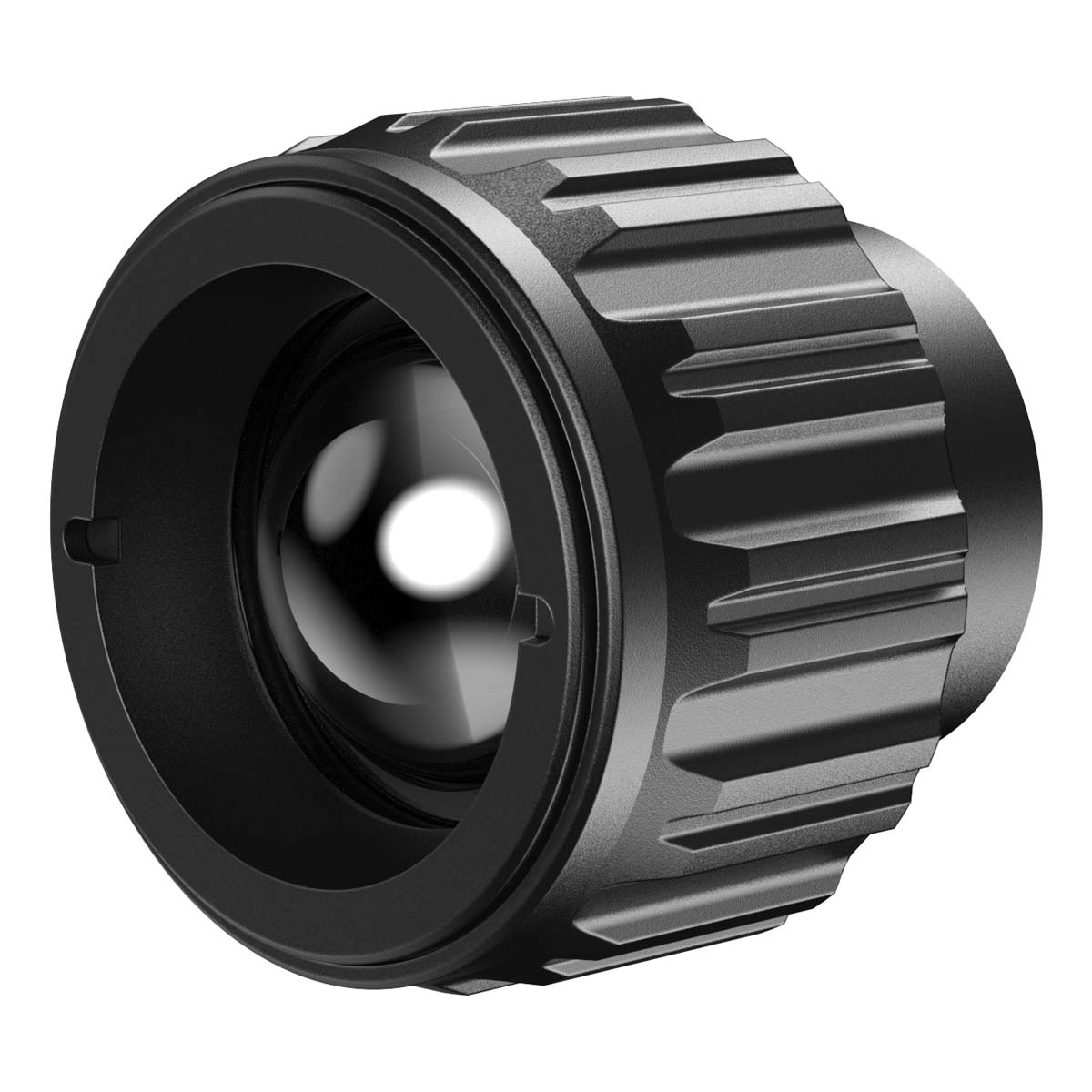

• Replaceable IR Illuminator: Yes

Image Display

System

• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Storage: Built-in EMMC (64 GB)
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Digital Magnetic Compass: Yes
• GPS: Yes
• Local Album: Yes

Power Supply

• Battery Type: Replaceable and Rechargeable Li-ion Battery Pack
• Battery Operating Time: ≥7 h (-20°C, with hotspot off, LRF and Zoom Pro on)
• Type-C Power Supply: 5V DC, 2ASupports External Power Supply

General

• Protection Level: IP67
• Dimension: 142.9 mm × 79.7 mm × 230.5 mm (5.6" × 3.1" × 9.1")
• Weight: 975 g with battery pack
• Working Temperature: -30? to +55?
• Interpupillary Adjustment Range: 60 mm to 74 mm
• Mounting Adapter: 1/4“-20-UNC

Laser Rangefinder

• Safety Class for Laser: Class 1
• Wavelength: 905 nm
• Max. Measuring Range: 1000 m
• Measurement Accuracy: ±1 m
•  Min. Measuring Range: 10 m

HIKMICRO Habrok PRO HQ50L Thermal (640x512) Binoculars w/LRF Review

The HIKMICRO Habrok PRO HQ50L is a premium multi-spectrum binocular system designed for users who demand top-tier thermal imaging and 4K optical performance in one device. Its advanced 640 × 512, sub-15 mK thermal sensor, 50 mm lens, and 4K day/night camera make it ideal for hunters, birders, search-and-rescue teams, and marine observers needing precise detection and exceptional clarity in all lighting conditions. With a built-in 1000 m laser rangefinder, IR illumination, GPS, and extensive onboard recording, the Habrok PRO offers a feature-rich, field-ready solution for serious outdoor professionals.

HIKMICRO Habrok PRO HQ50L Thermal (640x512) Binoculars w/LRF Performance & Key Features

Performance is driven by a high-sensitivity <15 mK NETD thermal module paired with a large 50 mm F1.0 lens, enabling reliable identification out to 2600 m. The seamless switch to a 4K optical camera adds true multi-spectrum versatility, maintaining detailed colour images in daylight and crisp black-and-white in low-light through the 850 nm IR illuminator. Image stabilisation supports clearer viewing at high magnification, ensuring the device performs equally well for scanning and long-distance observation.

• Powerful thermal detection with 640 × 512 sensor and 4.3–25.8× magnification.
• 4K day/night camera with 5.5–22× optical zoom for detailed colour or IR-assisted viewing.
• Integrated 1000 m laser rangefinder with ±1 m accuracy.
• Ideal for hunting, wildlife observation, rescue operations, and marine use.

HIKMICRO Habrok PRO HQ50L Thermal (640x512) Binoculars w/LRF Build Quality & Handling

A rugged IP67-rated chassis ensures dependable operation in harsh conditions, from -30 °C to +55 °C. At 975 g, the binoculars remain relatively lightweight for a dual-sensor system, and their compact footprint makes extended handheld use viable. Adjustable interpupillary distance, soft eyecups, and dual focus rings support comfortable, tailored viewing even during long field sessions.

Is HIKMICRO Habrok PRO HQ50L Thermal (640x512) Binoculars w/LRF Easy to Use?

Despite the extensive feature set, the Habrok PRO is user-friendly thanks to intuitive controls, quick-access imaging modes, and a sharp 1920 × 1080 OLED display. Switching between thermal and optical views is seamless, and onboard tools like PIP, Hot Track, and Zoom Pro enhance situational awareness. The replaceable battery pack delivers 7–9 hours of operation, reducing downtime in the field.

• Smooth focus rings for both thermal and optical modules.
• Clear, responsive OLED display with adjustable tone and contrast.
• Easy media capture, playback, and app connectivity for sharing.

Key Takeaways of the HIKMICRO Habrok PRO HQ50L Thermal (640x512) Binoculars w/LRF

The Habrok PRO stands out for its exceptional combination of high-resolution thermal imaging and 4K optical capability, giving users true all-conditions versatility. Its long detection range, IR-assisted night performance, and precise rangefinding make it especially suited to hunters and professional observers. While its feature-rich interface may require brief familiarisation, the payoff is a highly capable, multi-purpose tool. Overall, it is a top-tier choice for anyone needing maximum detail, reliability, and adaptability in a single binocular platform.

HIKMICRO Habrok PRO HQ50L Thermal (640x512) Binoculars w/LRF FAQs

How far can the Habrok PRO HQ50L detect heat signatures?

The 50 mm F1.0 thermal lens and 640 × 512 sensor provide a detection range of up to 2600 m. This enables users to scan large landscapes and identify distant heat sources with confidence. Even in fog, rain, or mixed terrain, the sub-15 mK sensitivity helps maintain clarity.

What advantages does the 4K day/night camera offer?

The 4K CMOS sensor delivers high-resolution colour images in daylight and detailed black-and-white images at night when paired with the IR illuminator. This dual capability allows seamless transition between thermal and optical modes, depending on conditions and identification needs.

Does the image stabilisation make a noticeable difference?

Yes. Image stabilisation helps reduce hand shake, which becomes more noticeable at higher magnifications. This makes prolonged observation more comfortable and ensures clearer image detail, especially when examining distant subjects.

How effective is the built-in 1000 m laser rangefinder?

The Class 1 rangefinder measures distances from 10 m to 1000 m with ±1 m precision. This is particularly useful for hunters and search teams who need accurate ranging to plan movements or assess targets. It integrates smoothly into both thermal and optical viewing modes.

Can the IR illuminator be replaced or upgraded?

Yes. The device uses a replaceable 850 nm IR illuminator, allowing users to swap it if needed or adjust performance for different conditions. This enhances flexibility for night-time observation and ensures continued functionality over long-term use.

How long does the battery last during real-world use?

The replaceable Li-ion battery provides over 7 hours of operation even in cold environments with power-intensive features enabled. Two batteries are included, ensuring extended field time with minimal interruption. External USB-C power can also be used when needed.

Is the device comfortable for people who wear glasses?

Yes. With 15 mm eye relief and foldable rubber eyecups, the Habrok PRO accommodates glasses comfortably. Users can fine-tune focus and diopter adjustments to achieve a sharp, immersive view through the OLED display.

Does the binocular store photos and videos internally?

The device includes 64 GB of built-in EMMC storage for recording thermal and optical photos, videos, and audio. Users can review media on the device or transfer it via the HIKMICRO Sight App. This makes documenting observations straightforward and convenient.

Is the Habrok PRO suitable for harsh outdoor environments?

Its IP67 rating means it is fully dustproof and protected against immersion in water. Combined with wide operating temperatures from -30 °C to +55 °C, the binocular is engineered for demanding field use. This durability makes it dependable in mountain, woodland, coastal, or rescue scenarios.

How adjustable is the viewing setup?

Users can customise interpupillary distance from 60–74 mm and fine-tune each eyepiece using the diopter range of –5D to +3D. These adjustments ensure a precise fit, improving clarity and reducing eye strain during long observation sessions.

What smart features support navigation and positioning?

The built-in digital magnetic compass and GPS allow users to maintain orientation and tag locations while observing. These features are particularly valuable for search teams, surveyors, and anyone operating over large areas where situational awareness is crucial.
