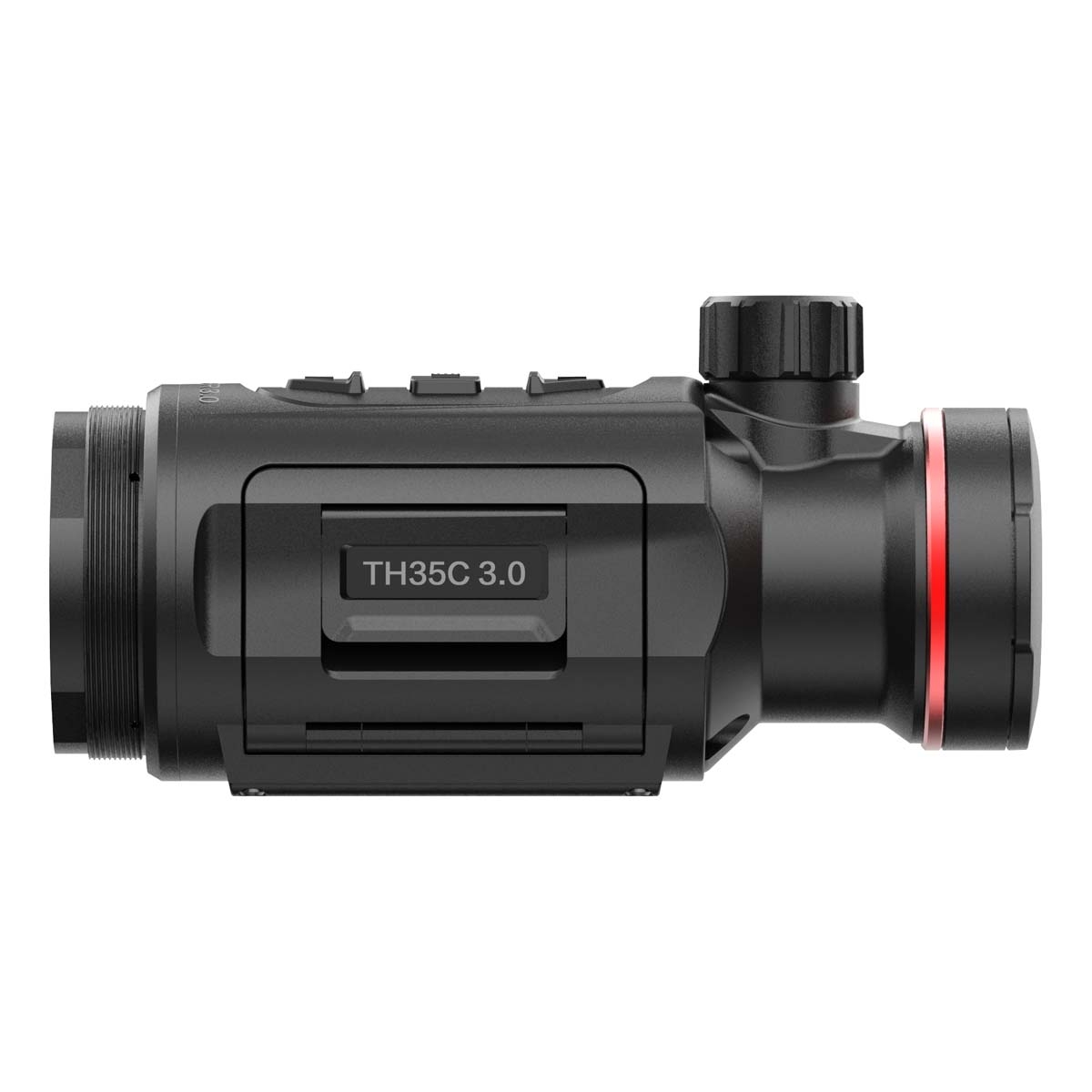

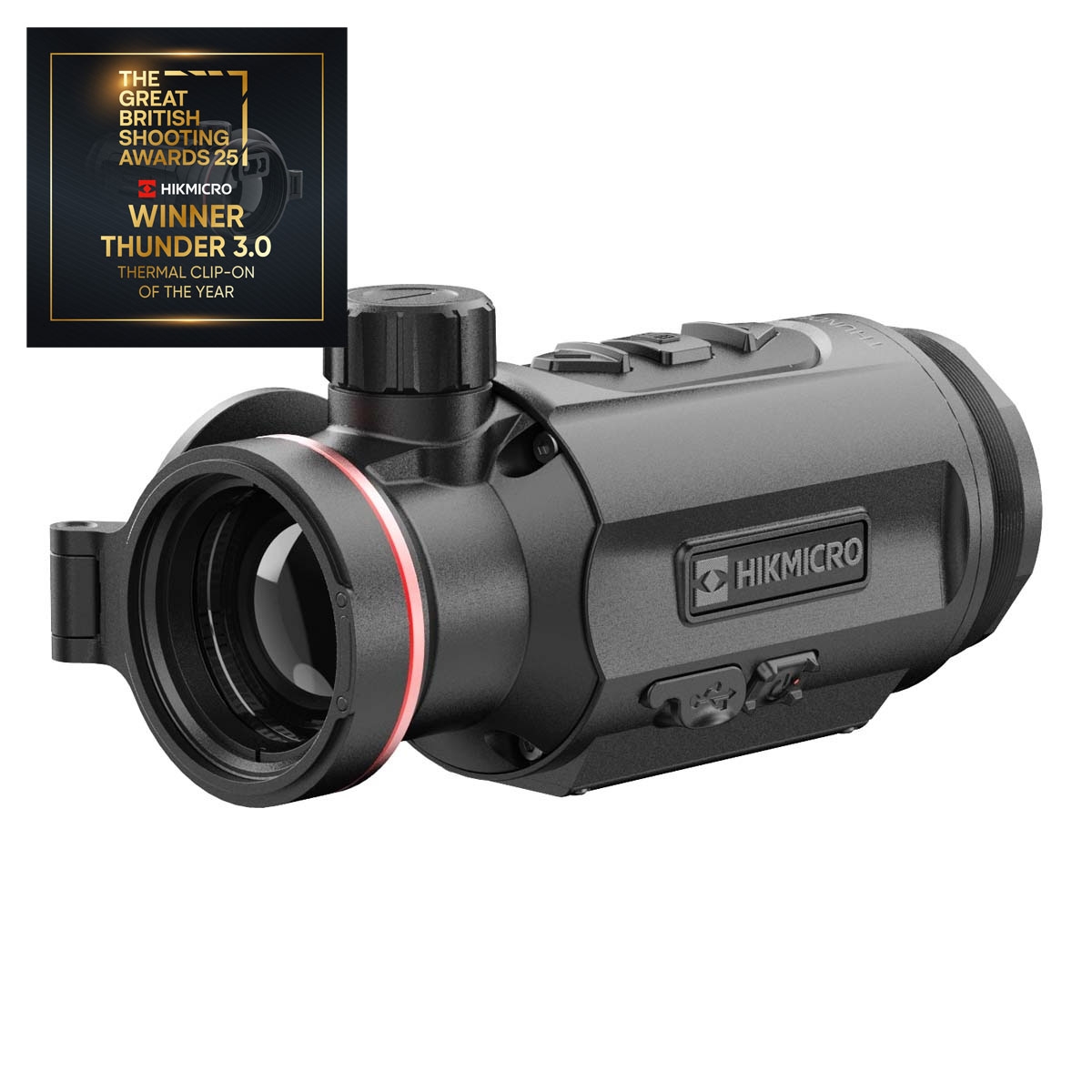

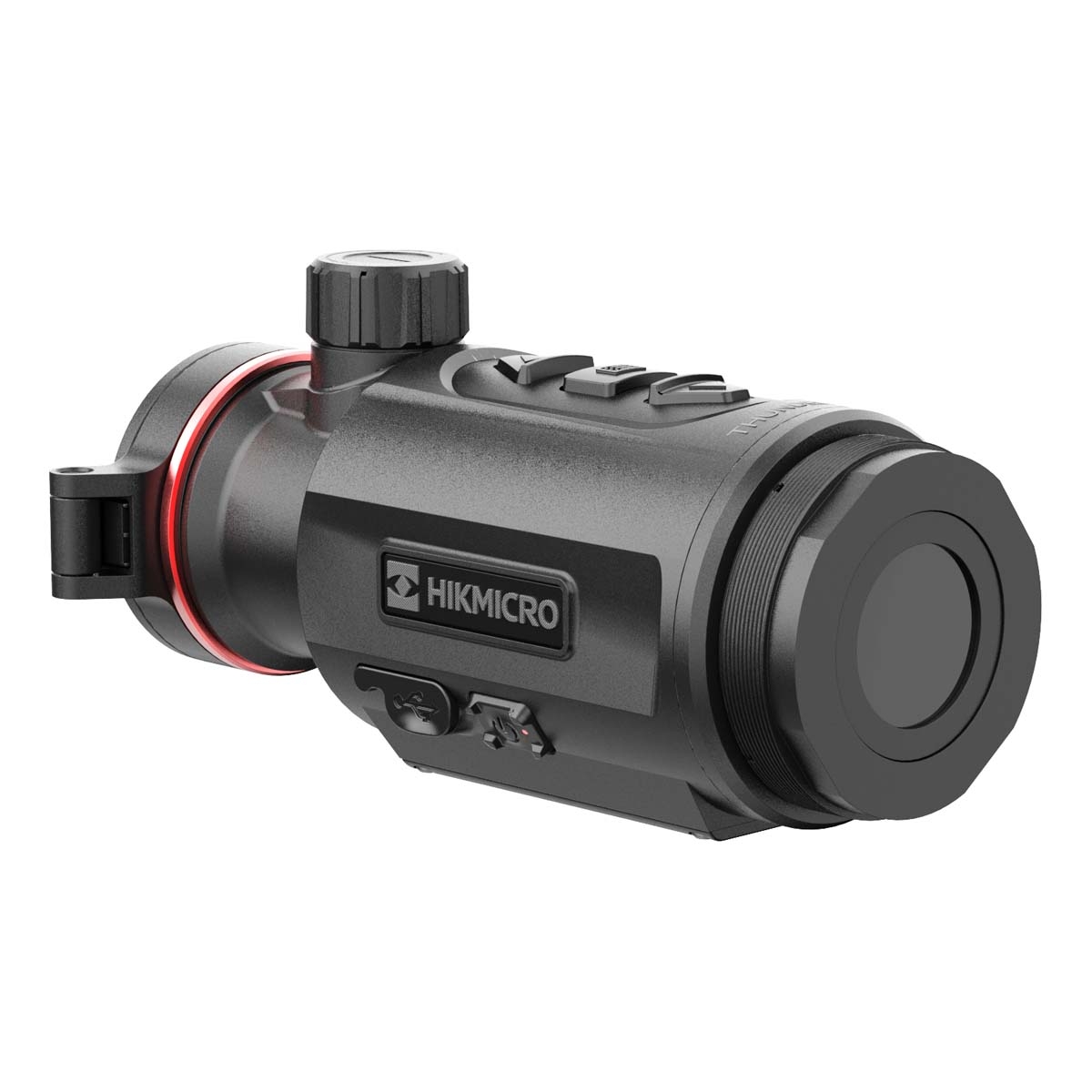

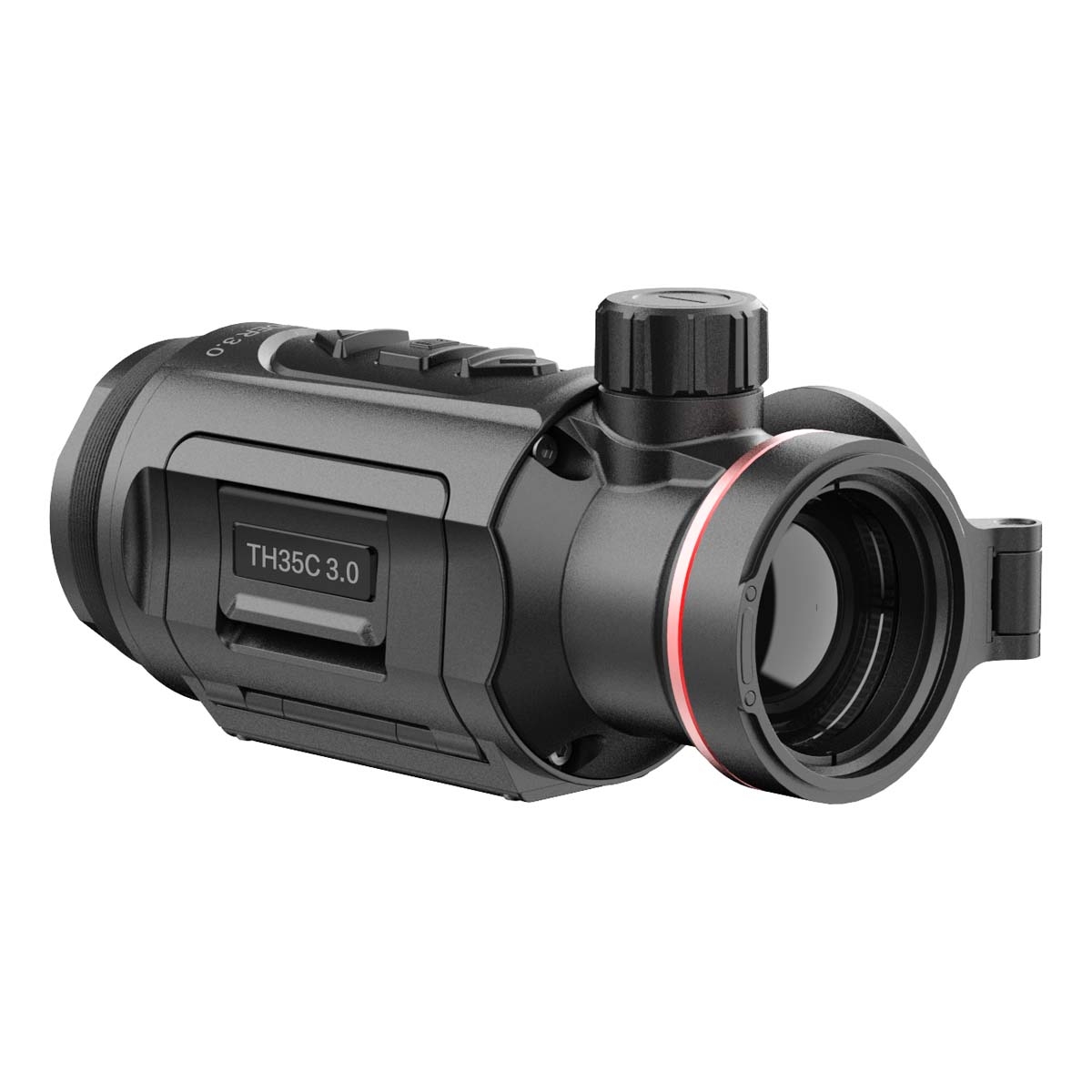

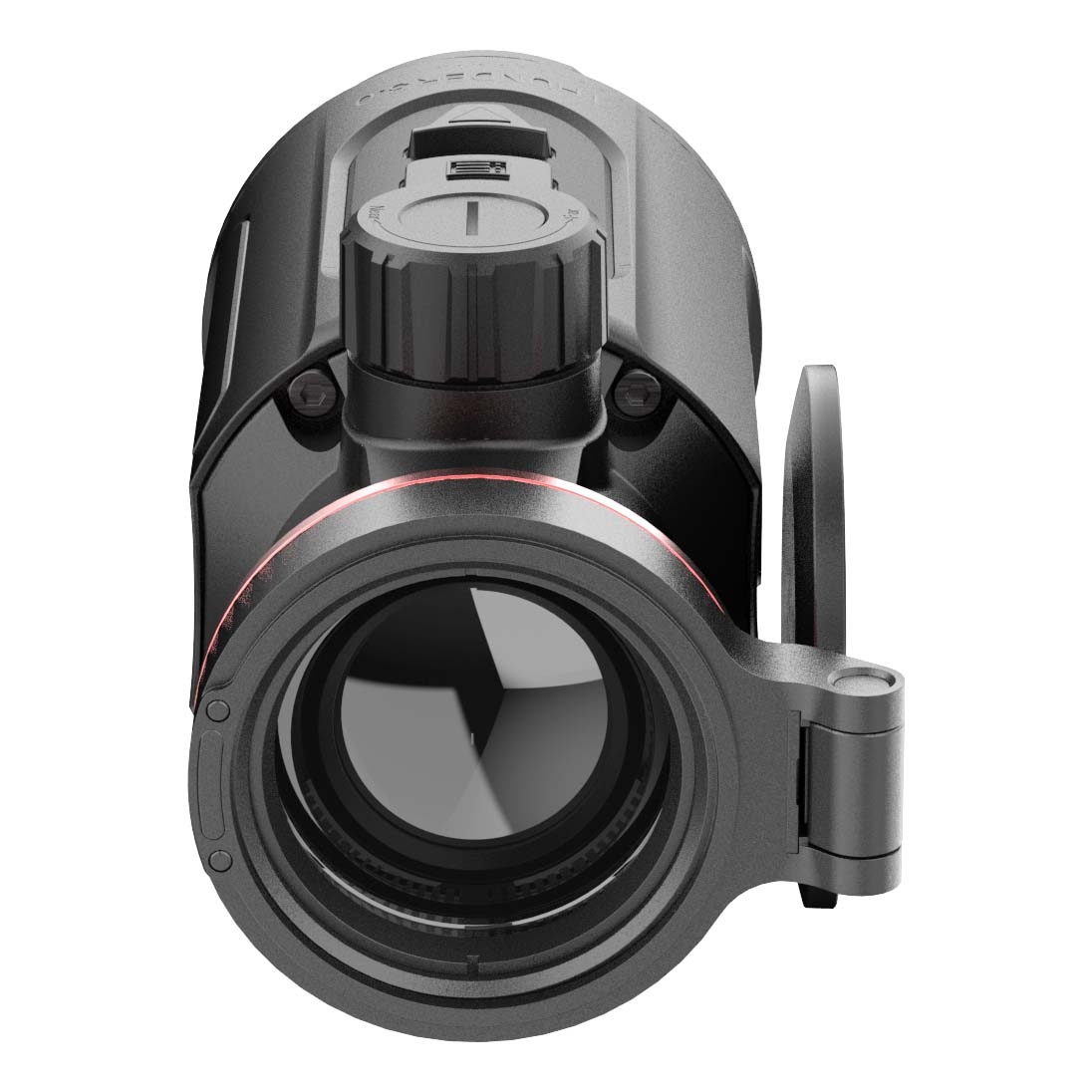

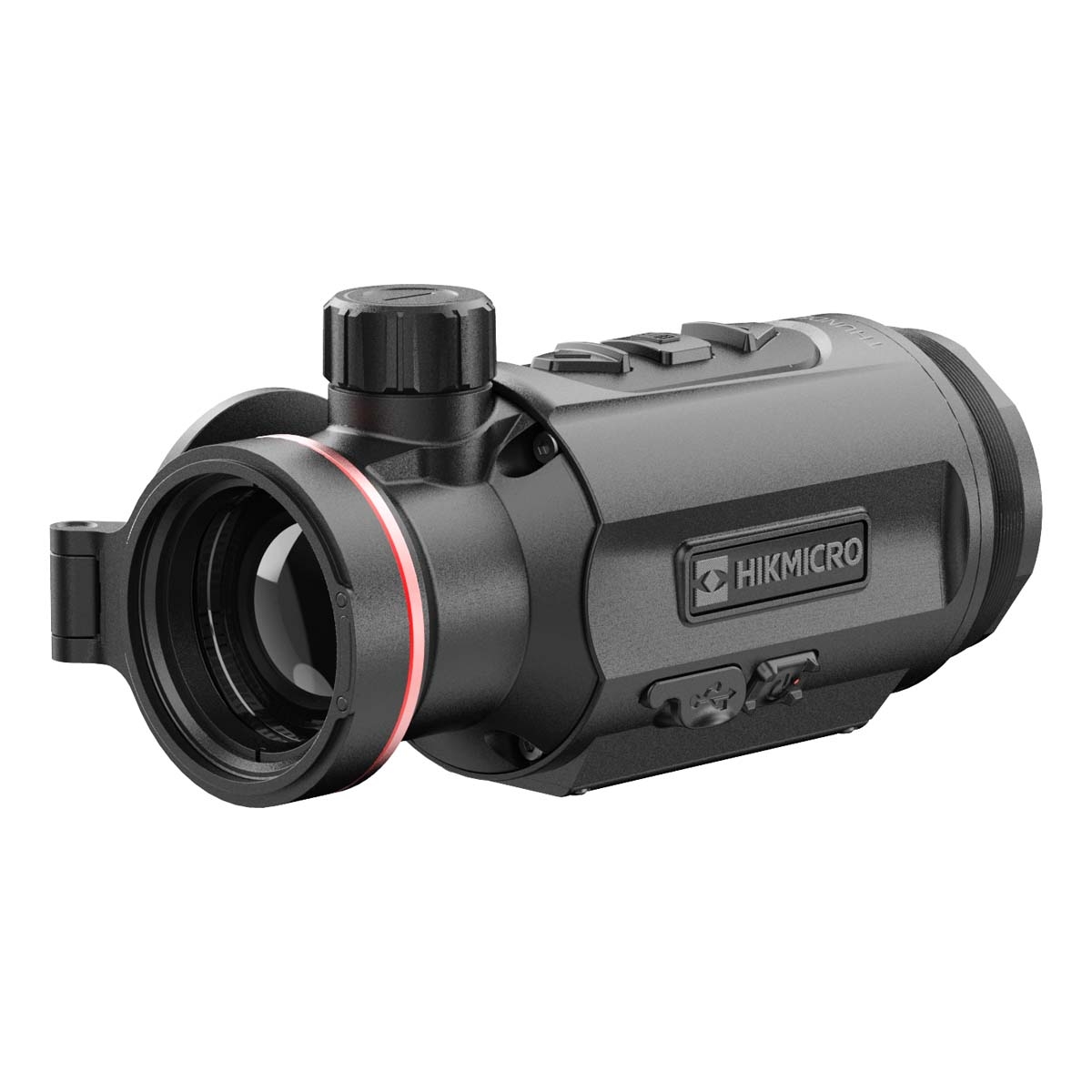

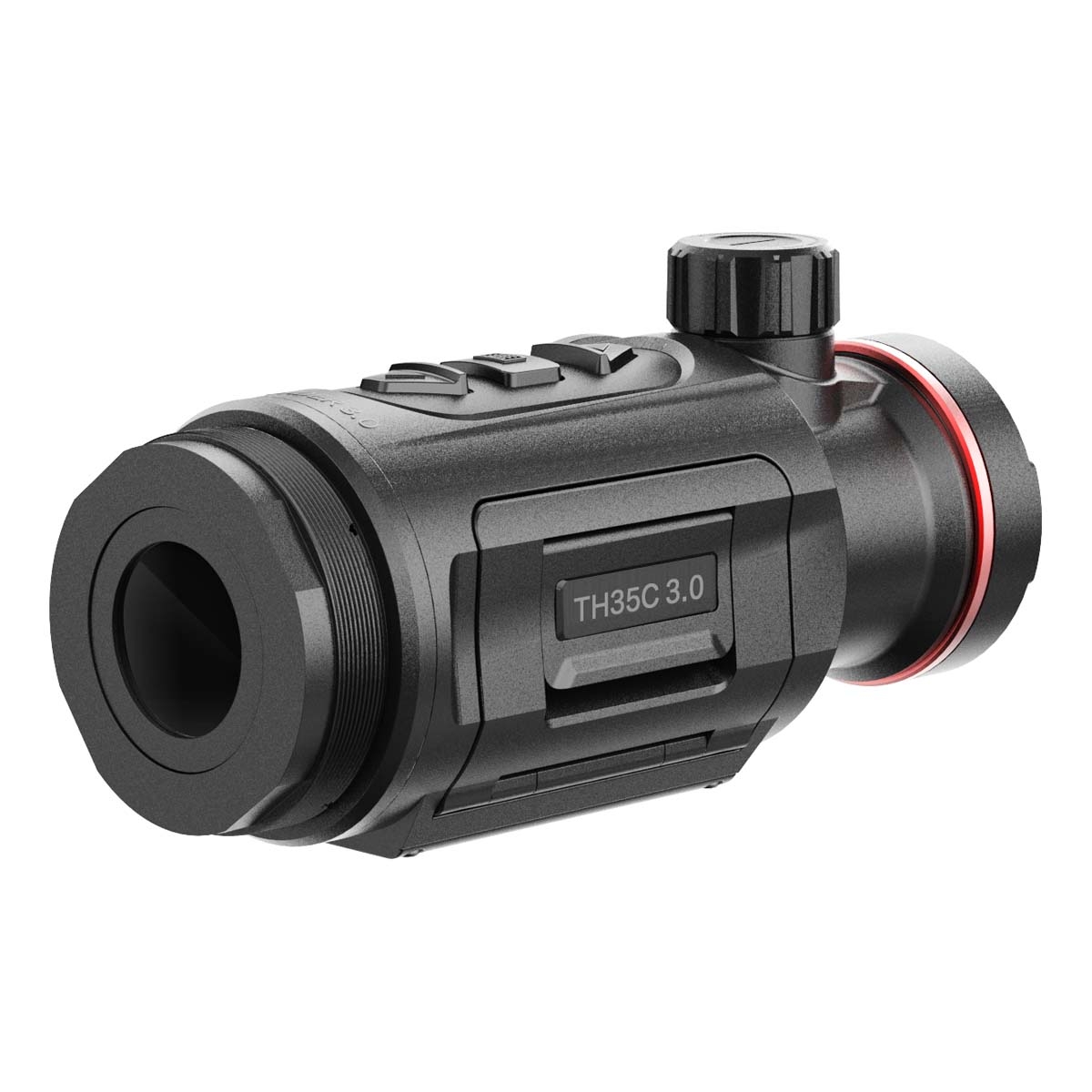

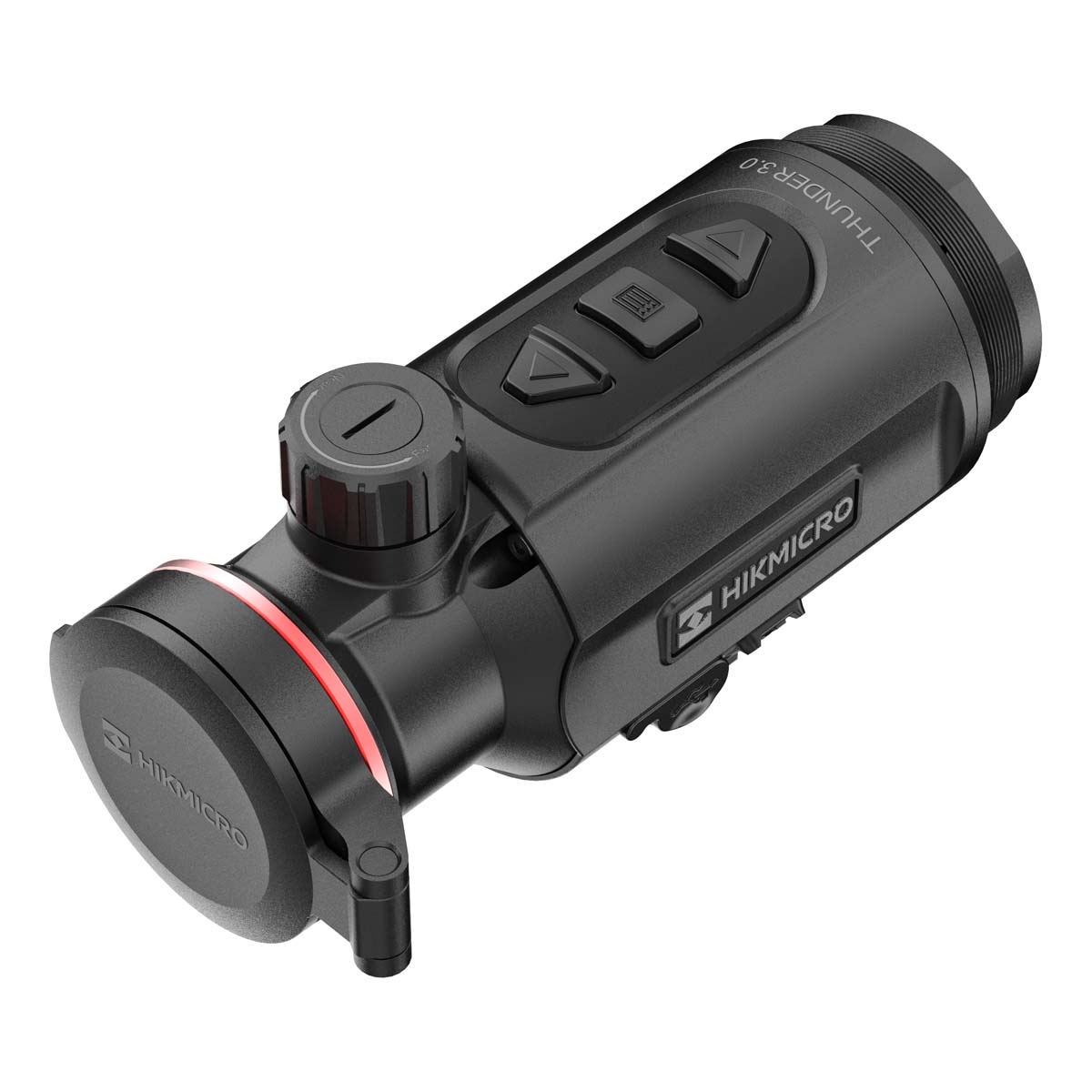

HIKMicro Thunder 3.0 TH35C (384x288) Thermal Front Clip-On

HIKMICRO Thunder 3.0 TH35C (384x288) Thermal Front Clip-On. HIKMICRO THUNDER TH35C 3.0 Thermal Monocular is equipped with an unparalleled powerful thermal detector, with higher sensitivity and the latest image processing algorithm, ensuring users catch the finest details no matter the weather or light conditions. With a 1920 × 1080 OLED larger display, THUNDER 3.0 provides a better visual experience.

The HIKMICRO Thunder 3.0 front clip on enables you to hunt with the latest generation thermal technology while also retaining the experience of shooting with your traditional optical riflescope.

The Thunder 3.0 introduces many innovations to enhance your hunting including shutterless technology.

Built around HIKMICRO’s latest generation 384x266px, Sub 15mK NETD sensors, the Thunder 3.0 is capable of delivering an unbelievably detailed image. Not only does this help you to positively identify animals but also gives you a clear view of the surroundings and background. This highly accurate thermal sensor will also continue to deliver in the most challenging conditions, such as rain and fog.

The Thunder 3.0 utilises a compact and ergonomic chassis which has been developed to ensure that all of the controls fall easily to reach from your shooting position. The thunder is paired to a Rusan Quick-Release clamp system which is tailored to fit your existing optic perfectly. This system allows you to quickly and repeatably add or remove the thermal unit from your optical scope with the twist of a locking ring.

In addition to the latest hardware, HIKMICRO are committed to developing advanced software to enhance your hunting experience. The Thunder 3.0 is loaded with new technology like Image Pro 2.0 which uses intelligent algorithms to build extra detail to the image.

Another unique technology which is set to revolutionise your thermal shooting experience is shutterless technology. The shutter is used in traditional thermal devices to control image noise. It is a physical process which requires your image to freeze for a few seconds to complete. During that interruption it is impossible to take your shot. To avoid this problem, HIKMICRO have developed software which has replaced the physical shutter and removed this problem.

Powered by the same removable battery as the Thunder 2.0, the Thunder 3.0 delivers an impressive run time of 6 Hours.

Features

• 384 × 288 resolution @12 μm thermal detector
• High sensitivity thermal module NETD < 15 mK (@25°C, F# = 1.0)
• 35 mm, F1.0 lens with detection range up to 1800 m
• 1920 × 1080 resolution 0.49-inch OLED display
• HIKMICRO Shutterless Image System (HSIS)
• Rechargeable and Replaceable Li-on Battery, 6h continuous operation
• High shock resistance up to 1000 g/0.4 ms

Specifications

Thermal Module

• Image Sensor: Uncooled Focal Plane Arrays
• Max. Resolution: 384 × 288
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• Lens (Focal Length): 35 mm, F1.0
• NETD: Less than 15 mK (@25 °C, F# = 1.0)
• Detection Range: 1800 m
• Focus Mode: Focus Knob
• Min. Focusing Distance: 10 m
• Magnification: 1×
• Field of View(H × V), Degrees / m @100m: 7.5° × 5.7°/13.2 m × 9.9 m
• Recommended Magnification of the Day Scope: 1-12x

Image Display

• Display: 1920 × 1080, 0.49 inch, OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion Red monochrome, Green monochrome
• Exit Pupil: 25 mm
• Eye Relief: 20 mm
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• HSIS (HIKMICRO Shutterless Image System): Yes
• Image Pro 2.0: Yes

System

• Record Video: On-board Video Recording
• Capture Snapshot: Yes
• Virtual Reticle: Yes
• Standby Mode: Yes
• Storage: Built-in EMMC (64GB)
• Hotspot: Yes
• Hot Track: Yes
• Reticle: No
• Audio Recording: Yes
• Recoil-activation Recording: Yes
• Max. Recoil: 1000 g/0.4 ms
• Local Album: Yes
• Image Calibration: Yes
• Zeroing Profiles: 5

Power Supply

• Battery Type: Replacable and Rechargeable Li-ion Battery Pack
• Battery Operating Time: ≥6h (25 °C, with hotspot off)
• Type-C Power Supply: 5 VDC, 2 ASupports External Power Supply

General

• Protection Level: IP67
• Dimension: 143.4 mm × 67.5 mm × 72.9 mm
• Weight: 460 g with Battery
• Working Temperature: -30°C to + 55°C (-22°F to 131°F)
• Body Material: Body & Lens Cover: Magnesium Alloy
• Center Height: 32 mm

HIKMICRO Thunder 3.0 TH35C (384x288) Thermal Front Clip-On Review

The HIKMICRO Thunder 3.0 TH35C is a high-performance thermal front clip-on designed for hunters who want to add advanced thermal capability to an existing daytime riflescope without changing their established shooting setup. Built around a highly sensitive 384 × 288 thermal sensor and paired with a large OLED display, it is engineered to deliver fine detail, strong target identification, and consistent performance in poor visibility. Its clip-on configuration, shutterless operation, and quick-release mounting system make it particularly well suited to demanding field use where speed, reliability, and image continuity matter most.

Thunder 3.0 Performance & Key Features

At the core of the Thunder 3.0 TH35C is a next-generation thermal sensor with sub-15 mK NETD sensitivity, allowing subtle temperature differences to be rendered clearly even in rain, fog, or cold conditions. The 35 mm F1.0 lens provides a generous detection range of up to 1800 metres, while advanced image processing ensures a detailed and stable picture throughout a hunt.

• 384 × 288 thermal resolution with 12 μm pixel pitch for clear detail recognition
• HSIS shutterless image system eliminates image freeze during critical moments
• Image Pro 2.0 processing enhances contrast and fine scene detail
• Optimised for use with daytime scopes between 1–12× magnification

Thunder 3.0 Build Quality & Handling

The unit is housed in a compact magnesium alloy chassis that balances durability with manageable weight, coming in at 460 g including the battery. Its IP67-rated construction and 1000 g recoil resistance indicate strong suitability for harsh outdoor environments and high-calibre rifles. The ergonomic layout ensures that controls remain accessible from a natural shooting position.

Is the Thunder 3.0 Easy to Use?

Designed as a front clip-on, the Thunder 3.0 integrates seamlessly with existing optics using a Rusan quick-release clamp system for fast, repeatable mounting. The focus knob and intuitive menu structure support rapid adjustment in the field, while the large OLED display offers a comfortable and clear viewing experience during extended sessions.

• Quick-release mounting enables fast attachment and removal
• Shutterless system maintains a continuous live image
• Large 1920 × 1080 OLED display improves viewing comfort

Key Takeaways of the Thunder 3.0 TH35C

The HIKMICRO Thunder 3.0 TH35C stands out for its highly sensitive thermal sensor, shutterless image system, and ability to preserve a shooter’s familiar daytime scope setup. While it operates at a fixed 1× base magnification and relies on external optics for zoom, this design choice supports image quality and shooting consistency. It is best suited to serious hunters who value uninterrupted thermal viewing, robust construction, and fast deployment. Overall, it represents a well-balanced and technically advanced clip-on thermal solution for demanding field conditions.

HIKMICRO Thunder 3.0 TH35C (384x288) Thermal Front Clip-On FAQs

How does the HIKMICRO Thunder 3.0 TH35C work as a front clip-on?

The Thunder 3.0 TH35C mounts in front of an existing daytime riflescope, allowing thermal imaging to be added without removing or re-zeroing the optic. This setup preserves the shooter’s familiar reticle, eye relief, and handling characteristics. It is optimised for use with day scopes between 1× and 12× magnification.

What level of image detail can the 384 × 288 sensor provide?

The 384 × 288 thermal sensor, combined with a 12 μm pixel pitch and sub-15 mK NETD sensitivity, delivers strong detail recognition for its class. This allows users to distinguish animals from background clutter more confidently. The performance remains consistent even in challenging weather conditions.

What is the benefit of the shutterless image system?

Traditional thermal devices periodically freeze the image to recalibrate using a mechanical shutter. The Thunder 3.0’s HSIS shutterless system removes this interruption, maintaining a continuous live image. This ensures that critical moments are not missed when observing or preparing to take a shot.

What detection range can be expected from the 35 mm lens?

The 35 mm F1.0 lens provides a detection range of up to 1800 metres under suitable conditions. This long-range capability supports early target detection and situational awareness. Identification distances will vary depending on target size and environmental factors.

How long does the battery last in normal use?

The Thunder 3.0 is powered by a removable and rechargeable Li-ion battery pack that delivers approximately 6 hours of continuous operation at 25°C. Battery life may vary depending on feature usage such as hotspot tracking and recording. External power can also be supplied via the USB-C port.

Is the HIKMICRO Thunder 3.0 suitable for harsh weather conditions?

With an IP67 protection rating, the unit is fully protected against dust and temporary immersion in water. It is designed to operate reliably in temperatures ranging from -30°C to +55°C. This makes it suitable for demanding outdoor and night hunting environments.

Does the Thunder 3.0 support video and audio recording?

Yes, the device includes on-board video recording, snapshot capture, and audio recording functionality. Files are stored internally on a 64 GB EMMC memory. Recoil-activated recording ensures key moments are automatically captured during firing.

What colour palettes are available on the display?

The Thunder 3.0 offers multiple thermal palettes including Black Hot, White Hot, Red Hot, Fusion Red monochrome, and Green monochrome. These options allow users to tailor the image to their preferences and environmental conditions. Palette choice can influence contrast and detection comfort.

How robust is the Thunder 3.0 under recoil?

The unit is rated to withstand recoil forces of up to 1000 g over 0.4 milliseconds. This high shock resistance makes it compatible with a wide range of hunting calibres. Its internal components and housing are engineered to maintain performance after repeated firing.

Can the Thunder 3.0 be used with different rifles and optics?

Thanks to its quick-release clamp system and clip-on design, the Thunder 3.0 can be transferred between compatible rifles and optics. Repeatable mounting helps maintain consistent alignment when reattaching the unit. Multiple zeroing profiles further support flexible use across setups.

For more options, explore the full range of HIKMICRO thermal add-ons here.
