HIKMicro Alpex Digital Scope (A50T) & Gryphon Pro 50mm LRF Thermal Monocular (GQ50L) Bundle

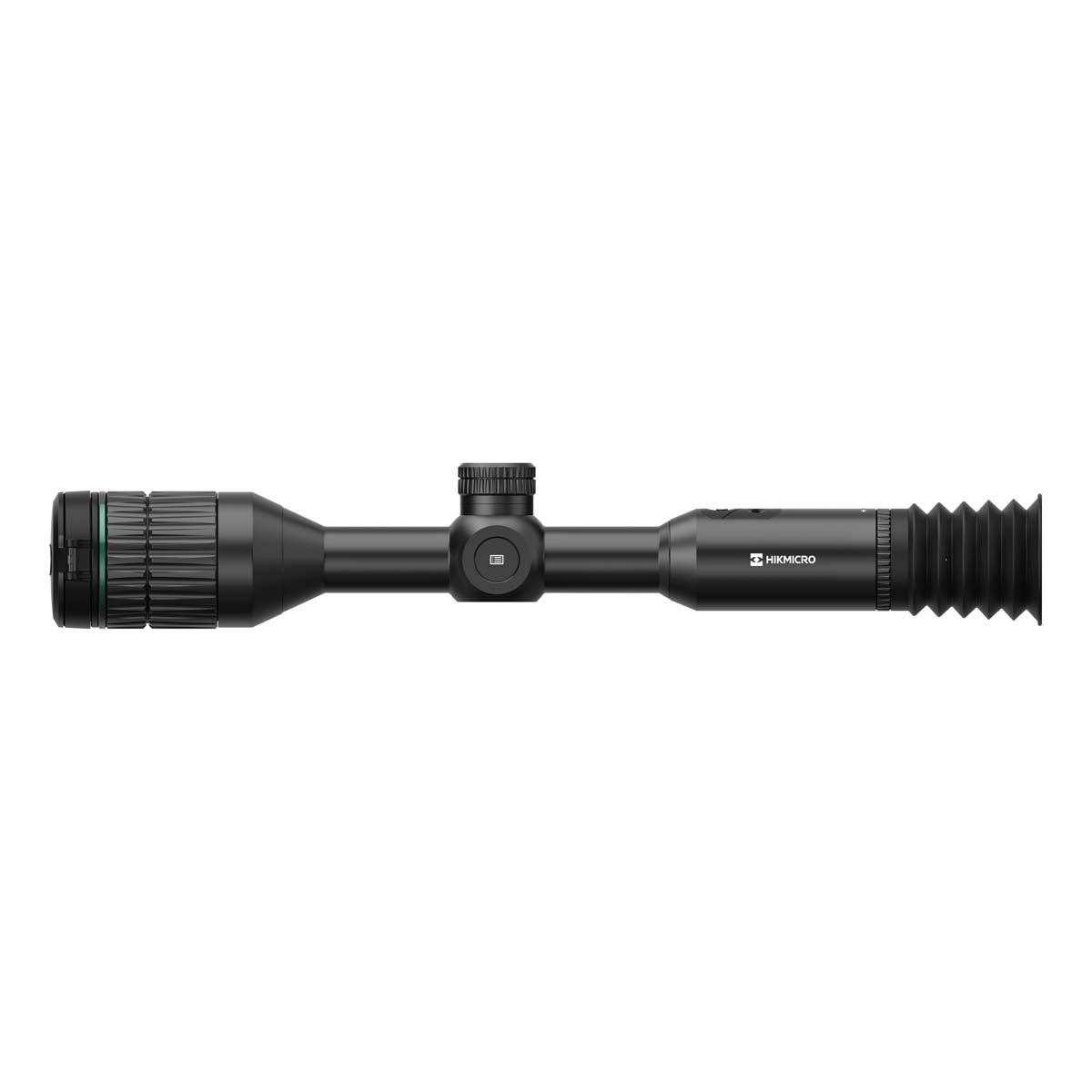

HIKMicro Alpex Digital Scope (A50T) & Gryphon Pro 50mm LRF Thermal Monocular (GQ50L) Bundle. The ground-breaking Alpex day and night riflescope is BORN FOR LOW LIGHT HUNTING. The advanced sensor technology and image processing delivers a detailed, full colour image through the day - automatically adjusting to twilight and continuing to display an amazing full colour image up until total darkness.

When darkness sets in, a single button press activates the black and white night mode and the performance of the sensor shines again. Any ambient light such as the moon or starlight is enough to provide a basic image while adding the supplied IR torch allows you to see a highly detailed view of your surroundings.

Built on a traditional 30mm riflescope tube chassis the Alpex is easy to mount using conventional riflescope rings and retains the classic look of your rifle. The riflescope tube also hosts the two internal lithium batteries that provide an outstanding 13 hours of runtime. The top turret that traditionally contains the windage adjustment holds a battery compartment where you can add an additional CR123a to gain an extra hour of runtime in an emergency.

The ergonomic design puts all of the major controls of the Alpex within easy reach.

Rolling the jog dial up and down controls your digital magnification (3.5x – 14x). Press and hold this in to access the menu which includes a simplified zeroing system with the inclusion of freeze-frame and magnification. Advanced software provides up to 5 zeroing profiles allowing you to use the Alpex on multiple Rifles.

The three buttons on the eye piece control the power, recording and quickly switch between Day & Night mode while the precise focus adjustment is located around the objective bell at the front of the scope.

The Alpex is also fitted with a microphone and recoil activated recording so it is easier to record your special hunting moment onto the built in 64gb internal memory. Connecting to the HIKMICRO Sight app makes it quick and easy to share these memories with your friends or stream the output from the scope in real time while you are in the field with your hunting buddy.

Specifications

MAIN

• Sensor resolution 1920x 1080px
• Frame rate, Hz 50 Hz
• Focal Length 50mm
• Minimum Focus Distance 3m
• Field of view  7.7° × 5.8°
• Aperture F1.2
• Magnification 3.5x
• Full colour day mode Yes
• High performance twilight mode Yes
• Black & White night mode Yes

Display

• Type 9.9mm OLED
• Resolution 1024 x 768px
• Exit Pupil 5 mm
• Eye Relief 60mm

System Features

• Magnification (Digital) 1x, 2x, 4x
• Image / Video resolution 1440 x 1080
• One-Shot Zero Yes
• Standby mode Yes
• Picture-in-Picture Yes
• Recoil-Activated recording Yes
• Max Recoil  1000g
• Reticle Options 5+
• Zero Profiles 5
• Audio Recording Yes
• Wi-Fi Connection  Yes
• HIKMICRO Sight App Compatible
• Storage Built in 64 GB

Power Supply

• Internal Battery 2x Lithium batteries
• External Battery 1x Replaceable CR123A (not included)
• Battery run time 12 Hrs (Continuous running)
• Battery Capacity display Yes
• Recharging method USB-C

General

• Working temperature  -30°C to 55°C
• Dimensions 442 x 78mm
• Weight 1062g (Without eyepiece)
• Degree of protection, IP code IP67
• Water protection Protected against temporary submersion in water

Warranty Period

• Main Unit 3 Years

HikMicro Gryphon Pro LRF 50mm Thermal (640x512) & Visible Fusion Imager w/Laser Rangefinder

The Gryphon fusion monocular introduces many unique features including ground-breaking bi-spectrum, Fusion technology which uses a thermal sensor alongside a conventional optical camera to deliver a super-detailed thermal image.

Introducing the latest addition to the Gryphon family, the high resolution, high magnification, 50mm Pro LRF.

This high specification pocket rocket delivers the detailed thermal image associated with HIKMICRO’s 640x512px, sub 35mk NETD sensor paired with a high quality 50mm lens system to deliver 2.9x magnification within the compact Gryphon chassis.

In addition to the high specification thermal channel – the Gryphon Pro 50mm is also fitted with an optical camera that can operate in low light and even complete darkness with the optional IR Torch attachment. This is effectively a Thermal and Night Vision Monocular in one.

The built-in 600m Laser Range Finder allows you to accurately judge the distance to the target in a choice of yards and metres, and there is the added option to choose between a single readings and scan mode.

The Gryphon chassis also introduces a range of new features. These include a jog wheel that allows you to scroll the magnification up and down as you would with a conventional optical scope, an optional Laser Range Finder and a removable 18650 battery. The large 1024x768 OLED display generates a bright and crisp view of your surroundings that’s easy on your eye.

At the centre of the Gryphon Pro is HIKMICRO’s 640x512px, 12µm thermal sensor with a sub-35mK NETD. This highly accurate thermal sensor is capable of detecting small temperature differences, building a highly detailed image, even in the harshest of conditions.

The thermal sensor is paired with HIKMICRO’s high performance 50mm focal length lens system which delivers 2.9x optical magnification, with up to 8x digital magnification, effectively making this a 2.9 – 23x monocular.

This is paired with a high-resolution optical camera that is capable of providing a detailed image both in daylight hours and in complete darkness using the optional IR torch. You can quickly switch between pure thermal view and the detailed optical mode to detect and accurately identify heat sources.

The Gryphon also includes the unique Fusion mode which adds the detail from the optical image to boost the performance of the thermal channel, delivering the ultimate in detection and detail.

The Gryphon uses an all new chassis design which has been developed to be easily held and operated in one hand. There are three buttons on the top of the unit make it easy to operate the Laser Range Finder and switch between image modes. HIKMICRO have also included a revolutionary jog wheel that falls comfortably to the tip of your index finger and can be used to scroll up and down the magnification like a conventional optical scope. This jog wheel is also used to quickly navigate the menu system.

The 600m Laser Range Finder is located on the left hand side of the unit in a compact housing and offers distance readings accurate to ±1m. When activated there is a small crosshair added to the display that can be used to target the Range Finder. Choose between spot mode for a single reading and scan mode for a constantly updating range reading.

The Gryphon is also the first Monocular in the HIKMICRO range to be powered by the industry standard 18650 removable battery. This makes extended hunting trips possible without any power concerns. Replacement batteries are readily available and economical to buy. There is also a high specification charger included with your Gryphon, this provides detail on the charging status and health of your batteries ensuring that you aren’t caught in the field with no power.

There are lots of other small improvements that have been included, like the power button that includes a status light so you can see at a glance if the unit is powered on or in standby mode.

As with all other HIKMICRO thermal products you can access the HIKMICRO Sight App to stream, record and control your Gryphon. You can also record images and videos from your trips to the 16GB internal memory. The latest version of the T-Vision app offers extended features like access to the LRF, transferring images stored on the device into your phone and also the ability to install the latest firmware.

All thermal sensors used in HIKMICRO products are designed, developed and manufactured by HIKMICRO. This guarantees you unrivalled performance and value for money. You are also covered by the 3 year HIKMICRO UK warranty. Should you encounter a problem with your product, HIKMICRO has UK based technicians who can resolve any issues quickly.

Specifications

MAIN

• Sensor: 640 x 512 @ 12µm
• Objective Lens (Focal Length): 50mm
• Detection Range (Human 1.8 x 0.5m): 2600m

SENSOR

• Type: VOx Uncooled Focal Plane Arrays
• Resolution, pixels: 640 x 512
• Pixel pitch, µm: 12µm
• Frame rate, Hz: 50 Hz
• NETD: <35mK

THERMAL OPTICS

• Objective lens: F1.2
• Magnification (Optical): 2.9x
• Magnification (Digital): 1x, 2x, 4x, 8x
• Field of view: 8.78°× 7.03°

FUSION CAMERA

• Sensor resolution: 1920x1080px
• Wavelength sensitivity: 400-1000 nm
• Focal length: 22mm

LASER RANGEFINDER

• LRF Fitted: Yes
• Maximum range: 600m
• Measurement accuracy: +/- 2m

DISPLAY

• Type: 9.9mm, OLED
• Resolution, Pixels: 1024 ×768
• Colour Palettes: White Hot, Black Hot, Red Hot, Fusion, Visible, Thermal & Visible Fusion

Video Recorder

• Build in memory, Gb: 16 gb

Additional features

• Hot Tracking: No
• WiFI hot spot: Yes
• T-Vision App support: Yes

Environmental

• Degree of protection, IP code: IP67
• Dust protection: Protected against dust ingress
• Water protection: Protected against temporary submersion in water
• Operating temperature range: -20 °C to 55 °C

WEIGHT & SIZE

• Dimensions, mm: 87mm x 73mm x 167mm
• Weight, kg: 0.5 kg

POWER SUPPLY

• Operating time on battery: 4.5 Hours
• Charging interface: Removable 18650 battery
• Battery capacity after 1000 cycles: 80%
