Zeiss Conquest V4 1-4x24 Riflescope

ZEISS Conquest V4 1-4x24 Riflescope

The ZEISS Conquest V4 1-4x24 Riflescope combines a wide field of view, true 1x magnification and illuminated Reticle 60 in a compact hunting optic. Designed for driven hunts and short-range hunting, its 4x zoom range provides an open view at minimum magnification with additional detail available as magnification increases.

Optical Performance

High-definition glass and ZEISS T* coatings deliver 90% light transmission, supporting clear, high-contrast viewing throughout the magnification range. The field of view extends from 38 metres at 1x to 9.5 metres at 4x, measured at 100 metres.

LotuTec coating helps water run off the external lens surfaces, maintaining a clearer view in wet conditions. The effective objective diameter ranges from 12.1 to 24mm, with an exit pupil of 11.9 to 6mm.

Illuminated Reticle 60

Reticle 60 combines fine central crosshairs with an illuminated aiming dot. Positioned in the second focal plane, the reticle maintains its apparent size as magnification changes. Ten illumination levels allow the dot brightness to be adjusted to suit the conditions.

Construction & Handling

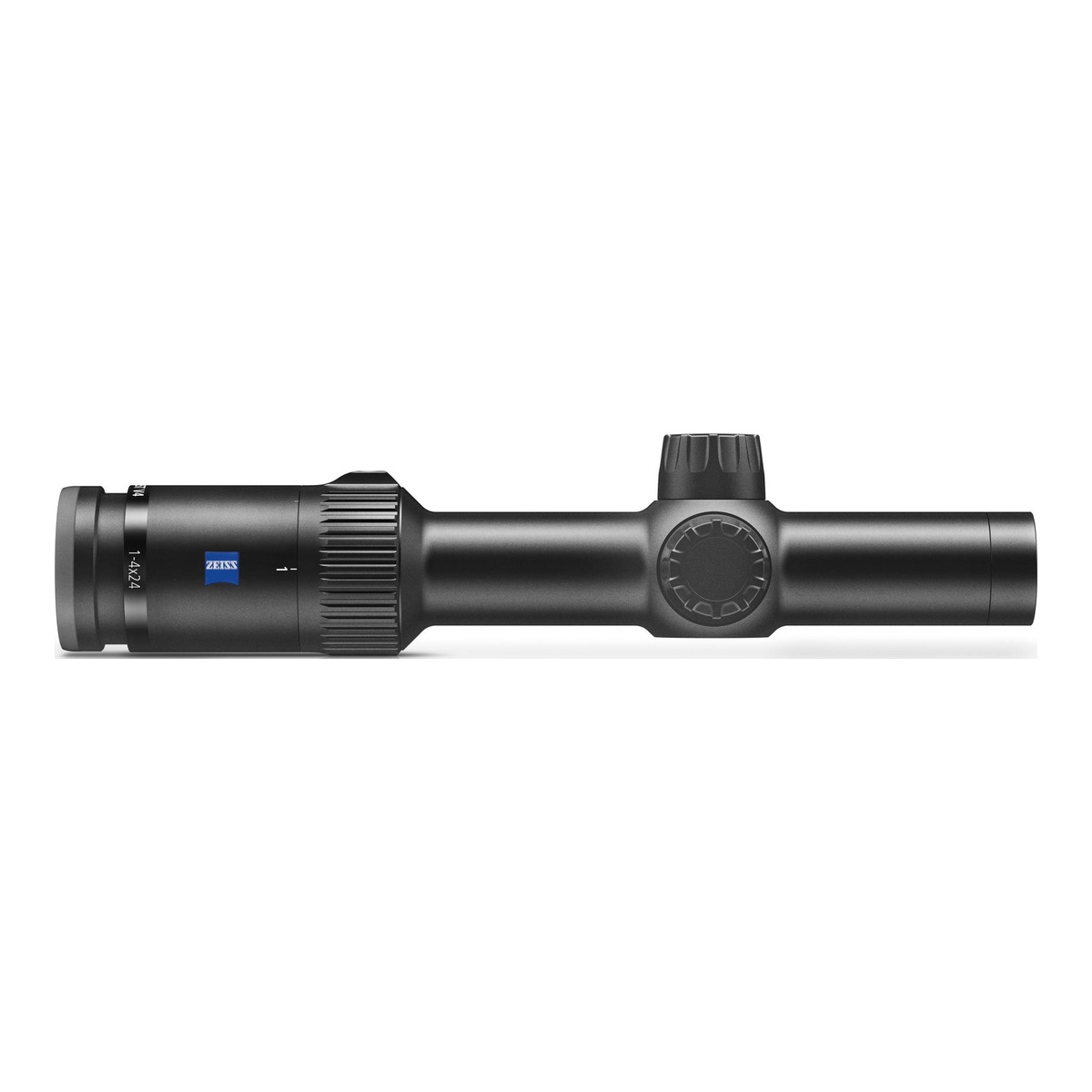

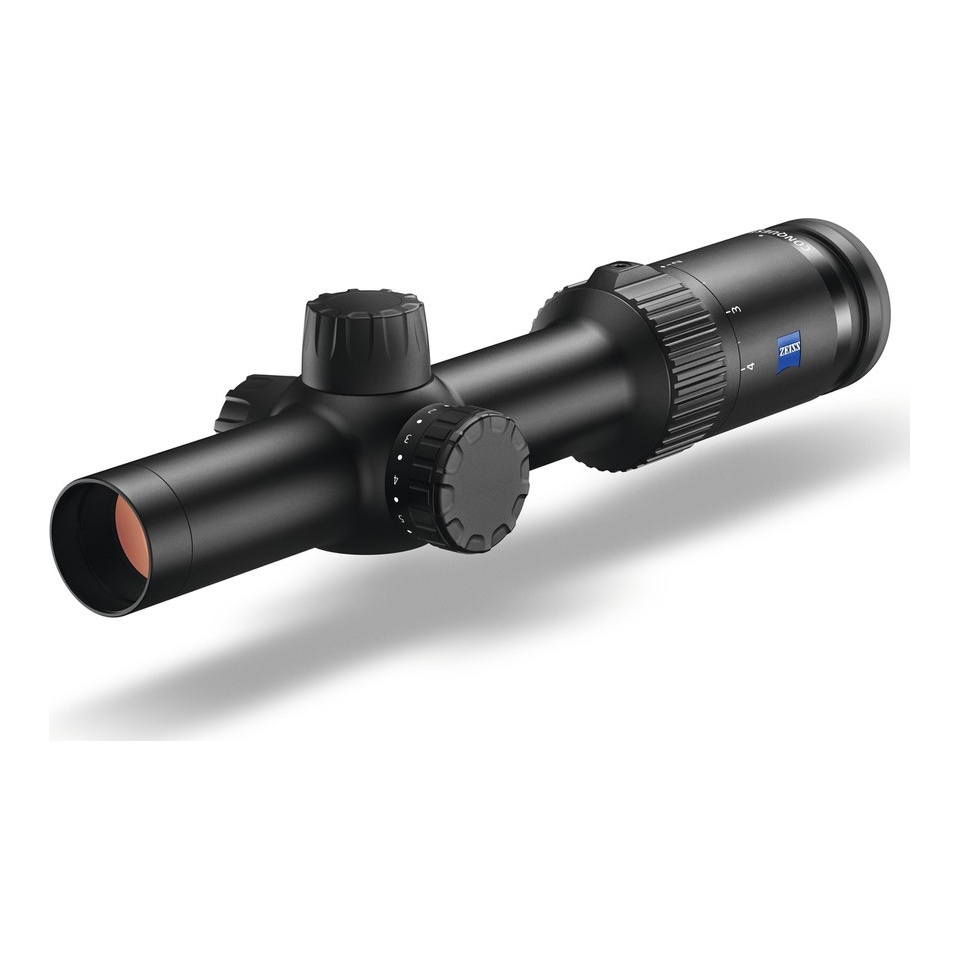

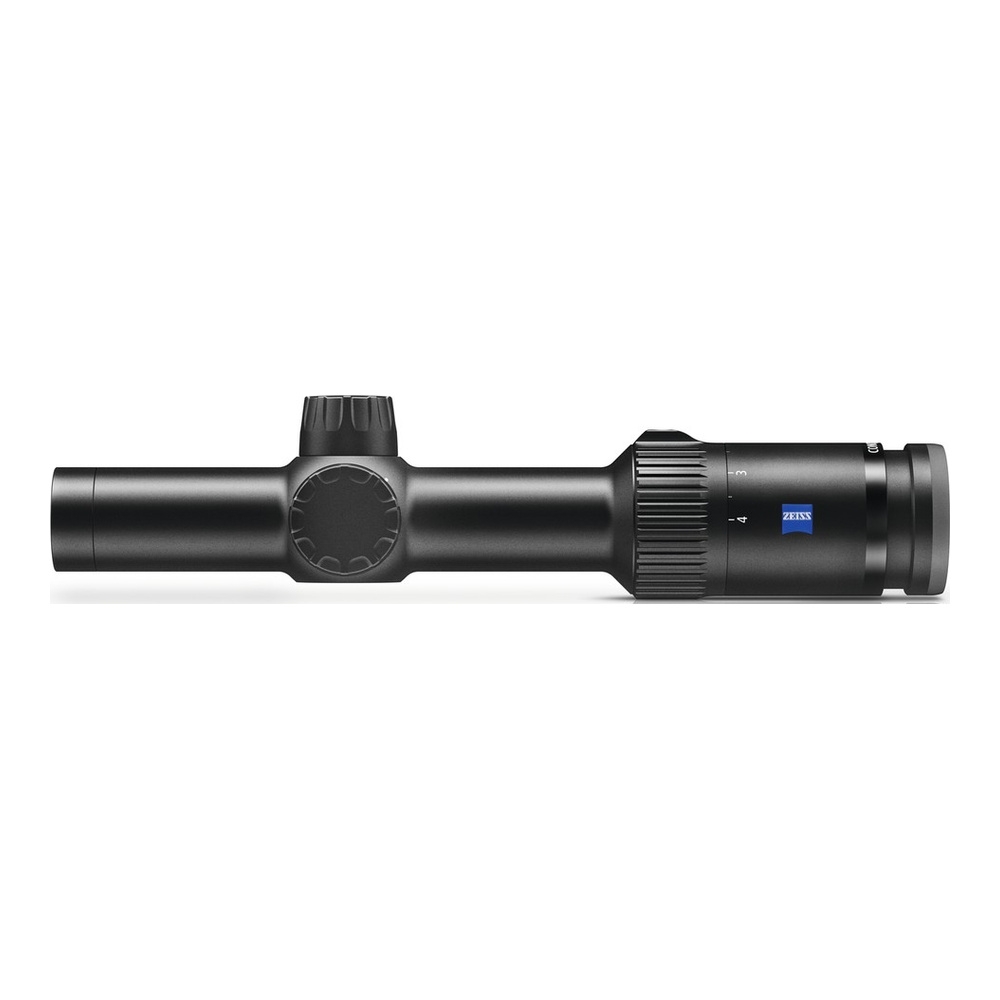

At 256mm long and weighing 470g, the Conquest V4 1-4x24 offers compact proportions with a 30mm main tube. Eye relief is 90mm, and the eyepiece provides dioptre adjustment from −3 to +2.

This configuration features capped elevation and windage turrets with ½ MOA click adjustment, equivalent to approximately 1.4cm at 100 metres. Parallax is fixed at 91.4 metres.

Weather Protection

Nitrogen filling and waterproof construction rated to 400mbar support use in demanding outdoor conditions. The specified operating temperature range is −25°C to +50°C.

ZEISS Conquest V4 1-4x24 Riflescope Key Features

• True 1x minimum magnification and 4x zoom range.
• Illuminated Reticle 60 in the second focal plane.
• Ten reticle illumination levels.
• 90% light transmission with ZEISS T* coatings.
• LotuTec water-repellent lens coating.
• Wide field of view for short-range hunting.
• Capped elevation and windage turrets.
• ½ MOA click adjustment.
• 30mm main tube and 90mm eye relief.
• Nitrogen-filled, waterproof construction.

ZEISS Conquest V4 1-4x24 Riflescope Specifications

• Magnification: 1–4x.
• Nominal objective diameter: 24mm.
• Effective objective diameter: 12.1–24mm.
• Reticle: illuminated Reticle 60.
• Focal plane: second.
• Light transmission: 90%.
• Field of view at 100m: 38–9.5m.
• Exit pupil: 11.9–6mm.
• Twilight factor: 3.5–9.8.
• Eye relief: 90mm.
• Dioptre adjustment: −3 to +2.
• Fixed parallax setting: 91.4m.
• Click adjustment: ½ MOA, approximately 1.4cm at 100m.
• Elevation adjustment range at 100m: 300cm.
• Windage adjustment range at 100m: 300cm.
• Main tube diameter: 30mm.
• Eyepiece tube diameter: 44mm.
• Objective tube diameter: 30mm.
• Waterproof rating: 400mbar.
• Operating temperature: −25°C to +50°C.
• Length: 256mm.
• Weight: 470g.

ZEISS Conquest V4 1-4x24 Riflescope Review

The Conquest V4 1-4x24 brings together the principal features of a compact driven-hunting optic: low magnification, a broad field of view and an illuminated central dot. This specification-based assessment considers the Reticle 60 model with capped turrets.

Performance & Key Features

The 38-metre field of view at 100 metres is a central strength of the design, giving a broad overview at 1x. Increasing magnification to 4x provides greater detail while retaining the scope’s short-range focus. High-definition glass, 90% light transmission and T* coatings support image clarity, while adjustable illumination adds flexibility to the aiming reference.

Build Quality & Handling

The 256mm length and 470g weight make this a compact option within the Conquest V4 range. Nitrogen filling, waterproof construction and LotuTec coating address outdoor conditions, with capped turrets keeping the adjustment controls covered during use.

Is It Easy to Use?

The second-focal-plane reticle retains a consistent apparent size as magnification changes. Ten illumination levels and an adjustable dioptre allow the view to be tailored, while fixed parallax keeps the configuration straightforward.

Key Takeaways

The Conquest V4 1-4x24 is particularly suited to hunters prioritising a wide view and compact dimensions. Its illuminated Reticle 60, optical coatings and weather protection form a useful specification for driven hunting. The 4x maximum magnification and fixed parallax define its intended role. For Uttings customers seeking a traditional low-power hunting riflescope, it is a well-focused choice.

ZEISS Conquest V4 1-4x24 Riflescope FAQs

Which reticle does this model have?

This configuration has illuminated Reticle 60, with fine central crosshairs and an illuminated dot. The reticle sits in the second focal plane.

Does it offer true 1x magnification?

Yes. The magnification range starts at true 1x and extends to 4x, providing a four-times zoom ratio.

How wide is the field of view?

At 100 metres, the field of view is 38 metres at 1x and 9.5 metres at 4x.

Can the illuminated dot brightness be adjusted?

Yes. Ten illumination levels allow the brightness to be adjusted to suit the viewing conditions.

Does this version have capped turrets?

Yes. Both elevation and windage adjustments are capped. Click adjustment is ½ MOA, approximately 1.4cm at 100 metres.

Is parallax adjustable?

No. This model has a fixed parallax setting of 91.4 metres.

What size mounting rings does it require?

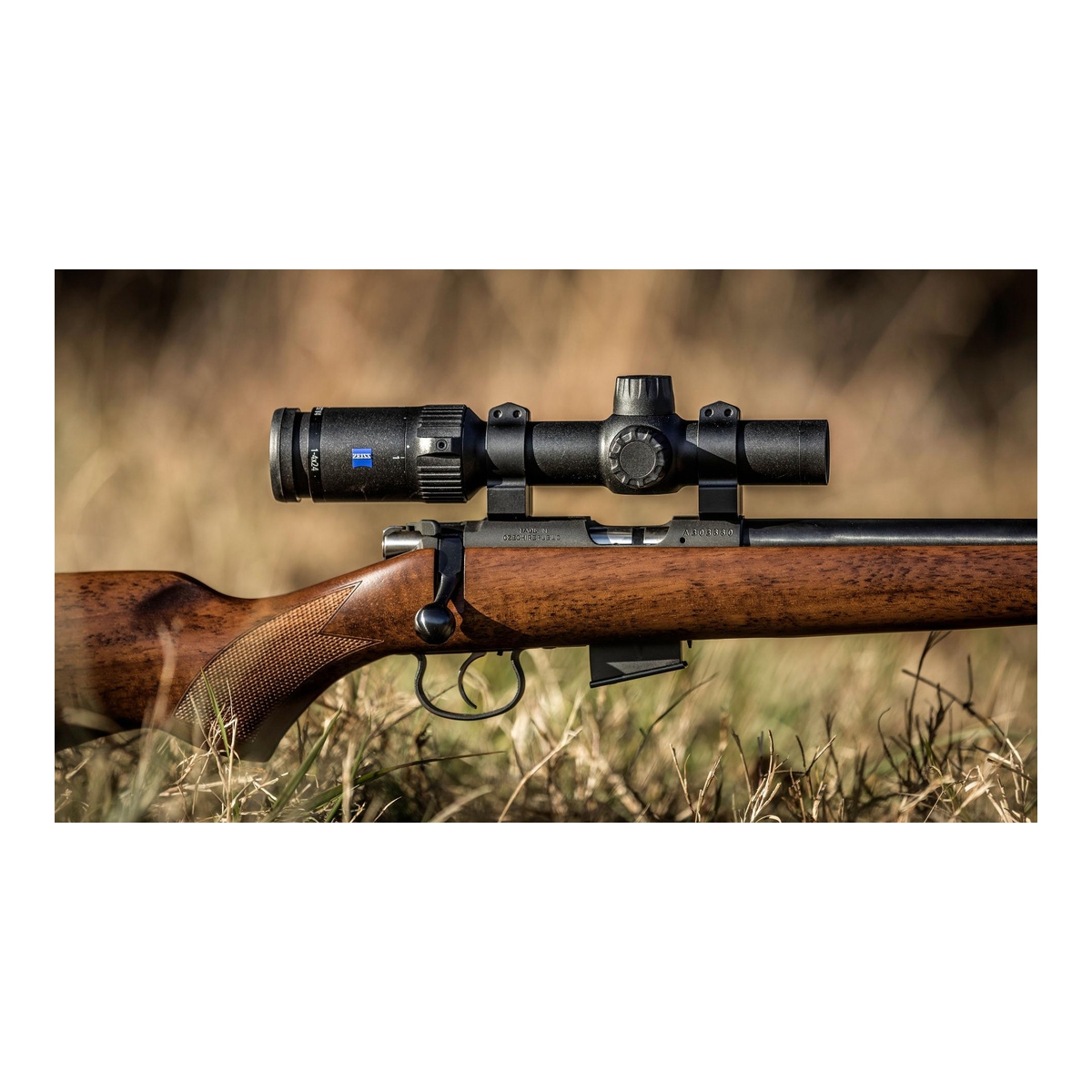

The main tube diameter is 30mm, requiring compatible 30mm rings. Mount selection must also suit the rifle and provide adequate clearance.

Is the scope waterproof?

Yes. Waterproofing is rated to 400mbar, and the scope is nitrogen-filled. LotuTec coating also helps water run off the external lens surfaces.
