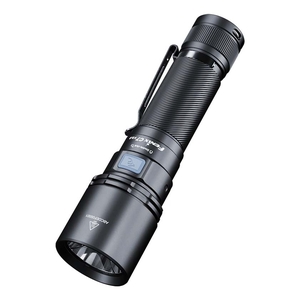

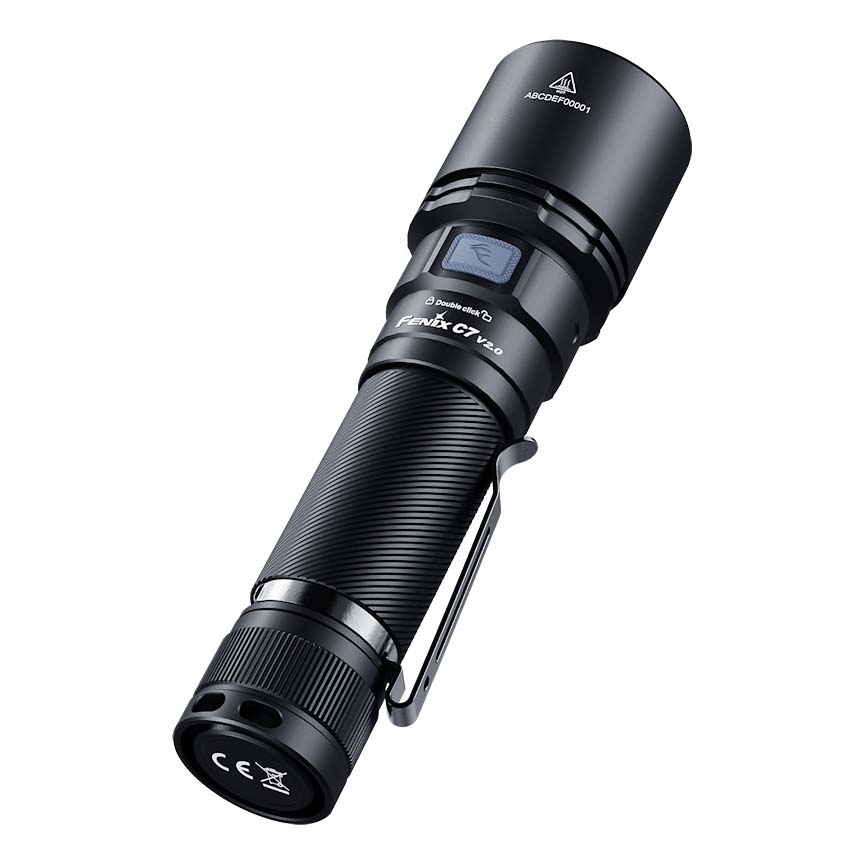

Fenix C7 V2.0 Long Range Hand Held Rechargeable Torch

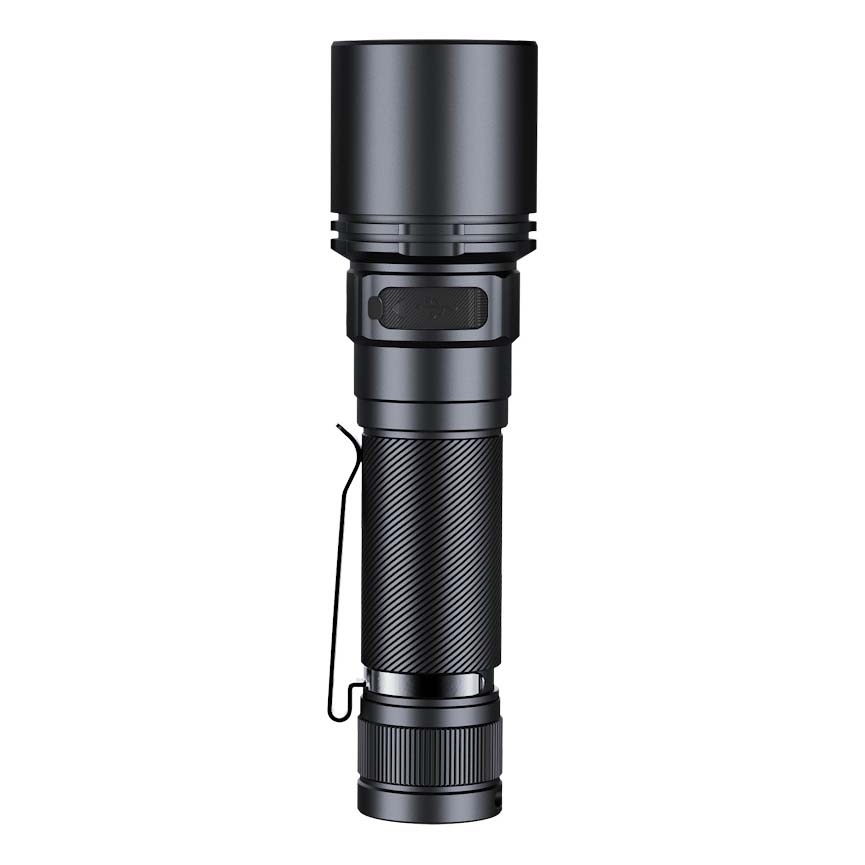

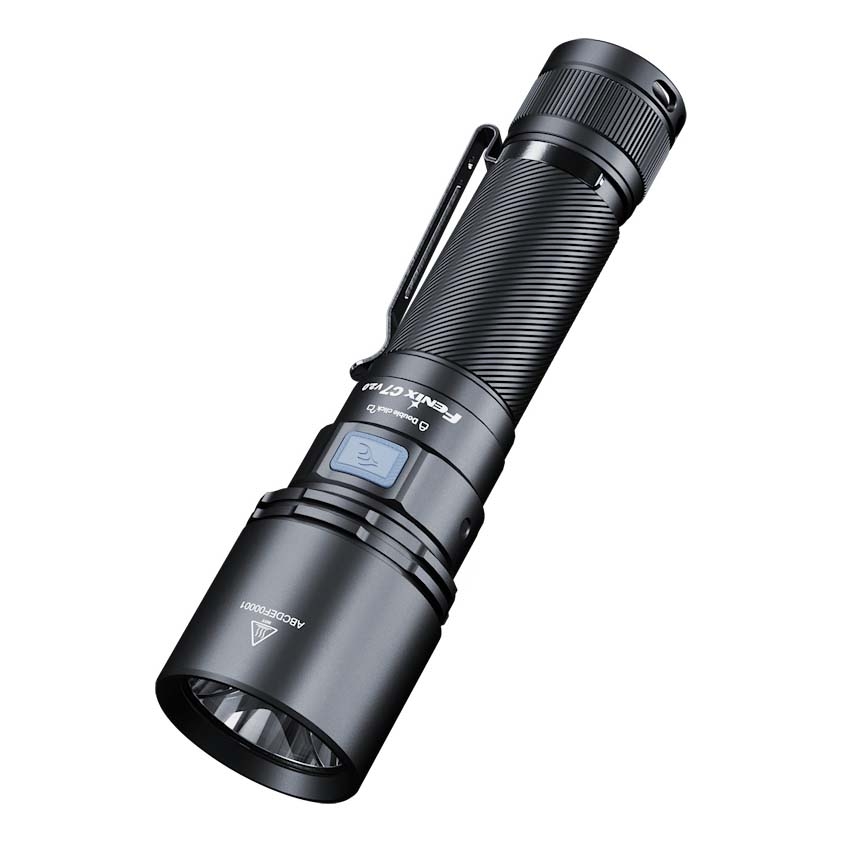

Fenix C7 V2.0 Work Torch Construction

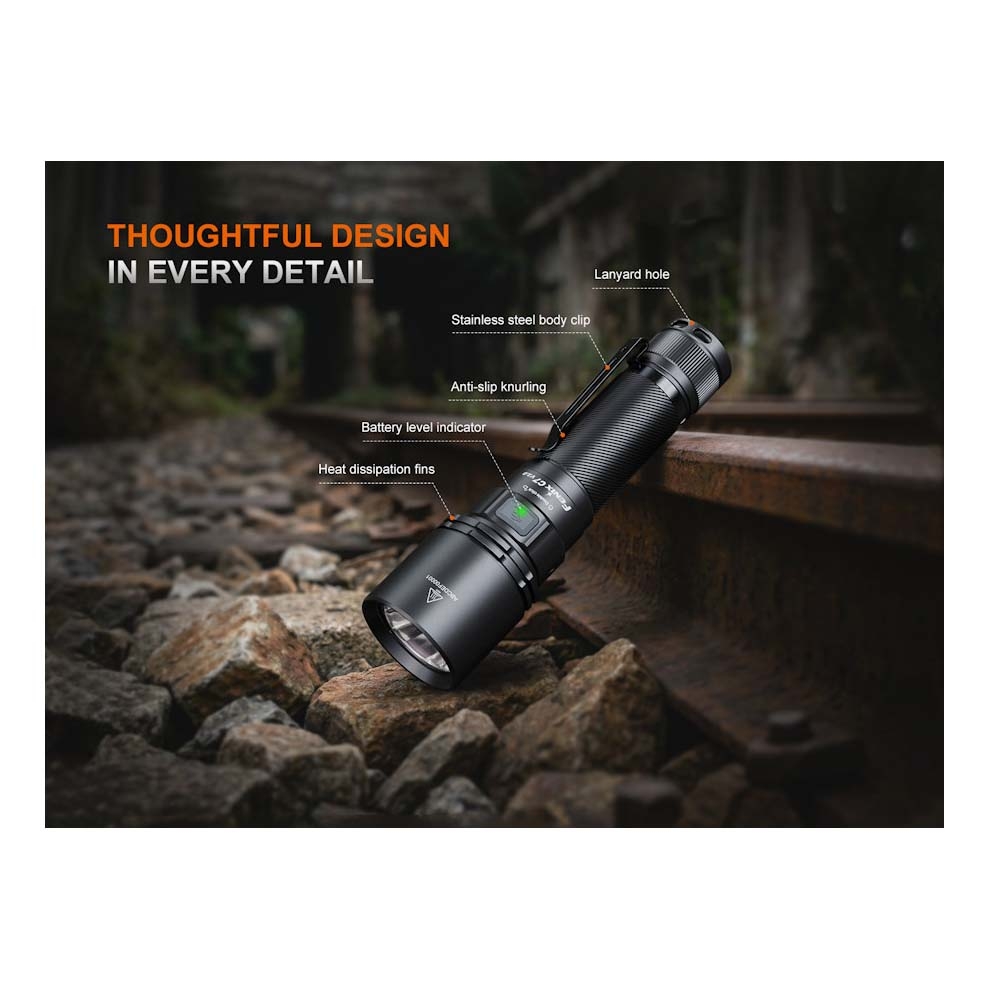

The C7 V2.0 is built from A6061-T6 aircraft-grade aluminium and finished with a premium Type III hard-anodised anti-abrasive coating. A smooth aluminium reflector works with a toughened ultra-clear glass lens and anti-reflective coating to support its long-range beam performance.

The torch measures 150.6mm in length, with a 40mm head diameter and 27.5mm body diameter. Weight is 256.5g including the battery. It is also drop resistant to 1.5 metres, providing additional durability for demanding outdoor and working environments.

Fenix C7 V2.0 Work Torch Waterproof Performance

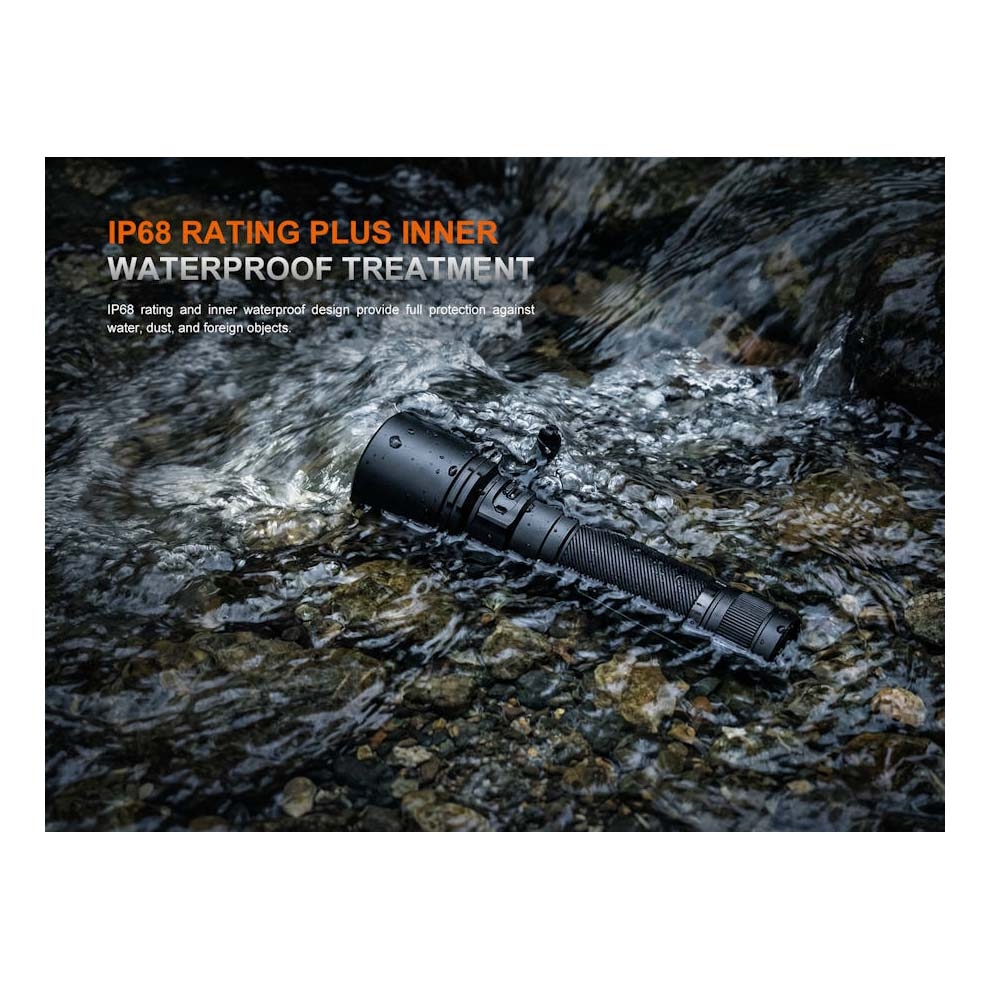

The C7 V2.0 carries an IP68 waterproof and dustproof rating and is waterproof to a depth of 2 metres. Its USB-C charging port is protected by an anti-dust cover, which should be securely closed after charging.

Fenix C7 V2.0 Work Torch Key Features

• Maximum output of 3300 lumens.
• Maximum beam distance of 575 metres.
• Luminus SFT70 Gen 2 LED.
• Five brightness levels from 30 to 3300 lumens.
• 2500-lumen Strobe mode.
• 100-lumen SOS mode.
• Single side-switch operation.
• General and Flash operating modes.
• Electronic lockout to help prevent accidental activation.
• Intelligent memory for previously selected outputs of 1000 lumens or below.
• Built-in USB-C charging port.
• Approximately three-hour charging time with a suitable adapter.
• Can be operated while charging.
• Battery level and charging status indicator.
• Intelligent overheat protection at 60°C.
• Magnetic tail cap for hands-free use.
• Tail-standing capability.
• Pocket clip included.
• IP68 waterproof and dustproof protection.
• 1.5-metre drop resistance.

Fenix C7 V2.0 Work Torch Lighting Performance

• Eco: 30 lumens, 79 hours runtime, 55m beam.
• Low: 100 lumens, 32 hours runtime, 101m beam.
• Medium: 400 lumens, 6 hours 58 minutes runtime, 205m beam.
• High: 1400 lumens, 2 hours 58 minutes total runtime, 387m beam.
• Turbo: 3300 lumens, 2 hours 30 minutes total runtime, 575m beam.
• Strobe: 2500 lumens.
• SOS: 100 lumens.

The white light has a colour temperature of 6500K. During prolonged use at high output levels, intelligent overheat protection automatically reduces brightness when the torch reaches 60°C. Once the temperature falls below this level, the torch gradually returns towards the selected output.

Fenix C7 V2.0 Work Torch Operation

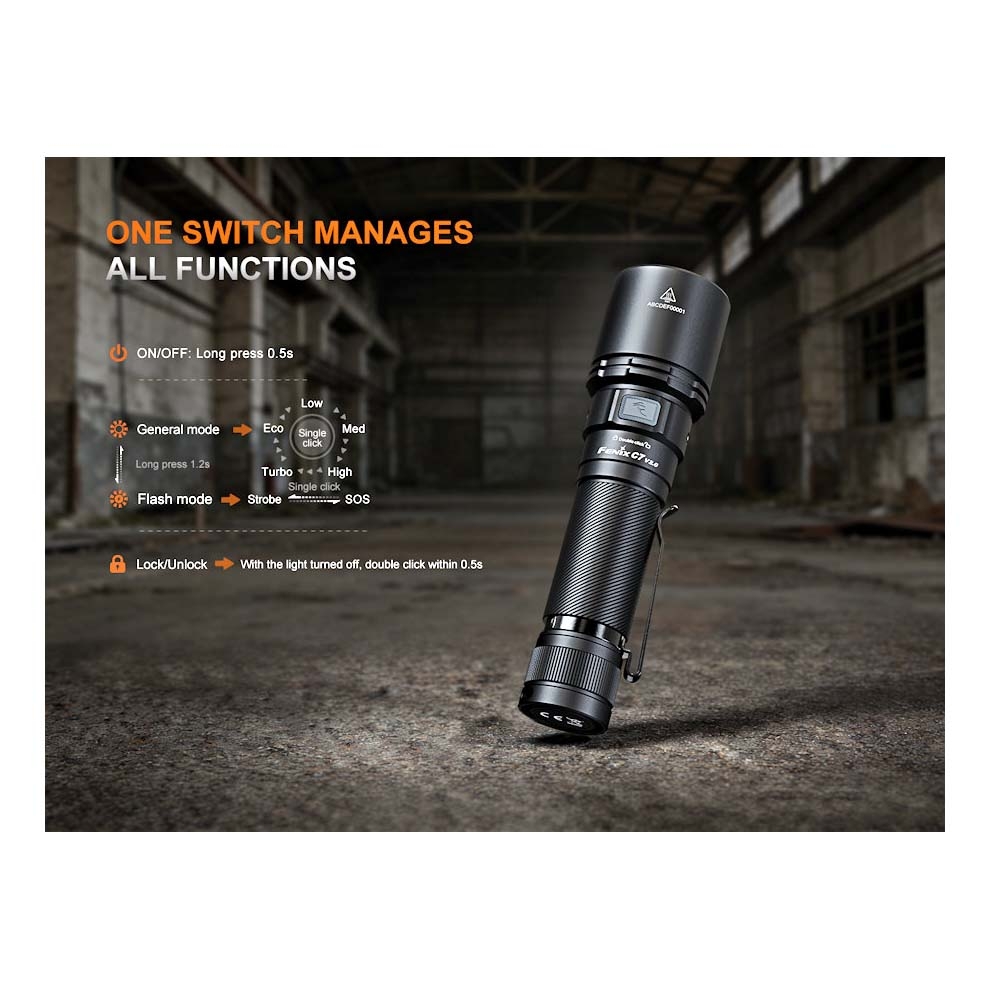

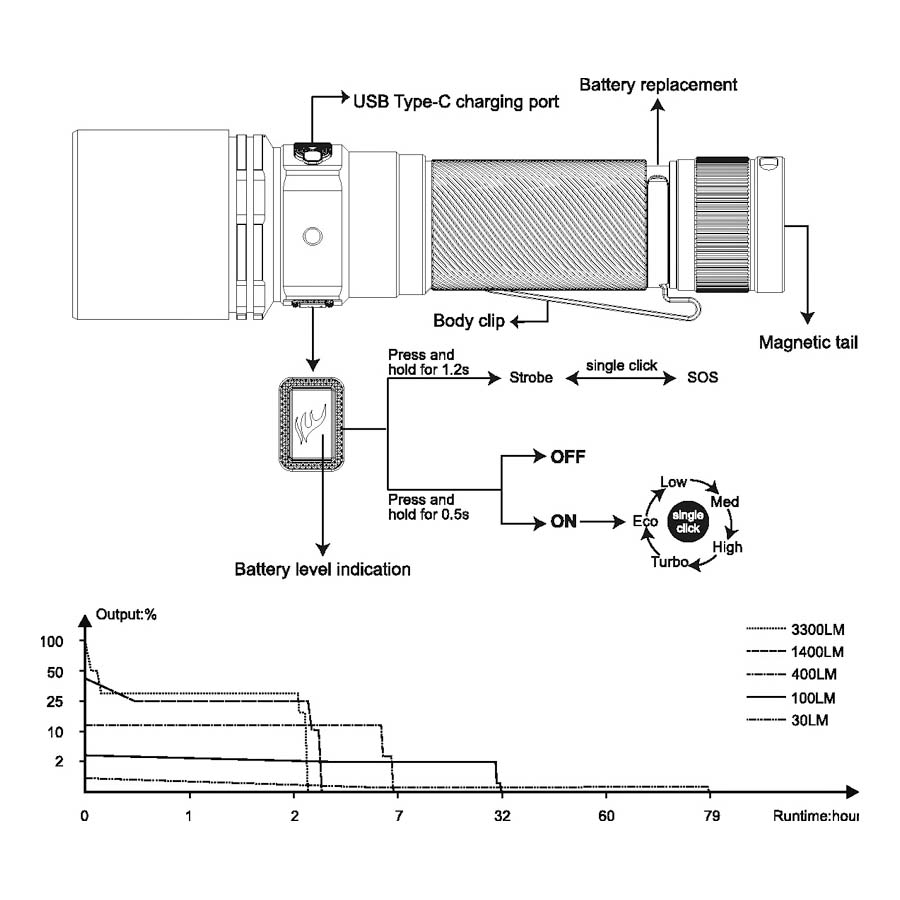

The C7 V2.0 uses a single side switch for straightforward control. Pressing and holding the switch for 0.5 seconds turns the torch on or off. When switched on, a single press cycles through Eco, Low, Medium, High and Turbo.

Pressing and holding the switch for 1.2 seconds activates Strobe mode, after which a single press switches between Strobe and SOS. The intelligent memory circuit recalls the last selected standard output of 1000 lumens or below when the torch is switched back on. Strobe and SOS settings are not memorised.

Fenix C7 V2.0 Work Torch Lockout Function

An electronic lockout helps prevent accidental activation during storage or transport. With the torch switched off, double-clicking the side switch within 0.5 seconds locks the light, confirmed by two flashes at Low output. Repeating the double-click unlocks the torch, which then activates in Low mode.

Fenix C7 V2.0 Work Torch Battery & Charging

Power is supplied by one Fenix ARB-L21-5000 V2 high-capacity 21700 rechargeable Li-ion battery. The battery is removable and is installed by unscrewing the tail cap and inserting the positive end towards the torch head.

Charging is handled through the built-in USB Type-C port. The normal charging time is approximately three hours from depleted to fully charged when using a 5V/2A or higher charging adapter. Maximum charging power is 10W at 5V/2A, and the torch does not support fast charging.

The charging indicator displays red while charging and turns green when fully charged. The C7 V2.0 can also be operated while connected to a charger.

Fenix C7 V2.0 Work Torch Battery Level Indicator

• Solid green: 100% to 85%.
• Flashing green: 85% to 50%.
• Solid red: 50% to 25%.
• Flashing red: 25% to 1%.

The battery indicator displays the remaining charge for three seconds whenever the torch is switched on. This battery-level indication function operates with Fenix ARB-L21 Series rechargeable batteries.

Fenix C7 V2.0 Work Torch Low-Voltage Protection

When battery voltage falls below 3.0V, the torch automatically steps down to lower brightness levels until Eco mode is reached. At Eco output, the battery indicator flashes rapidly red and the main light flashes for 20 seconds to indicate that the battery should be recharged or replaced.

After the 20-second warning sequence, the torch can continue operating in Eco mode for more than 30 minutes, while the battery indicator continues flashing red until the battery is depleted.

Fenix C7 V2.0 Work Torch Materials & Care

The torch uses A6061-T6 aircraft-grade aluminium with a Type III hard-anodised anti-abrasive finish. The sealed head should not be disassembled, as doing so can damage the torch and void the warranty.

For extended storage, the battery should be removed or the tail cap unscrewed several turns to help prevent accidental activation. A stored torch should be recharged every four months to maintain optimum battery performance. Periodic cleaning of the battery contacts is also recommended, while worn O-rings should be replaced with approved spares to maintain the water seal.

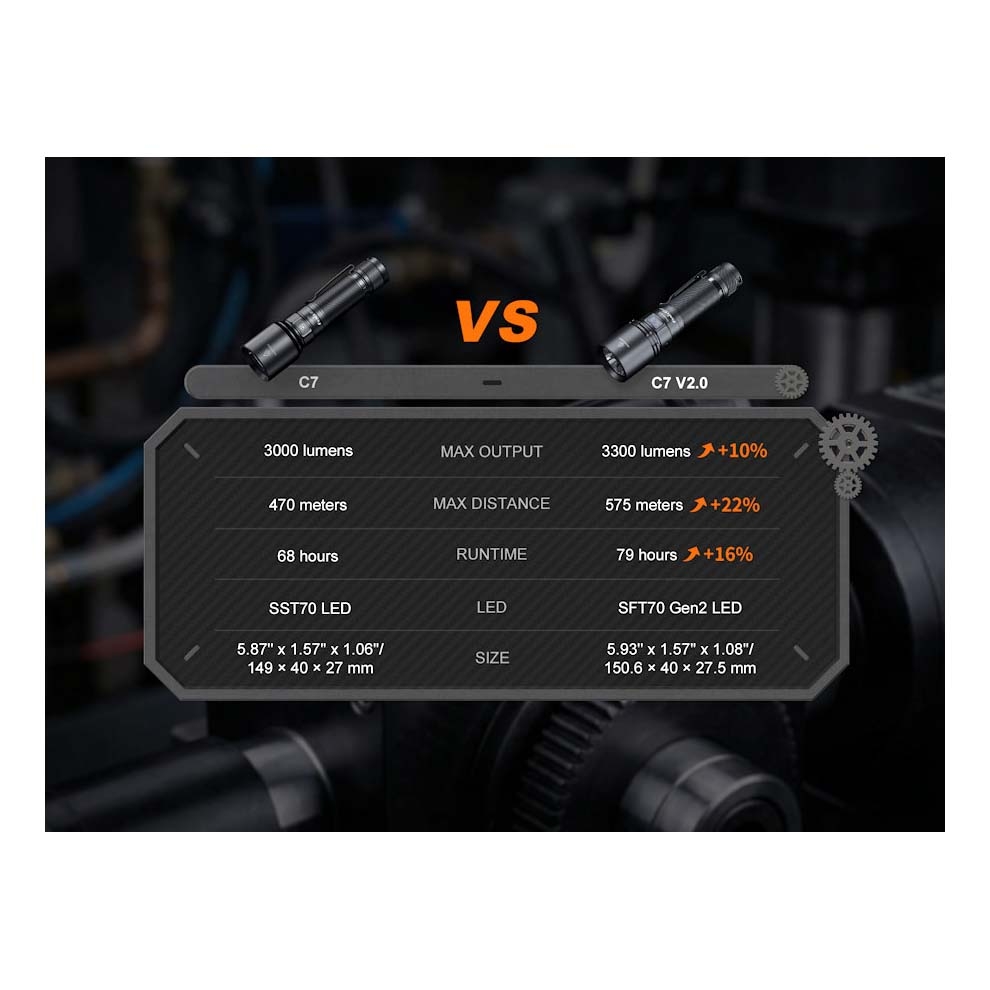

Fenix C7 V2.0 Work Torch Specifications

• LED: Luminus SFT70 Gen 2 LED.
• Maximum output: 3300 lumens.
• Maximum beam distance: 575 metres.
• Colour temperature: 6500K.
• Battery: 1 x Fenix ARB-L21-5000 V2 21700 rechargeable Li-ion battery.
• Reflector: Smooth aluminium reflector.
• Lens: Toughened ultra-clear glass with anti-reflective coating.
• Switch: Side button.
• Construction: A6061-T6 aircraft-grade aluminium.
• Finish: Premium Type III hard-anodised anti-abrasive finish.
• Waterproofing: IP68, waterproof to 2m and dustproof.
• Impact resistance: 1.5 metres.
• Length: 150.6mm.
• Head diameter: 40mm.
• Body diameter: 27.5mm.
• Weight: 256.5g including battery.
• Charging voltage: 5V.
• Maximum charging power: 10W at 5V/2A.
• Normal charging time: Approximately 3 hours.

Fenix C7 V2.0 Work Torch Package Contents

• Fenix C7 V2.0 flashlight.
• Fenix ARB-L21-5000 V2.0 Li-ion battery.
• USB Type-C charging cable.
• Lanyard.
• Spare O-ring.
• User manual.
• Warranty card.

Fenix C7 V2.0 Work Torch Review

The Fenix C7 V2.0 is a high-output rechargeable work torch built around a simple but capable specification. A maximum 3300-lumen output, 575-metre beam and five standard brightness levels give it the flexibility to handle both routine close-range tasks and situations where substantial long-range illumination is required.

Its large-capacity 21700 battery, USB-C charging, magnetic tail cap and IP68 construction strengthen its credentials as a practical working light, while Strobe and SOS modes add dedicated emergency functions.

Fenix C7 V2.0 Work Torch Performance & Key Features

The C7 V2.0 offers a particularly broad operating range. Eco provides a useful 30 lumens for up to 79 hours, while Turbo increases output to 3300 lumens and extends the beam to 575 metres. This means users can prioritise either runtime or outright illumination without needing separate lights.

• 3300-lumen maximum output.
• 575m maximum beam distance.
• Five standard brightness levels.
• Dedicated 2500-lumen Strobe and 100-lumen SOS modes.
• 79-hour maximum runtime in Eco mode.

C7 V2.0 Build Quality & Handling

A6061-T6 aircraft-grade aluminium construction, a hard-anodised anti-abrasive finish and a toughened glass lens give the C7 V2.0 a suitably robust specification for demanding use. Its IP68 rating and 1.5-metre drop resistance further strengthen its suitability for outdoor and work environments.

At 256.5g including the battery it has more substance than an ultra-compact pocket light, but the magnetic tail cap and tail-standing design allow it to be positioned for hands-free illumination where a suitable surface is available.

Is the C7 V2.0 Easy to Use?

Despite its range of outputs, operation remains straightforward because all functions are controlled through a single side switch. Normal brightness levels cycle sequentially from Eco through to Turbo, while a longer press accesses the separate Strobe and SOS functions.

The battery indicator, electronic lockout and intelligent memory system further simplify regular use. The memory system recalls outputs of 1000 lumens or below, although Strobe and SOS modes are deliberately excluded.

Key Takeaways of the C7 V2.0

The C7 V2.0 combines substantial 3300-lumen output and a 575-metre beam with genuinely useful lower-output modes, including a 30-lumen Eco setting capable of running for up to 79 hours. Its removable 21700 battery, USB-C charging, magnetic tail cap and IP68 construction make it particularly well suited to users who need a durable rechargeable torch for work or outdoor use. High-output modes are subject to automatic thermal regulation, so sustained maximum brightness will depend on operating temperature. For Uttings.co.uk customers looking for a powerful, long-range rechargeable work torch with straightforward controls and hands-free mounting capability, the C7 V2.0 offers a strong combination of output, runtime and durability.

Fenix C7 V2.0 Work Torch FAQs

How bright is the Fenix C7 V2.0 Work Torch?

The C7 V2.0 produces up to 3300 lumens in Turbo mode. It also provides High at 1400 lumens, Medium at 400 lumens, Low at 100 lumens and Eco at 30 lumens. This five-level output range allows the torch to be adjusted for both high-power and extended-runtime use.

How far can the Fenix C7 V2.0 shine?

The maximum beam distance is 575 metres when using Turbo mode. High reaches 387 metres, Medium reaches 205 metres, Low reaches 101 metres and Eco reaches 55 metres. A smooth aluminium reflector contributes to the torch's long-range beam characteristics.

How long does the battery last in the Fenix C7 V2.0?

Runtime varies significantly according to output. Eco provides the longest runtime at 79 hours, Low runs for 32 hours and Medium for 6 hours 58 minutes. High has a stated total runtime of 2 hours 58 minutes, while Turbo has a total runtime of 2 hours 30 minutes.

What battery does the Fenix C7 V2.0 use?

The torch is supplied with a Fenix ARB-L21-5000 V2 rechargeable 21700 Li-ion battery. The battery is removable and is installed with its positive end facing towards the torch head. Fenix ARB-L21 Series 21700 batteries are the recommended battery type.

How long does the Fenix C7 V2.0 take to charge?

A normal full charge takes approximately three hours from depleted when using a 5V/2A or higher charging adapter. The maximum charging power is 10W at 5V/2A. The torch does not support fast charging.

Can the Fenix C7 V2.0 be used while charging?

Yes. The C7 V2.0 can be operated while connected to a charger. Charging is handled through the built-in USB Type-C port in the torch.

Is the Fenix C7 V2.0 waterproof?

Yes. The C7 V2.0 has an IP68 waterproof and dustproof rating. It is rated for waterproof performance at a depth of 2 metres.

Does the Fenix C7 V2.0 have a magnetic base?

Yes. A powerful magnetic tail cap allows the torch to attach to suitable metal surfaces. This provides a practical hands-free lighting option for work and maintenance tasks.

Does the Fenix C7 V2.0 have an SOS mode?

Yes. The torch includes a dedicated 100-lumen SOS mode alongside a 2500-lumen Strobe mode. Holding the side switch for 1.2 seconds activates the flashing-mode group, after which a single press changes between Strobe and SOS.

Does the Fenix C7 V2.0 remember the last brightness setting?

Yes, although the memory function applies only to standard outputs of 1000 lumens or below. When switched on again, the last eligible output is recalled automatically. Strobe and SOS modes are not memorised.

How does the Fenix C7 V2.0 prevent overheating?

The torch incorporates intelligent overheat protection. When its temperature reaches 60°C, output is automatically reduced to help lower the temperature and protect the LED and circuitry. Once the torch cools below 60°C, it gradually returns towards the selected output level.

How do I lock the Fenix C7 V2.0 to prevent accidental activation?

With the torch switched off, double-click the side switch within 0.5 seconds. The torch flashes twice at Low output to confirm that it is locked. Double-clicking the switch again unlocks it, with Low output activating to confirm the change.
