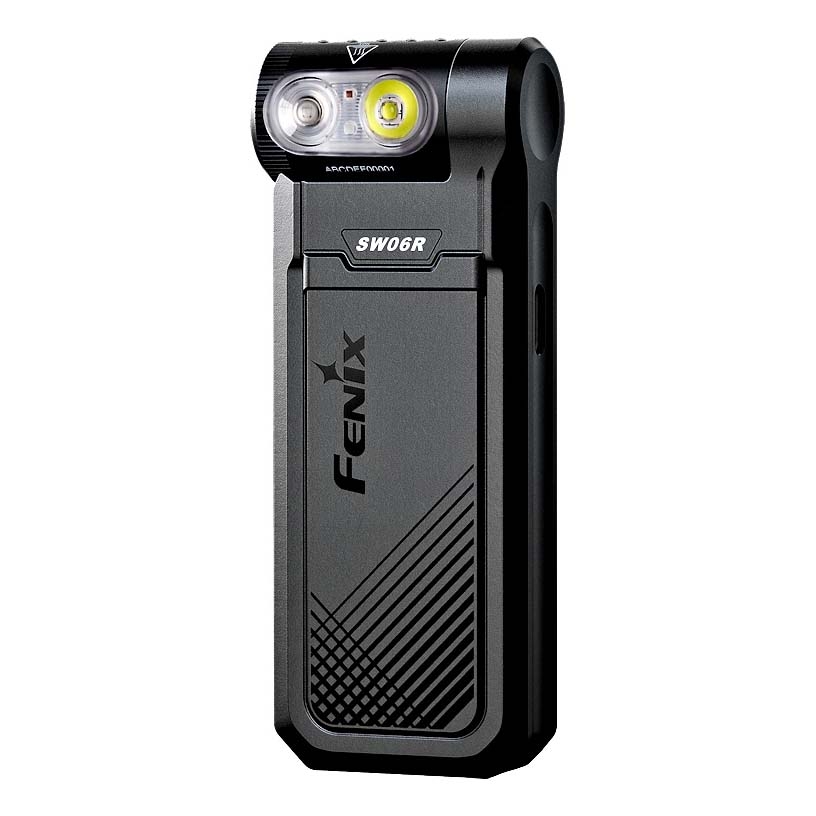

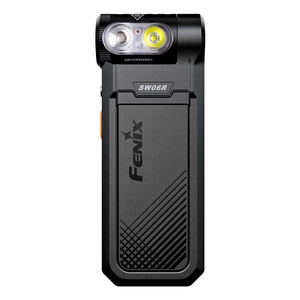

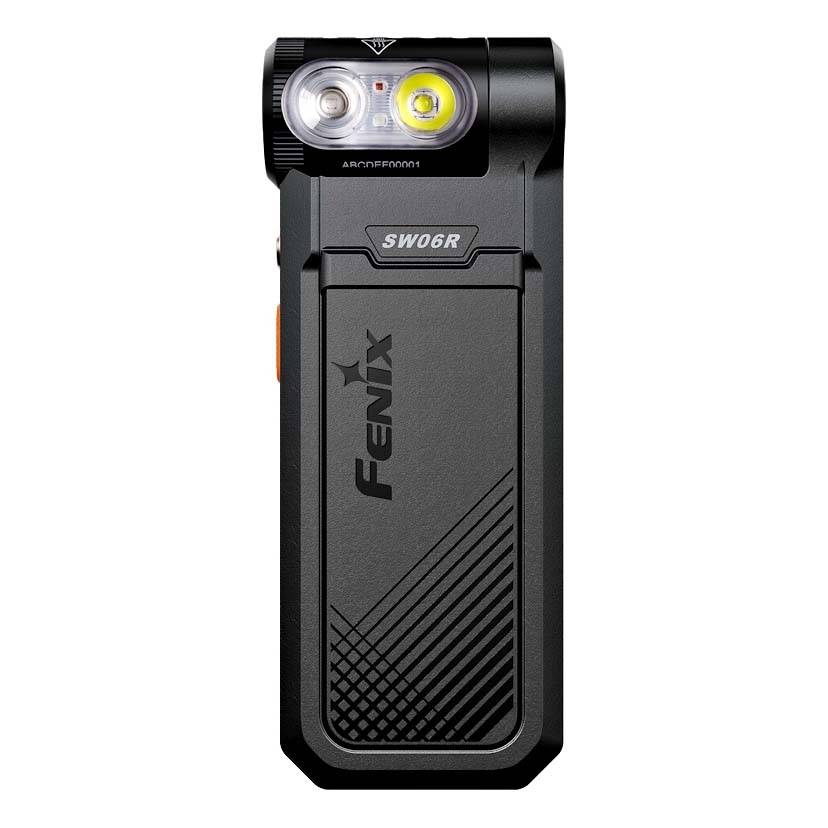

Fenix SW06R Multi-Purpose Rechargeable Torch

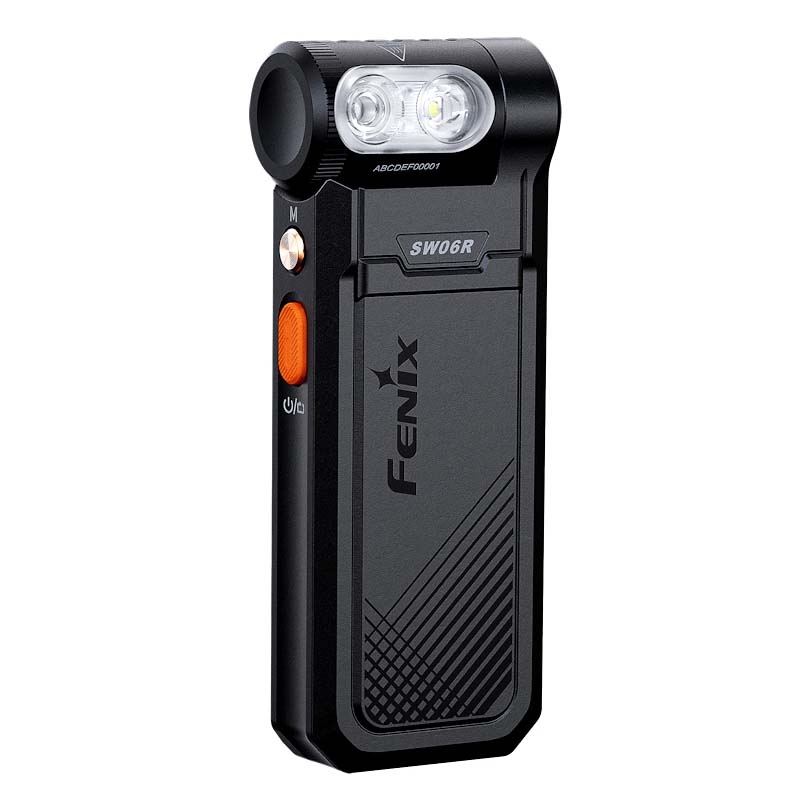

Fenix SW06R White, Red and UV, Multipurpose Clip Torch Construction

The SW06R uses a durable combination of aircraft-grade aluminium and quality plastics, with a premium Type III hard-anodised anti-abrasive finish. Its aluminium rotary head can be adjusted 105 degrees forwards and 95 degrees rearwards, providing a total adjustment range of 200 degrees.

The torch is also 1.5-metre drop tested, providing additional reassurance for demanding everyday and professional use. At 98.8mm long, 39mm wide and 20.6mm deep, and weighing just 88g, it remains compact enough for convenient pocket carry.

Fenix SW06R White, Red and UV, Multipurpose Clip Torch Weather Protection

An IP66 rating provides weatherproof and dustproof protection. The built-in rechargeable battery is charged through an inner waterproof USB-C charging port positioned at the side of the light.

Fenix SW06R White, Red and UV, Multipurpose Clip Torch Key Features

• Maximum white-light output of 500 lumens with a beam distance of up to 100 metres.
• Four white-light brightness levels: Eco, Low, Medium and High.
• 10-lumen constant red light and 5-lumen red flashing mode.
• 5-lumen red and blue flashing mode for signalling.
• 1500mW 365nm UV light for document and currency inspection.
• 200-degree adjustable aluminium rotary head.
• Bi-directional metal pocket clip for attachment to pockets, backpacks, webbing or caps.
• Magnetic base for attachment to suitable steel surfaces.

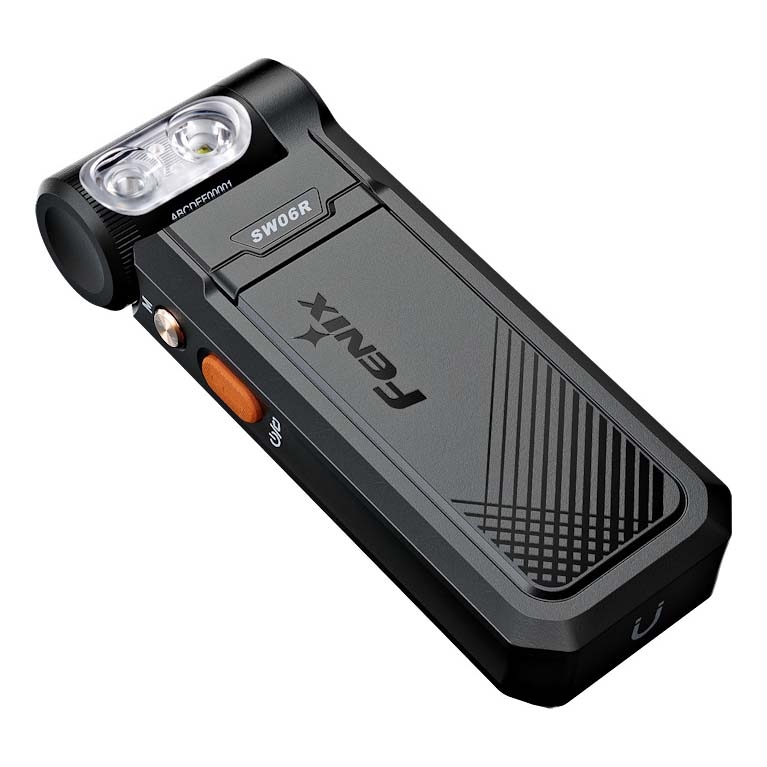

• Dual side switches for mode and output control.
• Built-in 1300mAh rechargeable Li-Po battery.
• Approximately two-hour charging time with a 5V/1A charging adapter.
• Can be operated while charging.
• Battery level indication and low-voltage warning.
• IP66 weatherproof and dustproof construction.
• 1.5-metre drop tested.
• Tail-standing capability.

Fenix SW06R White, Red and UV, Multipurpose Clip Torch Lighting Performance

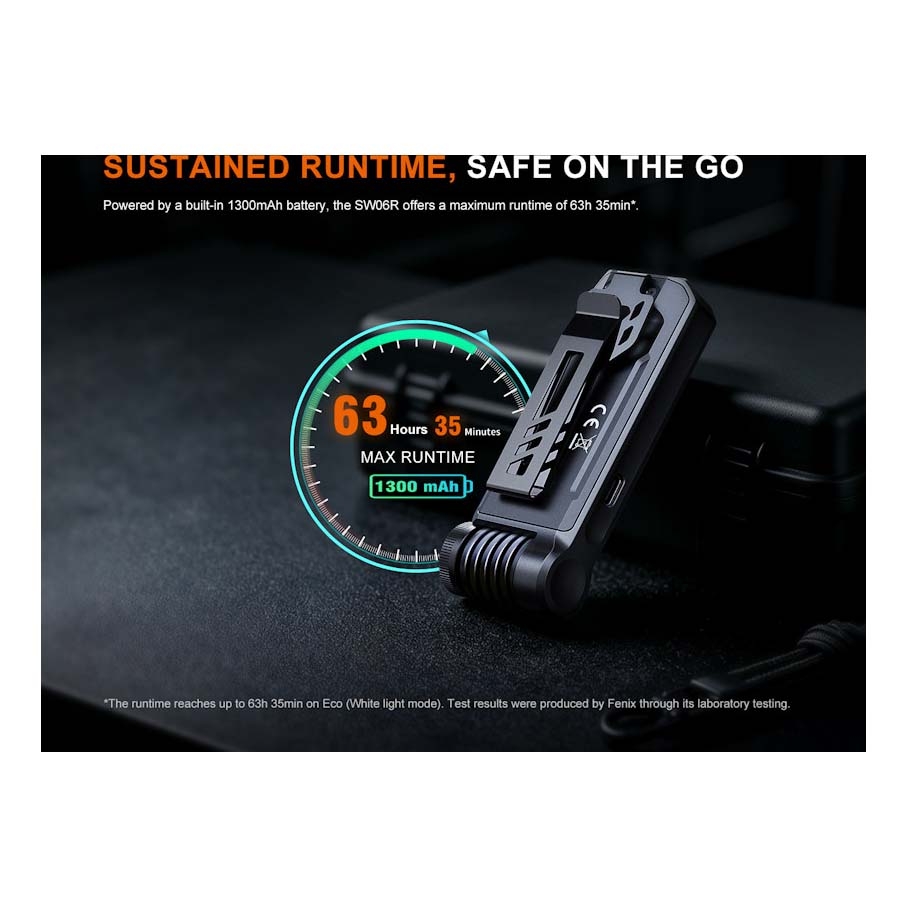

• White Eco: 5 lumens, 63 hours 35 minutes runtime, 8m beam.
• White Low: 30 lumens, 23 hours 50 minutes runtime, 21m beam.
• White Medium: 150 lumens, 5 hours 5 minutes runtime, 48m beam.
• White High: 500 lumens, 2 hours 15 minutes runtime, 100m beam.
• Red constant-on: 10 lumens, 27 hours 25 minutes runtime, 4m beam.
• Red flashing: 5 lumens, 38 hours 15 minutes runtime.
• Red and blue flashing: 5 lumens, 35 hours runtime.
• UV: 1500mW, 2 hours 45 minutes runtime.

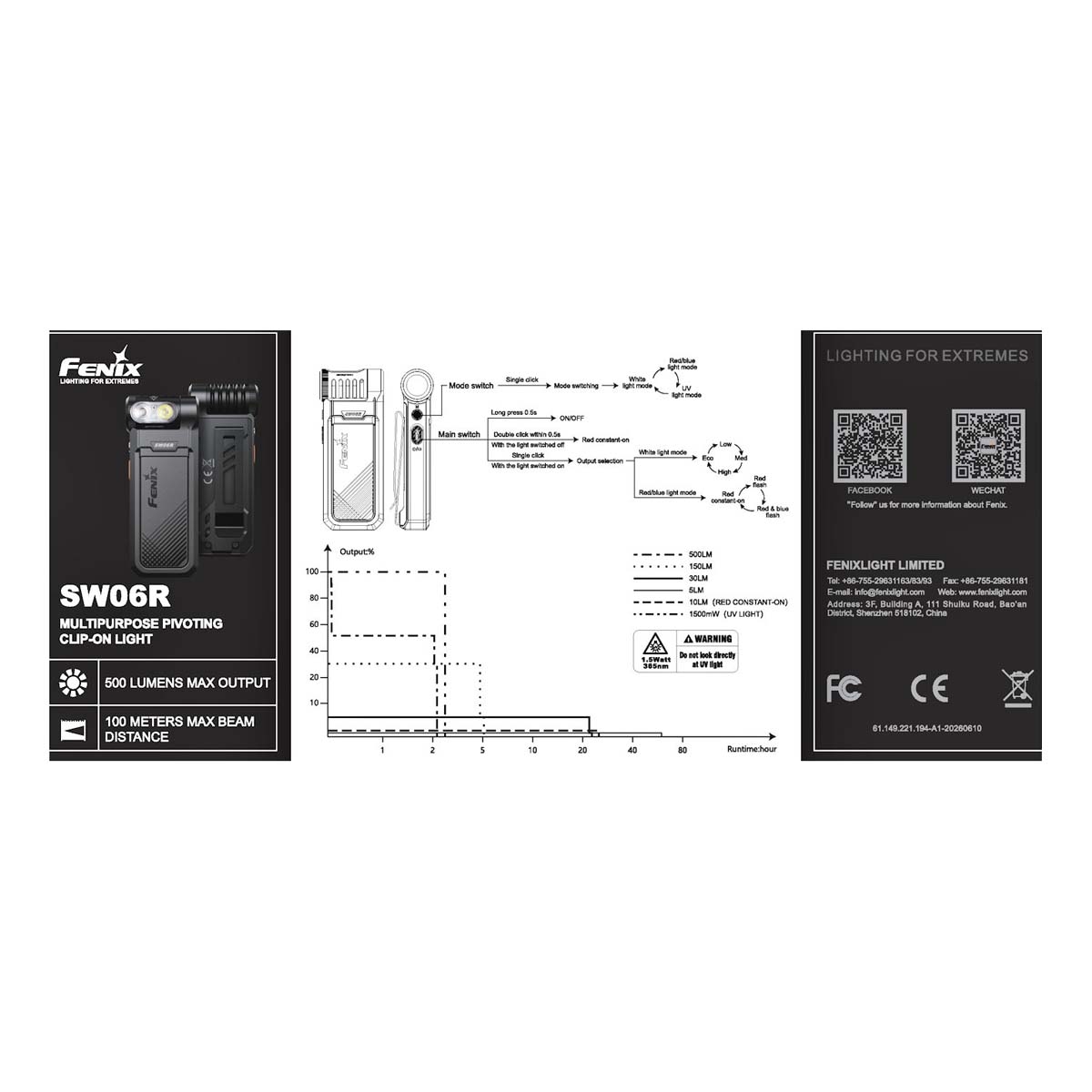

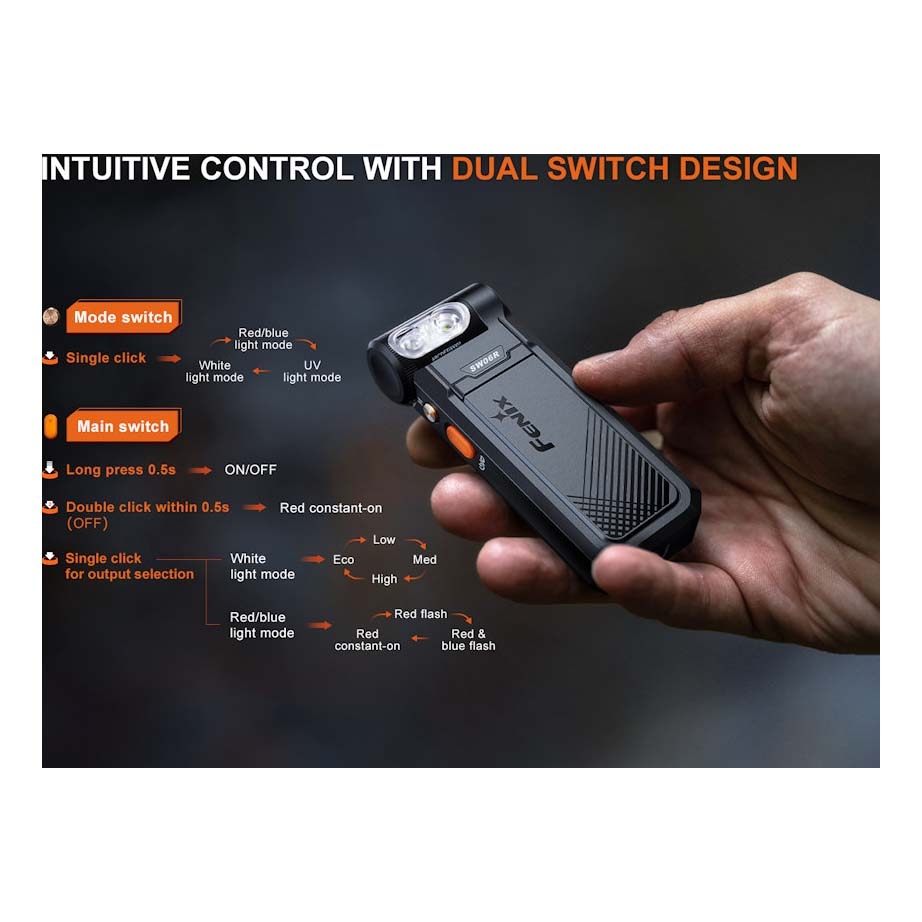

Fenix SW06R White, Red and UV, Multipurpose Clip Torch Operation

Two side switches separate the main power and output functions from mode selection. In white-light mode, a single press of the main switch cycles through Eco, Low, Medium and High. In red and blue mode, the same switch cycles through constant red, red flashing and red-and-blue flashing outputs, while UV operates at a fixed output level.

The mode switch cycles between white light, red and blue light, and UV light. The intelligent memory circuit recalls the last selected mode, while white-light mode also recalls the previously selected brightness level. When returning to red and blue mode, the torch starts in constant red.

Fenix SW06R White, Red and UV, Multipurpose Clip Torch Battery & Charging

The built-in 1300mAh Li-Po rechargeable battery charges through USB-C. A normal full charge takes approximately two hours from depleted when using a 5V/1A charging adapter. The charging indicator shows red during charging and changes to green when fully charged.

The torch can also operate while connected to a charger, although actual brightness may vary according to charging status and remaining battery level. For stored lights, recharging every four months is recommended to maintain optimum battery performance.

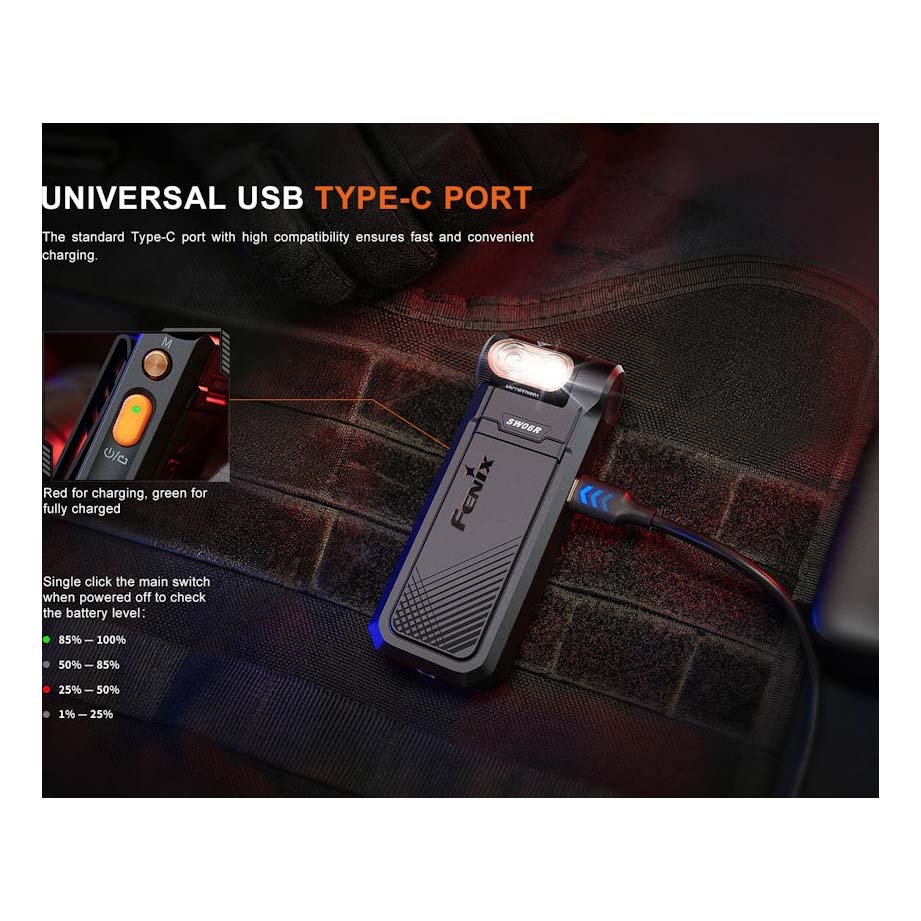

Fenix SW06R White, Red and UV, Multipurpose Clip Torch Battery Level Indicator

• Solid green: 100% to 85%.
• Flashing green: 85% to 50%.
• Solid red: 50% to 25%.
• Flashing red: 25% to 1%.

When voltage falls below 3V, the torch automatically steps down through lower brightness levels until Eco is reached. At Eco output, the battery indicator flashes red to signal that recharging is required.

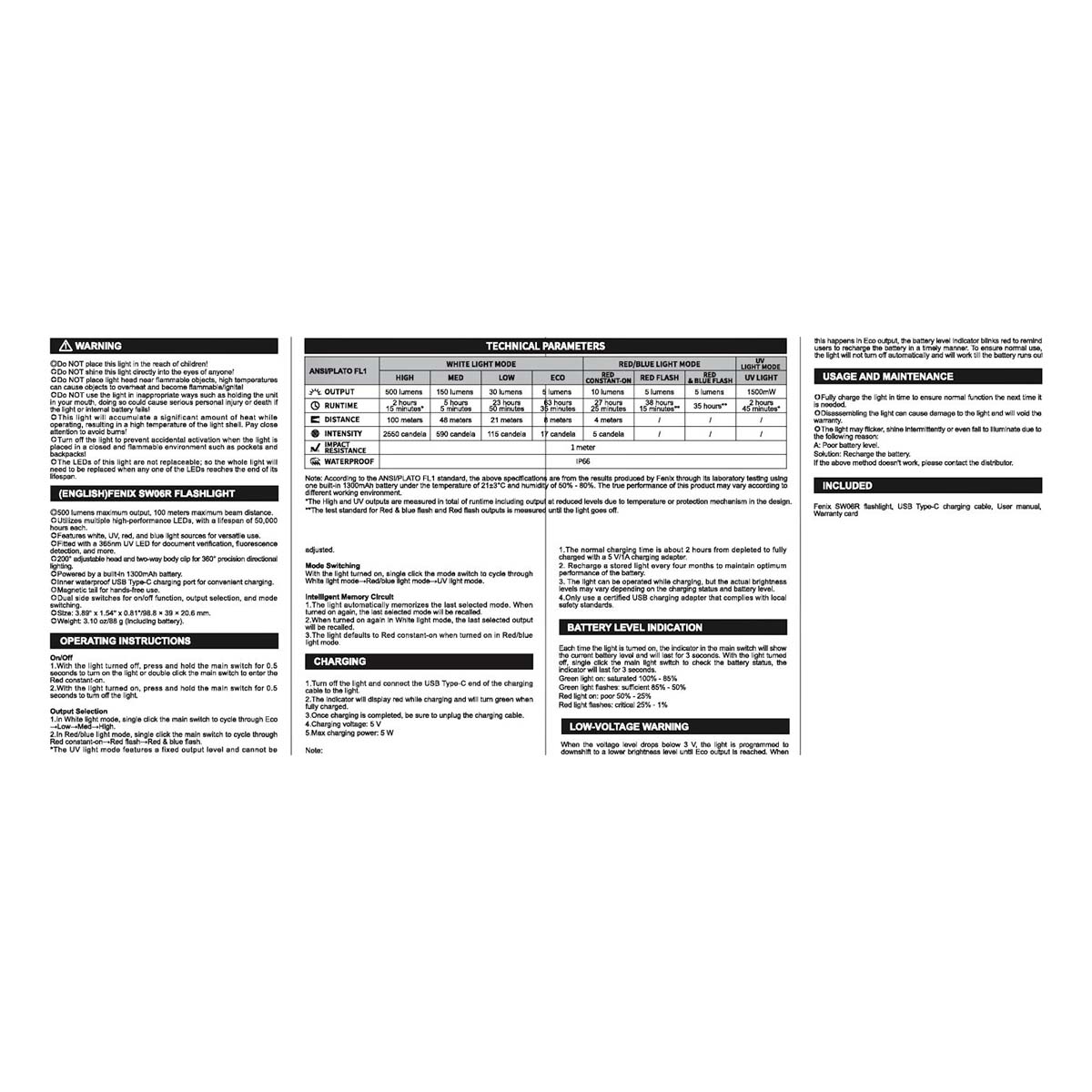

Fenix SW06R White, Red and UV, Multipurpose Clip Torch Specifications

• Maximum output: 500 lumens.
• Maximum beam distance: 100 metres.
• White-light colour temperature: 6500K.
• UV output: 1500mW at 365nm.
• Lens: TIR lens.
• Battery: Built-in 1300mAh rechargeable battery.
• Charging: USB-C, 5V charging voltage and maximum 5W charging power.
• Construction: Aircraft-grade aluminium and quality plastics.
• Finish: Type III hard-anodised anti-abrasive finish.
• Waterproofing: IP66 weatherproof and dustproof.
• Impact resistance: Drop tested to 1.5 metres.
• Dimensions: 98.8mm x 39mm x 20.6mm.
• Weight: 88g.

Fenix SW06R White, Red and UV, Multipurpose Clip Torch Review

The Fenix SW06R is a particularly versatile rechargeable clip torch, combining four levels of white illumination with red, red flashing, red-and-blue flashing and 365nm UV functions. Its combination of a 500-lumen maximum output, adjustable rotary head and multiple mounting arrangements makes it well suited to professional, outdoor and general-purpose applications.

The combination of compact dimensions, an 88g weight and a built-in rechargeable battery also makes the SW06R practical for regular carry without sacrificing useful lighting performance.

Fenix SW06R White, Red and UV, Multipurpose Clip Torch Performance & Key Features

The headline white-light output of 500 lumens reaches up to 100 metres, while four brightness levels allow output and runtime to be balanced according to the task. Eco mode extends runtime to 63 hours 35 minutes, while the additional red, signalling and UV functions considerably broaden the torch's capabilities.

• 500-lumen maximum white output with a 100m beam.
• Four selectable white-light brightness levels.
• Red and red-and-blue signalling modes.
• 1500mW 365nm UV output for document and currency inspection.
• Built-in 1300mAh rechargeable battery.

SW06R Build Quality & Handling

The combination of aircraft-grade aluminium, quality plastics and a Type III hard-anodised anti-abrasive finish gives the SW06R a robust construction suited to frequent use. Its IP66 weatherproof and dustproof rating and 1.5-metre drop testing add useful durability, while its compact 98.8mm length and 88g weight keep it manageable for everyday carry.

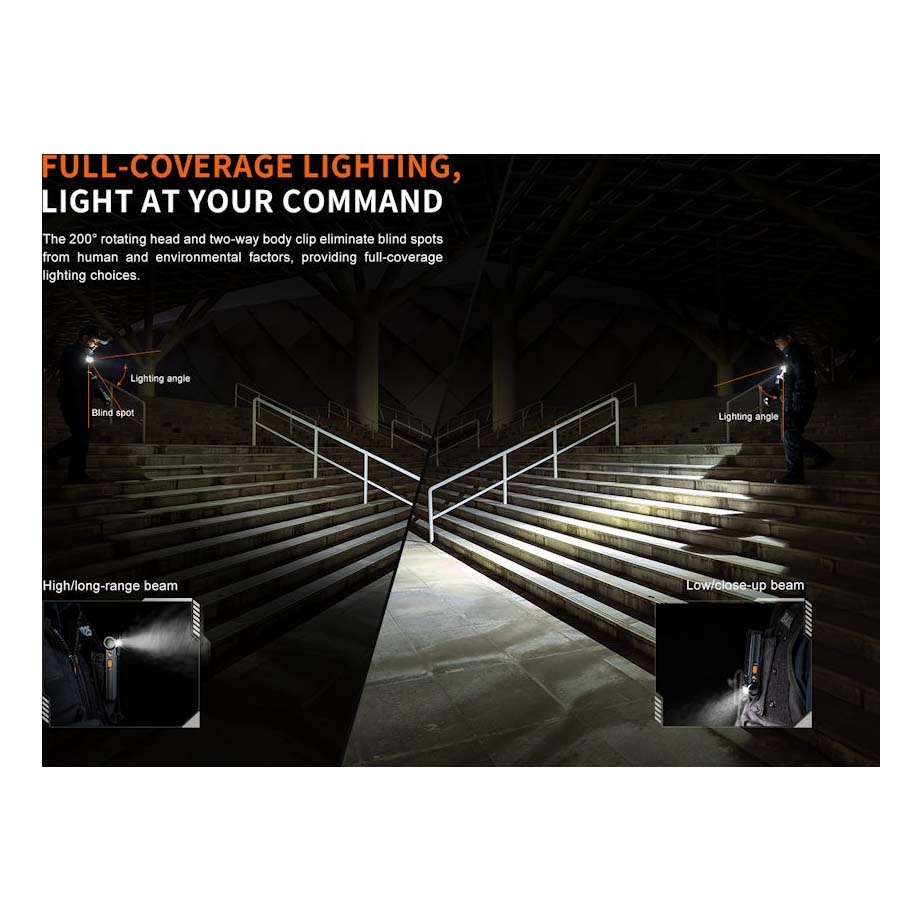

The 200-degree rotary head is particularly useful for directing illumination once the light has been clipped or magnetically attached in position.

Is the SW06R Easy to Use?

Operation is straightforward, with separate switches for main output control and lighting-mode selection. White brightness cycles through Eco, Low, Medium and High, while a separate mode control switches between white, red and blue, and UV functions.

The memory circuit recalls the previously used mode and white-light brightness, while the battery indicator provides a clear visual indication of remaining charge. The bi-directional clip, magnetic base and adjustable head also reduce the need to hold the torch continuously during suitable tasks.

Key Takeaways of the SW06R

The SW06R combines a useful 500-lumen white beam with specialist red, signalling and 365nm UV lighting in a compact rechargeable package. Its adjustable head, magnetic base and bi-directional clip provide considerably more positioning flexibility than a conventional handheld-only format, while IP66 protection and 1.5-metre drop testing support demanding everyday use. The fixed built-in battery is not user replaceable, but USB-C charging, a two-hour normal charging time and detailed battery indication make routine power management straightforward. For users who need a compact light capable of handling general illumination, hands-free positioning, signalling and UV inspection, the SW06R offers a broad set of practical functions.

Fenix SW06R White, Red and UV, Multipurpose Clip Torch FAQs

How bright is the Fenix SW06R?

The maximum white-light output is 500 lumens in High mode, producing a beam distance of up to 100 metres. Medium provides 150 lumens, Low provides 30 lumens and Eco provides 5 lumens. This range allows the output to be matched to both close-range tasks and longer-distance illumination.

How long does the Fenix SW06R battery last?

Runtime depends on the selected lighting mode. White Eco provides the longest white-light runtime at 63 hours 35 minutes, while High delivers 500 lumens for 2 hours 15 minutes. Medium runs for 5 hours 5 minutes and Low for 23 hours 50 minutes.

What is the red light on the SW06R used for?

The red LED provides a 10-lumen constant output designed to help preserve night vision. It has a beam distance of 4 metres and a runtime of 27 hours 25 minutes. A separate 5-lumen red flashing mode is also available for signalling and runs for up to 38 hours 15 minutes.

Does the Fenix SW06R have a red and blue flashing mode?

Yes. The SW06R includes a combined red-and-blue flashing mode for signalling. It operates at 5 lumens with a stated runtime of 35 hours.

What can the 365nm UV light on the SW06R be used for?

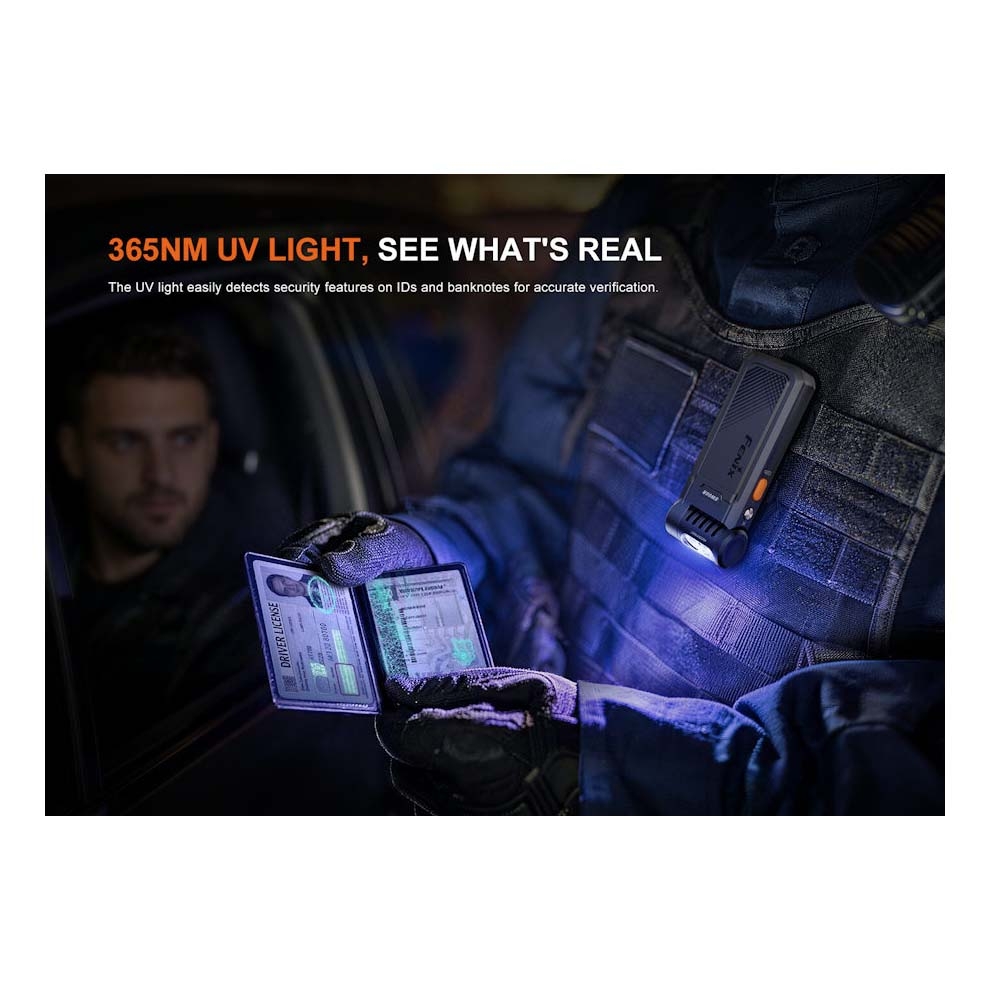

The SW06R incorporates a 365nm ultraviolet LED rated at 1500mW. It is designed for applications including document and currency inspection. The UV mode has a fixed output and a runtime of approximately 2 hours 45 minutes.

Can the Fenix SW06R be used hands-free?

Yes. A bi-directional metal clip allows the light to be attached to a pocket, backpack, webbing or cap, while the magnetic base can attach to suitable steel surfaces. The rotary head then allows the beam to be angled towards the required area.

How far can the SW06R rotary head be adjusted?

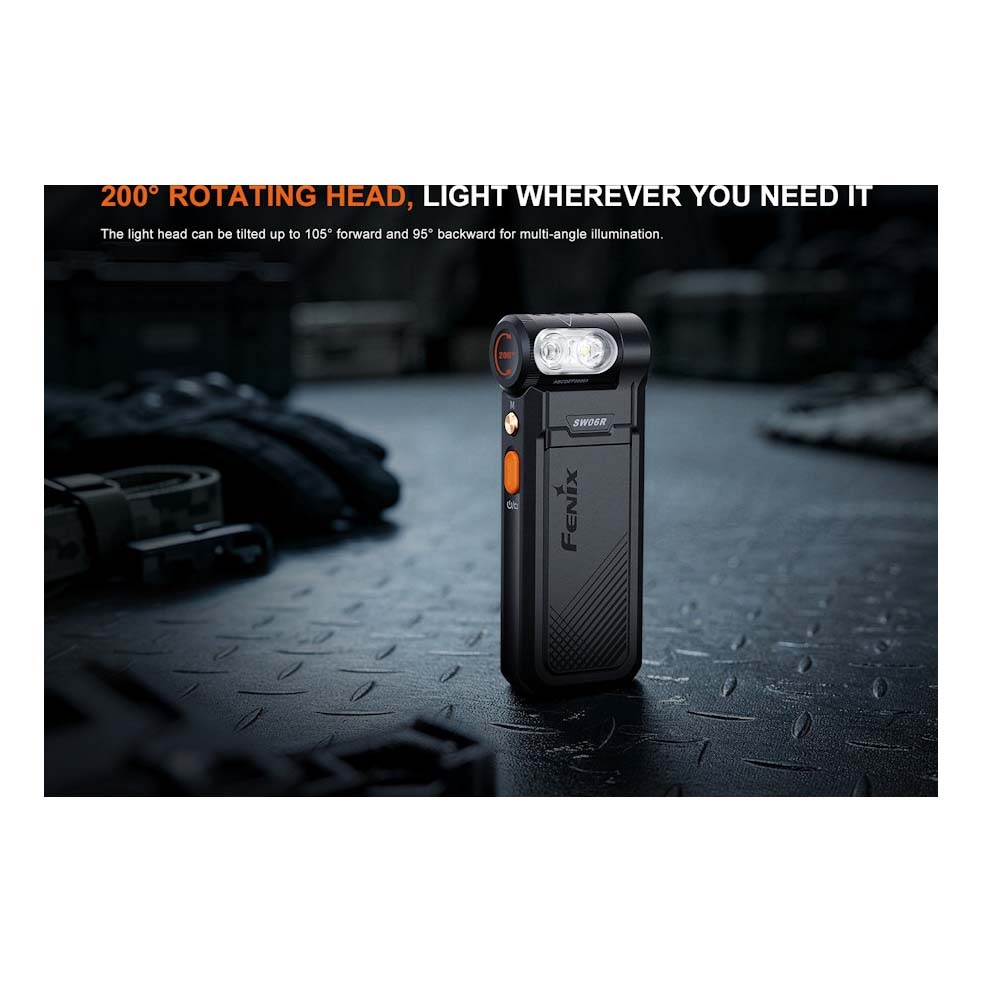

The aluminium rotary head provides 200 degrees of total adjustment. It can rotate 105 degrees forwards and 95 degrees rearwards, giving considerable flexibility when positioning the beam.

Is the Fenix SW06R waterproof?

The SW06R carries an IP66 rating and is described as weatherproof and dustproof. Its USB-C charging connection is also positioned within an inner waterproof charging port.

How long does the Fenix SW06R take to charge?

A normal charge from depleted to fully charged takes approximately two hours when using a 5V/1A charging adapter. The indicator displays red during charging and turns green when charging is complete. The torch can also be operated while charging, although brightness may vary according to charging and battery status.

How do I check the remaining battery level on the SW06R?

The battery indicator operates for three seconds whenever the torch is switched on. With the torch switched off, the main switch can also be pressed once to check the remaining charge. Solid green represents 100% to 85%, flashing green 85% to 50%, solid red 50% to 25%, and flashing red 25% to 1%.

Does the Fenix SW06R remember the last brightness setting?

Yes. The intelligent memory circuit recalls the last selected lighting mode, and when the torch is switched on again in white-light mode it also recalls the previously used white-light output. Red and blue mode defaults to constant red when selected again.

How large and heavy is the Fenix SW06R?

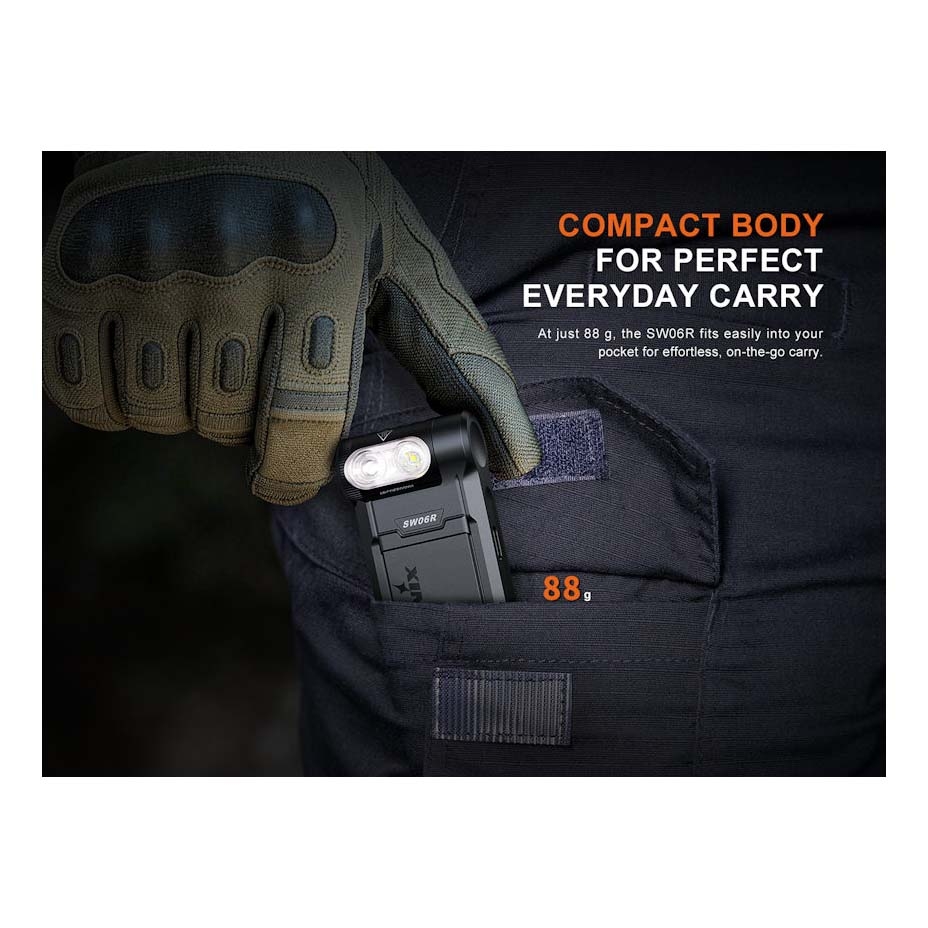

The SW06R measures 98.8mm long, 39mm wide and 20.6mm deep. It weighs 88g, making it compact and easily pocketable while retaining multiple mounting and lighting functions.
