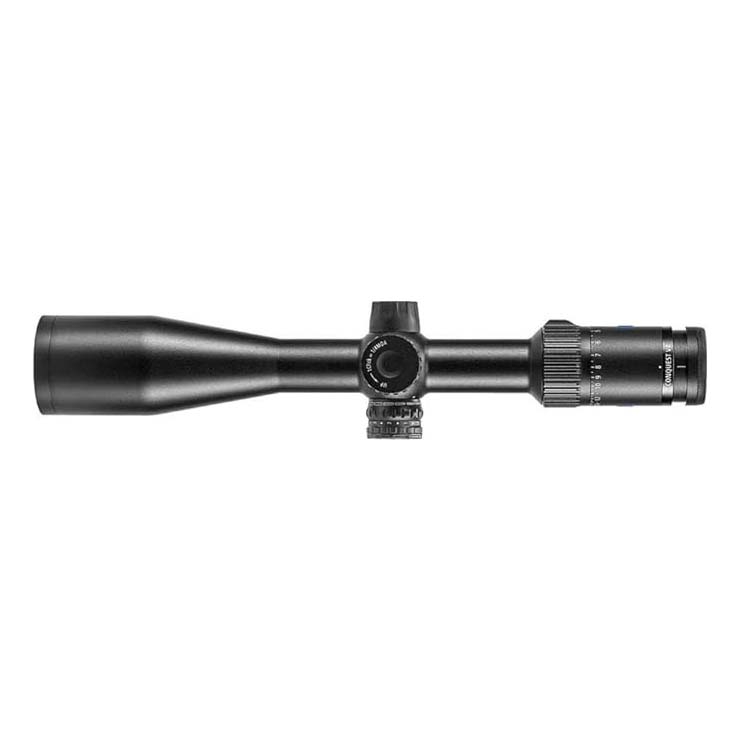

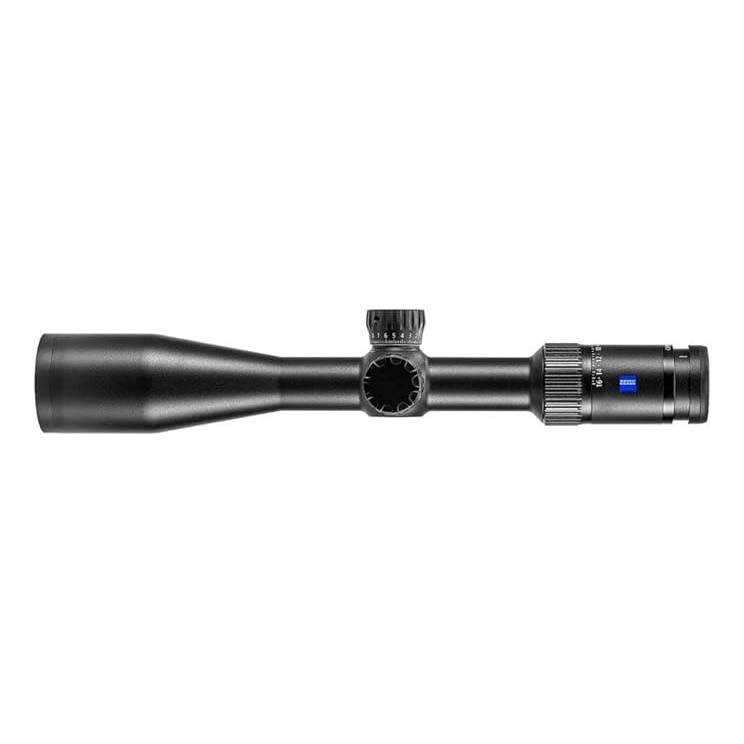

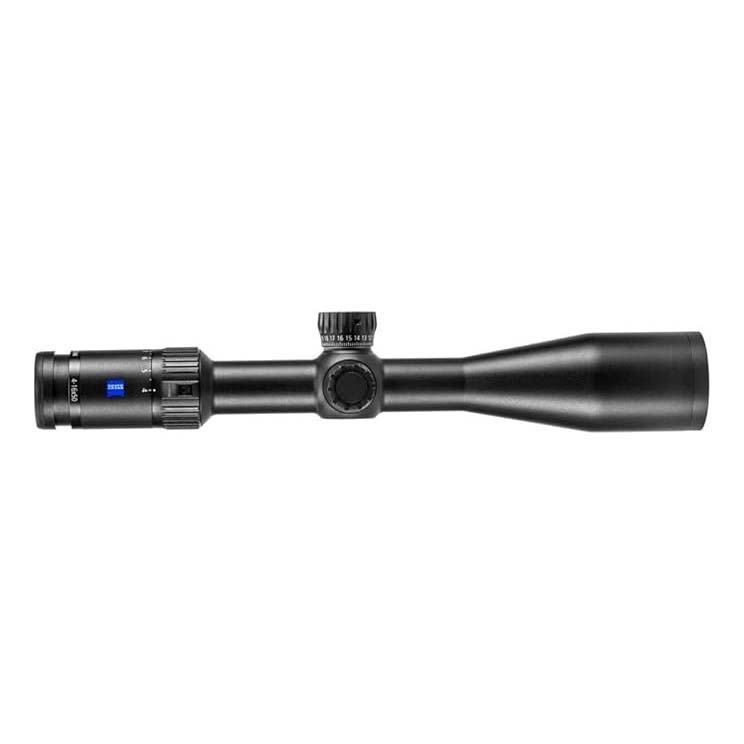

Zeiss Conquest V4 4-16x50 BT (Locking Windage) Riflescope

ZEISS Conquest V4 4-16x50 Riflescope with ZMOA-T30 Reticle

The ZEISS Conquest V4 4-16x50 is a versatile riflescope developed for traditional hunting, long-range hunting and precision shooting. Its 4-16x magnification range combines a relatively wide field of view at lower power with the detail required for accurate mid- to long-range aiming.

A 50mm objective lens, 90% light transmission and ZEISS optical coatings support clear target resolution throughout the magnification range, including in challenging light. The illuminated ZMOA-T30 reticle, external elevation turret, locking external windage turret and Ballistic Stop provide a practical adjustment system for precise shooting.

Optical Performance

High-definition glass delivers 90% light transmission to the eye, supporting strong low-light performance and clear target resolution across the complete 4-16x magnification range. The ZEISS T* coating is individually tuned to each lens to produce brilliant, high-contrast images, particularly during twilight and other adverse lighting conditions.

ZEISS LotuTec coating helps maintain a clear, unobstructed view in wet weather. The optical system provides an effective lens diameter of 34.5-50mm, an exit pupil diameter of 8.5-2.8mm and a field of view measuring 28-7ft at 100 yards.

ZMOA-T30 Illuminated Reticle

The illuminated Reticle #64 ZMOA-T30 uses thin lines that are approximately 35-50% finer than previous ZEISS ZMOA and ZBR reticles. Designed for long-range hunting and precision shooting, its intuitive layout supports fast target engagement and precise aiming.

The reticle is positioned in the second focal plane, so its apparent size remains consistent as magnification is adjusted. A CR2032 battery is included to power the illumination.

Turrets and Ballistic Adjustment

External elevation and windage turrets provide direct access to the scope's adjustment controls, while the external windage turret incorporates a locking mechanism. Adjustments are made in precise 0.25 MOA clicks, with an elevation adjustment range of 80 MOA.

The integrated Ballistic Stop establishes a reliable return point after making elevation corrections. Adjustable parallax from 10 yards to infinity allows the image and reticle to be aligned for accurate aiming across a broad range of distances.

Construction and Weather Protection

The Conquest V4 is built around a 30mm main tube and measures 14.5 inches in length. At 24.2oz, it combines its long-range adjustment features and 50mm objective lens within a comparatively lightweight design intended for demanding hunting and shooting applications.

Nitrogen purging helps prevent internal fogging, while waterproofing to 400 mbar provides protection when conditions deteriorate. The scope is designed to operate in temperatures ranging from -13°F to +122°F.

ZEISS Conquest V4 4-16x50 Key Features

• Versatile 4-16x magnification range
• 50mm objective lens
• 90% light transmission
• ZEISS T* coating for bright, high-contrast images
• LotuTec coating for a clear view in wet weather
• Illuminated ZMOA-T30 Reticle #64
• Fine reticle lines designed for precision shooting
• Second focal plane reticle
• External elevation turret
• External locking windage turret
• Ballistic Stop for a reliable return point
• 0.25 MOA click adjustments
• 80 MOA elevation adjustment range
• Adjustable parallax from 10 yards to infinity
• Nitrogen-purged and waterproof to 400 mbar
• 30mm main tube

ZEISS Conquest V4 4-16x50 Specifications

• Magnification: 4-16x
• Objective lens diameter: 50mm
• Objective tube diameter: 56mm
• Effective lens diameter: 34.5-50mm
• Exit pupil diameter: 8.5-2.8mm
• Eye relief: 89mm
• Eyepiece tube diameter: 44mm
• Main tube diameter: 30mm
• Field of view at 100 yards: 28-7ft
• Twilight factor: 11.7-28.3
• Reticle: Illuminated ZMOA-T30 Reticle #64
• Focal plane: Second focal plane
• Click value: 0.25 MOA
• Elevation adjustment range: 80 MOA
• Parallax adjustment: 10 yards to infinity
• Dioptre adjustment range: -3 to +2dpt
• Elevation turret: External
• Windage turret: External locking
• Ballistic Stop: Yes
• Lens coatings: ZEISS T* and LotuTec
• Fogproofing: Nitrogen-purged
• Waterproof level: 400 mbar
• Operating temperature: -13°F to +122°F
• Length: 14.5 inches
• Weight: 24.2oz
• Battery: CR2032, included

Included Accessories

• Riflescope
• Cleaning cloth
• Protective cap
• Quick Guide
• Safety information
• CR2032 battery

ZEISS Conquest V4 4-16x50 Riflescope with ZMOA-T30 Reticle (#64) - External Elevation Turret - External Locking Windage - Ballistic Stop - Adjustable Parallax - .25 MOA Review

The ZEISS Conquest V4 4-16x50 is a precision-oriented hunting and shooting scope that combines a practical magnification range with a comprehensive external adjustment system. Its strongest attributes are its 90% light transmission, fine illuminated ZMOA-T30 reticle, weather-resistant optical coatings and controls designed for repeatable long-range corrections.

It is particularly well suited to hunters and shooters who need one riflescope to cover traditional hunting distances as well as more demanding mid- and long-range applications.

Conquest V4 Performance & Key Features

The 4-16x magnification range offers useful flexibility, providing a wider viewing area at 4x and increased target detail at 16x. A 50mm objective lens and 90% light transmission support target identification in lower light, while ZEISS T* and LotuTec coatings help preserve contrast and clarity in difficult conditions.

• Fine illuminated ZMOA-T30 reticle for precise aiming
• External elevation and locking windage controls
• Ballistic Stop for a consistent return point
• Adjustable parallax from 10 yards to infinity
• Precise 0.25 MOA click adjustments

Build Quality & Handling

The 30mm main tube, nitrogen-purged construction and 400 mbar waterproof rating provide reassuring durability for use in changing field conditions. Although the 50mm objective and external turret system give the scope a substantial specification, its 24.2oz weight and 14.5-inch length keep it manageable for a mid- to long-range optic.

Its 89mm eye relief provides a defined viewing position, while the -3 to +2 dioptre adjustment allows the eyepiece to be focused to the shooter's vision.

Is the ZEISS Conquest V4 4-16x50 Riflescope Easy to Use?

The external turrets make elevation and windage corrections readily accessible, and the locking windage control helps guard against unintended movement. Quarter-MOA clicks provide straightforward adjustment values, while the Ballistic Stop simplifies returning the elevation turret to its established reference point.

Parallax adjustment from 10 yards to infinity adds versatility across different shooting distances. The intuitive ZMOA-T30 reticle is designed to support rapid engagement without sacrificing the fine aiming references needed for precision work.

Key Takeaways of the ZEISS Conquest V4 4-16x50 Riflescope

The Conquest V4 4-16x50 combines strong light transmission, detailed image quality and an adjustment system configured for precise mid- to long-range shooting. Its fine second focal plane reticle, 80 MOA elevation range, Ballistic Stop and adjustable parallax give experienced shooters the controls required for calculated corrections. The 4x minimum magnification also preserves useful versatility for more conventional hunting situations. It is a strong choice for Uttings.co.uk customers seeking a lightweight, high-performance ZEISS riflescope for hunting and precision shooting.

ZEISS Conquest V4 4-16x50 Riflescope with ZMOA-T30 Reticle (#64) - External Elevation Turret - External Locking Windage - Ballistic Stop - Adjustable Parallax - .25 MOA FAQs

What magnification range does the ZEISS Conquest V4 4-16x50 provide?

The riflescope provides variable magnification from 4x to 16x. The lower end offers a wider field of view for locating and following a target, while 16x magnification provides greater detail for precise aiming at extended distances.

Is the ZEISS Conquest V4 4-16x50 suitable for low-light hunting?

Yes. Its high-definition glass provides 90% light transmission to the eye, supporting strong target resolution in lower light. The ZEISS T* coating is designed to produce bright, high-contrast images, particularly in twilight and adverse lighting conditions.

What is the ZMOA-T30 Reticle #64 designed for?

The illuminated ZMOA-T30 reticle is designed for long-range hunting and precision shooting. Its lines are approximately 35-50% thinner than previous ZEISS ZMOA and ZBR reticles, providing fine aiming references while supporting fast target engagement.

Is the ZMOA-T30 reticle in the first or second focal plane?

The reticle is positioned in the second focal plane. This means its apparent size remains unchanged as the scope's magnification is increased or decreased.

What adjustment value does each turret click provide?

Each elevation or windage click adjusts the point of aim by 0.25 MOA. This quarter-MOA adjustment value enables measured corrections for accurate sighting and longer-range shooting.

Does the ZEISS Conquest V4 4-16x50 have a Ballistic Stop?

Yes. The scope includes a Ballistic Stop that provides a defined reference point for the elevation turret. This allows the shooter to return reliably to the established setting after applying elevation corrections.

Can the parallax be adjusted on the ZEISS Conquest V4 4-16x50?

Yes. Parallax can be adjusted from 10 yards to infinity. This broad adjustment range allows the shooter to optimise image and reticle alignment for targets at both short and extended distances.

How wide is the field of view?

The field of view ranges from 28ft to 7ft at 100 yards. The widest view is available at the lower magnification setting, narrowing progressively as magnification is increased.

Is the ZEISS Conquest V4 4-16x50 waterproof and fogproof?

The riflescope is waterproof to 400 mbar and nitrogen-purged to prevent internal fogging. ZEISS LotuTec coating also helps maintain a clear view through the lenses in wet weather.

What size scope mounts are required?

The riflescope has a 30mm main tube and therefore requires compatible 30mm scope rings or mounts. The objective tube has a diameter of 56mm, which should also be considered when selecting the appropriate mounting height.

What are the dimensions and weight of the ZEISS Conquest V4 4-16x50?

The riflescope measures 14.5 inches in length and weighs 24.2oz. It has a 50mm objective lens, a 56mm objective tube diameter and a 44mm eyepiece tube diameter.

What is supplied with the ZEISS Conquest V4 4-16x50?

The package contains the riflescope, a cleaning cloth, protective cap, Quick Guide and safety information. A CR2032 battery for the illuminated reticle is also included.
