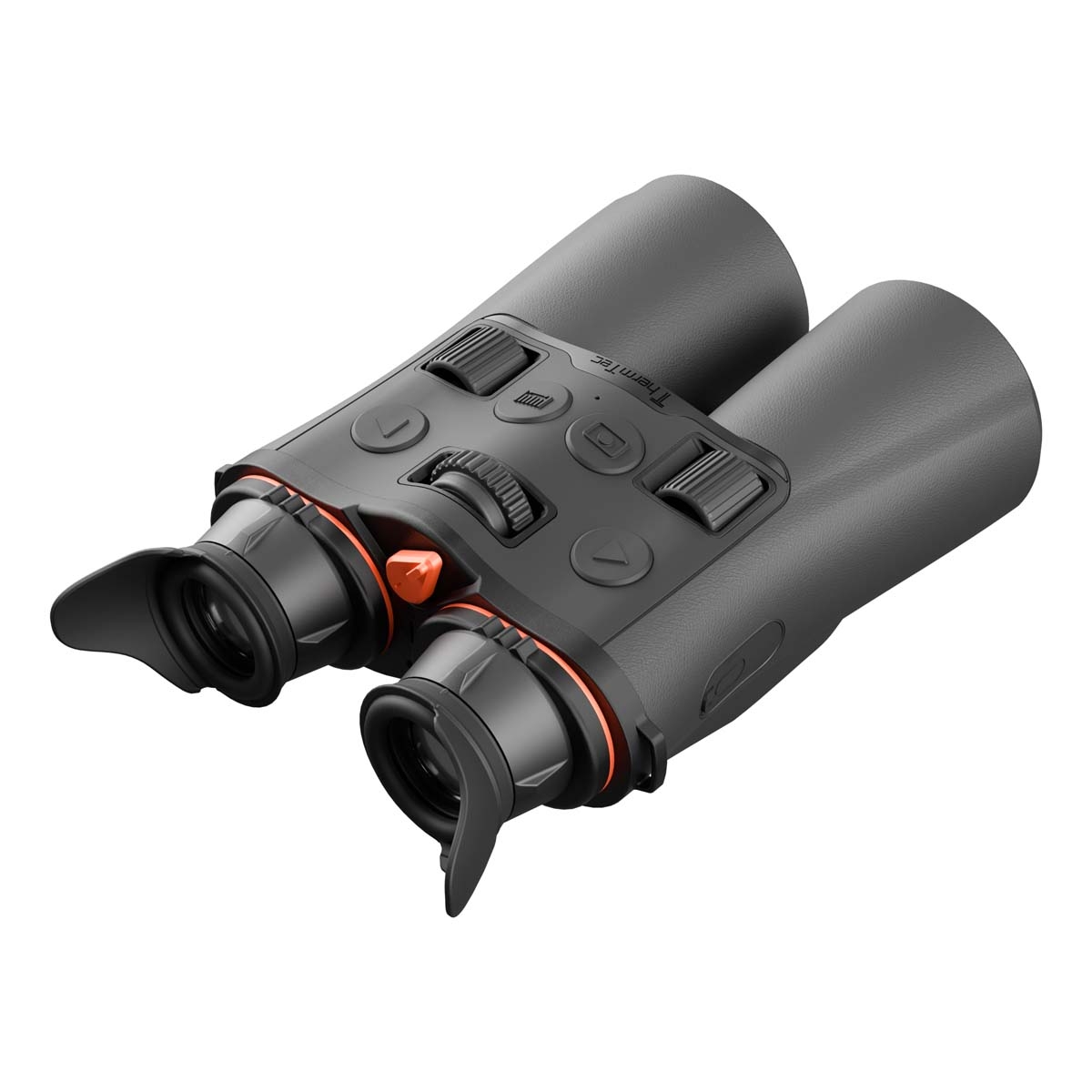

ThermTec Ventus 635L Multi-Spectrum Binocular

ThermTec Ventus 635L Multi-Spectrum Binocular

Craftsmanship & Construction

The Ventus 635L is engineered around a rugged, rubber-coated housing designed to withstand demanding field conditions. Its anti-slip exterior enhances grip and control while maintaining durability in wet, cold, and challenging environments.

An ergonomic dual-focus wheel system allows efficient operation with either hand, while the binocular format promotes more natural viewing and reduced eye fatigue compared with monocular devices. The integrated design combines thermal imaging, digital optics, infrared illumination, and laser rangefinding into a single compact unit.

Fit & Comfort

The binocular incorporates an ergonomic hand-support design that promotes stability during extended observation periods. Adjustable interpupillary distance ranging from 60mm to 72mm allows users to tailor the fit for comfortable viewing.

A generous 20mm eye relief and 8mm exit pupil further contribute to comfortable long-duration observation, while the balanced design supports stable handheld use.

Waterproof Performance

The Ventus 635L features an IP67 protection rating, providing strong resistance against dust ingress and water exposure during outdoor use. This weather-resistant construction makes it suitable for demanding field conditions across a wide temperature range from -20°C to +50°C.

Key Features

• 5-in-1 multi-spectrum observation system
• 640×512 thermal sensor with NETD below 15mK
• 12MP 4K UHD CMOS digital imaging system
• Integrated laser rangefinder with 1000m range
• Switchable 850nm and 940nm infrared illumination
• Thermal detection range up to 1800m
• Thermal Super Resolution image enhancement technology
• EIS electronic image stabilisation
• 1600×1200 AMOLED display
• 64GB internal storage for image and video capture
• Picture-in-picture functionality
• Heat tracking and digital compass functions
• Dual replaceable 18650 battery system
• Automatic proximity sensor screen-off function

Materials & Care

The binocular features a durable rubber-armoured exterior designed for field use. The protective coating helps improve grip while providing additional protection against impacts and environmental exposure.

For optimal performance, lenses should be cleaned using appropriate optical cleaning materials and the binocular should be stored dry when not in use.

Size & Fit Guidance

Weighing approximately 825g, the Ventus 635L offers a balance between advanced functionality and practical field portability. The adjustable interpupillary range of 60mm to 72mm allows comfortable use across a broad range of users.

Specifications

• Thermal Resolution: 640×512
• Pixel Pitch: 12μm
• NETD: <15mK
• Thermal Objective Lens: 35mm F0.9
• Thermal Magnification: 2.6x–10.4x
• Detection Range: 1800m
• CMOS Resolution: 3536×3536 (12MP)
• Digital Objective Lens: 50mm F1.4
• Digital Magnification: 4x–16x
• Display Resolution: 1600×1200 AMOLED
• Laser Rangefinder Range: 1000m
• IR Illuminator: 850nm / 940nm switchable
• Night Viewing Range: 400m (850nm), 350m (940nm)
• Storage: 64GB EMMC
• Battery Life: Up to 6 hours
• Protection Rating: IP67
• Weight: 825g
• Dimensions: 164 x 127.6 x 73mm

ThermTec Ventus 635L Multi-Spectrum Binocular Review

The ThermTec Ventus 635L Multi-Spectrum Binocular represents a highly advanced observation platform that combines thermal imaging, digital night vision, laser rangefinding, and image enhancement technologies into a single field-ready system. Designed for users who require comprehensive situational awareness, it offers exceptional versatility across varying light and weather conditions.

Its combination of thermal sensitivity, 4K digital imaging, and binocular viewing comfort makes it particularly well suited to professional wildlife observation, pest control, hunting, and surveillance applications.

ThermTec Ventus 635L Multi-Spectrum Binocular Performance & Key Features

The standout capability of the Ventus 635L is its ability to seamlessly integrate multiple observation technologies without compromising image quality. The highly sensitive thermal sensor, advanced CMOS imaging system, and AI-assisted processing deliver detailed target recognition in challenging environments.

• NETD below 15mK for exceptional thermal sensitivity
• 4K UHD CMOS sensor for detailed day and night imaging
• Integrated 1000m laser rangefinder
• Thermal detection capability out to 1800m
• Dual-band IR illumination for flexible night-time observation

Build Quality & Handling

The rugged rubber-armoured housing provides excellent durability and secure handling in adverse weather conditions. Despite integrating multiple advanced systems, the binocular remains well balanced and manageable for extended handheld observation.

The dual-focus wheel arrangement and ergonomic support surfaces allow intuitive operation while maintaining viewing stability at higher magnifications.

Is the ThermTec Ventus 635L Multi-Spectrum Binocular Easy to Use?

Yes. The binocular is designed to simplify operation despite its extensive feature set. Refocus-free transitions between infrared and daylight viewing modes help maintain observation continuity, while AI calibration reduces image interruptions during use.

• One-handed dual-focus control system
• Automatic proximity sensor screen management
• Refocus-free mode switching
• Electronic image stabilisation for steadier viewing
• User-adjustable interpupillary settings

Key Takeaways of the ThermTec Ventus 635L Multi-Spectrum Binocular

The ThermTec Ventus 635L stands out as a highly capable multi-spectrum observation system that combines thermal imaging, digital night vision, rangefinding, and image enhancement technologies into a single premium platform. Its exceptional thermal sensitivity, long detection range, advanced image processing, and binocular viewing comfort make it particularly attractive for demanding field users. While its advanced specification places it firmly in the premium category, the breadth of integrated functionality significantly reduces the need for multiple separate devices. For serious hunters, wildlife observers, and professional users seeking maximum observational capability, it represents an exceptionally comprehensive solution.

ThermTec Ventus 635L Multi-Spectrum Binocular FAQs

What is the detection range of the ThermTec Ventus 635L?

The thermal imaging system offers a detection range of up to 1800 metres, allowing users to identify heat signatures at substantial distances in a variety of environmental conditions.

Does the ThermTec Ventus 635L include a laser rangefinder?

Yes. The integrated Class 1 laser rangefinder can measure distances up to 1000 metres with an accuracy of approximately ±1 metre.

How sensitive is the thermal sensor?

The thermal module features a NETD rating below 15mK, enabling the detection of extremely small temperature differences and improving target visibility in difficult weather conditions.

Can the Ventus 635L be used during both day and night?

Yes. The combination of thermal imaging, a 12MP CMOS digital sensor, and switchable infrared illumination allows effective observation in daylight, low light, and complete darkness.

What infrared illumination options are available?

The binocular features switchable 850nm and 940nm infrared illumination. The 850nm setting provides maximum range, while the 940nm setting offers a less visible infrared signature.

Does the ThermTec Ventus 635L feature image stabilisation?

Yes. Electronic Image Stabilisation (EIS) helps reduce image movement and improves viewing stability, particularly when operating at higher magnification levels.

How much internal storage does the binocular provide?

The Ventus 635L includes 64GB of internal EMMC storage for recording photos, videos, and observational footage directly within the device.

What display does the Ventus 635L use?

The binocular uses a high-resolution 0.5-inch AMOLED display with a resolution of 1600×1200, delivering sharp detail and strong contrast during observation.

Is the ThermTec Ventus 635L waterproof?

The IP67-rated construction provides strong protection against dust and water exposure, making the binocular suitable for demanding outdoor environments.

How long does the battery last?

The dual replaceable 18650 battery system delivers approximately six hours of operating time and allows batteries to be swapped in the field when required.

Can the interpupillary distance be adjusted?

Yes. The eyepieces can be adjusted between 60mm and 72mm, allowing users to achieve a comfortable viewing position.

What observation modes are available?

The binocular supports thermal imaging, digital day vision, digital night vision, picture-in-picture viewing, heat tracking, and multiple colour palette options for different observation scenarios.
