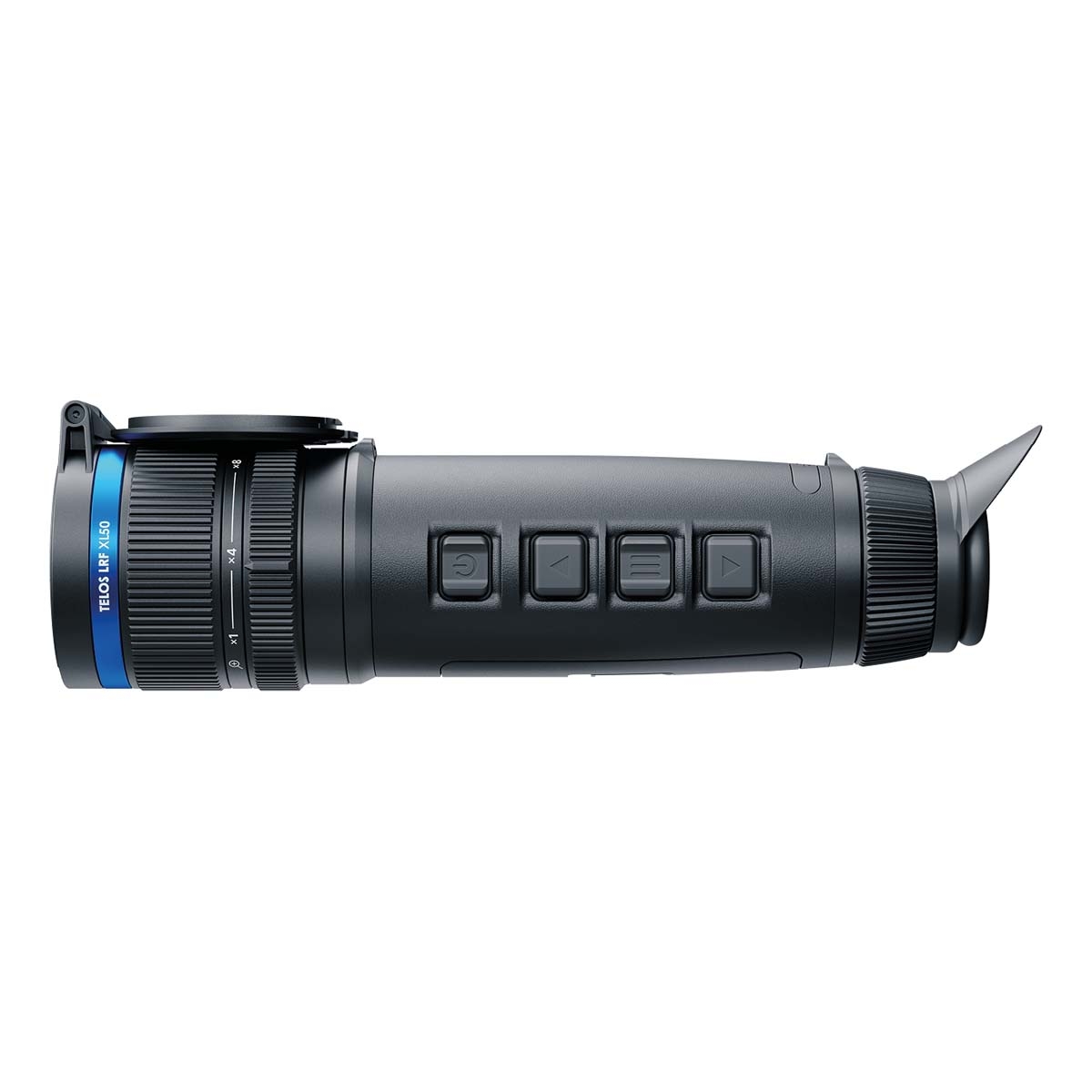

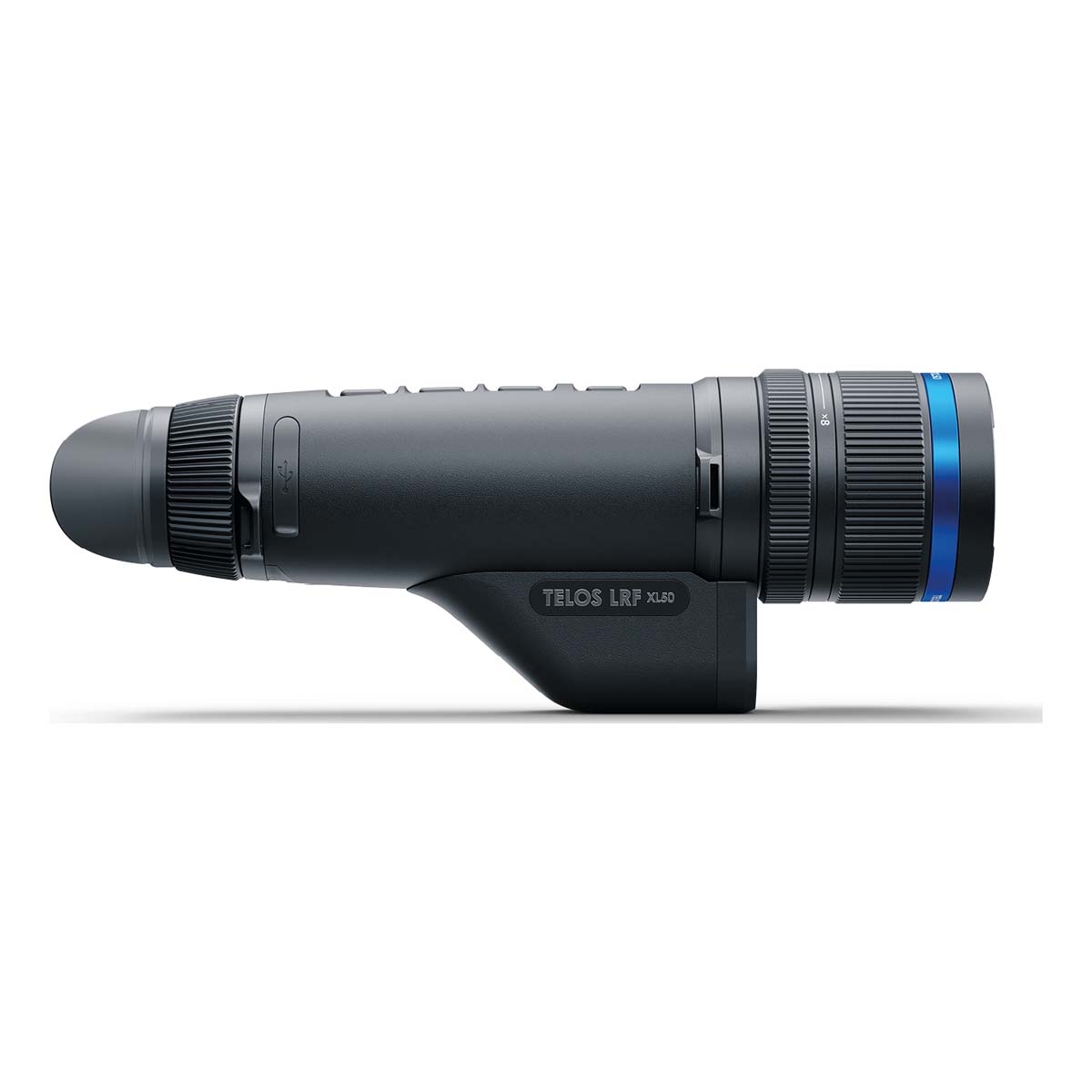

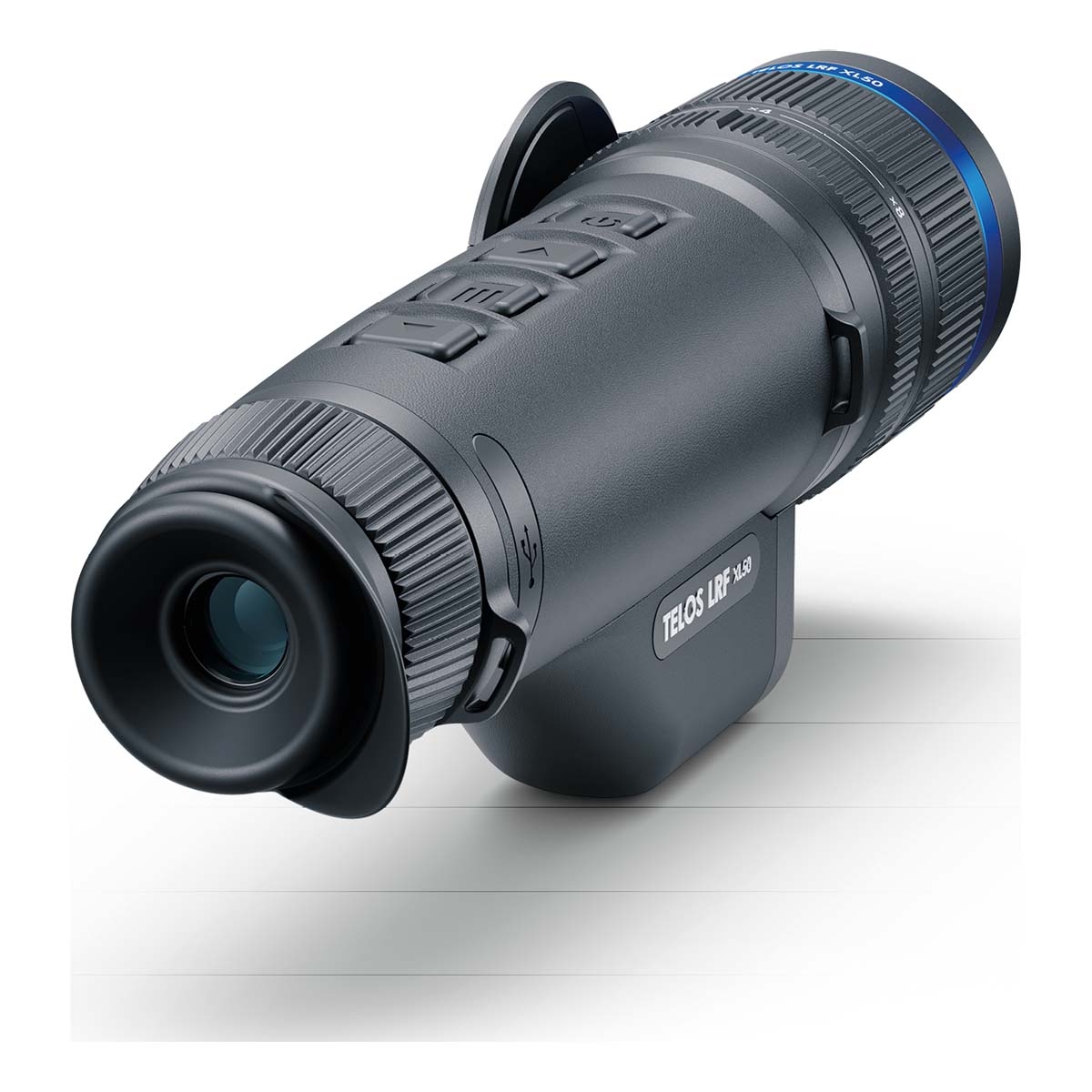

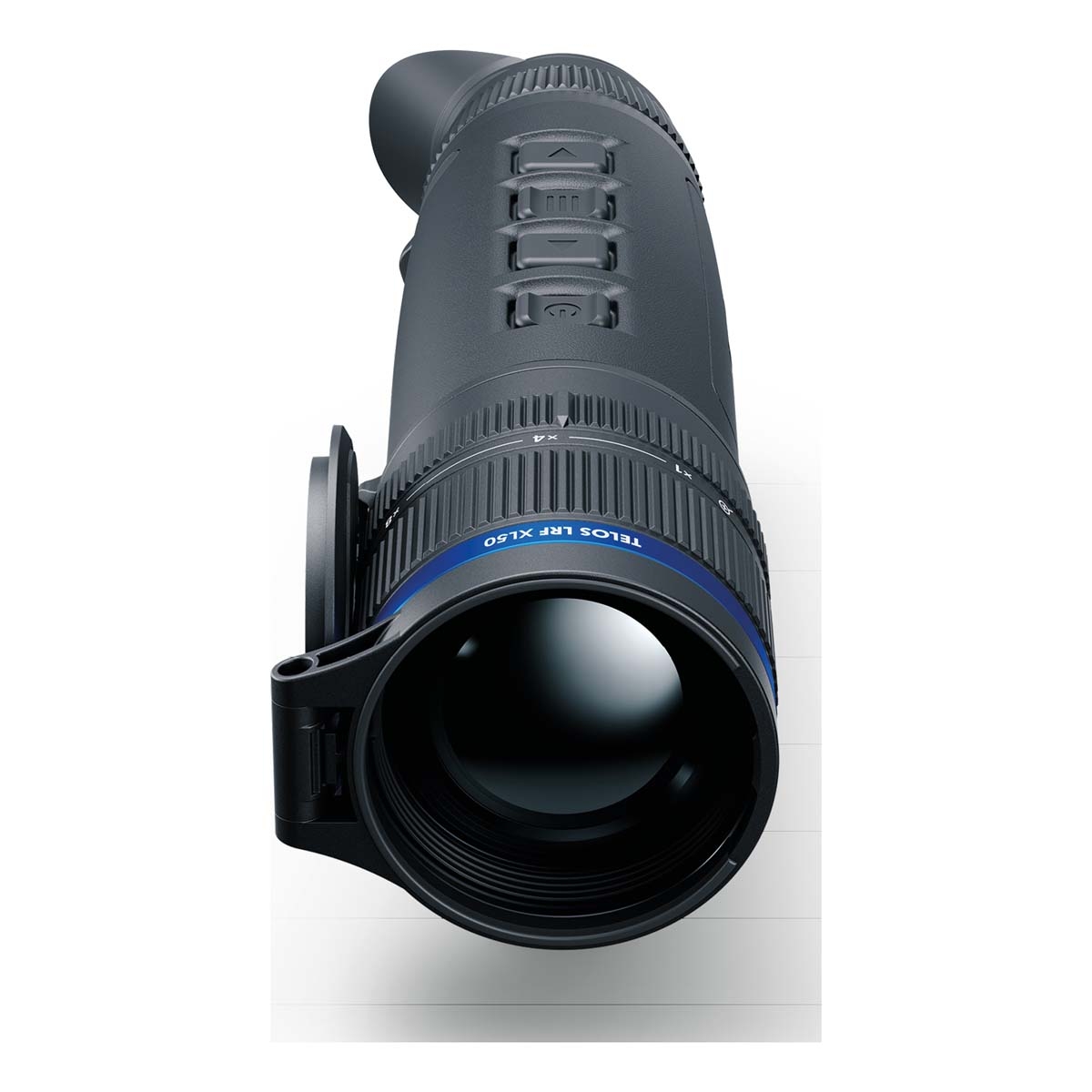

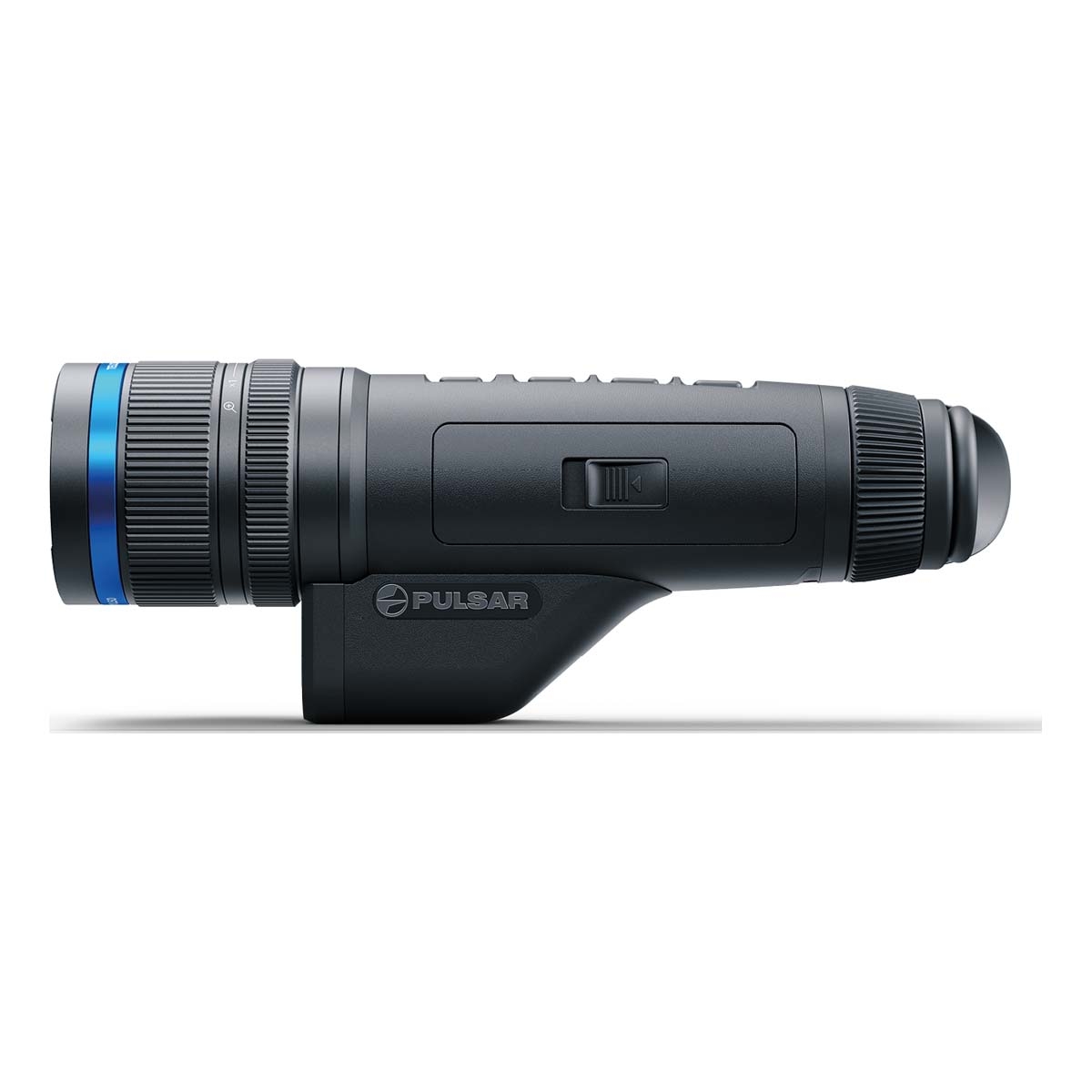

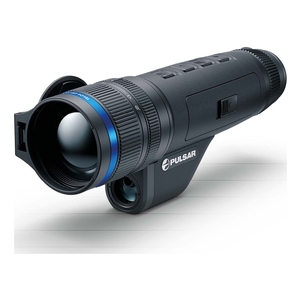

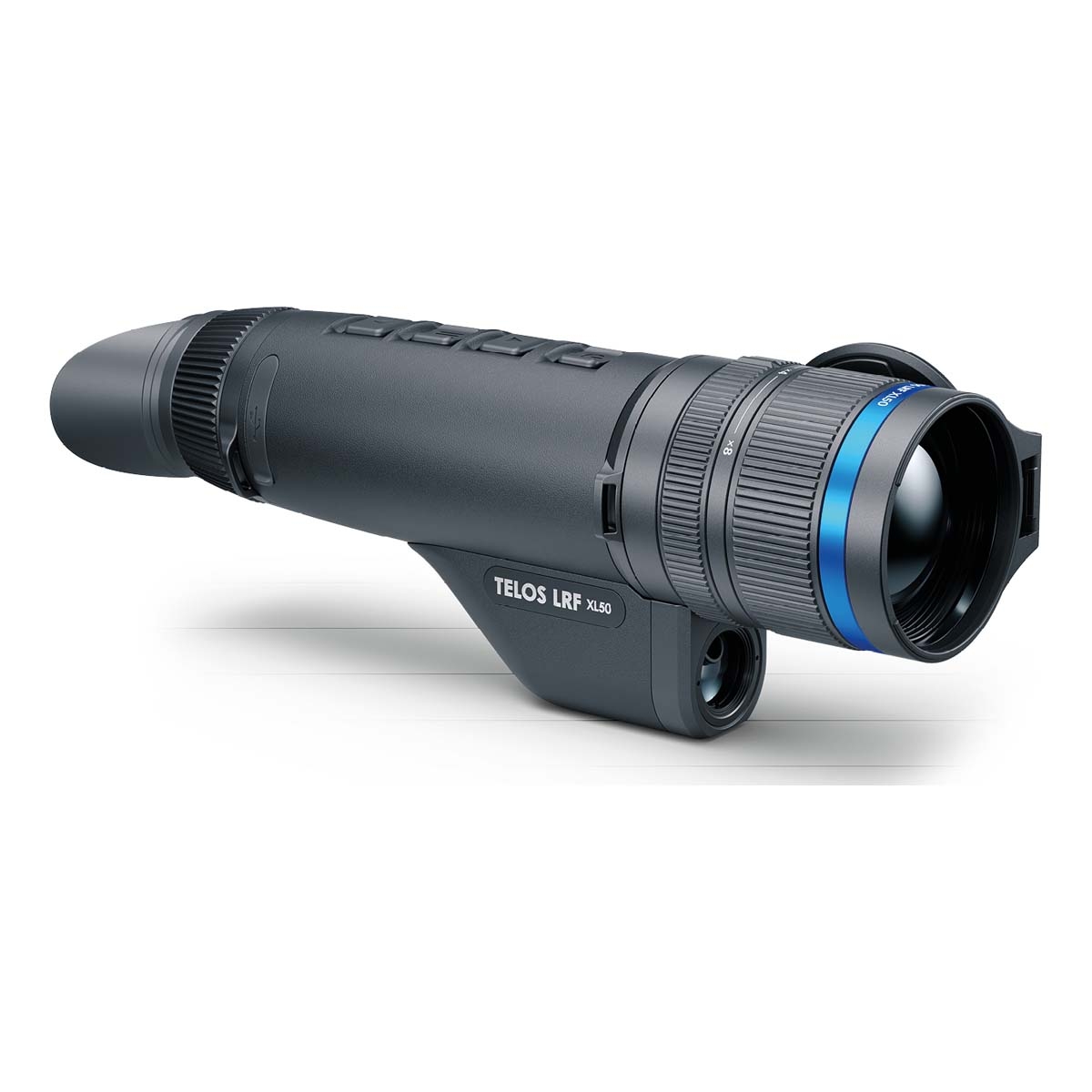

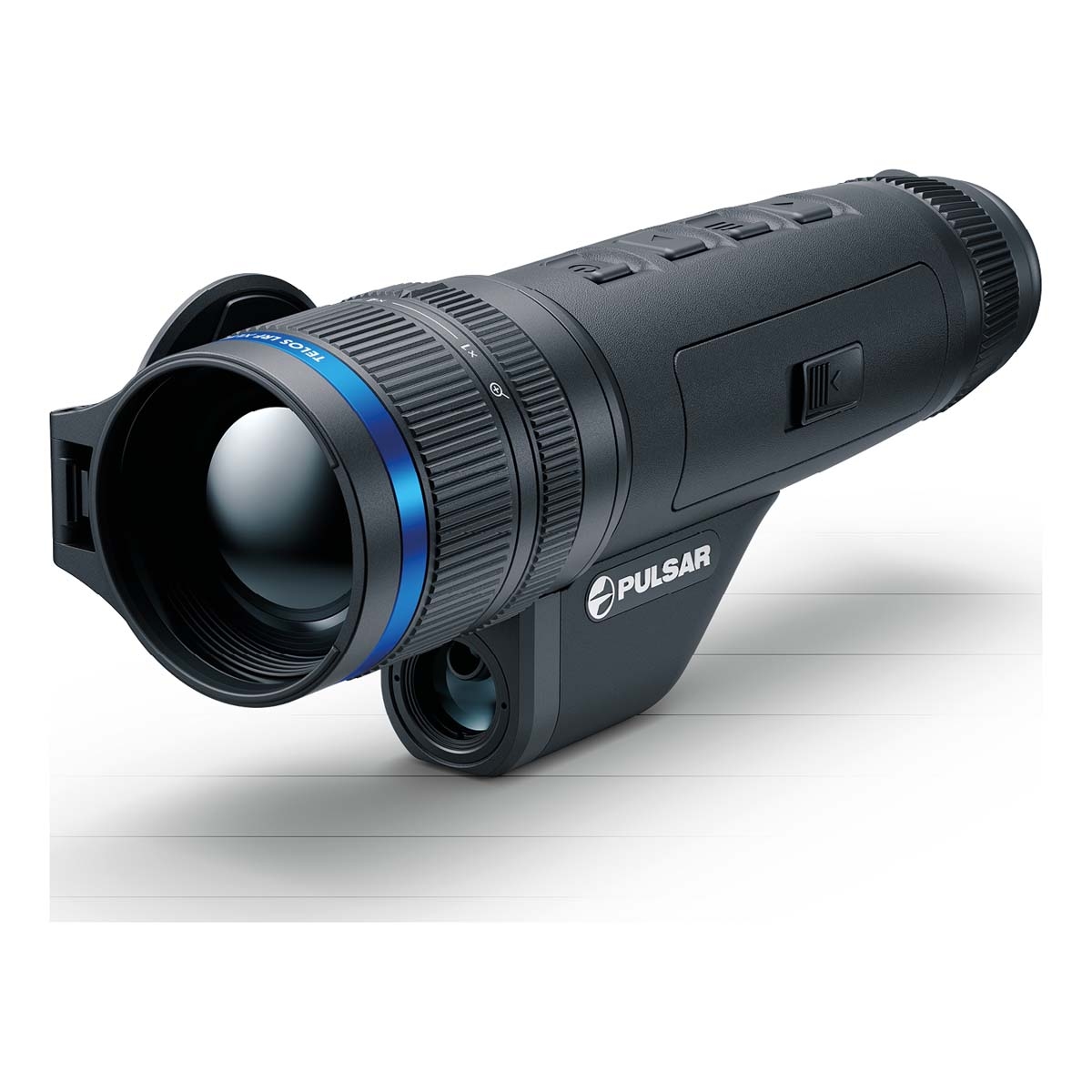

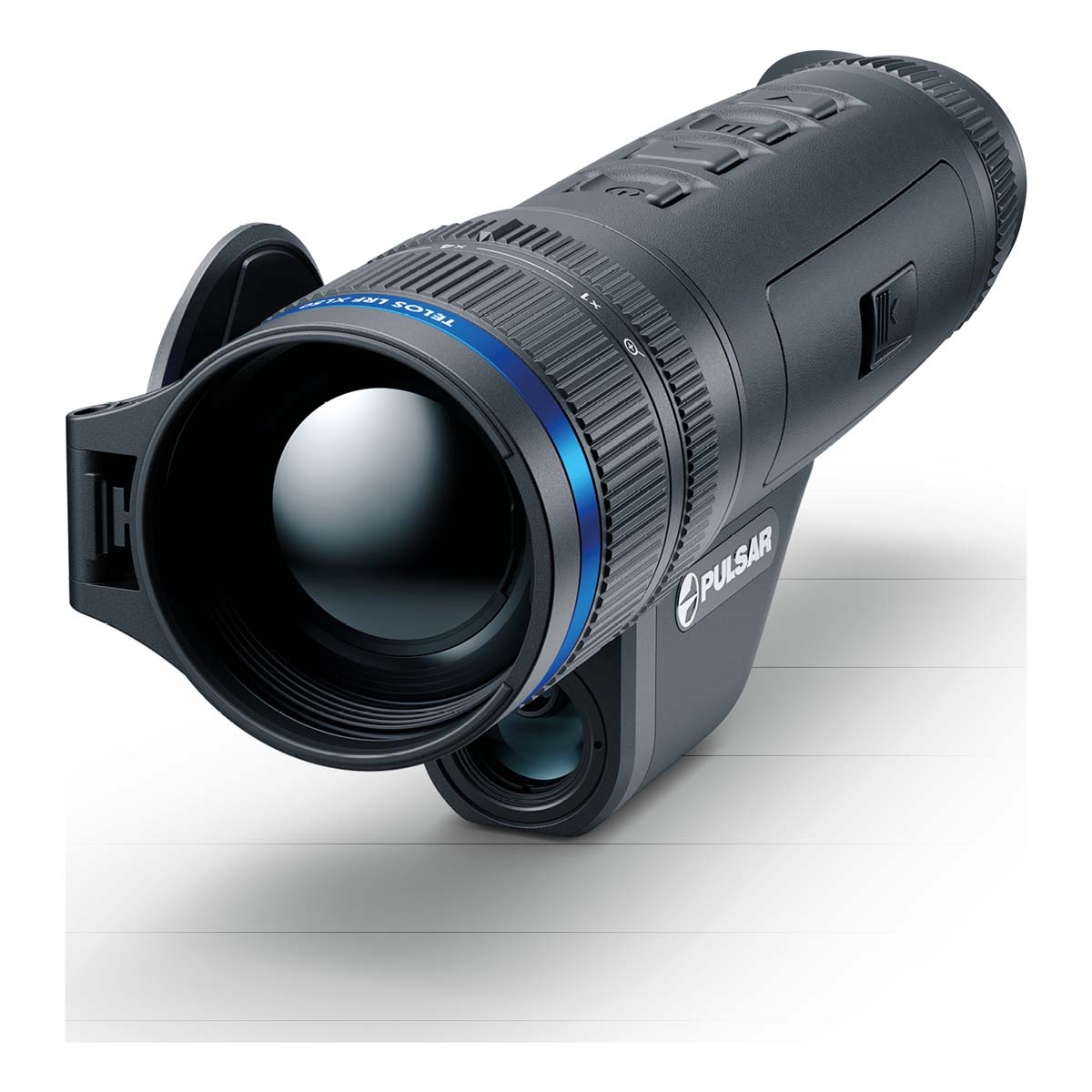

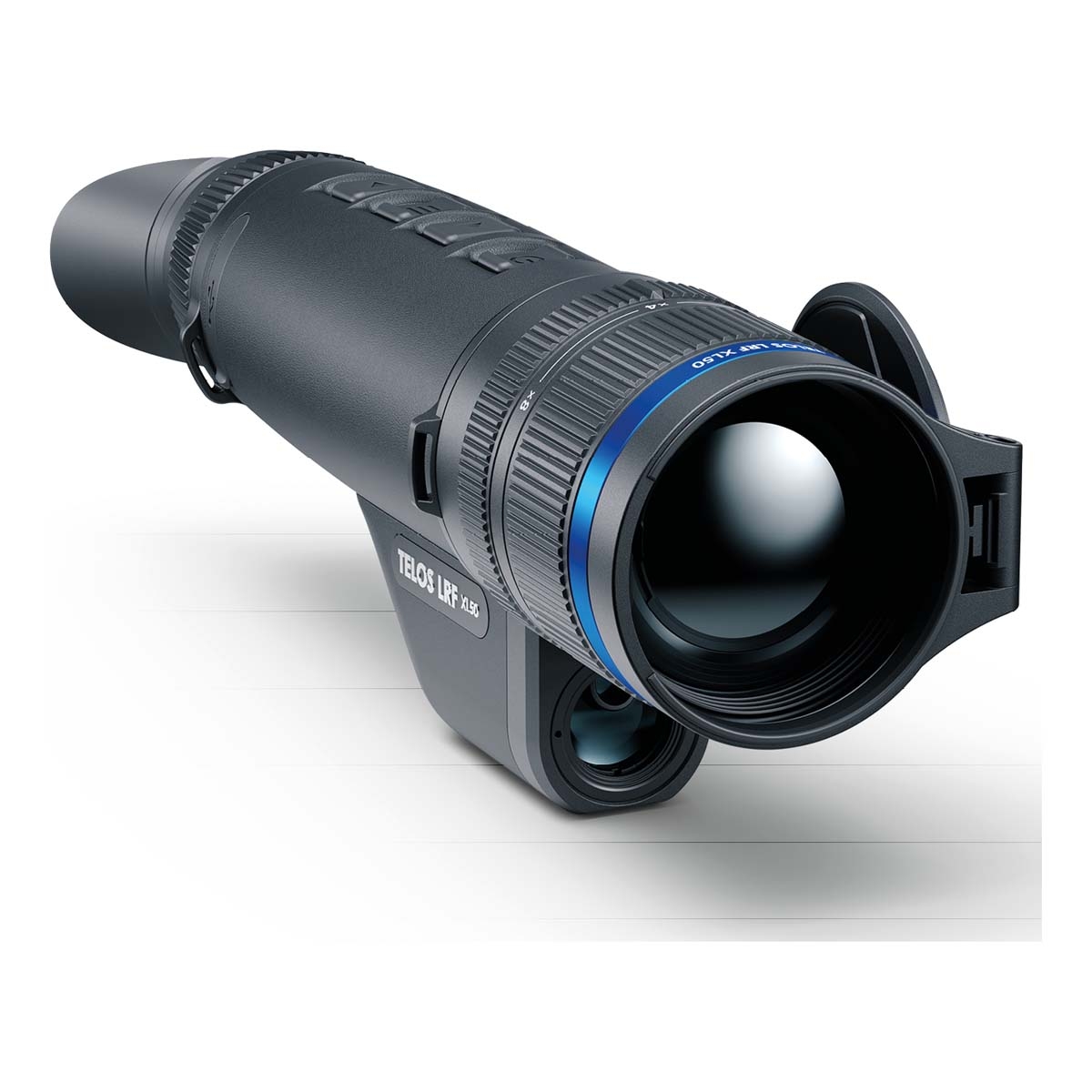

Pulsar Telos LRF XL50 Thermal Imager

The Pulsar Telos LRF XL50 is a high-resolution thermal imaging monocular with an integrated laser rangefinder. Its 1024x768 thermal sensor, 50mm f1.0 lens and 2.5x starting magnification provide a wide view for scanning, with digital magnification for closer inspection of distant subjects.

High-resolution thermal observation

The LRF XL50’s 14° horizontal field of view lets you scan a broad area at the 2.5x starting magnification. Zoom up to 20x when you want a closer look, while Pulsar’s Image Boost processing enhances detail and contrast within the thermal image.

Adjustable sensitivity, brightness and contrast settings let you tailor the picture to the scene and observation conditions. The 1024x768 AMOLED display presents the image through the monocular’s viewfinder.

Telos LRF XL50 or LRF XG50?

The Telos LRF XG50 is an alternative if you prefer a more magnified starting view. Both models feature a 50mm f1.0 lens and an integrated laser rangefinder, but their sensors and fields of view differ:

• LRF XL50: 1024x768 sensor, 2.5x starting magnification and 14° horizontal field of view.
• LRF XG50: 640x480 sensor, 3.5x starting magnification and 8.8° horizontal field of view.

Choose the LRF XL50 if a wider starting view and more sensor pixels are important to you. Consider the LRF XG50 if you prefer greater initial magnification. The Telos LRF XT50 offers another step up in sensor resolution and a wider starting field of view.

Integrated laser rangefinder

The built-in rangefinder measures distances up to 1000m with a stated accuracy of ±1m. Choose single measurements or continuous scanning to assess the distance to a subject and its surroundings.

The quoted detection range is up to 2300m. Detecting a heat source at that distance does not guarantee that it can be identified: the detail available depends on the subject and conditions.

Controls, recording and connectivity

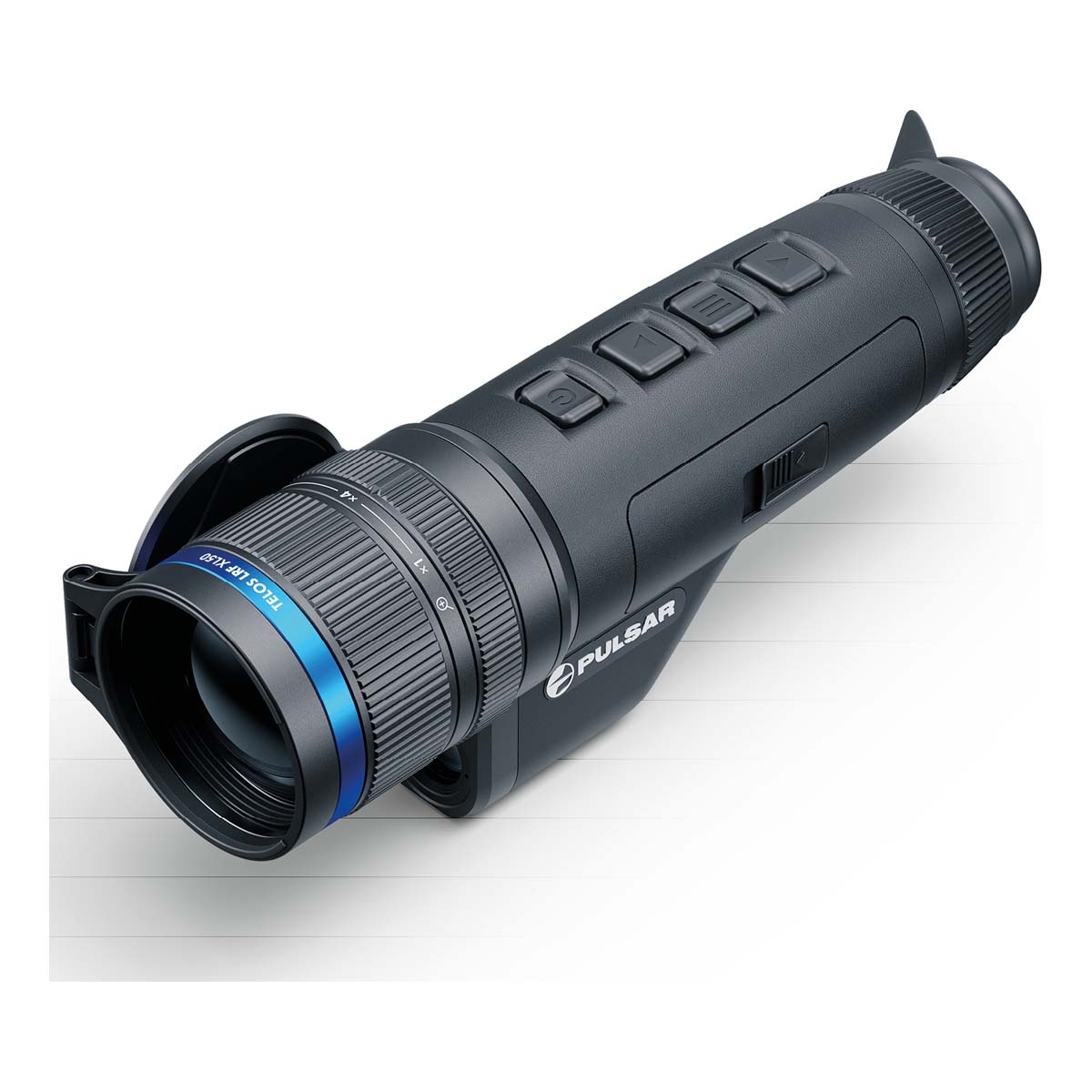

Focus and magnification rings at the front of the monocular allow you to adjust the view, while the hand strap can be positioned for left- or right-handed use. The menu and controls can be customised to prioritise frequently used functions.

Capture still photographs and video with audio to the internal memory. Stream Vision 2 connectivity lets you use a compatible phone or tablet to download recordings, control settings remotely and update firmware.

Specifications

• Thermal sensor: 1024x768 pixels, 12µm pixel pitch
• Sensor sensitivity: <40mK NETD
• Frame rate: 50Hz
• Objective lens: 50mm f1.0
• Magnification: 2.5-20x, with 8x digital zoom
• Field of view: 14° x 10.5° / 24.6 x 18.5m at 100m
• Eye relief: 14mm
• Display: 1024x768 AMOLED
• Detection range: up to 2300m
• Laser rangefinder: up to 1000m, ±1m accuracy
• Laser wavelength: 905nm
• Laser safety class: Class 1, IEC 60825-1:2014
• Video recording: Yes, with audio
• Video resolution: 1024x768 pixels
• Video / photo format: .mp4 / .jpg
• Built-in memory: 64GB
• Wi-Fi: IEEE 802.11 b/g/n/ac, 2.4GHz / 5GHz
• Supported application: Stream Vision 2
• Protection rating: IPX7
• Operating temperature: -25°C to +40°C
• Tripod mounting: 1/4in
• Battery: LPS 7i Li-ion battery pack, 6400mAh
• Output voltage: 3.0-4.2V
• Battery operating time: up to 7 hours at 22°C
• External power: 5V / 9V USB Type-C Power Delivery
• Body: rubber-armoured reinforced plastic
• Dimensions: 243 x 72 x 90mm
• Weight: 730g
