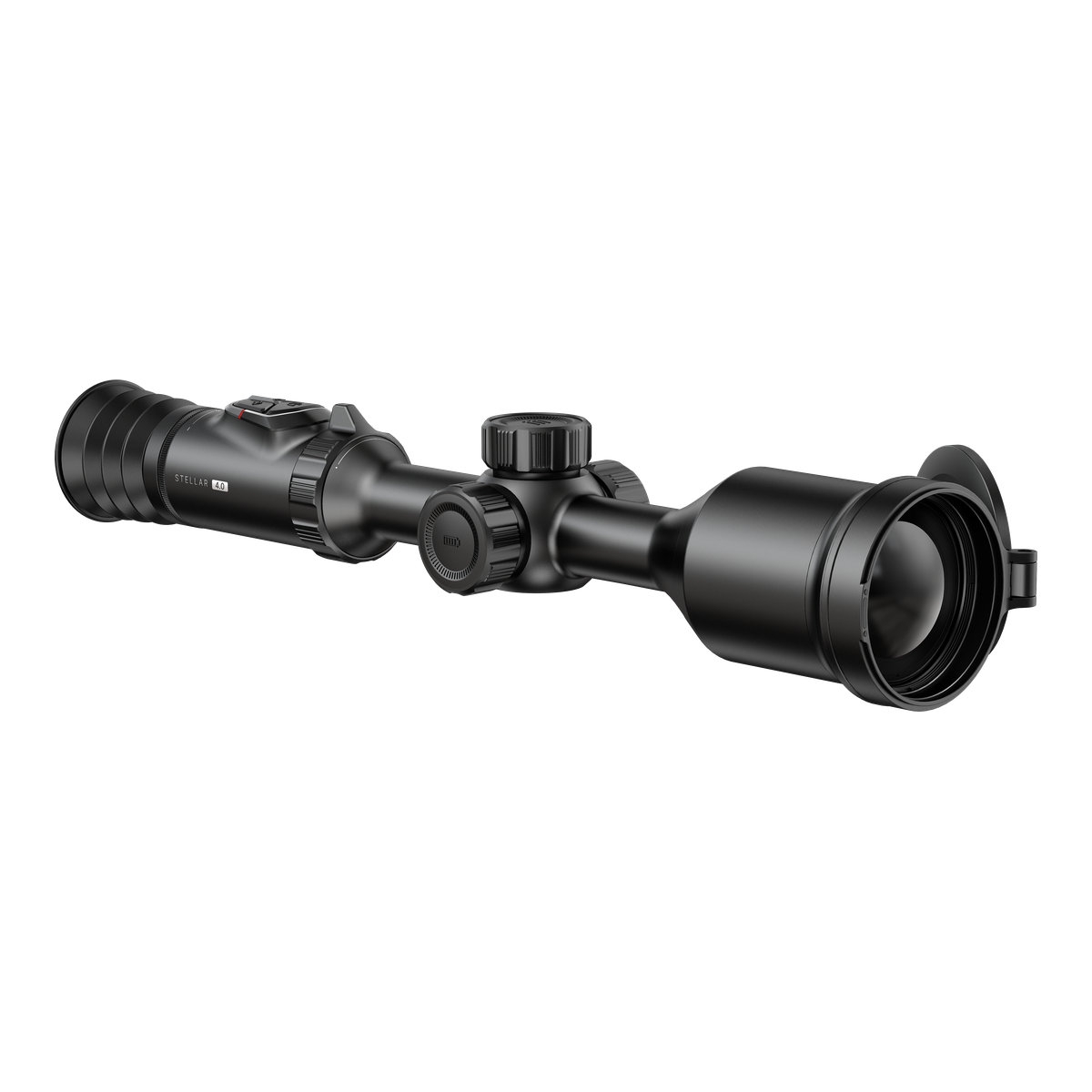

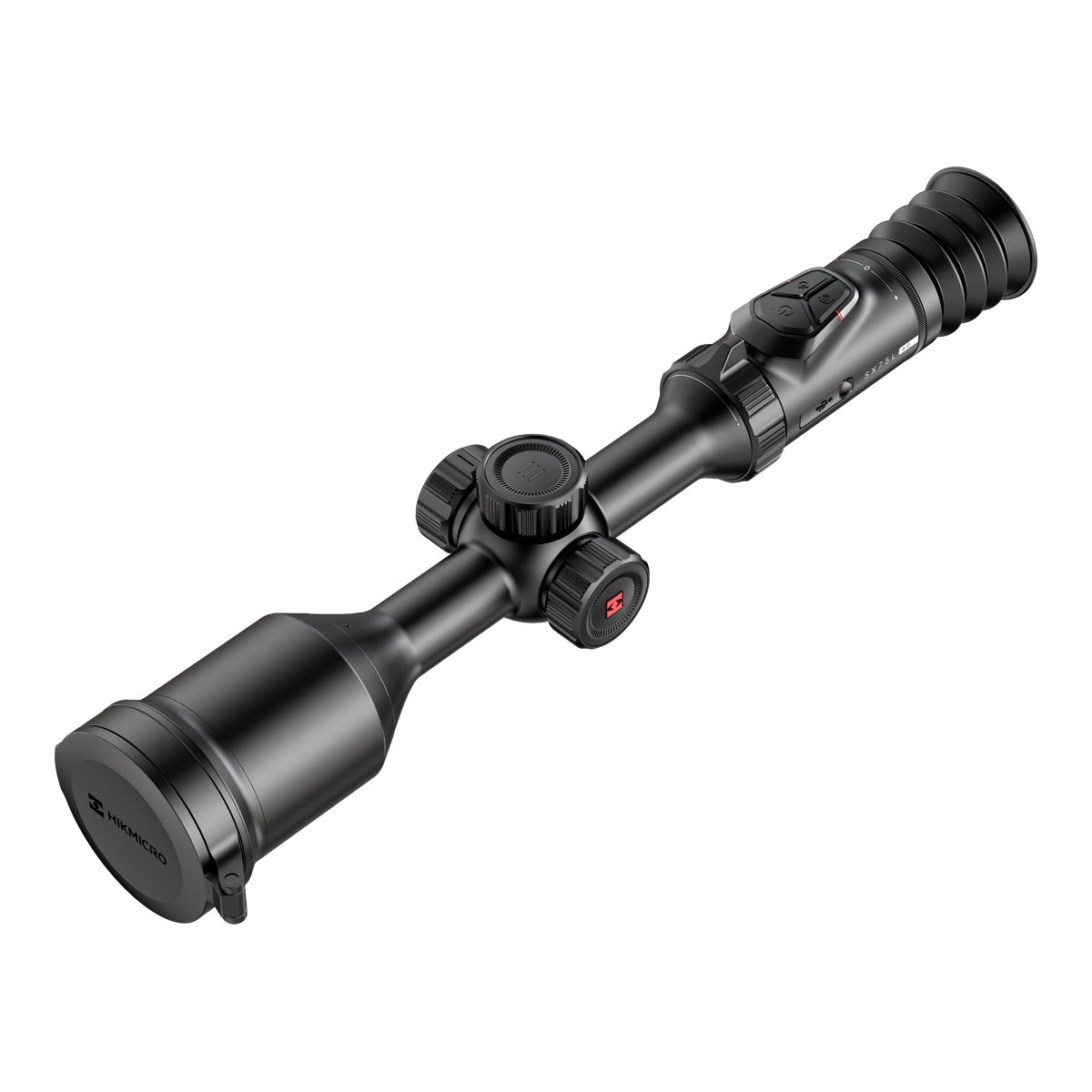

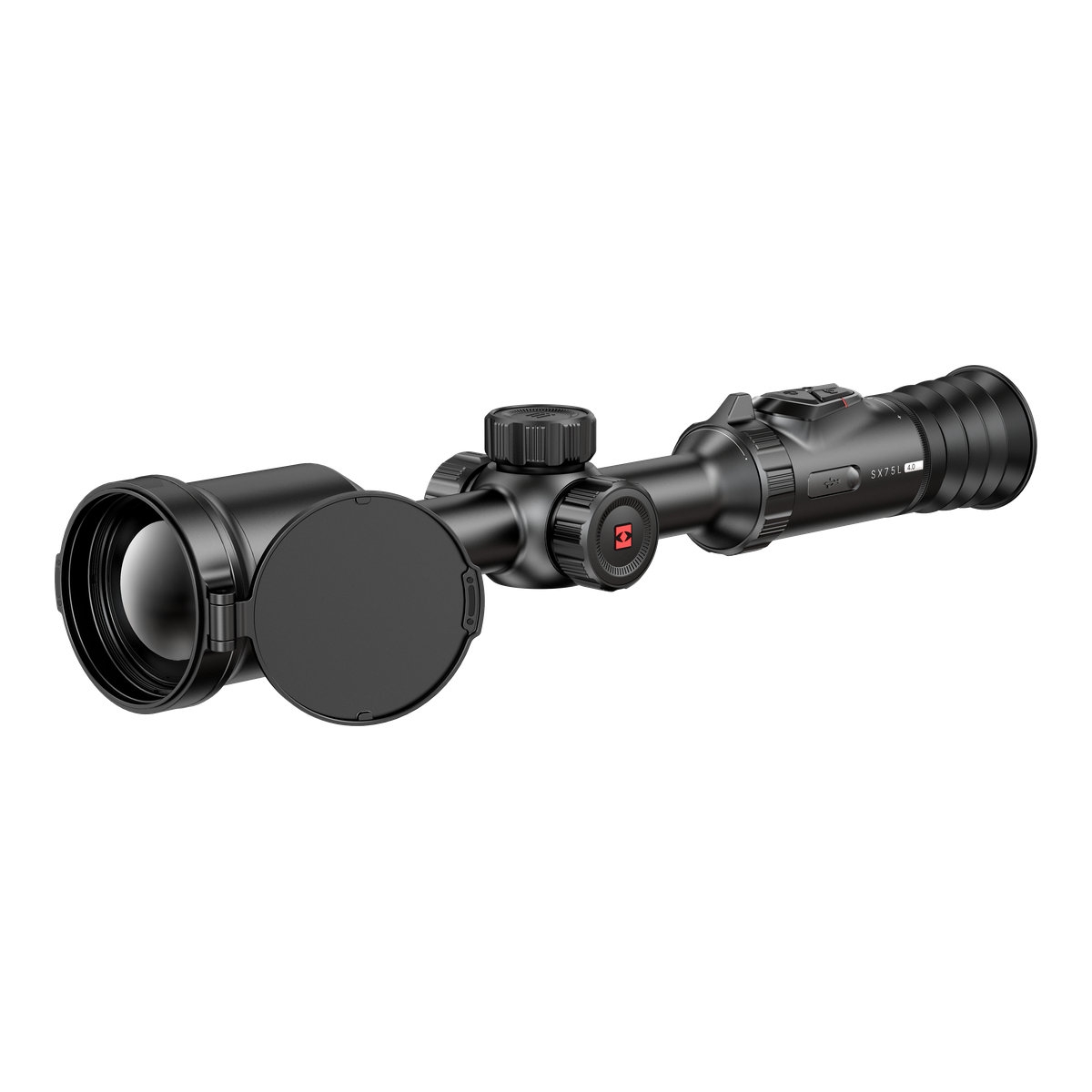

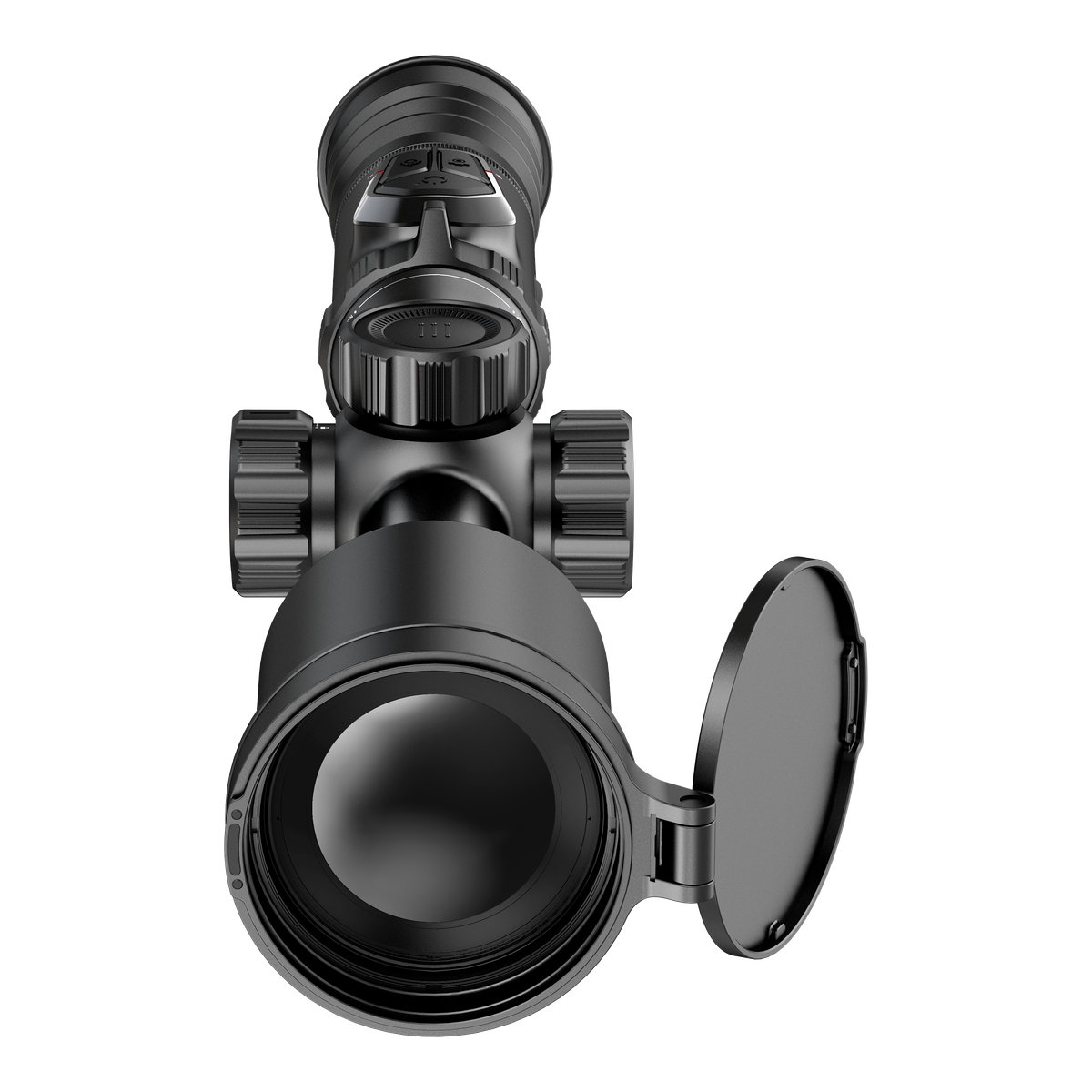

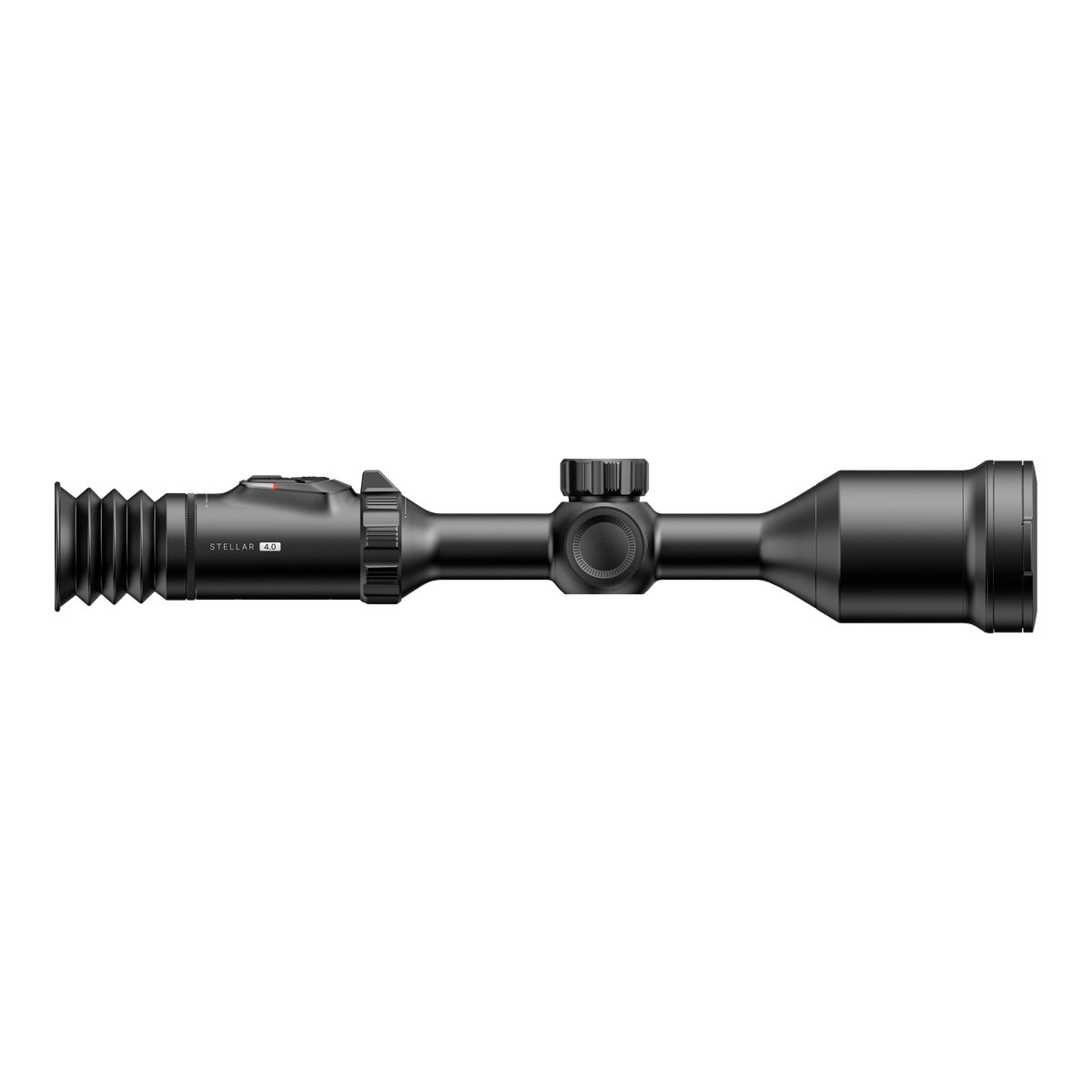

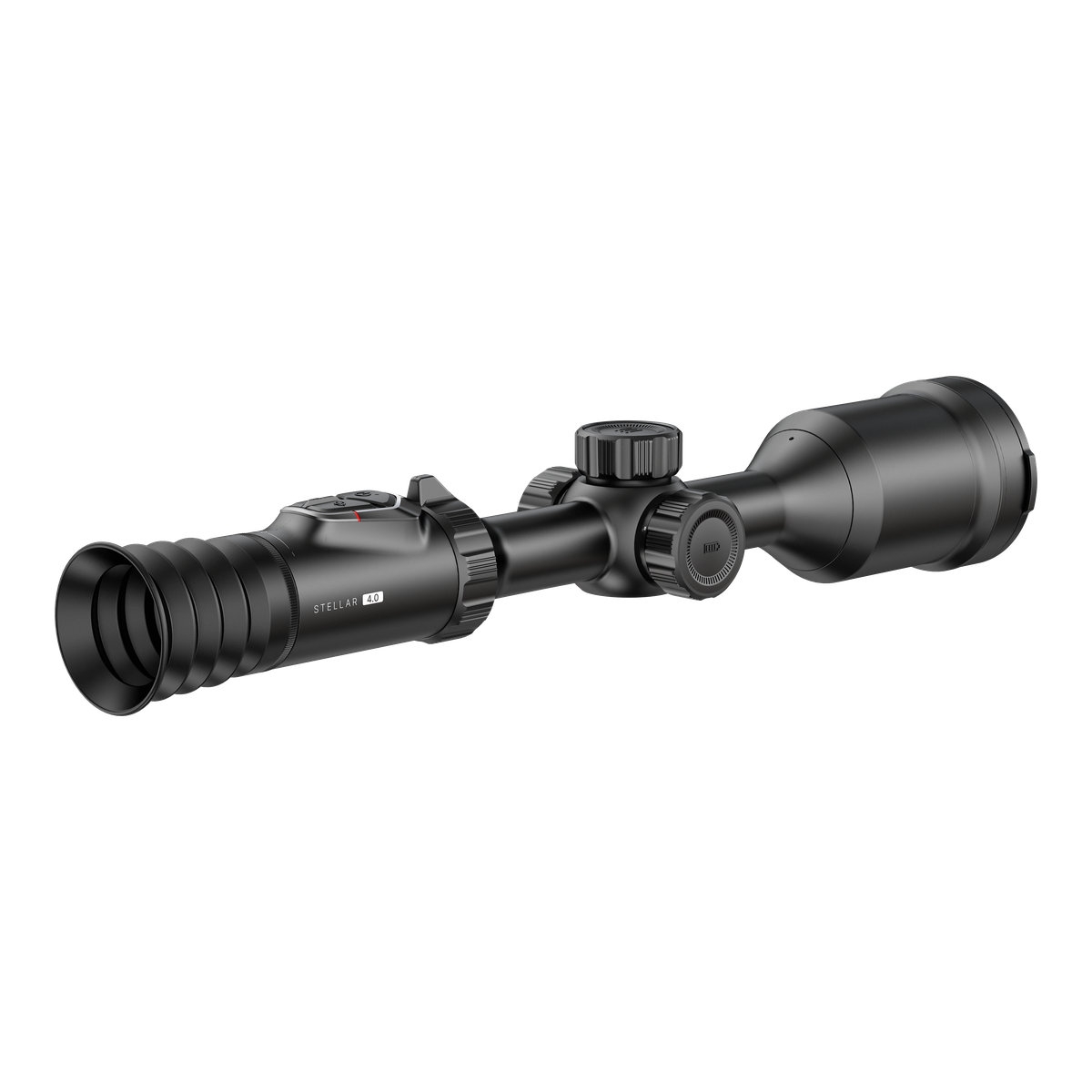

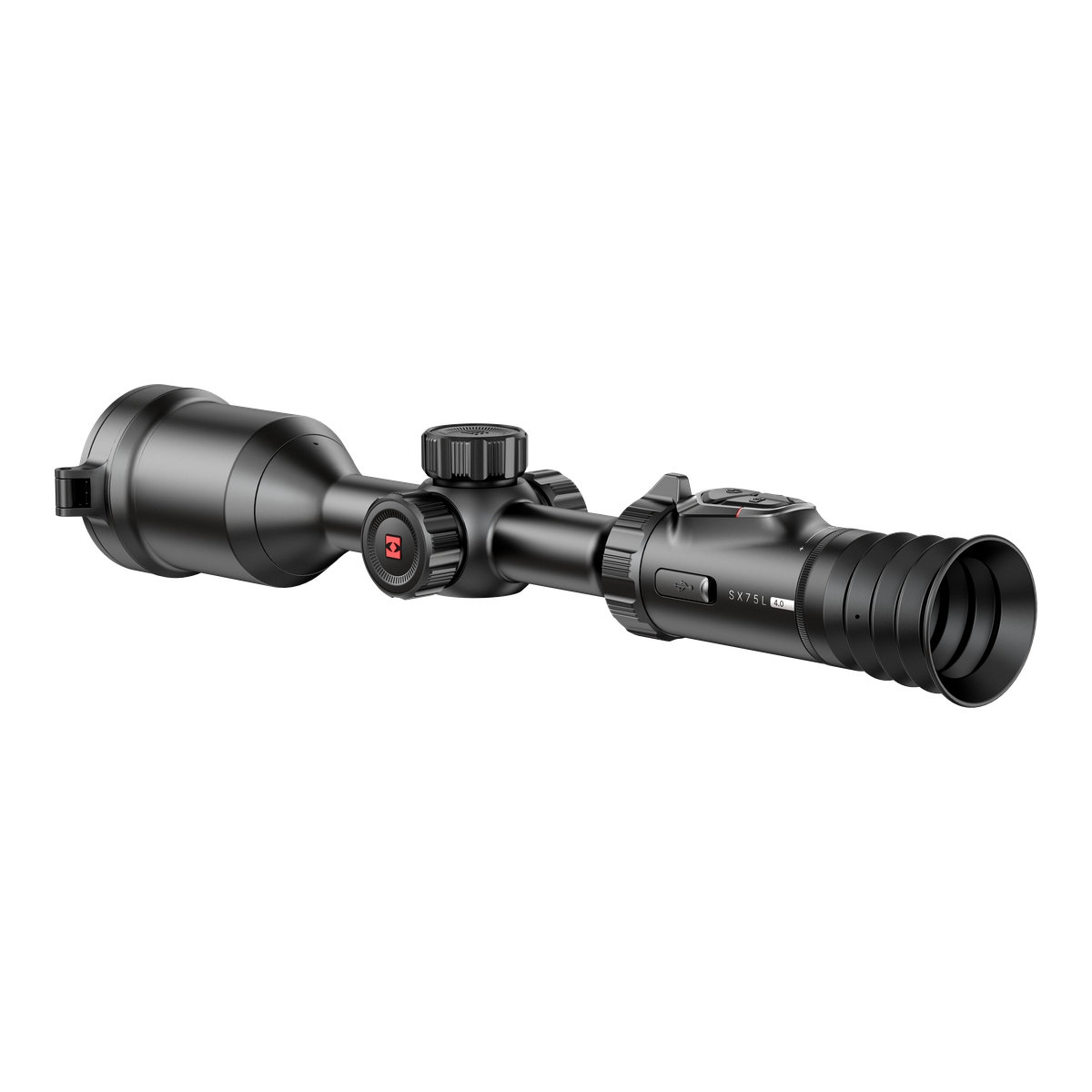

HIKMicro Stellar 4.0 SX75L Thermal (1280x1024) Riflescope

The HIKMICRO Stellar SX75L 4.0 is a thermal riflescope with a 1280 × 1024 sensor, 75 mm f/1.2 lens and integrated laser rangefinder. It provides 3.0–30.0× magnification and uses standard 30 mm tube mounting.

Key features

• 1280 × 1024 thermal sensor with a sensitivity of less than 12 mK
• 75 mm f/1.2 lens with side focus
• Integrated laser rangefinder with a measuring range of up to 1,200 m
• 1.03-inch AMOLED display with shutterless imaging
• Ballistic calculation, five zeroing profiles and freeze zeroing
• On-board recording with 64 GB of storage
• Standard 30 mm tube mounting

Choosing between Stellar 4.0 models

Compared with the SQ50, the SX75 combines a higher-resolution sensor with a wider stated field of view and longer stated detection range. The SQ50 has a higher starting magnification and longer quoted battery runtime. Detection range describes the manufacturer's stated detection capability, not the distance at which a target can be identified. Both models have a 1,200 m rangefinder; detection and rangefinder distances are different measurements.

The SX75LR 4.0 uses rail mounting instead. Check the mounting arrangement suits your rifle and mounts before choosing.

Viewing and operation

A side focus ring and magnification control accompany the 1.03-inch AMOLED display. HIKMICRO's shutterless image system, Image Pro 4.0, Zoom Pro and Sync Pro are included, alongside six display palettes and picture-in-picture viewing.

The integrated rangefinder measures from 10 to 1,200 m, and the scope includes ballistic calculation, five zeroing profiles and freeze zeroing. On-board video and audio recording, recoil-activated recording and snapshots are stored in 64 GB of built-in memory.

Power and mounting

The power system combines two internal rechargeable lithium batteries with a replaceable rechargeable 18650 battery. The stated continuous runtime is 7 hours at 25°C with the rangefinder on. USB-C charges the internal batteries only; charge the external battery using the battery charger.

Specifications

• Thermal sensor: VOx uncooled focal plane array, 1280 × 1024 pixels
• Pixel pitch: 12 µm; frame rate: 50 Hz; response waveband: 8–14 µm
• Thermal sensitivity (NETD): less than 12 mK
• Objective lens: 75 mm f/1.2; side focus; minimum focusing distance: 10 m
• Magnification: 3.0–30.0×
• Field of view: 12.1° × 9.7°; 21.2 × 17 m at 100 m
• Stated detection range: 3,600 m
• Display: 1.03-inch AMOLED, 2560 × 2560 pixels
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome and Green Monochrome
• Eye relief: 55 mm; exit pupil: 8 mm; dioptre adjustment: −5 to +5 D
• Flat-field correction: automatic, manual or external
• Display adjustments: brightness, contrast and warm or cold tone
• Image functions: HIKMICRO shutterless image system, Image Pro 4.0, Zoom Pro, Sync Pro, picture-in-picture and hot tracking
• Recording: video, audio, snapshots and recoil-activated video; 64 GB built-in memory; local album
• Other functions: hotspot, standby, ballistic calculation, five zeroing profiles and freeze zeroing
• Rangefinder: 10–1,200 m; accuracy ±1 m; 905 nm wavelength; Class 1 laser
• Maximum recoil: 6,000 J
• Battery: two internal rechargeable lithium batteries and one replaceable rechargeable 18650 battery
• Runtime: 7 hours continuous at 25°C with rangefinder on
• External power: USB-C, 5 V DC/2 A, with QC3.0 support; USB-C charges internal batteries only
• Mounting: standard 30 mm tube mounting
• Dimensions: 445.7 × 93.5 × 78.7 mm; weight: 1,075 g with external battery
• Centre height: 41 mm; protection rating: IP67
• Operating temperature: −30°C to 55°C
