Vanguard PH-24 Travel Tripod Head

VEO PH-24 Arca Compatible 2-Way Pan Head for Spotting Scopes on Travel Tripods

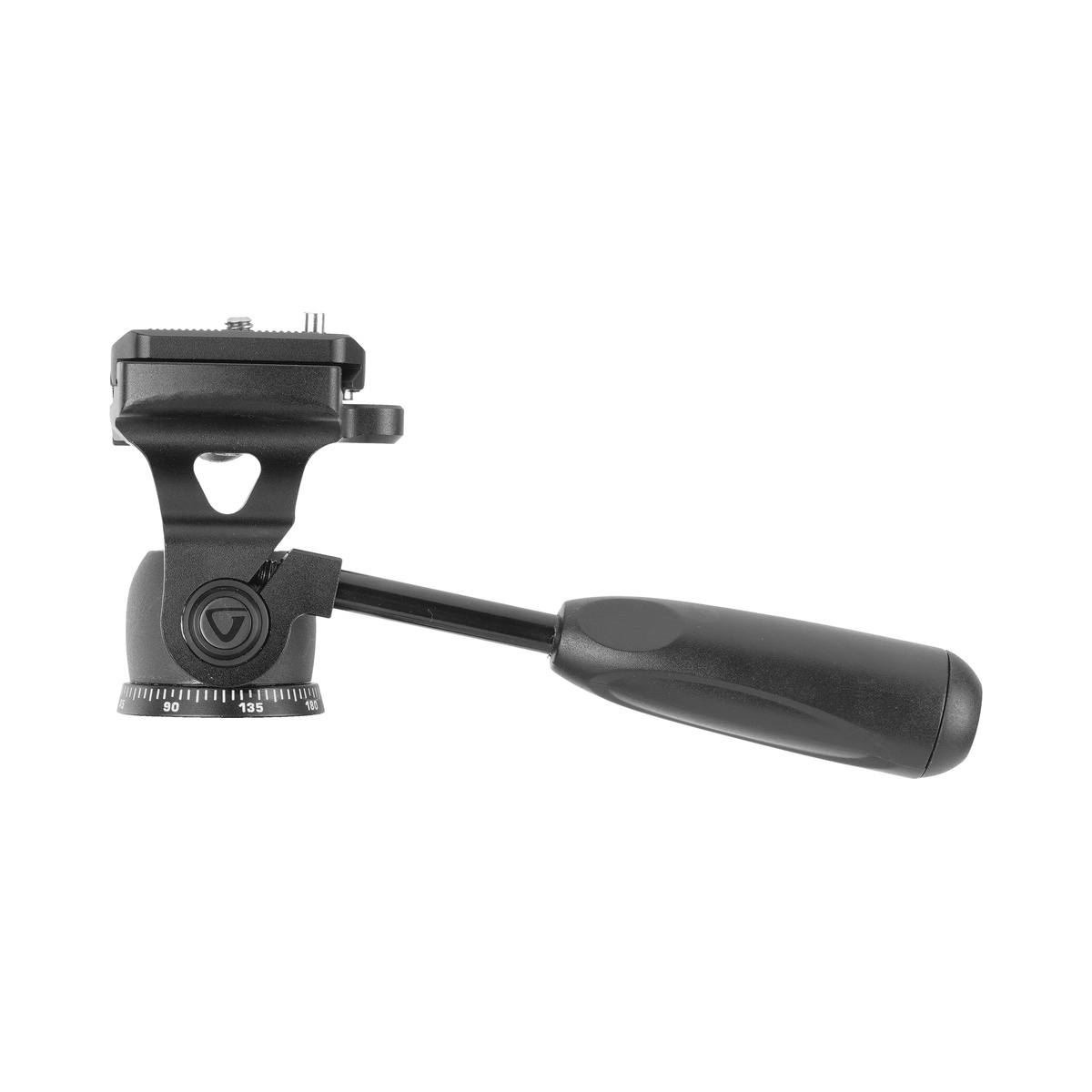

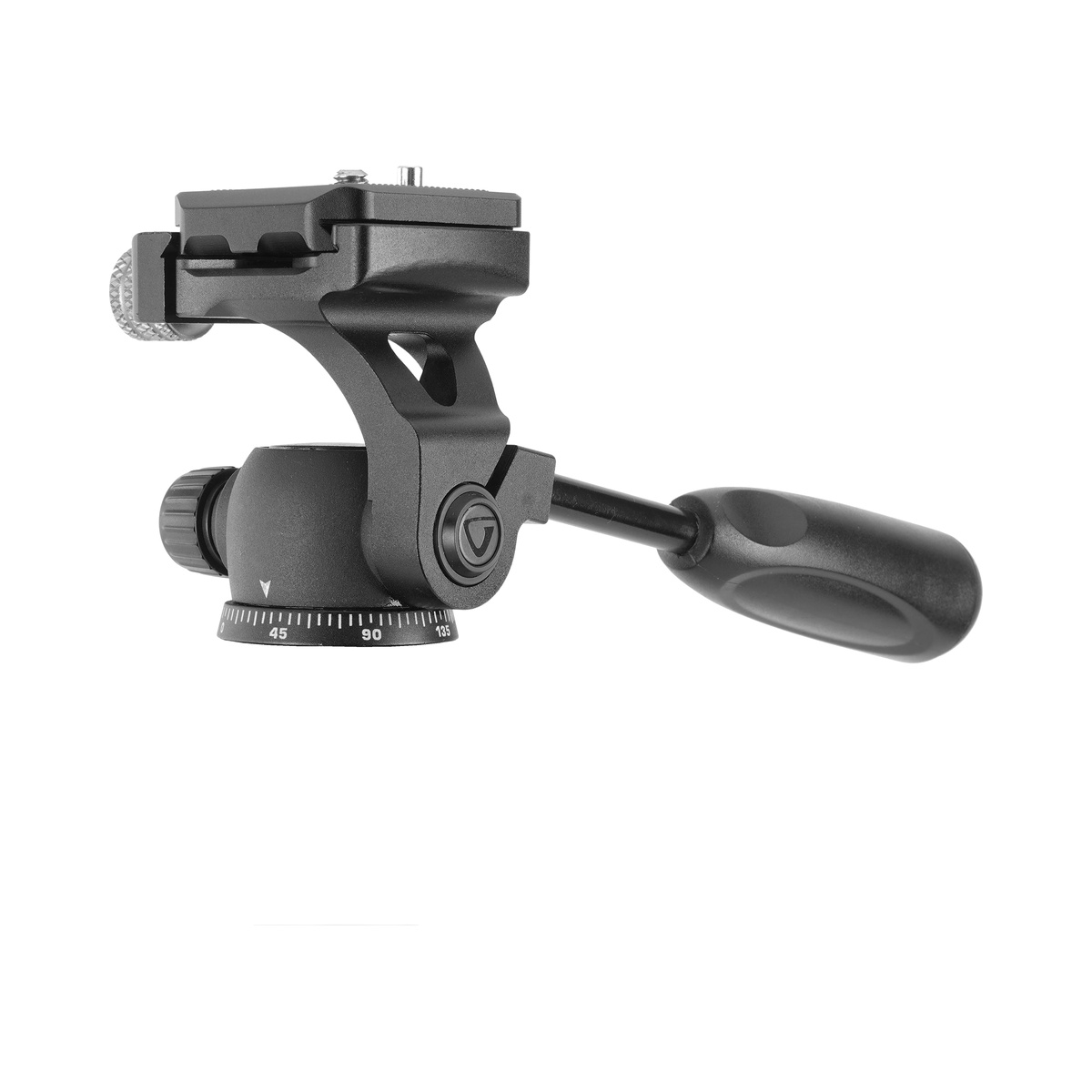

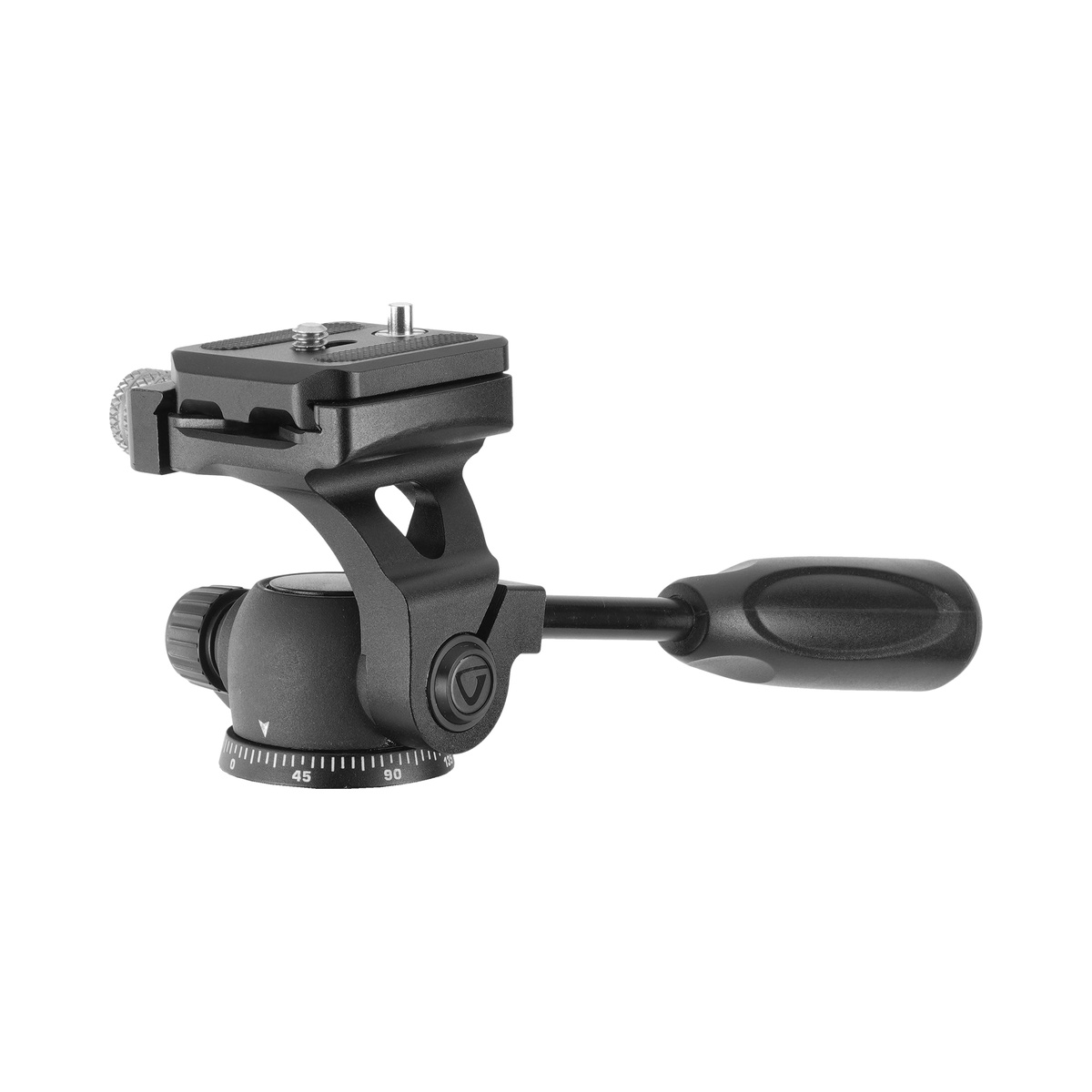

The Vanguard VEO PH-24 is a compact two-way pan head designed for spotting scopes on travel tripods. Combining a 290g aluminium alloy construction with a maximum load capacity of 5kg, it offers smooth directional control for birdwatching, long lenses and content creation.

Handle-operated tilt and a separate pan lock allow you to follow moving subjects and secure the viewing position when required. Its 42mm base makes it particularly suited to compact travel supports.

Lightweight Aluminium Construction

The head is CNC machined from lightweight aluminium alloy. A textured handle provides a comfortable grip, including in damp or cold conditions, while a single spirit bubble level assists with levelling.

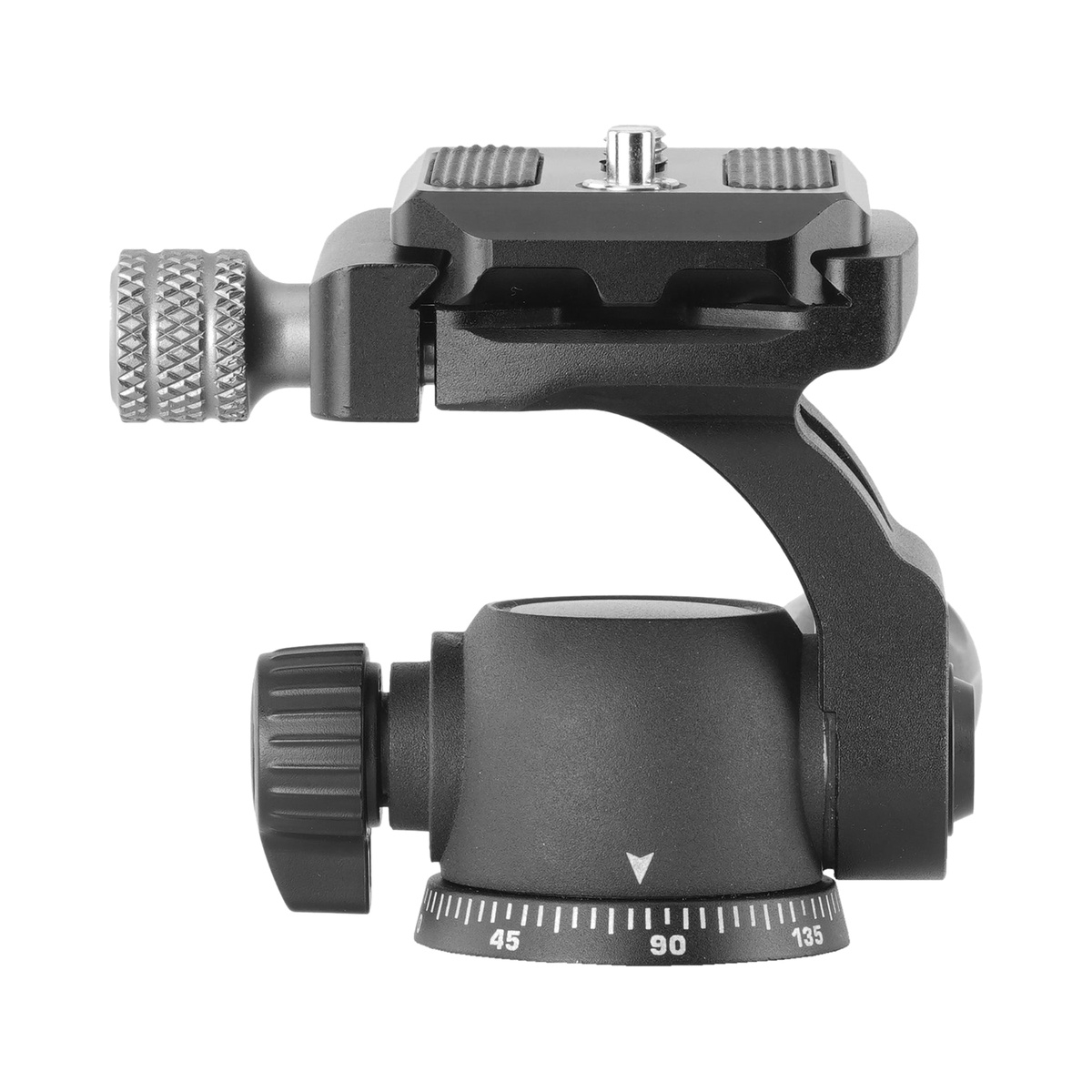

Independent Pan and Tilt Control

Turning the handle anticlockwise releases the tilt lock, allowing vertical movement from -60° to +90°. The separate pan lock controls 360° rotation, so horizontal and vertical movement can be secured independently.

For birdwatchers, this arrangement allows one-handed tracking while leaving the other hand available to adjust the spotting scope’s focus and zoom. The head can also be used for video and photography.

Arca Compatible Scope Mounting

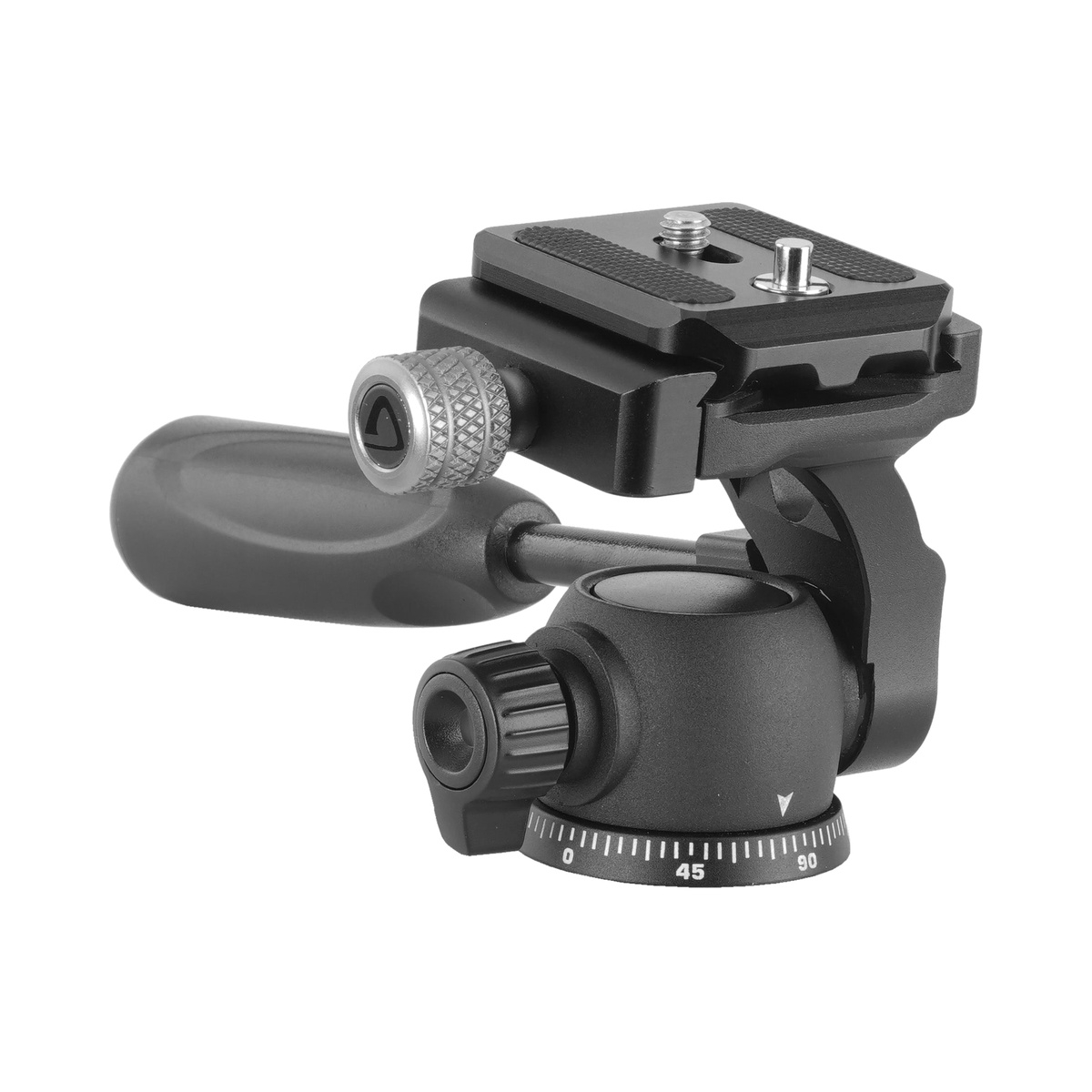

The included QS-55P quick release plate features an adjustable 1/4-inch mounting screw and a non-twist spring pin. Aligning the pin with a compatible hole in the scope’s foot helps prevent the plate from loosening during use.

Spotting scopes with a compatible Arca mounting foot can attach directly to the clamp without the quick release plate. Vanguard Endeavor HD and VEO HD spotting scopes support this direct mounting arrangement.

Tripod and Binocular Compatibility

A 3/8-inch threaded socket and included 1/4-inch adaptor accommodate tripods with either mounting size. The 42mm base is intended for travel-sized tripods; check the diameter of your tripod’s top plate when choosing a head.

Binoculars can also be supported using a suitable adaptor, such as the VEO BA-185 ARCA.

VEO PH-24 Key Features

• Compact two-way pan head for travel tripods.
• CNC-machined aluminium alloy construction.
• Maximum load capacity of 5kg.
• Textured handle with integrated tilt locking.
• Separate pan lock for independent horizontal control.
• Arca compatible QS-55P quick release plate with non-twist spring pin.
• Direct mounting for spotting scopes with compatible Arca feet.
• Suitable for spotting scopes, mirrorless cameras and DSLRs.

VEO PH-24 Specifications

• Head type: two-way spotting scope pan head.
• Maximum load: 5kg.
• Weight: 290g.
• Dimensions: 170mm long × 90mm wide × 75mm high.
• Base diameter: 42mm.
• Pan rotation: 360°.
• Vertical tilt: -60° to +90°.
• Handles: one.
• Spirit bubble levels: one.
• Separate pan lock: yes.
• Friction control: no.
• Tripod attachment: 3/8-inch socket with 1/4-inch adaptor.
• Included accessories: QS-55P quick release plate and thread adaptor.

VEO PH-24 Arca Compatible 2-Way Pan Head for Spotting Scopes on Travel Tripods Review

The VEO PH-24 brings together the features most relevant to a portable spotting scope setup: low weight, compact mounting dimensions and separate controls for pan and tilt. Its specification suits birdwatchers who want to follow moving subjects, alongside photographers and content creators using compatible equipment within the 5kg load limit.

Performance & Key Features

The combination of 360° panning and a -60° to +90° tilt range provides substantial freedom to position a scope. Independent locks let you secure either axis as required. Arca compatibility adds mounting flexibility, with a choice between the supplied plate and direct attachment for suitable scope feet.

Build Quality & Handling

CNC-machined aluminium alloy keeps the head’s weight to 290g, making it a practical component of a travel tripod setup. The textured handle supports operation in damp or cold conditions, while the compact 42mm base is specifically sized for smaller tripods.

Is It Easy to Use?

Tilt adjustment is operated through the handle, with a separate lock for panning. The quick release plate’s adjustable screw helps align its spring pin with the scope’s non-twist hole, and compatible Arca feet remove the need to fit a plate at all.

Key Takeaways

The strongest features are its 290g weight, independent movement locks and flexible Arca mounting. The 42mm base makes it especially relevant to compact travel tripods. There is no separate friction control, so buyers should distinguish its locking controls from adjustable movement resistance. For Uttings customers building a portable spotting scope support, it is a useful option where the mounting dimensions and 5kg capacity match their equipment.

VEO PH-24 Arca Compatible 2-Way Pan Head for Spotting Scopes on Travel Tripods FAQs

What is the maximum load capacity?

The head supports a maximum load of 5kg. This limit applies to the equipment mounted on it.

How much does the head weigh?

It weighs 290g and uses CNC-machined aluminium alloy construction. Its base diameter is 42mm.

Can pan and tilt be locked independently?

Yes. Vertical tilt is controlled and locked through the handle, while horizontal rotation has a separate pan lock.

What movement range does it provide?

The head pans through 360° and tilts vertically from -60° to +90°.

Can a spotting scope attach without a quick release plate?

Yes, provided its foot is compatible with the Arca clamp. Vanguard Endeavor HD and VEO HD spotting scopes can mount directly without the supplied plate.

How does the non-twist spring pin work?

The spring pin engages with a compatible non-twist hole in the scope’s foot. The plate’s 1/4-inch screw position can be adjusted to align the pin correctly, helping prevent the plate from loosening in use.

Which tripod mounting threads are supported?

The base has a 3/8-inch threaded socket and includes a 1/4-inch adaptor. Its 42mm base is designed for travel-sized tripods.

Can it support binoculars?

Yes, with a suitable binocular adaptor. The VEO BA-185 ARCA is one compatible option.

Is it suitable for cameras and video?

Yes. The head is suitable for mirrorless cameras and DSLRs, and can be used for photography or as a simple video head.

Does it have adjustable friction control?

No. It provides tilt locking through the handle and a separate pan lock, but does not include friction control.
