Vanguard Veo 5 264CO28 Tripod

VEO 5 264CO Carbon Fibre Spotting Scope Tripod

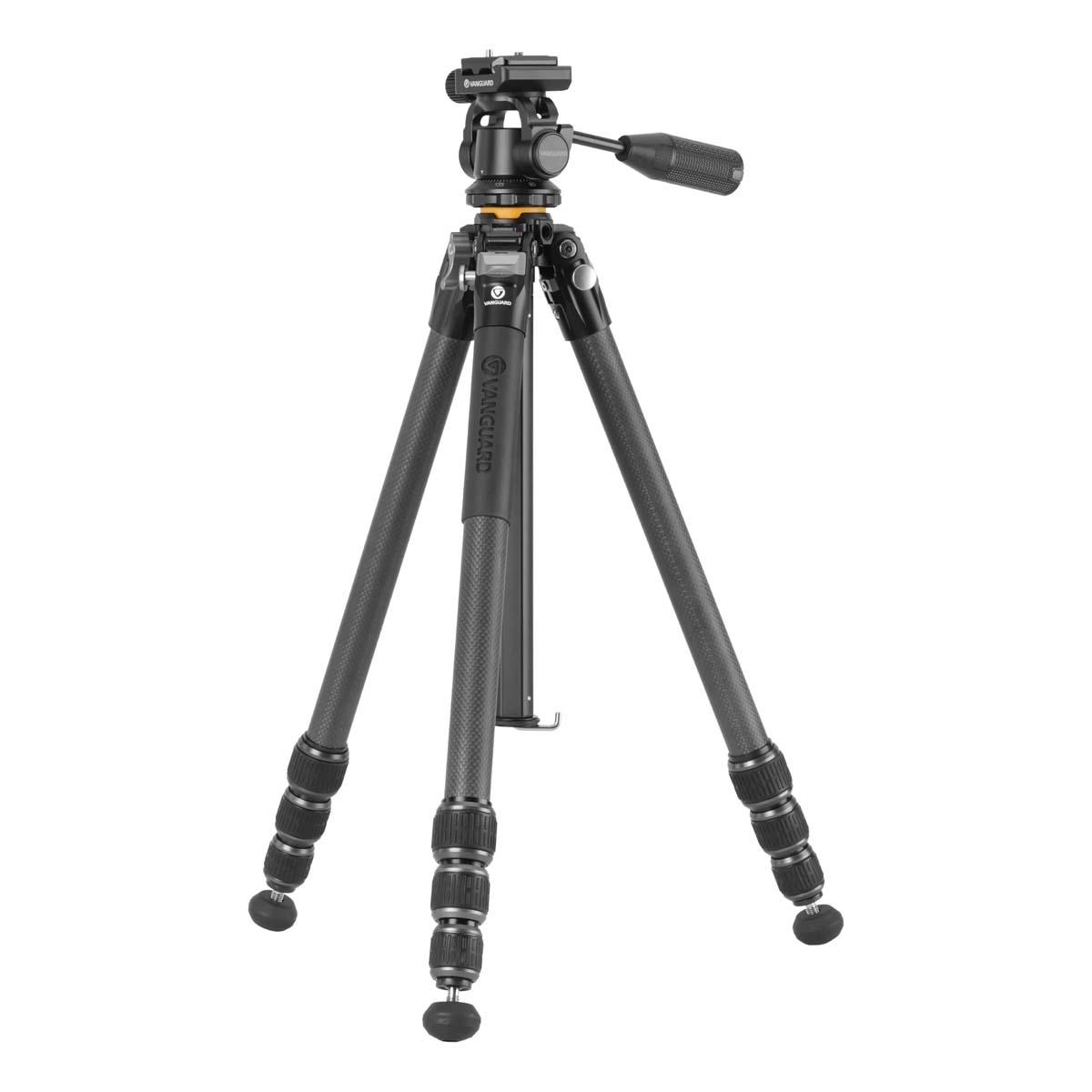

The Vanguard VEO 5 264CO is a full-sized carbon fibre tripod designed for birdwatchers and nature enthusiasts using spotting scopes. Combining an 8kg load capacity with the VEO PH-28 two-way pan head, it offers one-handed movement and locking control while leaving your other hand free to adjust focus or zoom.

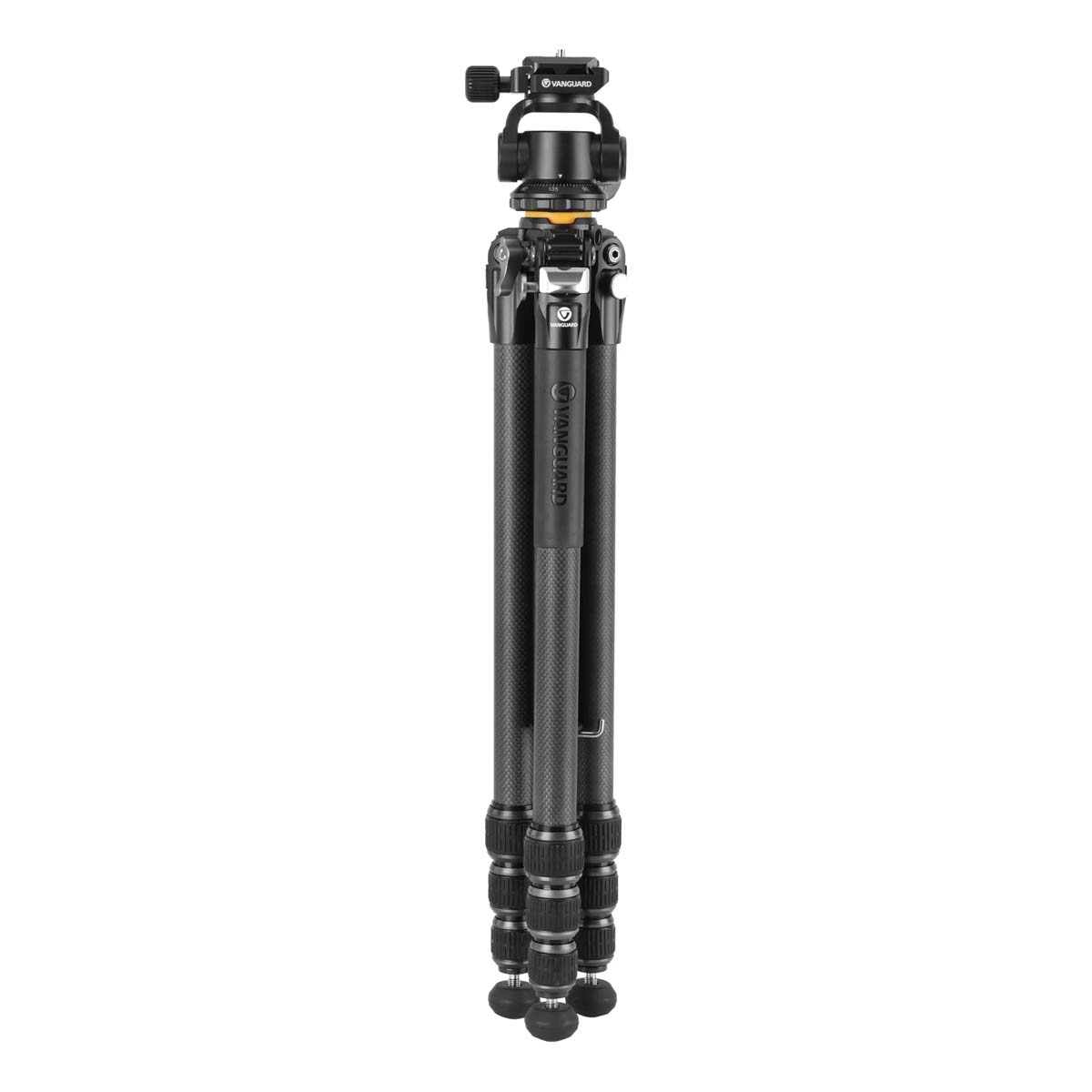

Four-section legs and a hexagonal centre column create a compact folded profile measuring 58cm long and 9.25cm in diameter. The tripod weighs 1920g and includes a luxury padded shoulder bag for carrying and storage.

Carbon Fibre Construction and Compact Folding

The 26mm carbon fibre legs are complemented by CNC-machined aluminium load-bearing components. This construction reduces unnecessary weight, including through a slimmer tripod canopy, while maintaining precise component tolerances.

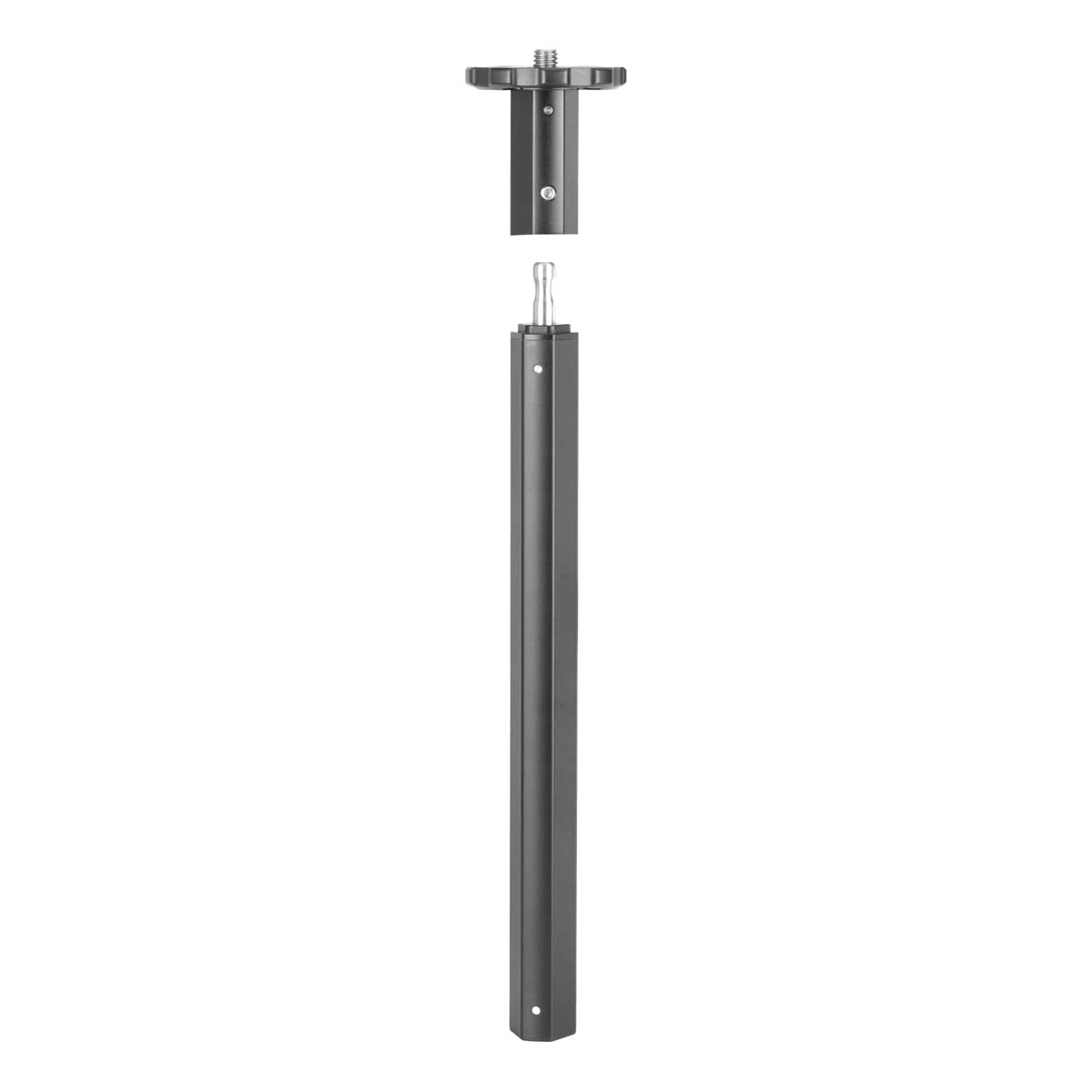

The hexagonal centre column allows the legs to fold closely together. Its lower section can also be removed when additional column height is unnecessary, reducing the weight carried.

One-Handed Scope Control

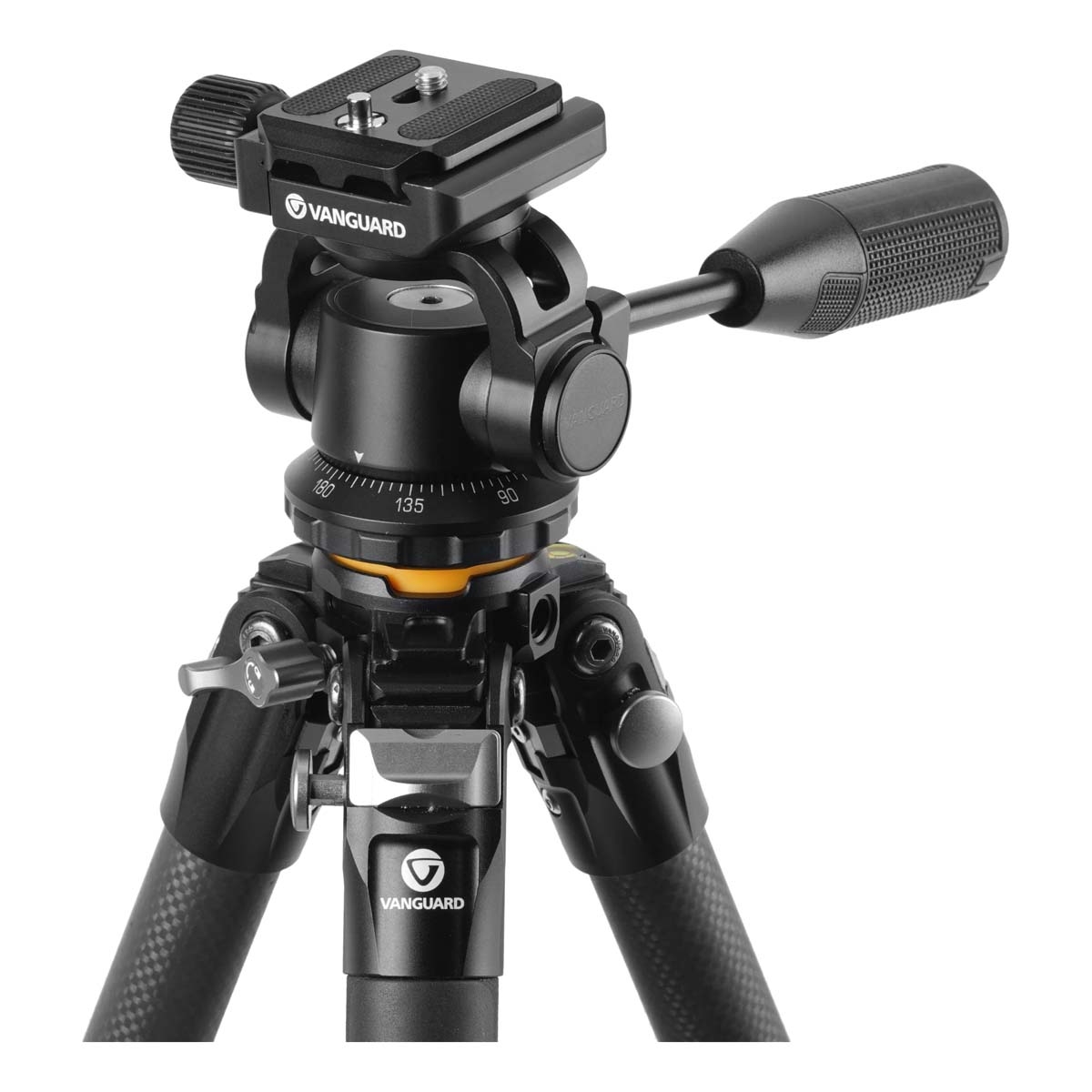

The VEO PH-28 head uses a single telescopic pan handle to control both movement and locking. Loosen the handle to pan through 360° or tilt between -91° and +30°, then turn it to lock the scope in position.

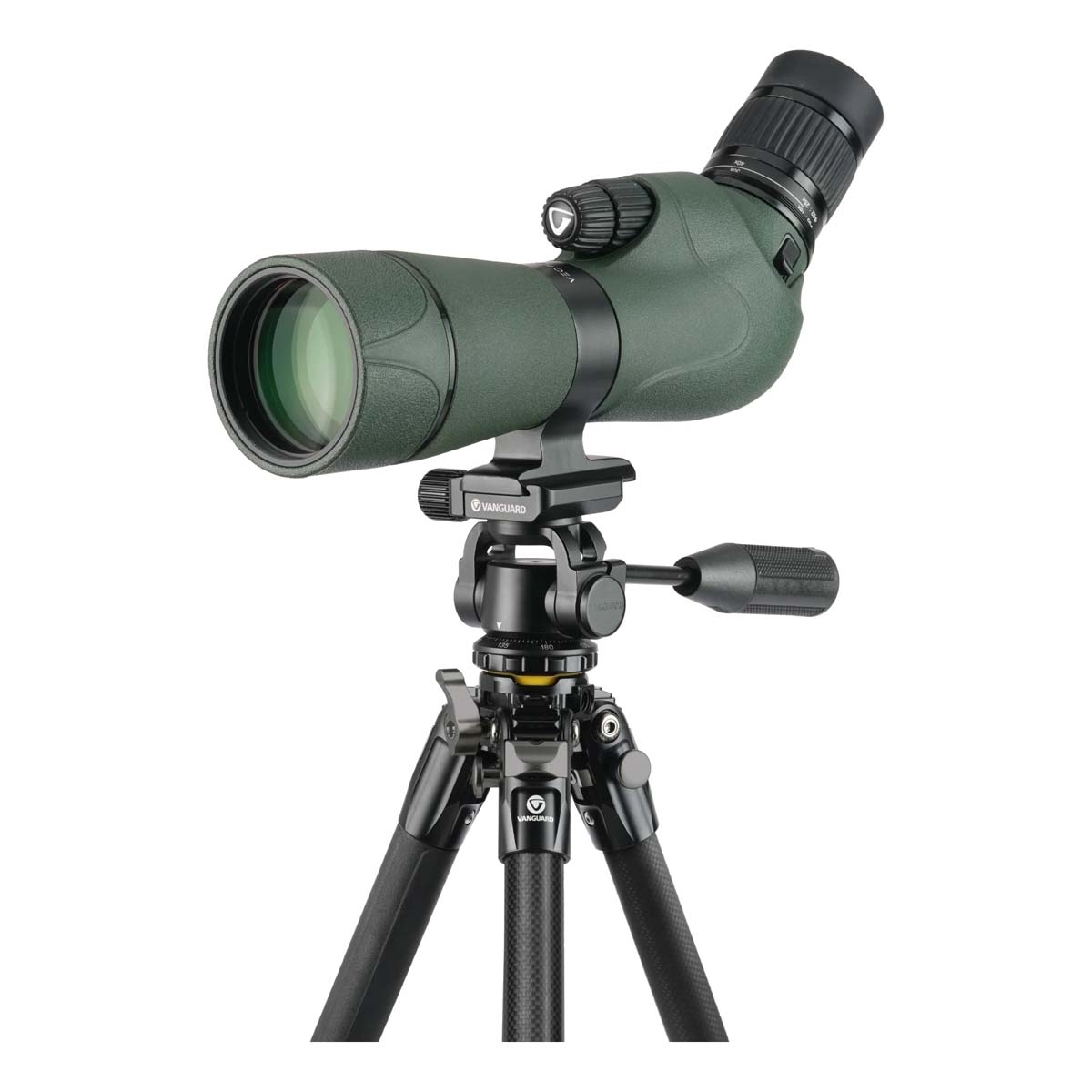

Scopes with an Arca-compatible foot can mount directly into the head’s clamp. The included QS-55P quick release plate provides an alternative for scopes without an Arca-compatible foot, with a non-twist spring pin designed to prevent the plate from unscrewing from the scope’s base.

Flexible Positioning in the Field

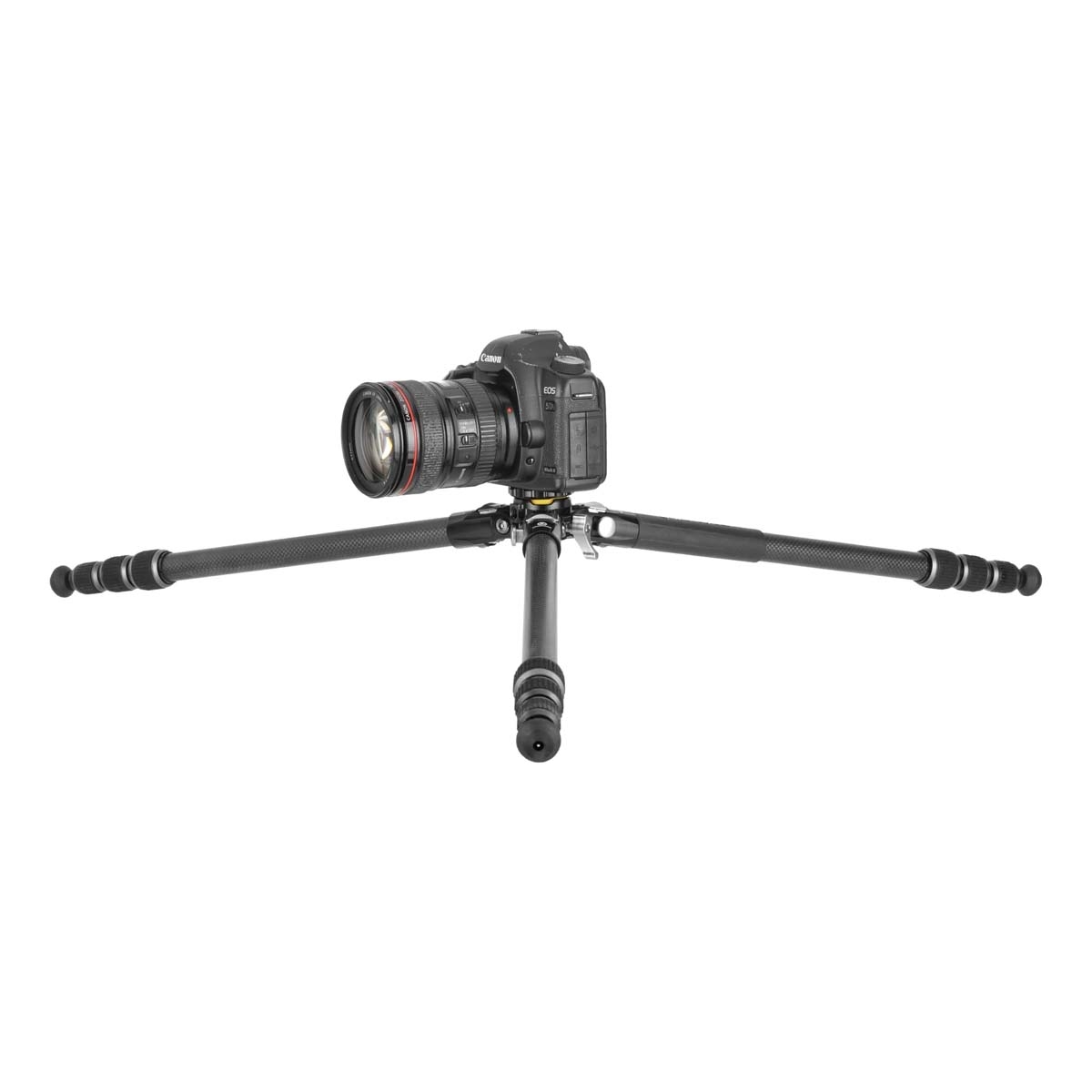

The tripod reaches 167cm with the centre column extended, or 141cm with it lowered. A low-angle adaptor built into the split centre column works with the three leg-angle settings to enable positioning down to 21cm.

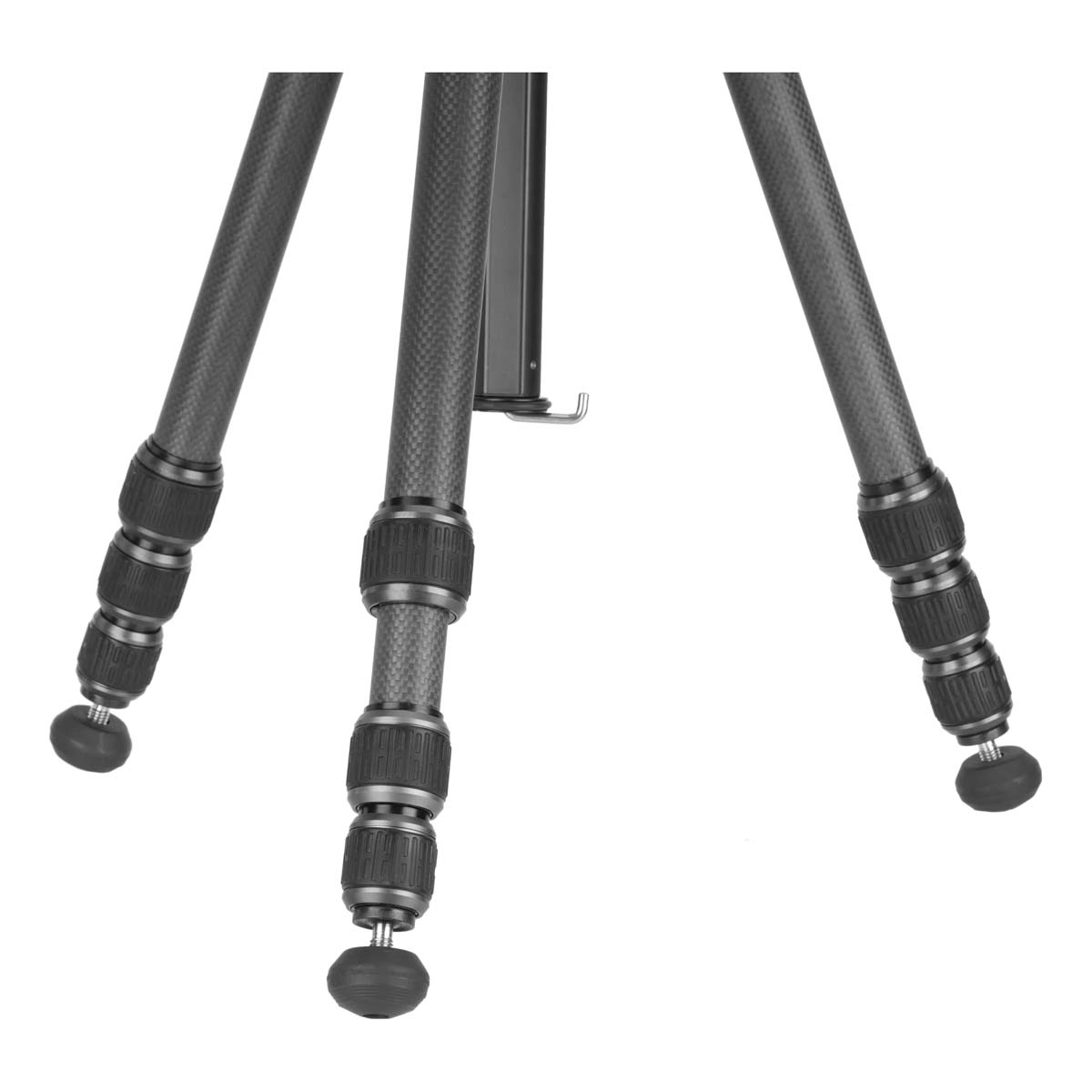

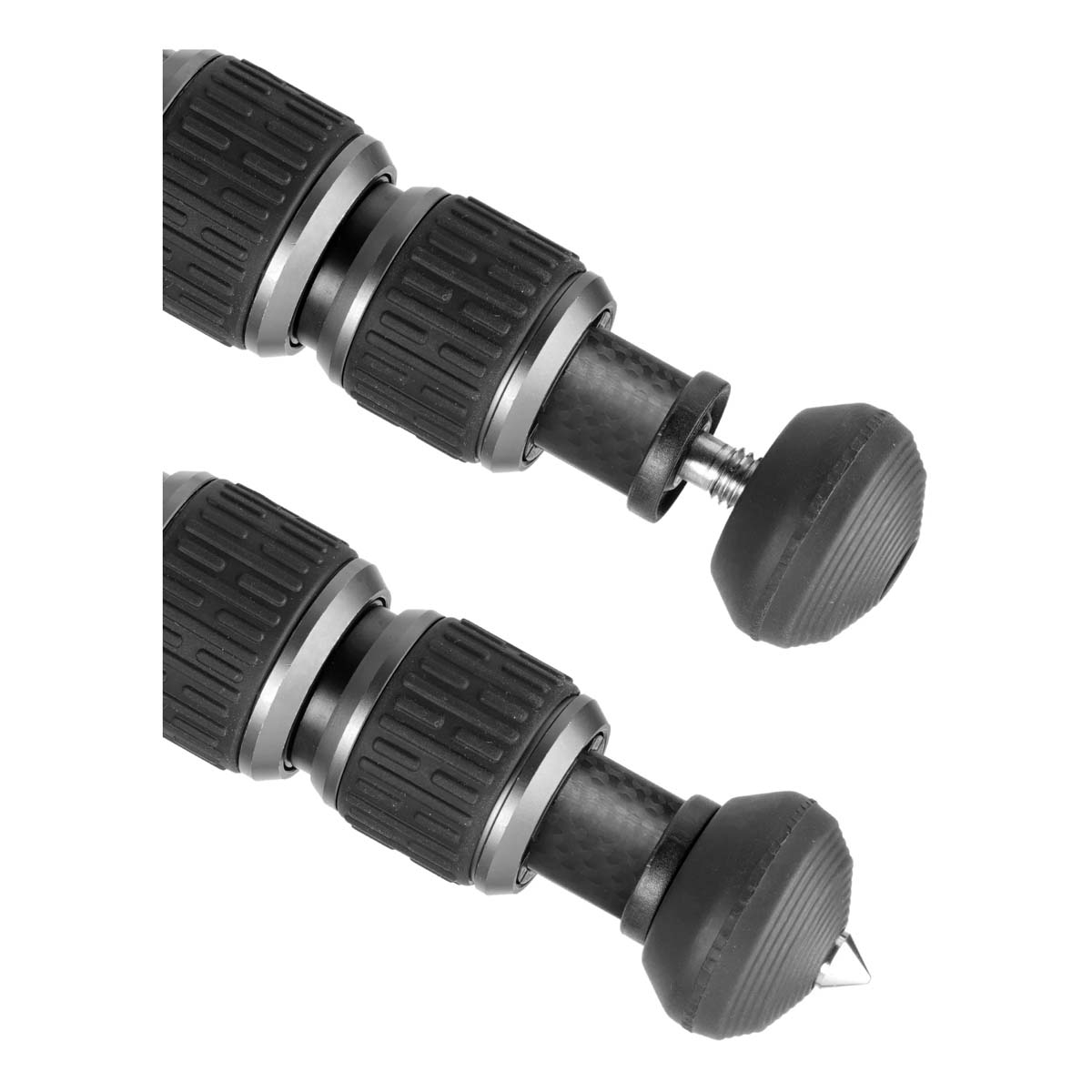

Retractable rubber and spiked feet allow adjustment to suit the terrain, while a retractable hook provides a point for hanging additional weight. Silent, quick-setting twist locks are designed for easy cleaning.

The centre column fits traditional hide clamps, with three curved edges providing contact with clamps designed for round columns. Side-mounted 3/8-inch accessory threads include bayonet slots for compatible support arms. Hide clamps and support arms are available separately.

VEO 5 264CO Carbon Fibre Spotting Scope Tripod Key Features

• Carbon fibre tripod with an 8kg maximum load capacity.
• VEO PH-28 two-way head with a telescopic handle for movement and locking.
• Arca-compatible clamp and QS-55P quick release plate with non-twist spring pin.
• Four-section, 26mm legs with easy-clean twist locks.
• Hexagonal centre column for a narrower folded profile.
• Built-in low-angle adaptor and reversible centre column.

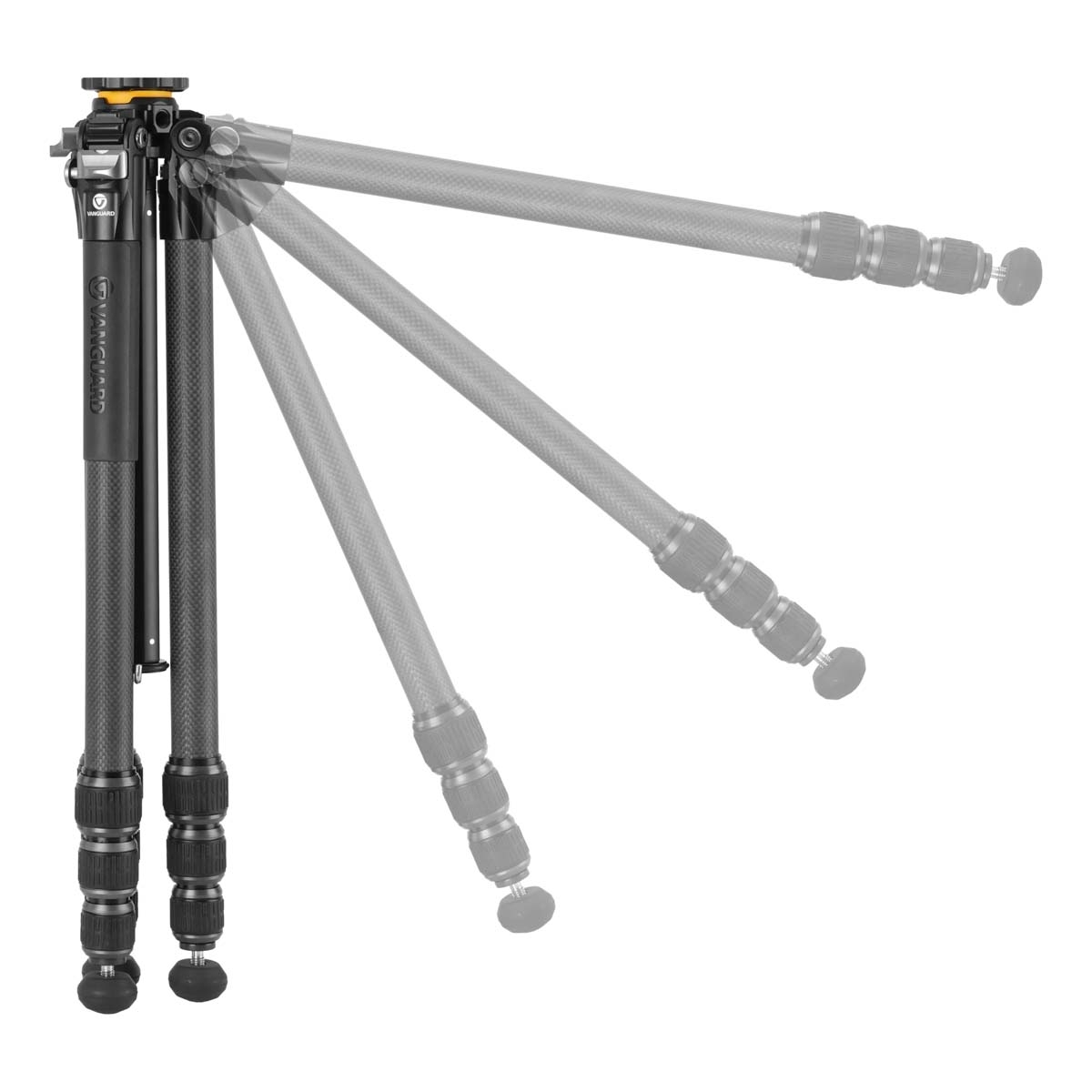

• Three leg angles: 23°, 50° and 80°.
• Retractable rubber and spiked feet, plus a retractable weight hook.
• 3/8-inch accessory mounting threads with bayonet slots.
• Luxury padded shoulder bag with top and full-length access.

VEO 5 264CO Carbon Fibre Spotting Scope Tripod Specifications

• Leg material: carbon fibre.
• Maximum load capacity: 8kg.
• Weight: 1920g.
• Folded length: 58cm.
• Folded diameter: 9.25cm.
• Maximum height with centre column extended: 167cm.
• Maximum height with centre column down: 141cm.
• Minimum height: 21cm.
• Leg diameter: 26mm.
• Leg sections: four.
• Leg angles: 23°, 50° and 80°.
• Leg locks: easy-clean twist locks.
• Feet: retractable rubber and spiked feet.
• Head: VEO PH-28 two-way pan head.
• Panning range: 360°.
• Tilt range: -91° to +30°.
• Quick release plate: QS-55P.
• Head attachment: reversible 1/4-inch and 3/8-inch thread.
• Head bubble level: included.
• Separate pan lock: no.
• Friction control: no.
• Included accessories: quick release plate and luxury padded tripod bag.

VEO 5 264CO Carbon Fibre Spotting Scope Tripod Review

The VEO 5 264CO combines full-sized working height with a relatively compact folded profile. For birdwatchers, its strongest attractions are the spotting scope-specific head, flexible positioning and a centre column that serves several purposes: reducing packed diameter, enabling low-angle use and fitting traditional hide clamps.

Performance & Key Features

The VEO PH-28 head places movement and locking control in a single telescopic handle, allowing the other hand to remain on the scope’s optical controls. Its 360° pan and -91° to +30° tilt range support following a subject and then securing the viewing position. An 8kg load capacity accommodates scope setups within that limit, while direct Arca mounting simplifies attachment for scopes with compatible feet. The included QS-55P plate extends mounting options to scopes without an Arca-shaped foot.

Build Quality & Handling

Carbon fibre legs and CNC-machined aluminium load-bearing components underpin the construction. The 58cm folded length and 9.25cm folded diameter make packed size a notable part of the design, although the complete tripod still weighs 1920g. Retractable spiked feet, easy-clean twist locks and a padded shoulder bag add practical features for outdoor use and transport.

Is It Easy to Use?

Routine scope adjustment centres on loosening and turning the pan handle, with a bubble level on the head to assist setup. Low-angle conversion requires removing the centre column and using the supplied hex key to loosen the locking screw and separate its sections. This offers useful flexibility, but involves more preparation than simply changing the leg angles.

Key Takeaways

The VEO 5 264CO is a strong option for birdwatchers who want full working height, compact folding and several ways to position a spotting scope. Its Arca-compatible head and single-handle operation are particularly relevant to observation. There is no separate pan lock or friction control, which should be considered if those adjustments matter to your setup. For Uttings customers seeking a versatile carbon fibre birdwatching tripod, its combination of portability and field adjustments makes it worth considering.

VEO 5 264CO Carbon Fibre Spotting Scope Tripod FAQs

What is the maximum load capacity?

The tripod has a maximum load capacity of 8kg. It is designed around spotting scope use and includes the VEO PH-28 two-way pan head. Your complete mounted setup should remain within that capacity.

How tall does the tripod extend?

Maximum height is 167cm with the centre column fully extended. With the column down, it reaches 141cm. The built-in low-angle adaptor and adjustable leg angles allow a minimum height of 21cm.

How compact is it when folded?

The tripod folds to 58cm long and 9.25cm in diameter. Its hexagonal centre column allows the four-section legs to fold more closely together. It weighs 1920g and comes with a padded shoulder bag.

Can I attach an Arca-compatible spotting scope directly?

Yes, a spotting scope with an Arca-compatible foot can attach directly to the VEO PH-28 clamp. For scopes without a compatible foot, a QS-55P quick release plate is included. Its non-twist spring pin is designed to prevent the plate from unscrewing from the scope’s base.

How does the pan handle control the head?

The telescopic handle controls both movement and locking. Loosen it to pan through 360° and tilt from -91° to +30°, then turn it to secure the scope. This arrangement leaves your other hand free to adjust focus or zoom.

How is the low-angle adaptor used?

The adaptor is built into the split centre column. Remove the column, loosen its locking screw with the supplied hex key and separate the sections. Used with the selectable leg angles, this enables low positioning down to 21cm.

Does the centre column fit a traditional hide clamp?

Yes, the hexagonal column is designed to fit traditional hide clamps. Three curved edges provide firm contact with clamps intended for round centre columns. A hide clamp is not included.

Can the feet be adjusted for different terrain?

Yes, the tripod has retractable rubber and spiked feet. These allow you to choose the appropriate contact surface for the terrain. A retractable hook also allows additional weight to be suspended for added stability.

Can accessories be attached to the tripod canopy?

The canopy has side-mounted 3/8-inch threads for tripod support arms. Bayonet slots alongside the threads accommodate arms with matching fittings, including the VEO TSA DLX. These provide attachment points for accessories using a suitable support arm.

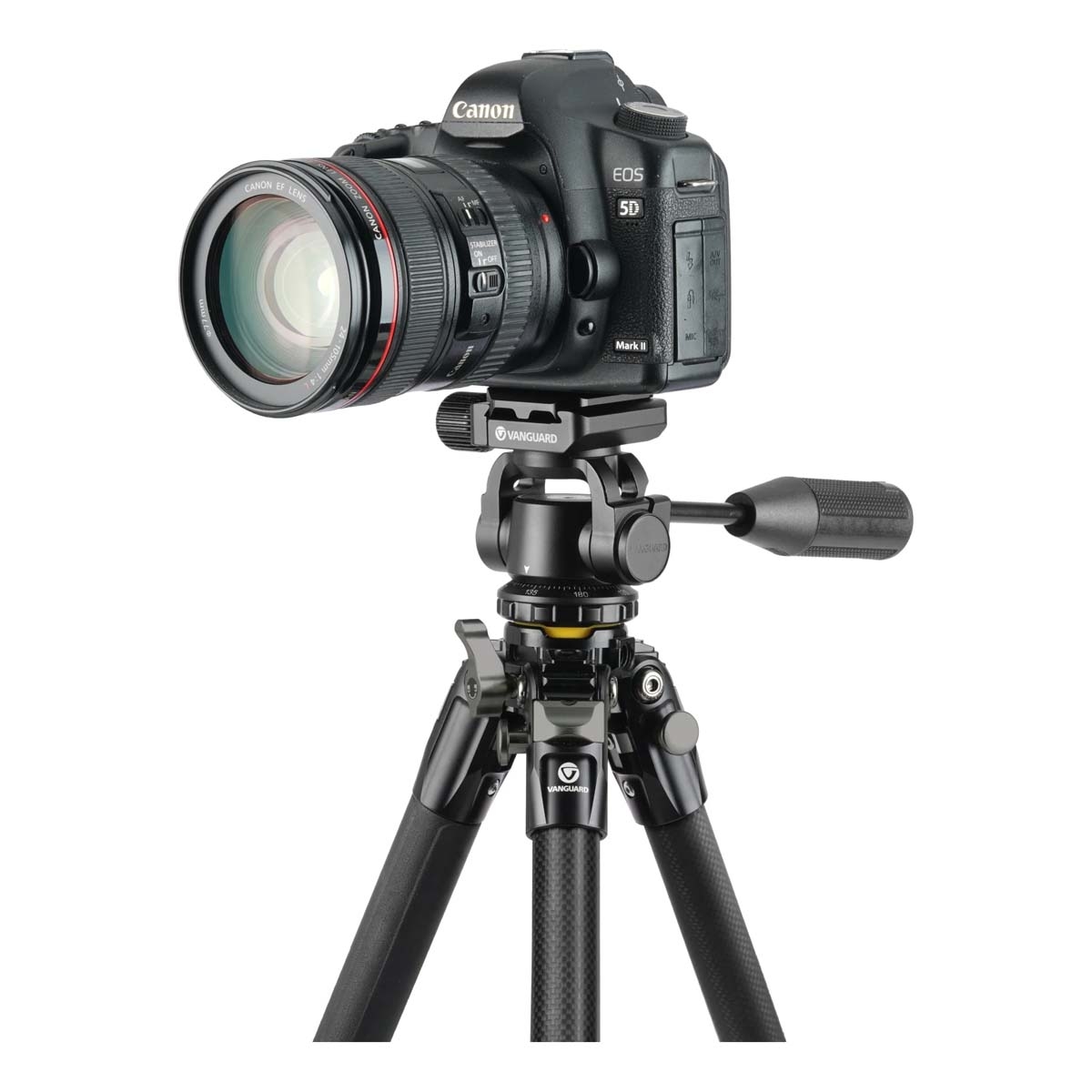

Is it suitable for DSLR or mirrorless cameras?

It can be used with DSLR and mirrorless cameras, although the head is primarily designed for spotting scopes. There is no separate pan lock or friction control. Consider that control arrangement when deciding whether it suits your camera work.
