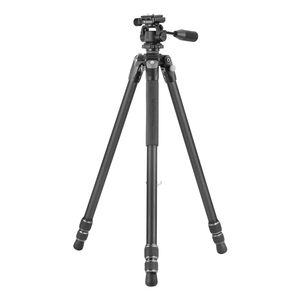

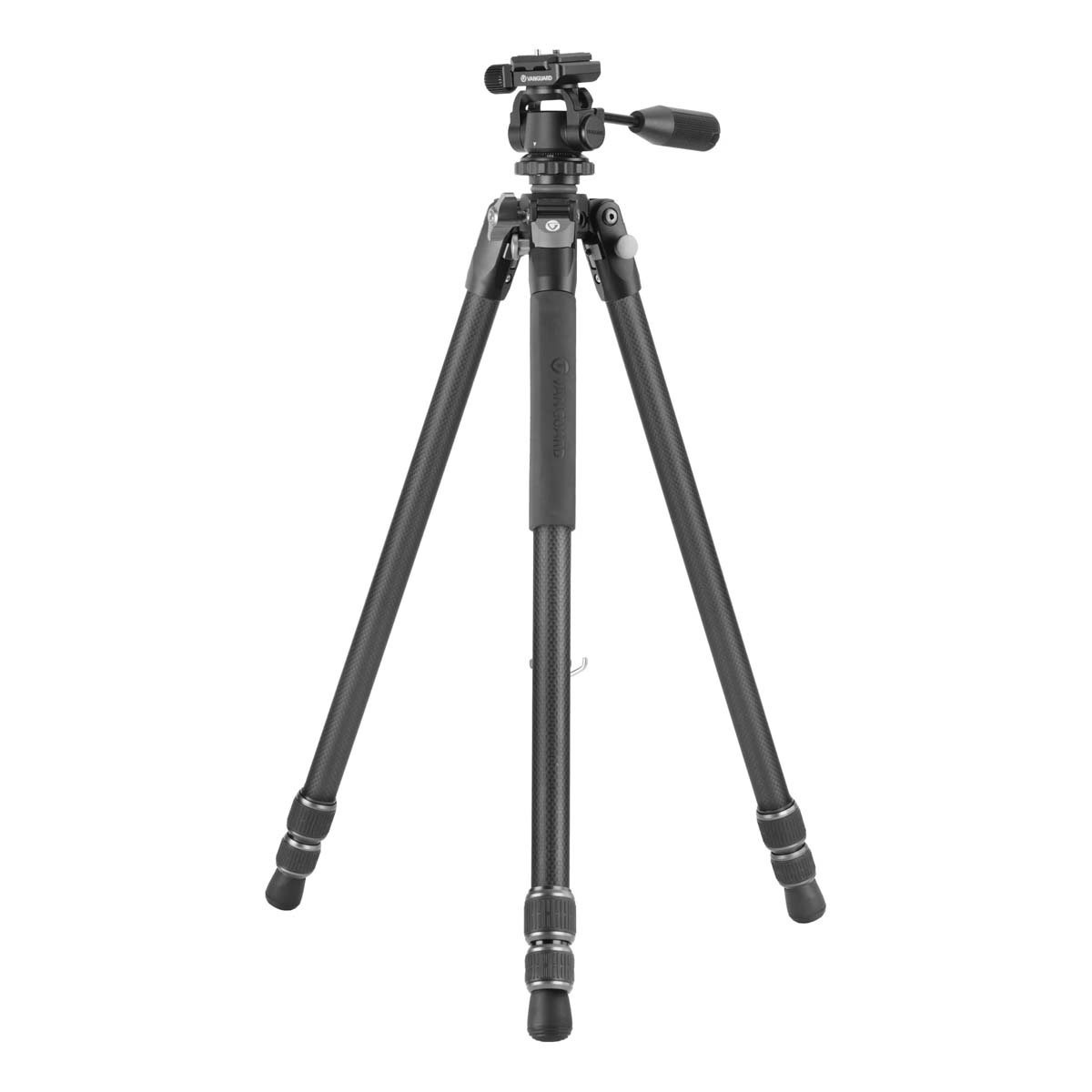

Vanguard Vesta 3 263CO Tripod

VESTA 3 263CO Carbon Fibre Spotting Scope Tripod

The Vanguard VESTA 3 263CO is a carbon fibre tripod designed for birdwatchers using spotting scopes or binoculars with a suitable adaptor. Combining a 6kg load capacity with an Arca-compatible two-way pan head, it provides a dedicated support system for observation and digiscoping.

The textured pan handle allows one-handed control of head movement, leaving your other hand free to adjust your scope’s focus and zoom. A quick release plate and carrying bag are included.

Carbon Fibre Construction

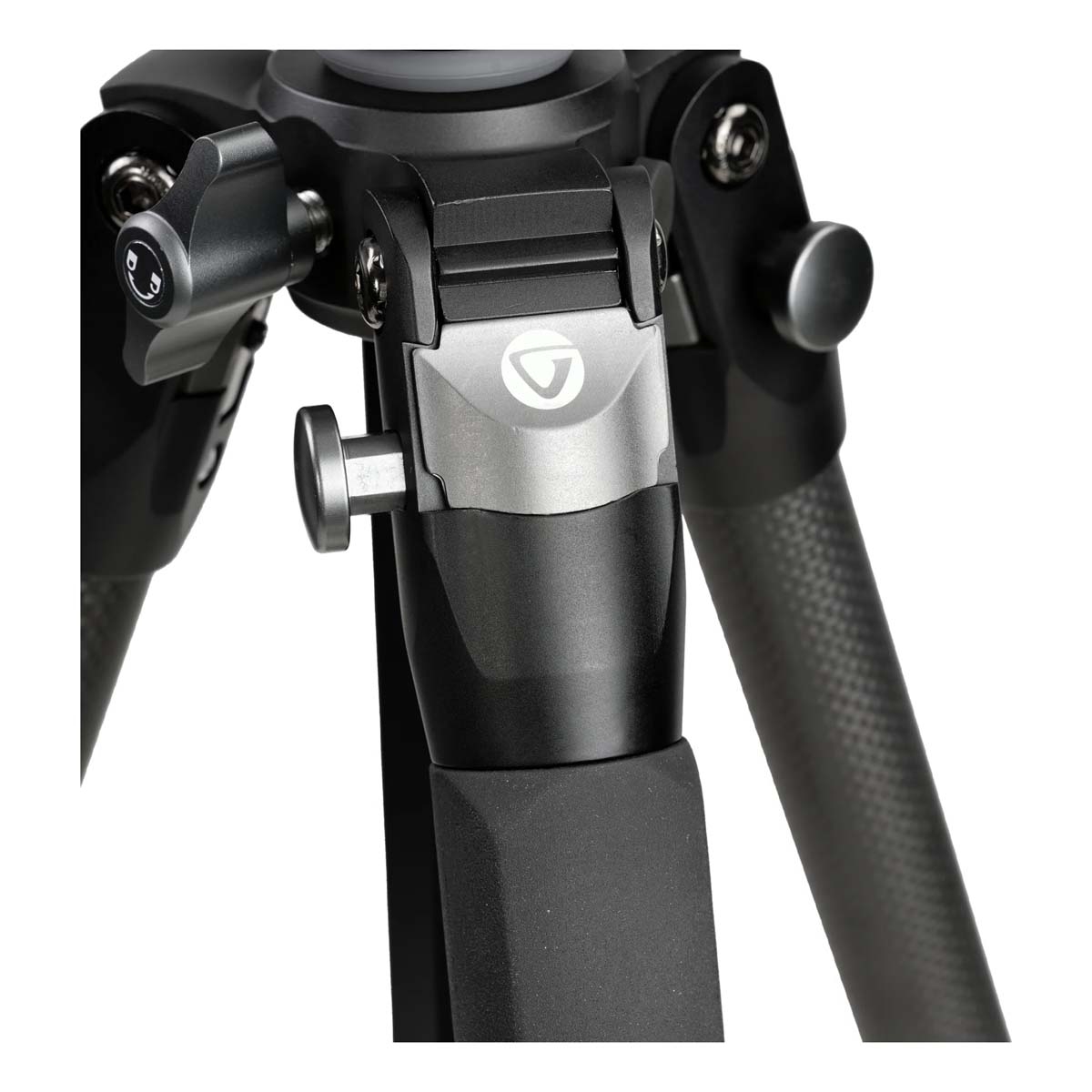

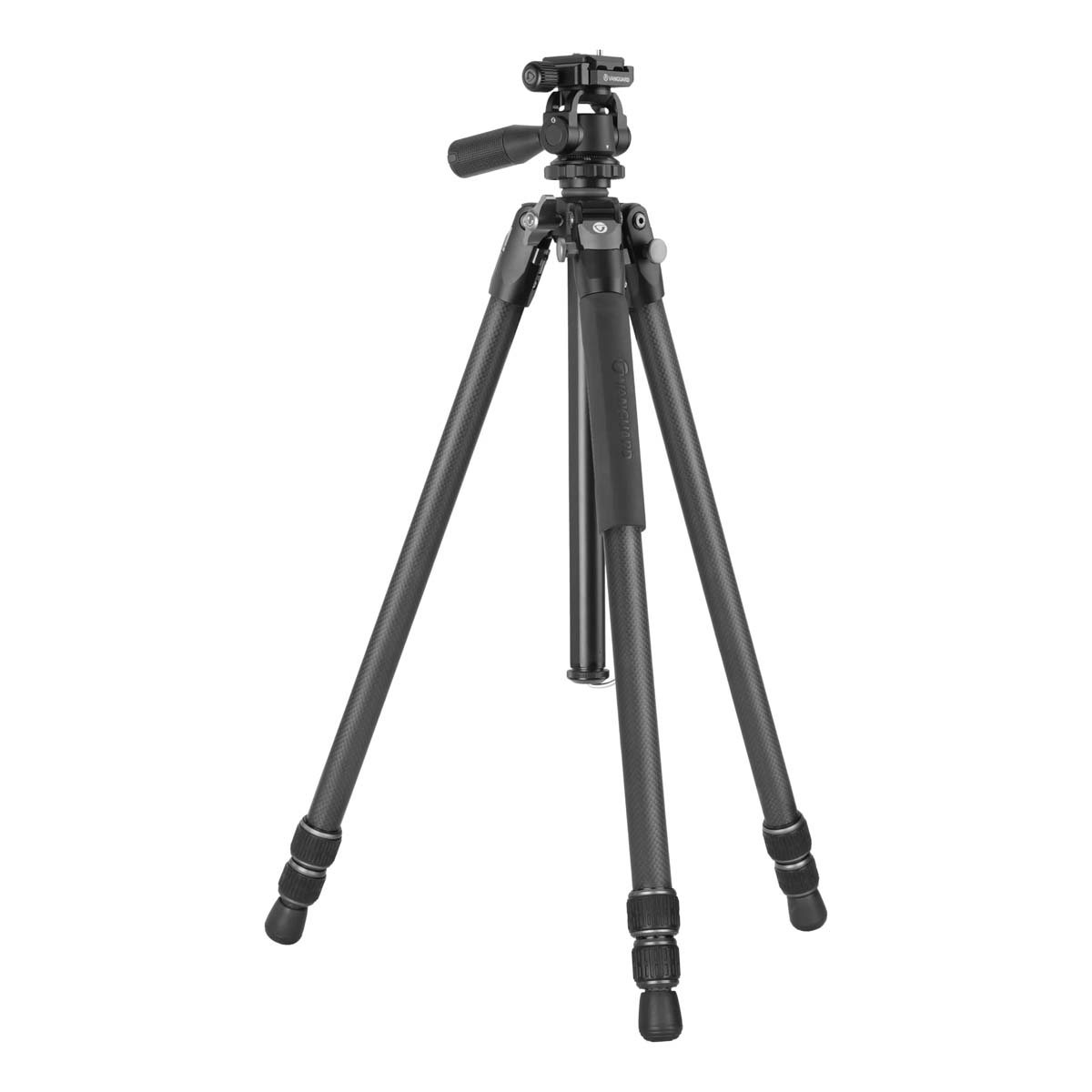

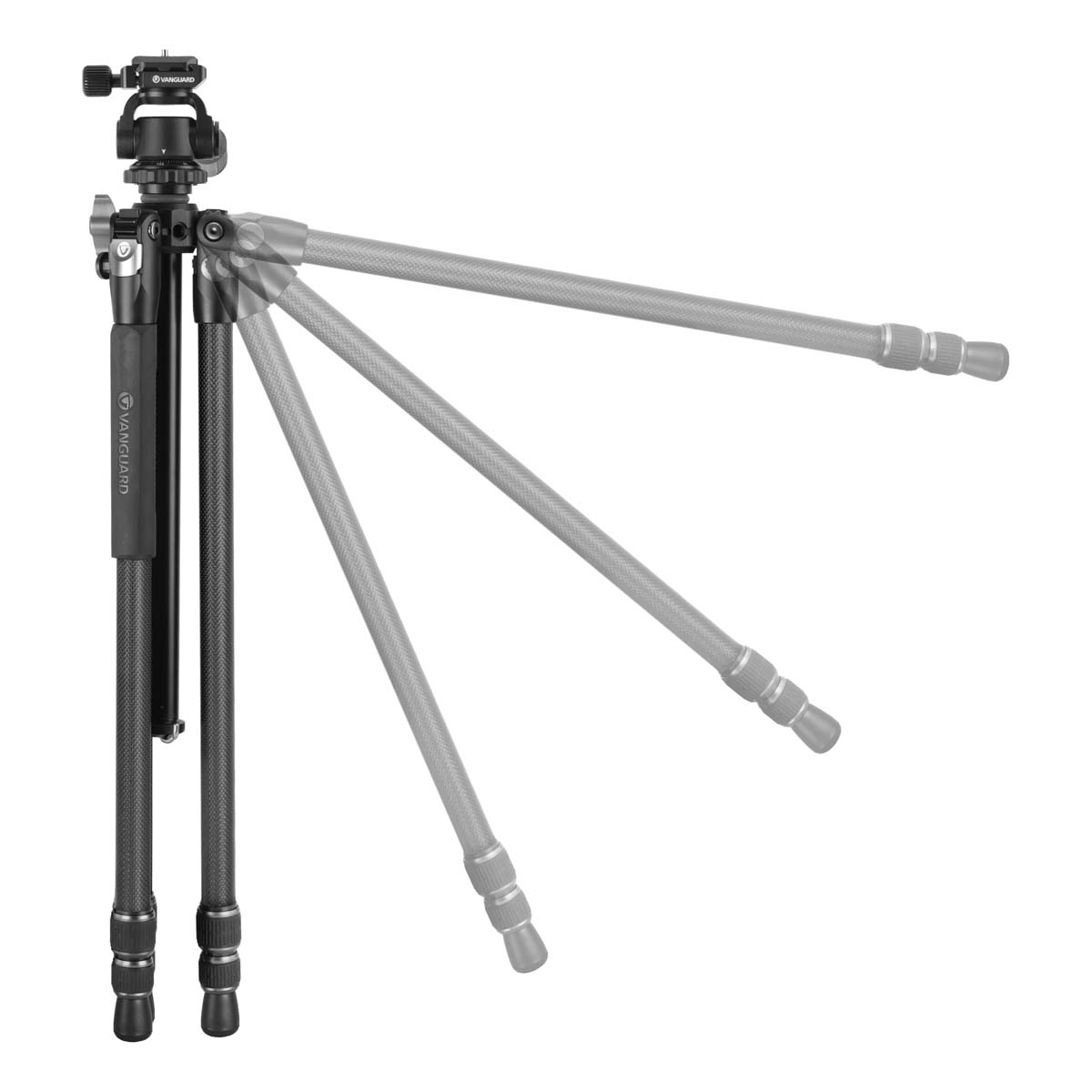

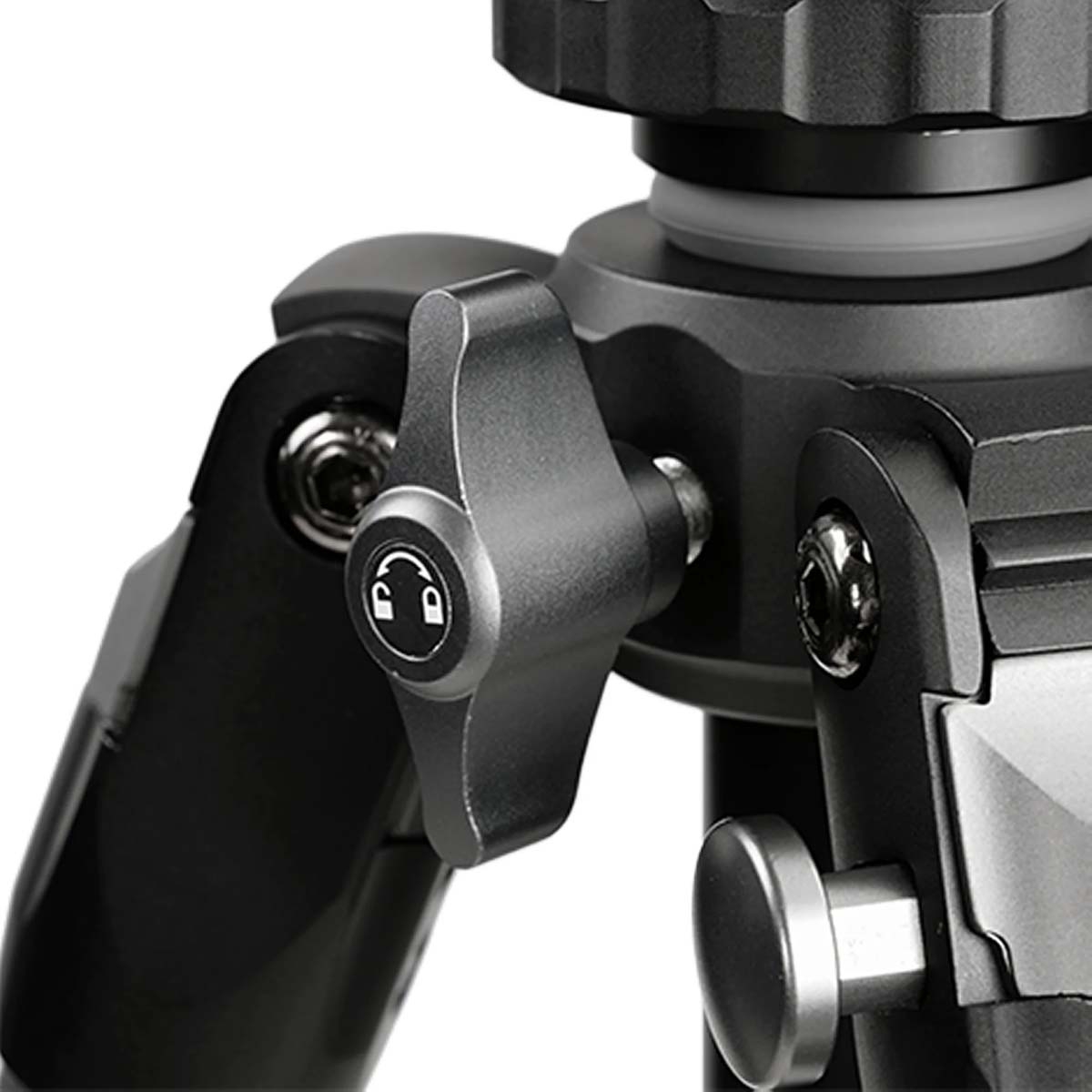

The three-section carbon fibre legs have a 26mm diameter, easy-clean twist locks and rubber feet. Three selectable leg angles of 20°, 50° and 80° provide flexibility when positioning the tripod, while the reversible centre column offers further adjustment.

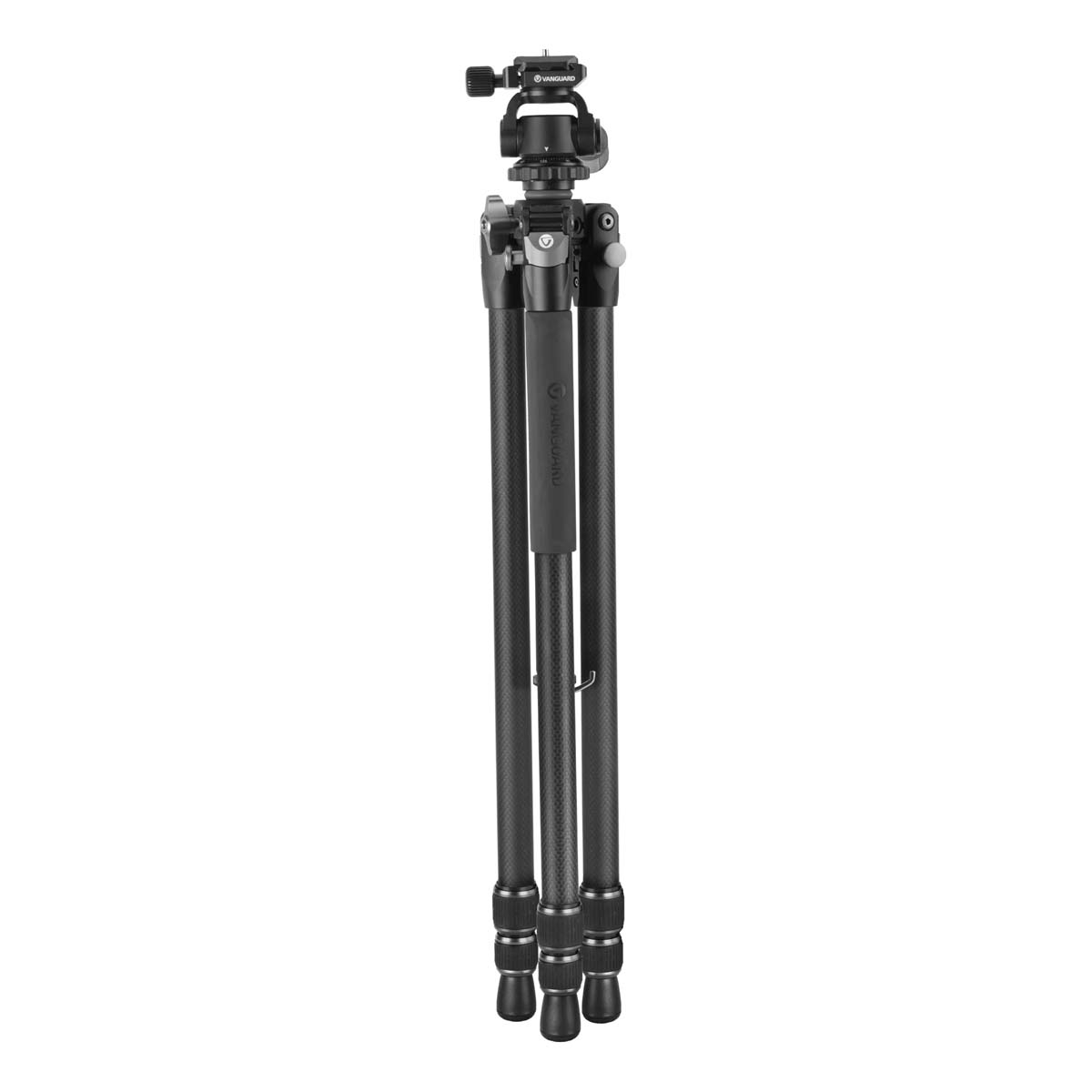

Weighing 1825g and folding to 67.5cm, the tripod reaches 139cm with its centre column down. A hook allows additional weight to be suspended beneath the tripod.

Controlled Movement and Secure Mounting

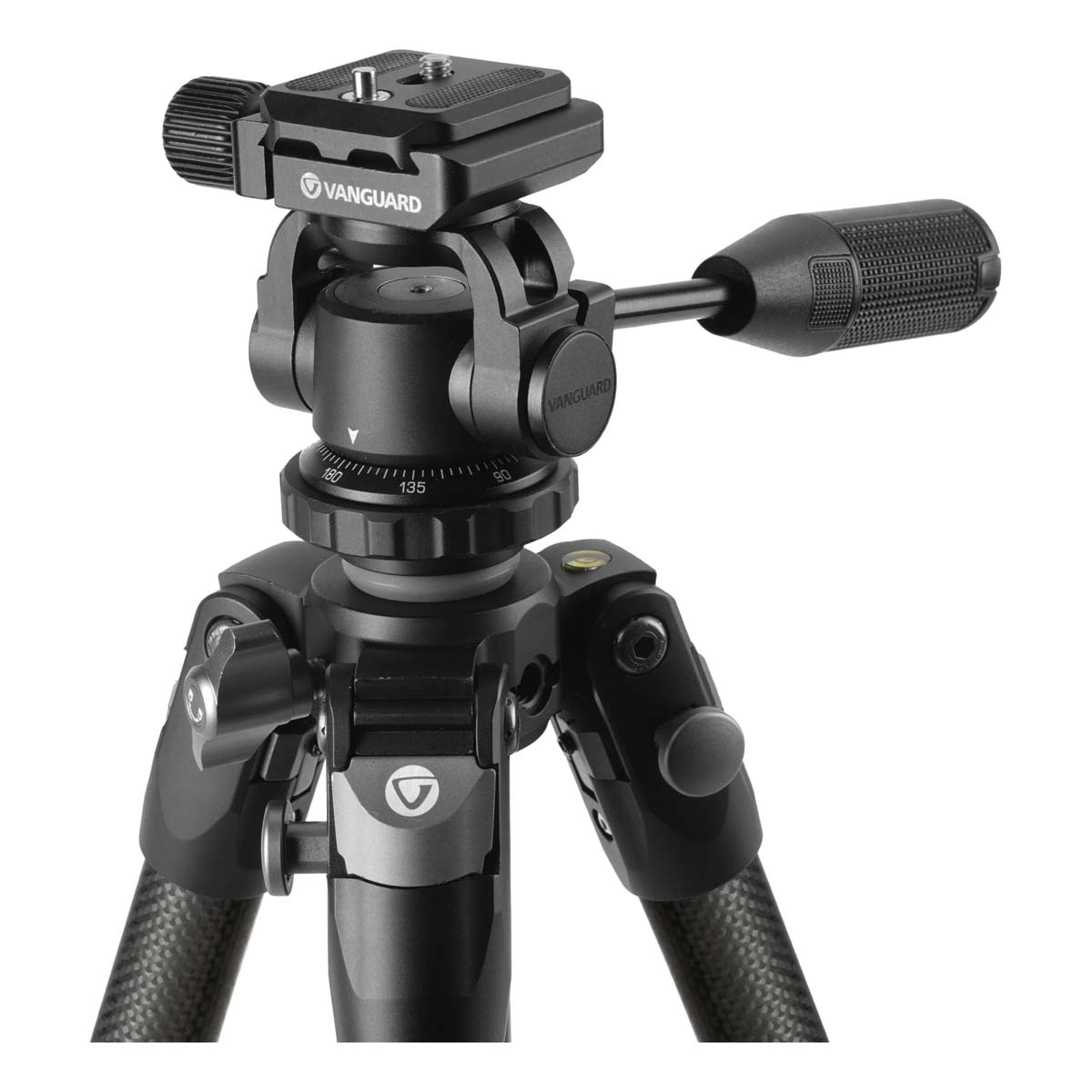

The supplied PH-26 two-way pan head is CNC-machined from lightweight aluminium alloy. It offers 360° panning and a tilt range of -91° to +30°, controlled through the pan handle.

Spotting scopes with an Arca-compatible foot can attach directly to the head’s clamp. For other scopes, the included QS-55P quick release plate provides an Arca-compatible mounting option, with a non-twist spring pin designed to prevent the plate from unscrewing from the scope’s base.

VESTA 3 263CO Carbon Fibre Spotting Scope Tripod Key Features

• Carbon fibre legs with a maximum load capacity of 6kg.
• PH-26 two-way pan head with one-handed movement control.
• Arca-compatible clamp for direct attachment of compatible scope feet.
• QS-55P quick release plate with non-twist spring pin.
• Easy-clean twist locks and three selectable leg angles.

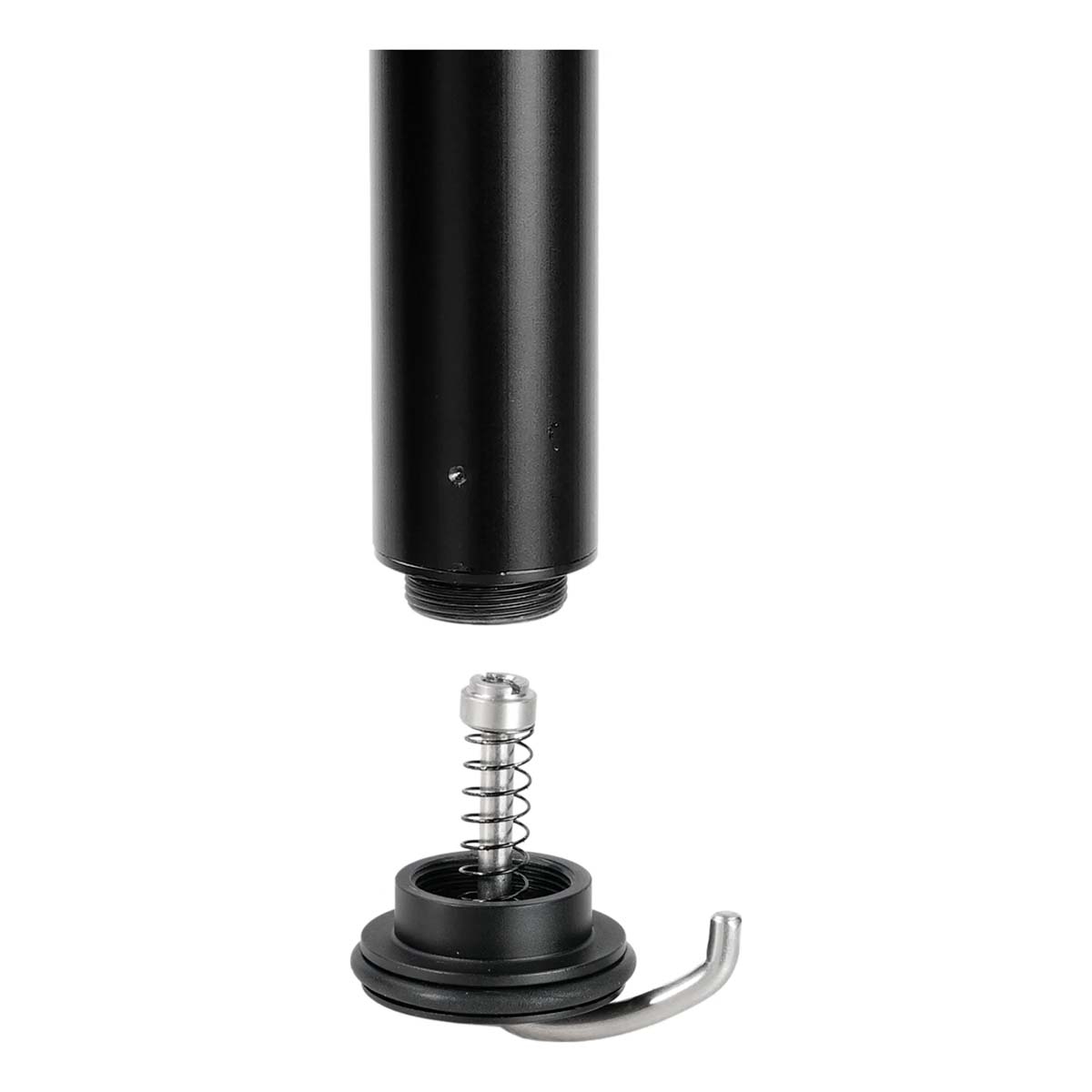

• Reversible centre column and hook for hanging additional weight.
• Two spirit bubble levels.
• Tripod bag included for transport and storage.

VESTA 3 263CO Carbon Fibre Spotting Scope Tripod Specifications

• Leg material: carbon fibre.
• Head material: CNC-machined aluminium alloy.
• Maximum load: 6kg.
• Weight: 1825g.
• Folded length: 67.5cm.
• Maximum height with centre column down: 139cm.
• Minimum height: 22.5cm.
• Leg diameter: 26mm.
• Leg sections: three.
• Leg angles: 20°, 50° and 80°.
• Leg locks: easy-clean twist locks.
• Feet: rubber.
• Head: PH-26 two-way pan head.
• Panning range: 360°.
• Tilt range: -91° to +30°.
• Quick release plate: Arca-compatible QS-55P.
• Head attachment thread: 1/4-inch or 3/8-inch.
• Included accessories: quick release plate, two Allen keys, 3/8-inch screw adaptor and tripod bag.

Binocular Compatibility

Binocular use requires a suitable adaptor. The Vanguard BA-185 binocular adaptor is available separately; neither a binocular adaptor nor a hide clamp is included.

VESTA 3 263CO Carbon Fibre Spotting Scope Tripod Review

The VESTA 3 263CO brings together carbon fibre construction, a 6kg carrying capacity and controls designed around spotting scope use. Its main appeal for birdwatchers is the combination of straightforward scope mounting and one-handed head adjustment, with a carrying bag included for journeys between viewing locations.

Performance & Key Features

The PH-26 head provides a full 360° pan and a -91° to +30° tilt range, giving users horizontal and vertical adjustment through a single handle. This arrangement leaves the other hand available for focusing or changing magnification. Arca compatibility is particularly useful for scopes with a matching foot, which can mount directly without the supplied plate. The 6kg load limit accommodates spotting scope setups within that capacity.

Build Quality & Handling

The construction pairs 26mm carbon fibre legs with a CNC-machined aluminium-alloy head. At 1825g with a folded length of 67.5cm, this is a full-sized tripod whose packed dimensions are worth considering when planning how to carry it. Easy-clean twist locks, rubber feet and three leg-angle settings complete a practical specification for birdwatching.

Is It Easy to Use?

The textured pan handle keeps movement control in one hand, while the Arca-compatible clamp offers direct mounting for compatible scopes. The supplied quick release plate provides an alternative attachment method and incorporates a non-twist spring pin. There is no separate pan lock or dedicated friction control, although the handle allows adjustment of movement fluidity.

Key Takeaways

The strongest reasons to choose this tripod are its scope-focused head, flexible Arca mounting and 6kg load capacity. Its 67.5cm folded length deserves consideration if packed size is a priority. Birdwatchers using binoculars will also need a separate adaptor. For Uttings customers seeking a full-sized carbon fibre support for spotting scope observation or digiscoping, it is a well-matched option.

VESTA 3 263CO Carbon Fibre Spotting Scope Tripod FAQs

What equipment is this tripod designed to support?

It is designed for spotting scopes and birdwatching, with a maximum load capacity of 6kg. It is also suitable for digiscoping. Binoculars can be used with a suitable adaptor, which is not included.

Can an Arca-compatible spotting scope attach directly to the head?

Yes, a scope with an Arca-compatible foot can attach directly to the PH-26 clamp. This removes the need to fit the supplied quick release plate. For scopes without a matching foot, the QS-55P plate provides the alternative mounting option.

How does the quick release plate prevent twisting?

The included QS-55P plate has a non-twist spring pin. This is designed to prevent the plate from unscrewing from the spotting scope’s base. The plate is also Arca compatible.

What movement does the PH-26 head provide?

The head pans through 360° and tilts from -91° to +30°. Movement is controlled using the textured pan handle. This allows one-handed adjustment while keeping the other hand available for the scope’s focus and zoom controls.

How portable is the tripod?

The tripod weighs 1825g and folds to 67.5cm. A tripod bag is included for carrying it. These dimensions describe a traditional full-sized support, so check the folded length against your intended carrying arrangement.

What leg-angle and height adjustments are available?

The legs offer three settings: 20°, 50° and 80°. The tripod reaches 139cm with the centre column down and has a minimum height of 22.5cm. Its centre column is reversible, and the three-section legs use easy-clean twist locks.

Does the head have separate pan and friction controls?

There is no separate pan lock or dedicated friction control. Movement fluidity can be adjusted through the handle. The head’s operating arrangement centres on one-handed control.

Which accessories are included?

The kit includes the QS-55P quick release plate, two Allen keys, a 3/8-inch screw adaptor and a tripod bag. The PH-26 head is supplied fitted to the tripod. A binocular adaptor and hide clamp are not included.
