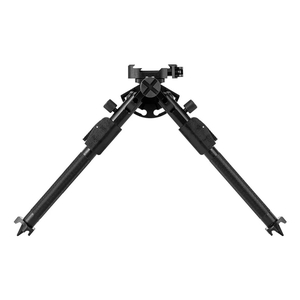

MDT Ckye-Pod Gen3 Compact Bipod - AP Throw Lever - Black

The MDT CKYE-POD GEN3 Compact is an adjustable rifle bipod designed for low prone positions, tight barricade setups and uneven ground. Its 4.6–11.9-inch height range combines with three leg splay positions, tool-free cant tension adjustment and a panless design to provide adaptable support for precision shooting.

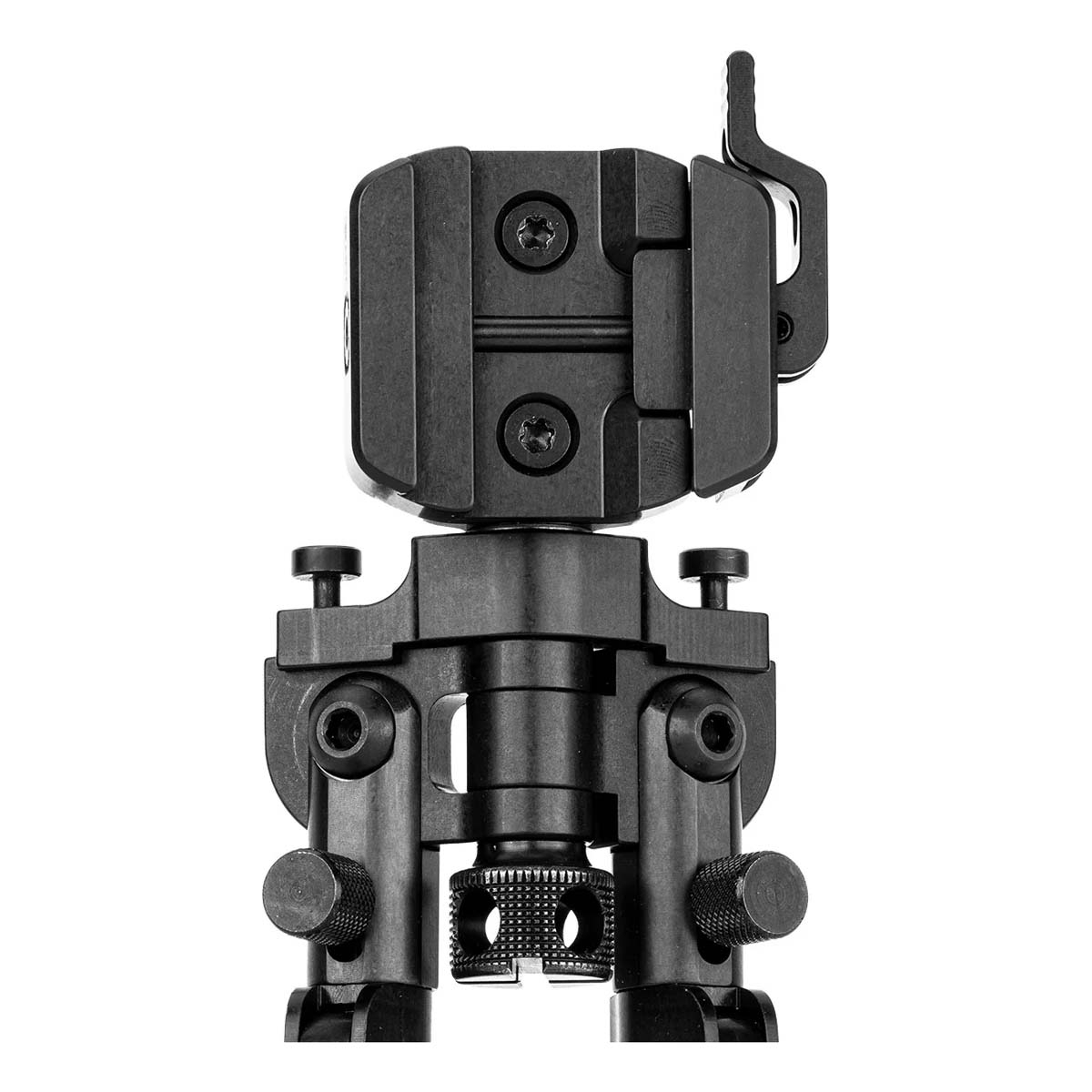

The AP Throw Lever head attaches to both ARCA and Picatinny rails without changing the head, while the dual leg detent system lets you choose between secure storage and rapid deployment.

Compact Positioning and Rapid Deployment

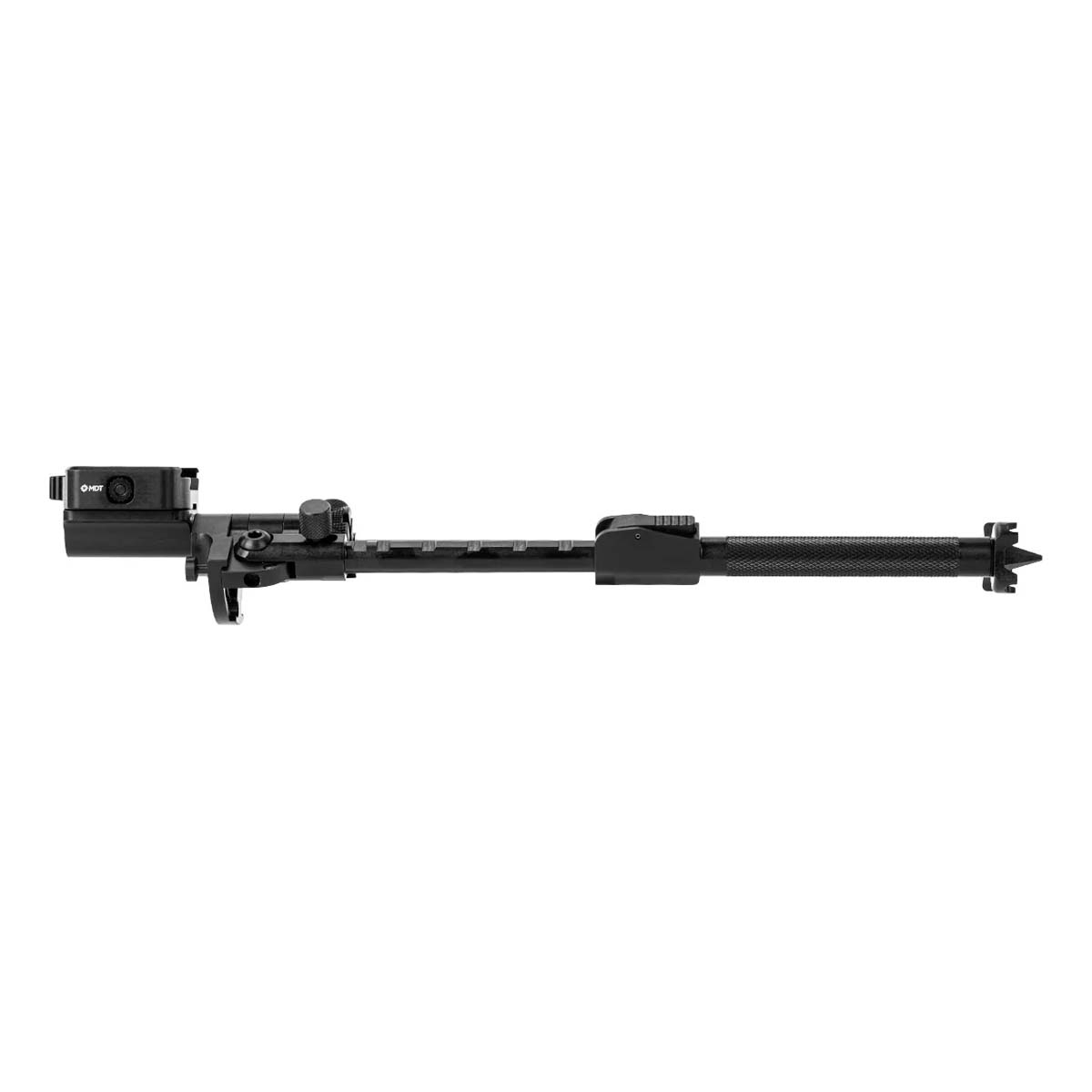

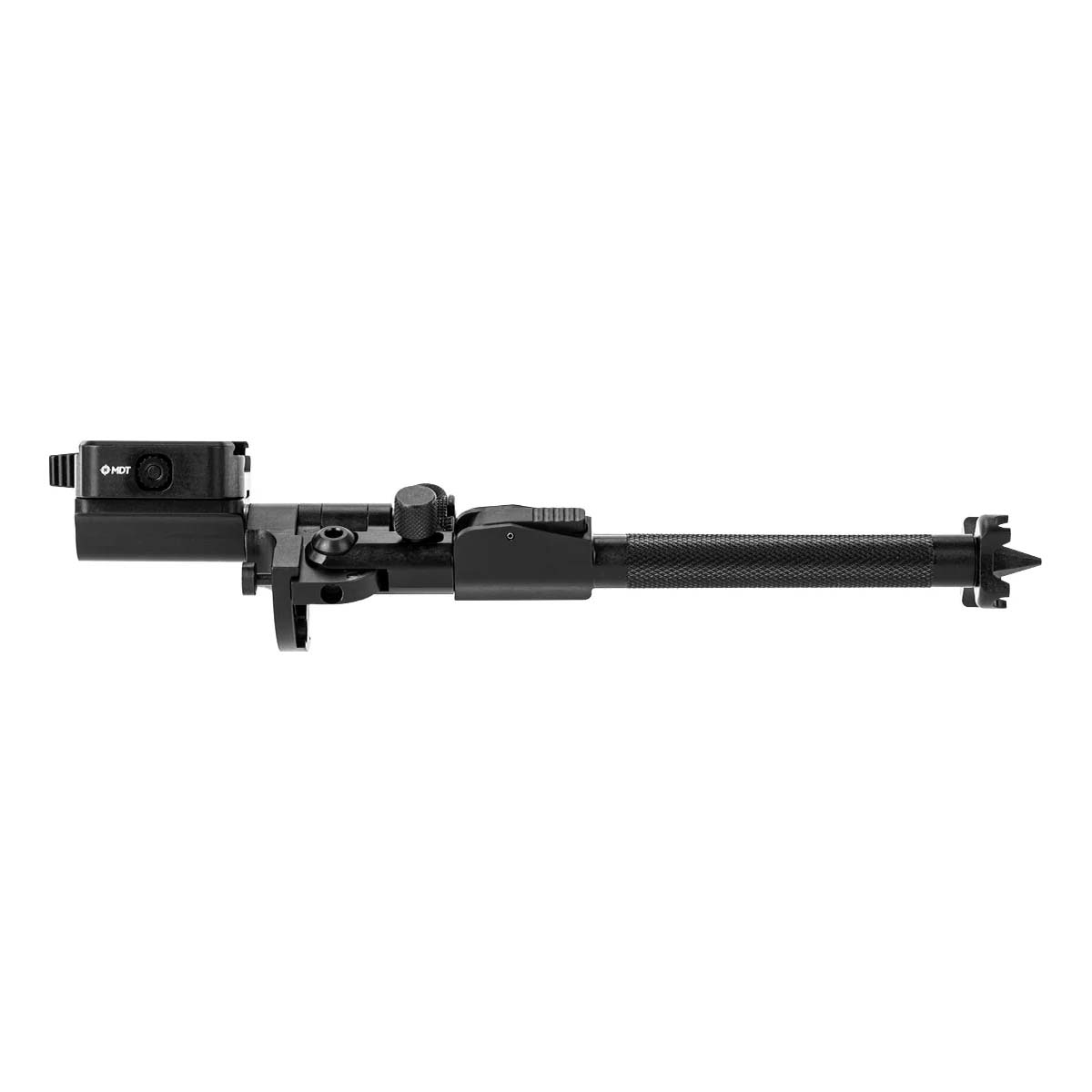

A low stowed profile and wide adjustment range help you establish the height your shooting position requires. Leg Lock Mode keeps the legs collapsed for storage; Rapid Deployment Mode allows both legs to be pulled into position with one hand. Textured leg latches are shaped for identification and operation by feel.

Controlled Support on Uneven Ground

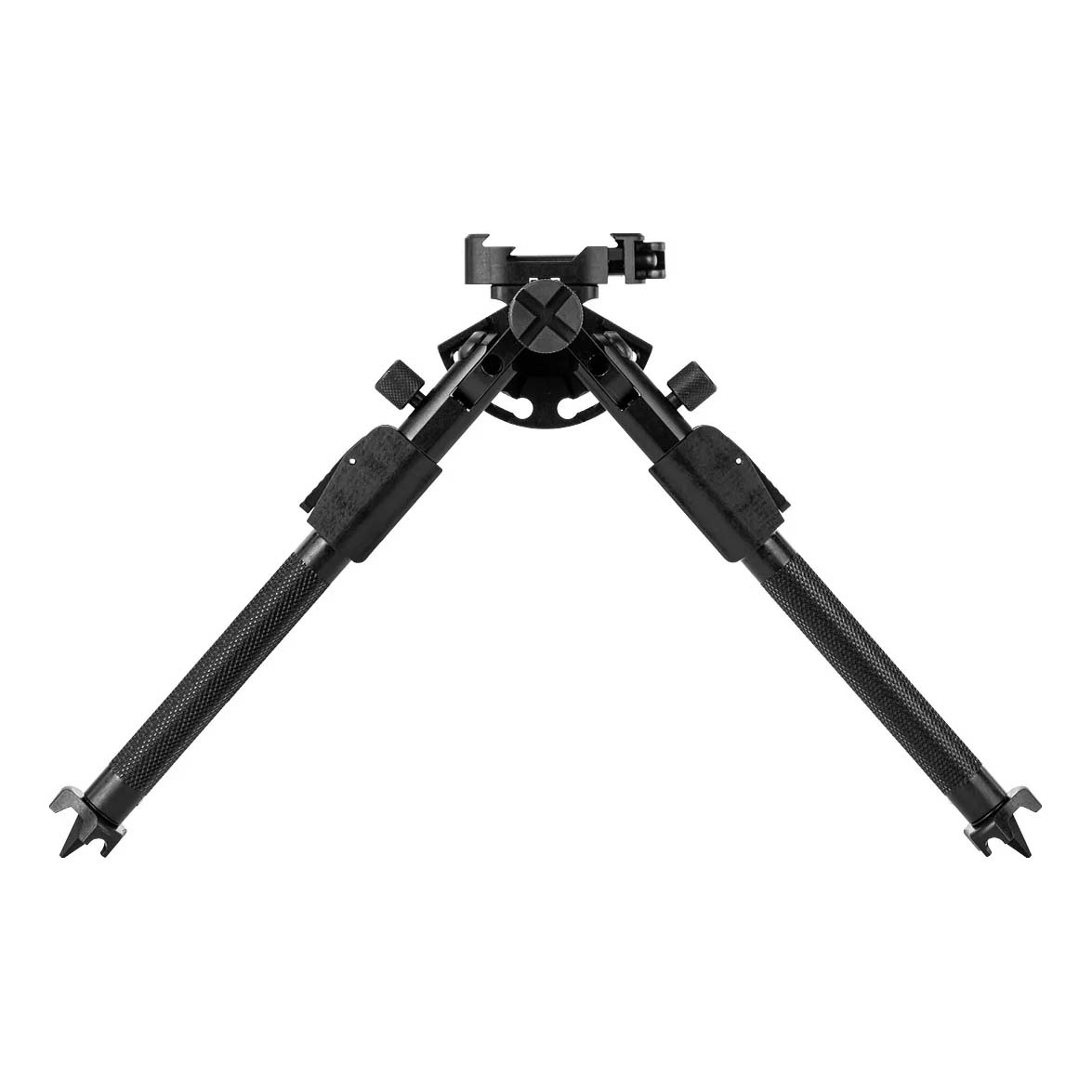

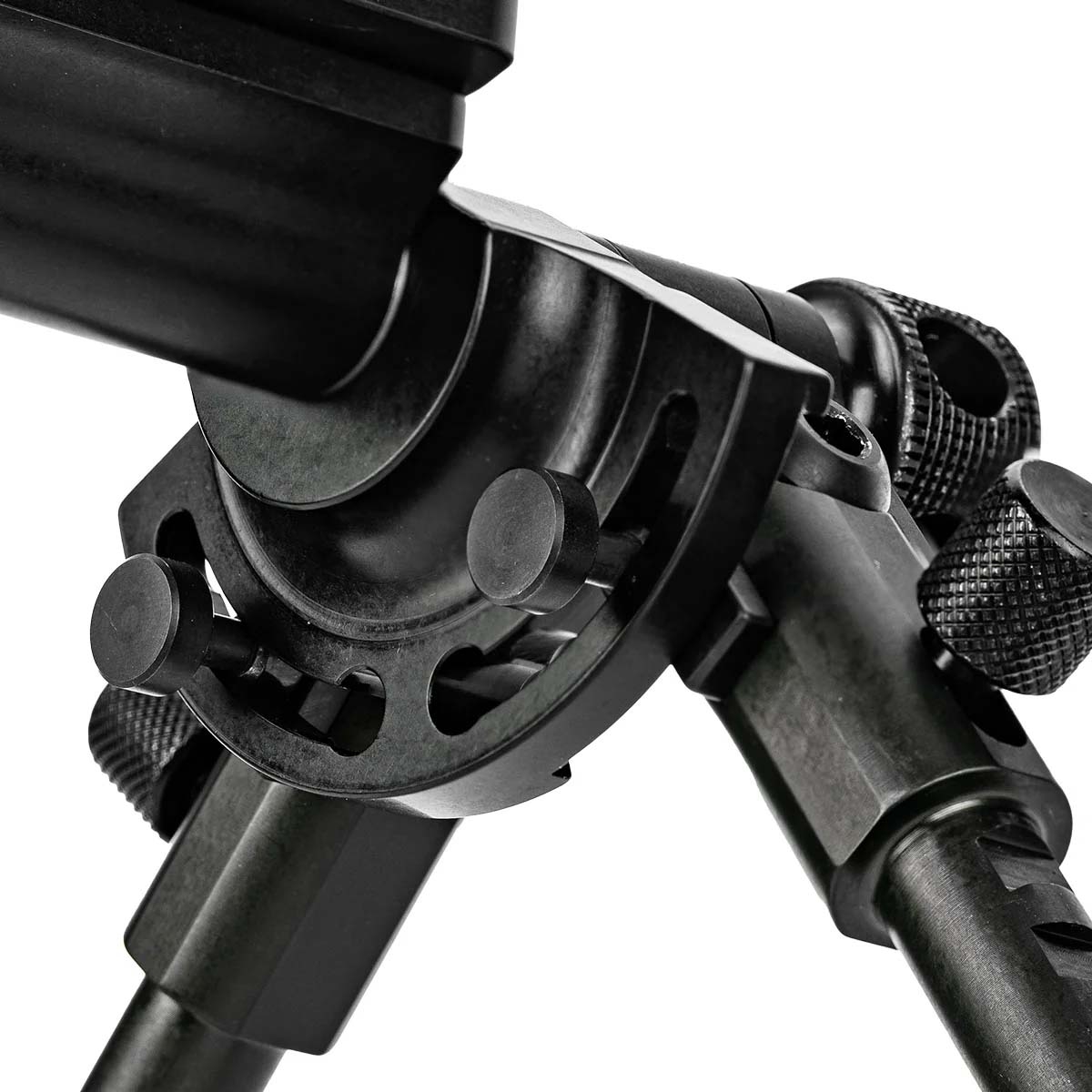

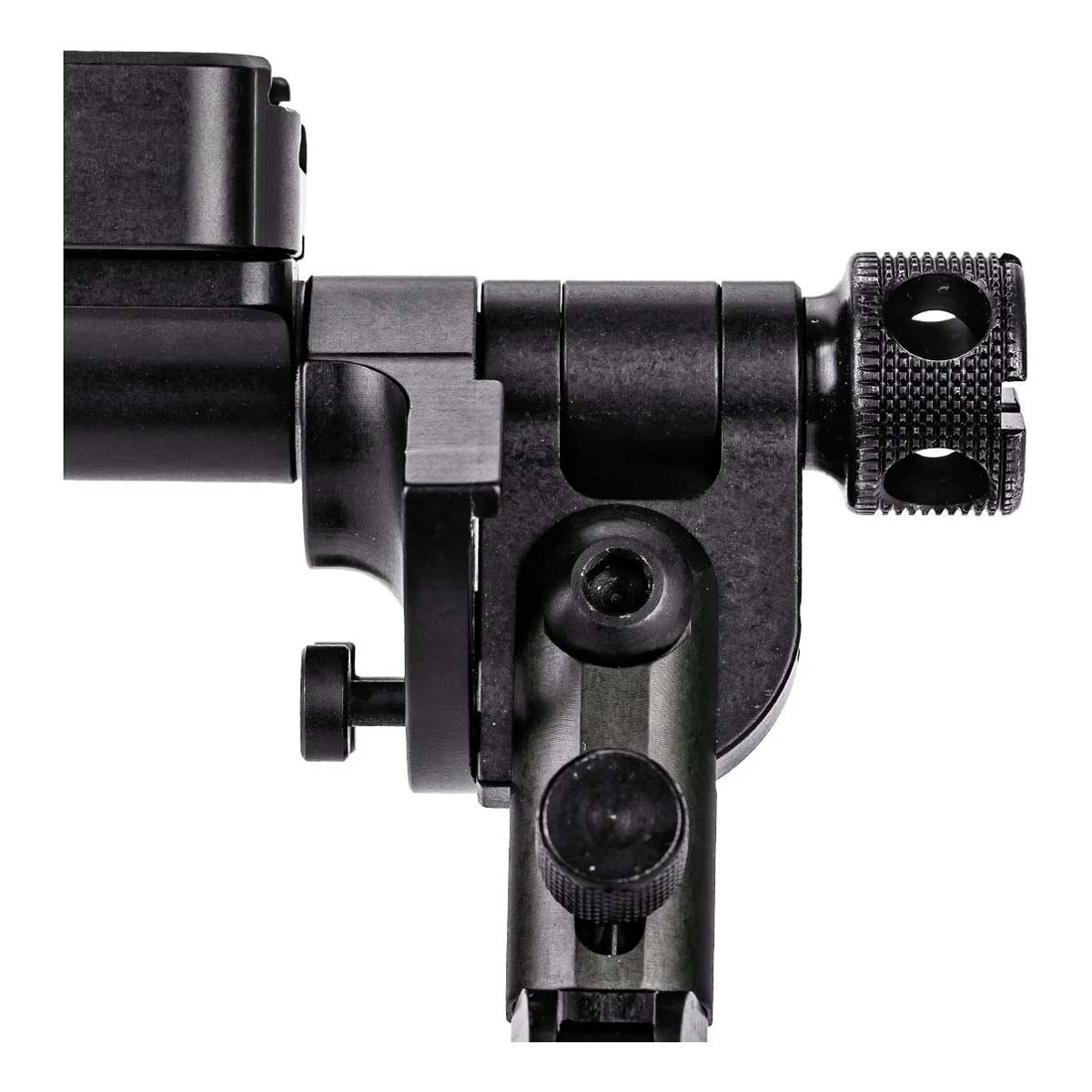

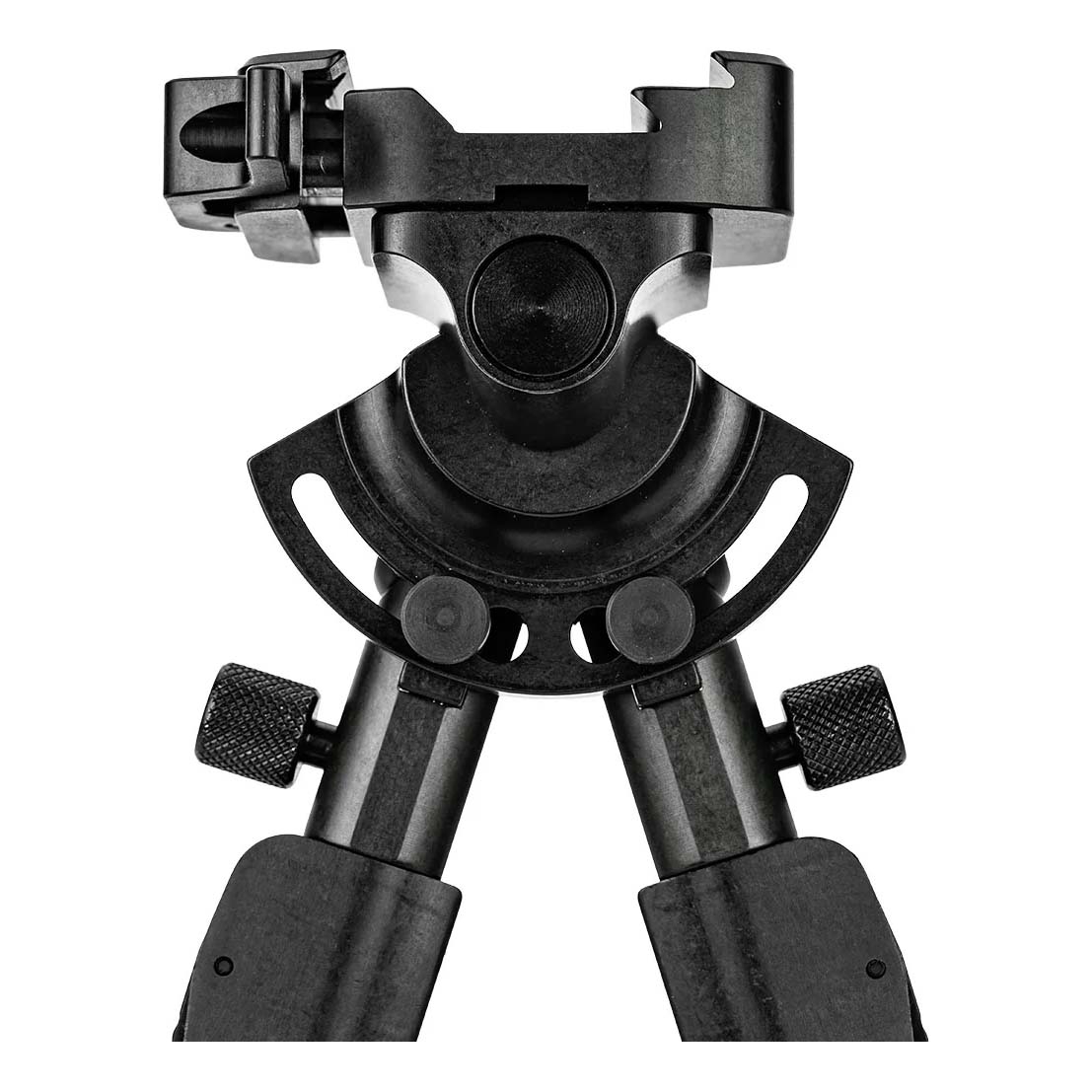

Choose narrow, middle or wide splay positions, opening to a maximum of 129.7°. Tool-free cant tension adjustment helps you level the rifle on rocky or sloping ground, with tension designed to hold throughout a string of fire. The refined wing and hub design maintains tight tolerances, while the panless construction is designed to support straight rearward tracking under recoil.

Durable Construction and Accessible Maintenance

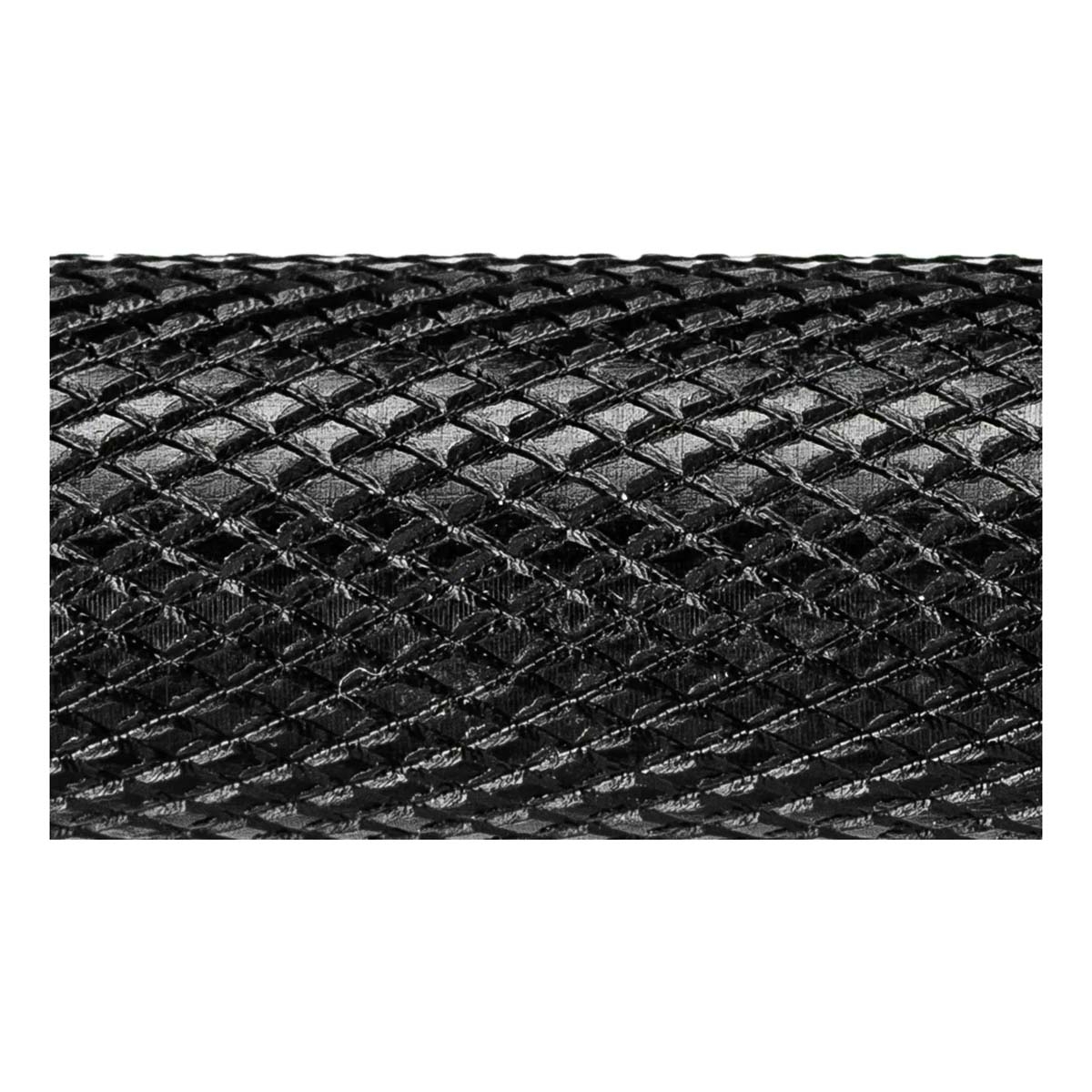

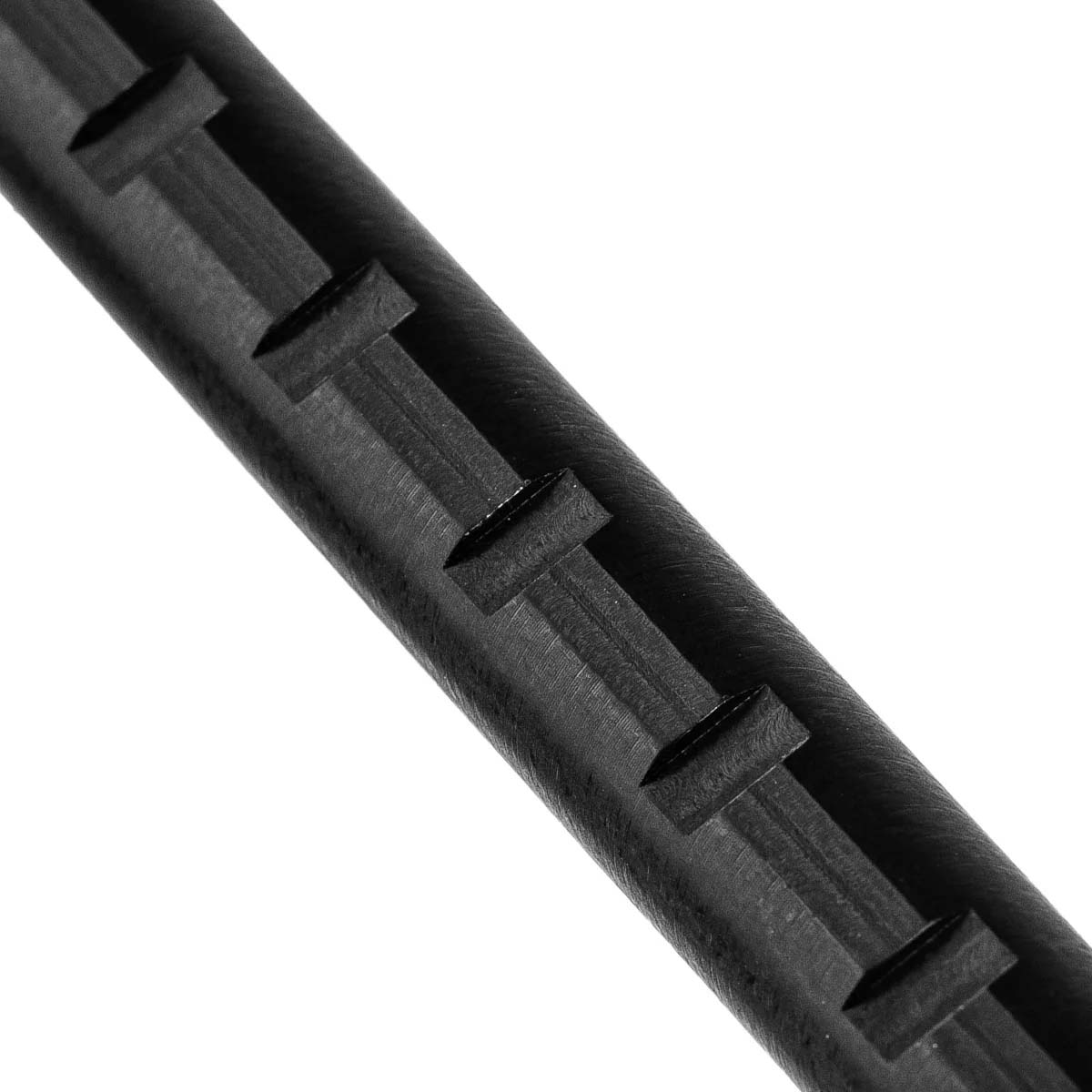

Anodised aluminium and steel components provide a durable foundation for demanding use. Fully enclosed leg shrouds help keep dirt and debris out of the mechanism, and knurling machined directly into the legs provides a grip surface that cannot peel away.

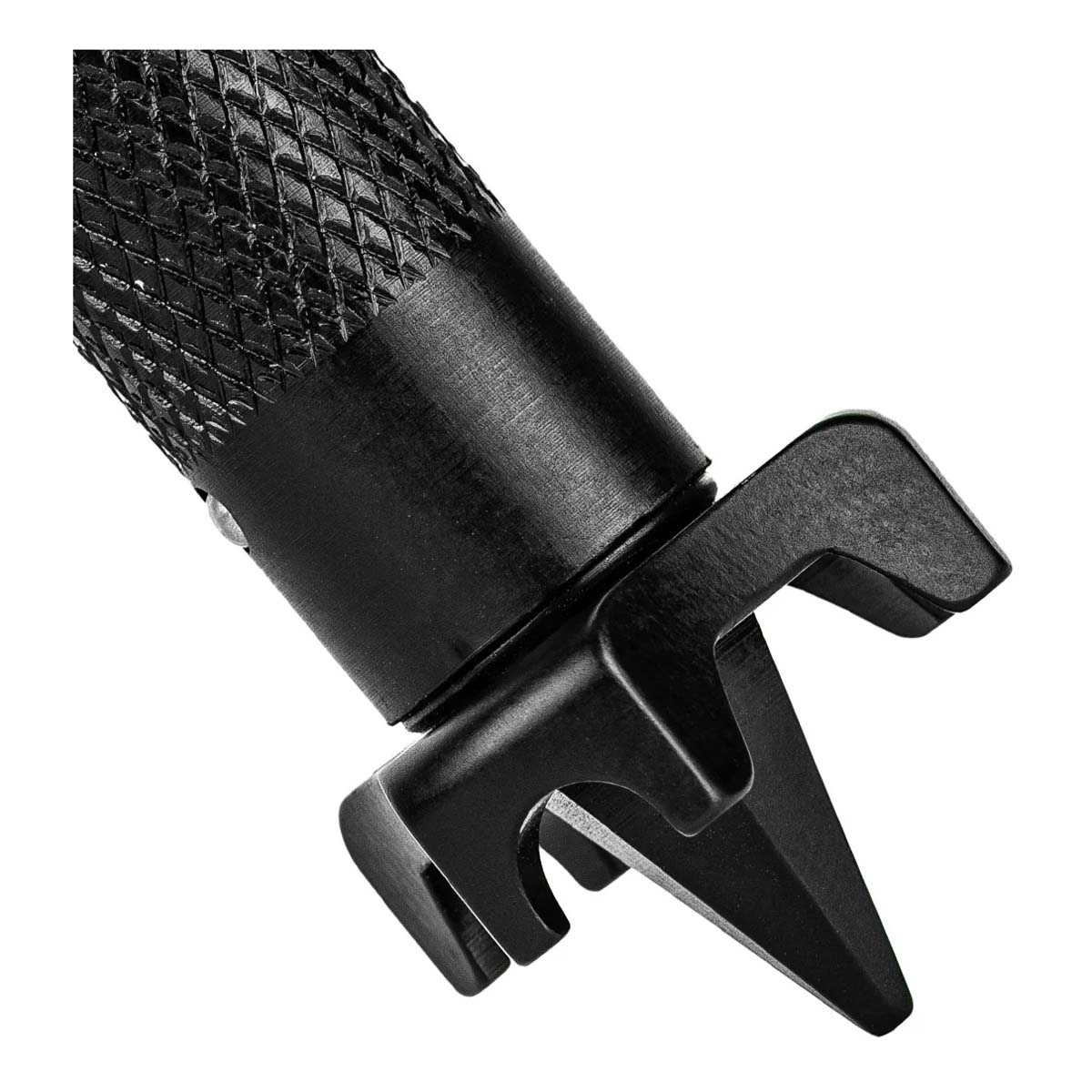

Each leg can be removed with a single screw for field cleaning or maintenance. The feet accept standard Atlas-pattern replacements, allowing quick changes to suit your setup.

MDT CKYE-POD GEN3 Compact Key Features

• Adjustable height from 4.6 to 11.9 inches.
• AP Throw Lever head fits ARCA and Picatinny rails.
• Three splay positions with a maximum opening of 129.7°.
• Tool-free cant tension adjustment.
• Panless design for straight rearward tracking under recoil.
• Leg Lock and Rapid Deployment modes.
• One-handed leg deployment in Rapid Deployment Mode.
• Fully enclosed leg shrouds and textured leg latches.
• Machined knurling for lasting grip.
• Single-screw removal of each leg for maintenance.
• Compatibility with standard Atlas-pattern bipod feet.

MDT CKYE-POD GEN3 Compact Specifications

• Height range: 4.6–11.9 inches.
• Total vertical travel: 7.3 inches.
• Stowed dimensions: 11.79 × 3.10 × 2.48 inches, with legs stowed, middle splay selected and throw lever forward.
• Leg extension from pivot point: 8.17–12.01 inches.
• Leg extension travel: 3.84 inches.
• Splay angles: narrow 53.70°, middle 91.70°, wide 129.70°.
• Height at narrow splay: 8.36–11.92 inches.
• Height at middle splay: 6.77–9.67 inches.
• Height at wide splay: 4.58–6.50 inches.
• Attachment interface: ARCA and Picatinny via AP Throw Lever head.
• Materials: anodised 6061-T6 and 7075 aluminium; black oxide 303, 304 and 17-4PH stainless steel; liquid nitride 4340 steel; C36000 brass.

MDT CKYE-POD GEN3 Compact Review

The CKYE-POD GEN3 Compact focuses on adaptable support in low shooting positions. Its combination of adjustable leg spread, rapid deployment and dual-interface mounting makes it a considered option for precision shooters working from prone positions, barricades and uneven terrain.

Performance & Key Features

The 4.6–11.9-inch height range offers considerable adjustment within a compact format. Three splay positions allow the stance and working height to change together, while tool-free cant tension helps establish a level rifle. The panless design places the emphasis on consistent rearward tracking under recoil rather than horizontal rotation.

Build Quality & Handling

Enclosed leg shrouds, machined grip surfaces and a refined wing and hub assembly show a clear focus on practical durability. Textured latches support operation by feel, and single-screw leg removal makes cleaning access straightforward.

Is It Easy to Use?

The AP Throw Lever head works with either ARCA or Picatinny rails without a head change. Rapid Deployment Mode supports one-handed leg extension, while cant tension can be adjusted directly by hand. Leg Lock Mode provides a separate setting for keeping the legs securely collapsed.

Key Takeaways

The Compact’s strongest features are its low working height, adjustable stance and accessible controls. Its panless construction is an important buying consideration for shooters who prefer a fixed horizontal orientation. For Uttings customers seeking a bipod for low precision-shooting positions with flexible ARCA or Picatinny mounting, it offers a useful combination of adjustment and maintainability.

MDT CKYE-POD GEN3 Compact FAQs

Does it fit both ARCA and Picatinny rails?

Yes. The AP Throw Lever head attaches to either interface using the same head, so no head swap is required.

What is the adjustable height range?

The overall height range is 4.6–11.9 inches. The available height depends on the selected leg splay position and extension.

How many leg splay positions are available?

There are three positions: narrow at 53.70°, middle at 91.70° and wide at 129.70°. The widest setting provides the lowest working height.

Does the Compact have a pan function?

No. It uses a panless design intended to help the rifle track straight rearwards under recoil.

Can cant tension be adjusted without tools?

Yes. Cant tension is adjusted by hand, allowing changes without a separate tool when setting up on uneven ground.

What is the difference between the two leg modes?

Leg Lock Mode keeps the legs collapsed and secure for storage. Rapid Deployment Mode allows both legs to be pulled into position with one hand.

Can the feet be changed?

Yes. The bipod accepts standard Atlas-pattern feet, which can be swapped quickly.

How are the legs accessed for cleaning?

Each leg detaches by removing a single screw, providing access for field cleaning and maintenance. Fully enclosed shrouds also help keep dirt and debris out of the leg mechanism.

What are its stowed dimensions?

It measures 11.79 inches long, 3.10 inches wide and 2.48 inches high with the legs stowed, the middle splay position selected and the throw lever facing forward.
