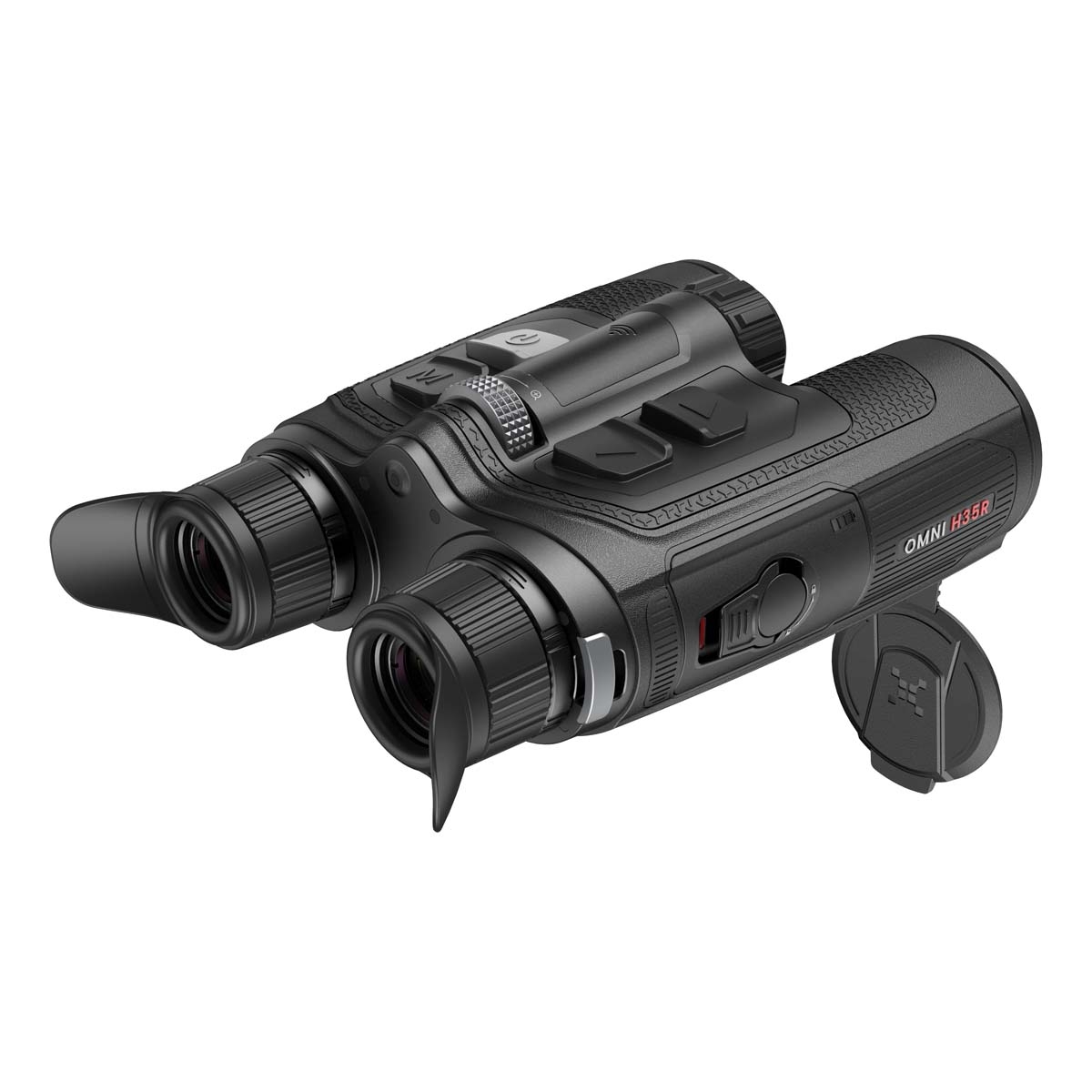

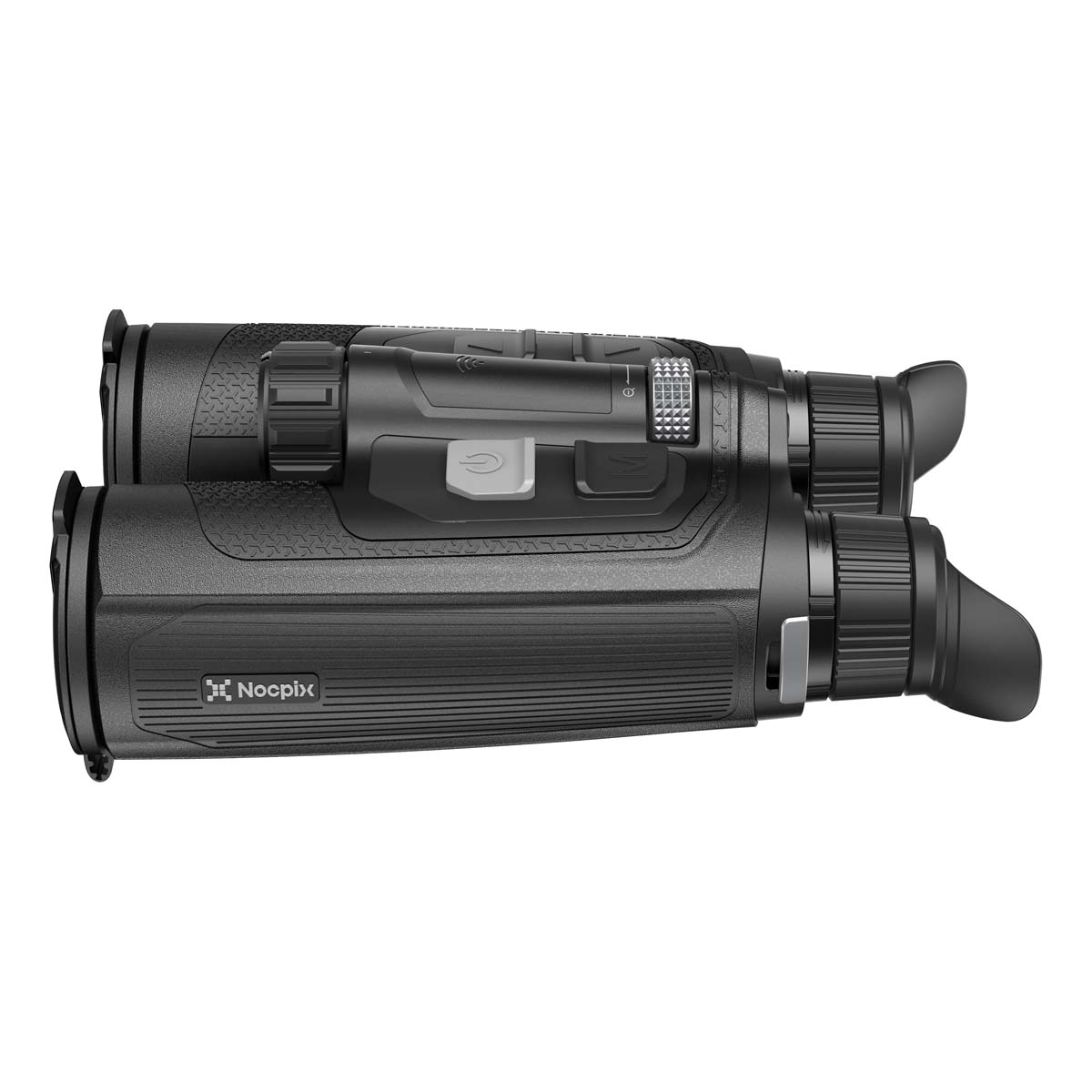

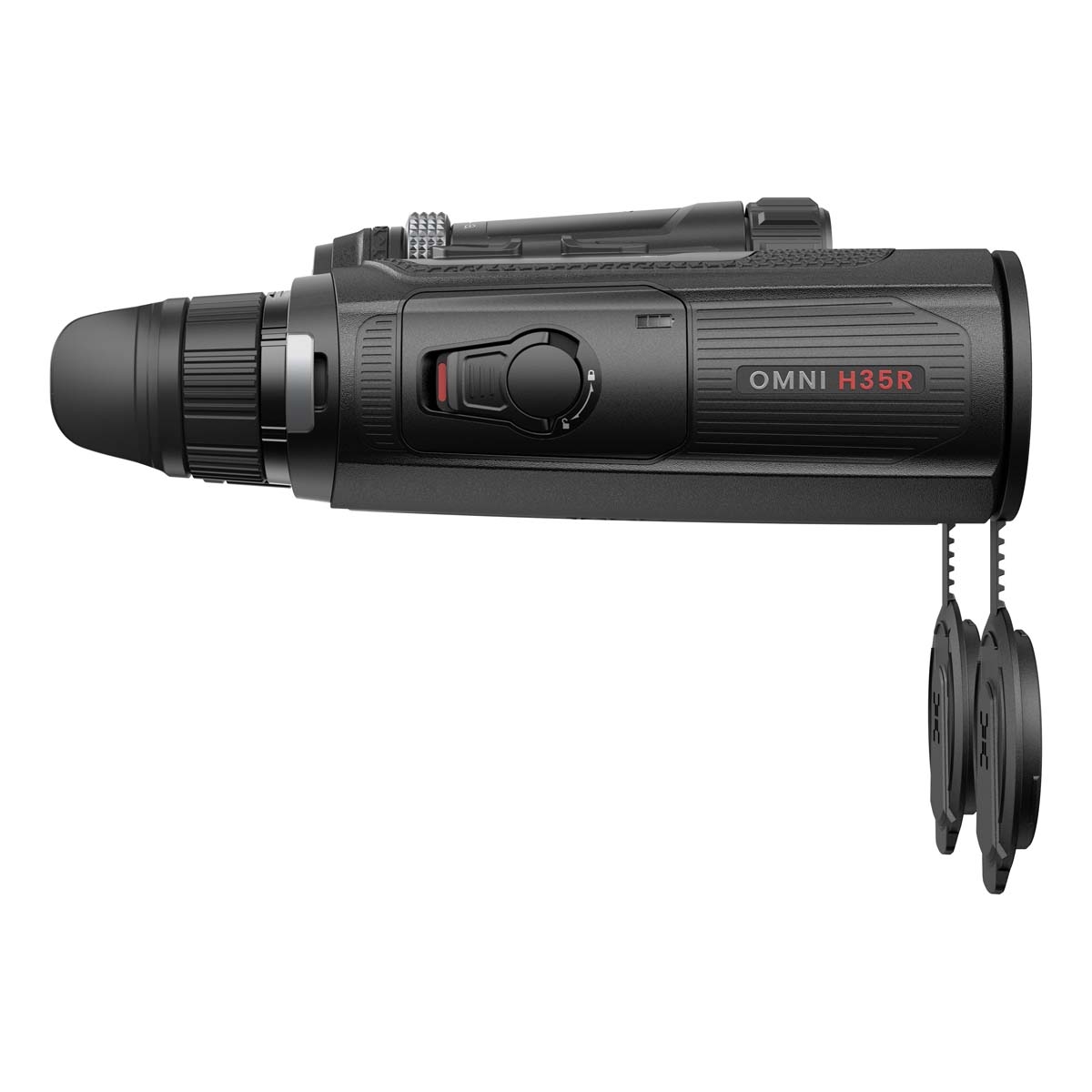

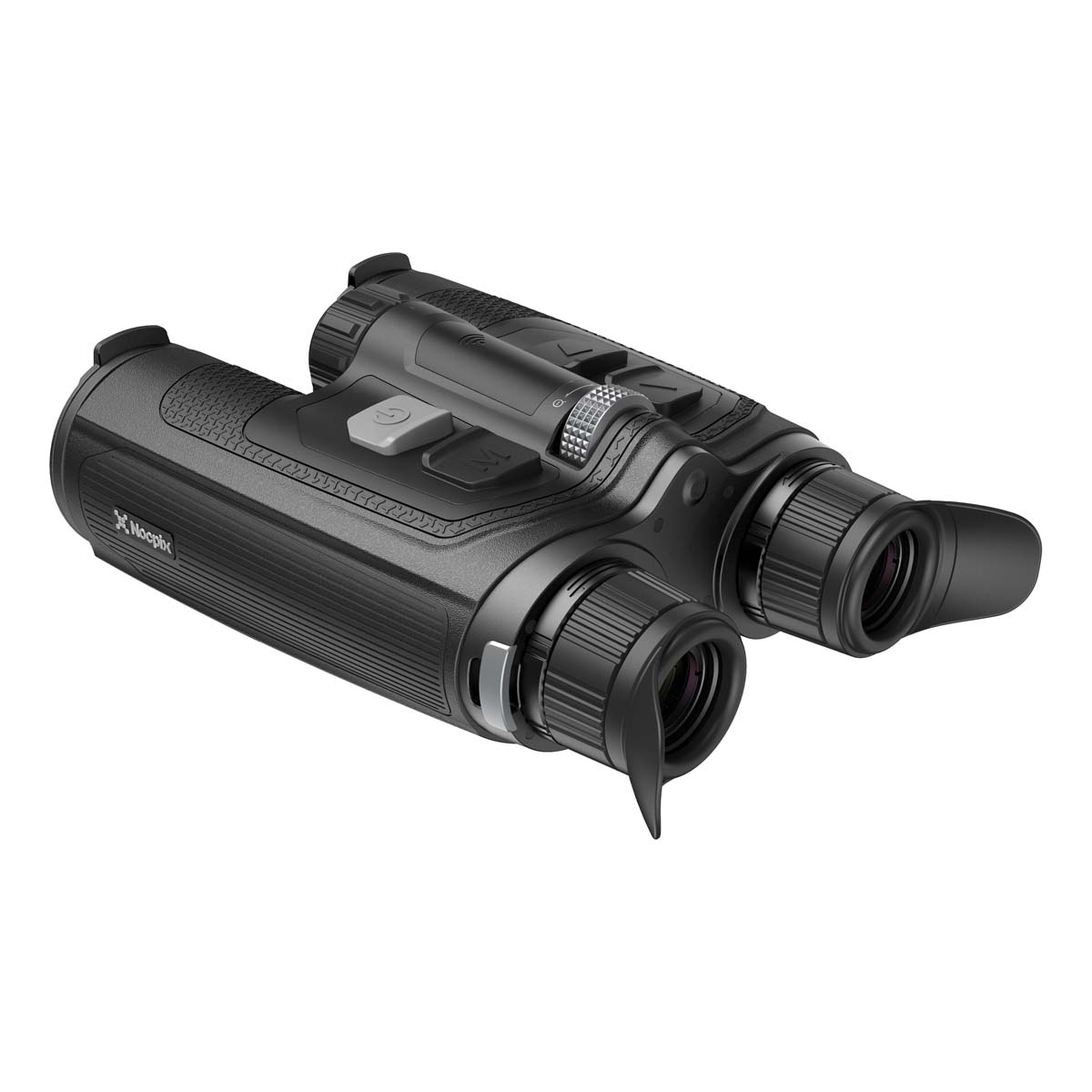

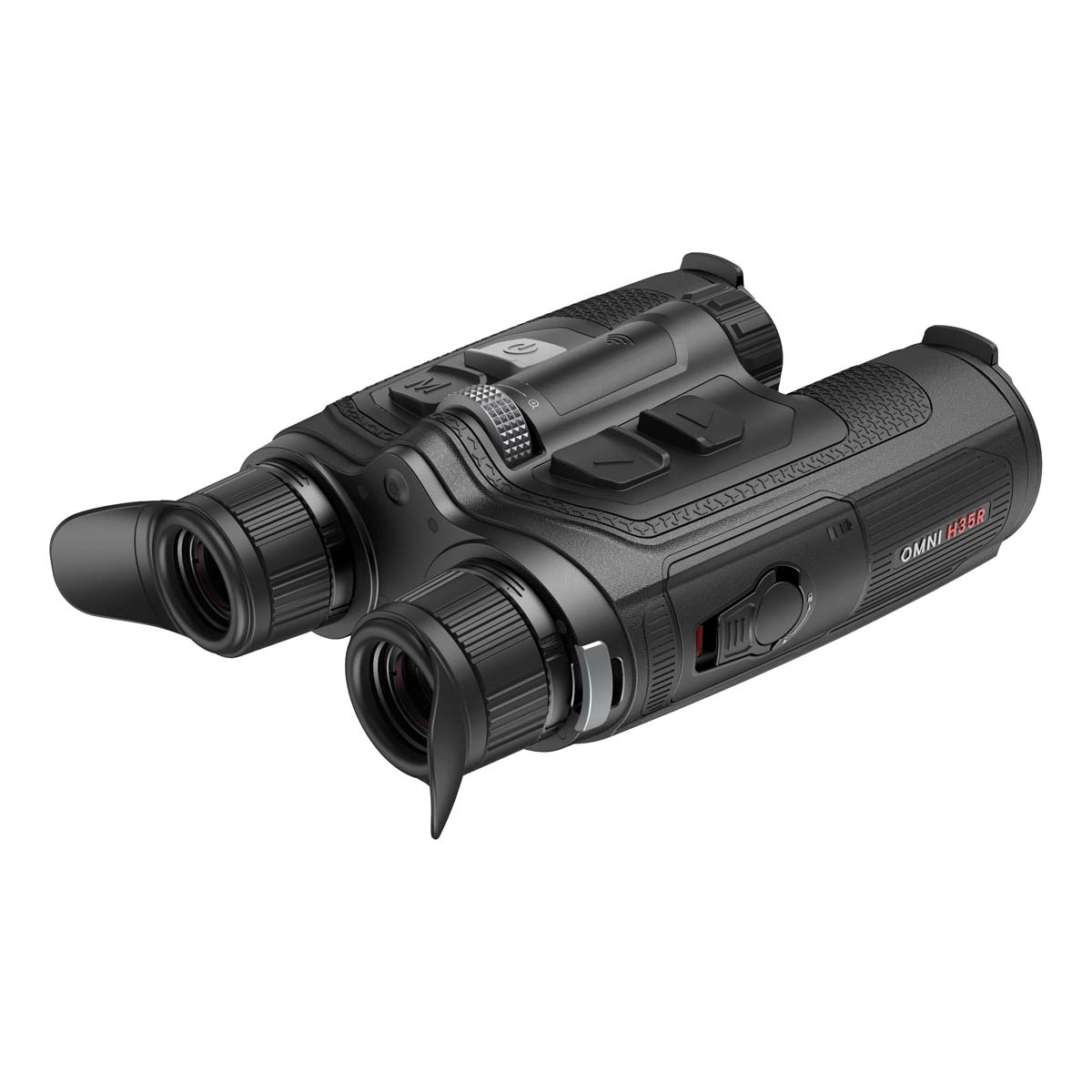

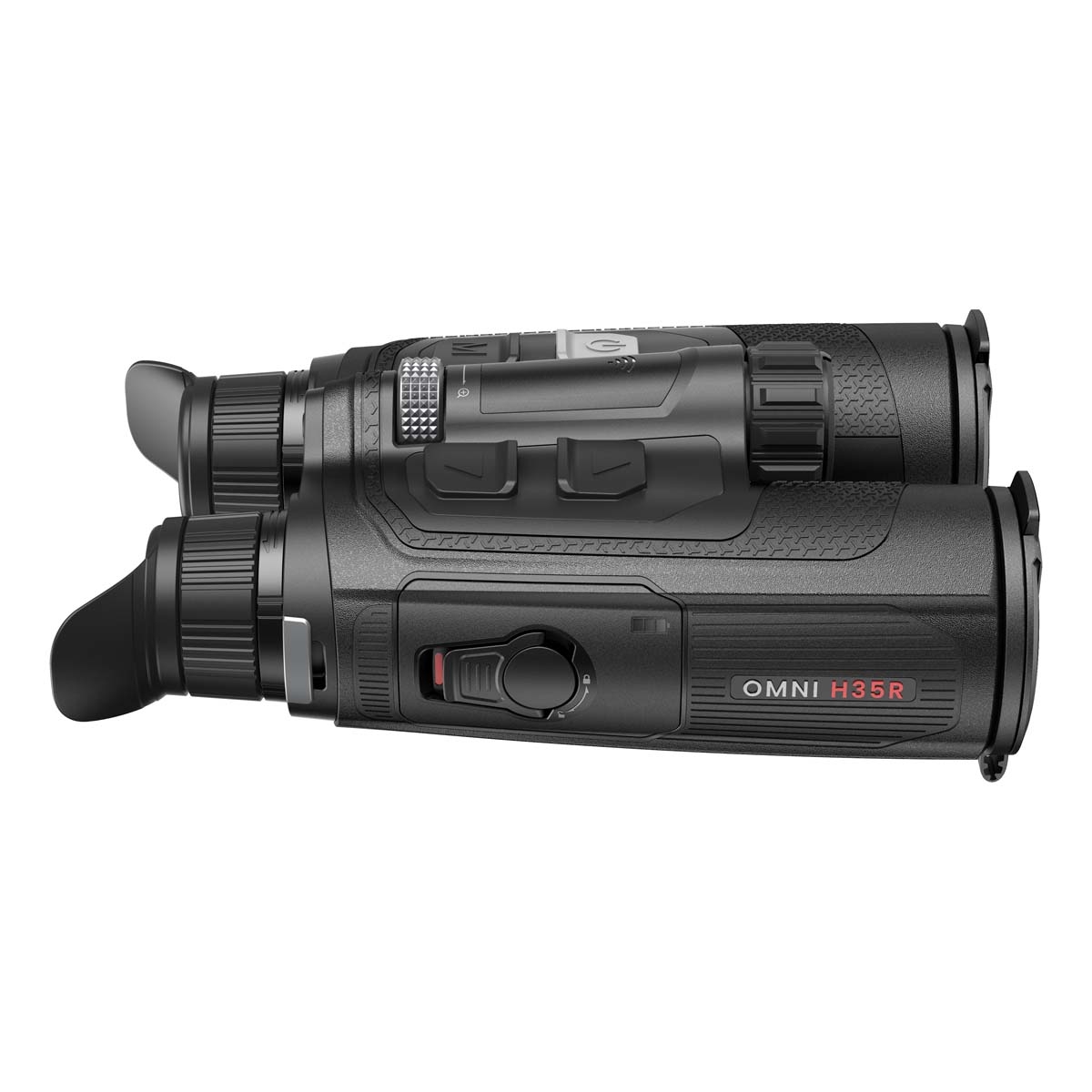

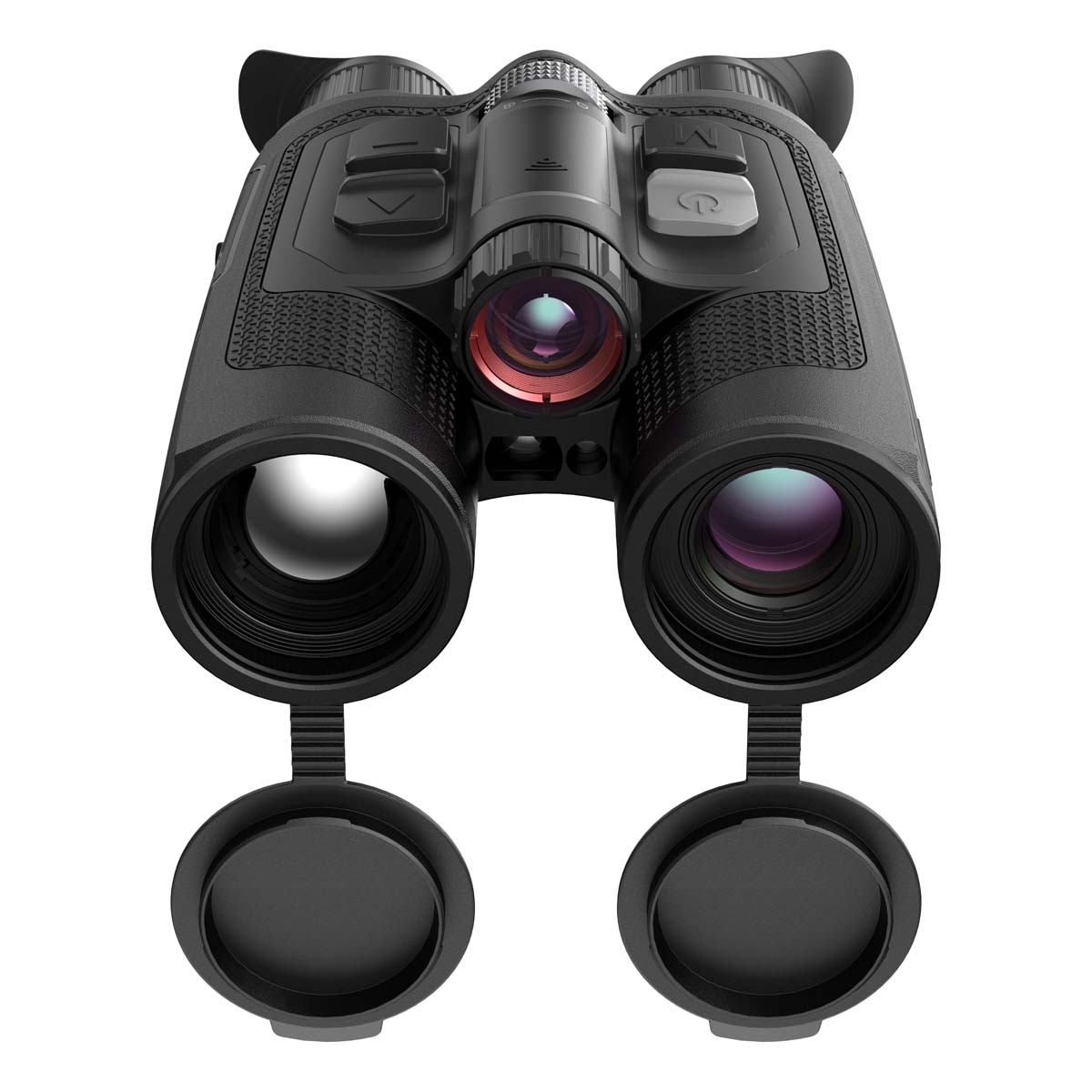

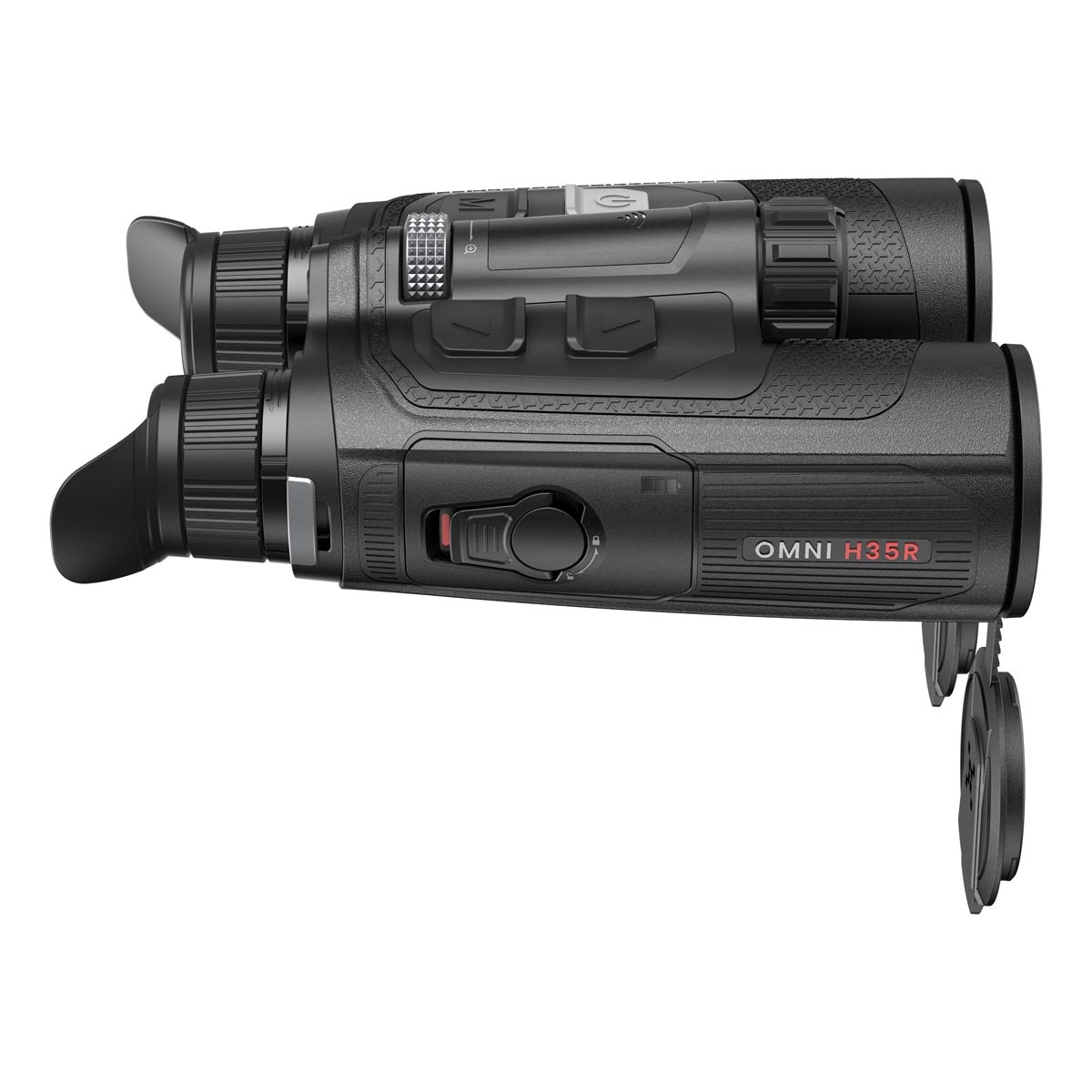

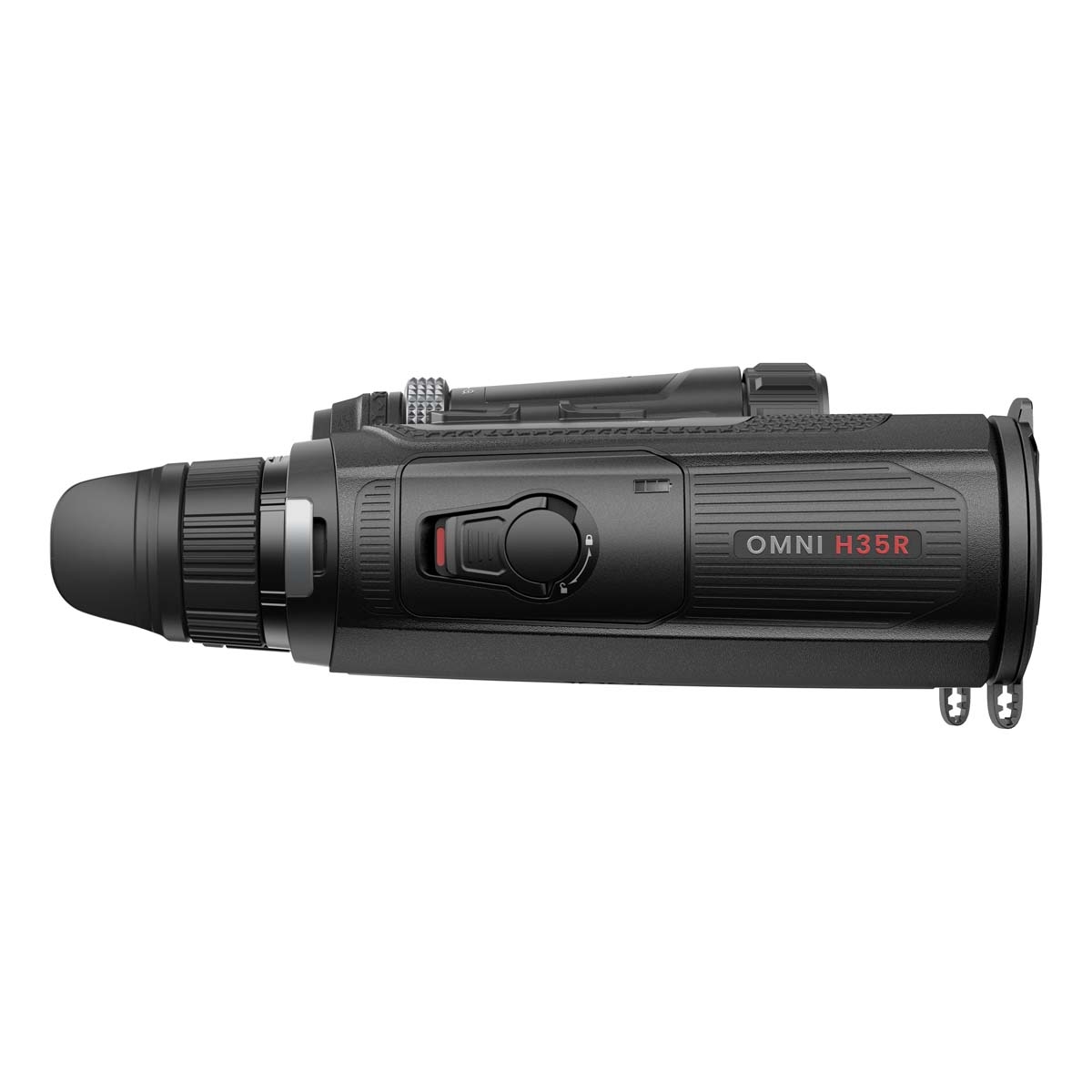

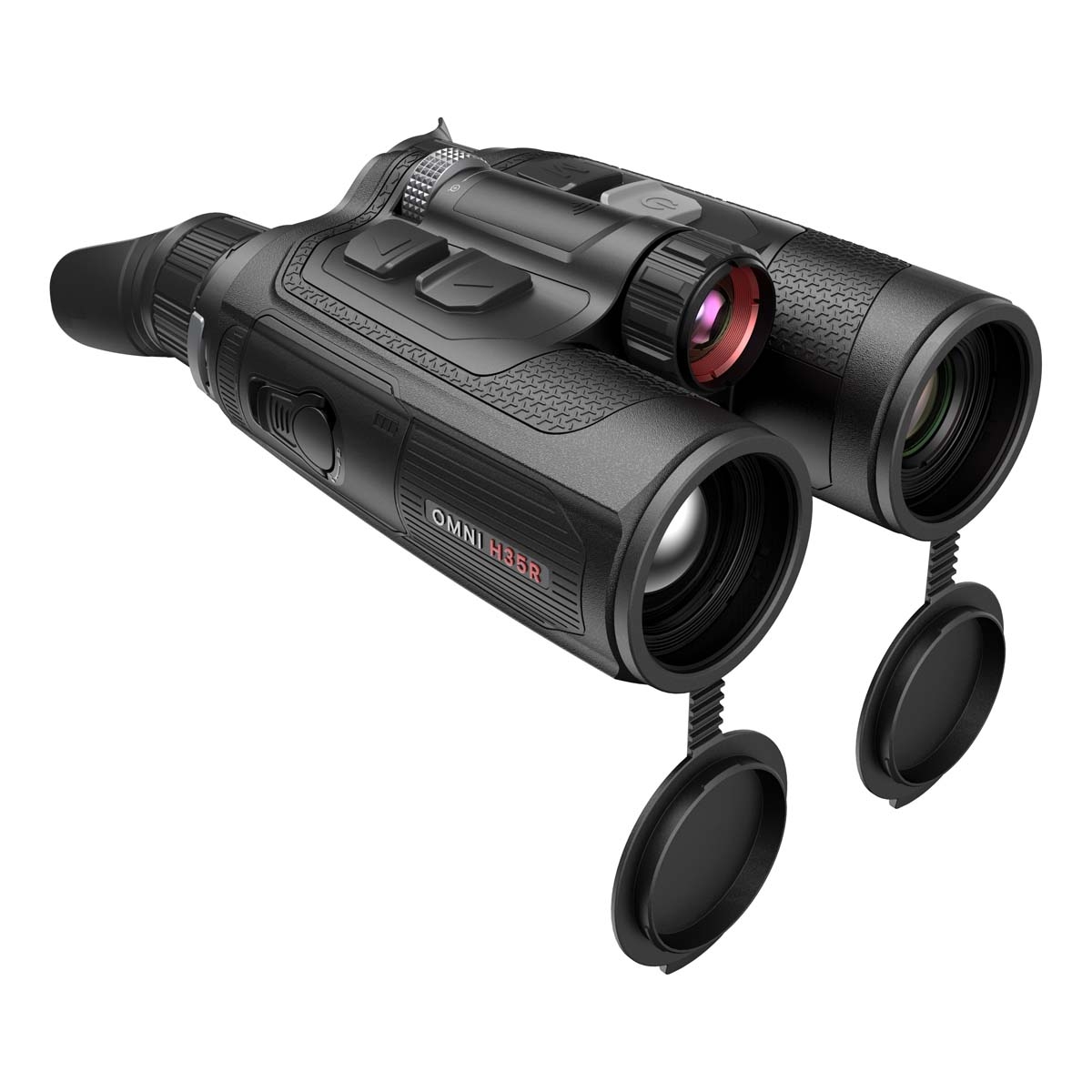

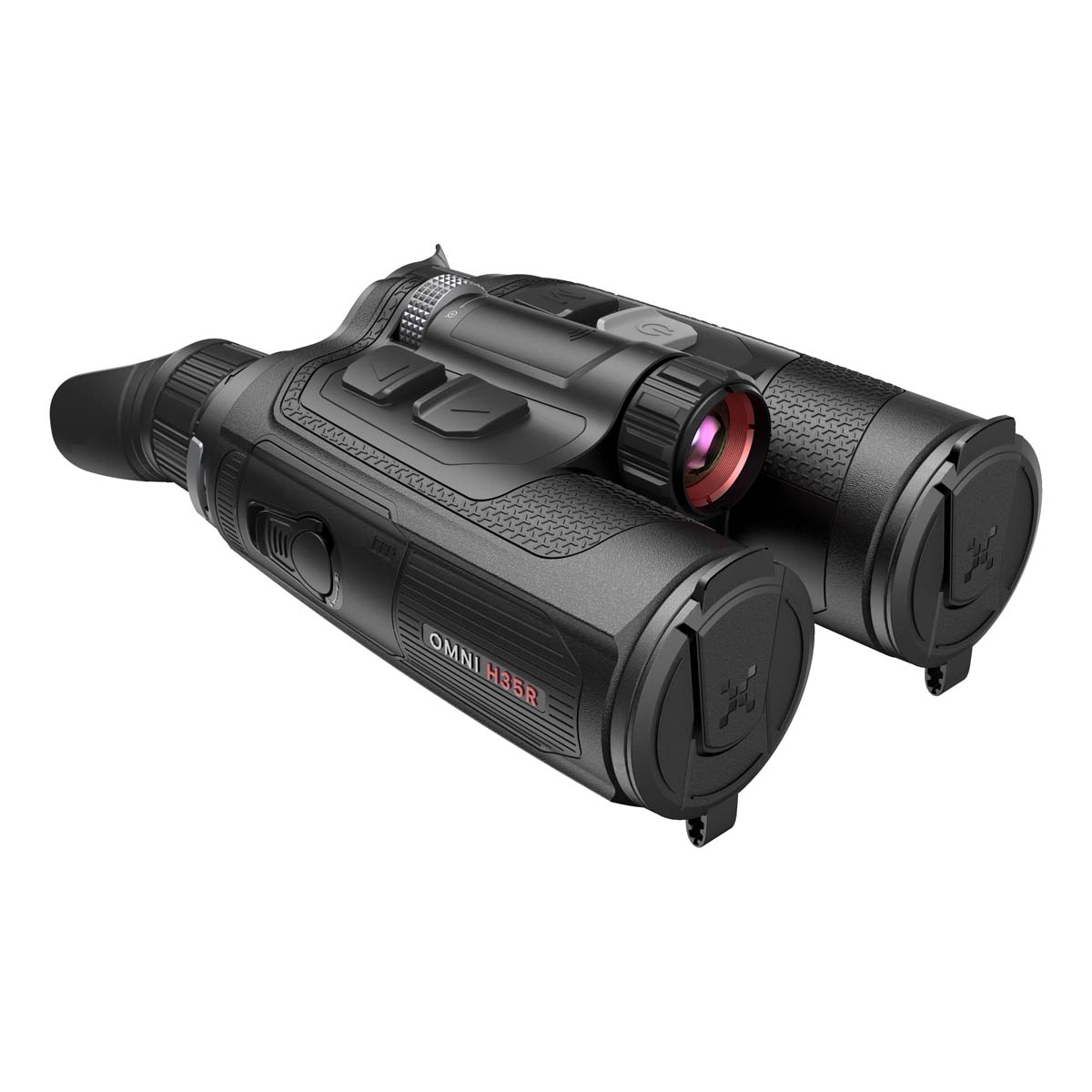

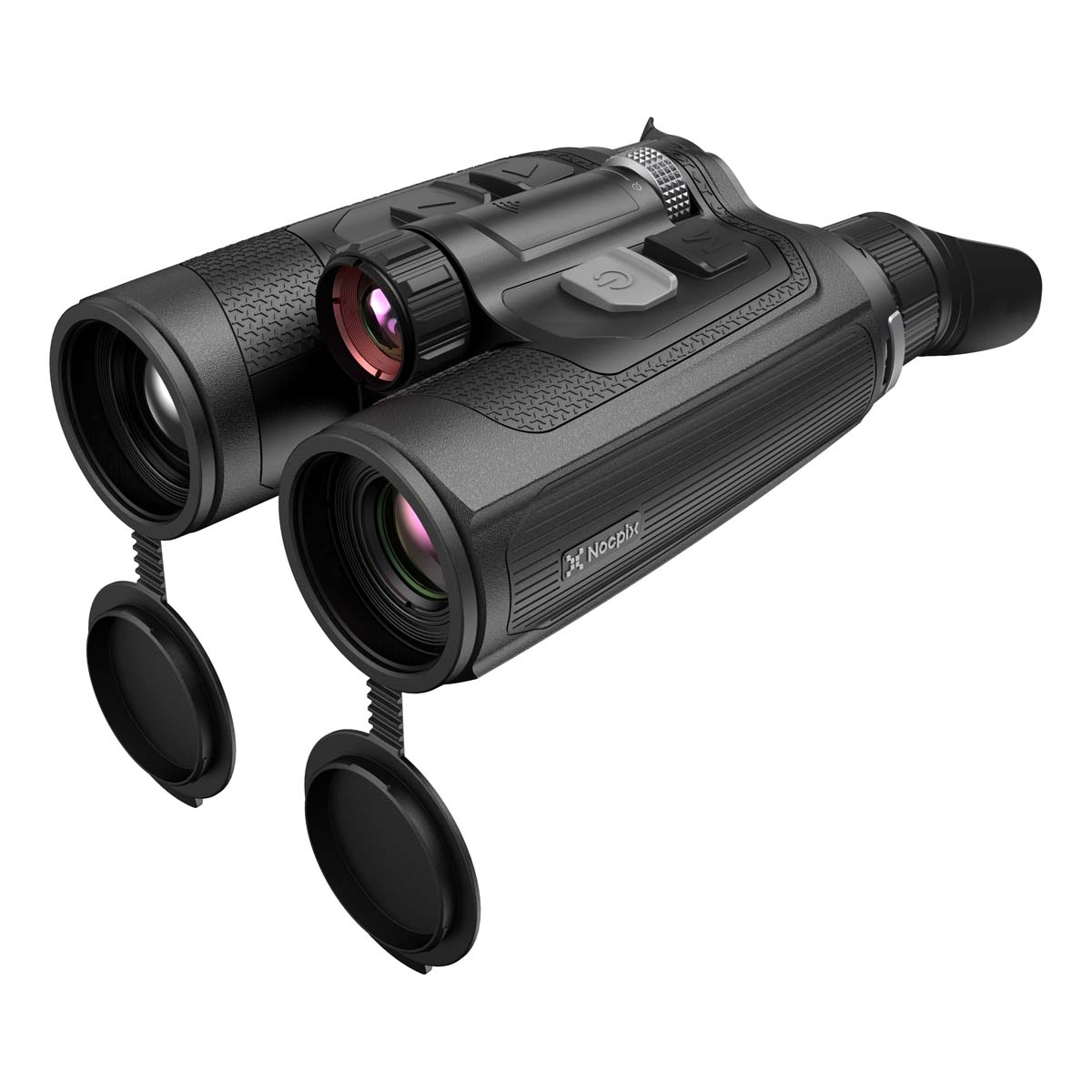

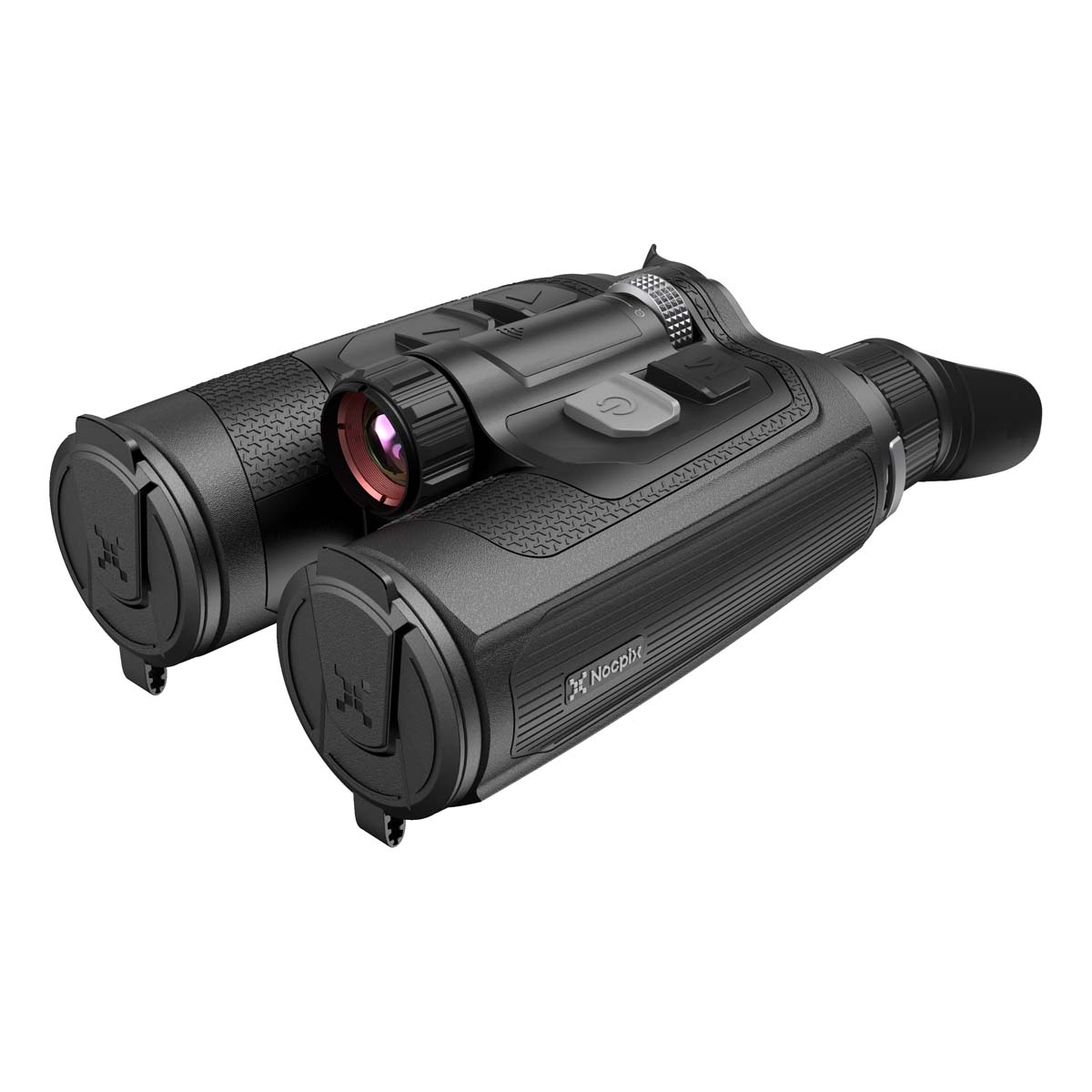

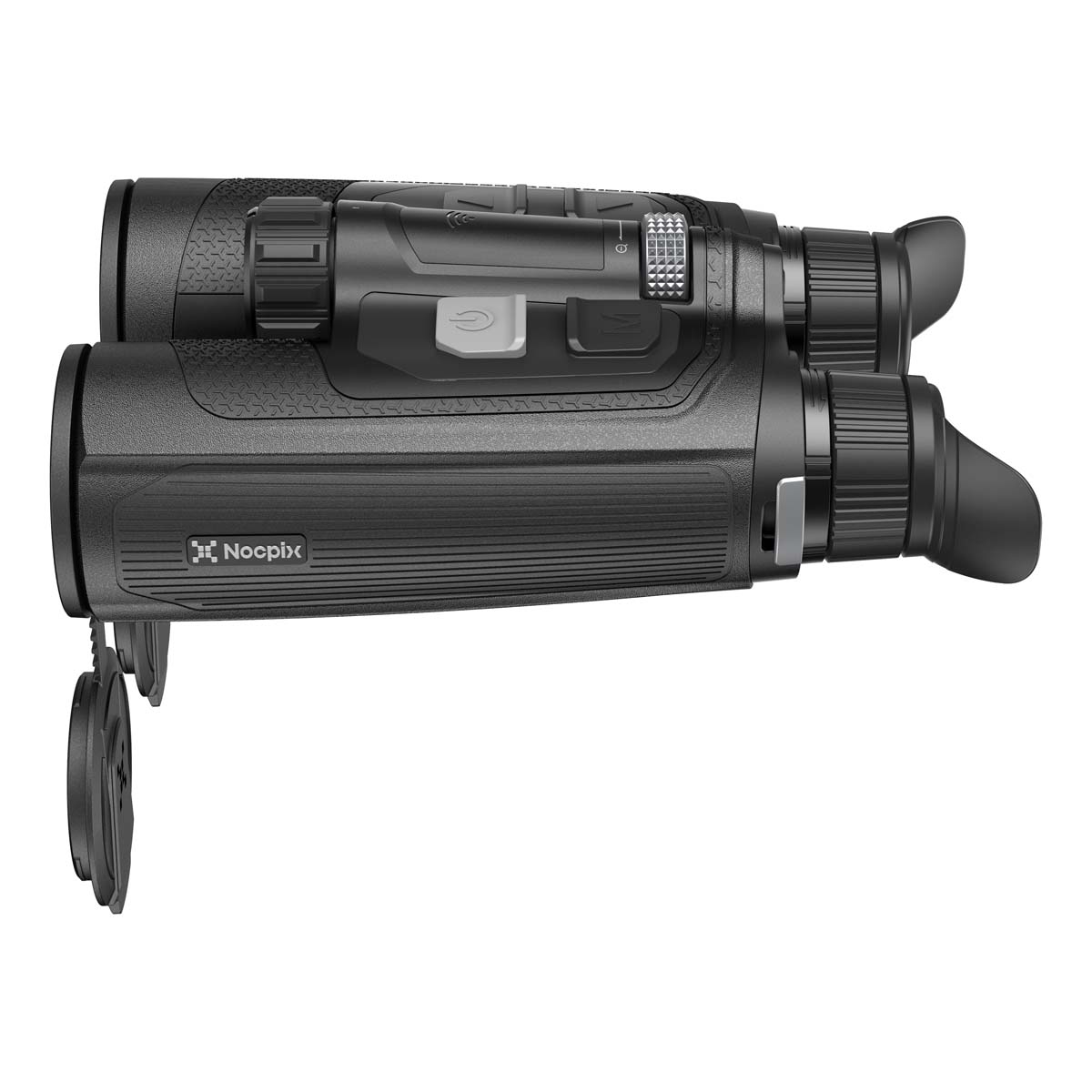

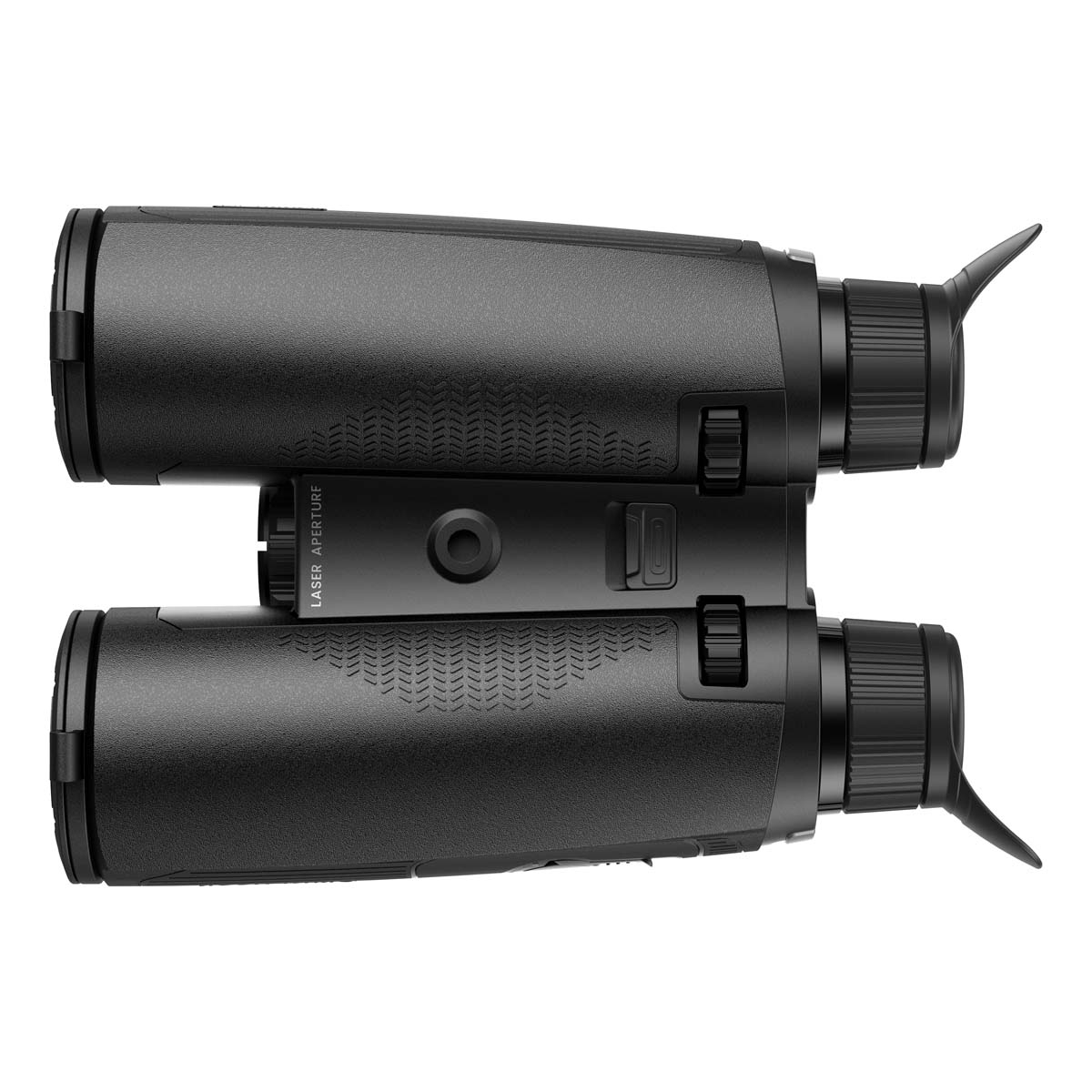

Nocpix OMNI H35R Multispectral (640x512/8K) Binocular

The Nocpix OMNI H35R combines high-resolution thermal imaging with an 8K digital channel in a binocular-style observation system. Its 640 × 512 thermal sensor and 35mm F0.9 lens deliver a specified detection range of 1818m, while the separate digital channel captures fine visual detail throughout the day and into twilight.

A built-in 1000m laser rangefinder, electronic image stabilisation and intuitive controls bring detection, recognition and distance measurement together. The magnesium-alloy housing and traditional binocular layout provide familiar handling for extended outdoor observation.

High-Resolution Thermal Imaging

The thermal channel uses a 640 × 512 sensor with a 12µm pixel pitch, NETD ≤15mK sensitivity and a 50Hz frame rate. Paired with a 35mm F0.9 objective lens, it provides detailed thermal imagery with reduced noise and clear temperature differences.

Base thermal magnification is 2x, with a 12.5° × 9.4° field of view covering 21.9 × 16.5m at 100m. This combination supports scanning and subject acquisition, with a specified thermal detection range of 1818m.

8K Digital Detail

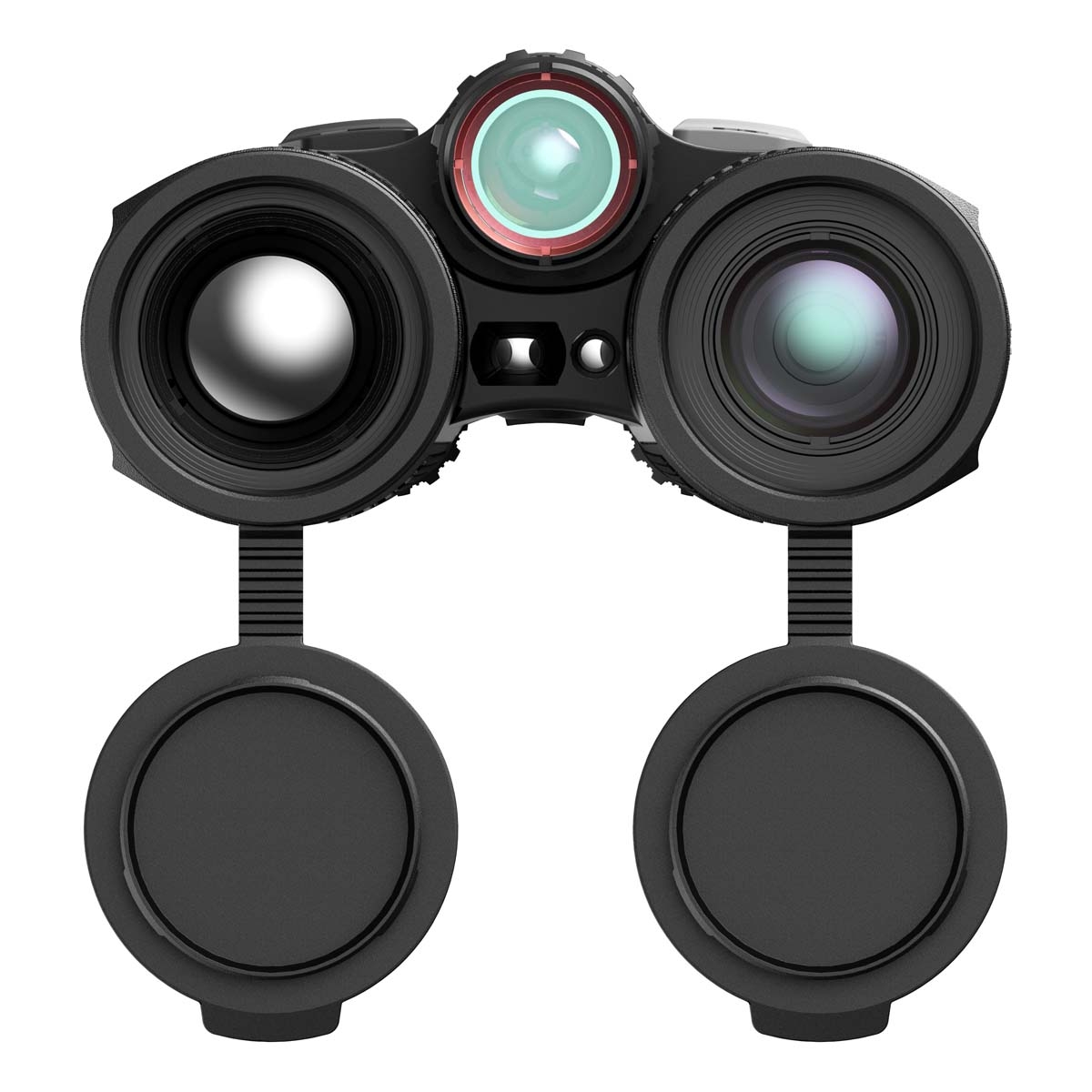

The digital channel combines an 8192 × 6144 sensor with a 50mm F1.8 lens and 3x base magnification. Its high pixel count preserves fine detail at higher magnification, supporting visual recognition.

Scene-specific processing optimises images across different environments, producing clear detail in daylight and natural colours at twilight. The large-aperture lens improves light capture for brighter viewing in challenging light.

Stable, Comfortable Viewing

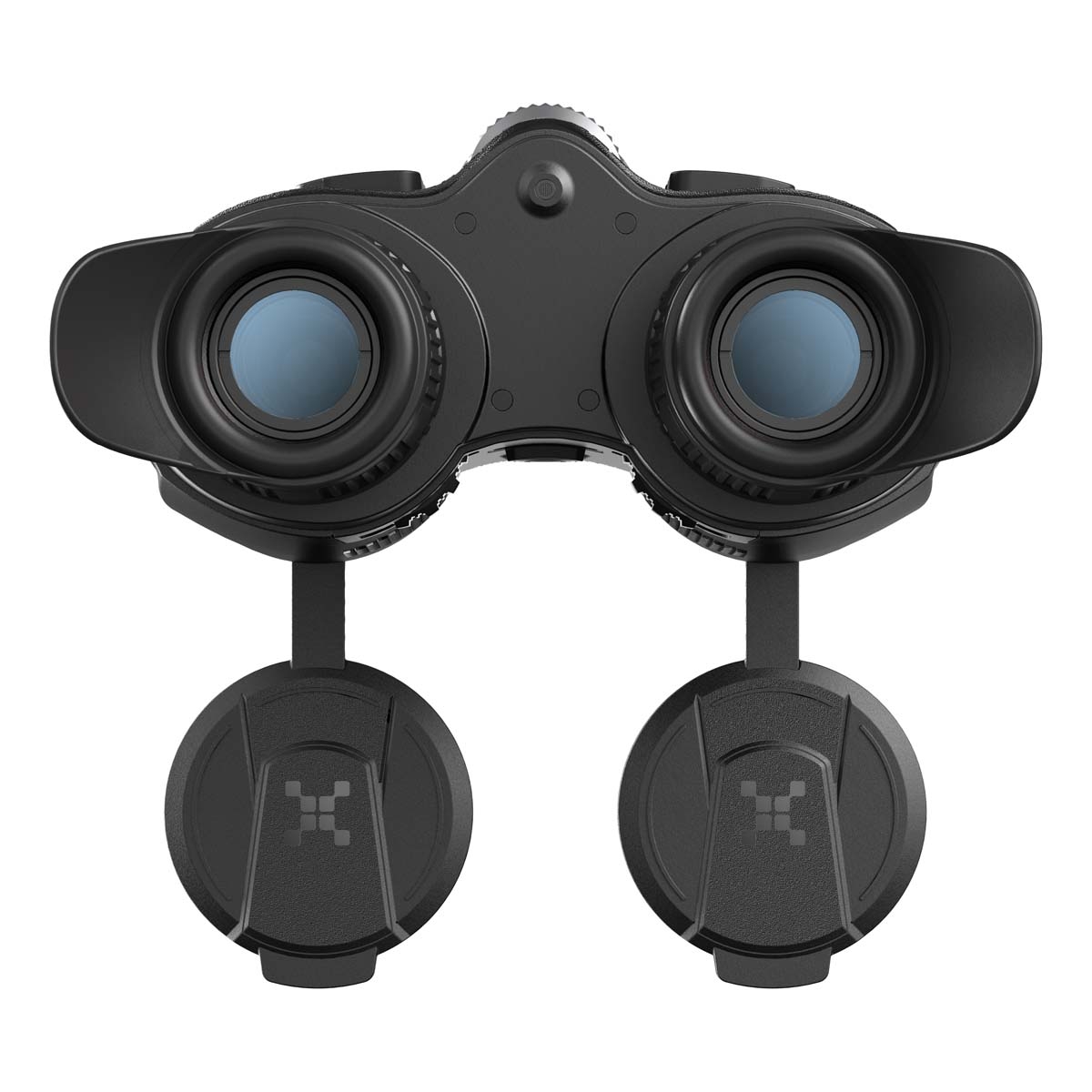

Electronic image stabilisation helps maintain a steady view, while the 1600 × 1200 AMOLED display and 12mm exit pupil support comfortable observation. Digital zoom adjusts in 0.5x increments for controlled changes in image scale.

A short press switches between thermal and digital channels. Separate focus adjusters and a digital zoom ring sit within natural finger reach, allowing adjustments without changing your grip.

Construction and Controls

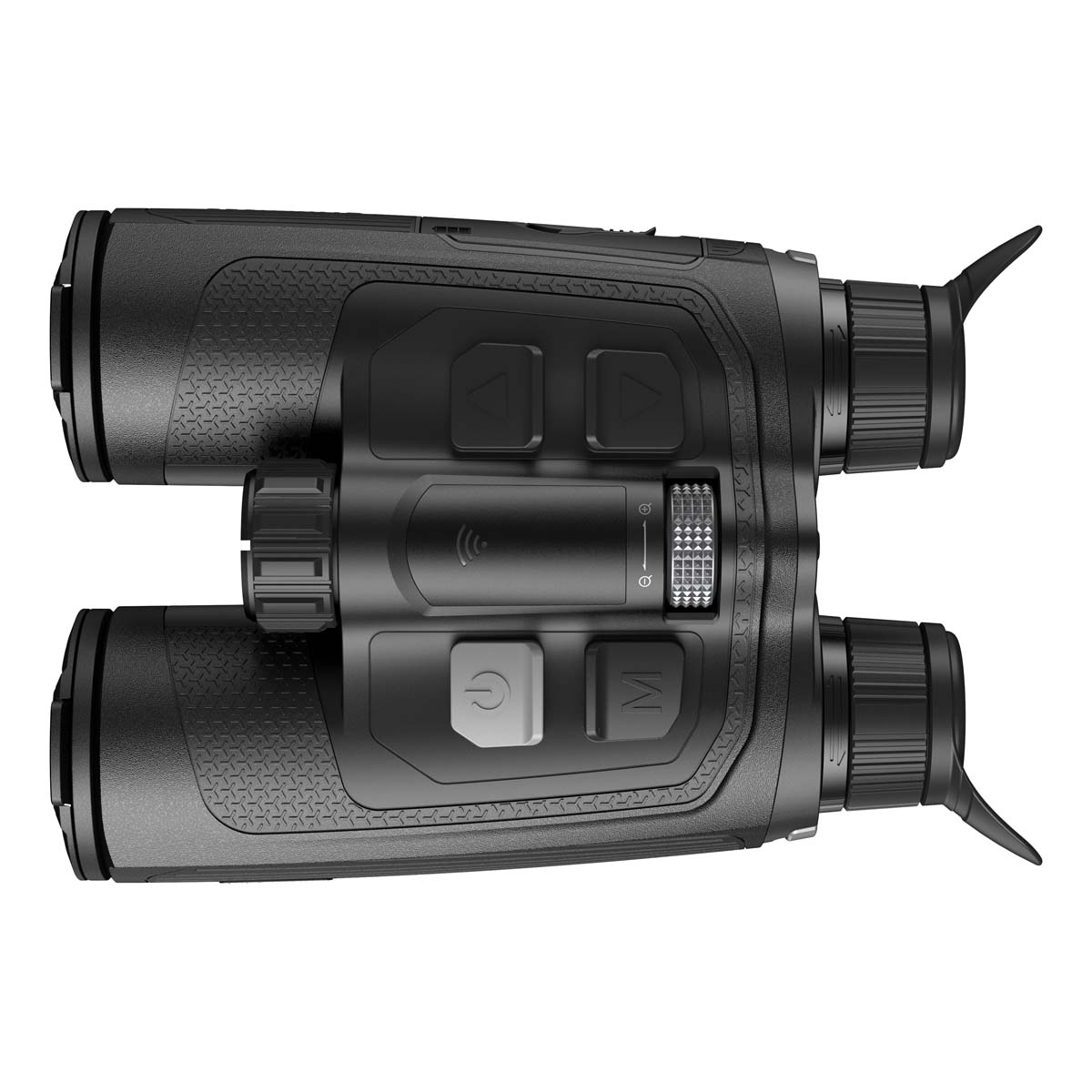

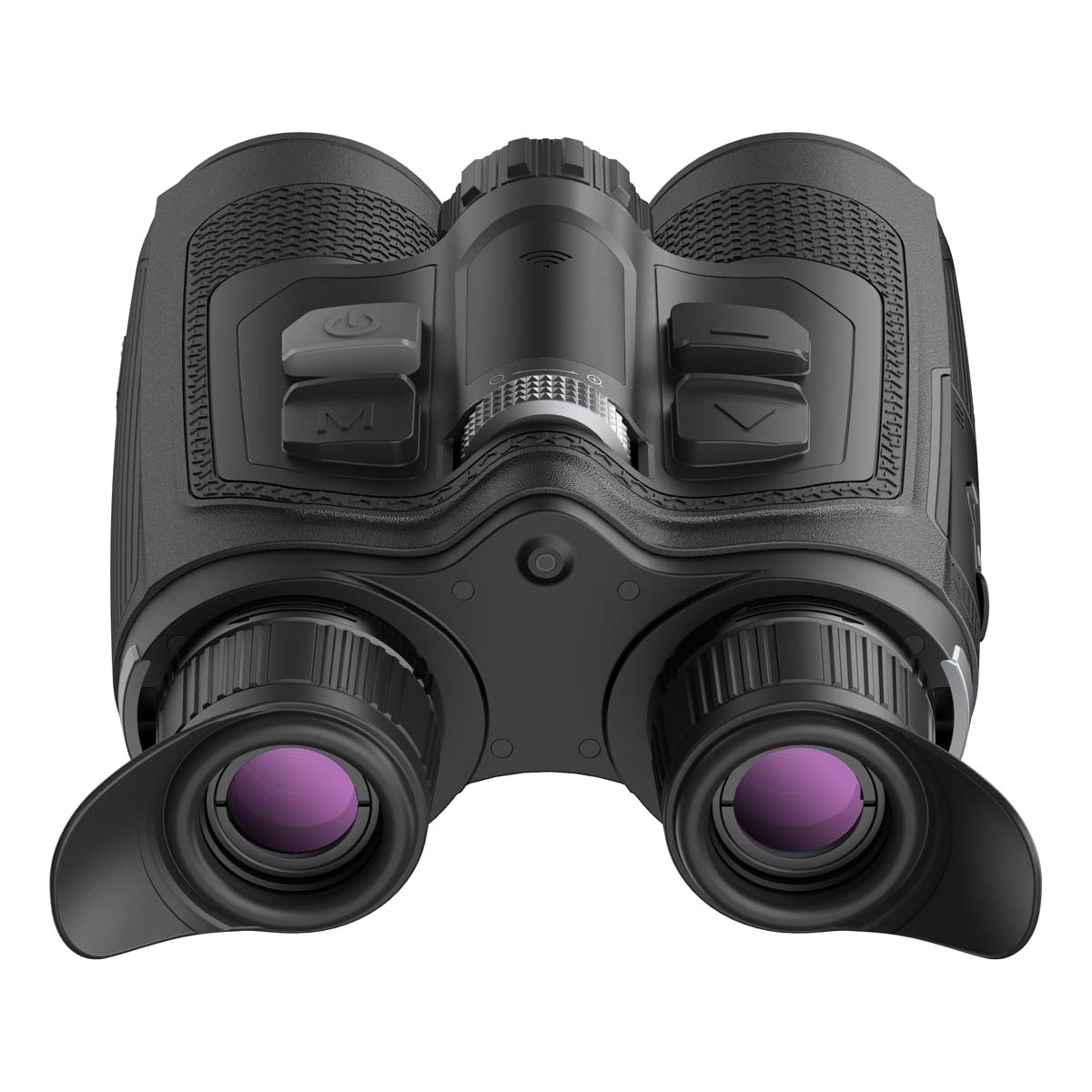

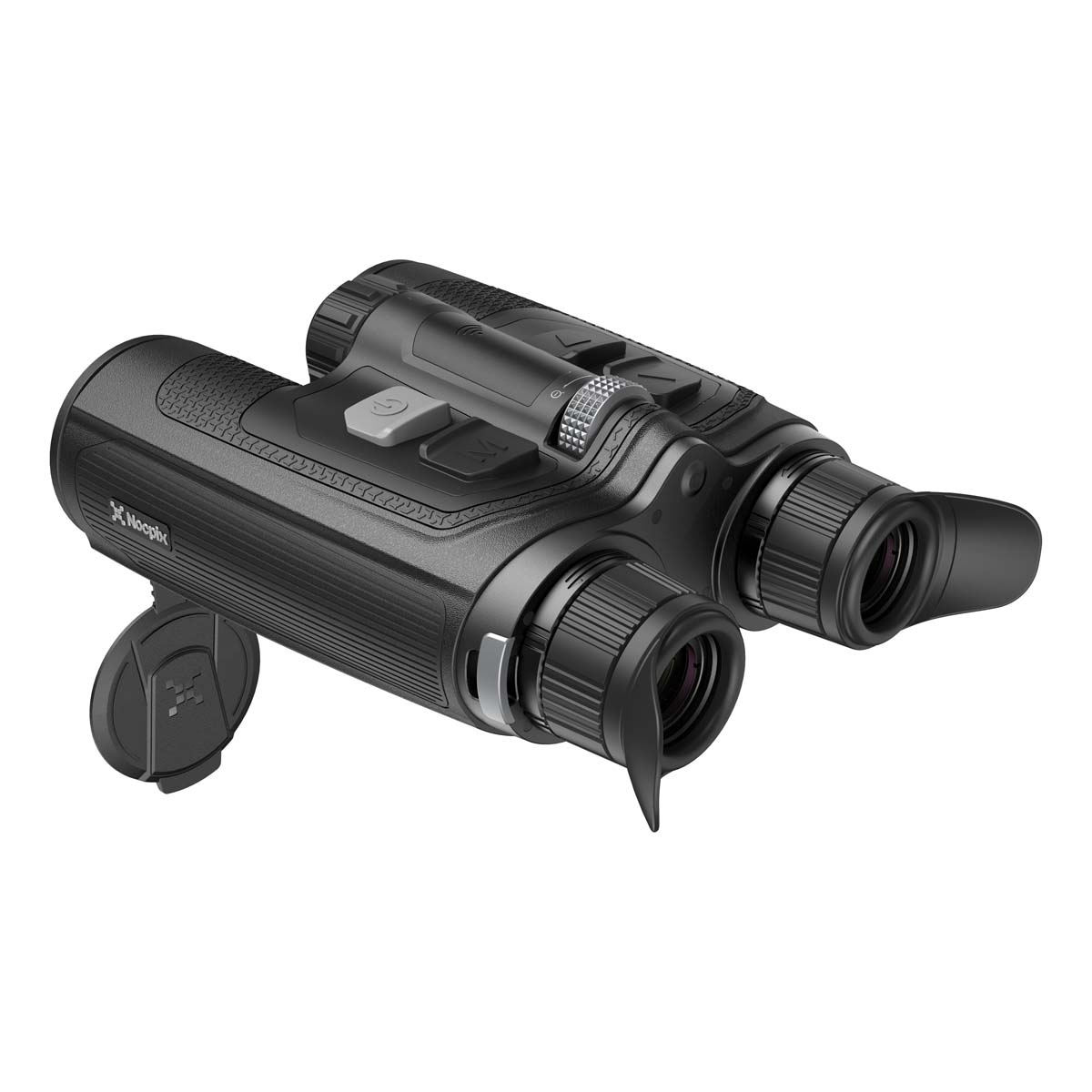

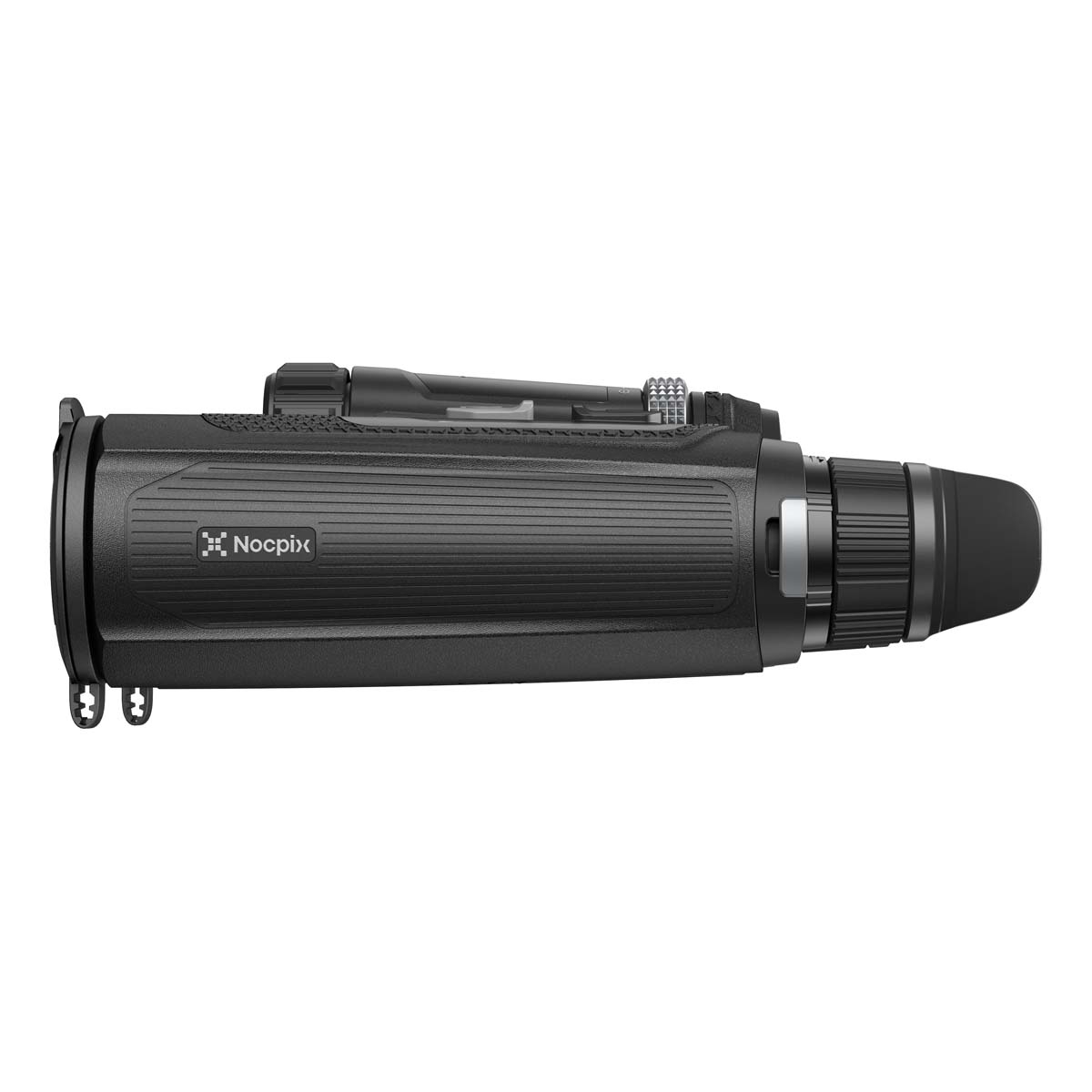

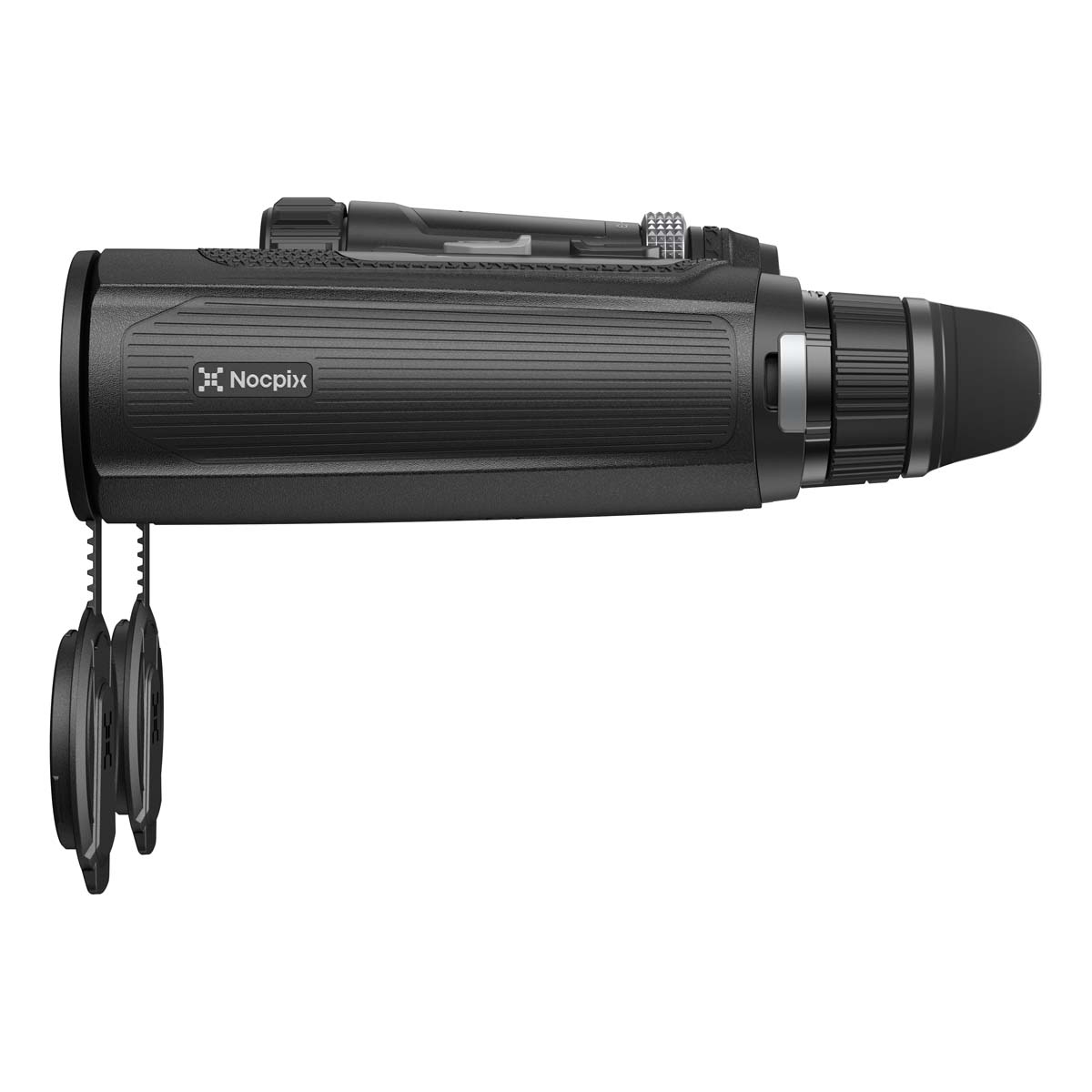

The OMNI H35R combines a compact magnesium-alloy housing with a PVC anti-slip grip. Its traditional binocular-style design provides familiar handling, while a simplified four-button layout supports operation in darkness or while wearing gloves.

The polarity-free battery compartment allows quick battery replacement without checking orientation. Power comes from two external replaceable 18650 batteries and an internal battery, with a specified maximum operating time of 7.5 hours.

Integrated Ranging and Connectivity

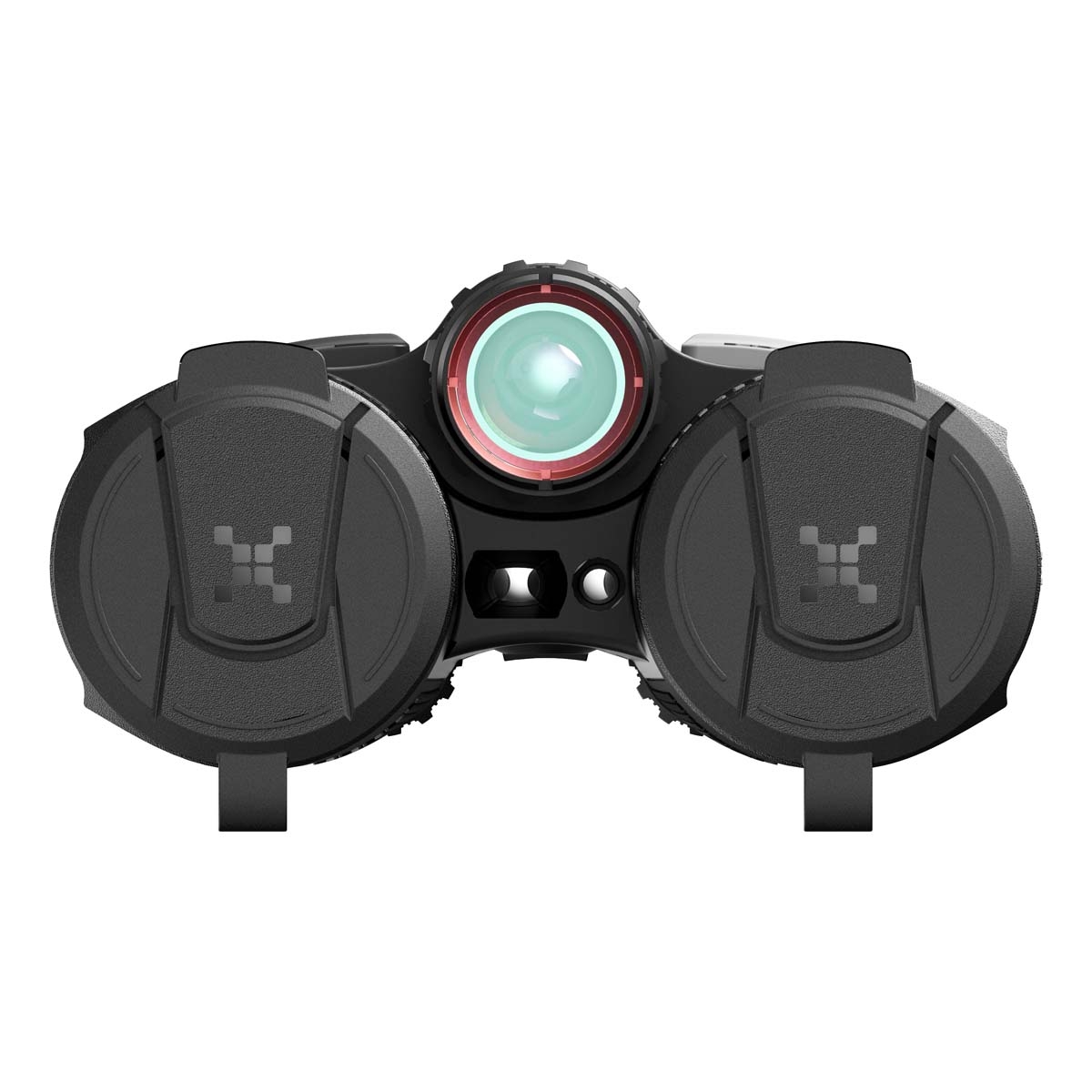

The built-in laser rangefinder measures distances up to 1000m, with ballistic calculation support also included. Wi-Fi and app support, N-link compatibility and 64GB of memory add connectivity and storage to the dual-channel imaging system.

Nocpix OMNI H35R Key Features

• Combined thermal and 8K digital imaging channels.
• 640 × 512 thermal sensor with 12µm pixel pitch and NETD ≤15mK sensitivity.
• 35mm F0.9 thermal objective and 1818m thermal detection range.
• 8192 × 6144 digital sensor with a 50mm F1.8 objective.
• 2x thermal and 3x digital base magnification.
• Electronic image stabilisation and 1600 × 1200 AMOLED display.
• Integrated 1000m laser rangefinder and ballistic calculation support.
• Dedicated thermal and digital focus adjusters with a digital zoom ring.
• Four-button controls designed for operation in darkness or with gloves.
• Magnesium-alloy housing with a PVC anti-slip grip.
• Polarity-free battery compartment and maximum 7.5-hour operating time.
• Wi-Fi, app support, N-link compatibility and 64GB memory.

Nocpix OMNI H35R Specifications

• Thermal sensor resolution: 640 × 512 pixels.
• Thermal pixel pitch: 12µm.
• Thermal sensitivity: NETD ≤15mK.
• Thermal frame rate: 50Hz.
• Thermal objective lens: 35mm F0.9.
• Thermal base magnification: 2x.
• Thermal field of view: 12.5° × 9.4°.
• Thermal field of view at 100m: 21.9 × 16.5m.
• Thermal detection range: 1818m.
• Digital sensor resolution: 8192 × 6144 pixels.
• Digital objective lens: 50mm F1.8.
• Digital base magnification: 3x.
• Digital field of view: 8.8° × 6.6°.
• Digital field of view at 100m: 15.4 × 11.5m.
• Display: AMOLED, 1600 × 1200 pixels.
• Exit pupil: 12mm.
• Battery system: two external replaceable 18650 batteries and one internal battery.
• Maximum operating time: 7.5 hours.
• Memory capacity: 64GB.
• Wi-Fi and app support: yes.
• N-link compatibility: yes.
• Laser rangefinder range: 1000m.
• Ballistic calculation: supported.
• Weight without battery: 900g.
• Dimensions: 198 × 144 × 75mm.

Nocpix OMNI H35R Review

The Nocpix OMNI H35R combines detailed thermal observation with high-resolution digital viewing in one binocular-style device. Its strongest specification points are the 640 × 512 thermal sensor, 8K digital channel and integrated laser rangefinder, supported by controls designed to keep both imaging modes readily accessible.

Performance & Key Features

The thermal channel pairs NETD ≤15mK sensitivity with a 35mm F0.9 lens and a 50Hz frame rate, supporting clear temperature differentiation and responsive viewing. Its specified 1818m detection range gives it substantial reach, while the 2x base magnification retains a useful field of view for scanning. The separate 3x digital channel adds fine visual detail through its 8192 × 6144 sensor. Electronic image stabilisation and integrated 1000m ranging round out a comprehensive observation specification.

Build Quality & Handling

The magnesium-alloy housing and PVC anti-slip grip support practical outdoor handling, while the binocular-style layout keeps the focus adjusters and zoom ring within reach. At 900g without the battery, the H35R’s weight deserves consideration for prolonged handheld use. Its 198 × 144 × 75mm dimensions bring both imaging channels into a compact body.

Is It Easy to Use?

A short press switches imaging channels, and the four-button layout simplifies access to the main controls. Separate thermal and digital focus adjusters allow direct adjustment, while the polarity-free battery compartment makes replacement more straightforward in darkness.

Key Takeaways

The OMNI H35R suits users seeking high-resolution thermal detection alongside detailed digital observation. Its integrated rangefinder and stabilised viewing add practical capability without requiring a separate ranging device. Weight is the main handling consideration at 900g before batteries. For Uttings customers prioritising a comprehensive dual-channel viewing system, its combination of imaging resolution, controls and connectivity makes it a strong option.

Nocpix OMNI H35R FAQs

What thermal sensor does the H35R use?

The H35R uses a 640 × 512 thermal sensor with a 12µm pixel pitch. It provides NETD ≤15mK thermal sensitivity and operates at a 50Hz frame rate. The thermal objective is a 35mm F0.9 lens.

What is its thermal detection range?

The specified thermal detection range is 1818m. This is separate from the integrated laser rangefinder’s maximum measurement distance of 1000m.

Does it also provide digital viewing?

Yes, a separate digital channel uses an 8192 × 6144 sensor and a 50mm F1.8 lens. Scene-specific processing optimises images for different environments, including daylight and twilight. A short press switches between digital and thermal viewing.

What magnification does each channel offer?

The thermal channel has a base magnification of 2x, while the digital channel starts at 3x. Digital zoom changes in 0.5x increments using the zoom ring.

What is the thermal field of view?

The thermal field of view is 12.5° × 9.4°. This covers 21.9 × 16.5m at a distance of 100m, supporting scanning and subject acquisition.

Does the OMNI H35R have image stabilisation?

Yes, electronic image stabilisation supports steadier observation. The viewing system also includes a 1600 × 1200 AMOLED display and a 12mm exit pupil for comfortable extended use.

Does it include a laser rangefinder and ballistic calculation?

The built-in laser rangefinder measures distances up to 1000m. Ballistic calculation is also supported.

What batteries does it use, and how long does it operate?

The battery system combines two external replaceable 18650 batteries with one internal battery. Maximum operating time is specified as 7.5 hours. The polarity-free compartment allows replacement without checking battery orientation.

What connectivity and memory are included?

The OMNI H35R supports Wi-Fi and app connectivity, along with N-link compatibility. It includes 64GB of memory.

How much does the H35R weigh?

The H35R weighs 900g without the battery and measures 198 × 144 × 75mm. Its construction combines a magnesium-alloy housing with a PVC anti-slip grip.
