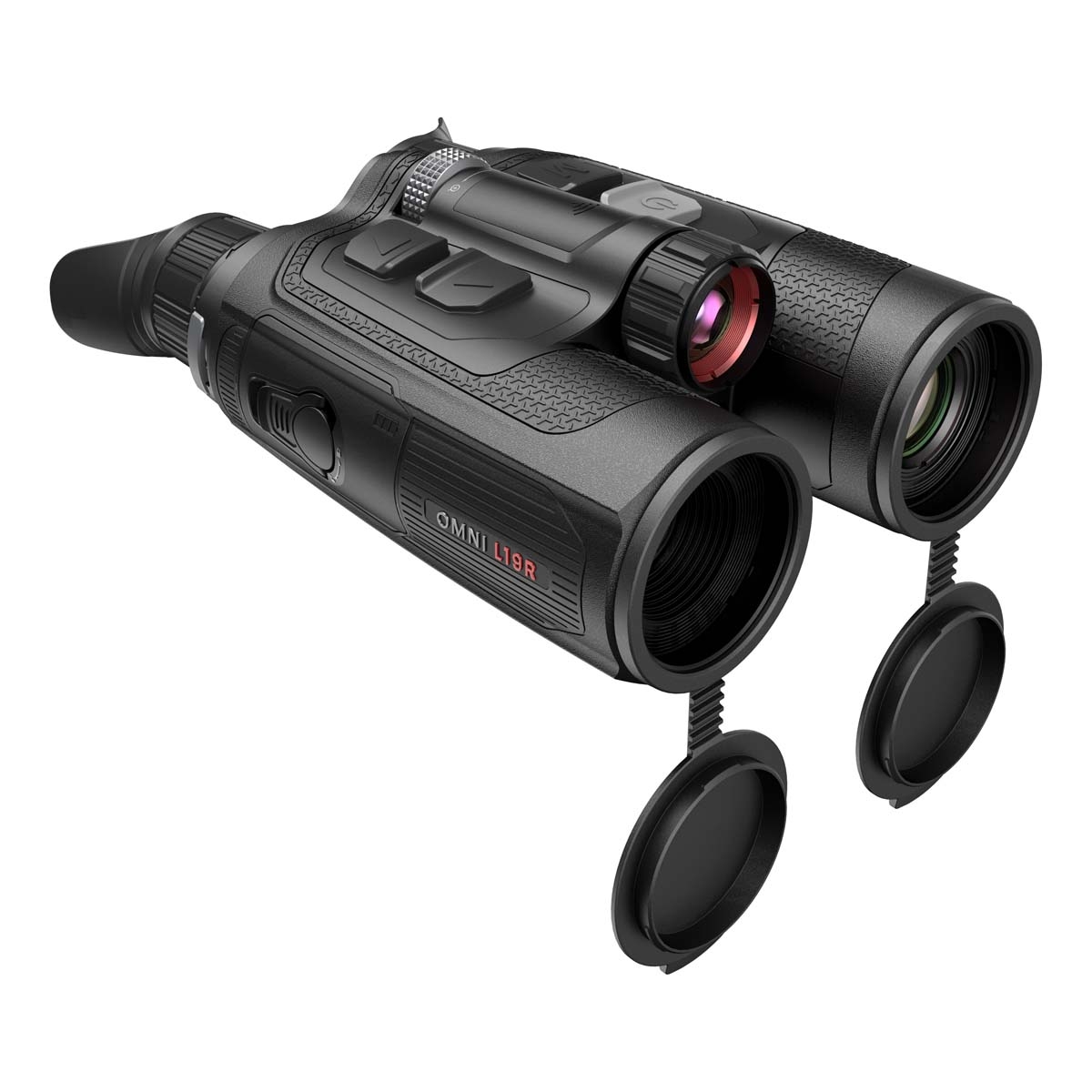

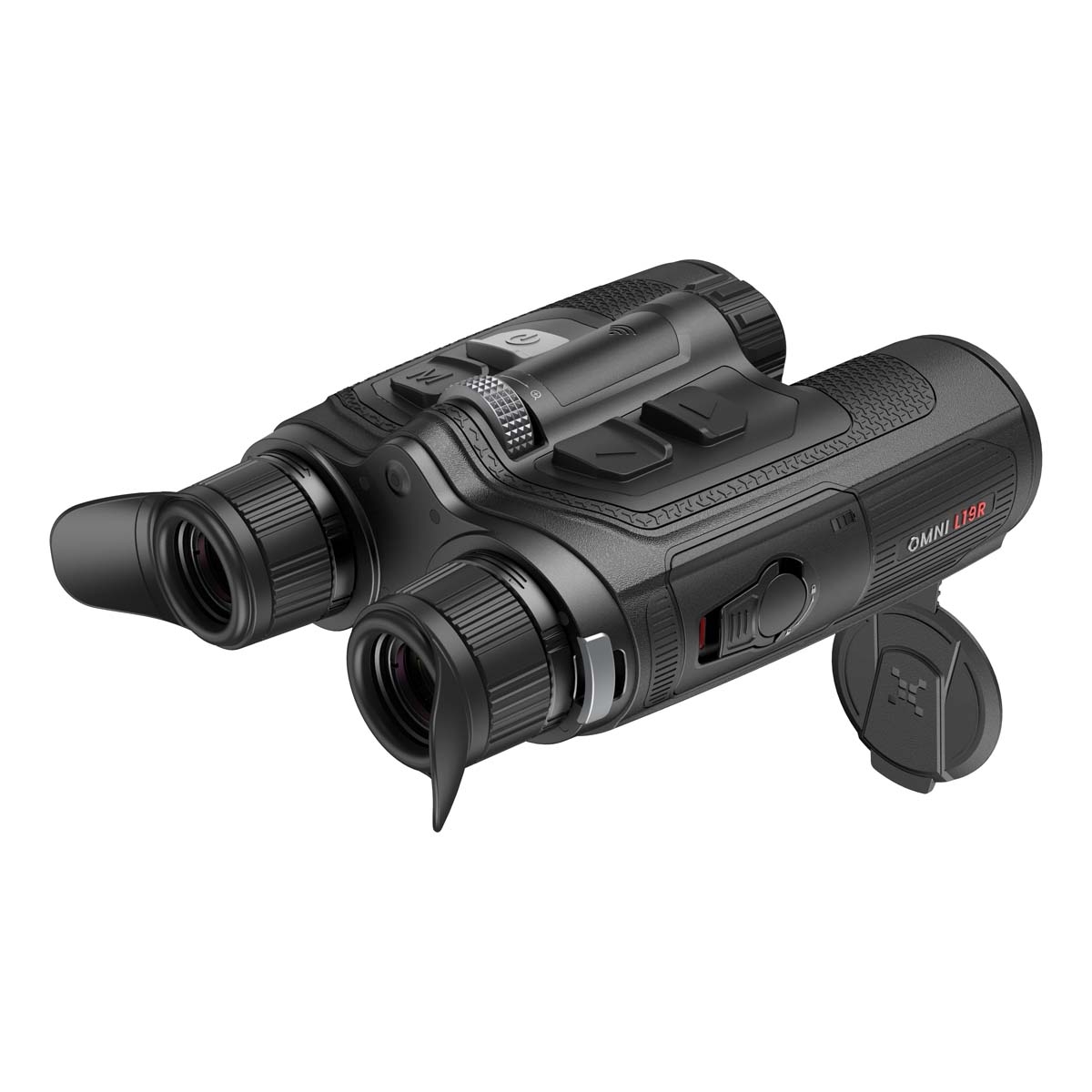

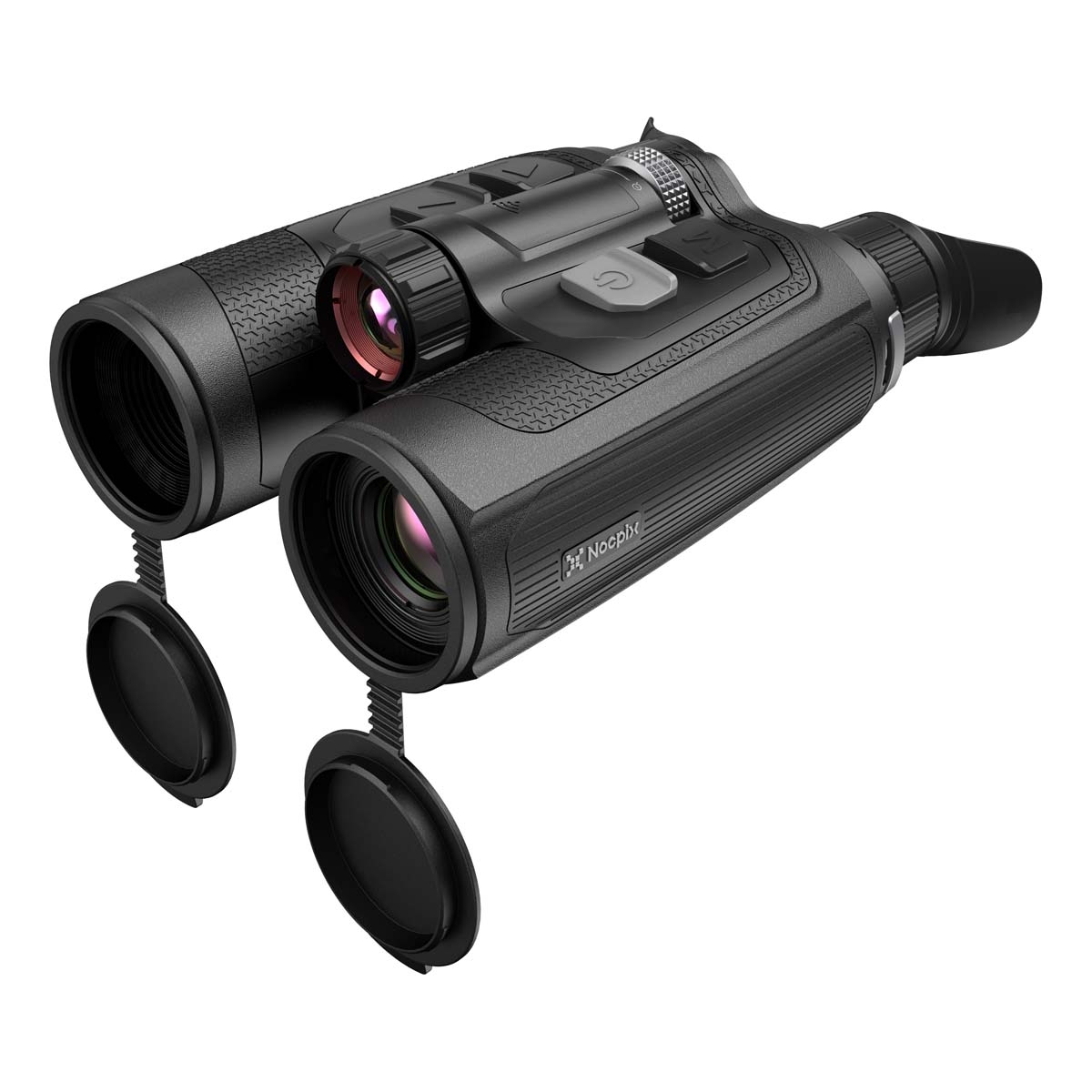

Nocpix OMNI L19R Multispectral (384x288/8K) Binocular

The Nocpix OMNI L19R combines thermal detection and 8K digital imaging in a binocular-style viewing system for use throughout the day and into low light. Its 384 × 288 thermal sensor helps reveal subjects through thermal contrast, while the 8192 × 6144 digital sensor provides detailed visual recognition.

With a built-in 1000m laser rangefinder, ballistic calculation support and dedicated controls for both imaging channels, the OMNI L19R brings observation and distance measurement together in a compact magnesium-alloy housing.

Thermal Detection and 8K Digital Detail

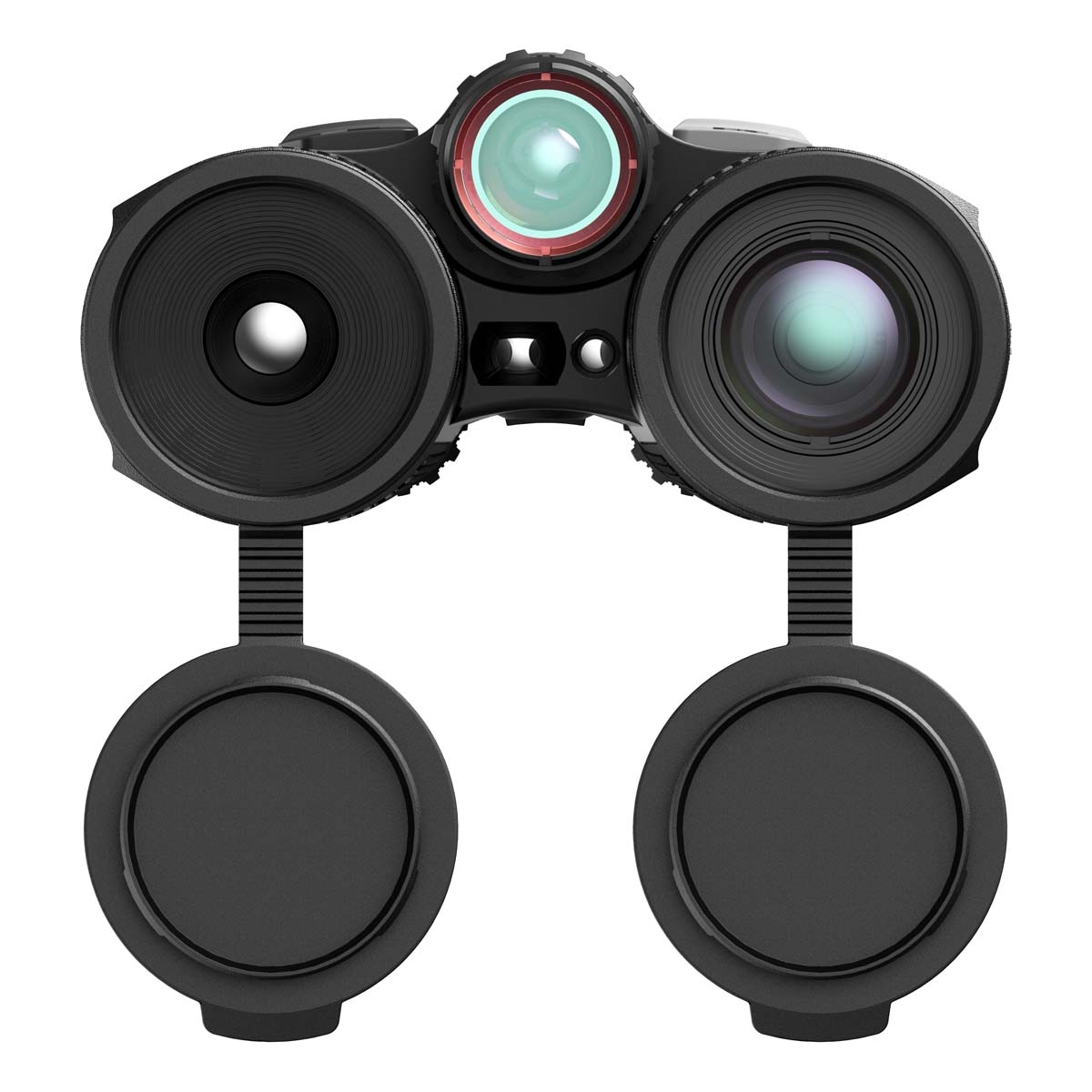

The thermal channel pairs a 384 × 288, 12µm sensor with a 19mm F0.9 objective lens. Thermal sensitivity of NETD ≤15mK and a 50Hz frame rate support clear, responsive imaging, with a specified detection range of 986m.

The digital channel uses an 8192 × 6144 sensor and a 50mm F1.8 lens to capture fine visual detail. Scene-specific image processing optimises viewing across different environments, while the large-aperture lens improves light capture for brighter images in challenging conditions.

Natural, Stable Viewing

The OMNI L19R provides 1.5x base magnification for thermal viewing and 3x for digital viewing. Digital zoom adjusts in 0.5x increments, allowing controlled changes in image scale.

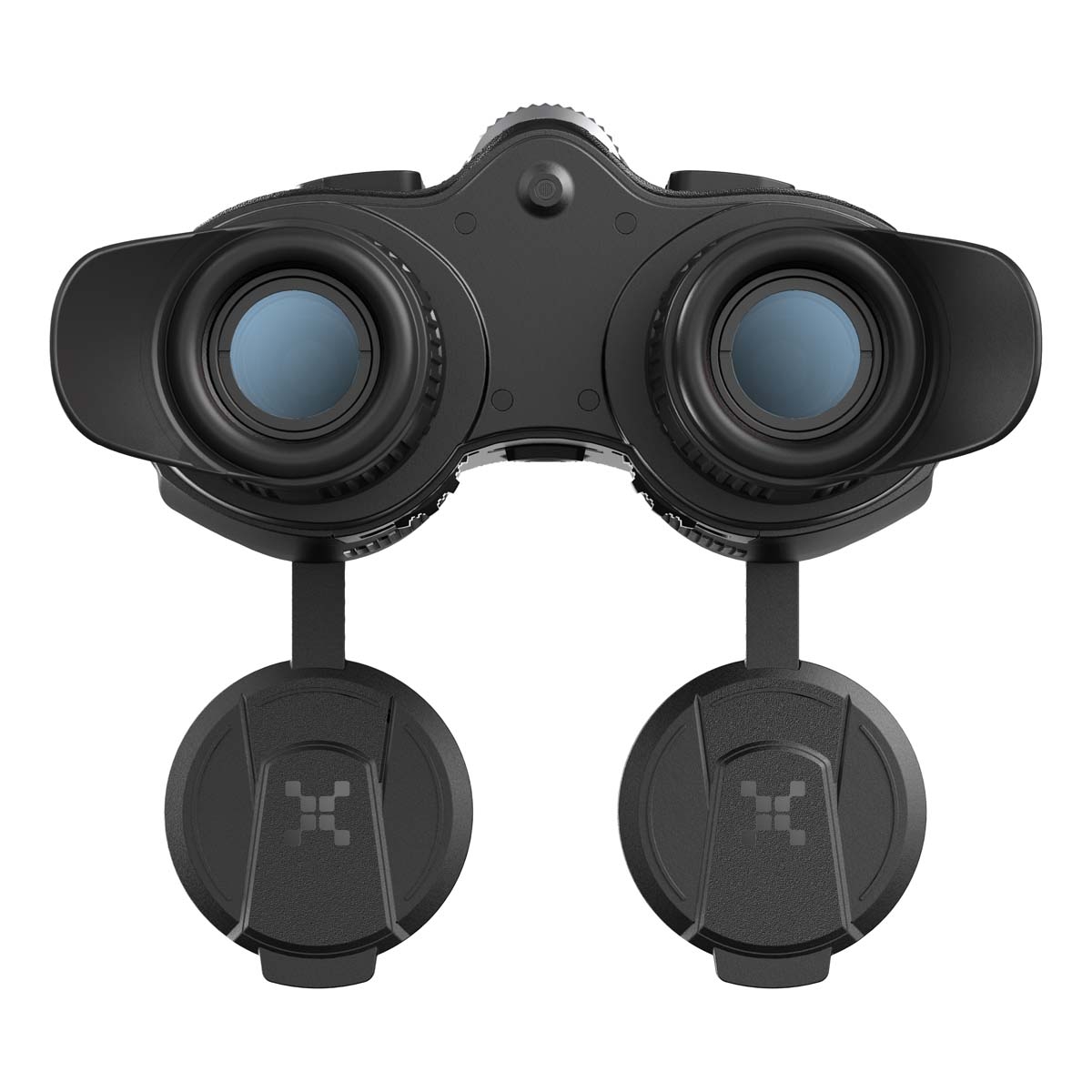

A thermal field of view of 13.8° × 10.4° provides broad coverage for scanning and locating subjects. Electronic image stabilisation supports steadier observation, while the 1600 × 1200 AMOLED display and 12mm exit pupil are designed for comfortable extended viewing.

Intuitive Controls and Handling

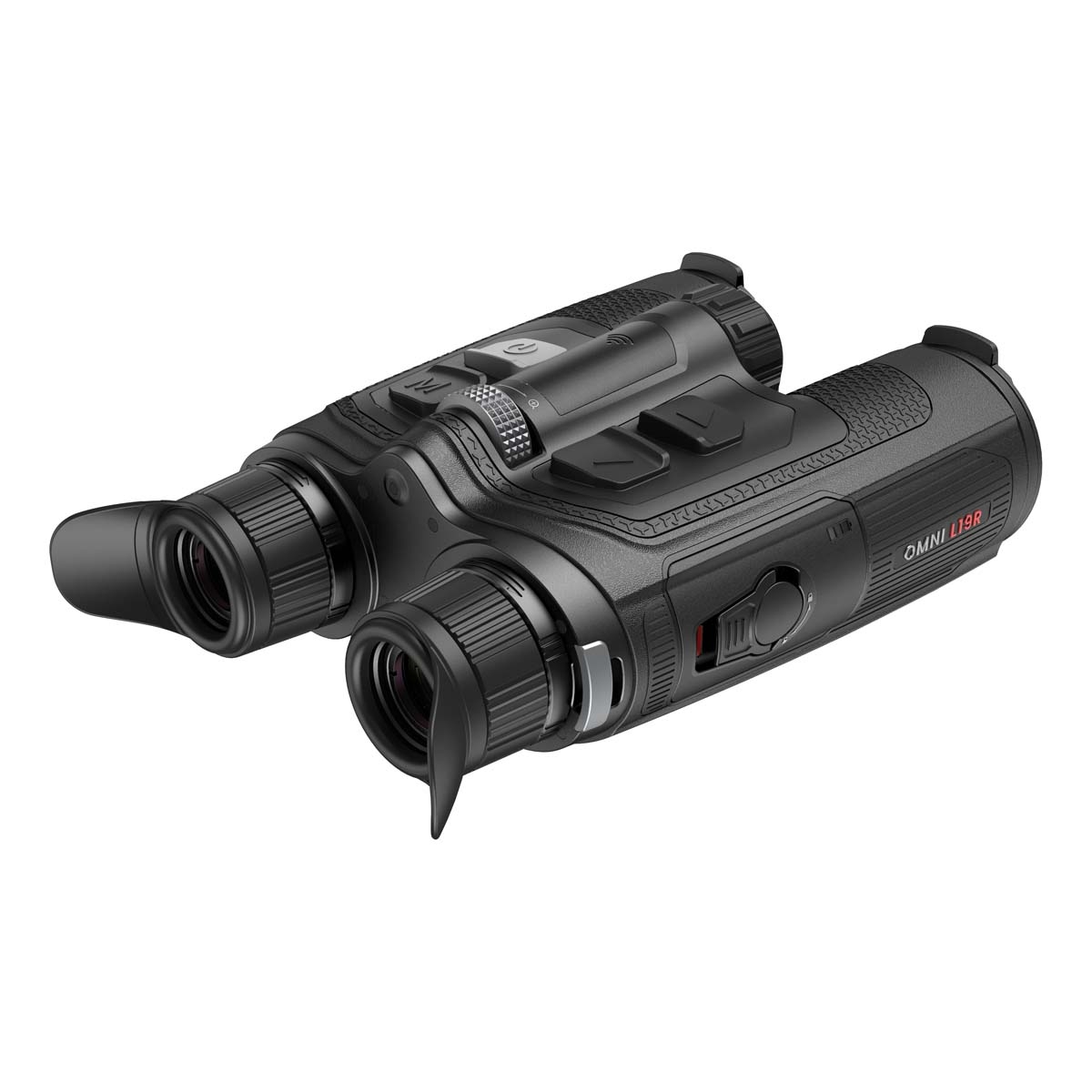

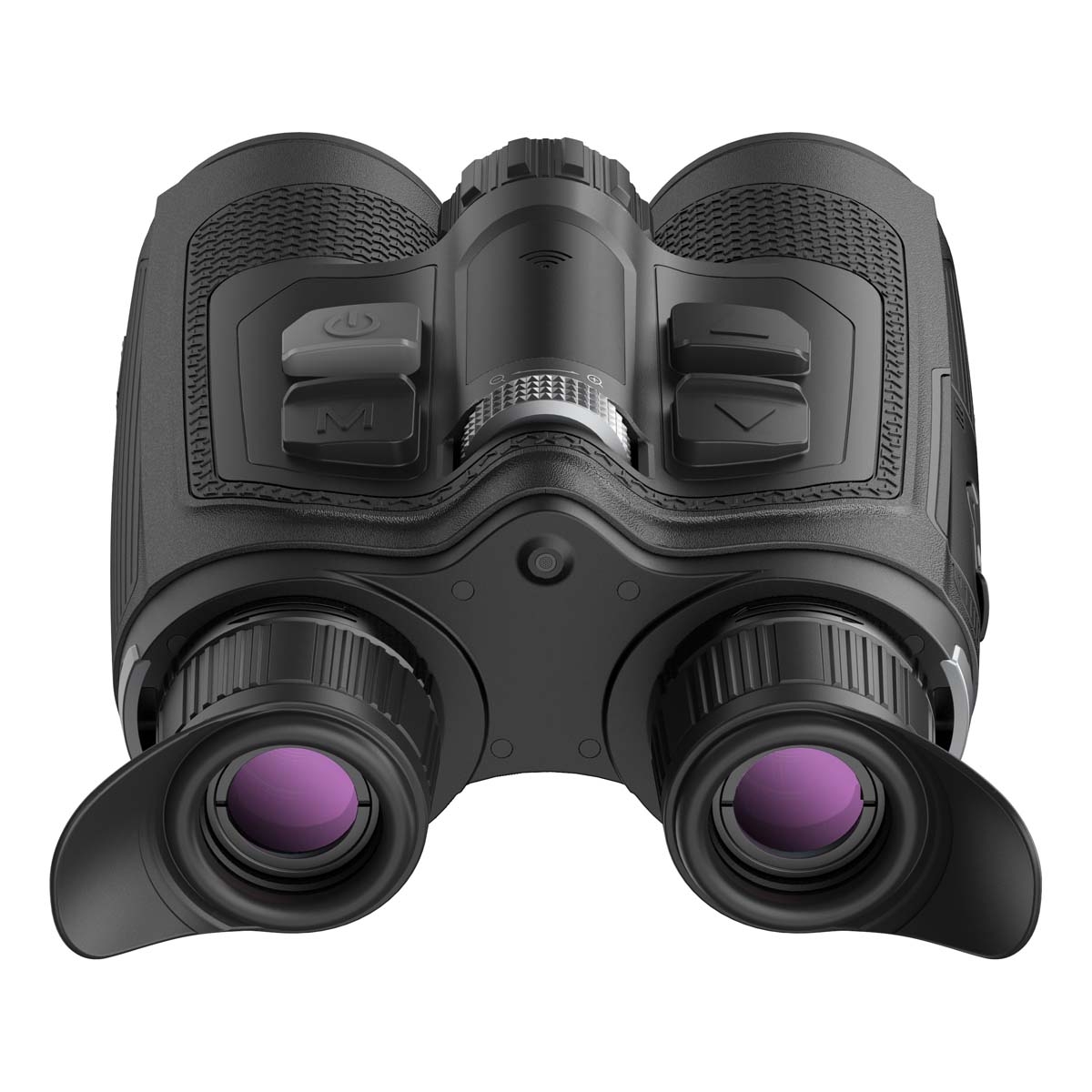

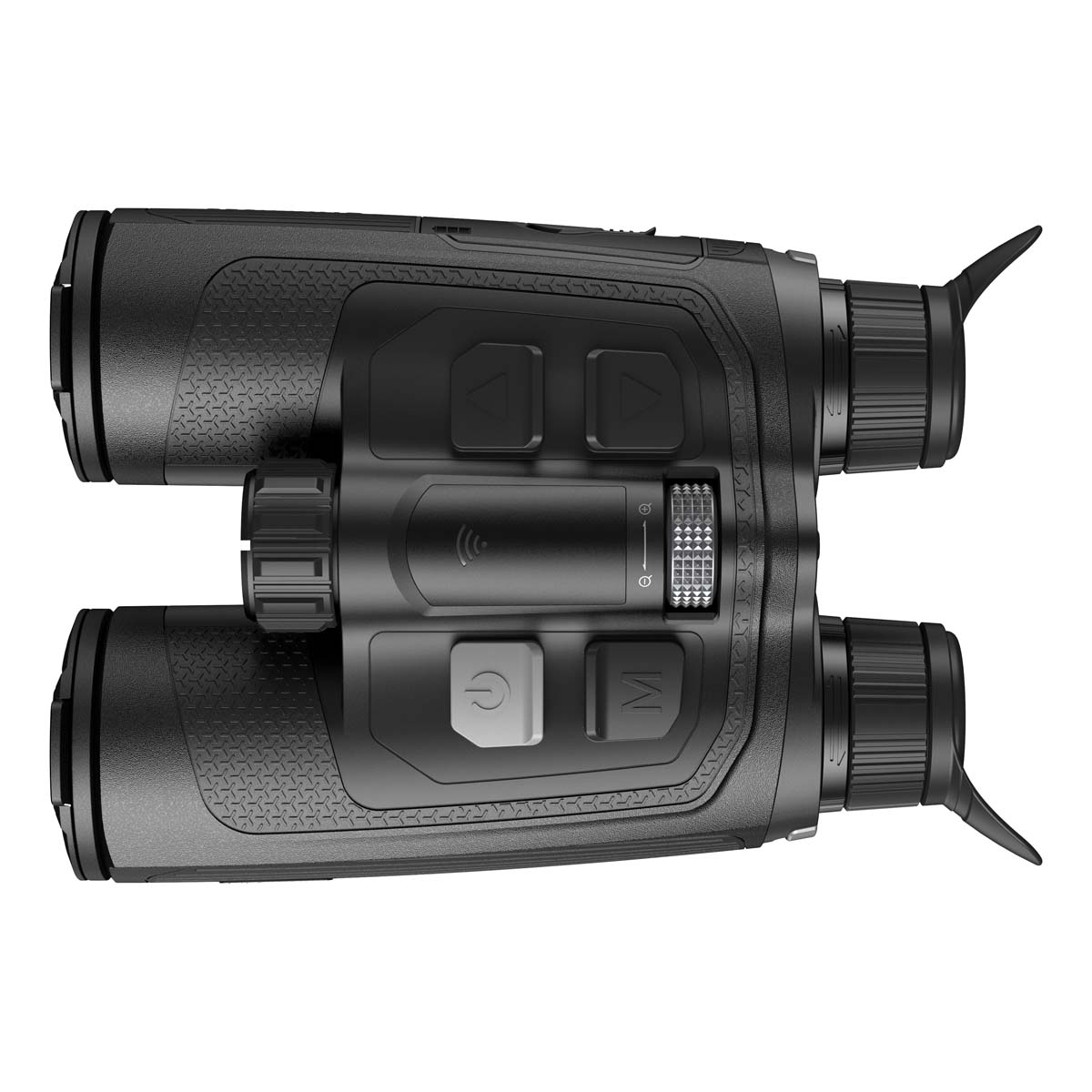

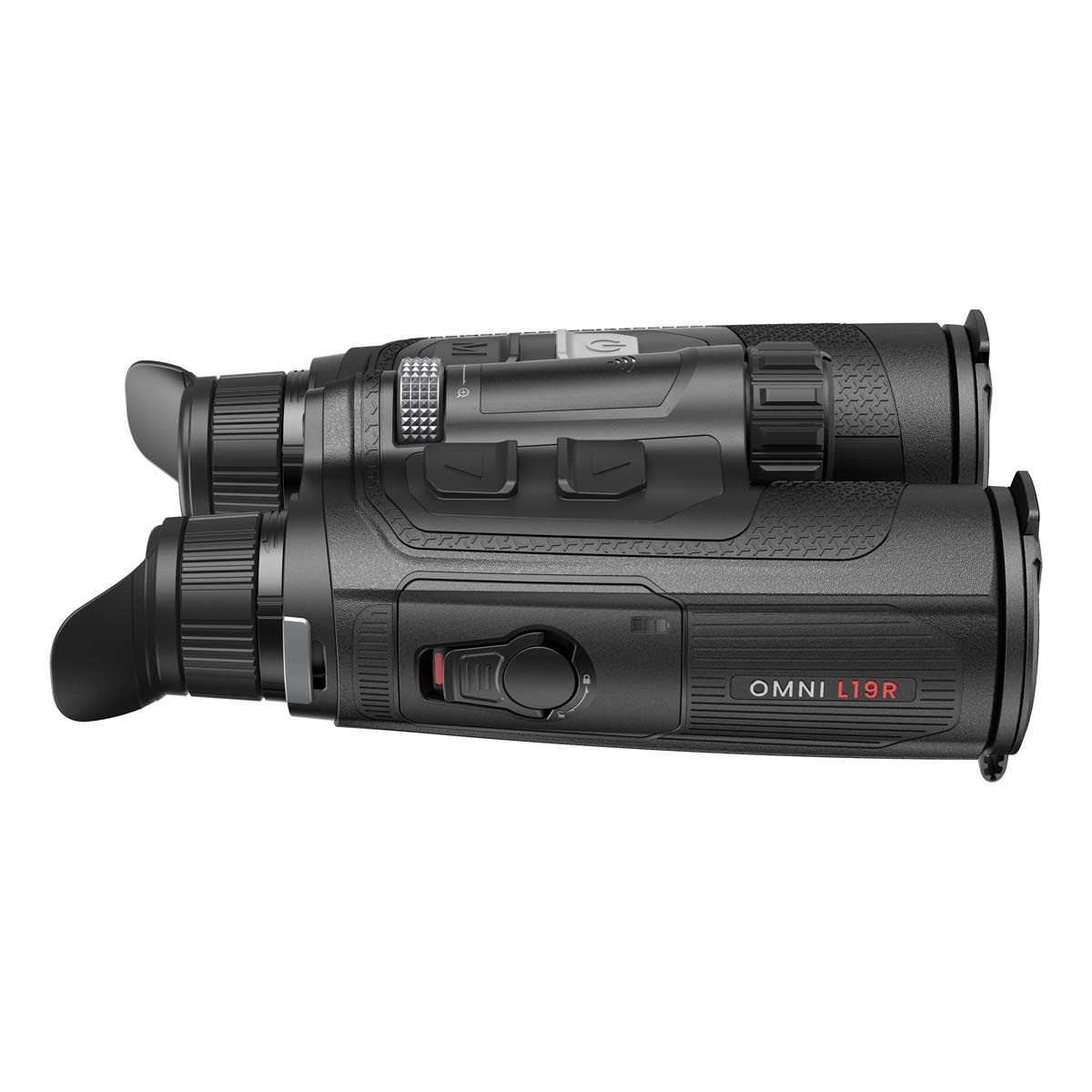

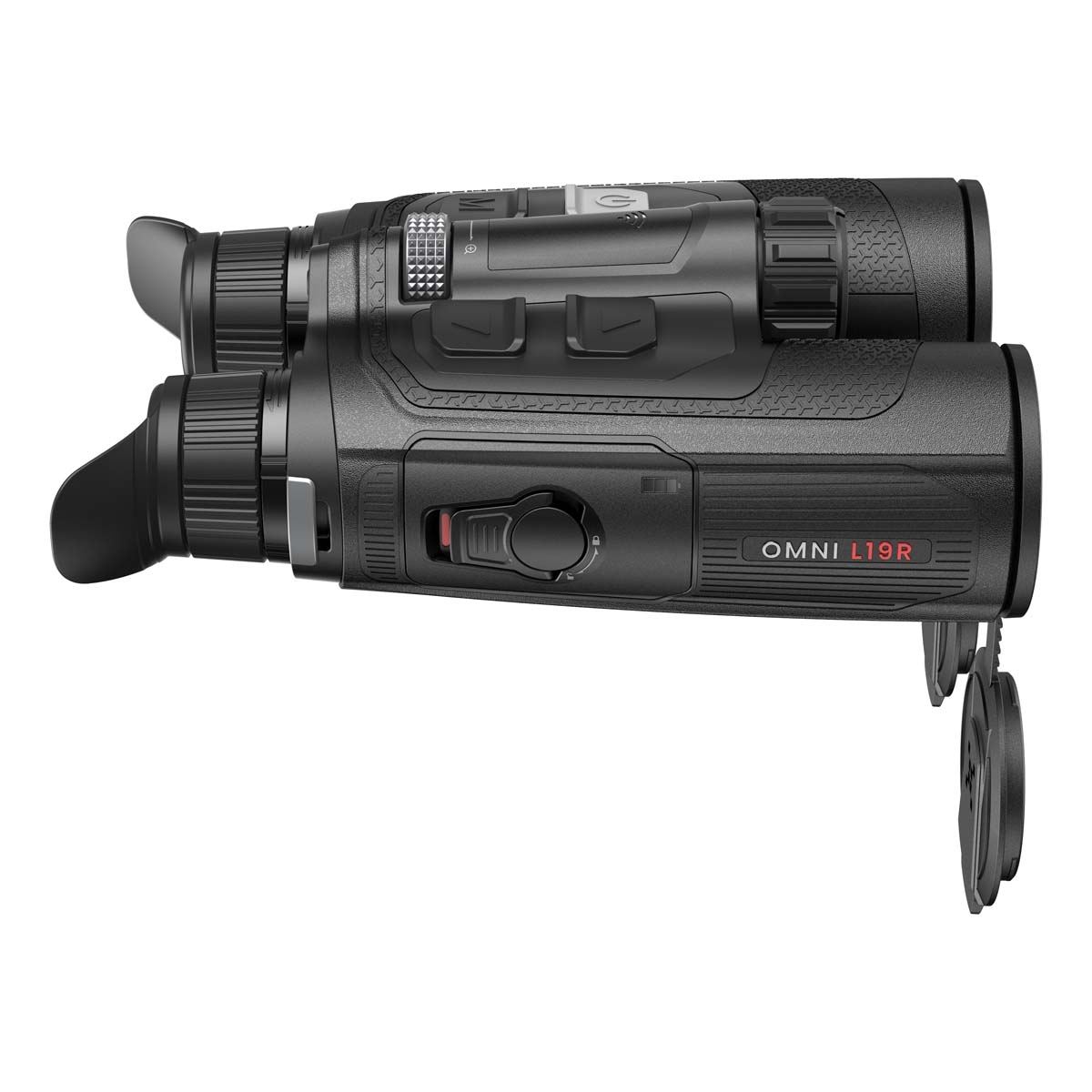

Focus controls and the digital zoom ring sit within natural finger reach, allowing adjustment without changing grip. A short press switches between digital and thermal channels, and the simplified four-button layout supports operation in darkness or while wearing gloves.

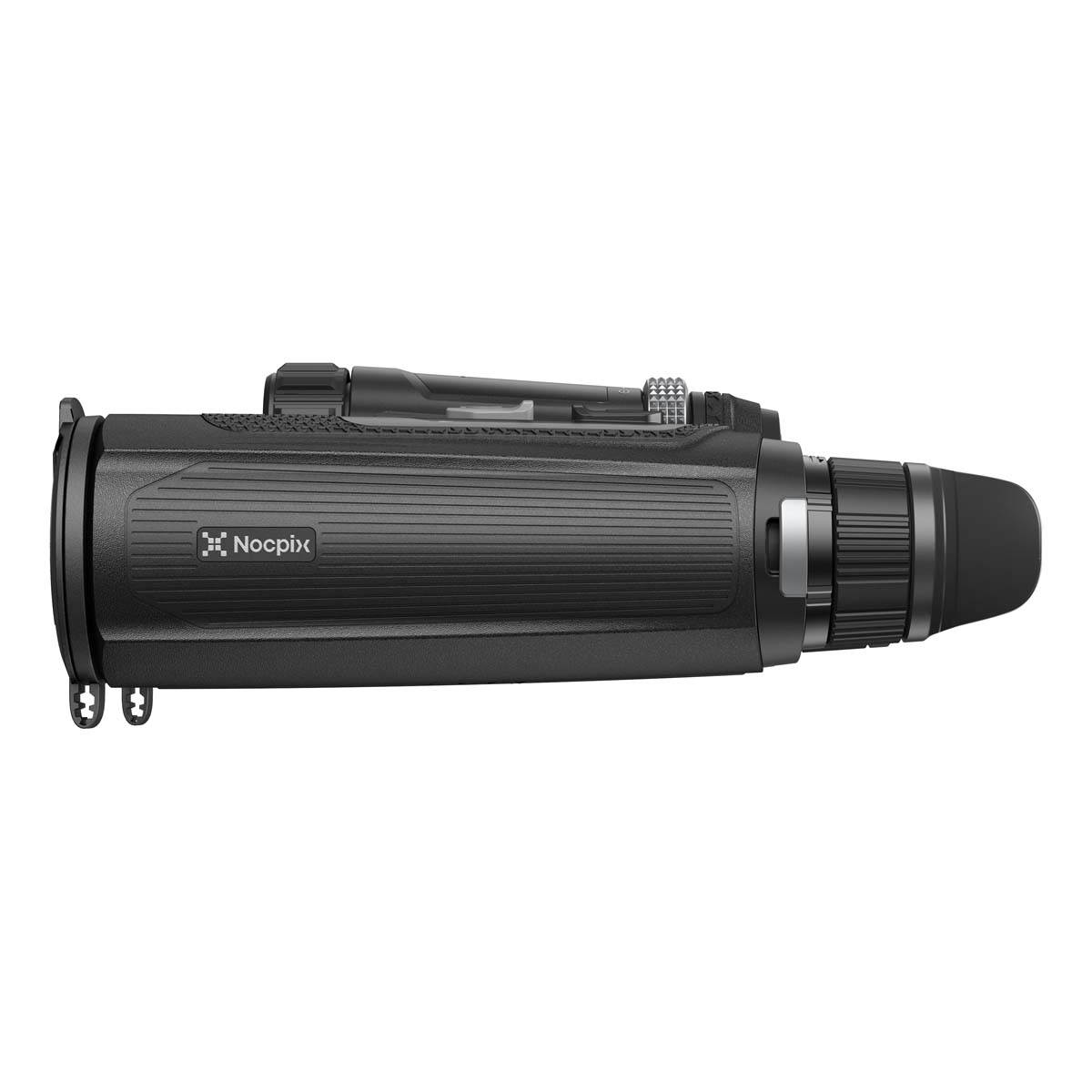

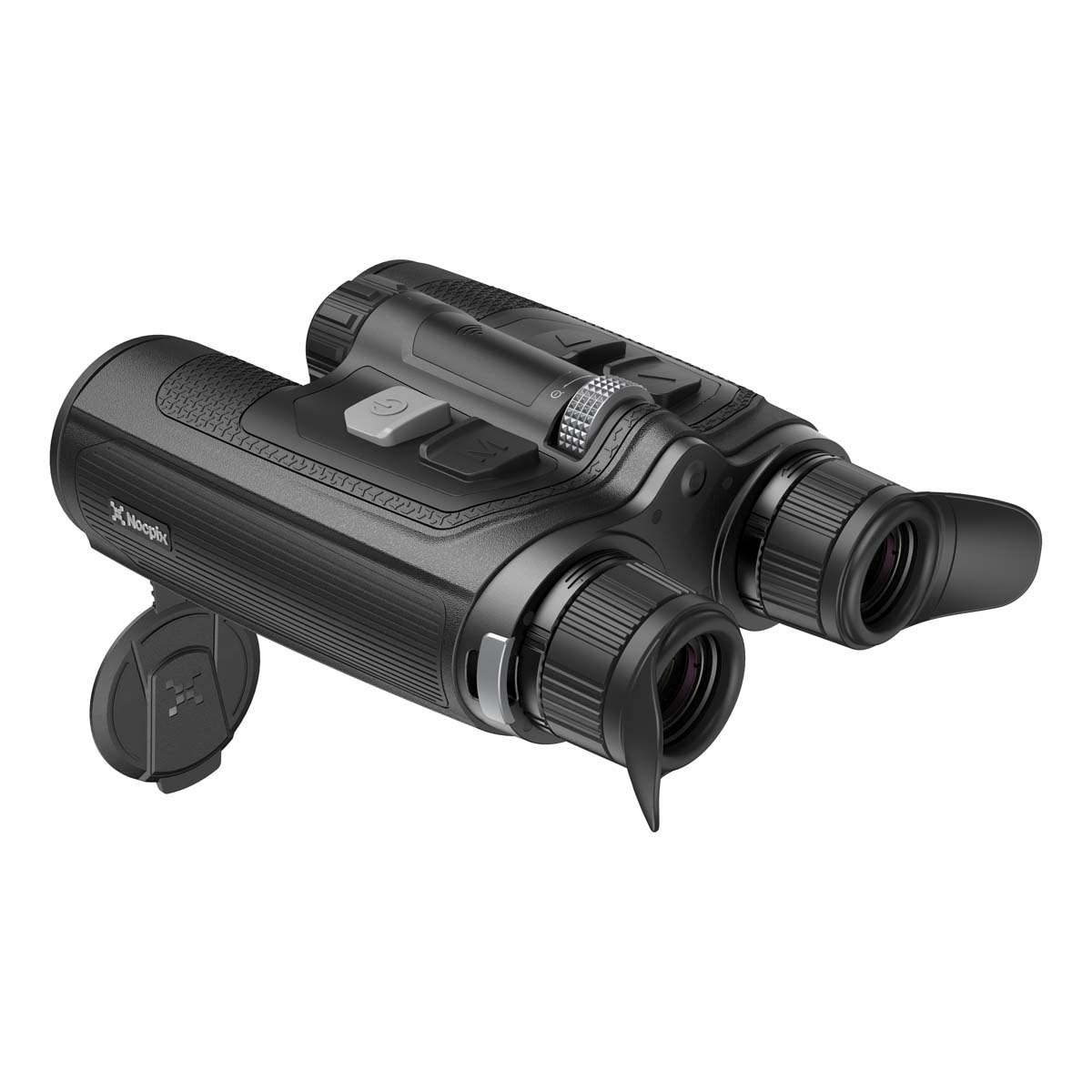

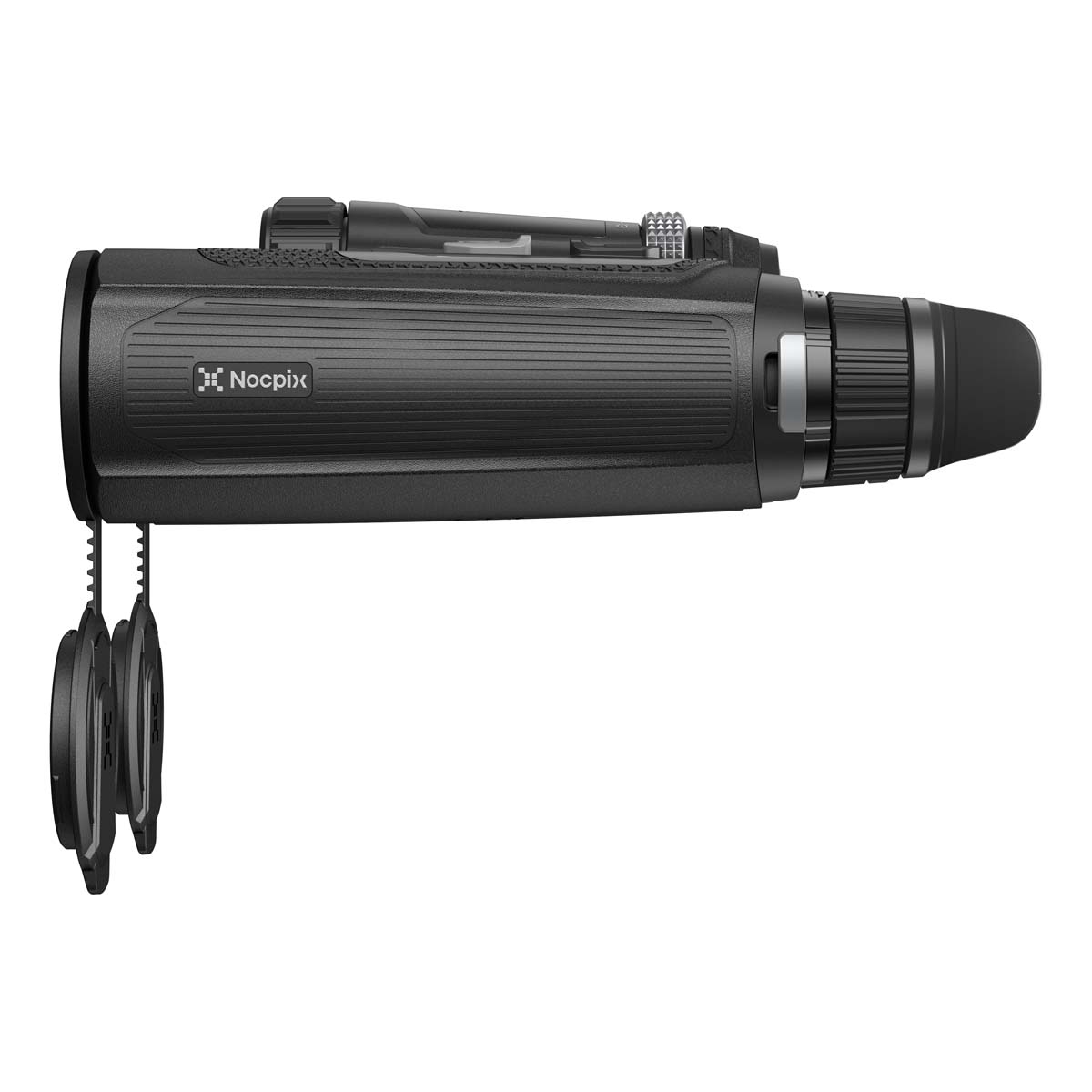

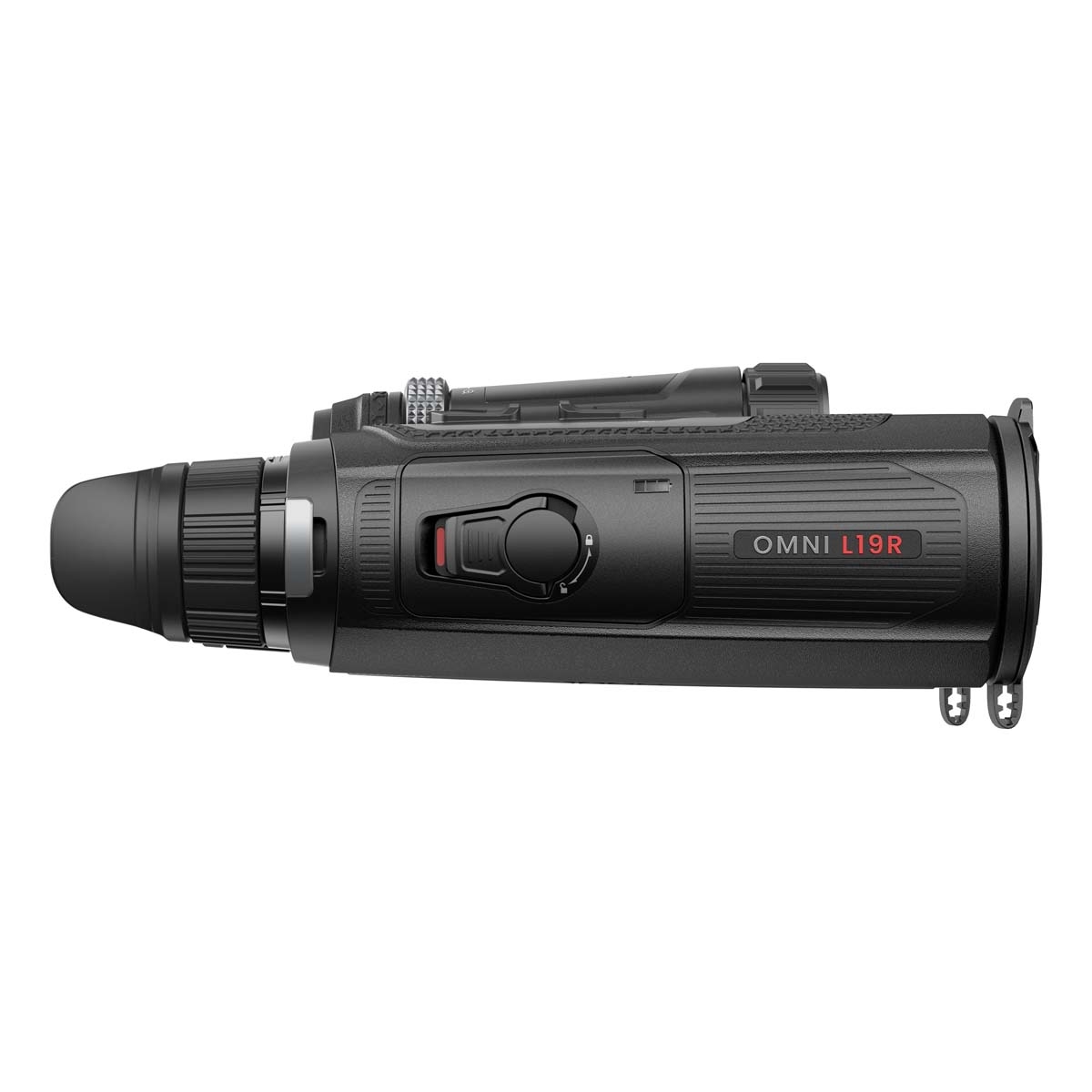

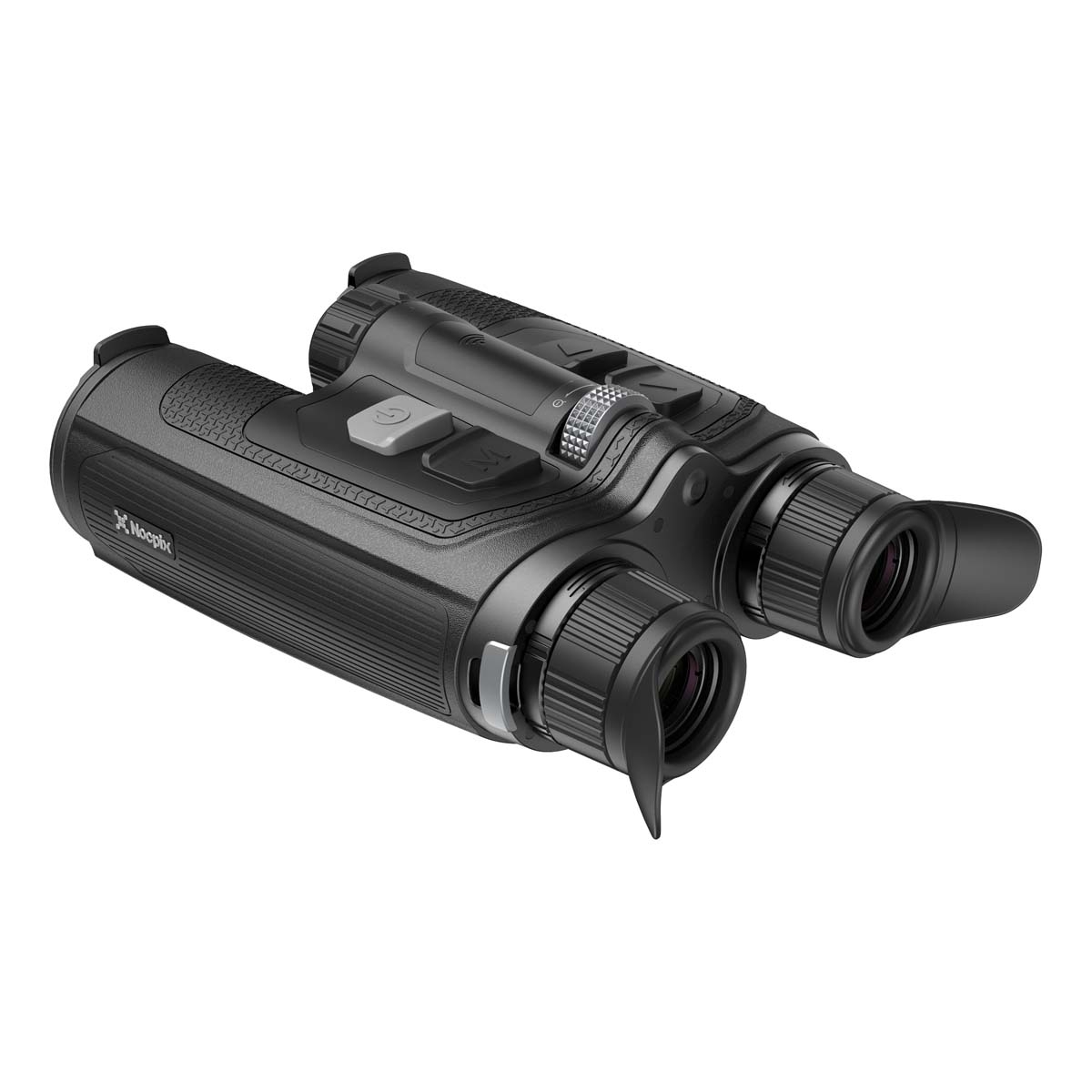

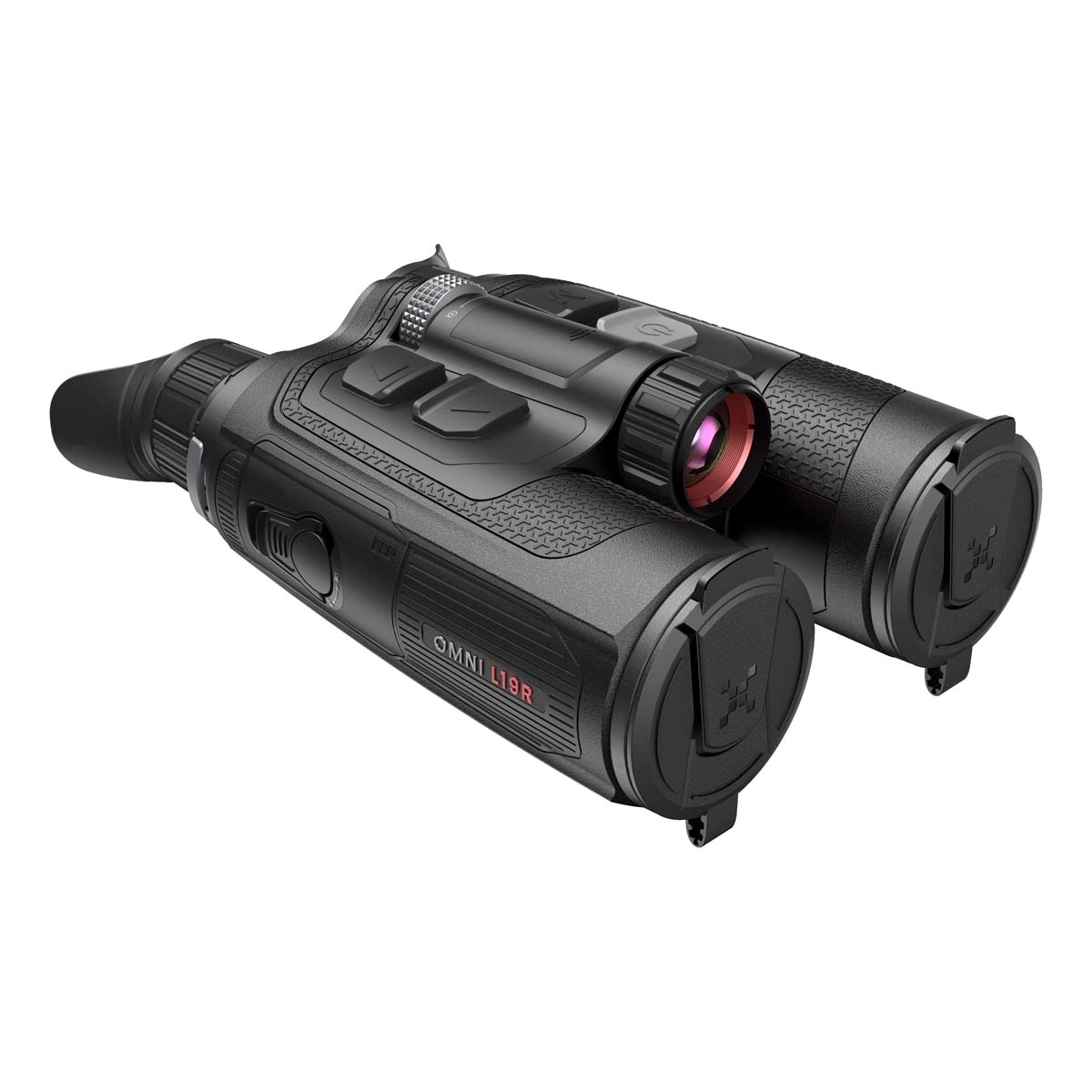

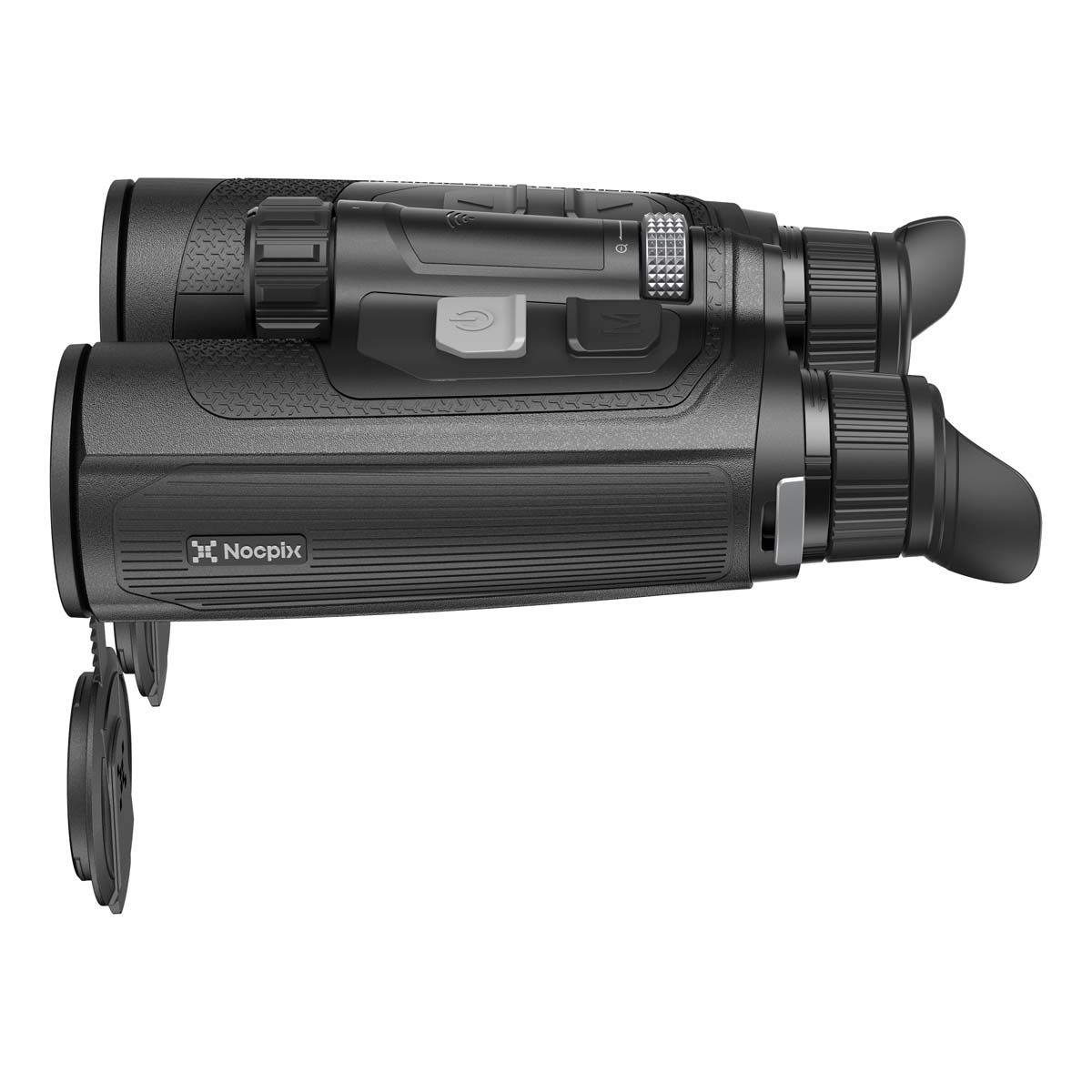

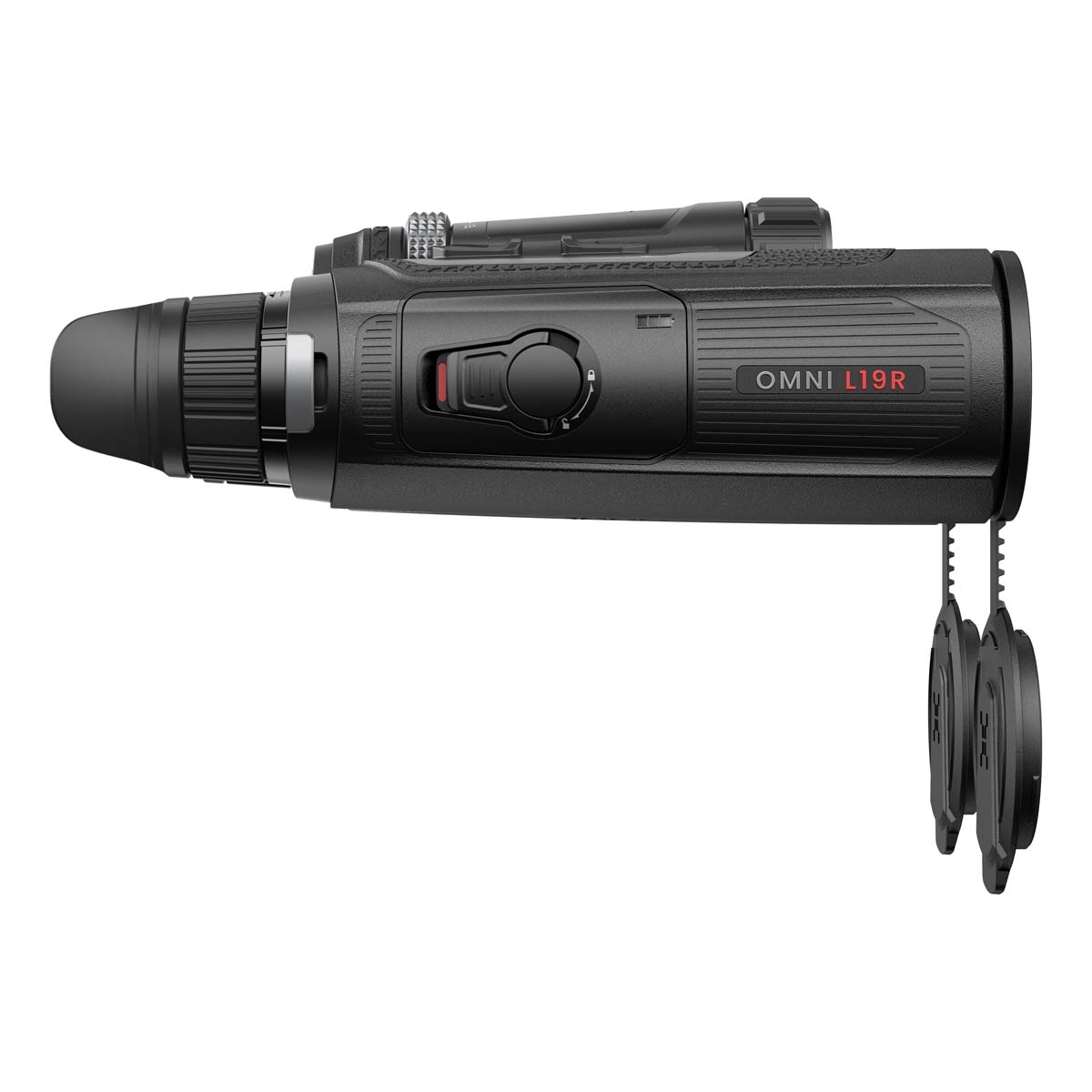

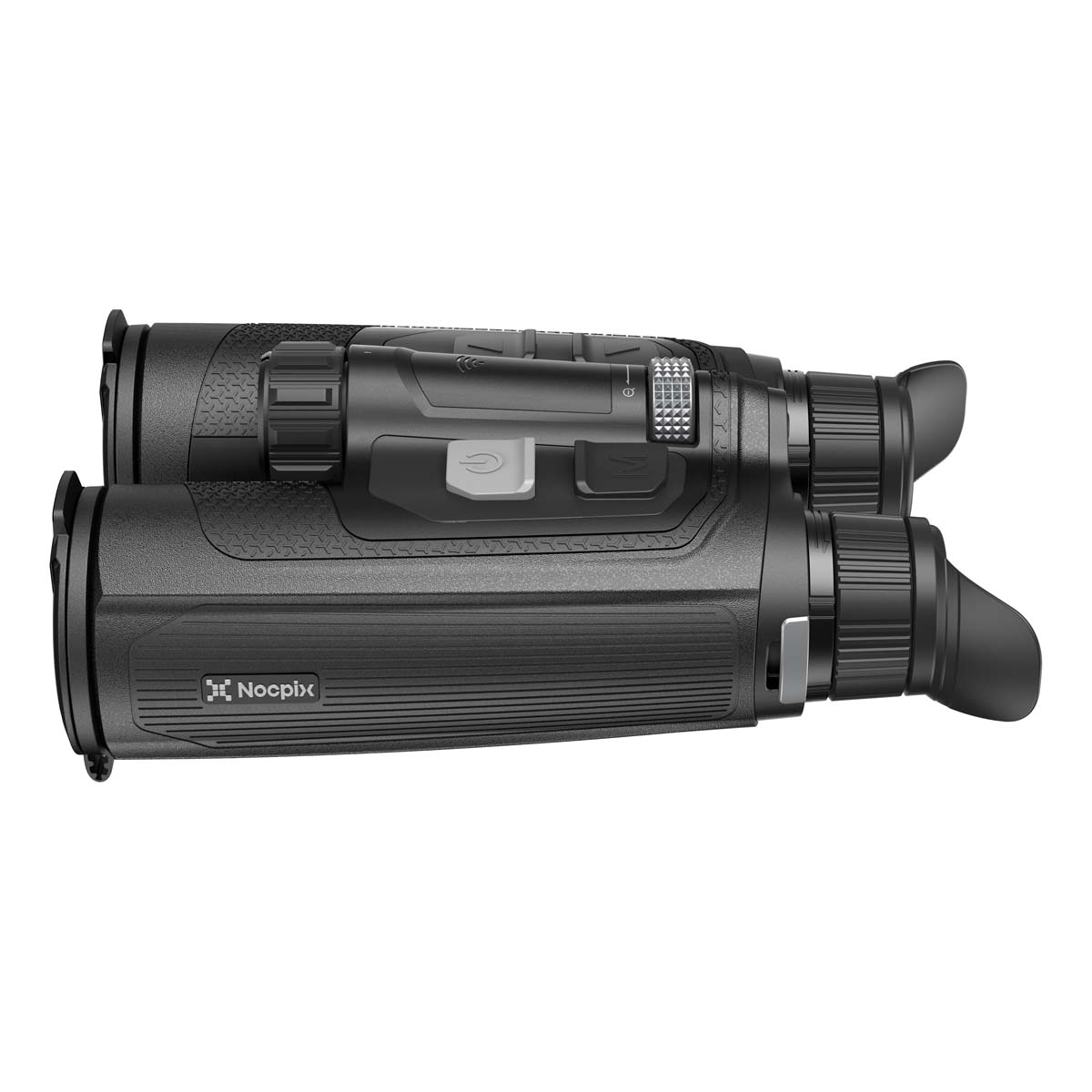

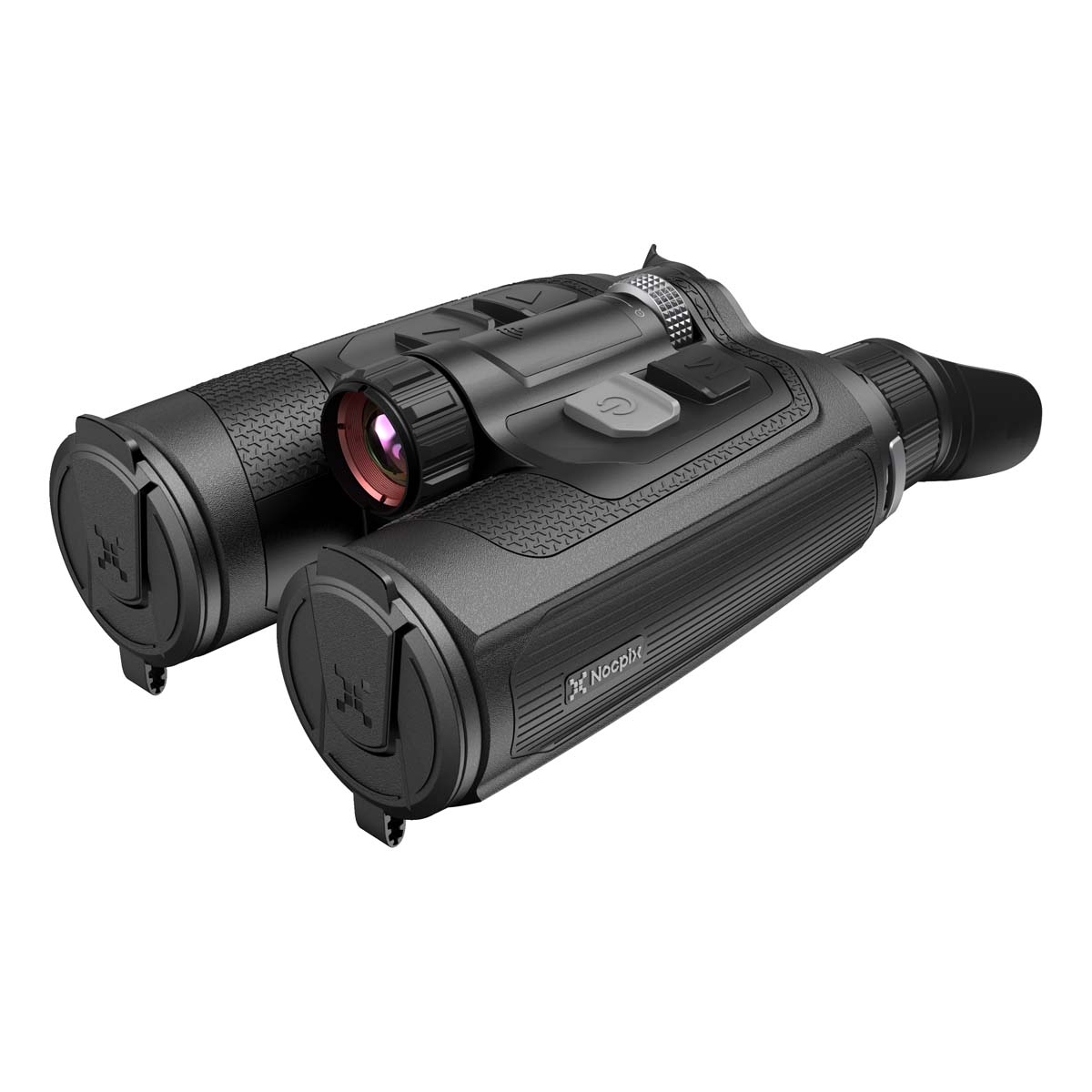

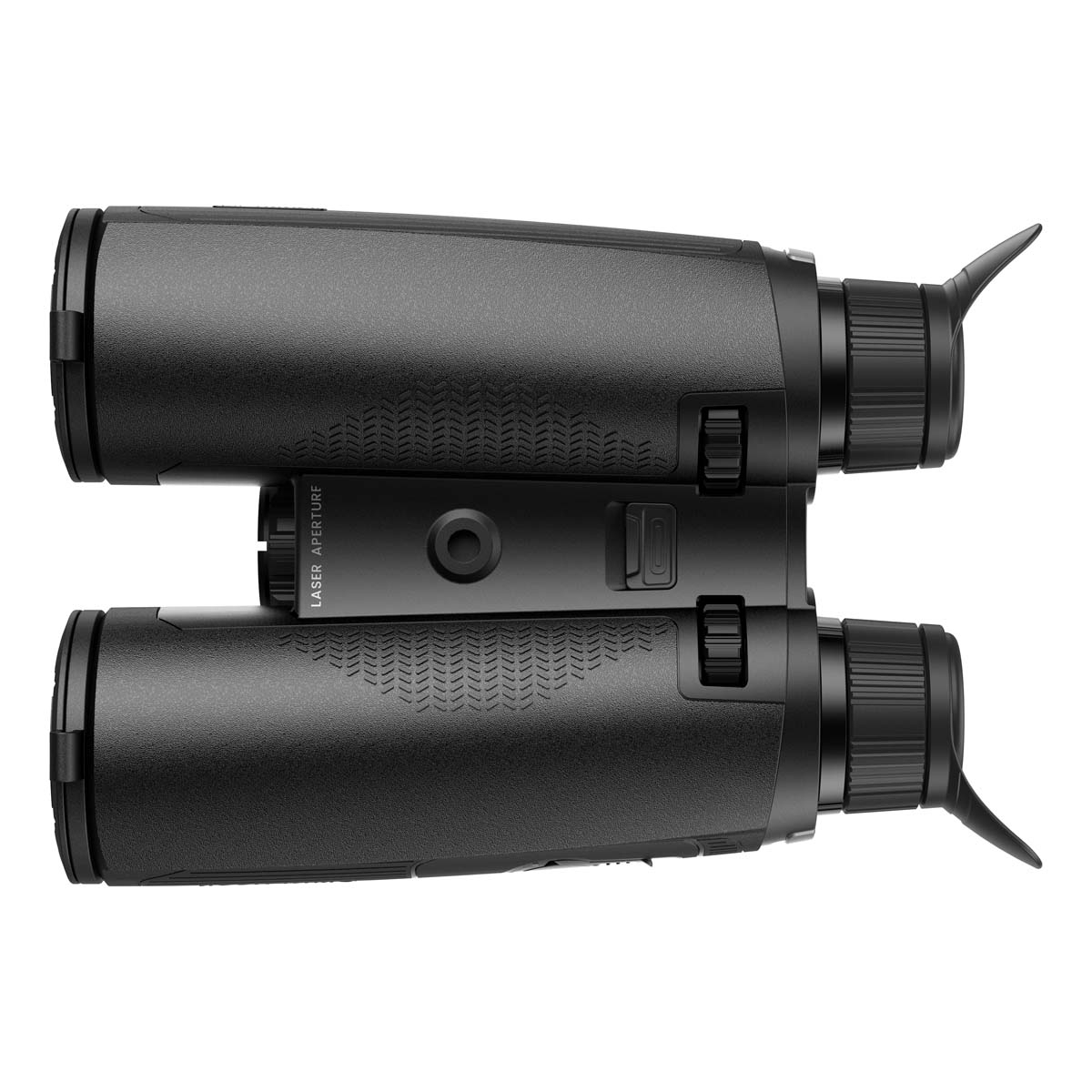

The traditional binocular-style body combines a magnesium-alloy housing with a PVC anti-slip grip. Separate digital and thermal focus adjusters provide direct control over each imaging channel.

Power and Integrated Features

The battery system combines two external replaceable 18650 batteries with an internal battery, providing a specified maximum operating time of 7.5 hours. A polarity-free battery compartment allows quick replacement without checking battery orientation.

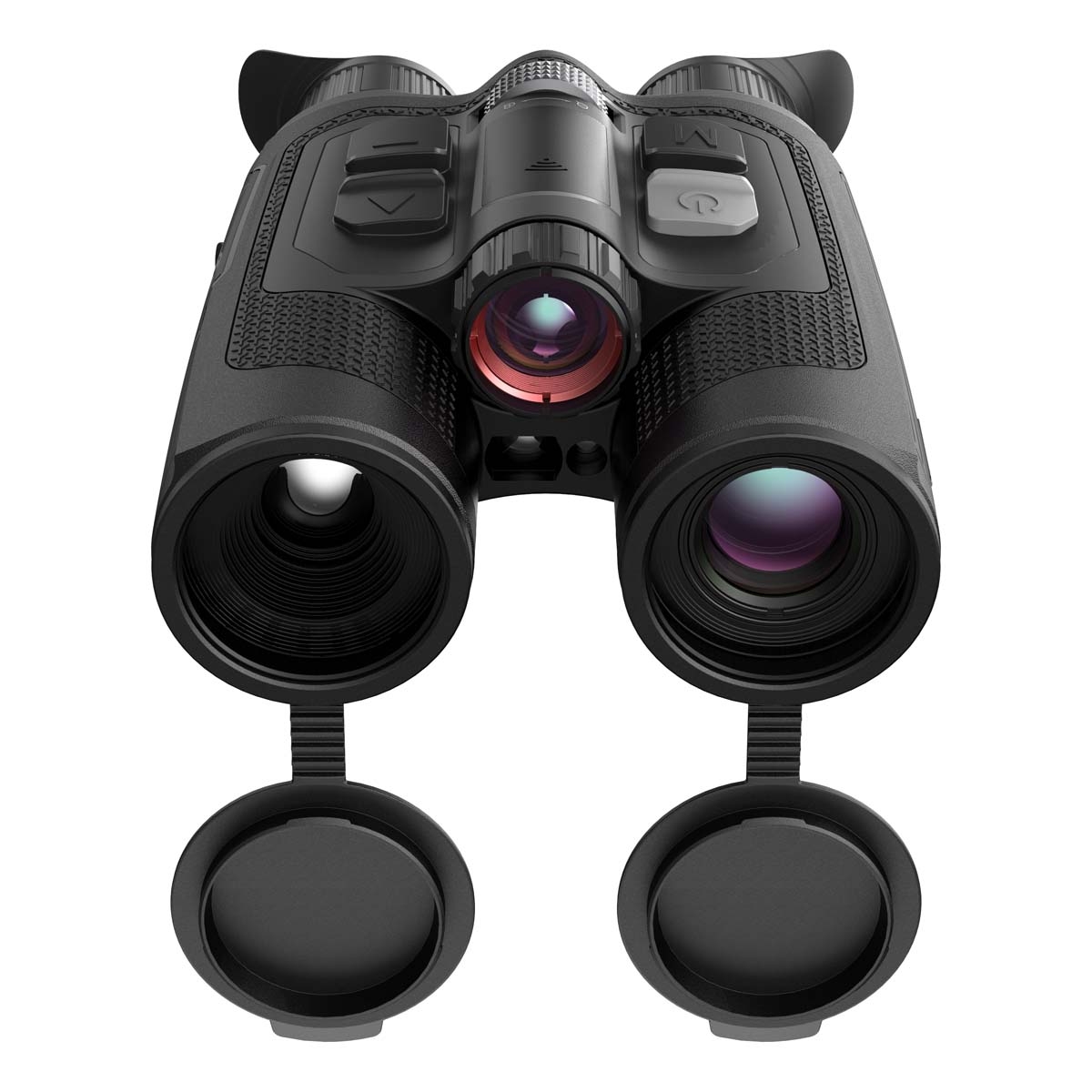

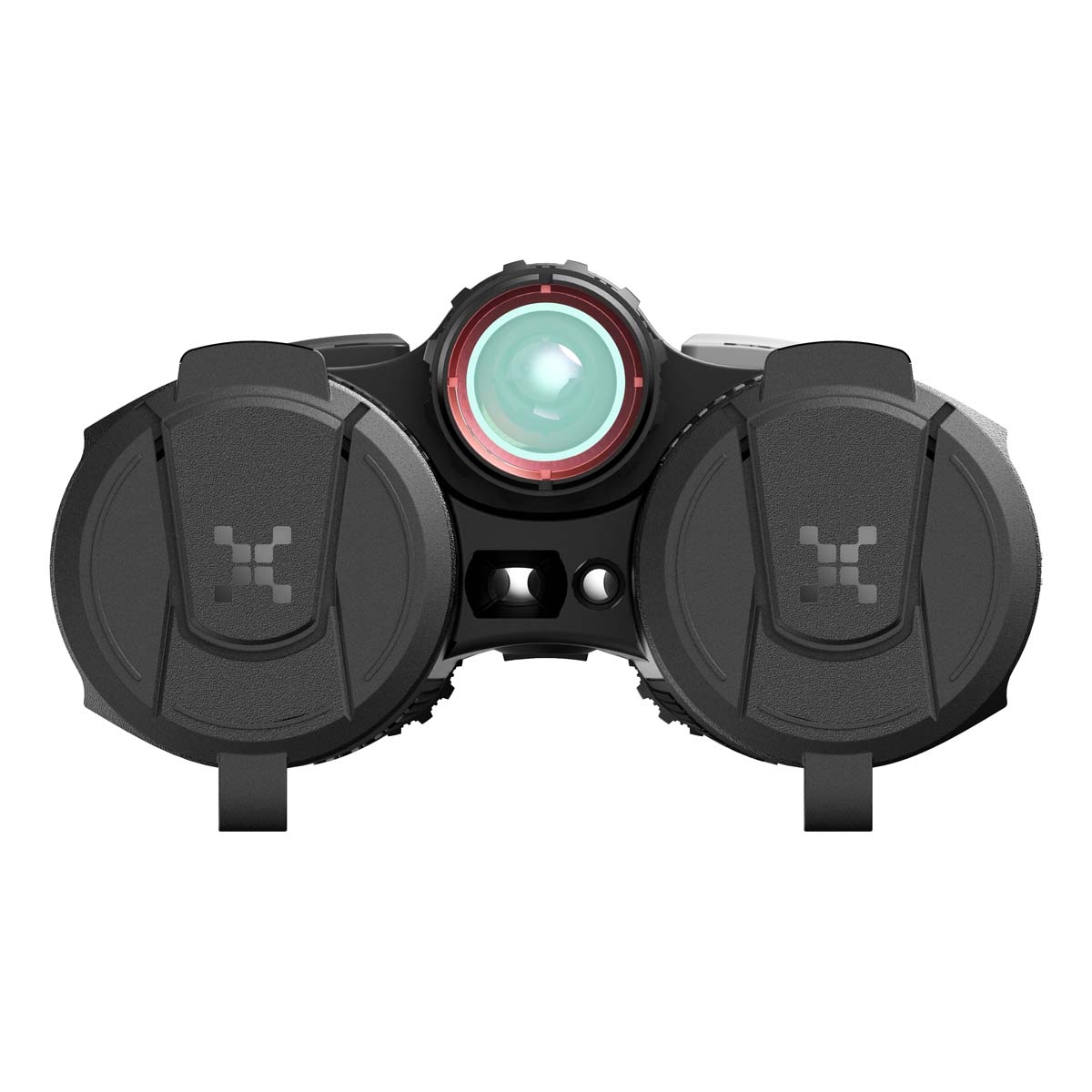

A built-in laser rangefinder measures distances up to 1000m, with ballistic calculation support also included. Wi-Fi and app support, N-link compatibility and 64GB of memory complete the feature set.

Nocpix OMNI L19R Key Features

• Combined thermal and 8K digital imaging channels.
• 384 × 288 thermal sensor with 12µm pixel pitch and NETD ≤15mK.
• 19mm F0.9 thermal objective with a 986m detection range.
• 8192 × 6144 digital sensor with a 50mm F1.8 objective.
• 1.5x thermal and 3x digital base magnification.
• Electronic image stabilisation and 1600 × 1200 AMOLED display.
• Built-in 1000m laser rangefinder and ballistic calculation support.
• Four-button controls with dedicated focus adjusters and a digital zoom ring.
• Magnesium-alloy housing with a PVC anti-slip grip.
• Polarity-free battery compartment for convenient battery replacement.
• Wi-Fi, app support, N-link compatibility and 64GB memory.

Nocpix OMNI L19R Specifications

• Thermal sensor resolution: 384 × 288 pixels.
• Thermal pixel pitch: 12µm.
• Thermal sensitivity: NETD ≤15mK.
• Thermal frame rate: 50Hz.
• Thermal objective lens: 19mm F0.9.
• Thermal base magnification: 1.5x.
• Thermal field of view: 13.8° × 10.4°.
• Thermal field of view at 100m: 24.3 × 18.2m.
• Thermal detection range: 986m.
• Digital sensor resolution: 8192 × 6144 pixels.
• Digital objective lens: 50mm F1.8.
• Digital base magnification: 3x.
• Digital field of view: 8.8° × 6.6°.
• Digital field of view at 100m: 15.4 × 11.5m.
• Display: AMOLED, 1600 × 1200 pixels.
• Exit pupil: 12mm.
• Battery system: two external replaceable 18650 batteries and one internal battery.
• Maximum operating time: 7.5 hours.
• Memory capacity: 64GB.
• Wi-Fi and app support: yes.
• N-link compatibility: yes.
• Laser rangefinder range: 1000m.
• Ballistic calculation: supported.
• Weight without battery: 900g.
• Dimensions: 198 × 144 × 75mm.

Nocpix OMNI L19R Review

The Nocpix OMNI L19R combines two complementary ways of observing: thermal imaging for detection and high-resolution digital imaging for visual detail. For users wanting both capabilities in a binocular-style device, its combination of wide thermal coverage, 8K digital resolution and integrated ranging is the central attraction.

Performance & Key Features

The thermal channel combines a 384 × 288 sensor with NETD ≤15mK sensitivity and a 50Hz frame rate. Its 1.5x base magnification and 13.8° × 10.4° field of view favour broad scanning, while the separate 3x digital channel provides a closer view with an 8192 × 6144 sensor. Electronic image stabilisation supports steadier observation, and the 1000m rangefinder adds distance measurement without a separate instrument.

Build Quality & Handling

A magnesium-alloy housing and PVC anti-slip grip give the OMNI a practical construction, with familiar binocular-style handling. At 900g without the battery, its weight is worth considering for prolonged handheld use. The placement of the zoom and focus controls allows adjustments while maintaining your grip.

Is It Easy to Use?

A short press switches between thermal and digital viewing, while the four-button layout keeps the main controls straightforward. Separate focus adjusters give direct access to each channel, and the polarity-free battery compartment simplifies battery changes in darkness.

Key Takeaways

The OMNI L19R suits users who value broad thermal scanning alongside detailed digital observation. Its integrated rangefinder, stabilised viewing and accessible controls make it a versatile specification for extended outdoor observation. The 900g weight before batteries is a consideration when portability is a priority. For Uttings customers seeking both thermal and digital capability in one binocular-style device, it is a compelling option.

Nocpix OMNI L19R FAQs

Does the OMNI L19R provide both thermal and digital viewing?

Yes, it combines a 384 × 288 thermal sensor with a separate 8192 × 6144 digital sensor. A short press switches between the two channels. Each channel has its own focus adjustment.

What is the thermal detection range?

The specified thermal detection range is 986m. The thermal channel uses a 19mm F0.9 lens, a 12µm sensor and NETD ≤15mK sensitivity.

What magnification does each channel provide?

The thermal channel has a base magnification of 1.5x, while the digital channel starts at 3x. Digital zoom adjusts in 0.5x increments using the zoom ring.

How wide is the thermal field of view?

The thermal field of view is 13.8° × 10.4°, equivalent to 24.3 × 18.2m at 100m. This broad coverage supports scanning and locating subjects.

How does the digital channel support low-light viewing?

The digital channel combines an 8K sensor with a 50mm F1.8 objective lens. The large aperture improves light capture, while scene-specific processing optimises images across different environments.

Does it include image stabilisation?

Yes, electronic image stabilisation supports steadier viewing. Images are shown on a 1600 × 1200 AMOLED display, with a 12mm exit pupil supporting viewing comfort.

How far can the laser rangefinder measure?

The integrated laser rangefinder has a range of 1000m. The OMNI L19R also supports ballistic calculation.

What batteries does it use?

The power system combines two external replaceable 18650 batteries with one internal battery. Maximum operating time is specified as 7.5 hours. The polarity-free compartment allows battery replacement without checking orientation.

Does it support an app and N-link?

Yes, the OMNI L19R supports Wi-Fi and app connectivity, along with N-link compatibility. It also has 64GB of memory.

How large and heavy is the OMNI L19R?

It measures 198 × 144 × 75mm and weighs 900g without the battery. Its binocular-style body uses a magnesium-alloy housing with a PVC anti-slip grip.
