Vanguard Vesta Go 264CP Tripod

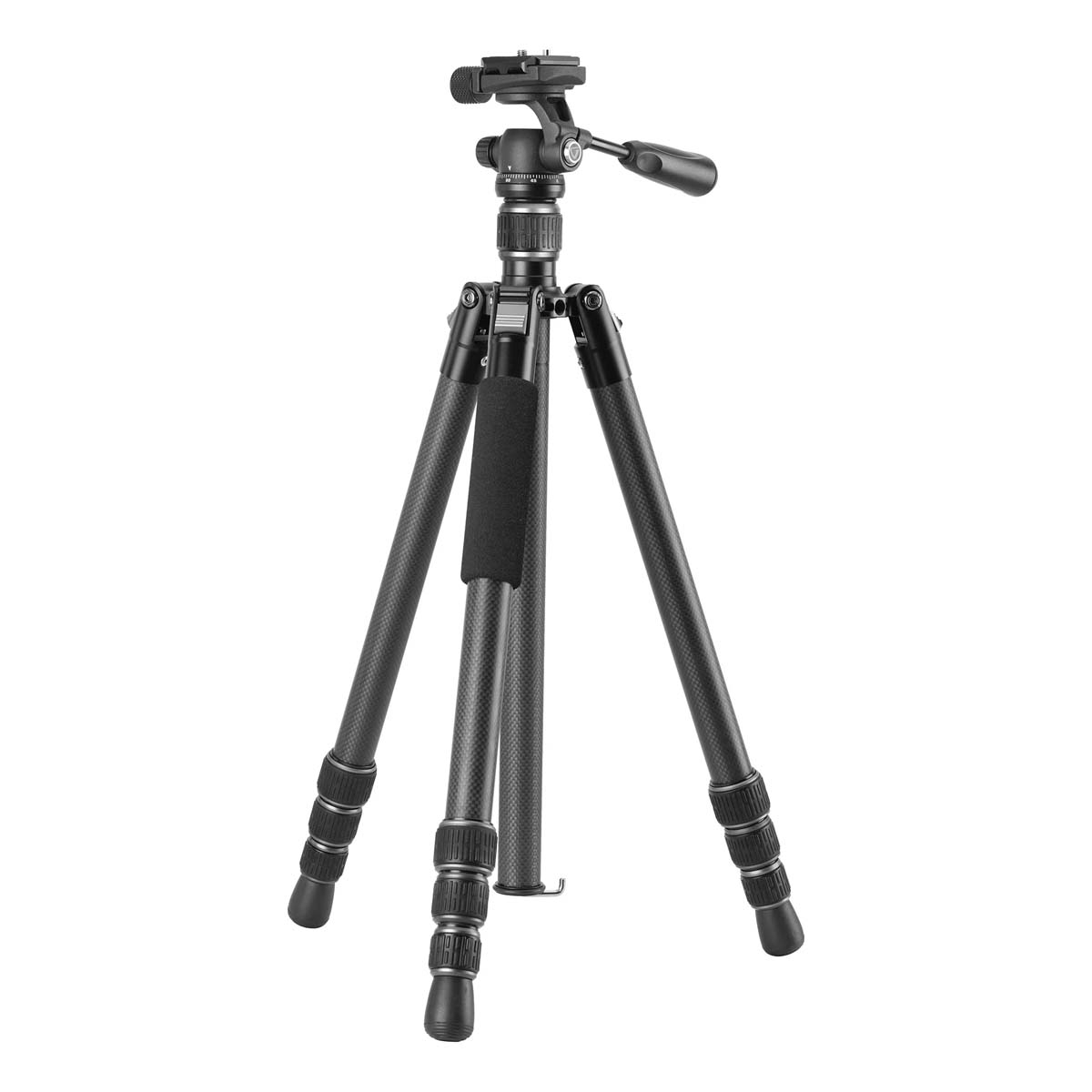

The Vanguard VESTA GO 264CP Carbon Spotting Scope Travel Tripod combines 26mm carbon fibre legs with an Arca-compatible two-way pan head, offering portable support for spotting scopes, mirrorless cameras and smaller DSLR kits. With a maximum load capacity of 5kg and an extended height of 166.5cm, it provides useful working height while remaining compact enough for travel.

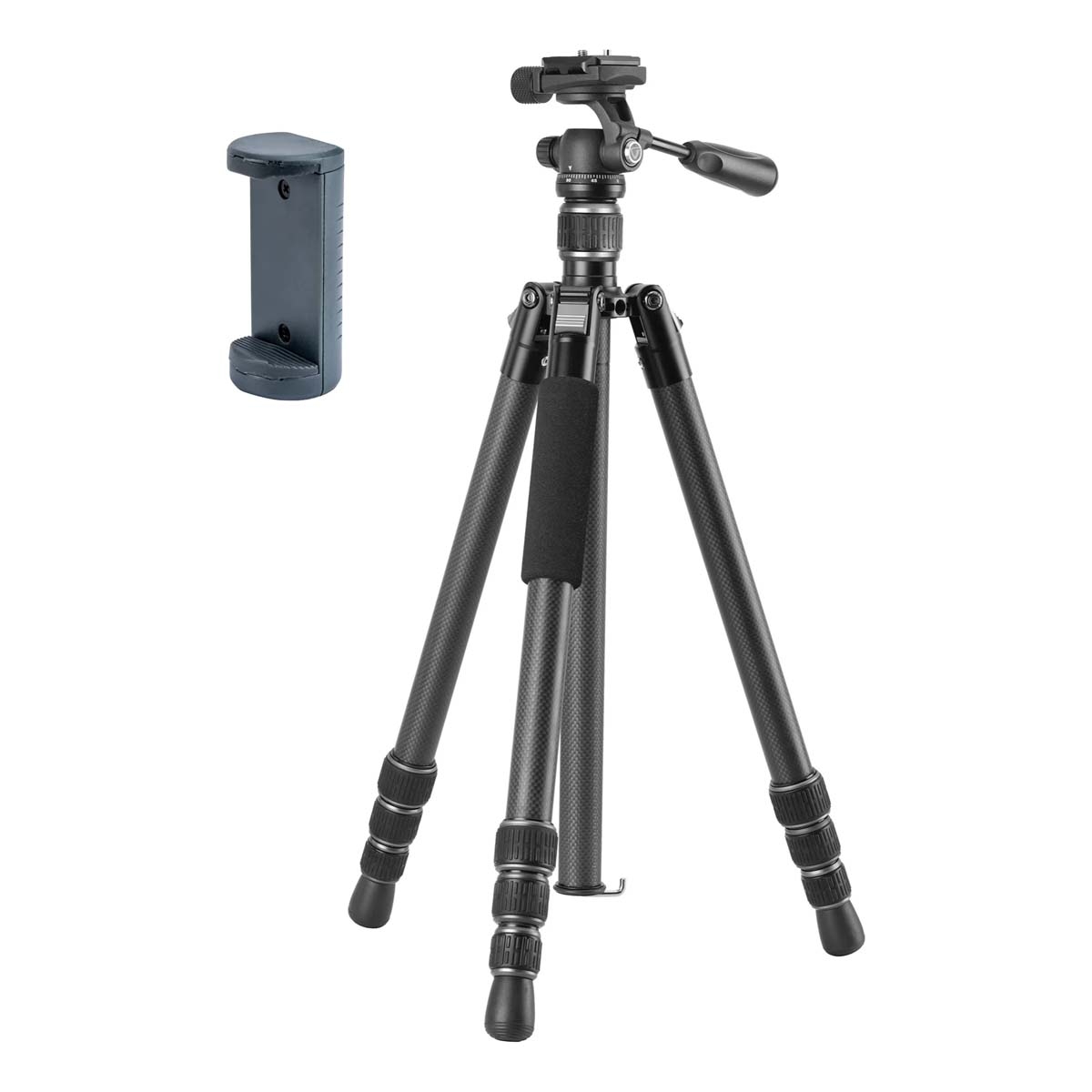

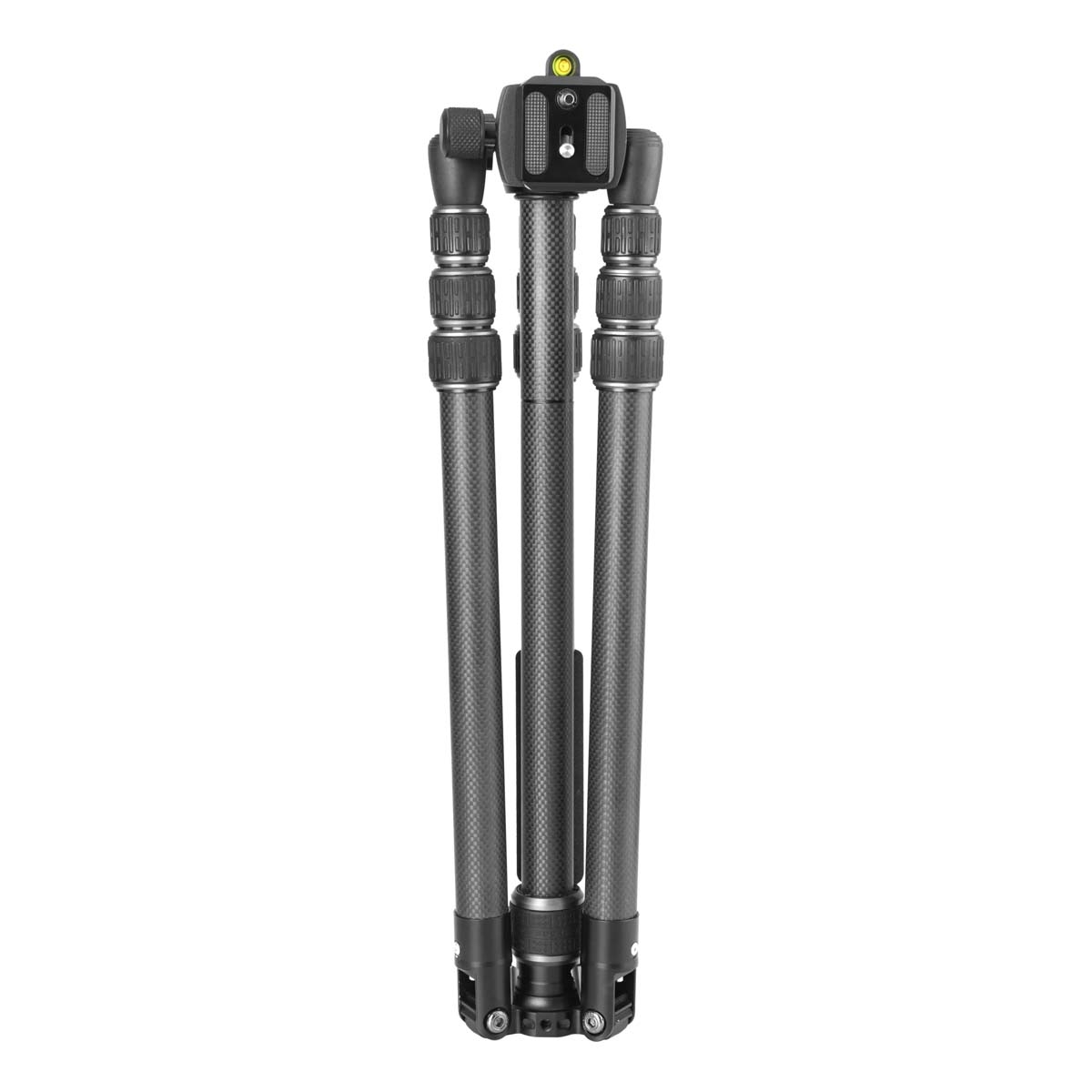

The complete kit weighs 1395g and folds to 47.5cm. Its VEO PH-24 head provides independent pan and tilt locking, while a split central column, smartphone adaptor and accessory mounting points add flexibility for observation, photography and video.

Carbon Fibre Construction & Portability

This CNC-machined travel tripod kit uses four-section carbon fibre legs with easy-clean twist locks. The 26mm leg diameter provides a solid foundation, while the folded diameter of 11.5cm keeps the tripod manageable when carrying it between viewing locations.

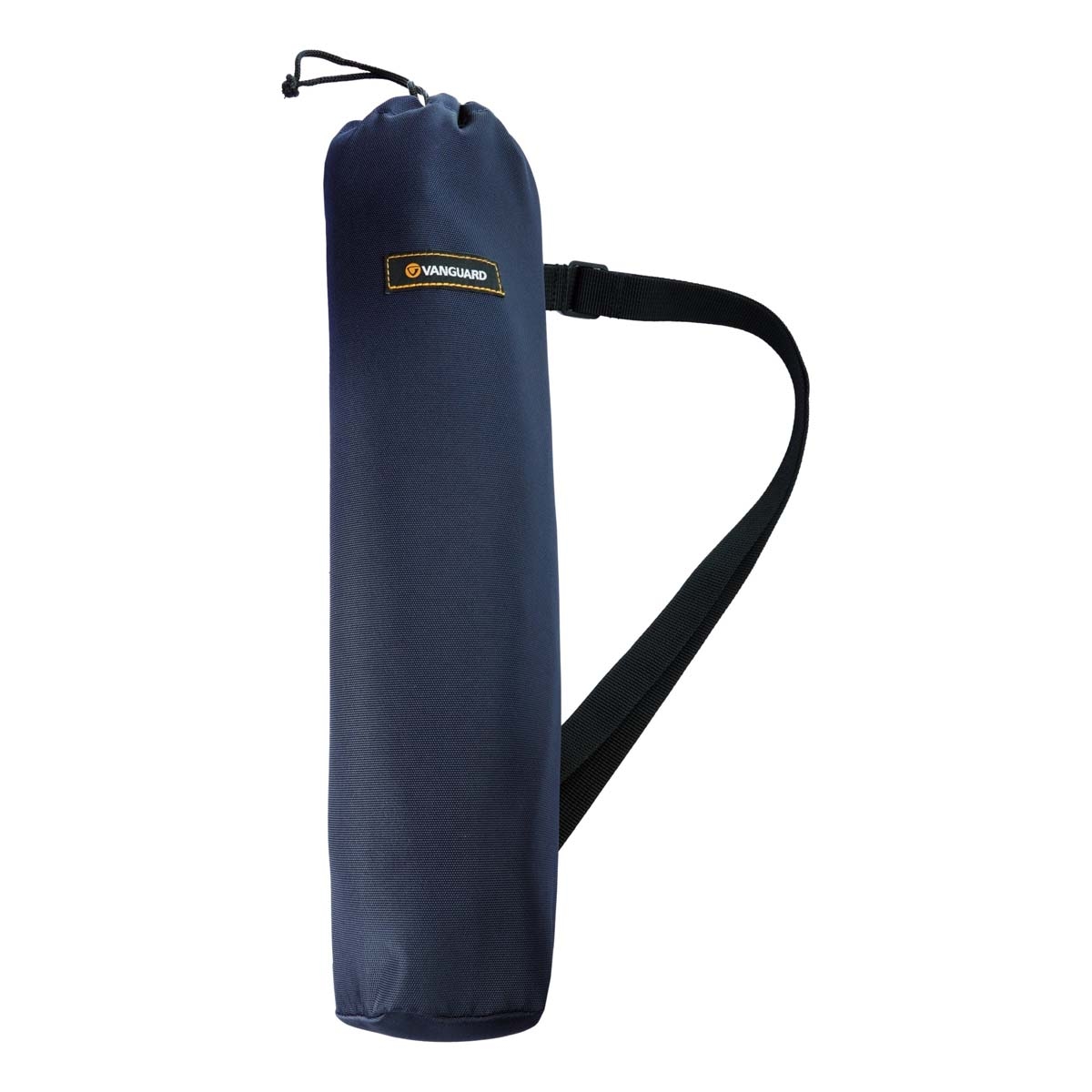

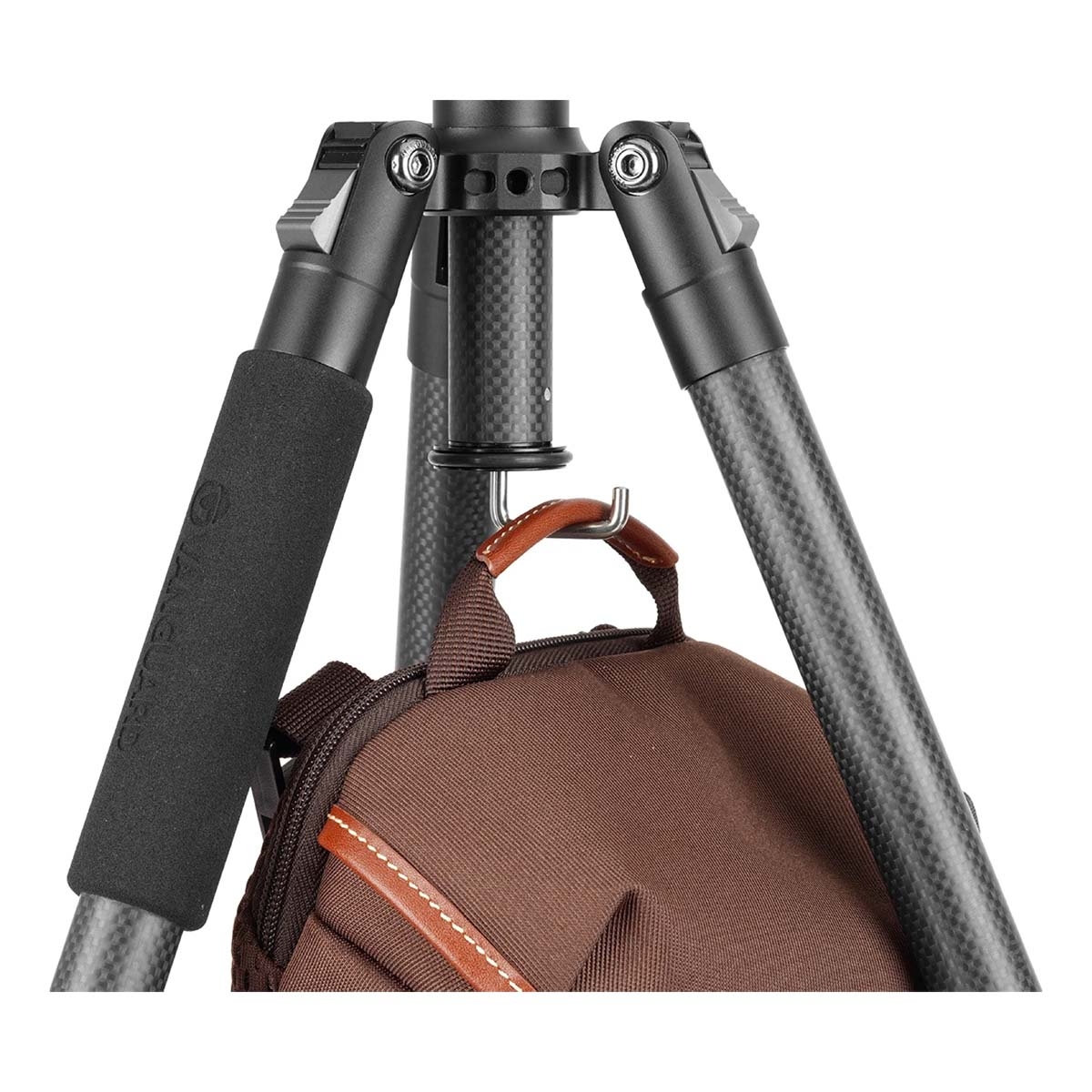

Rubber feet provide grip while helping protect the surface beneath the tripod. A spring hook at the base of the central column allows additional weight to be suspended for extra stability, and an included tripod bag makes transport more convenient.

Independent Pan & Tilt Control

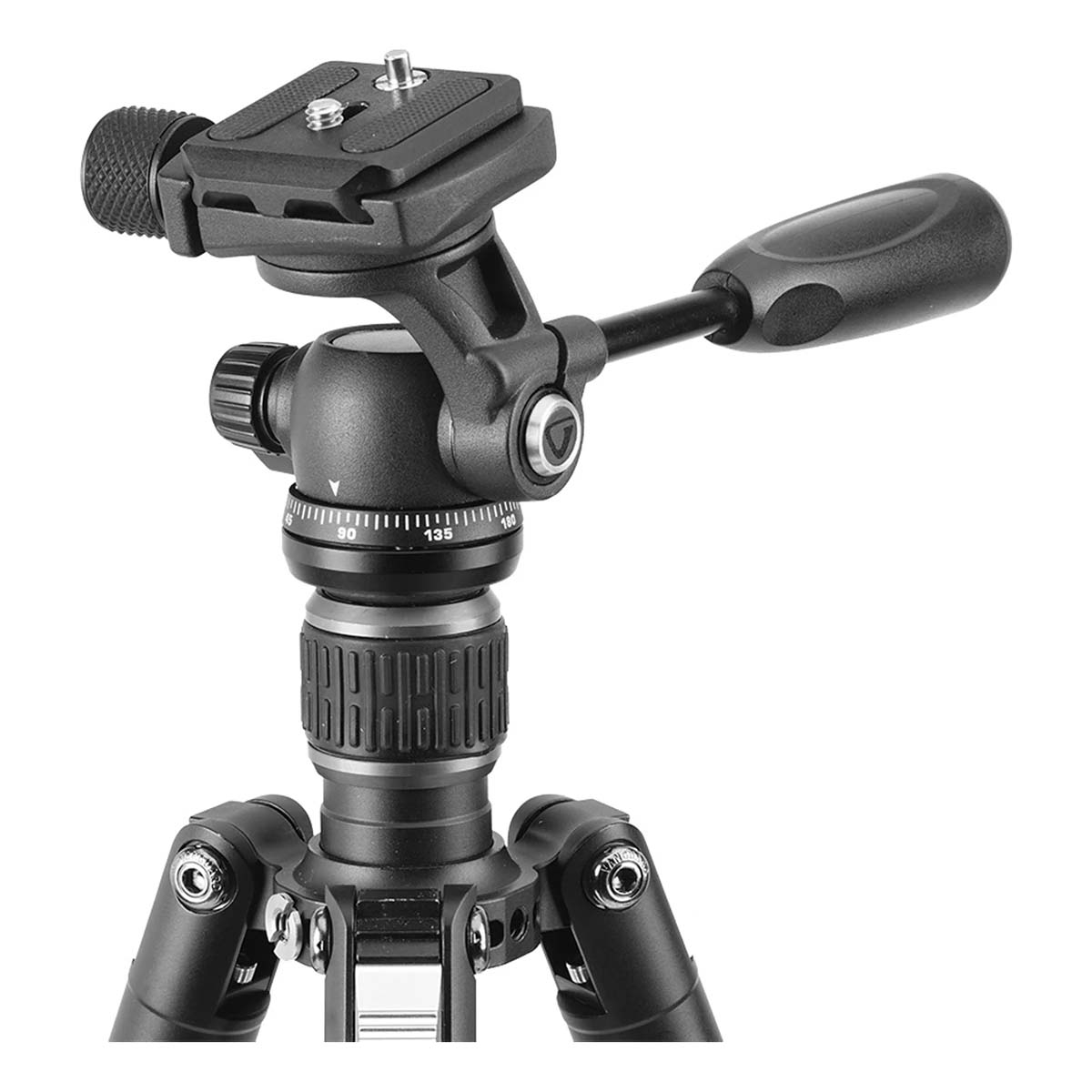

The VEO PH-24 two-way pan head offers 360° horizontal rotation and vertical tilt from -60° to 90°. Turning the handle locks or releases the vertical movement, while a separate pan lock controls horizontal rotation. This arrangement is well suited to following movement through a spotting scope or adjusting video framing.

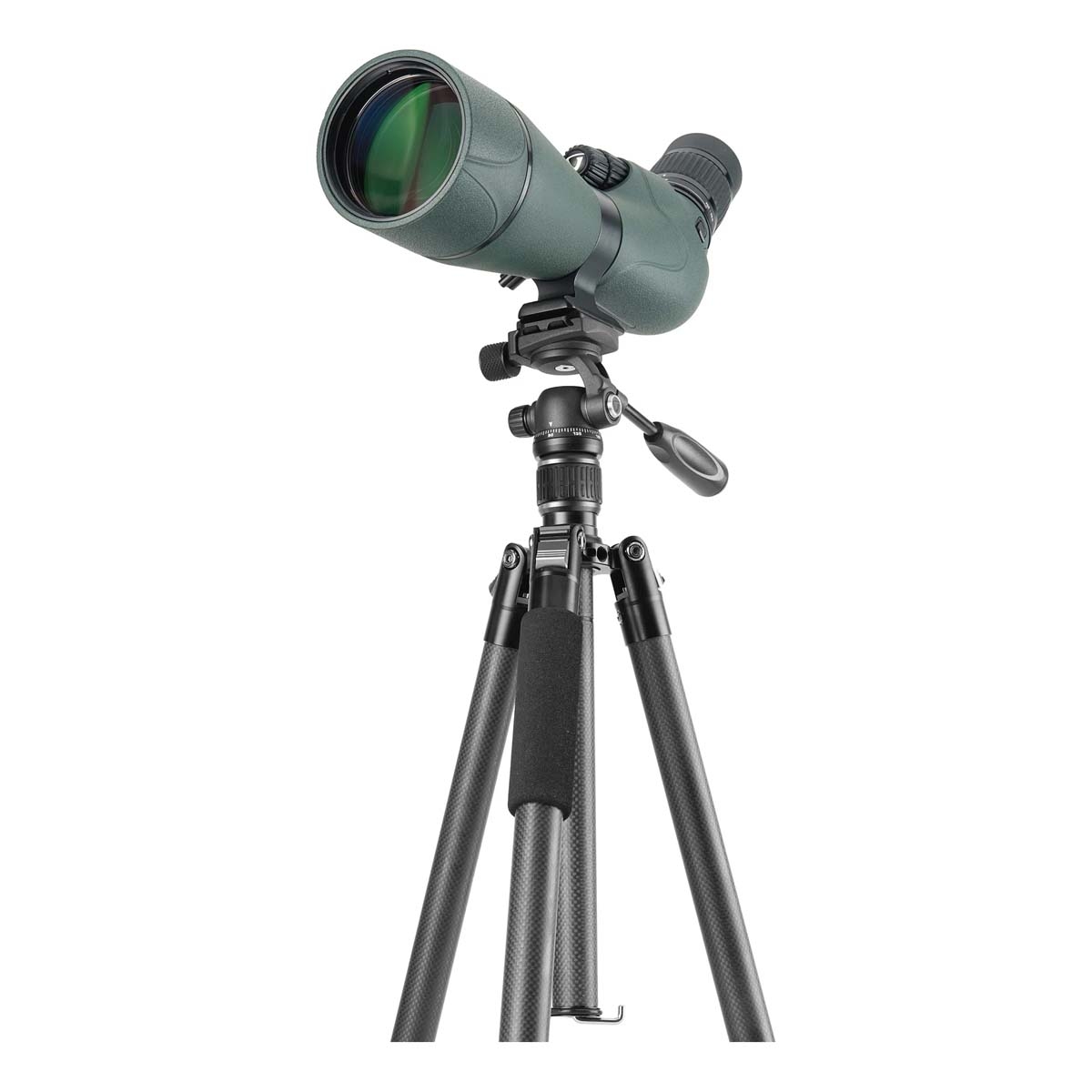

The included QS-55P quick-release plate features a non-twist spring pin for a secure connection to compatible spotting scopes. Alternatively, a scope with an Arca-compatible foot can attach directly to the head clamp, removing the need for an additional plate.

Working Height & Low-Angle Flexibility

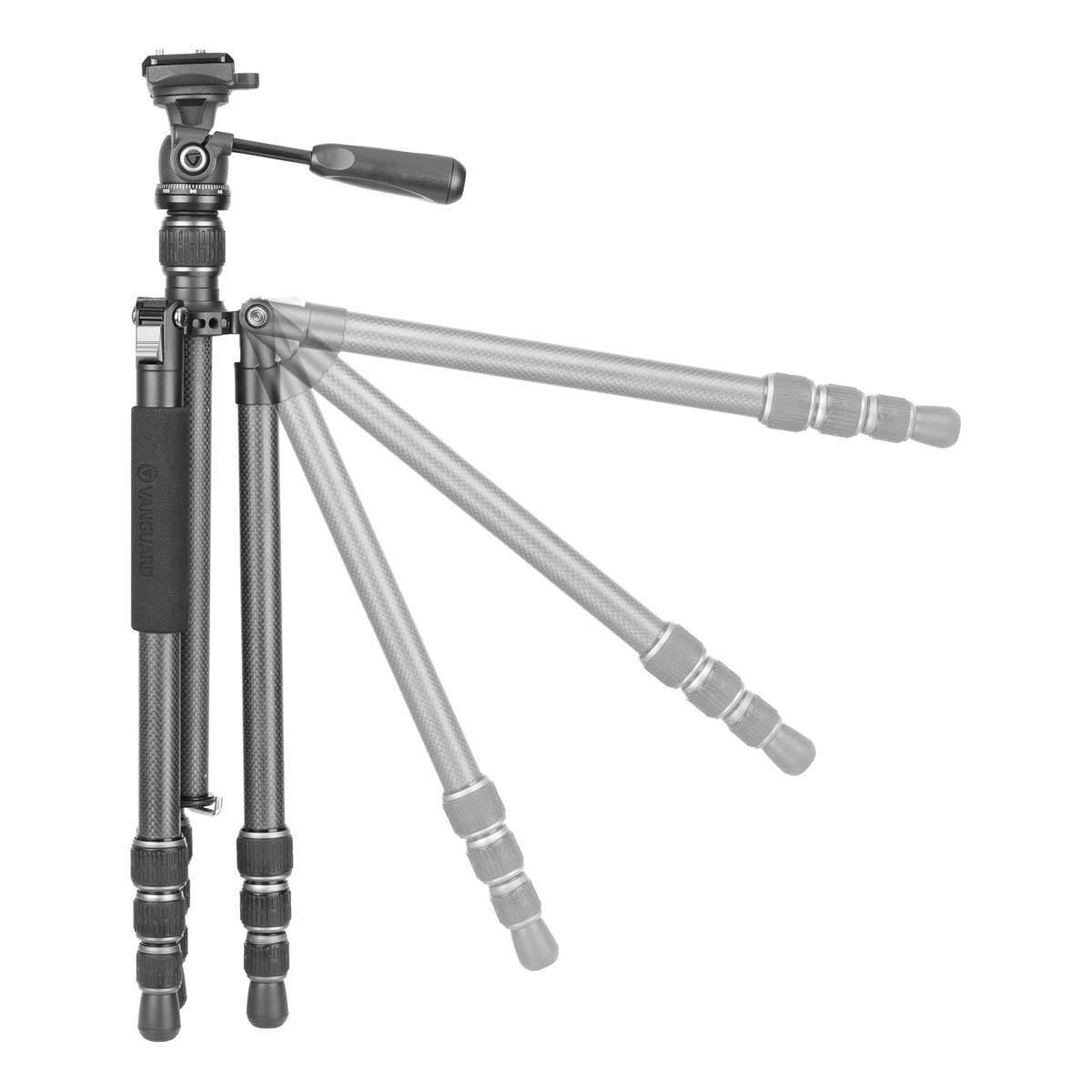

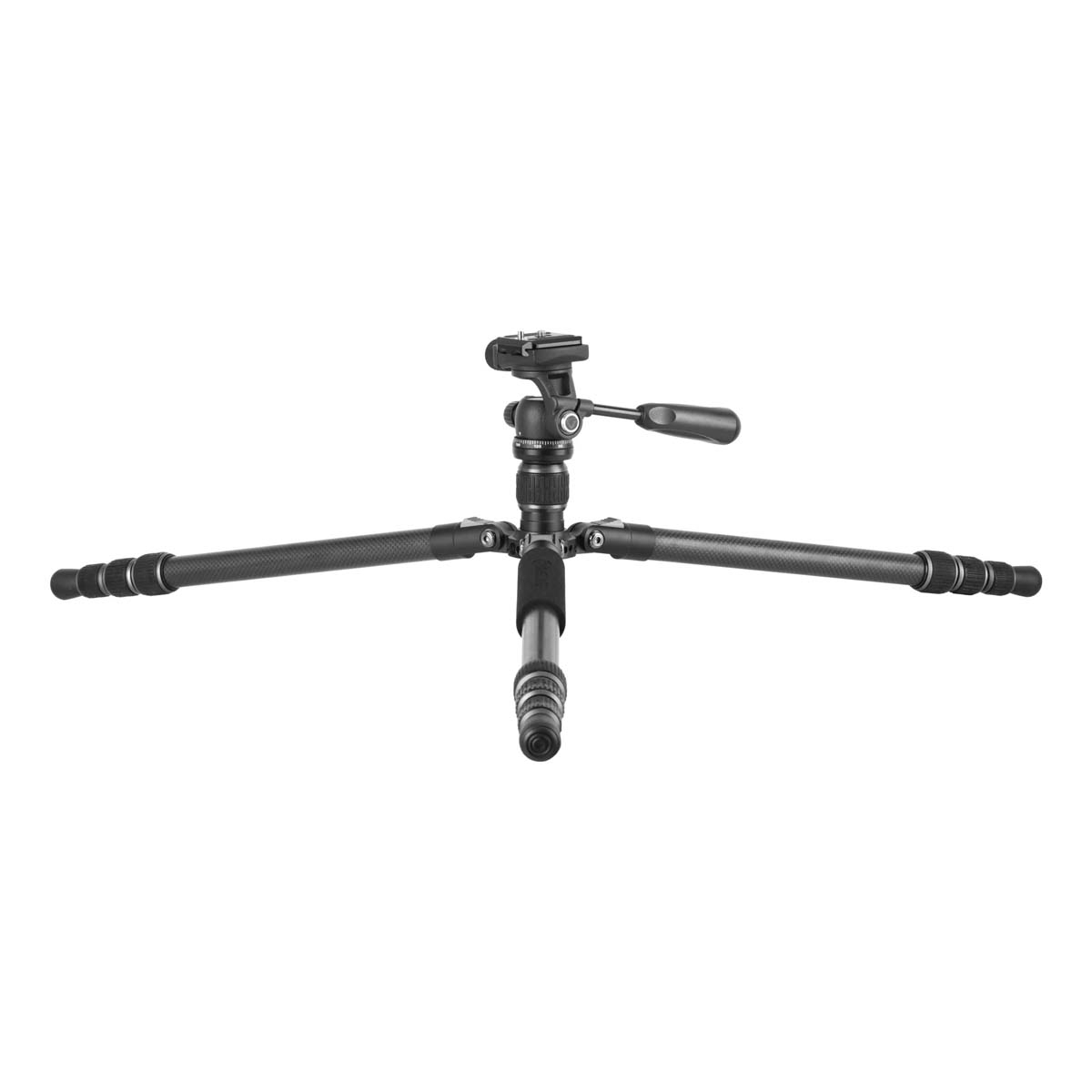

The tripod reaches 132.5cm with the central column lowered and 166.5cm when fully extended. Three selectable leg positions and a split central column allow low-angle setup for macro photography and subjects close to the ground.

For portrait photography, an optional four-sided Arca-compatible quick-release plate, such as the QS-74, allows a camera to be attached sideways with the head tilted to 90°. This additional plate is not included.

Smartphone & Accessory Mounting

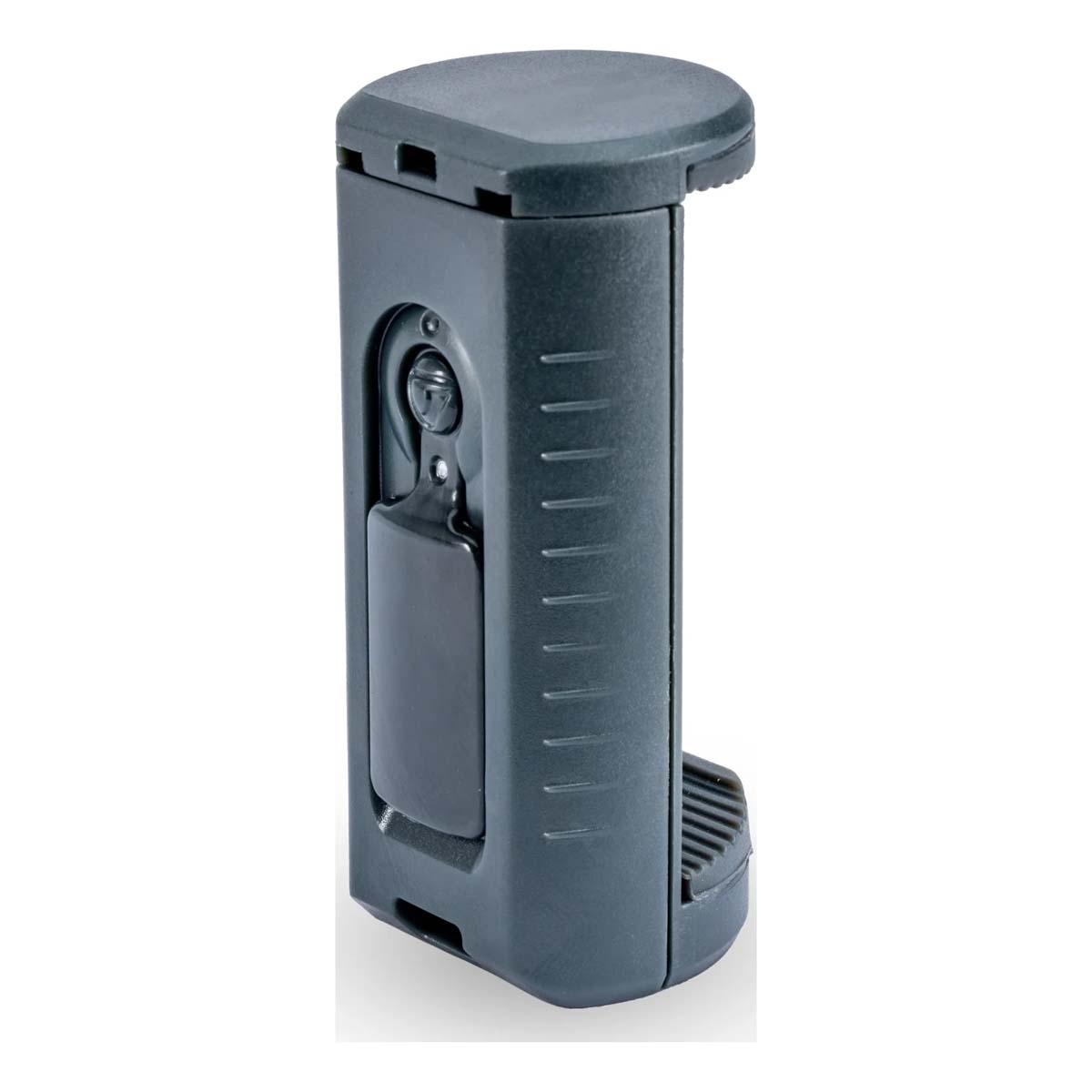

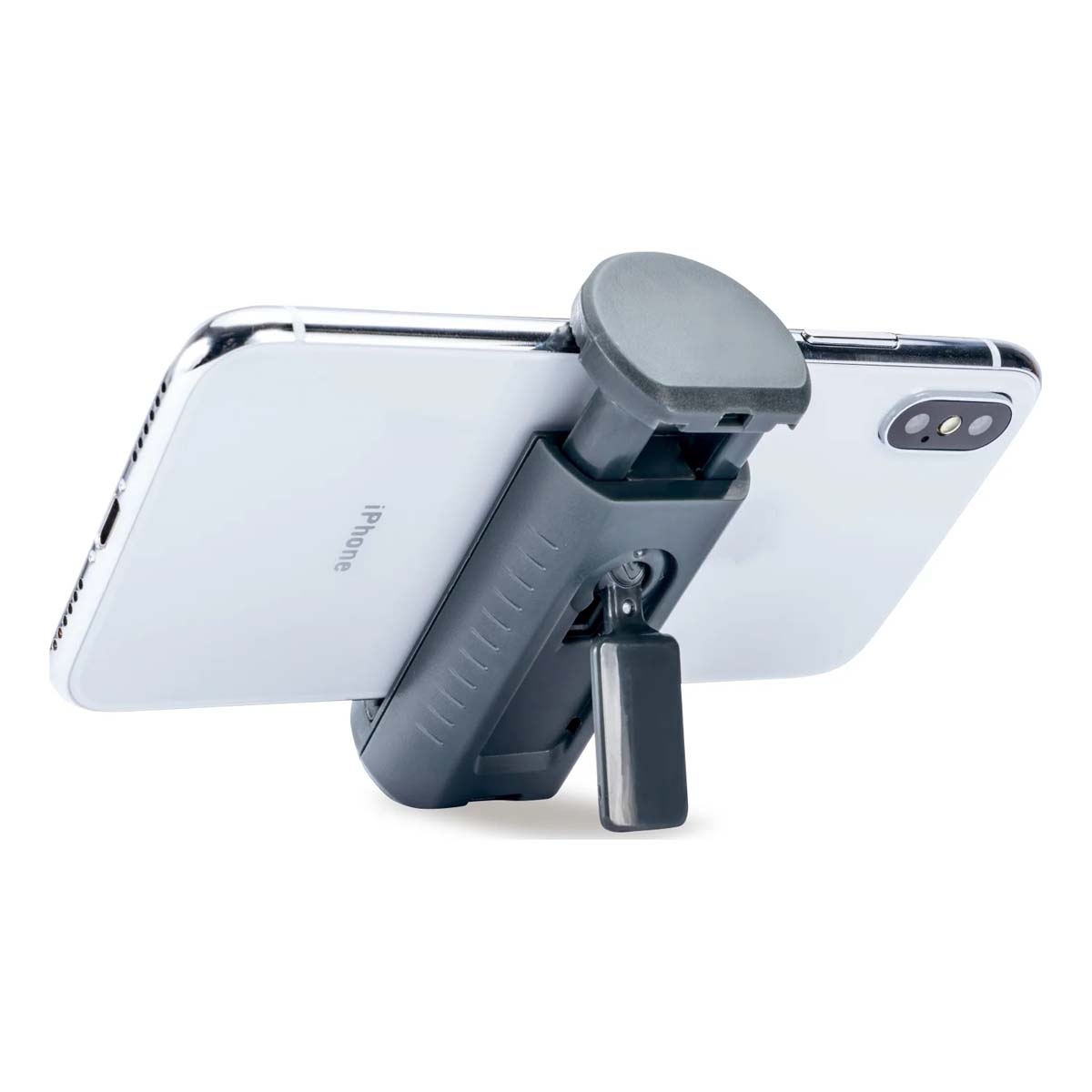

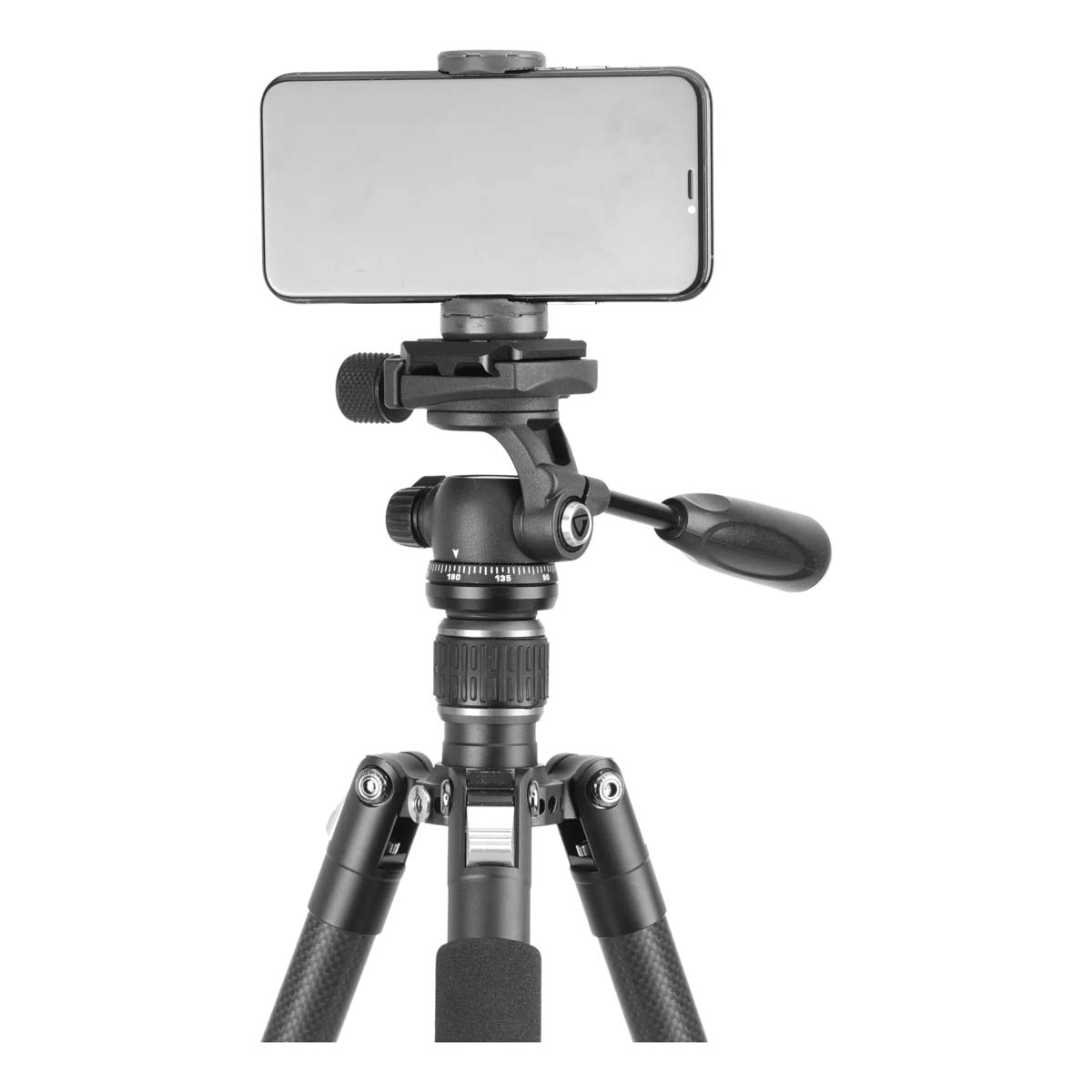

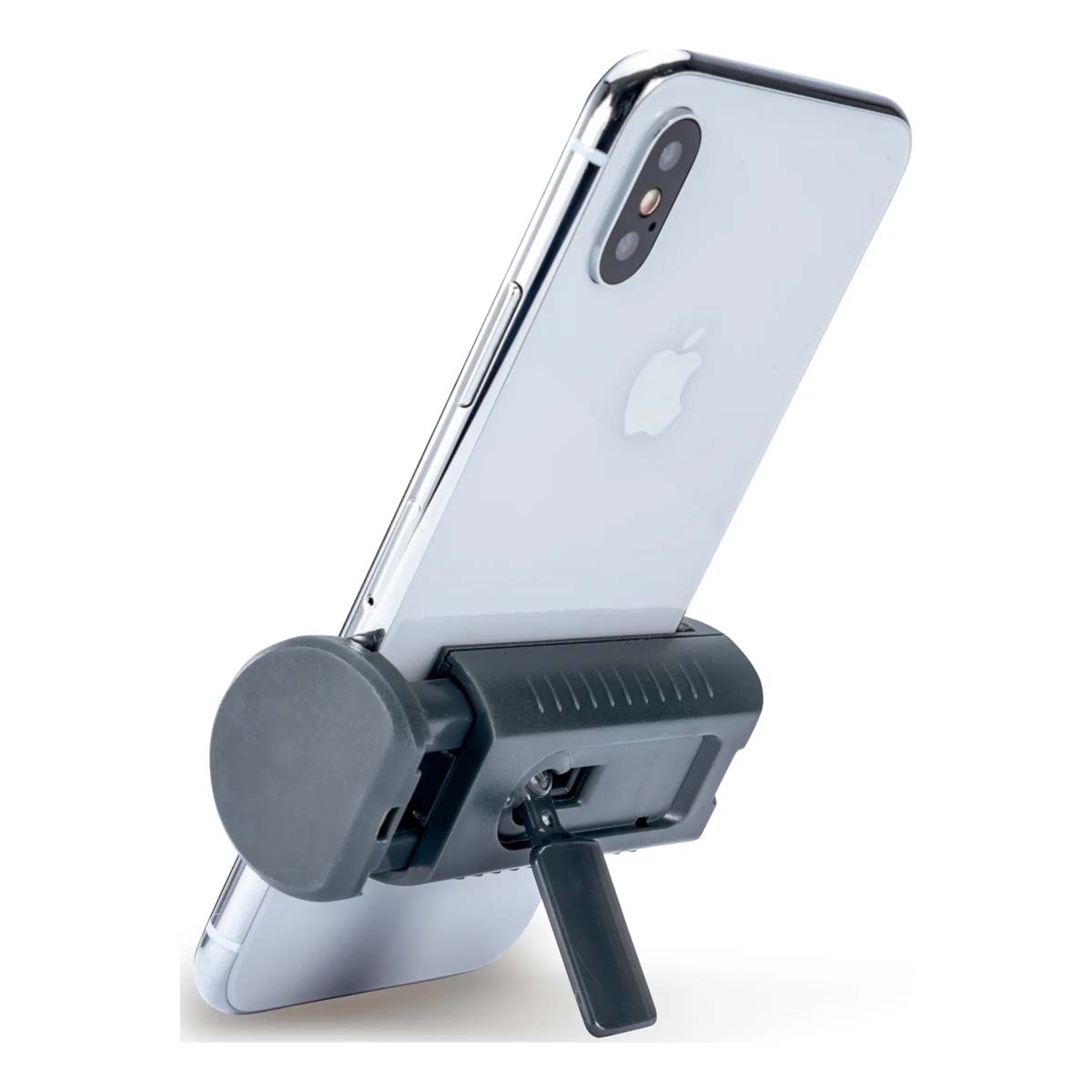

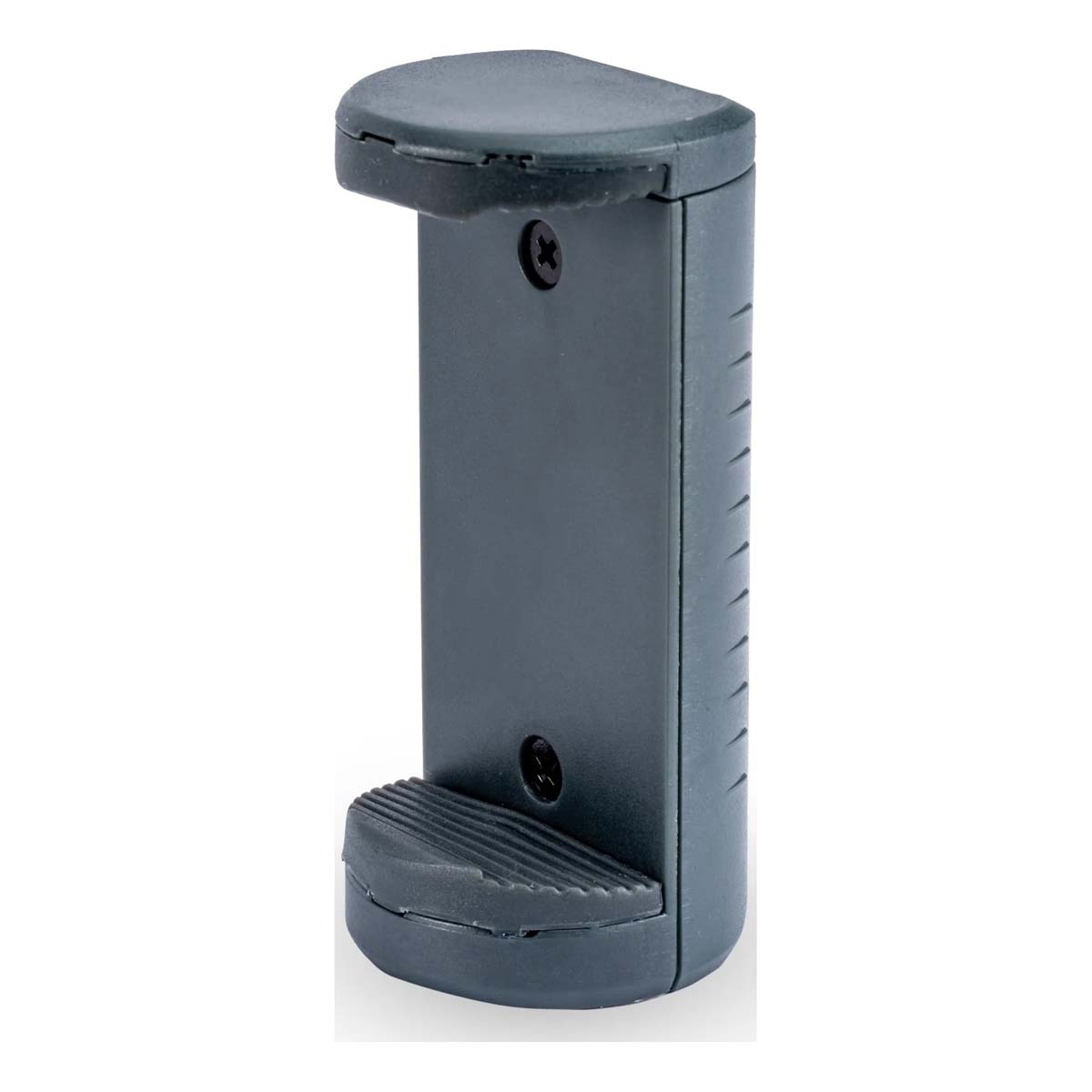

The supplied smartphone adaptor accommodates phones measuring 54–87mm wide. It can attach to the quick-release plate or to a compatible accessory arm with a 1/4-inch thread, allowing the tripod to support smartphone photography and video as well as conventional camera equipment.

Two 3/8-inch threaded connections on the tripod canopy include non-twist bayonet slots, with a 1/4-inch thread adaptor also provided. These mounting points allow up to two compatible accessory arms to be attached.

Practical Maintenance

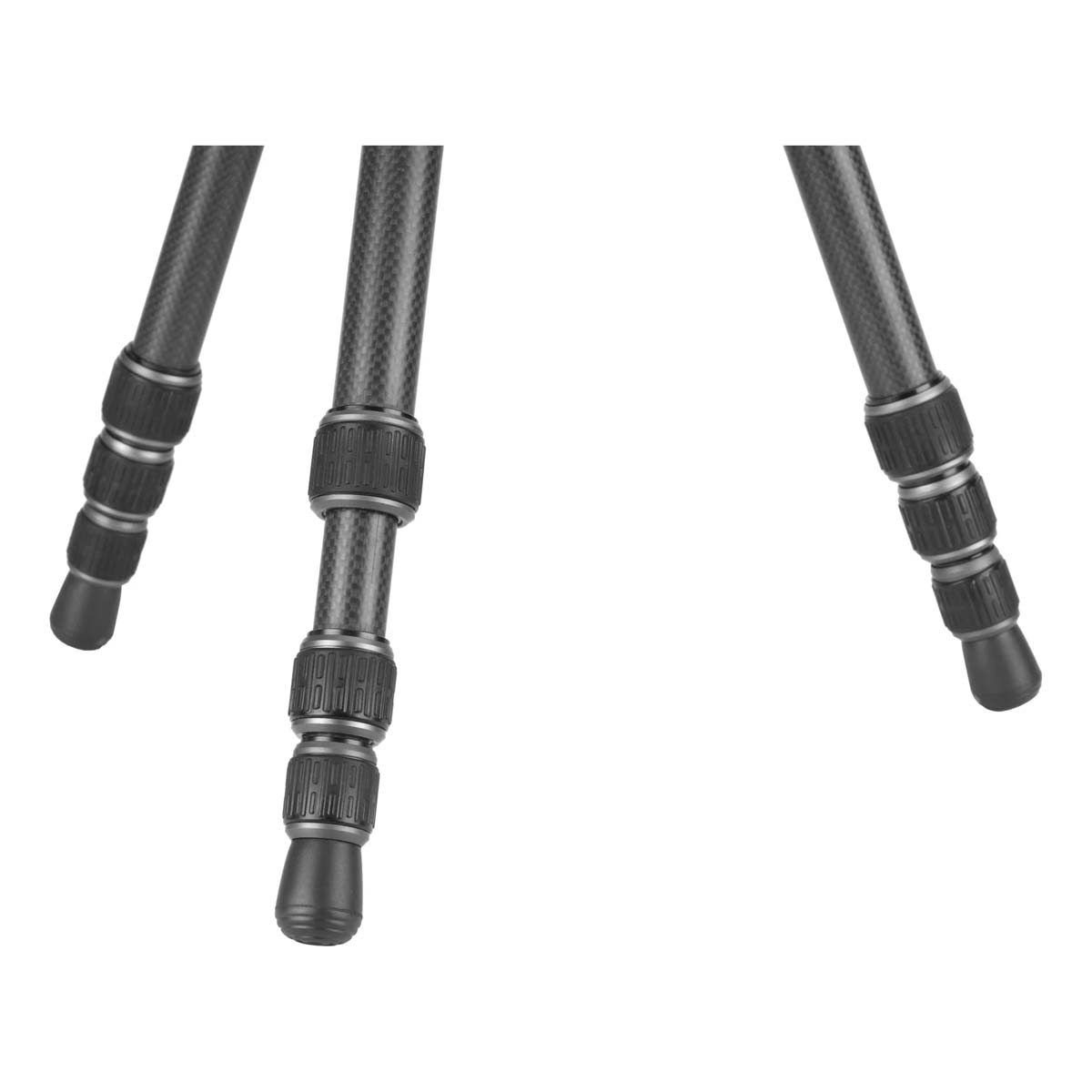

The easy-clean twist locks support straightforward maintenance after use in muddy or coastal environments. Their design also allows quick adjustment when extending or collapsing the four-section legs.

Vanguard VESTA GO 264CP Carbon Spotting Scope Travel Tripod Key Features

• Carbon fibre travel tripod kit weighing 1395g and folding to 47.5cm.
• 5kg maximum load capacity for compatible spotting scopes and camera equipment.
• VEO PH-24 two-way pan head with handle-controlled tilt and a separate pan lock.
• Arca-compatible clamp for quick-release plates or direct attachment of compatible scope feet.
• QS-55P quick-release plate with a non-twist spring pin.
• Four-section, 26mm legs with easy-clean twist locks.
• Maximum height of 166.5cm, or 132.5cm with the central column lowered.
• Three selectable leg positions and a split central column for low-angle work.
• Two accessory mounting threads with non-twist bayonet slots.
• Smartphone adaptor, rubber feet, central-column weight hook and tripod bag.

Vanguard VESTA GO 264CP Carbon Spotting Scope Travel Tripod Specifications

• Material: carbon fibre.
• Weight: 1395g.
• Folded length: 47.5cm.
• Folded diameter: 11.5cm.
• Maximum extended height: 166.5cm.
• Maximum height with central column lowered: 132.5cm.
• Maximum load capacity: 5kg.
• Leg diameter: 26mm.
• Leg sections: four.
• Leg locks: easy-clean twist locks.
• Low-angle adaptor: integrated into the split central column.
• Feet: rubber.
• Head: VEO PH-24 two-way pan head.
• Head base diameter: 42mm.
• Quick-release plate: QS-55P.
• Arca compatibility: yes.
• Panoramic rotation: 360°.
• Vertical tilt: -60° to 90°.
• Separate pan lock: yes.
• Separate friction control: no.
• Spirit bubble level: one.
• Smartphone adaptor capacity: 54–87mm wide.
• Tripod bag: included.

Vanguard VESTA GO 264CP Carbon Spotting Scope Travel Tripod Review

The Vanguard VESTA GO 264CP combines a useful maximum height with a relatively compact carrying size. Its specification suits birdwatchers using spotting scopes and photographers working with mirrorless or smaller DSLR kits, particularly where independent pan and tilt control is preferable to a ball head. The smartphone adaptor and accessory connections extend its usefulness across different types of equipment.

Performance & Key Features

The VEO PH-24 head is a central attraction, providing separate locks for horizontal rotation and vertical tilt. Direct mounting of Arca-compatible scope feet simplifies the connection between scope and tripod, while the supplied plate caters for other compatible equipment. The 166.5cm maximum height offers useful reach, with 132.5cm available before raising the central column. A 5kg load limit defines the kit's equipment capacity.

Build Quality & Handling

The 26mm carbon fibre legs balance the tripod's emphasis on support with a kit weight of 1395g. Its four-section design reduces the folded length to 47.5cm, and the included bag helps when transporting it between locations. Easy-clean twist locks, rubber feet and a central-column weight hook are practical details for regular outdoor use.

Is It Easy to Use?

Vertical tilt locking is operated directly through the pan handle, keeping that adjustment close to the user's hand. The separate pan lock allows horizontal positioning to be managed independently, while direct Arca mounting can remove an extra plate from a compatible scope setup. Low-angle positioning is supported by the split column, although portrait camera use requires an additional four-sided Arca-compatible plate.

Key Takeaways

The VESTA GO 264CP is worth considering for Uttings customers seeking a portable carbon fibre tripod with substantial working height and a dedicated two-way head. Its independent controls, direct Arca mounting option and accessory connections are the strongest practical features. The head does not provide separate friction adjustment, and the kit is intended for smaller camera systems rather than professional DSLR setups. For compatible equipment within its 5kg capacity, it offers a versatile combination of observation support and photographic flexibility.

Vanguard VESTA GO 264CP Carbon Spotting Scope Travel Tripod FAQs

Is the VESTA GO 264CP suitable for spotting scopes?

Yes. The tripod is designed for spotting scope use and has a maximum load capacity of 5kg. Its two-way pan head provides independent horizontal and vertical adjustment, while the included quick-release plate features a non-twist spring pin for compatible scopes.

Can a spotting scope attach without a quick-release plate?

Yes, if the scope has an Arca-compatible foot. This can fit directly into the head clamp, removing the need for the supplied QS-55P plate.

How tall does the tripod extend?

The maximum extended height is 166.5cm. With the central column lowered, the tripod reaches 132.5cm.

How portable is the complete kit?

The kit weighs 1395g and folds to 47.5cm long. Its folded diameter is 11.5cm, and a tripod bag is included for transport.

How do the pan and tilt controls work?

Turning the handle locks or releases vertical tilt. A separate lock controls horizontal panning. The head provides 360° rotation and a tilt range of -60° to 90°, without a separate friction control.

Can it be used for macro and low-angle photography?

Yes. Three selectable leg positions work with the split central column to support low-angle positioning. The low-angle adaptor is integrated into the column.

What size smartphone does the included adaptor hold?

The adaptor accommodates phones measuring 54–87mm wide. It attaches to the quick-release plate or a compatible accessory arm with a 1/4-inch thread. A smartphone remote control is not included.

Can a camera be mounted for portrait photography?

Yes, using an additional four-sided Arca-compatible plate such as the QS-74. With the head tilted to 90°, the camera can be attached sideways for portrait framing. The additional plate is not included.

Can accessory arms be attached to the tripod?

Yes. Two 3/8-inch threaded mounting points on the canopy have non-twist bayonet slots, and a 1/4-inch thread adaptor is provided. These connections support attachment of up to two compatible accessory arms.

What leg locks and feet does it use?

The four-section legs use easy-clean twist locks. The feet are rubber, providing grip while helping protect surfaces from marking.
