Vanguard Vesta Go 234CP Tripod

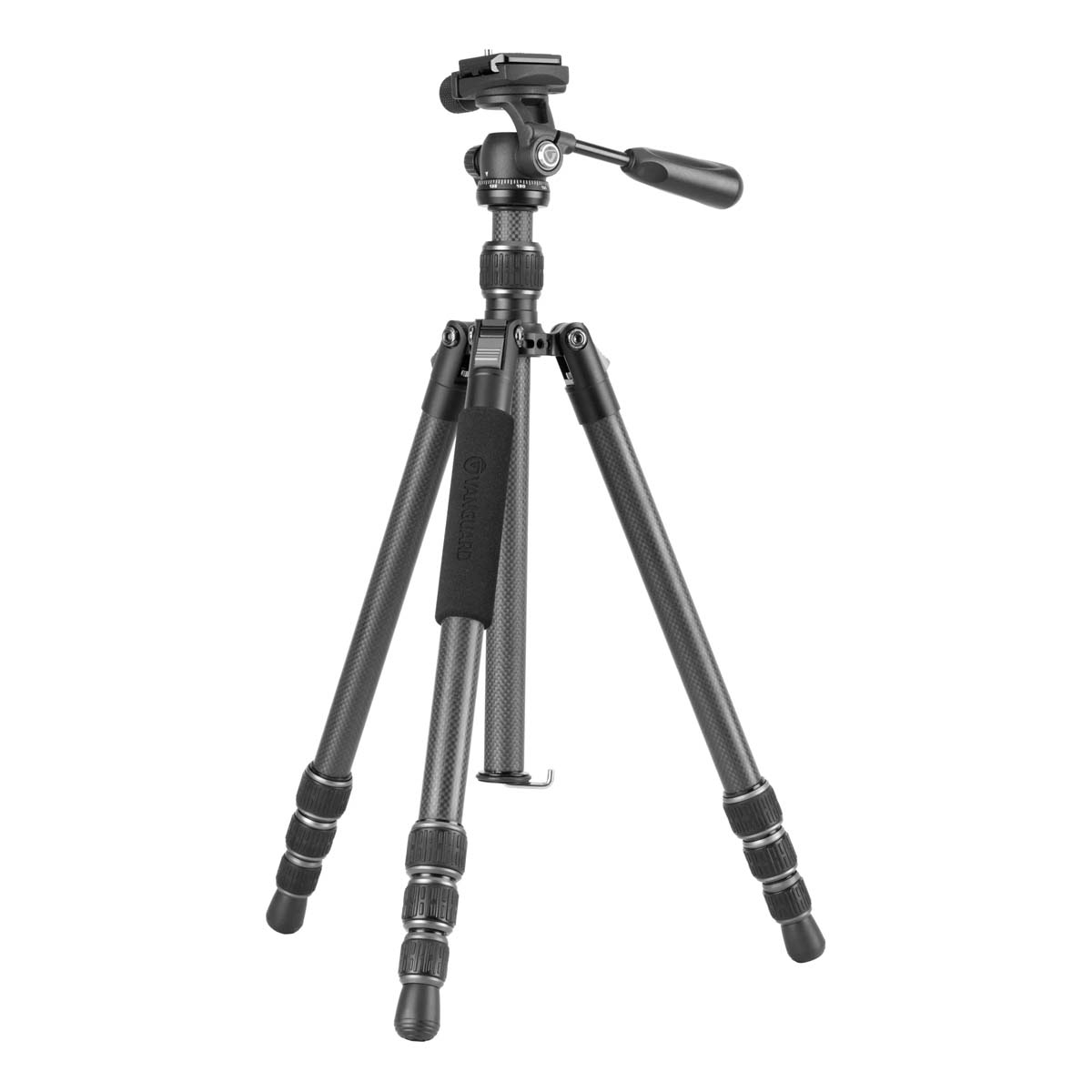

The Vanguard VESTA GO 234CP Carbon Spotting Scope Travel Tripod combines a lightweight carbon fibre construction with an Arca-compatible two-way pan head, providing portable support for spotting scopes, mirrorless cameras and smaller DSLR kits. Weighing 1315g and folding to 44.5cm, it is designed for observers and photographers who want a compact tripod without giving up practical working height or straightforward control.

The kit supports equipment weighing up to 5kg and extends to 154cm. Its VEO PH-24 head offers separate control of panning and vertical tilt, making it well suited to following movement through a spotting scope or composing video footage.

Compact Carbon Fibre Construction

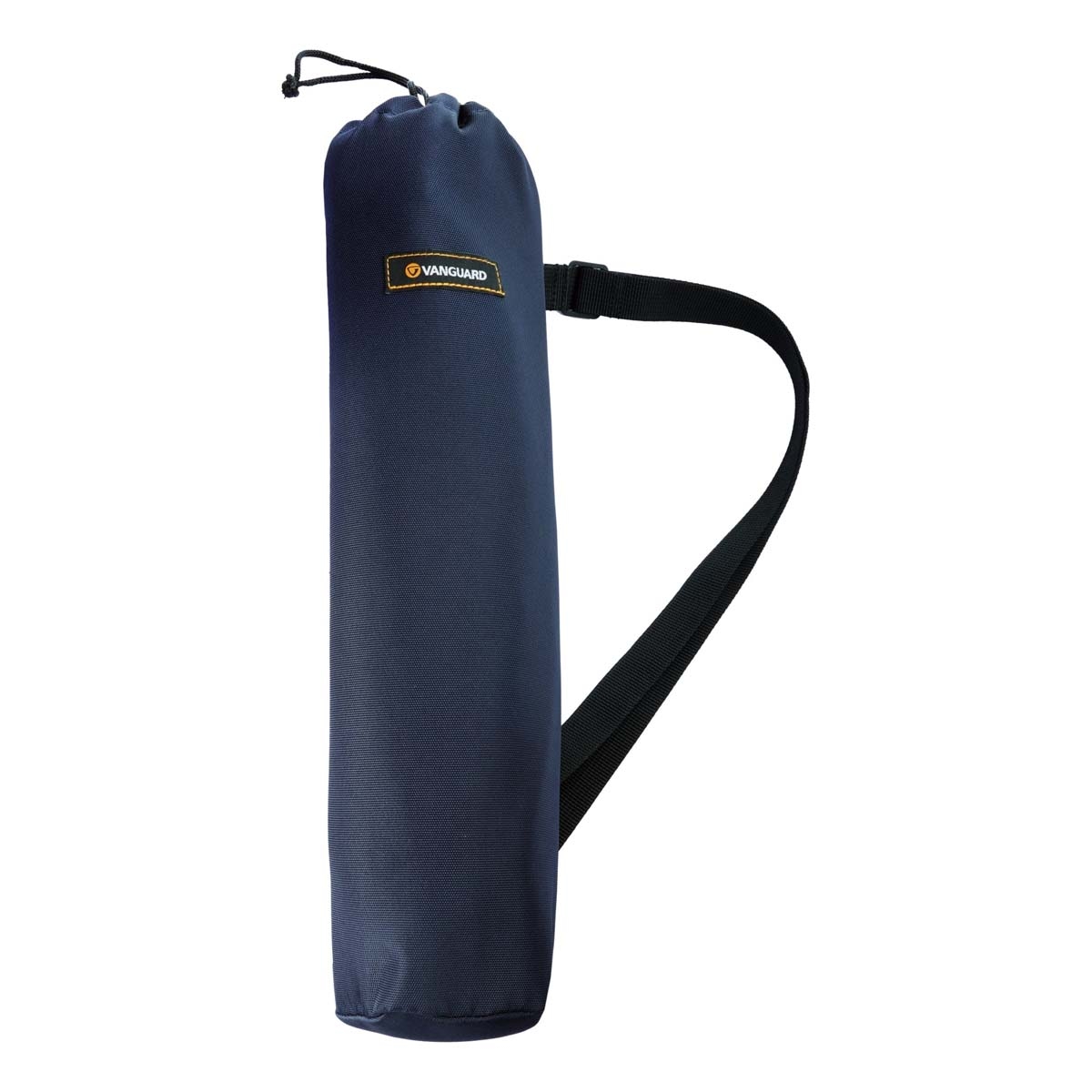

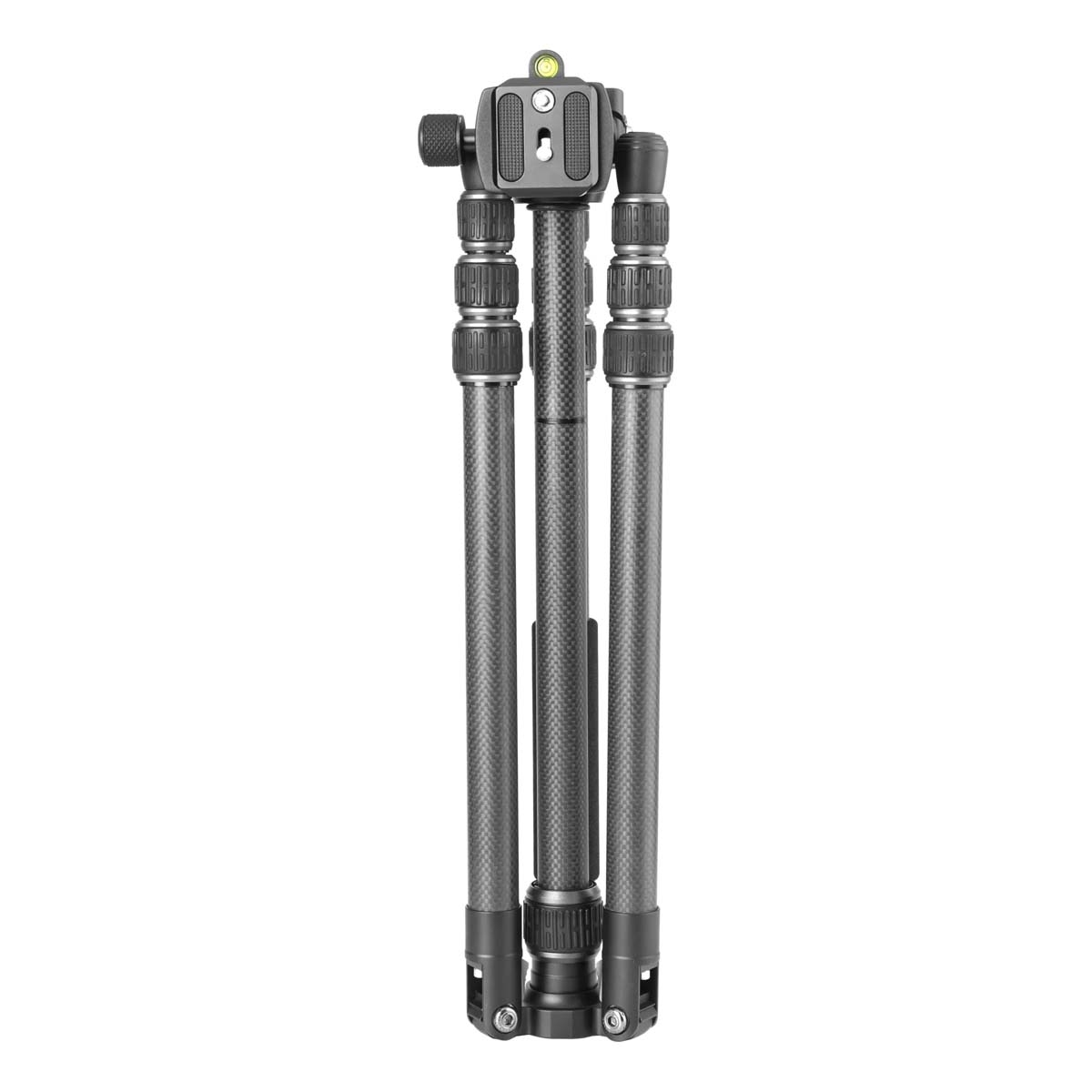

Four-section carbon fibre legs with a 23mm diameter provide the foundation of this CNC-machined travel tripod kit. The folded diameter of 10cm keeps the package compact and comfortable to carry by hand, while the included tripod bag offers a convenient transport option.

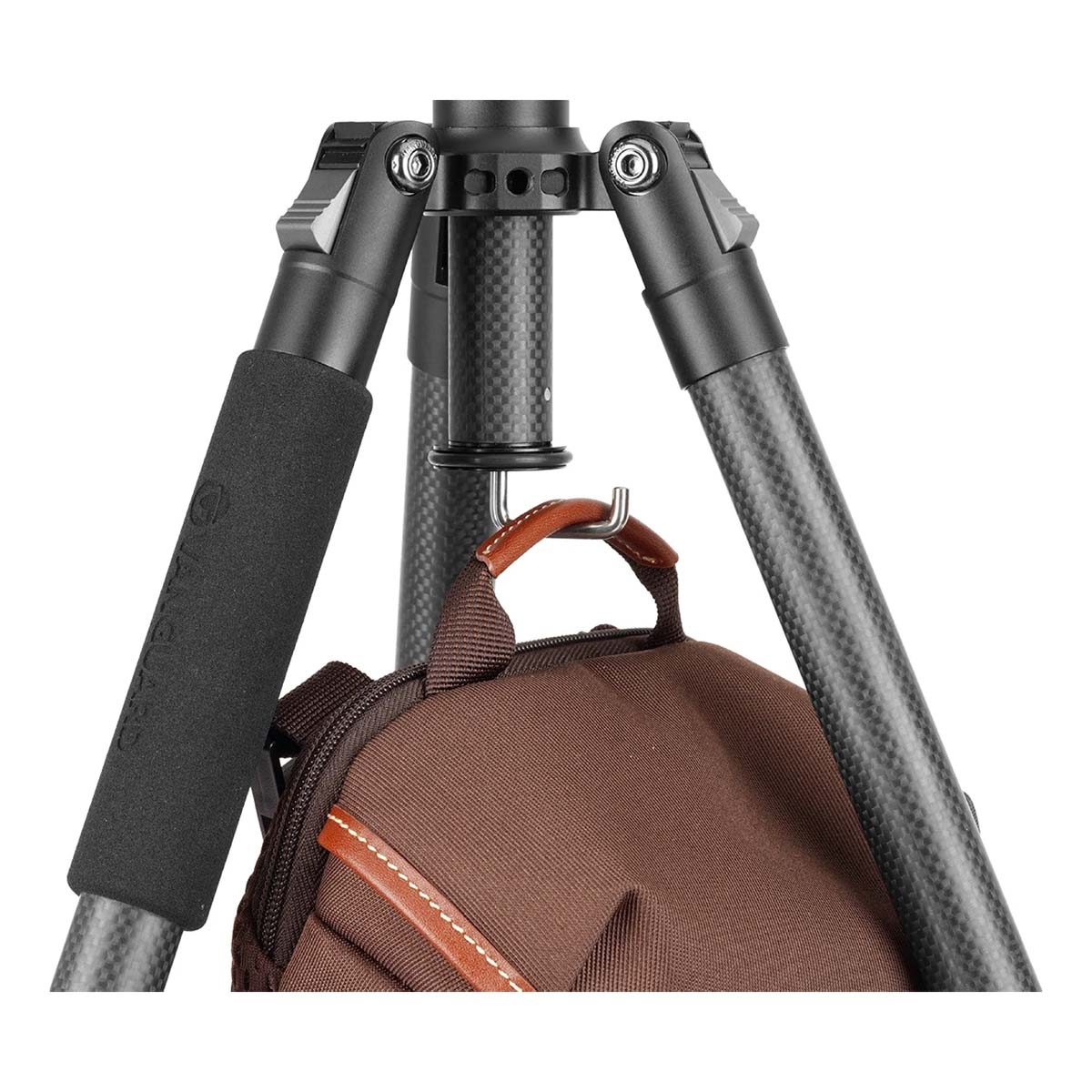

Easy-clean twist locks allow quick leg adjustment and simplify maintenance after use in muddy or coastal environments. Rubber feet provide grip without marking surfaces, and a spring hook beneath the central column allows additional weight to be suspended for extra stability.

Two-Way Pan Head with Independent Controls

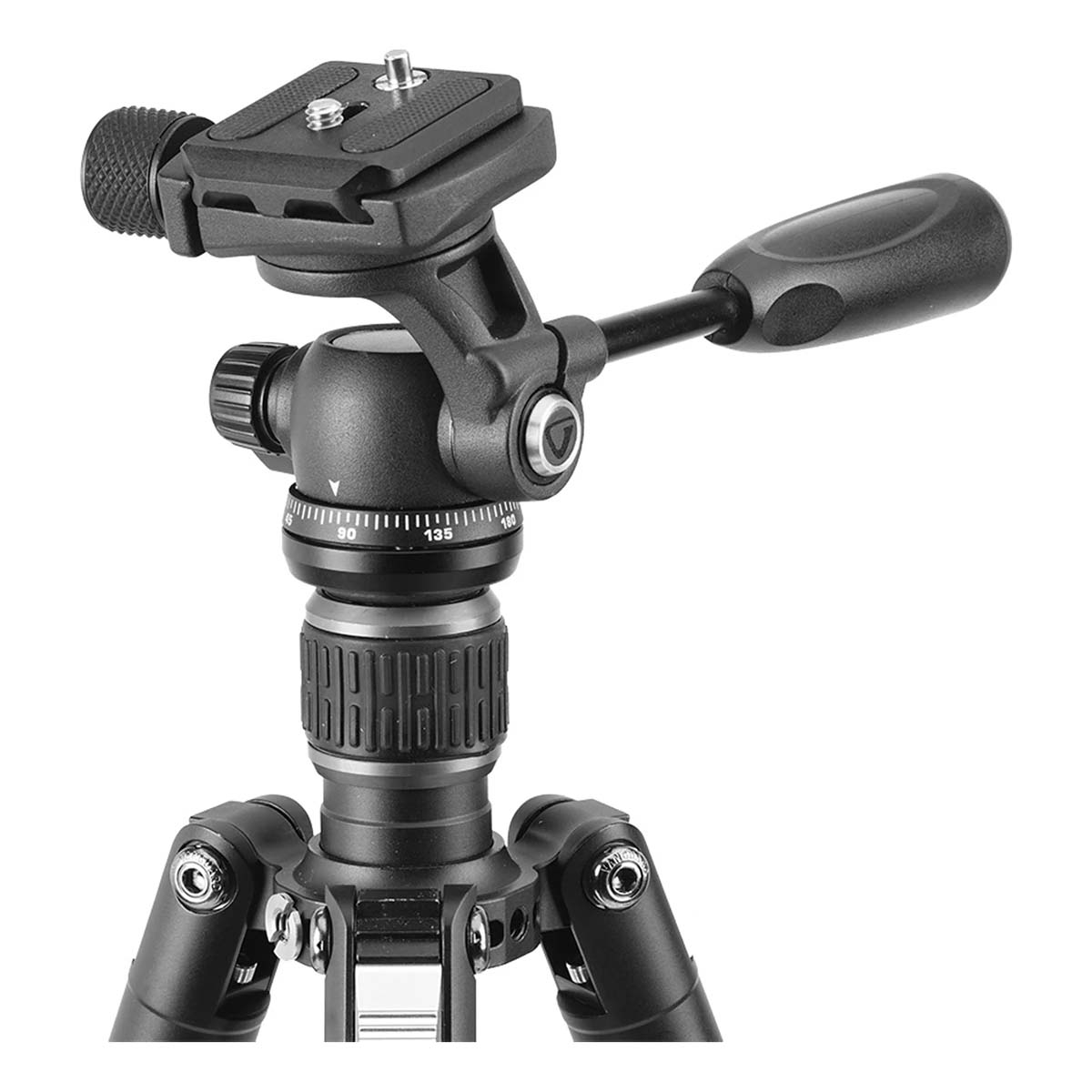

The included VEO PH-24 head provides 360° panning and a vertical tilt range of -60° to 90°. Turning the handle locks or releases vertical tilt, while a separate pan lock controls horizontal movement. This arrangement gives you independent adjustment of the two axes when positioning a camera or following a subject.

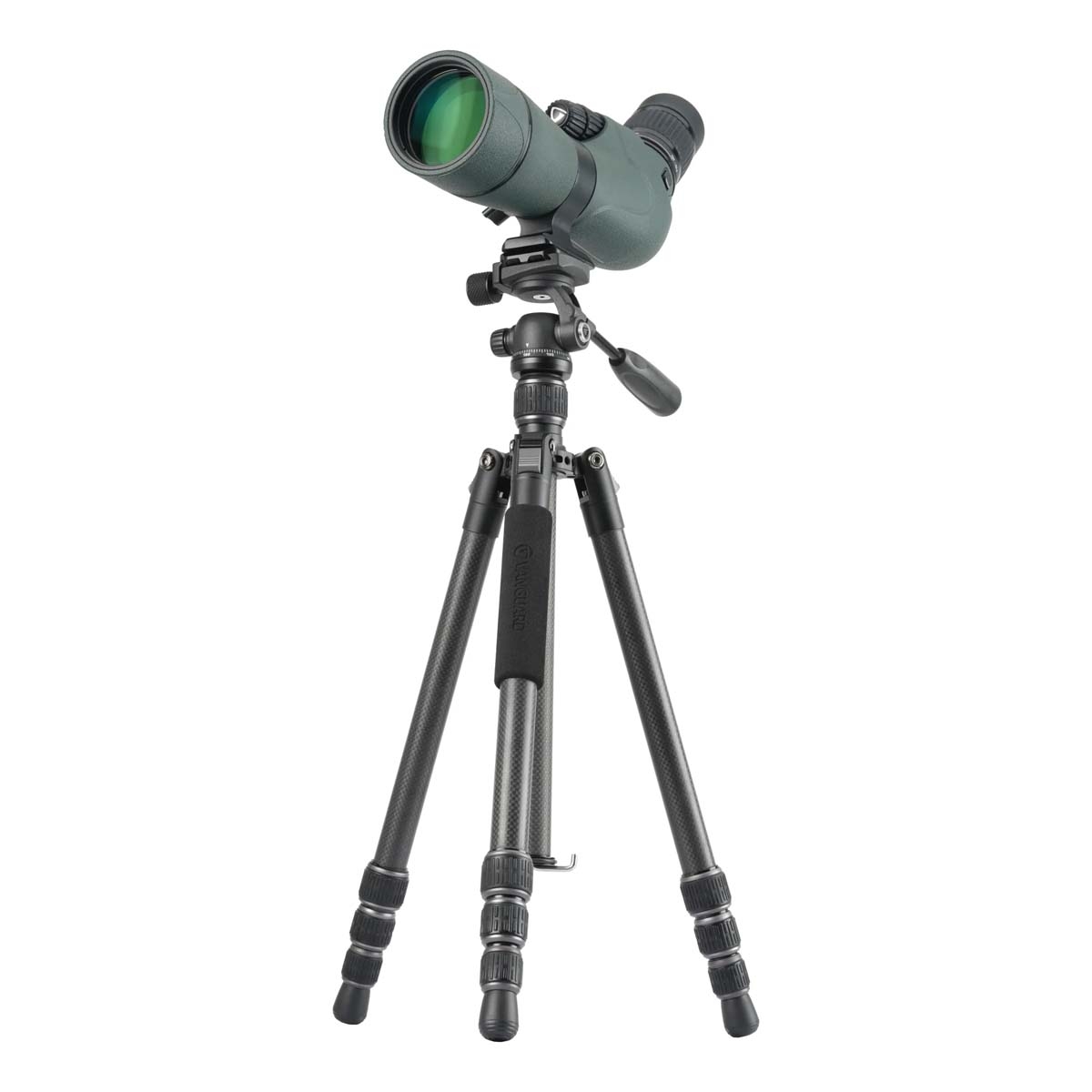

The supplied QS-55P quick-release plate includes a non-twist spring pin for a secure connection to a compatible spotting scope. Spotting scopes with an Arca-compatible foot can fit directly into the head clamp, removing the need for a separate plate.

Flexible Height & Low-Angle Positioning

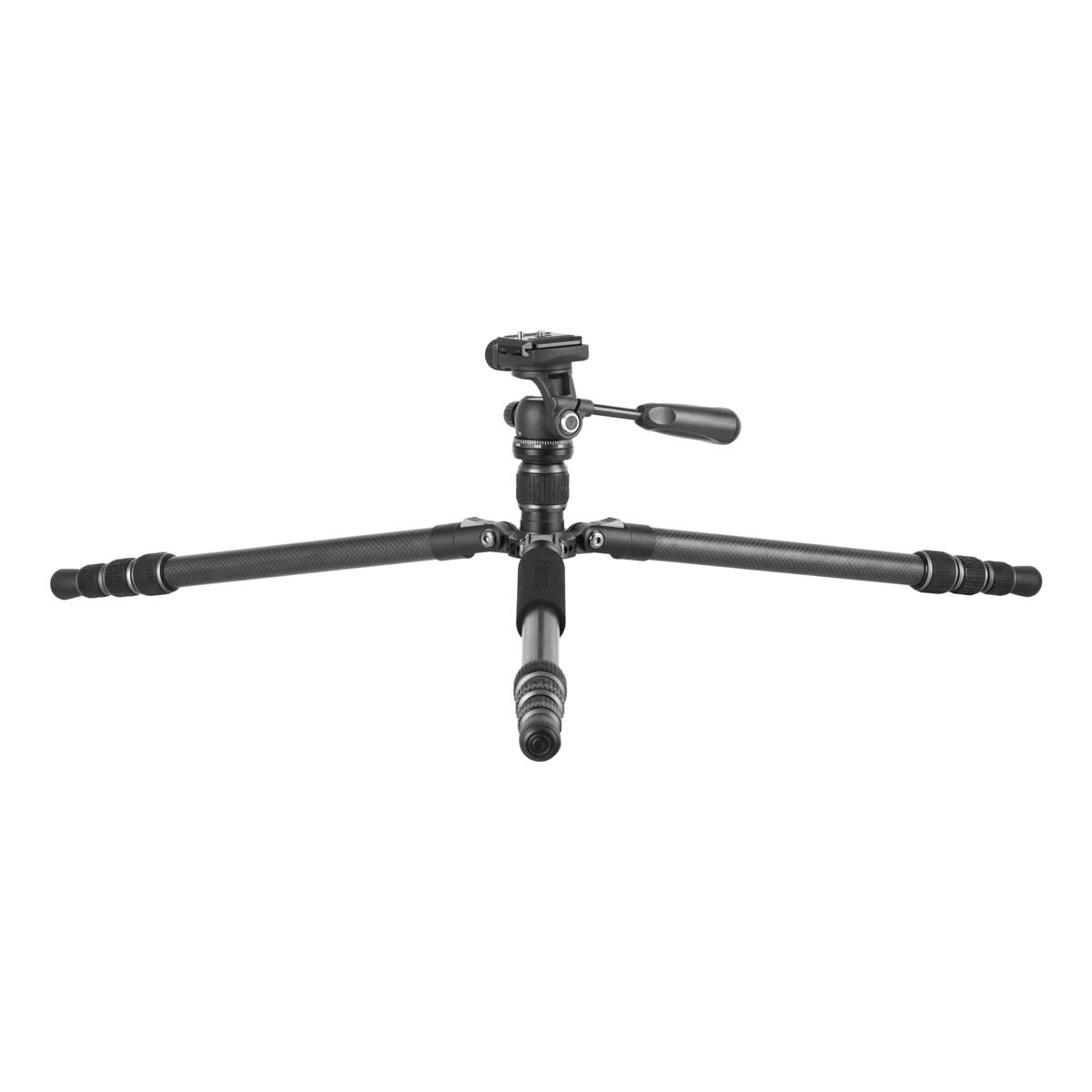

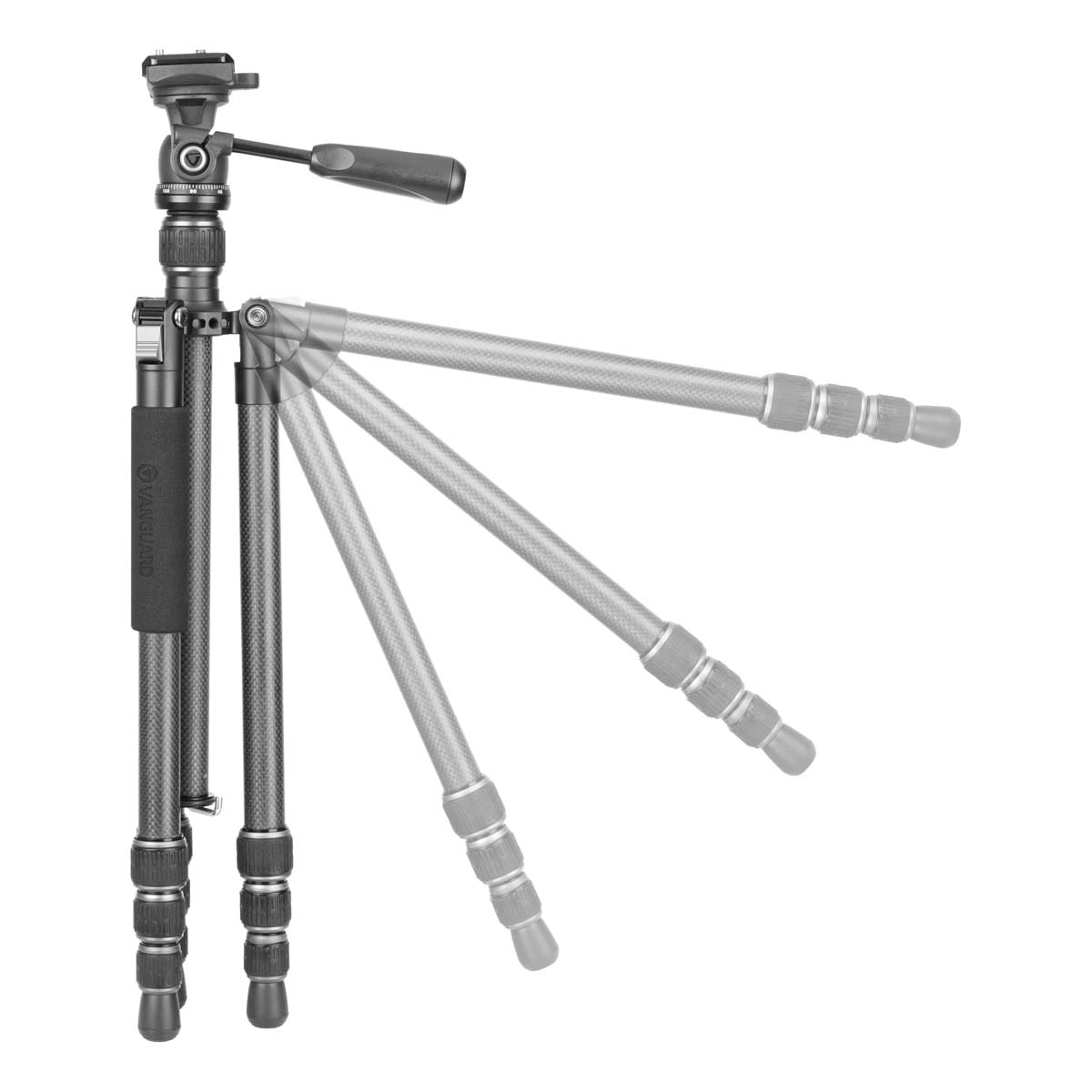

The tripod reaches 122.5cm with the central column lowered and 154cm when fully extended. Three selectable leg positions and a split central column provide low-angle flexibility for macro photography and subjects close to the ground.

For portrait photography, an optional four-sided Arca-compatible plate, such as the QS-74, allows a camera to be mounted sideways with the head tilted to 90°. This additional plate is not included.

Smartphone & Accessory Support

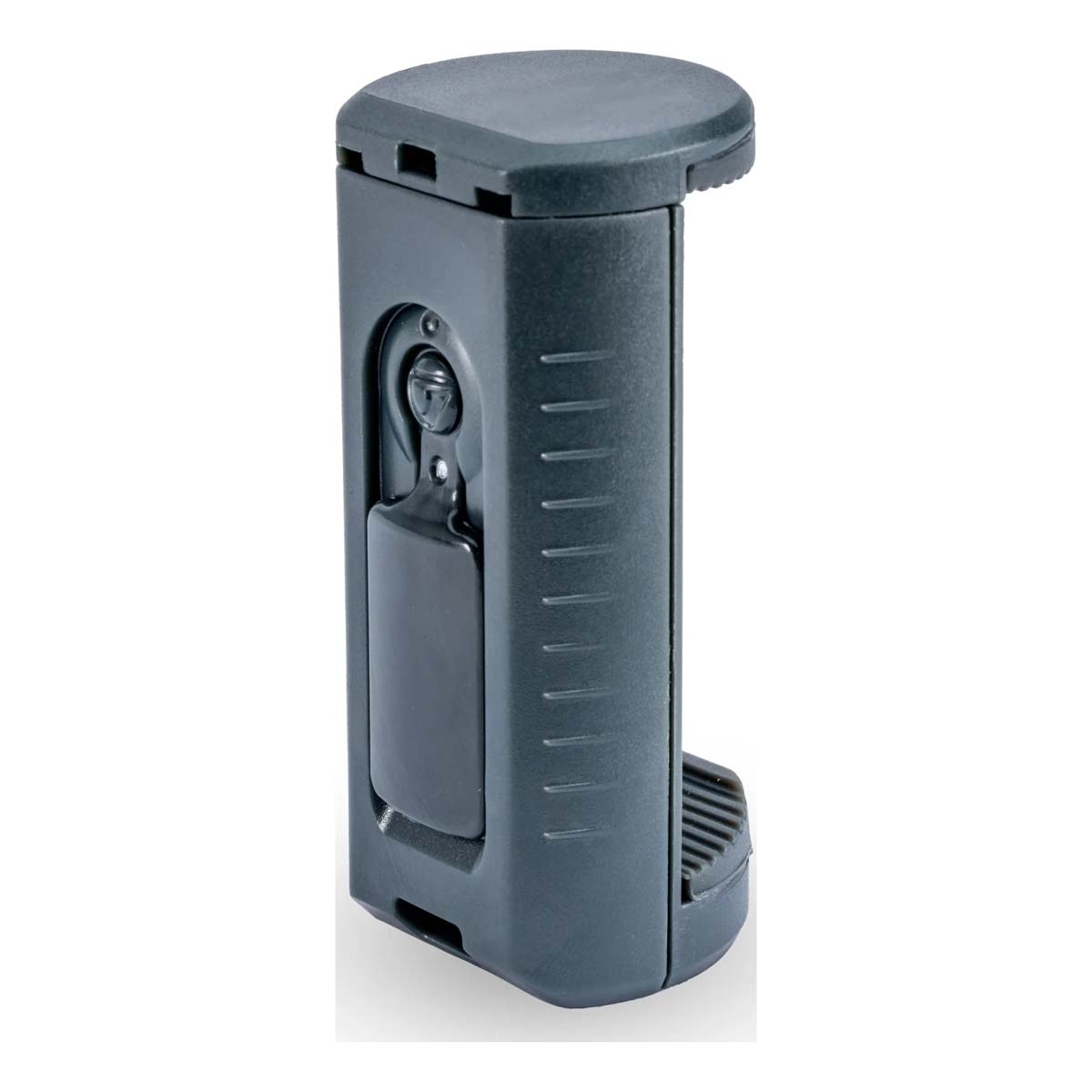

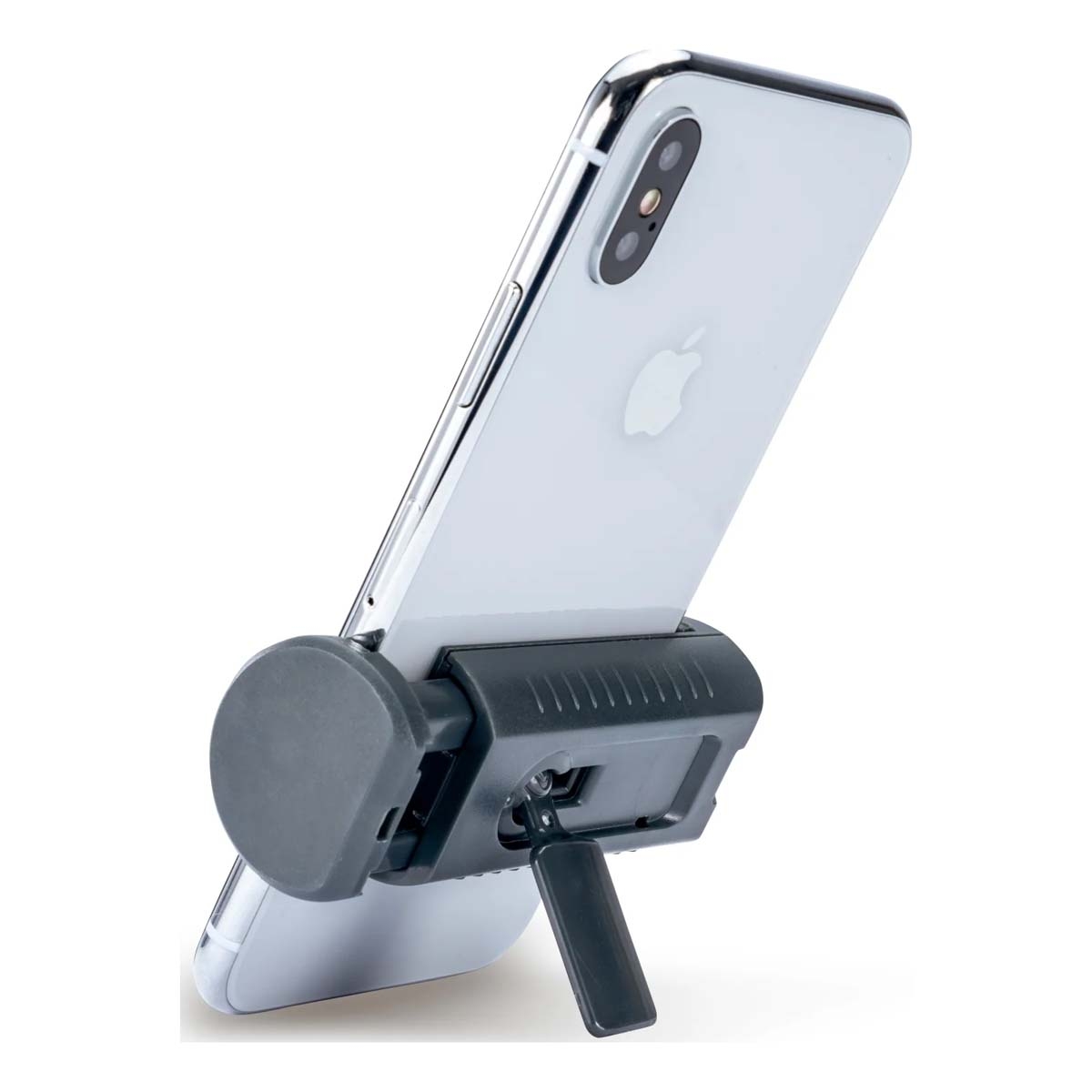

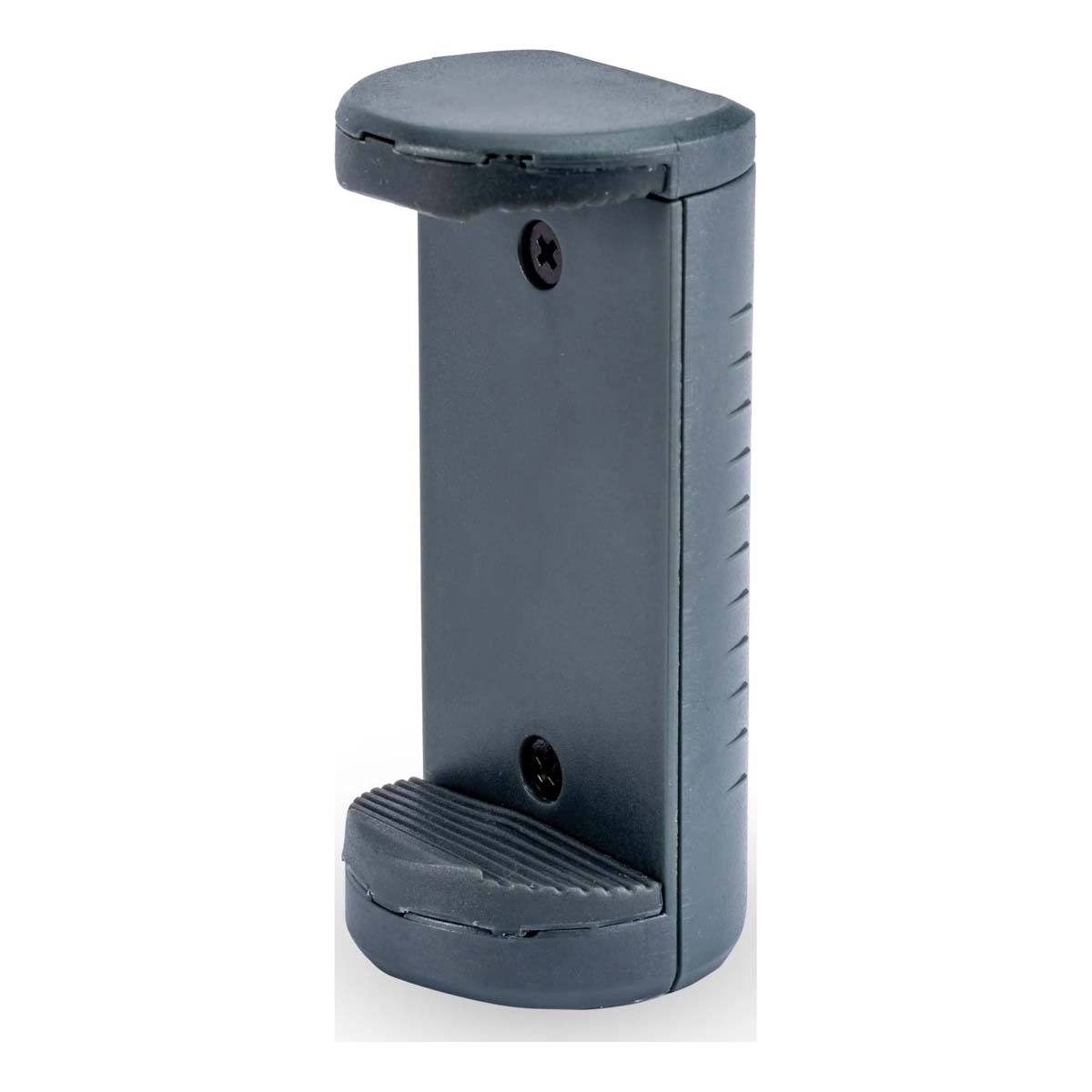

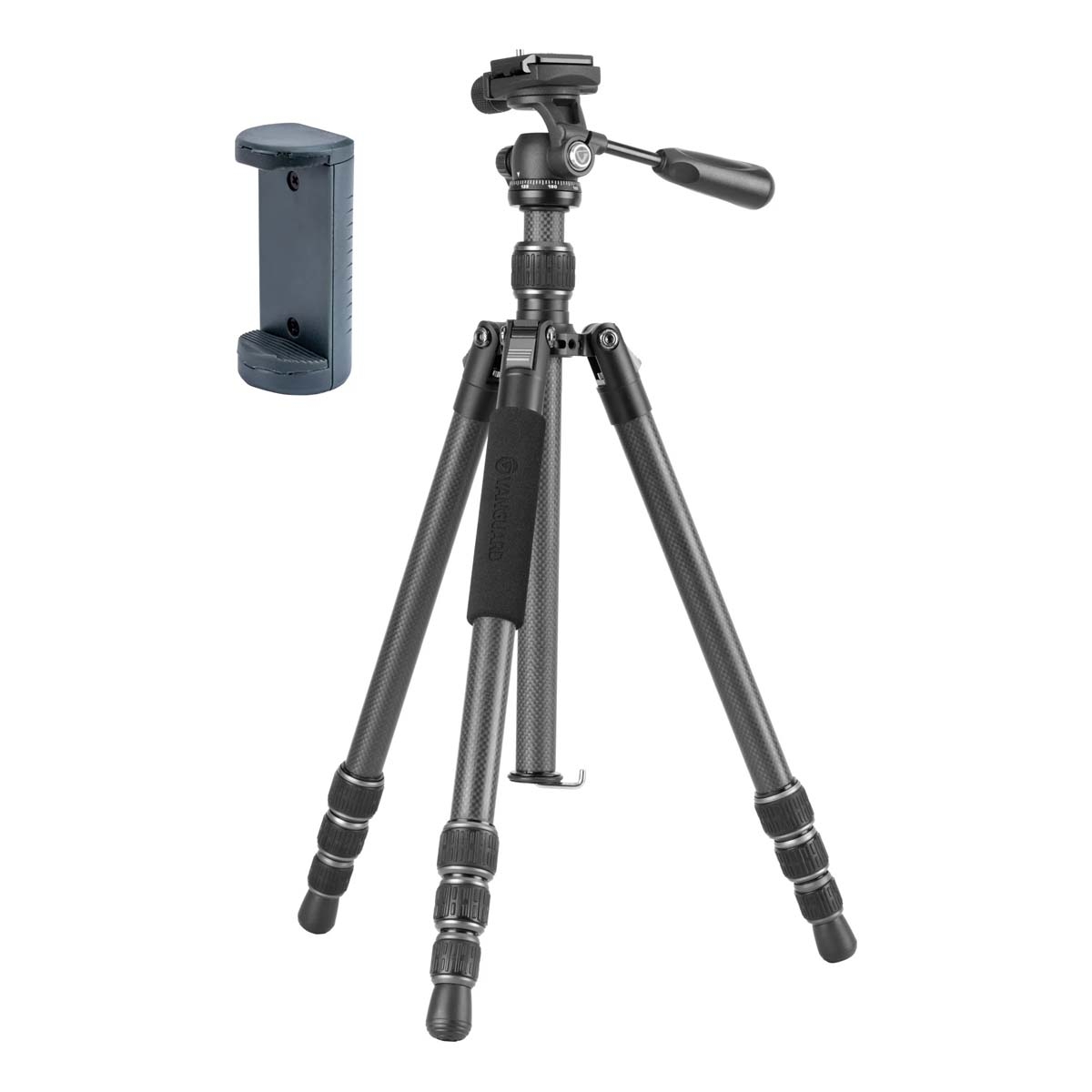

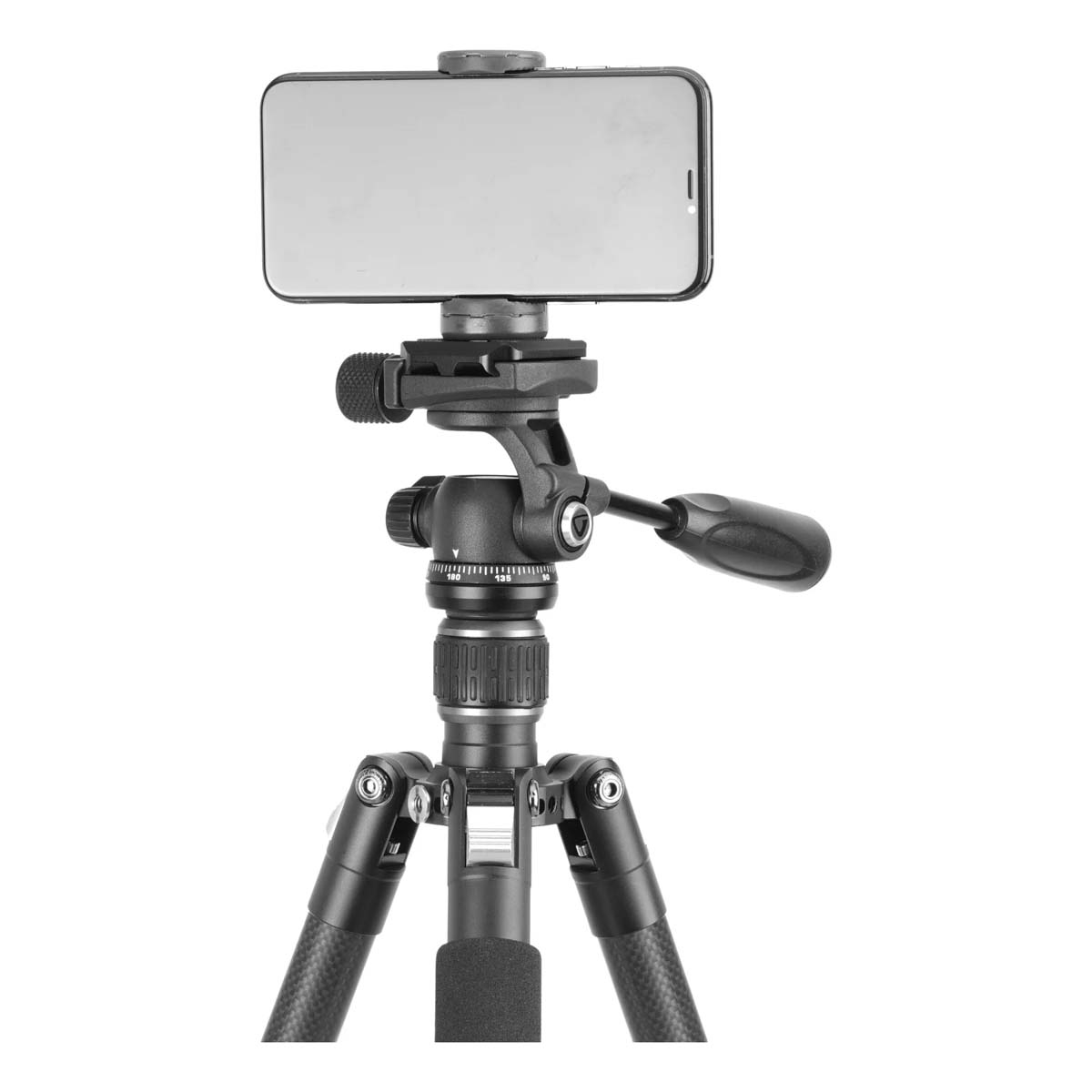

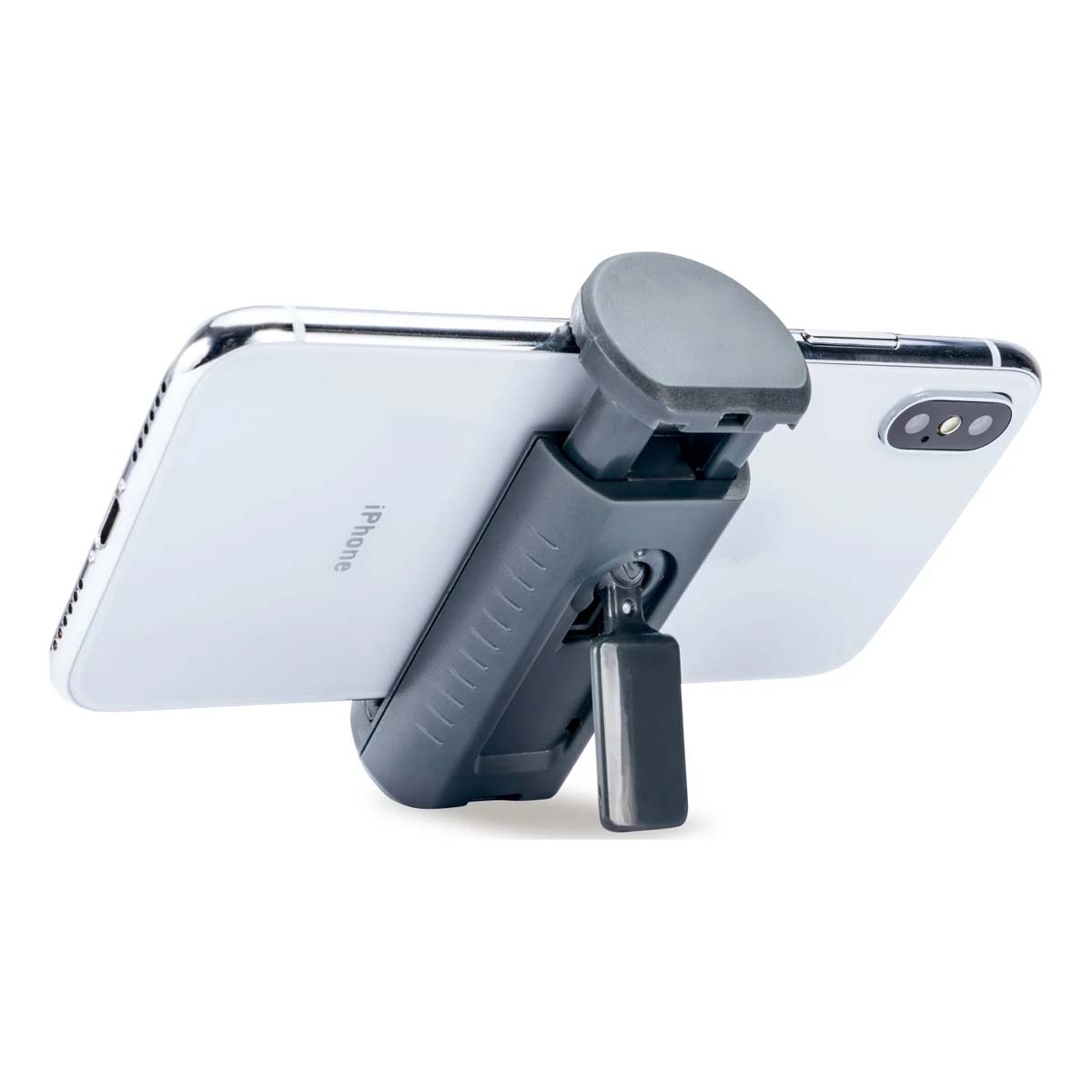

A supplied smartphone adaptor accommodates phones measuring 54–87mm wide. It attaches to the quick-release plate or to a compatible accessory arm with a 1/4-inch thread, adding smartphone photography and video to the tripod's uses.

Two 3/8-inch threaded mounting points on the tripod canopy feature non-twist bayonet slots, with a 1/4-inch thread adaptor also provided. These connections allow up to two compatible accessory arms to be attached.

Vanguard VESTA GO 234CP Carbon Spotting Scope Travel Tripod Key Features

• Carbon fibre travel tripod kit weighing 1315g and folding to 44.5cm.
• Maximum load capacity of 5kg for spotting scopes and compatible camera equipment.
• VEO PH-24 two-way pan head with handle-controlled tilt and a separate pan lock.
• Arca-compatible clamp for quick-release plates or direct attachment of compatible scope feet.
• QS-55P quick-release plate with a non-twist spring pin.

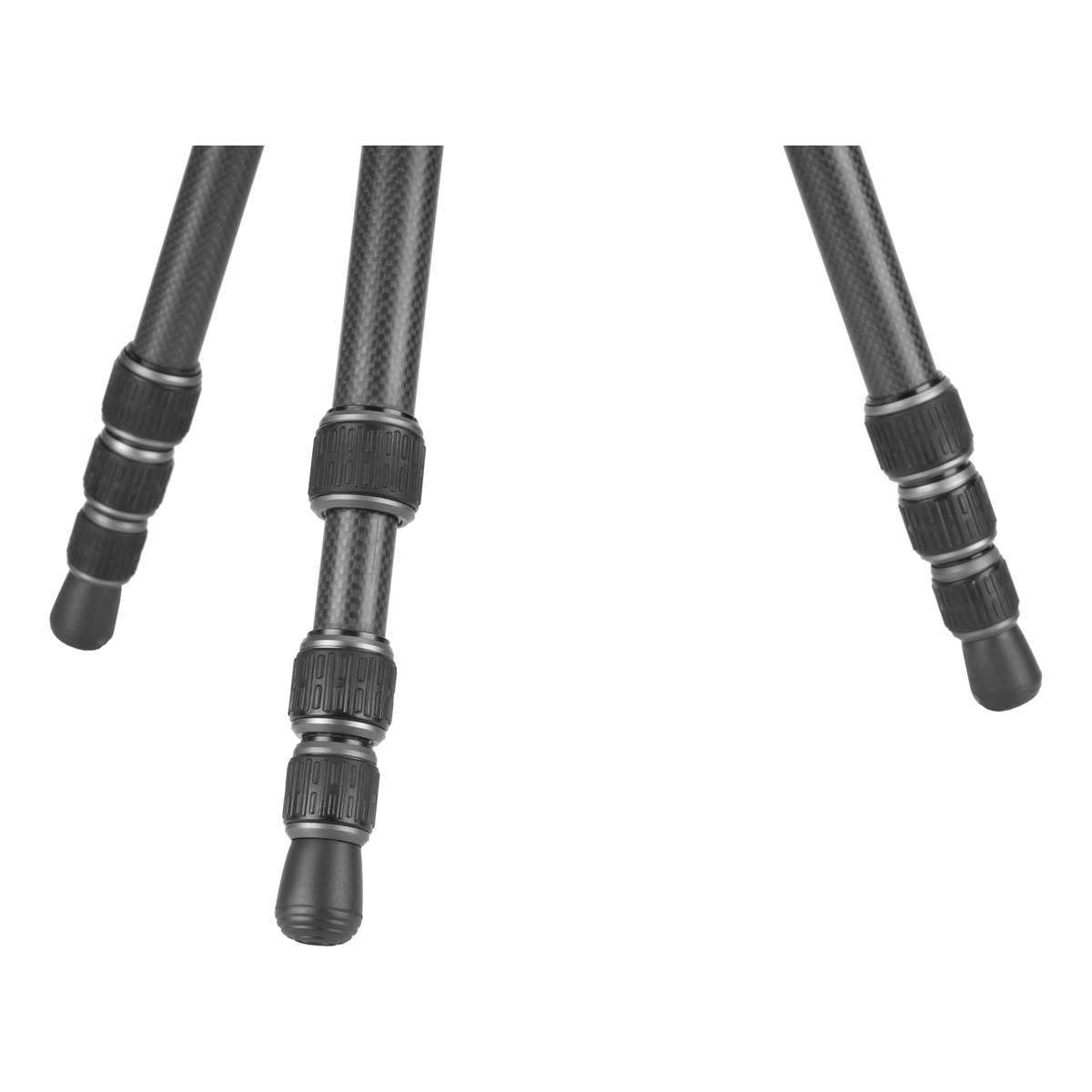

• Four-section, 23mm legs with easy-clean twist locks.
• Three selectable leg positions and a split central column for low-angle work.
• Two accessory mounting threads with non-twist bayonet slots.
• Smartphone adaptor for phones measuring 54–87mm wide.
• Rubber feet, a central-column weight hook and an included tripod bag.

Vanguard VESTA GO 234CP Carbon Spotting Scope Travel Tripod Review

The Vanguard VESTA GO 234CP offers a practical combination of portability, independent pan-and-tilt control and flexible mounting. Its specification makes it particularly relevant to birdwatchers carrying a smaller spotting scope and photographers using mirrorless or smaller DSLR equipment. The included smartphone adaptor and accessory connections broaden its usefulness beyond a conventional scope support.

Performance & Key Features

The VEO PH-24 head is central to the kit's appeal, combining full 360° panning with handle-operated vertical tilt locking. Independent locks allow horizontal and vertical positioning to be managed separately when following movement or framing a scene. Arca compatibility adds mounting flexibility, including direct attachment of suitable spotting scope feet. The 5kg load capacity gives a clear equipment limit for this portable setup.

Build Quality & Handling

At 1315g, with a folded length of 44.5cm and diameter of 10cm, the tripod is designed to remain manageable between viewing locations. Carbon fibre legs, easy-clean twist locks and rubber feet form a straightforward construction, while the central-column hook provides an option for adding stabilising weight. The split column and selectable leg positions also make low-angle work part of its practical appeal.

Is It Easy to Use?

Twisting the pan handle to release or secure vertical tilt keeps that adjustment close to the user's hand, with horizontal rotation controlled by its own lock. The included quick-release plate supports conventional mounting, while an Arca-compatible scope foot can attach directly. Smartphone use is also catered for, although portrait camera positioning requires an additional compatible four-sided plate.

Key Takeaways

The VESTA GO 234CP is worth considering for Uttings customers seeking a portable carbon fibre tripod with a dedicated two-way pan head. Its compact folded dimensions, direct Arca mounting option and low-angle flexibility are the strongest practical features. The head has no separate friction control, and the kit is intended for smaller camera systems rather than professional DSLR setups. For compatible equipment within its 5kg capacity, it offers a useful combination of viewing support and travel convenience.

Vanguard VESTA GO 234CP Carbon Spotting Scope Travel Tripod FAQs

Is this tripod suitable for a spotting scope?

Yes. The kit is designed for spotting scope use and supports equipment weighing up to 5kg. Its two-way pan head provides independent control of horizontal movement and vertical tilt, while the QS-55P plate includes a non-twist spring pin for compatible scopes.

Can an Arca-compatible scope foot attach directly to the head?

Yes. A spotting scope with an Arca-compatible foot can fit directly into the head clamp. This removes the need to fit the supplied quick-release plate between the scope and tripod.

How compact is the tripod for travel?

The kit weighs 1315g and folds to 44.5cm long. Its folded diameter is 10cm, keeping it compact for carrying between locations. A tripod bag is included.

How tall does it extend?

The maximum extended height is 154cm. With the central column lowered, the tripod reaches 122.5cm.

How are panning and tilt controlled?

Vertical tilt is locked or released by turning the head's handle. Horizontal movement has a separate pan lock. The head offers 360° rotation and vertical tilt from -60° to 90°, without a separate friction control.

Can it be used for low-angle or macro photography?

Yes. Three selectable leg positions work with the split central column to allow low-angle positioning. The low-angle adaptor is built into the column.

What smartphones fit the included adaptor?

The adaptor accommodates smartphones measuring 54–87mm wide. It can attach to the tripod's quick-release plate or a compatible accessory arm with a 1/4-inch thread. A smartphone remote control is not included.

Can a camera be positioned for portrait photographs?

Yes, with an additional four-sided Arca-compatible quick-release plate such as the QS-74. This allows the camera to be mounted sideways with the head tilted to 90°. The additional plate is not included in the kit.

Does the tripod accept accessory arms?

Yes. The canopy has two 3/8-inch threaded connections with non-twist bayonet slots, plus a 1/4-inch thread adaptor. These allow up to two compatible accessory arms to be attached.

What type of leg locks and feet does it use?

The carbon fibre legs use easy-clean twist locks. The feet are rubber, providing grip while helping protect the surface beneath the tripod.
