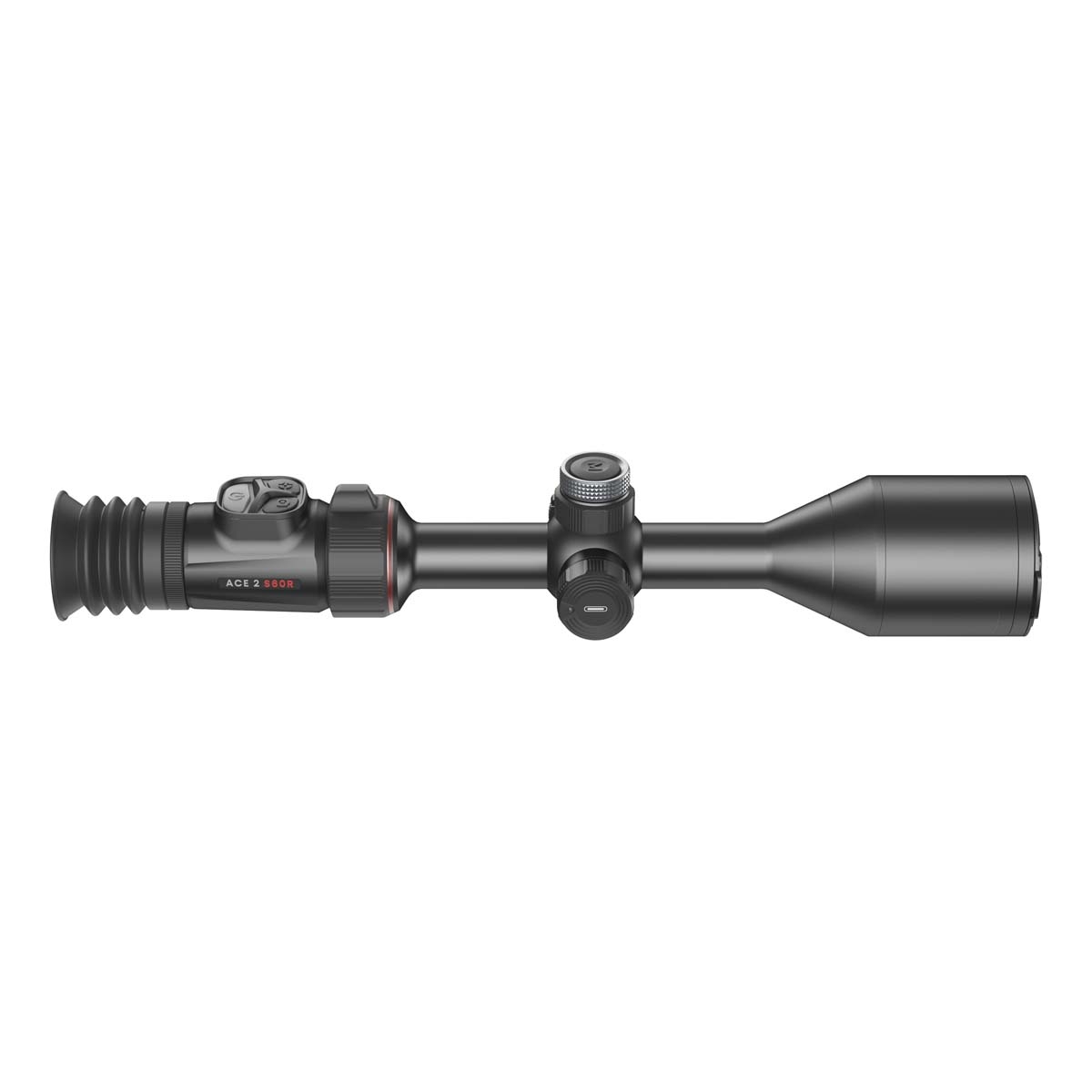

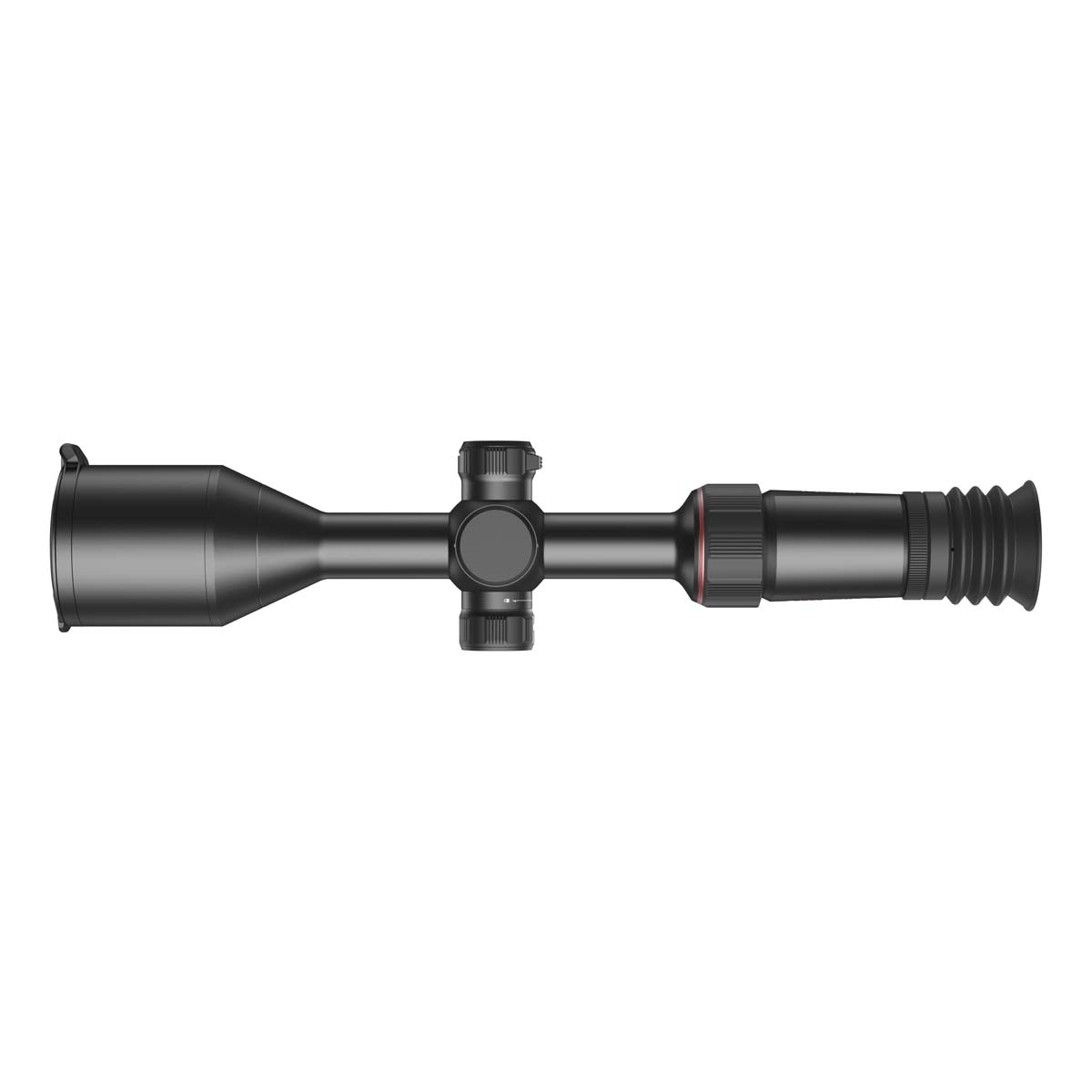

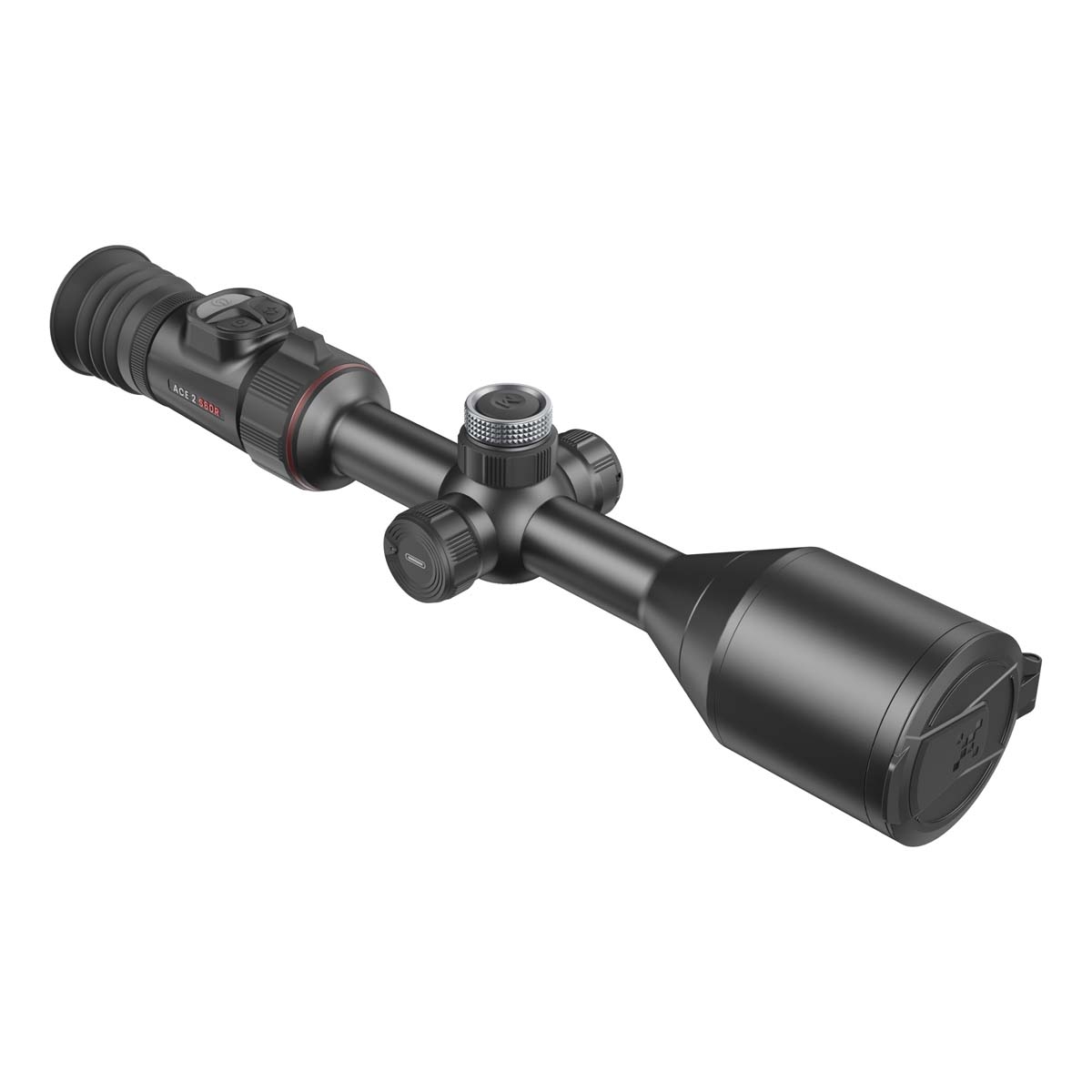

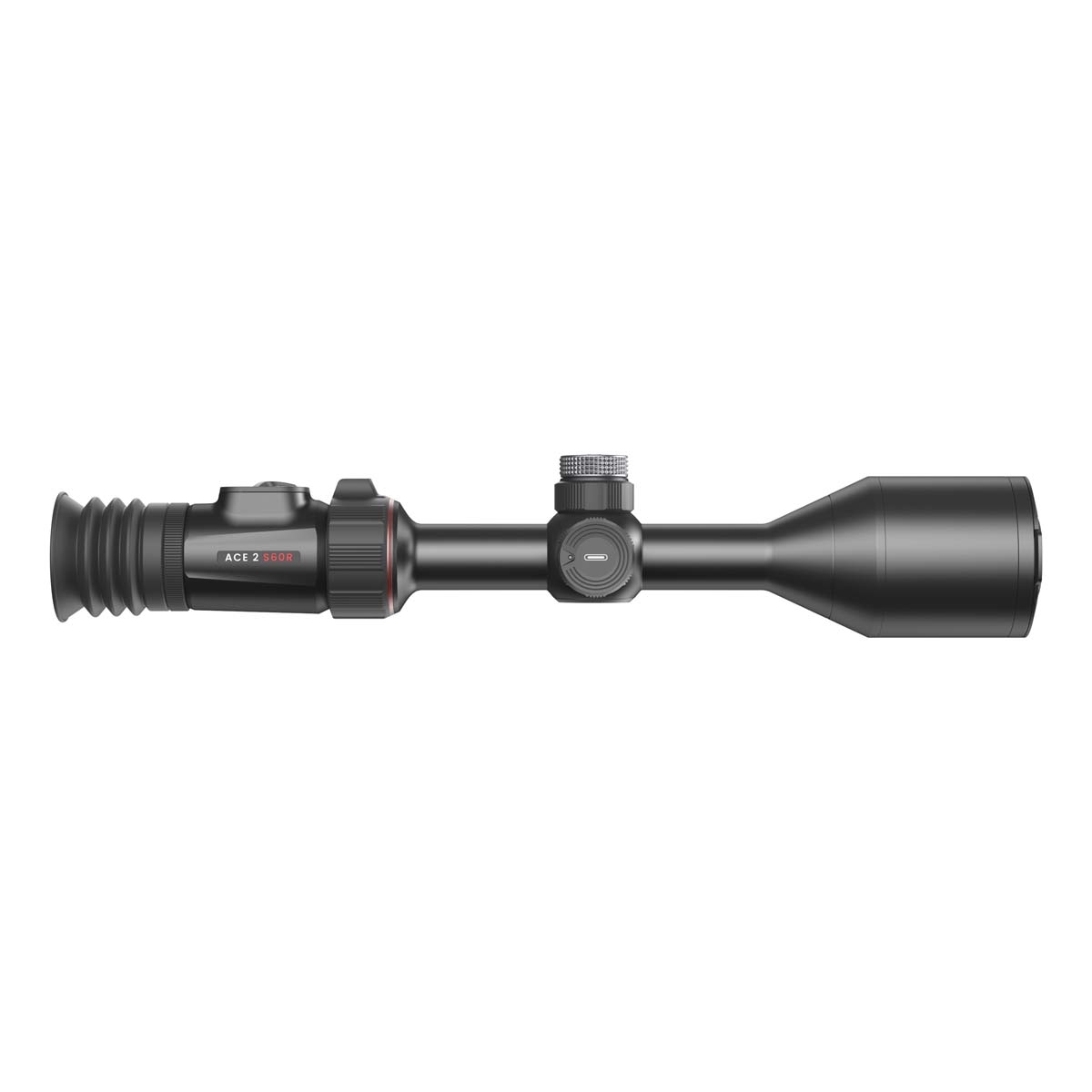

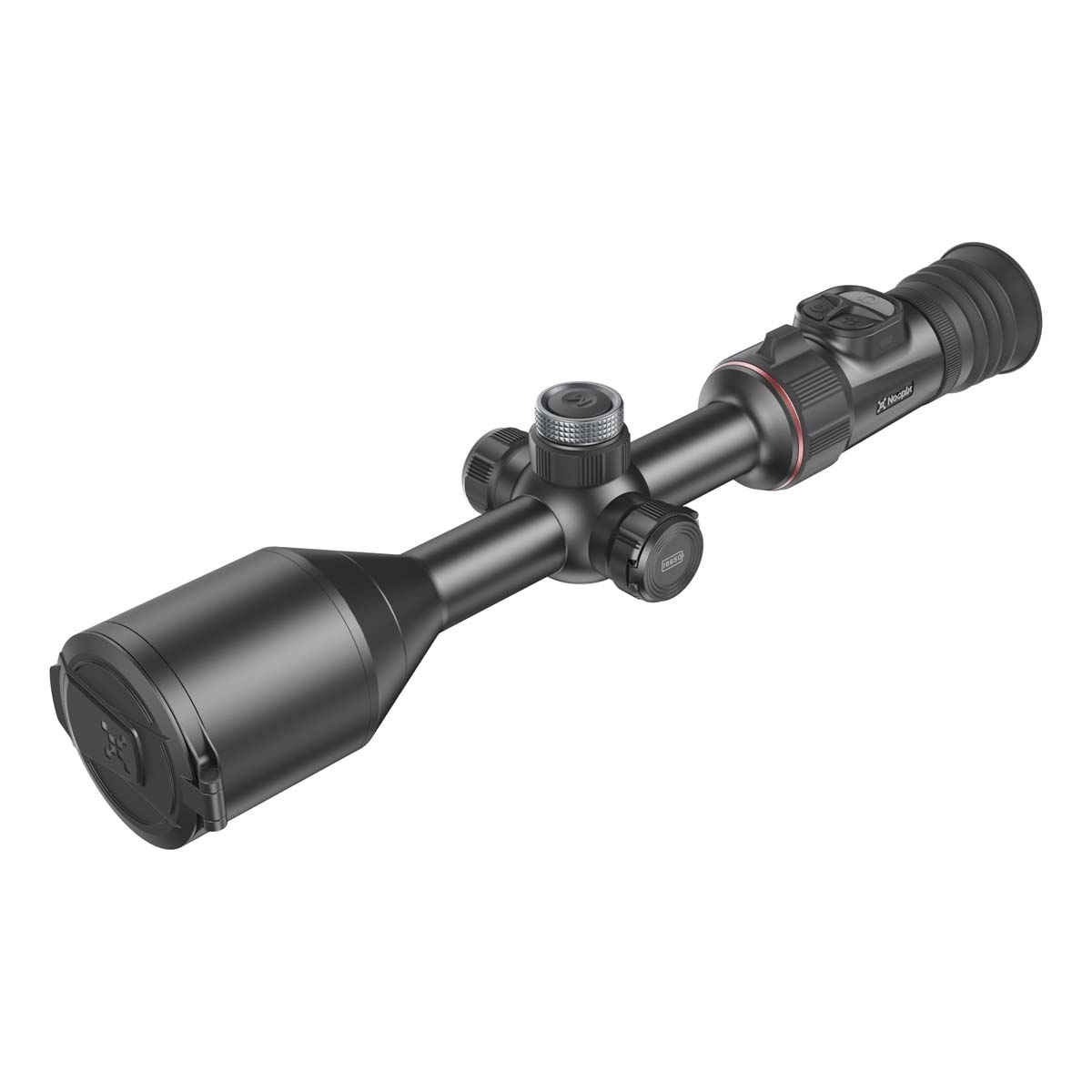

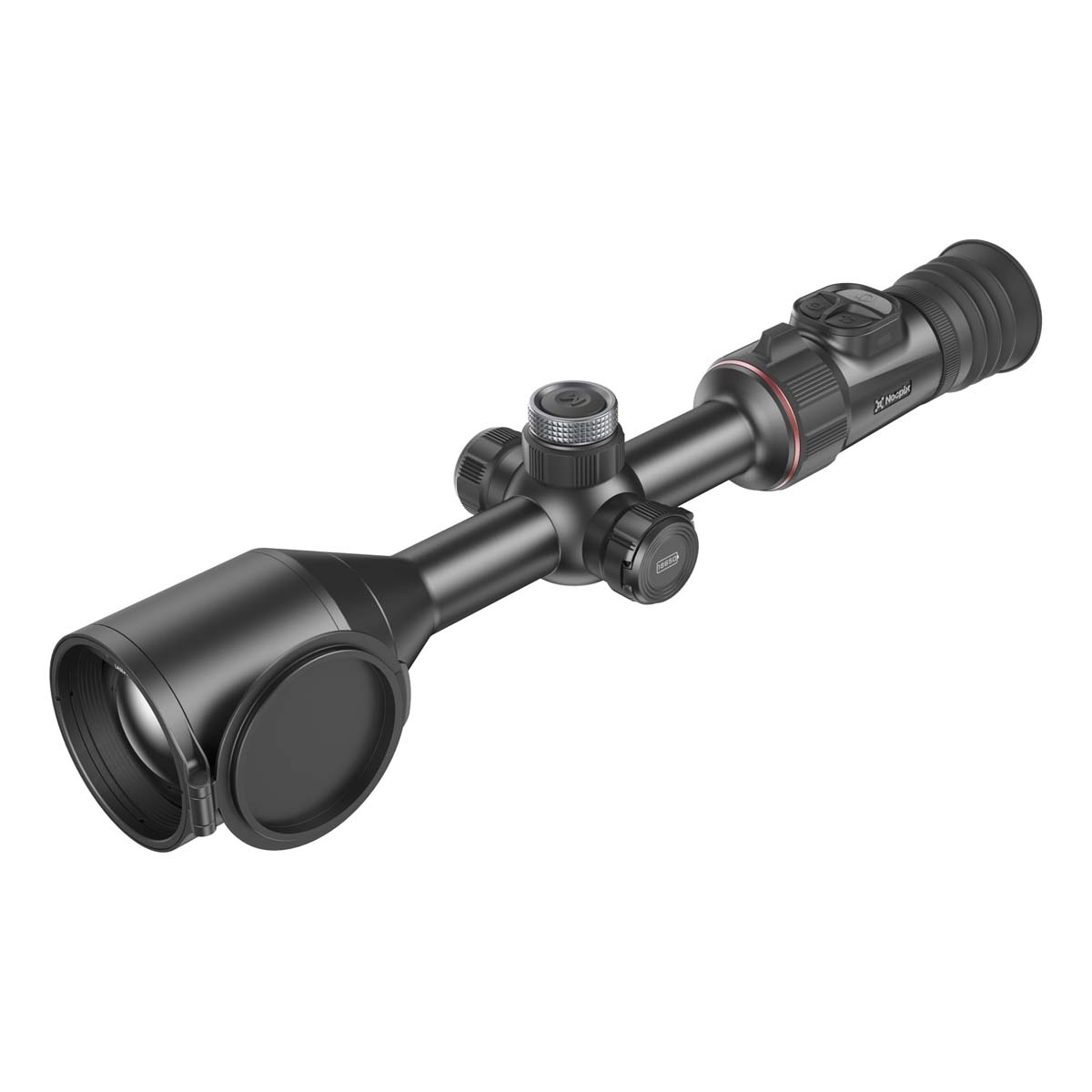

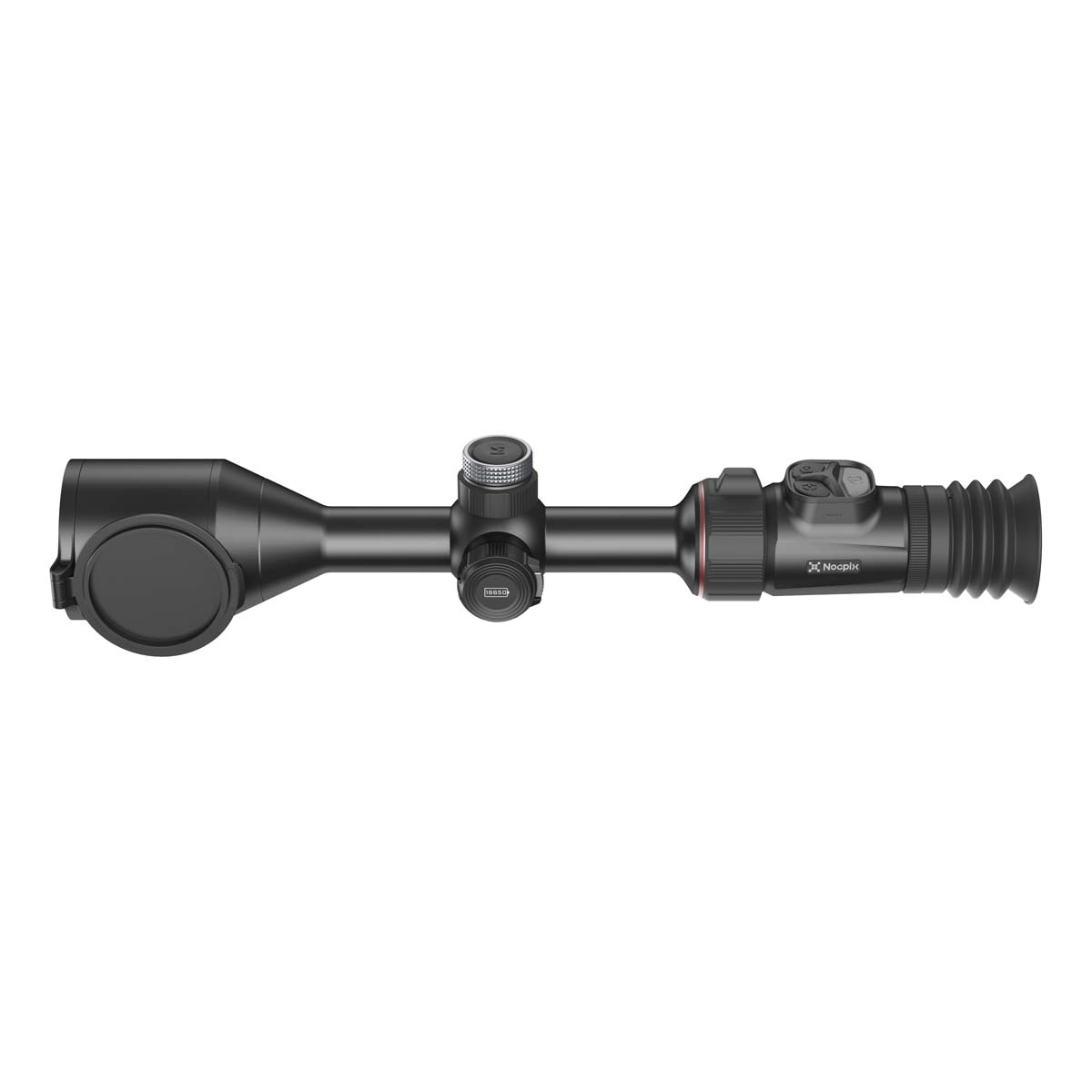

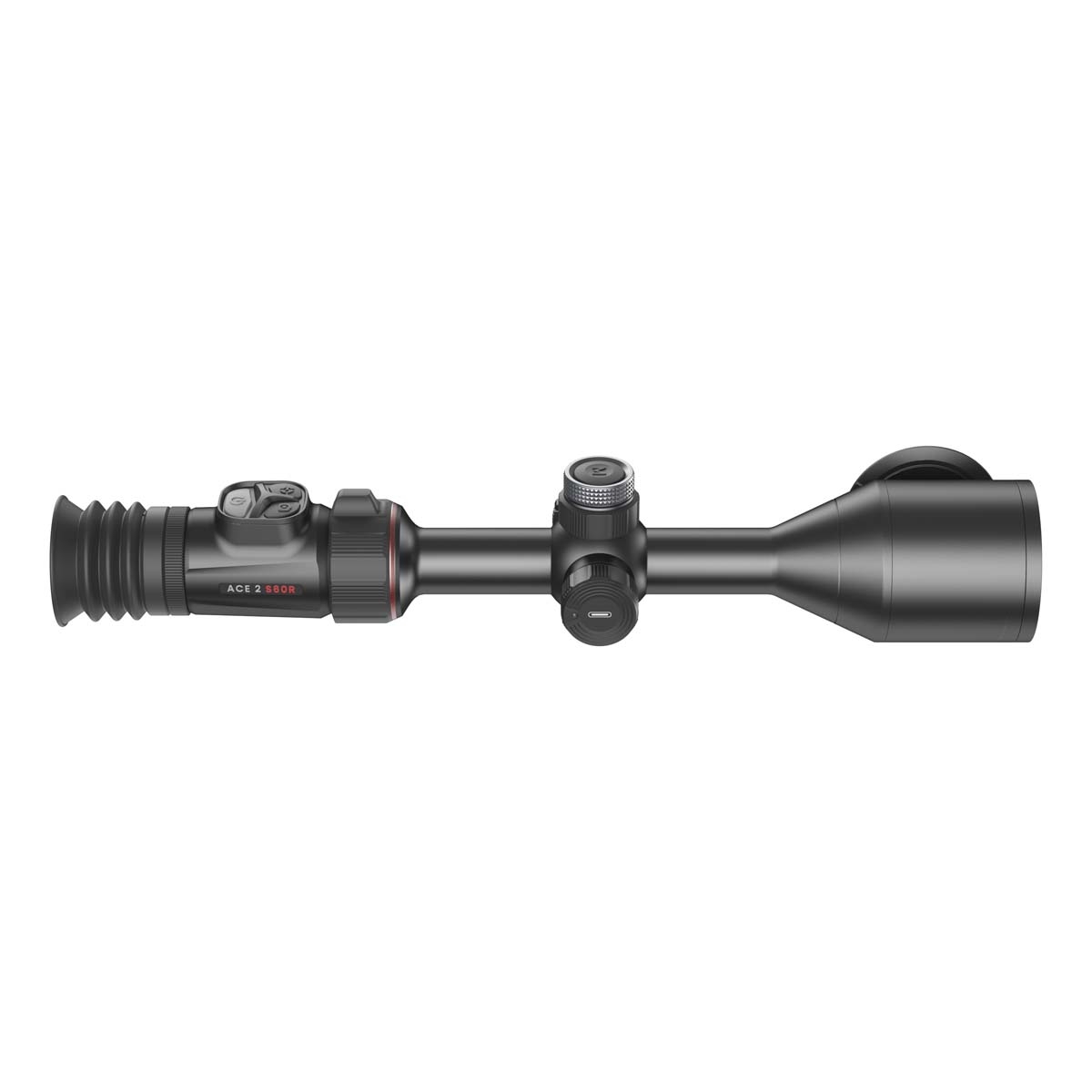

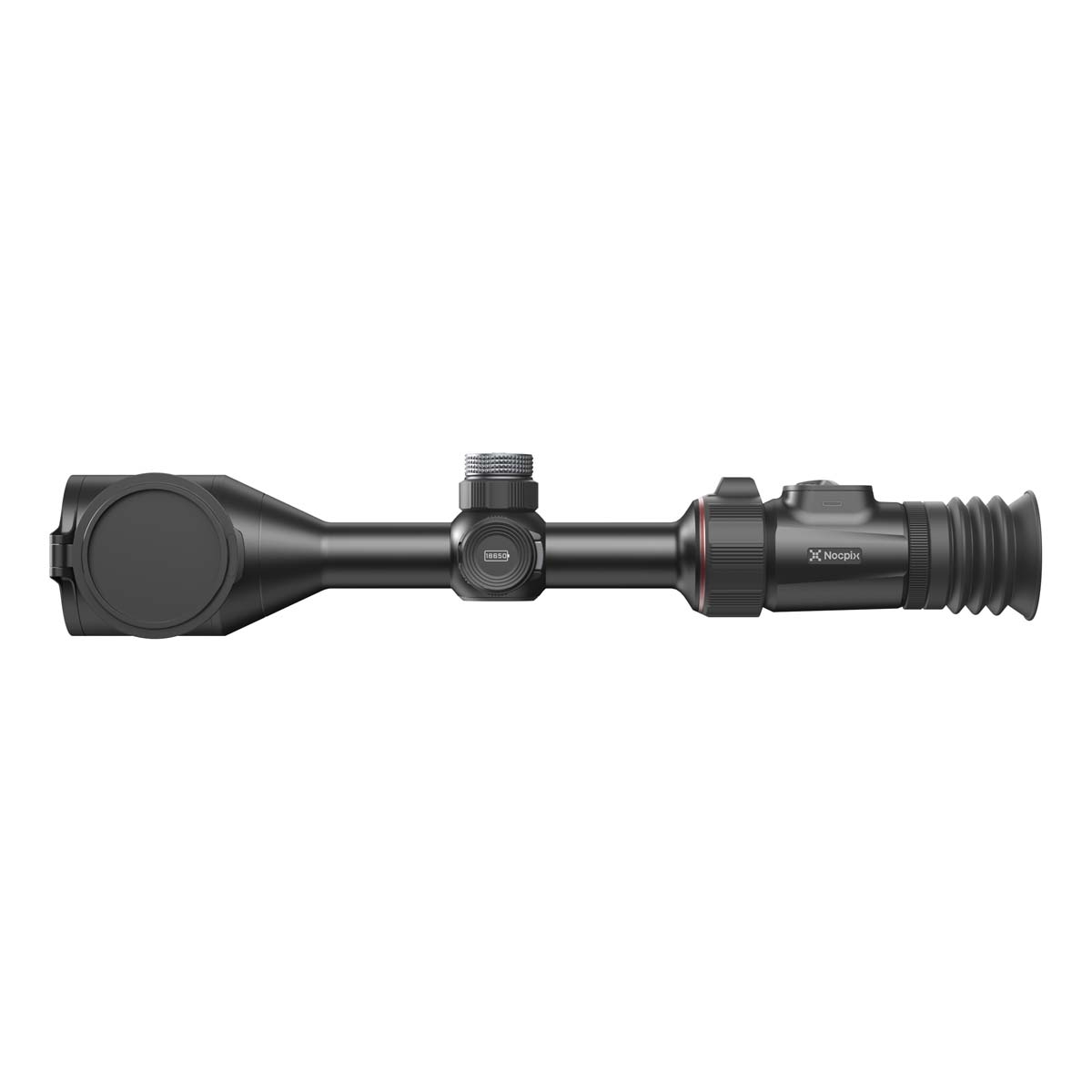

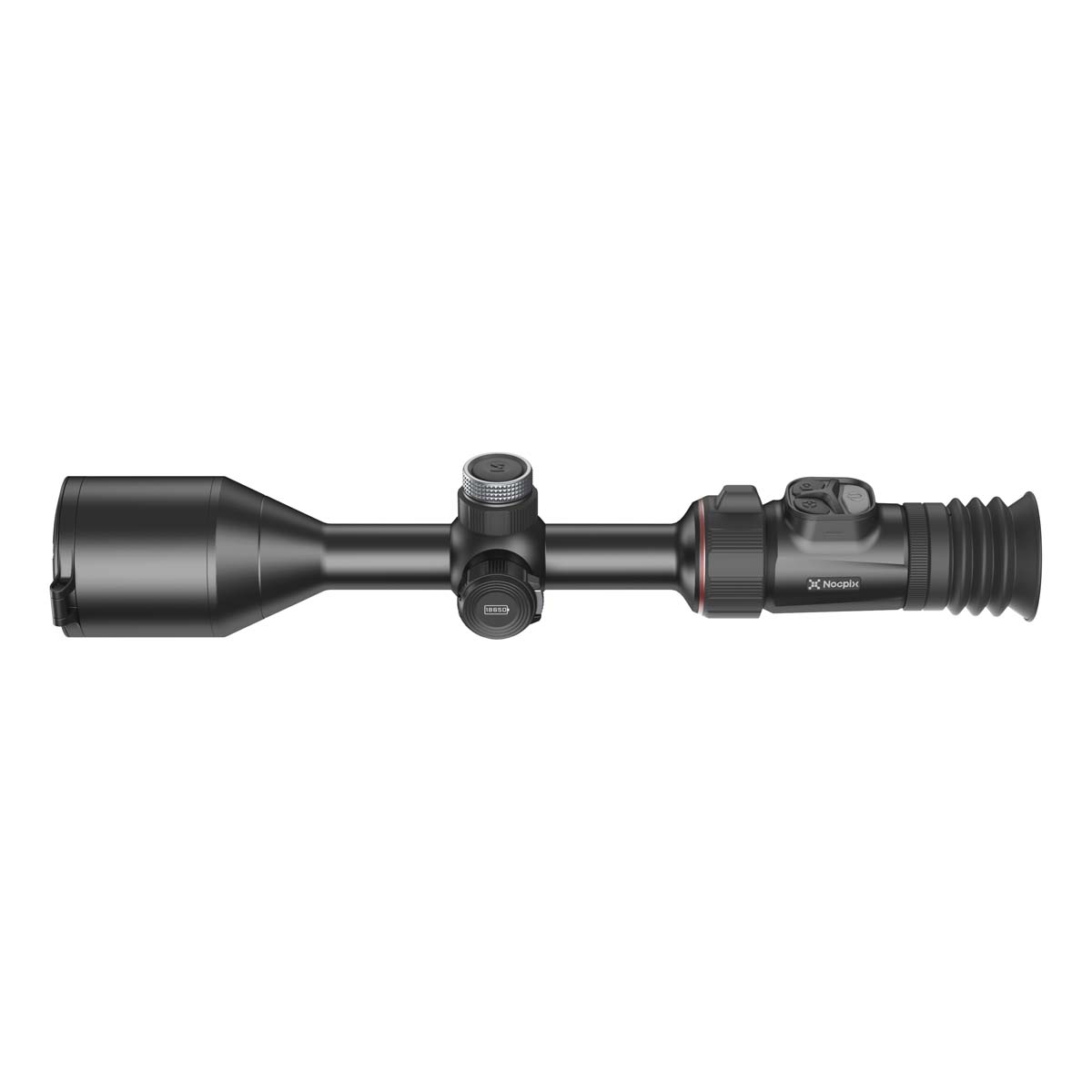

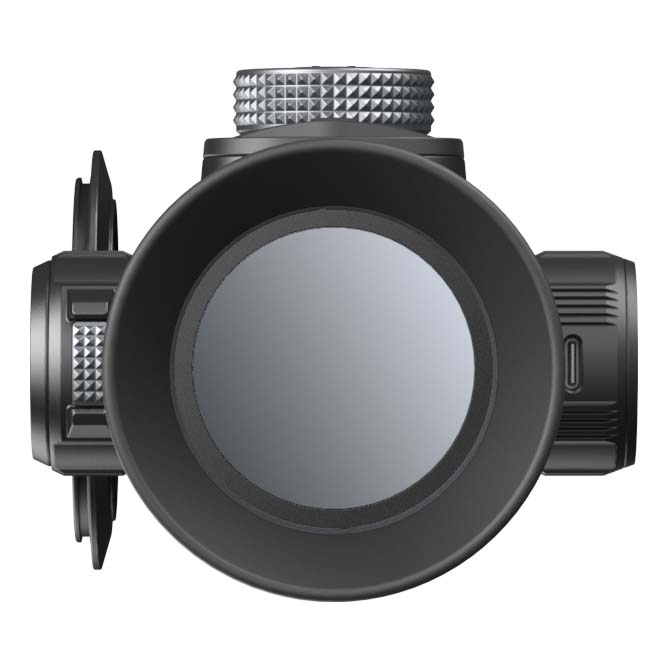

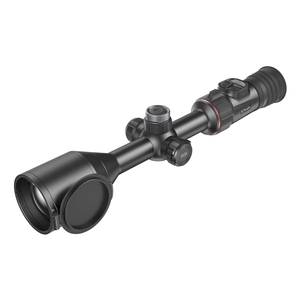

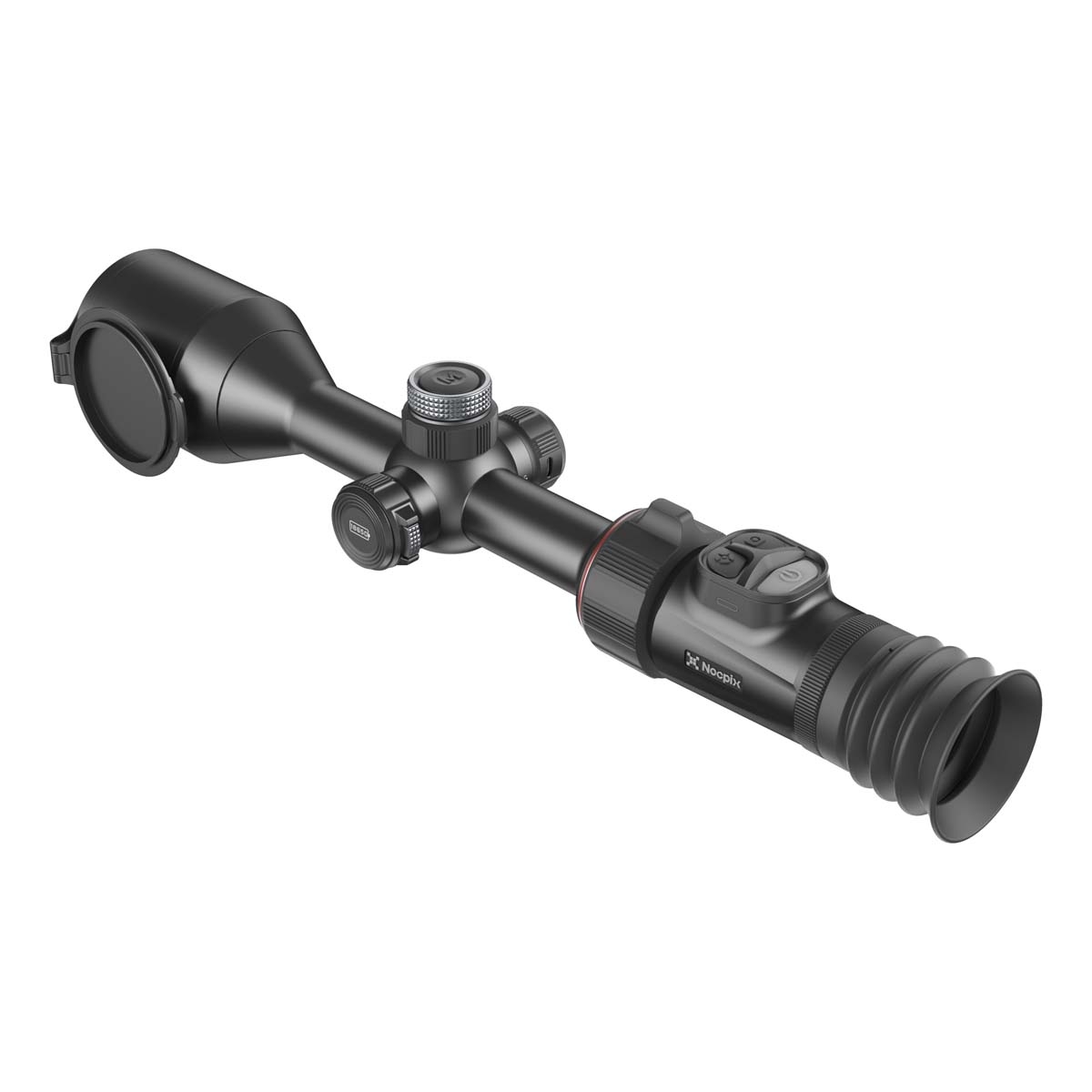

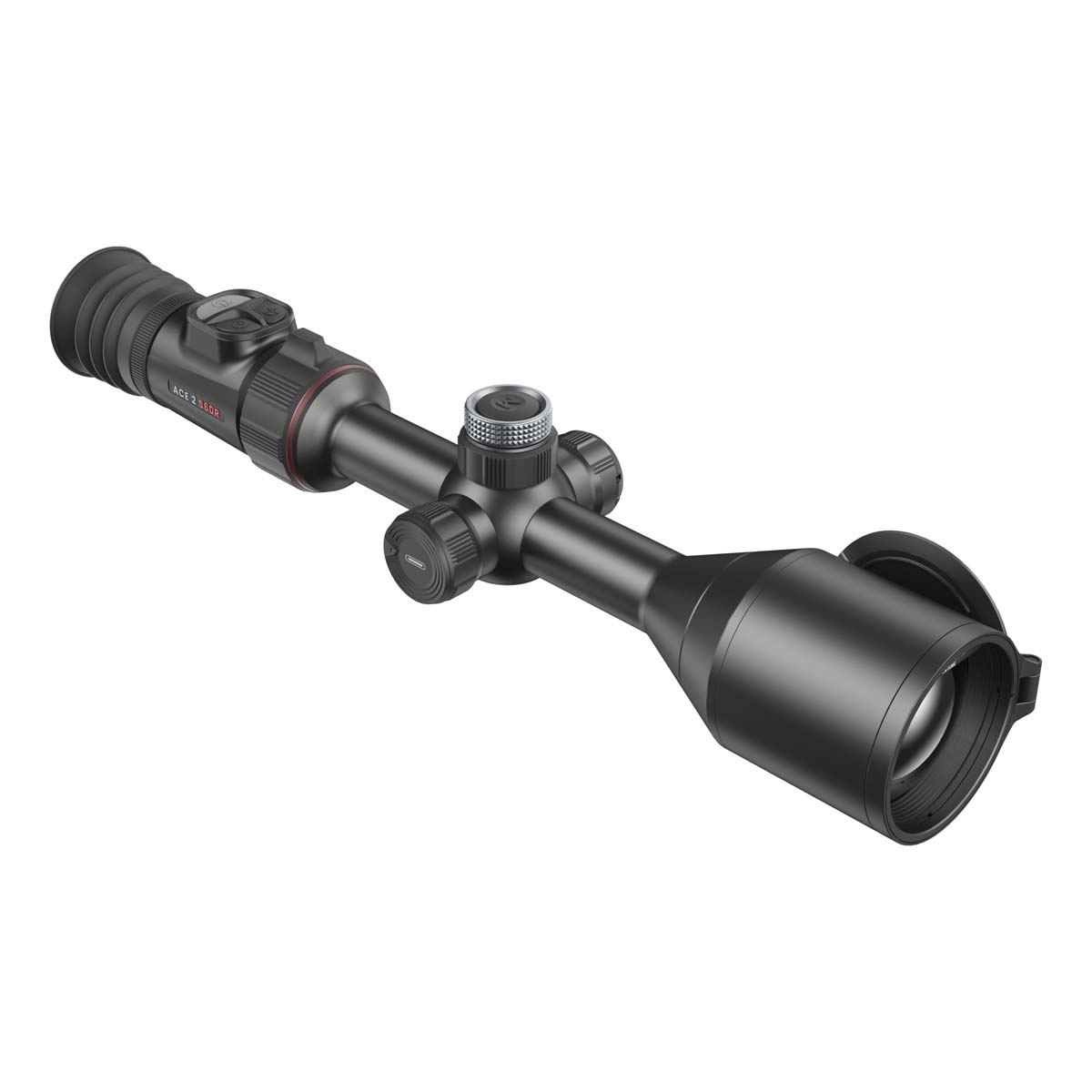

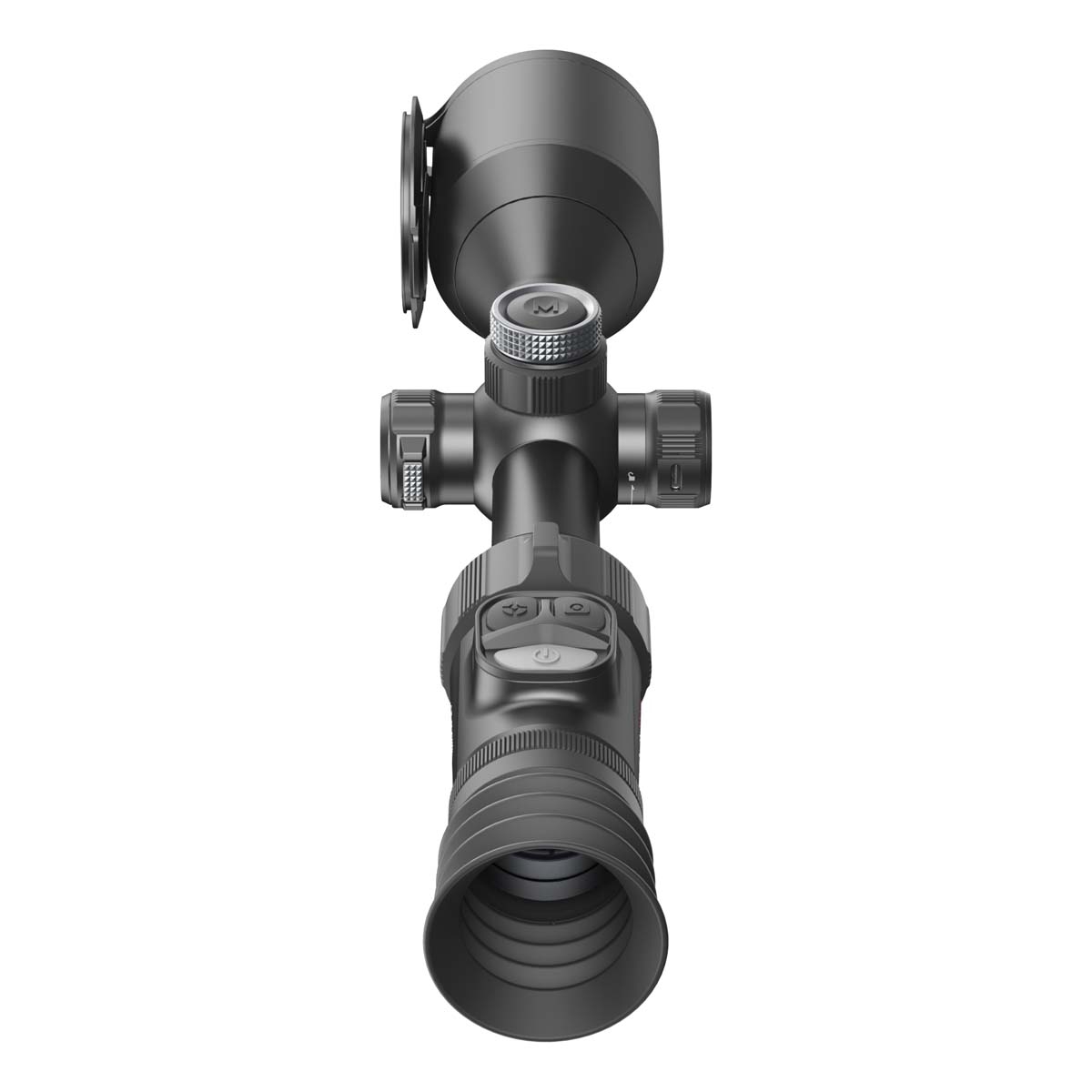

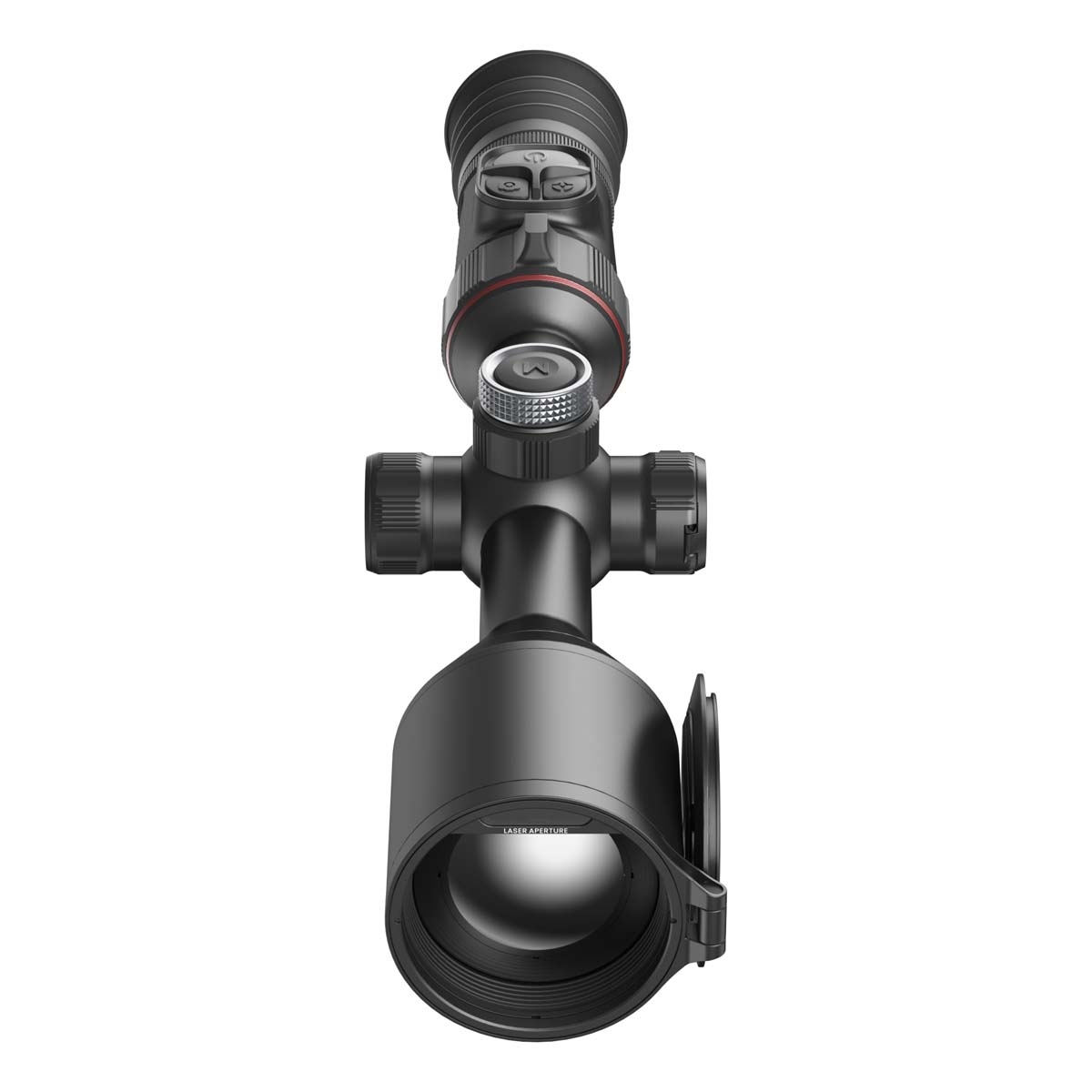

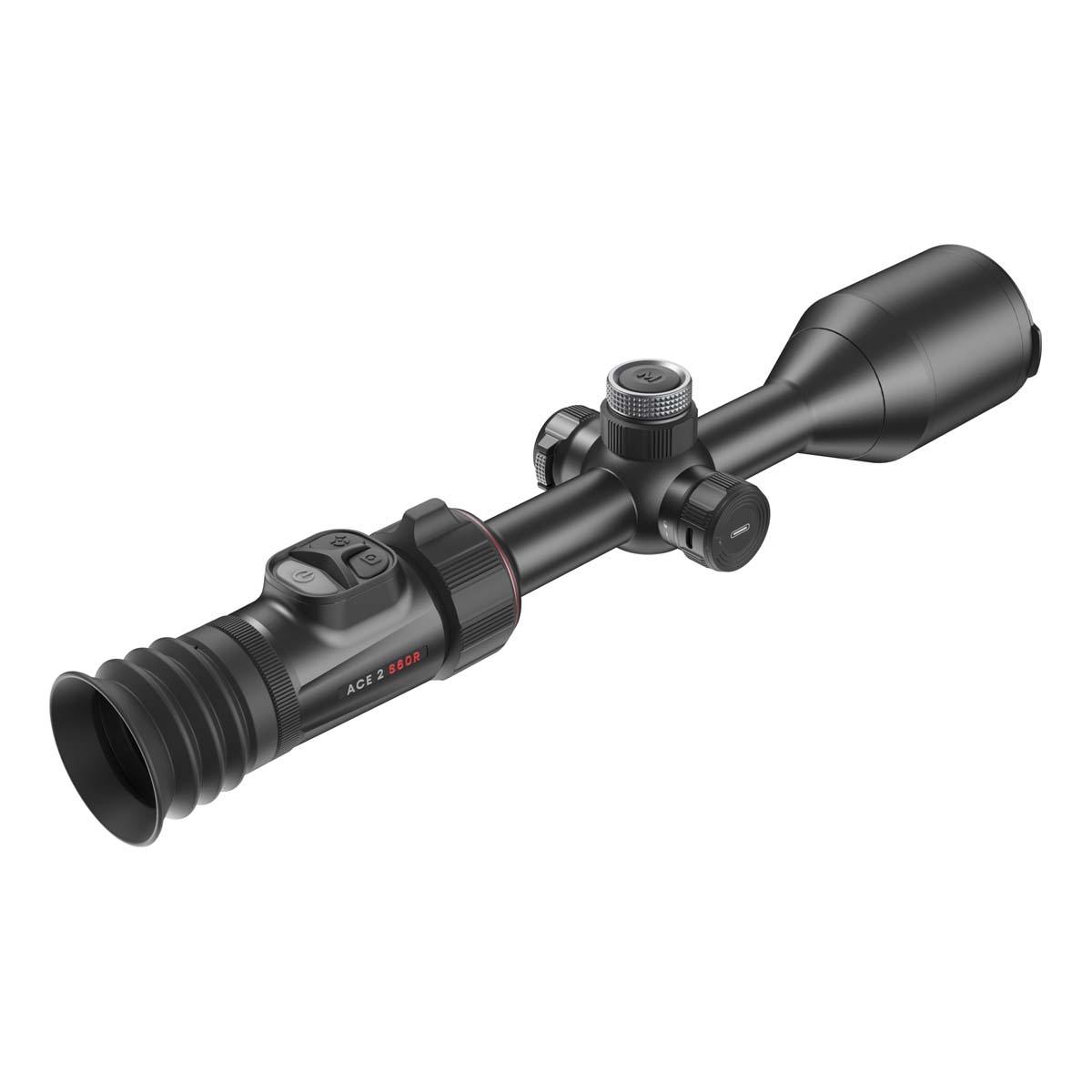

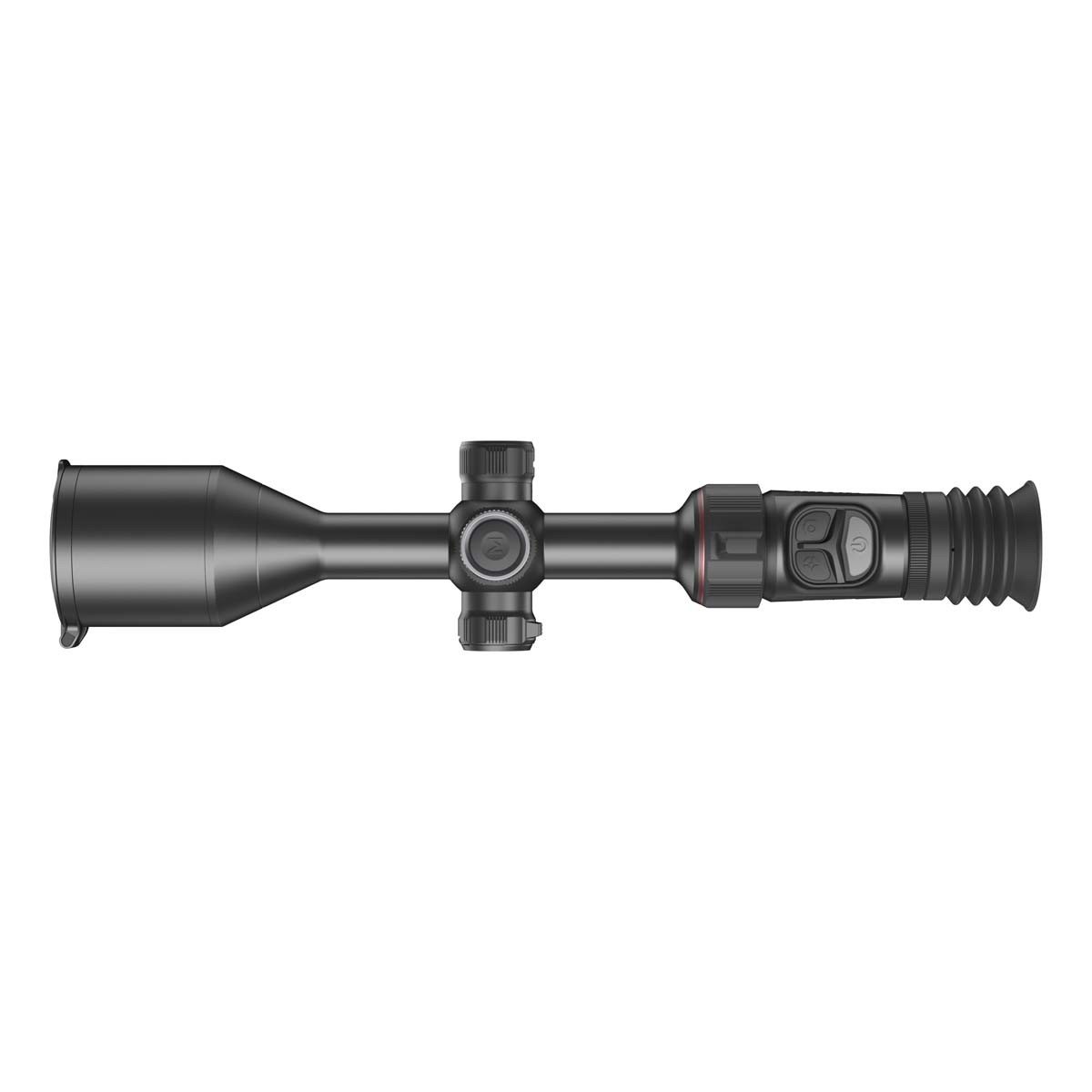

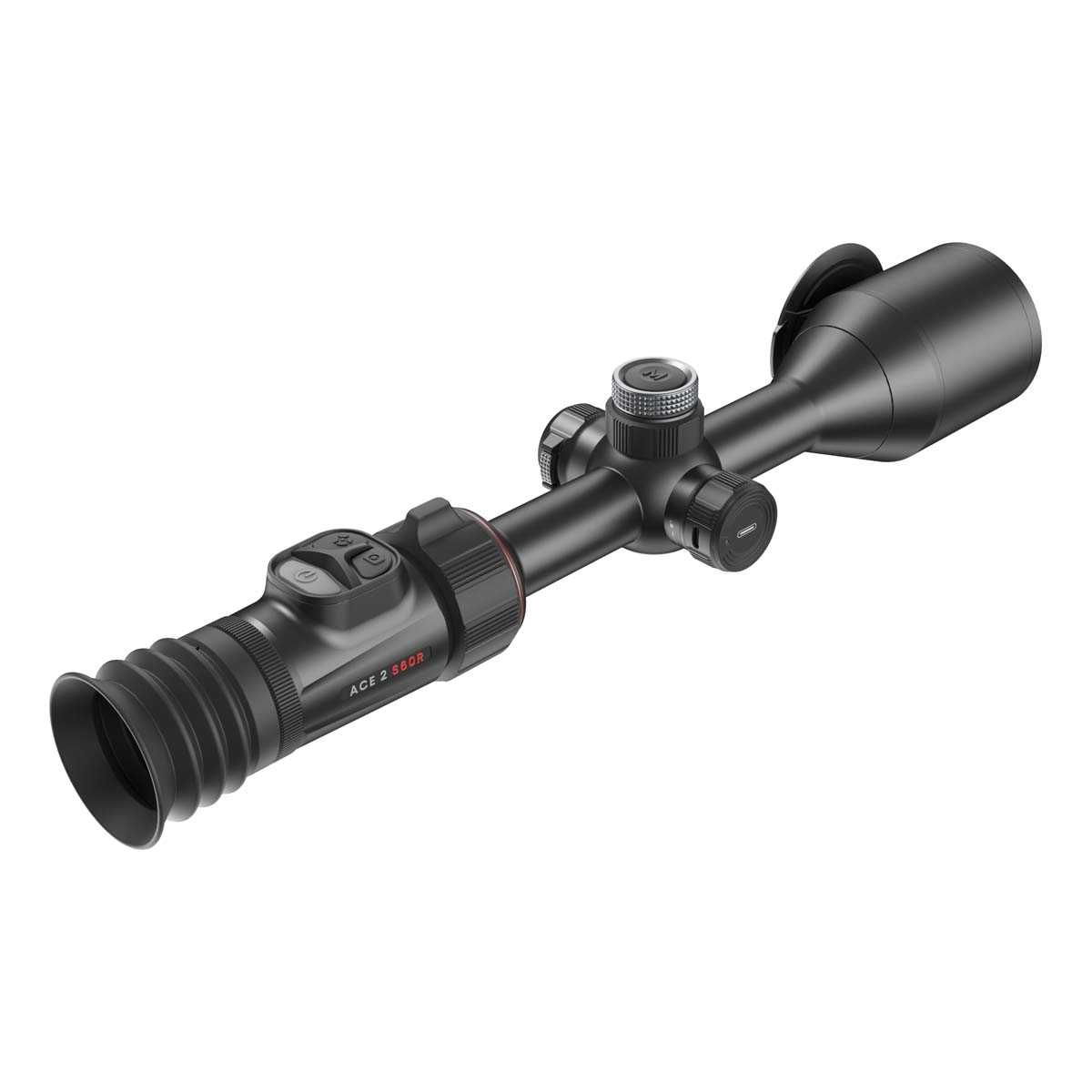

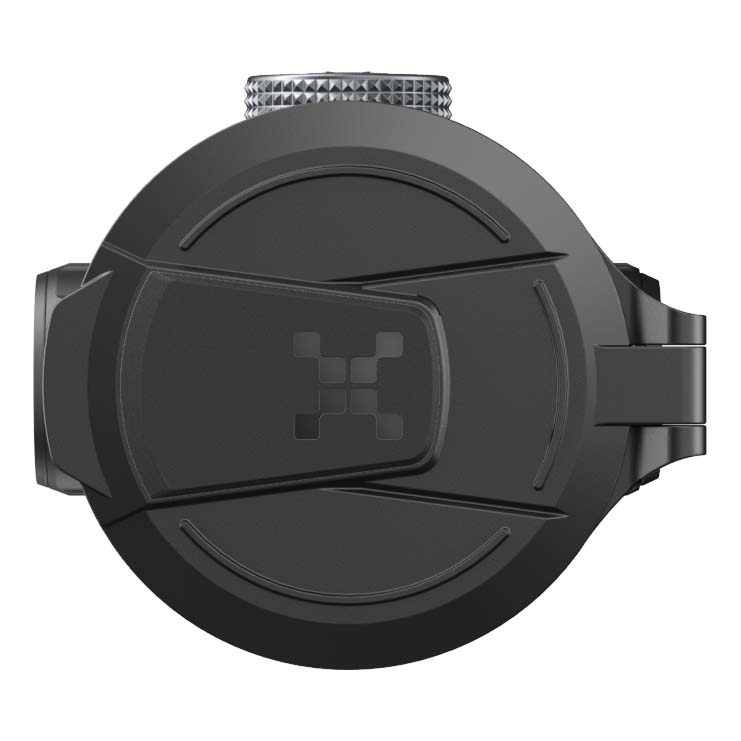

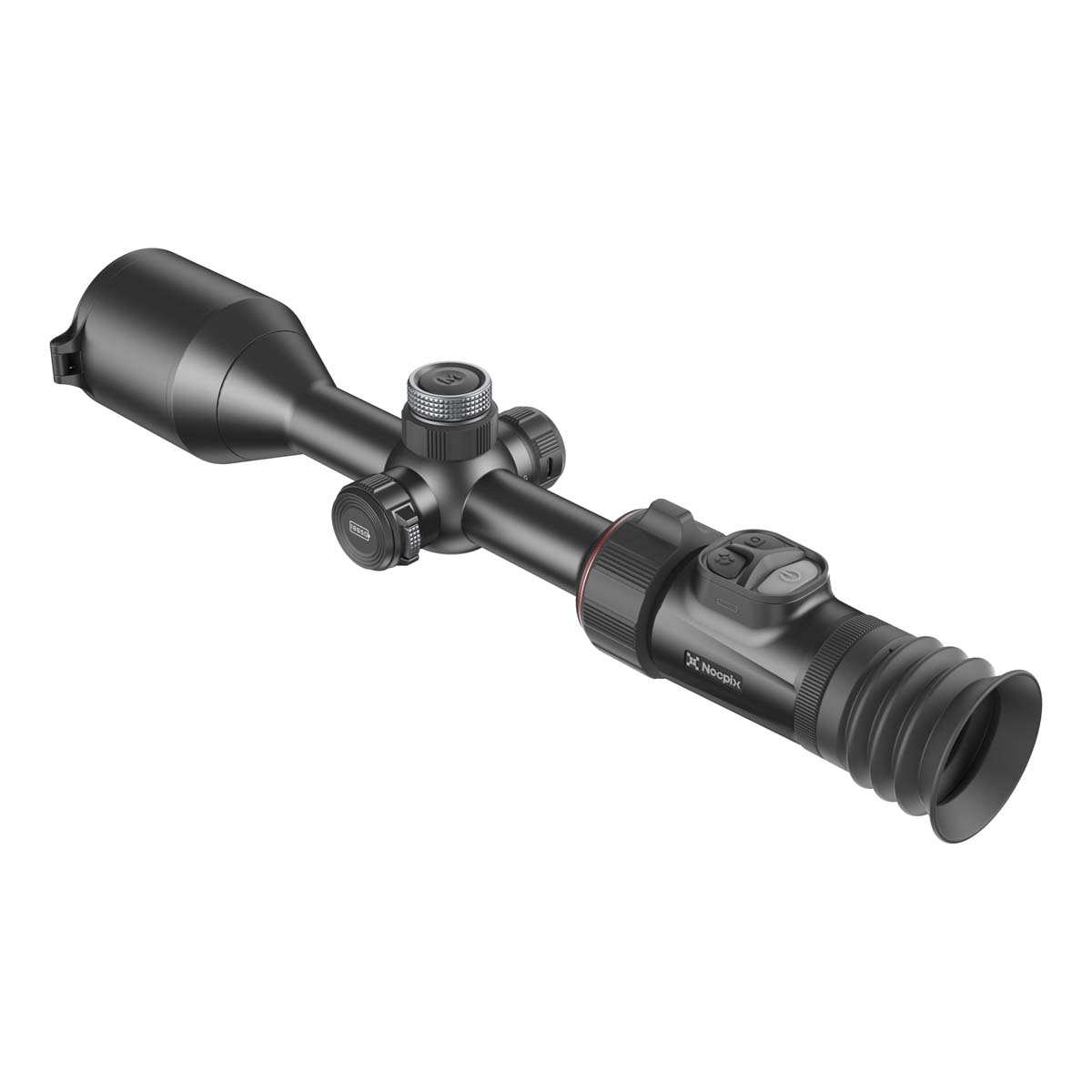

Nocpix ACE 2 S60R Thermal (1280x1024) Riflescope w/LRF

The Nocpix ACE 2 S60R Thermal Scope combines a 1280 x 1024 thermal sensor with a 60mm f/1.0 objective lens, 12mK NETD sensitivity and 2–28x magnification. Designed for hunters seeking detailed thermal observation, it integrates laser rangefinding, ballistic calculation and a high-resolution round AMOLED display within a magnesium alloy body.

Dual Clarity Mode adapts the image to moving subjects or stationary scenes, while R+ 2.0 processing enhances contrast and detail. A stated detection range of 3100m completes a comprehensive thermal imaging specification.

High-Resolution Thermal Imaging

The Gen 3 sensor combines 1280 x 1024 resolution with 12µm pixels and a 60Hz frame rate. R+ 2.0 image processing reduces environmental temperature noise to improve image clarity, contrast and fine detail.

Dual Clarity Mode offers two distinct viewing settings. Motion mode prioritises smooth rendering of moving subjects, while Still mode emphasises finer details in stationary scenes and foliage.

Vision+ Display & Viewing Controls

The Vision+ system features a 1.03-inch round AMOLED display with 2560 x 2560 resolution. Its circular format is designed to provide a natural viewing experience, supported by 60mm eye relief and a 10mm exit pupil. Central focusing and Ocular Zoom 2.0 provide control over the view.

Integrated Rangefinding & Ballistics

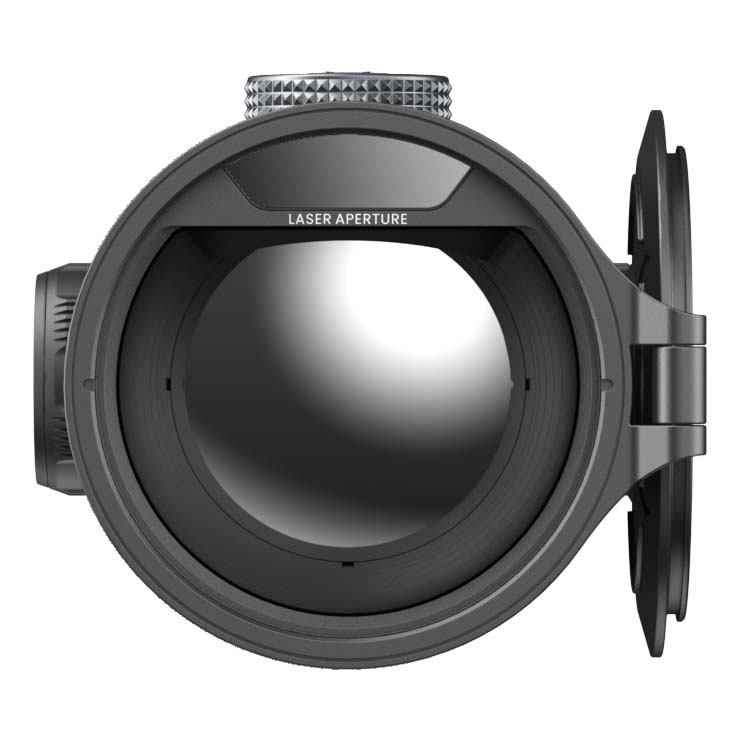

The LRF 2.0 laser rangefinder measures distances up to 1200m. Ballistic Calculation 2.0 incorporates inclination and wind drift, combining distance measurement and ballistic support within the riflescope.

Magnesium Construction & Recording

The full magnesium alloy body weighs 980g and has stated impact resistance of 7000J. Built-in and replaceable batteries support extended use, with two 18650 batteries and a charger supplied. Recoil-activated video and 64GB of internal storage provide onboard recording capability.

Nocpix ACE 2 S60R Thermal Scope Key Features

• 1280 x 1024 Gen 3 thermal sensor with 12mK NETD sensitivity.
• 60mm f/1.0 objective lens and 2–28x magnification.
• 60Hz frame rate with R+ 2.0 image processing.
• Dual Clarity Mode with Motion and Still settings.
• Integrated LRF 2.0 with ranging up to 1200m.
• Ballistic Calculation 2.0 with inclination and wind drift support.
• Vision+ system with a round 2560 x 2560 AMOLED display.
• Central focus system, Ocular Zoom 2.0 and 60mm eye relief.
• Target tracking and recoil-activated video.
• Full magnesium alloy body weighing 980g.

Nocpix ACE 2 S60R Thermal Scope Specifications

• Thermal sensor resolution: 1280 x 1024.
• Pixel size: 12µm.
• Frame rate: 60Hz.
• NETD: 12mK.
• Objective lens: 60mm.
• Aperture: f/1.0.
• Magnification: 2–28x.
• Detection range: 3100m.
• Laser rangefinder distance: up to 1200m.
• Display: 1.03-inch round AMOLED.
• Display resolution: 2560 x 2560.
• Eye relief: 60mm.
• Exit pupil: 10mm.
• Battery configuration: built-in and replaceable batteries.
• Internal storage: 64GB.
• Weight: 980g.
• Impact resistance: 7000J.

Included Accessories

• ACE 2 Series thermal imaging scope.
• Heated target for zeroing.
• Lens cloth.
• Two 18650 batteries.
• Type-C cable.
• Quick start guide.
• Battery charger.
• Portable bag.

Nocpix ACE 2 S60R Thermal Scope Review

The Nocpix ACE 2 S60R offers a substantial imaging specification for hunters who prioritise thermal detail and integrated ranging. Its 1280 x 1024 sensor, 60mm f/1.0 lens and 12mK NETD sensitivity are the central attractions, complemented by selectable image modes, ballistic calculation and onboard recording.

Performance & Key Features

The high-resolution sensor and R+ 2.0 processing give the S60R a clear emphasis on image detail and contrast. Dual Clarity Mode adds flexibility, allowing the viewing presentation to favour smooth movement or finer stationary detail. Magnification spans 2–28x, while the integrated 1200m laser rangefinder and Ballistic Calculation 2.0 combine measurement and calculation functions in one unit.

Build Quality & Handling

The magnesium alloy body and stated 7000J impact resistance provide the main durability credentials. At 980g, the S60R remains below one kilogram, although its weight is a meaningful consideration for the overall rifle setup. Central focusing, 60mm eye relief and the round AMOLED display support comfortable adjustment and viewing.

Is It Easy to Use?

Motion and Still modes offer a direct way to adapt the image to different observation needs. Integrated rangefinding keeps distance measurement within the scope, while recoil-activated video reduces the need to trigger recordings manually. The supplied heated target, batteries and charger are practical additions for setup and ongoing use.

Key Takeaways

The S60R's strongest specification points are its 1280 x 1024 sensor, 12mK sensitivity and high-resolution round display. Integrated ranging, ballistic calculation and recording make it a comprehensive option for hunters seeking these functions together. Its 980g weight should be considered alongside that feature set. For Uttings customers prioritising sensor resolution and viewing flexibility, the S60R merits consideration on specification.

Nocpix ACE 2 S60R Thermal Scope FAQs

What thermal sensor does the S60R use?

The S60R uses a 1280 x 1024 Gen 3 thermal sensor with 12µm pixels. It provides 12mK NETD sensitivity and operates at a 60Hz frame rate.

What lens and magnification range does it have?

The scope features a 60mm f/1.0 objective lens. Its magnification range is 2–28x, with Ocular Zoom 2.0 also included.

How do Motion and Still modes differ?

Motion mode prioritises smooth rendering of moving subjects. Still mode enhances fine detail in stationary scenes and foliage. Users can switch between the two to suit the observation.

What does R+ 2.0 image processing do?

R+ 2.0 processing is designed to reduce environmental temperature noise. It enhances contrast and detail to improve the clarity of the thermal image.

What are the detection and laser ranging distances?

The stated thermal detection range is 3100m. The integrated LRF 2.0 laser rangefinder measures distances up to 1200m.

Does the scope include ballistic calculation?

Yes. Ballistic Calculation 2.0 incorporates inclination and wind drift. It complements the scope's integrated laser rangefinder.

What display does the Vision+ system use?

The Vision+ system uses a 1.03-inch round AMOLED display with 2560 x 2560 resolution. The scope has 60mm eye relief and a 10mm exit pupil.

Does the S60R have a replaceable battery?

Yes. It combines a built-in battery with a replaceable battery. Two 18650 batteries, a battery charger and a Type-C cable are included.

Can it record video automatically?

The S60R supports recoil-activated video recording. It includes 64GB of internal storage.

How much does the S60R weigh?

The scope weighs 980g and has a full magnesium alloy body. Its stated impact resistance is 7000J.
