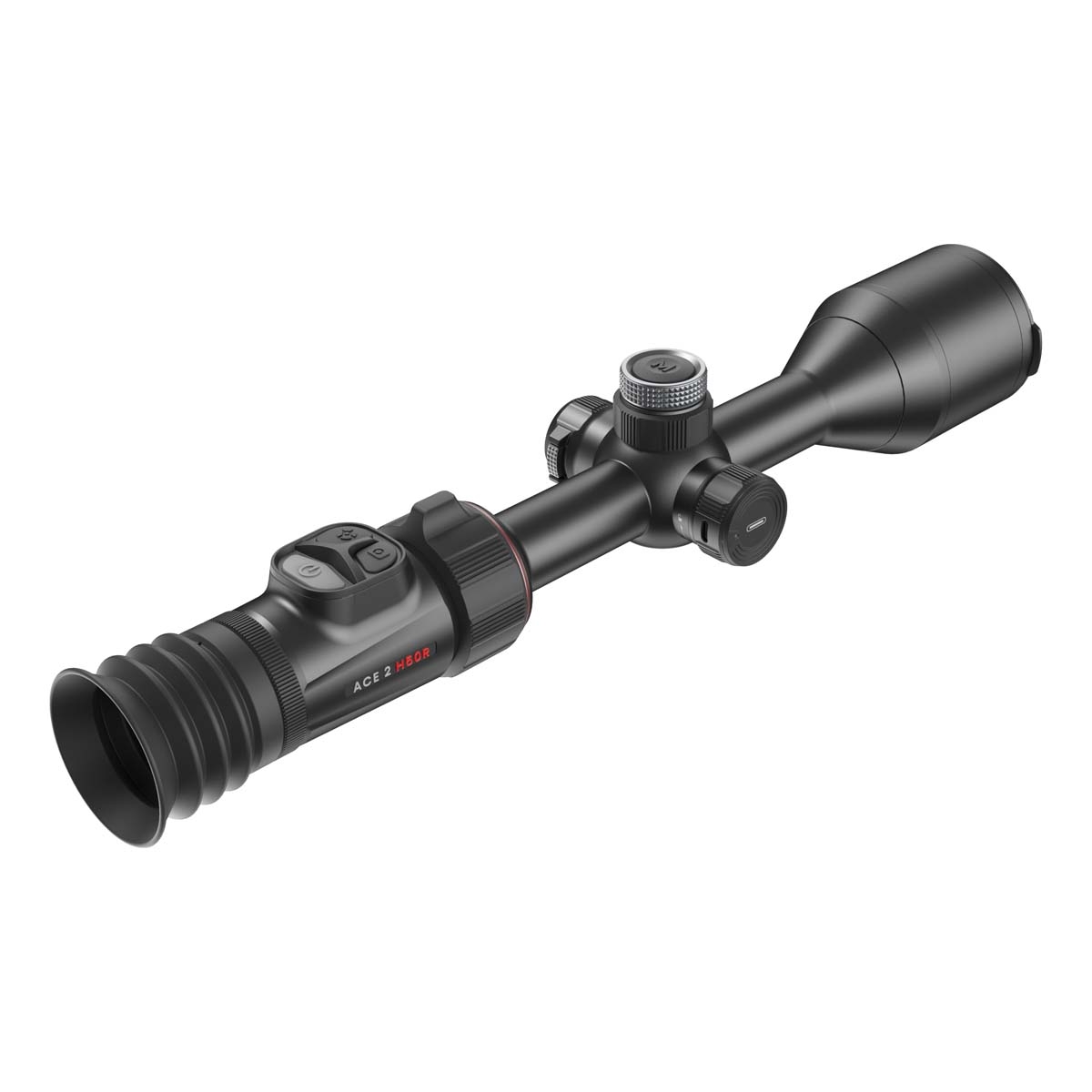

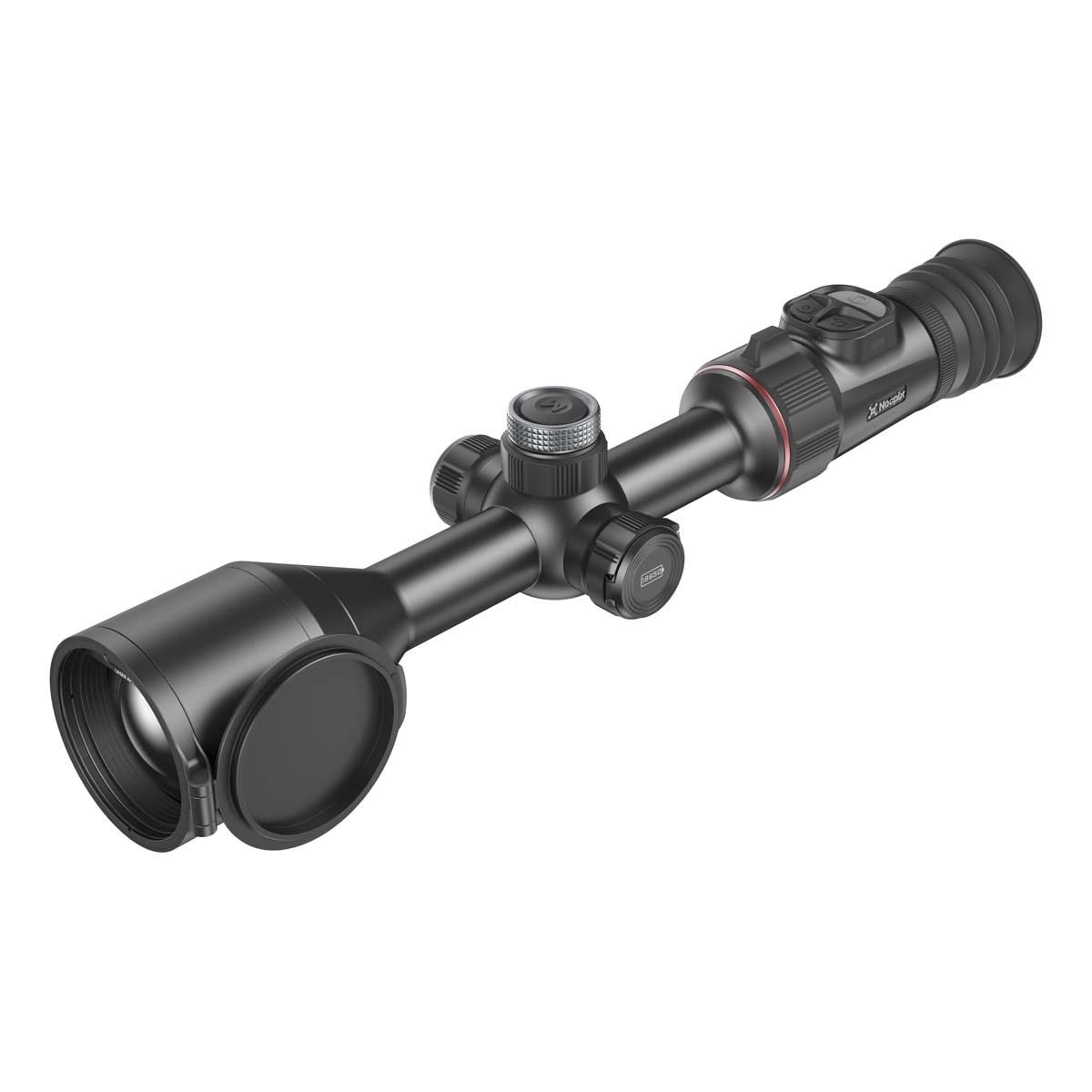

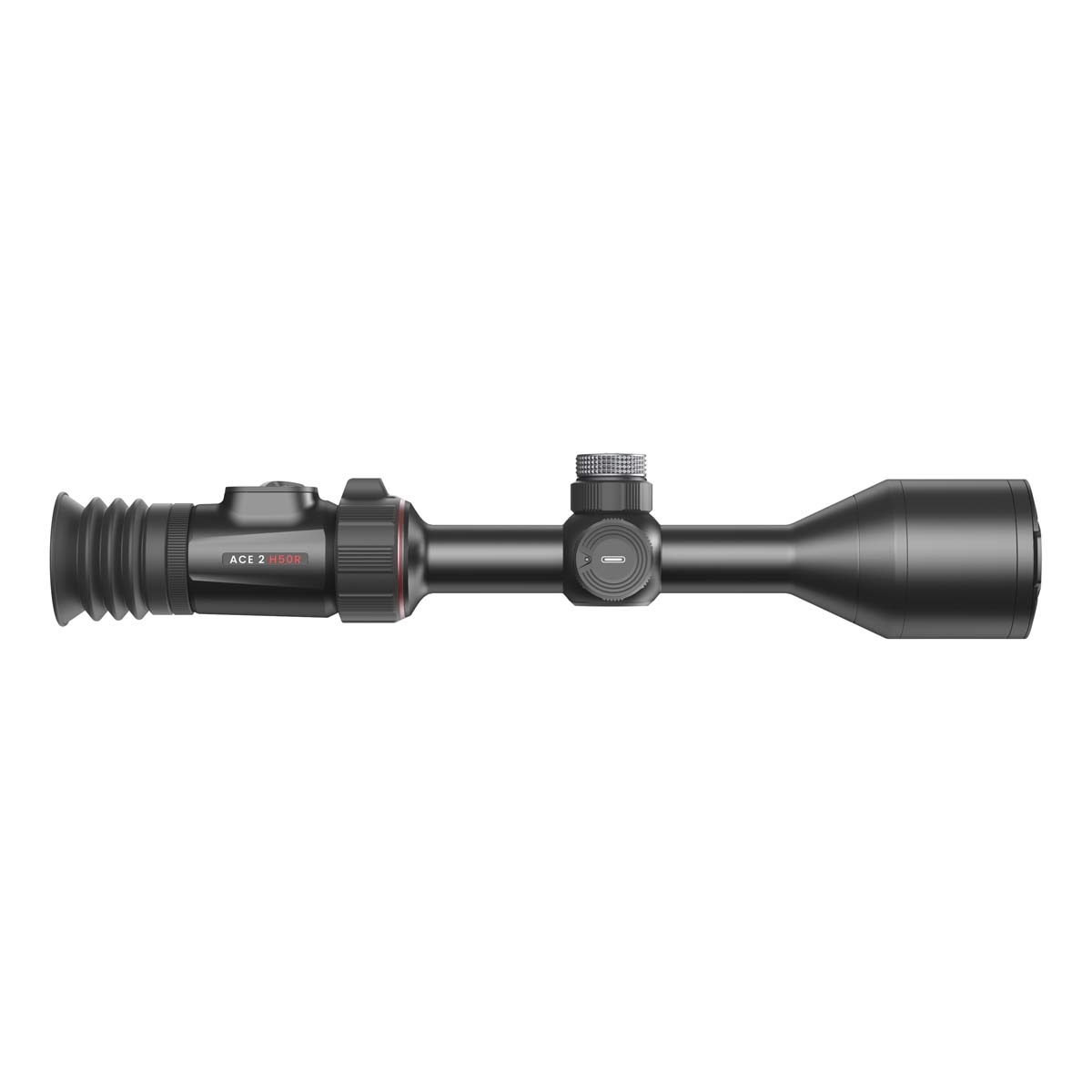

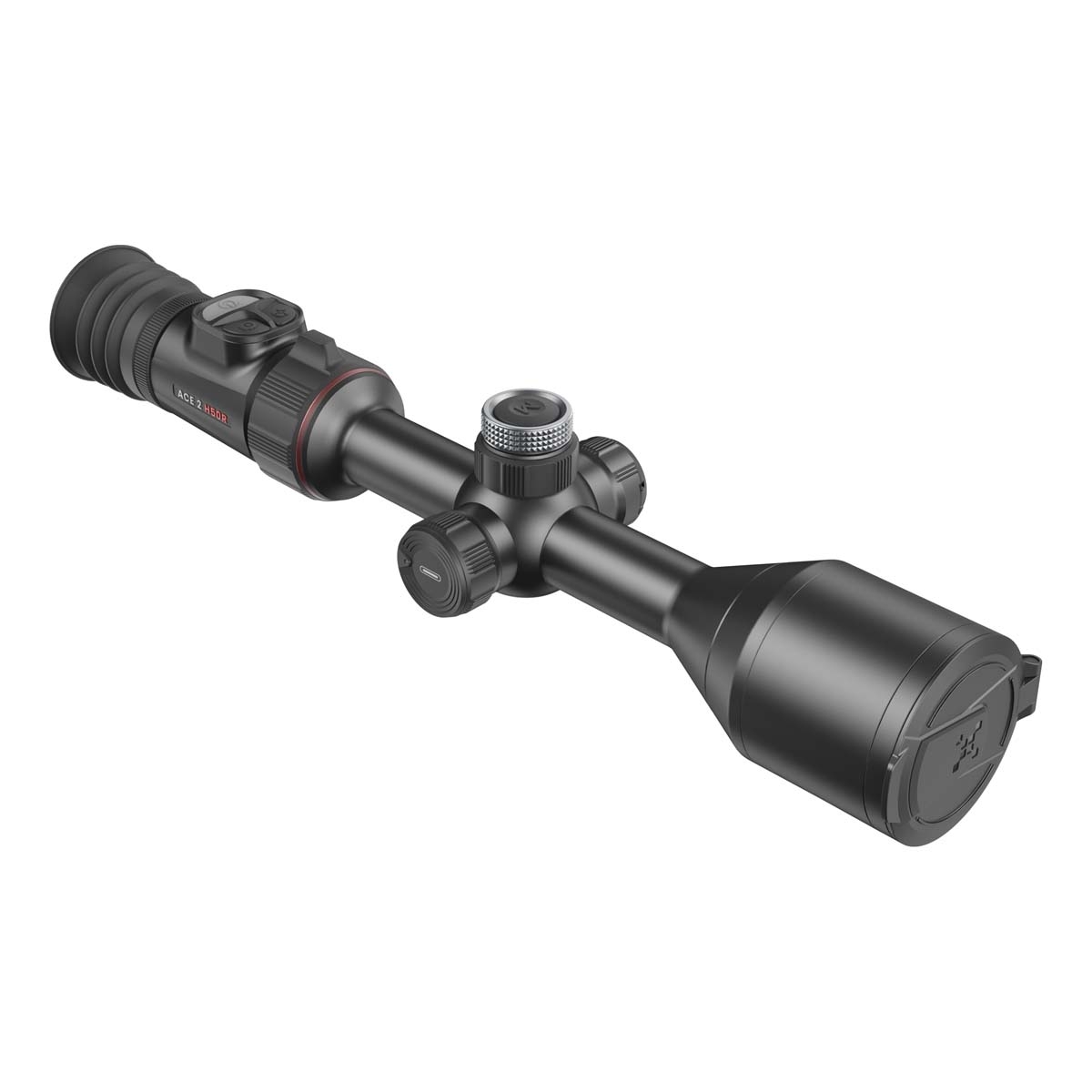

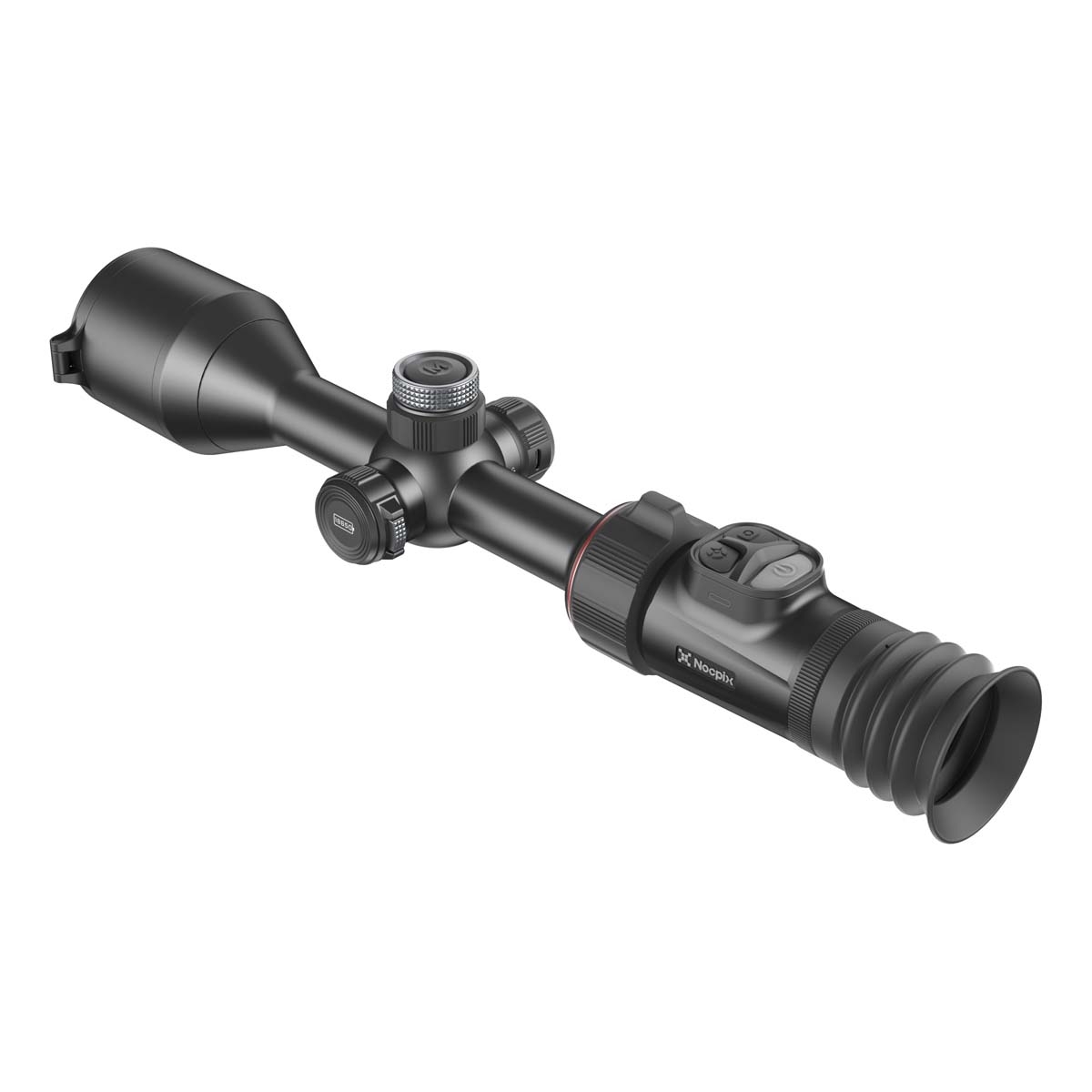

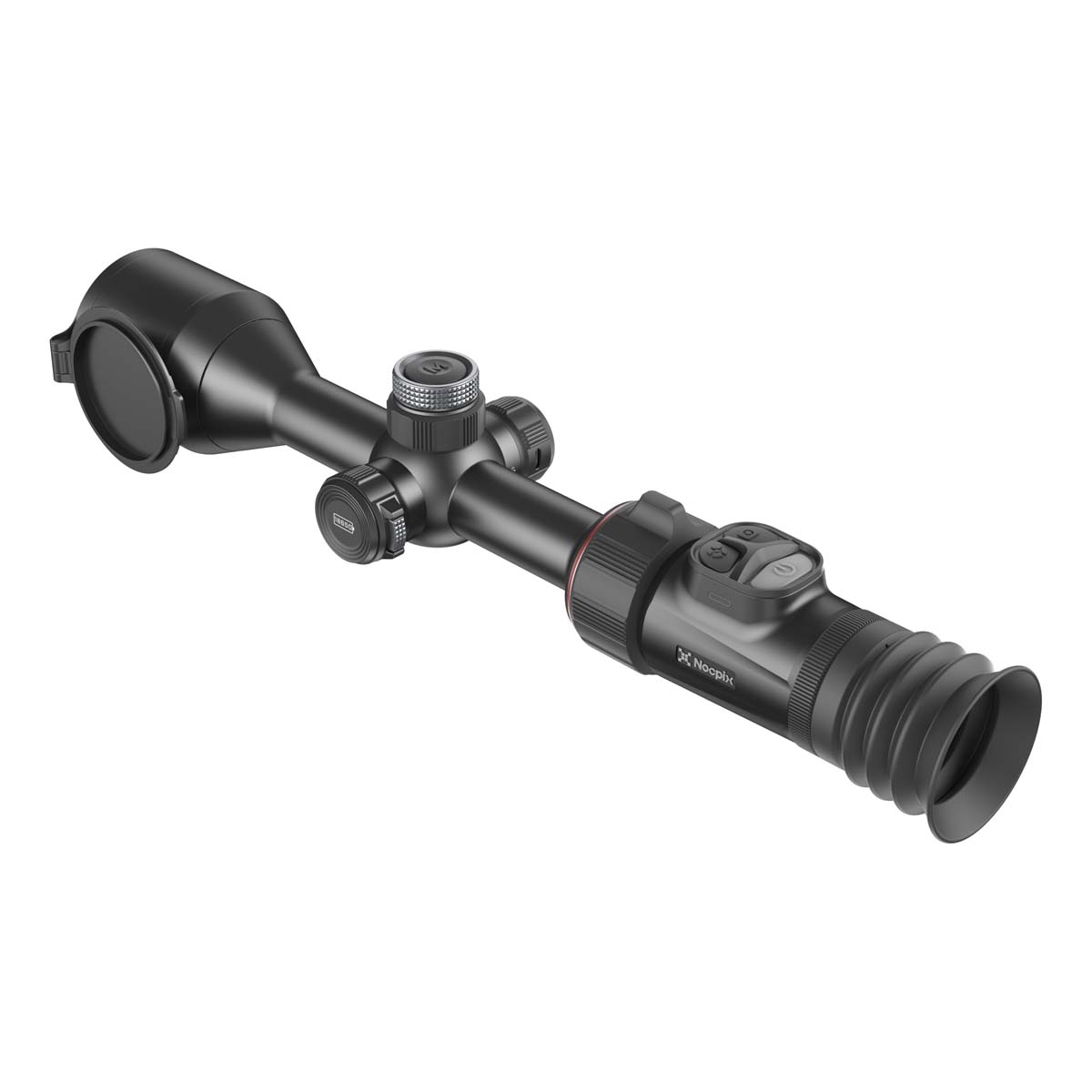

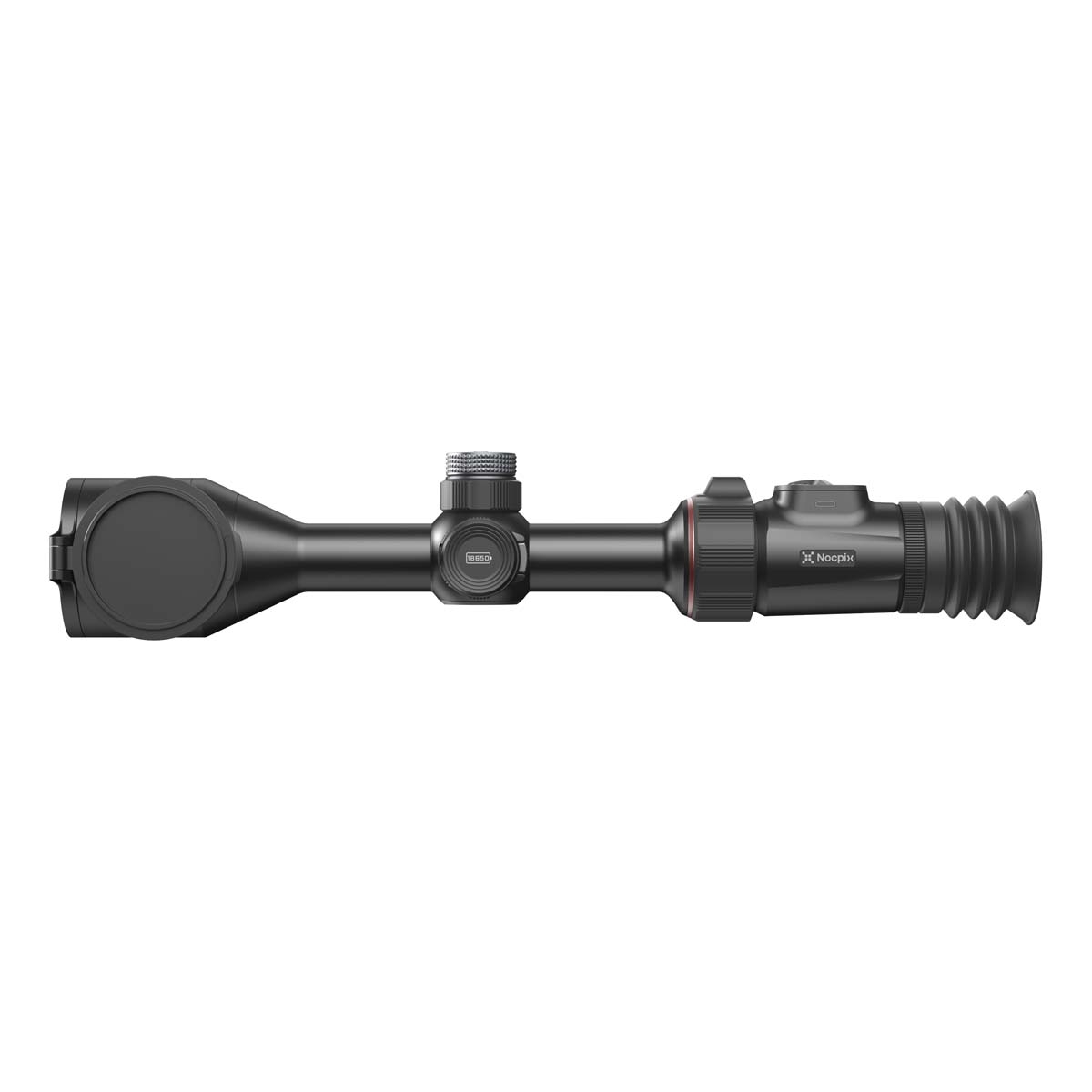

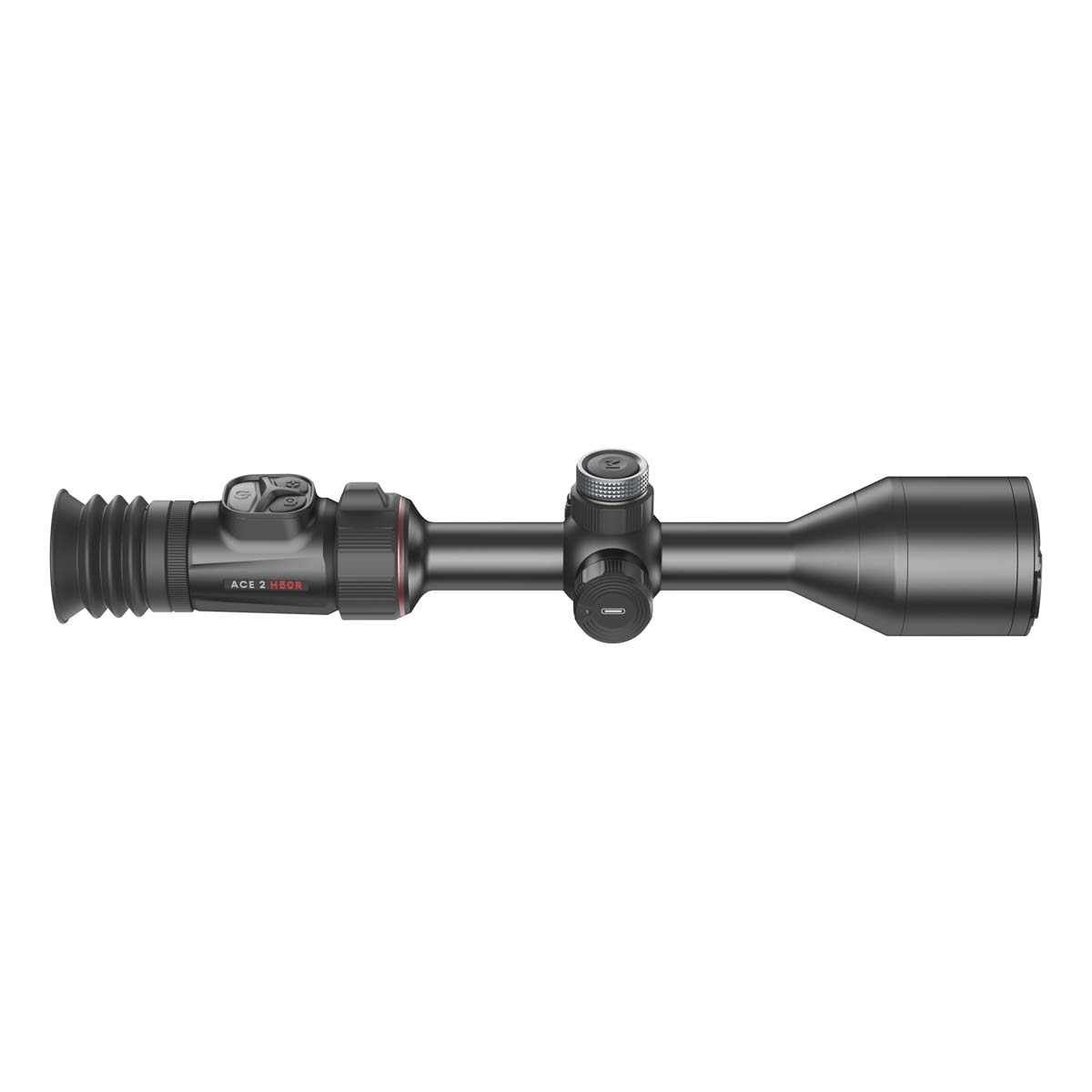

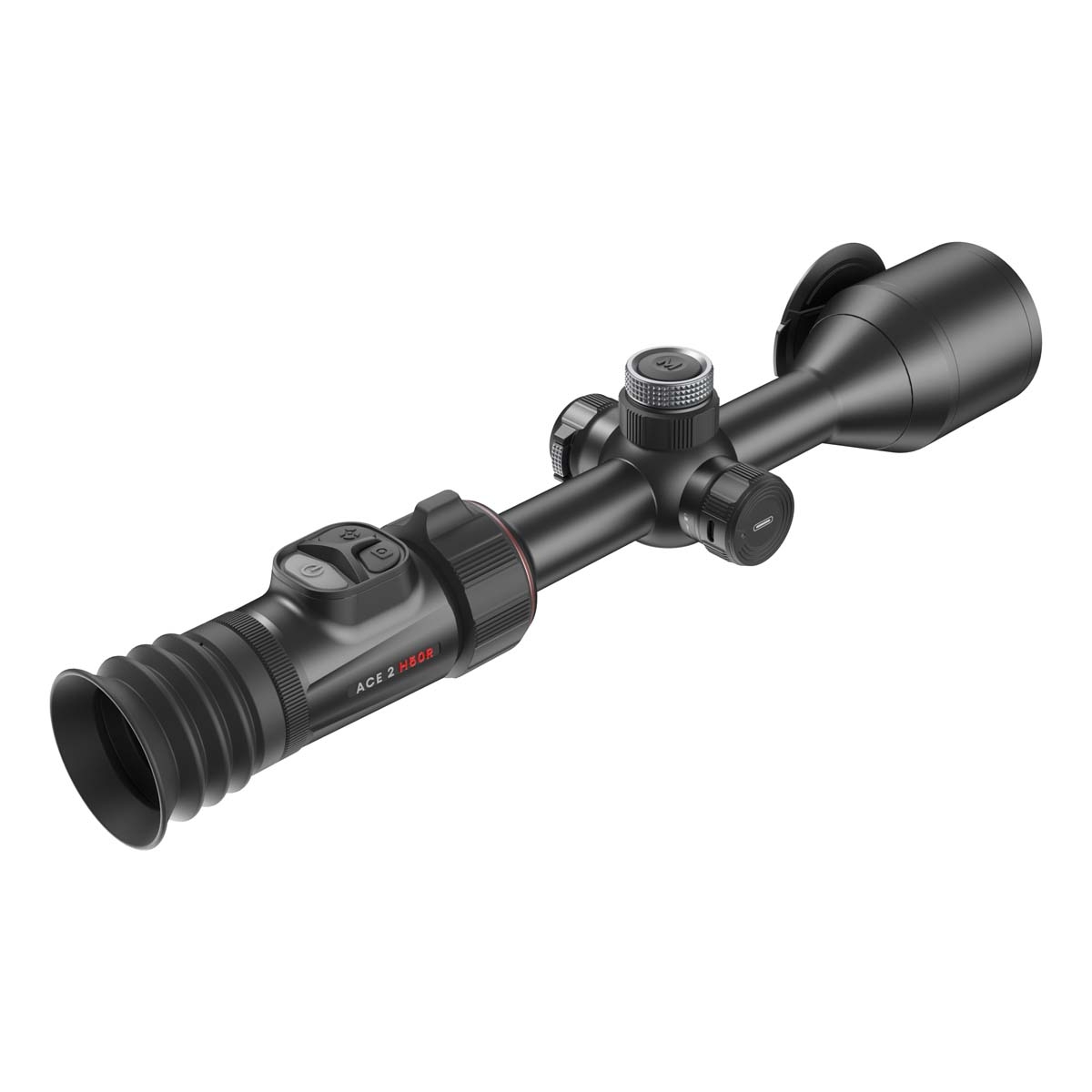

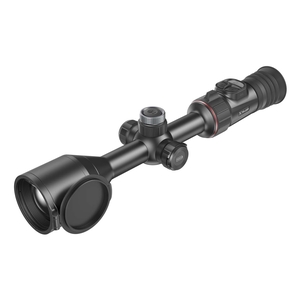

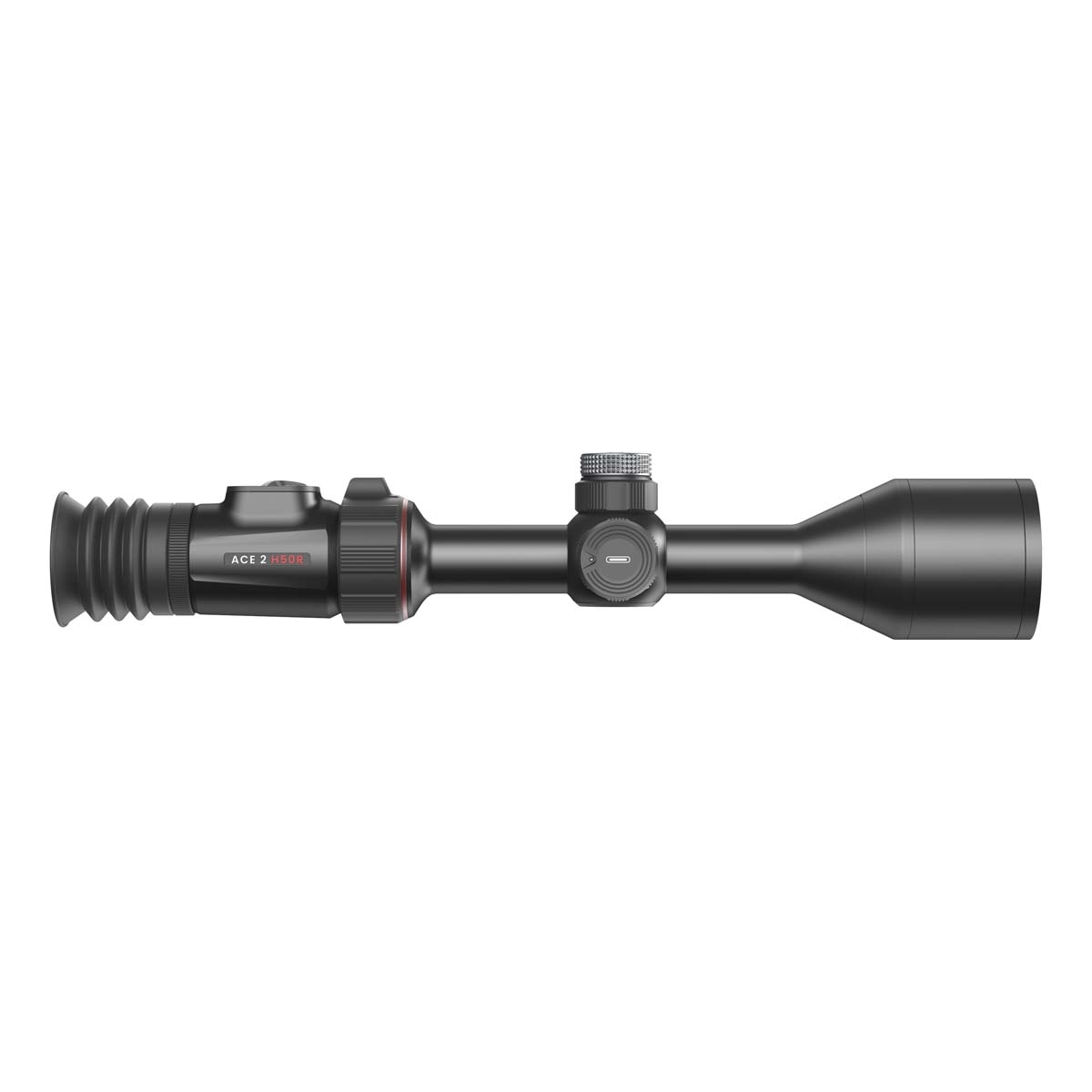

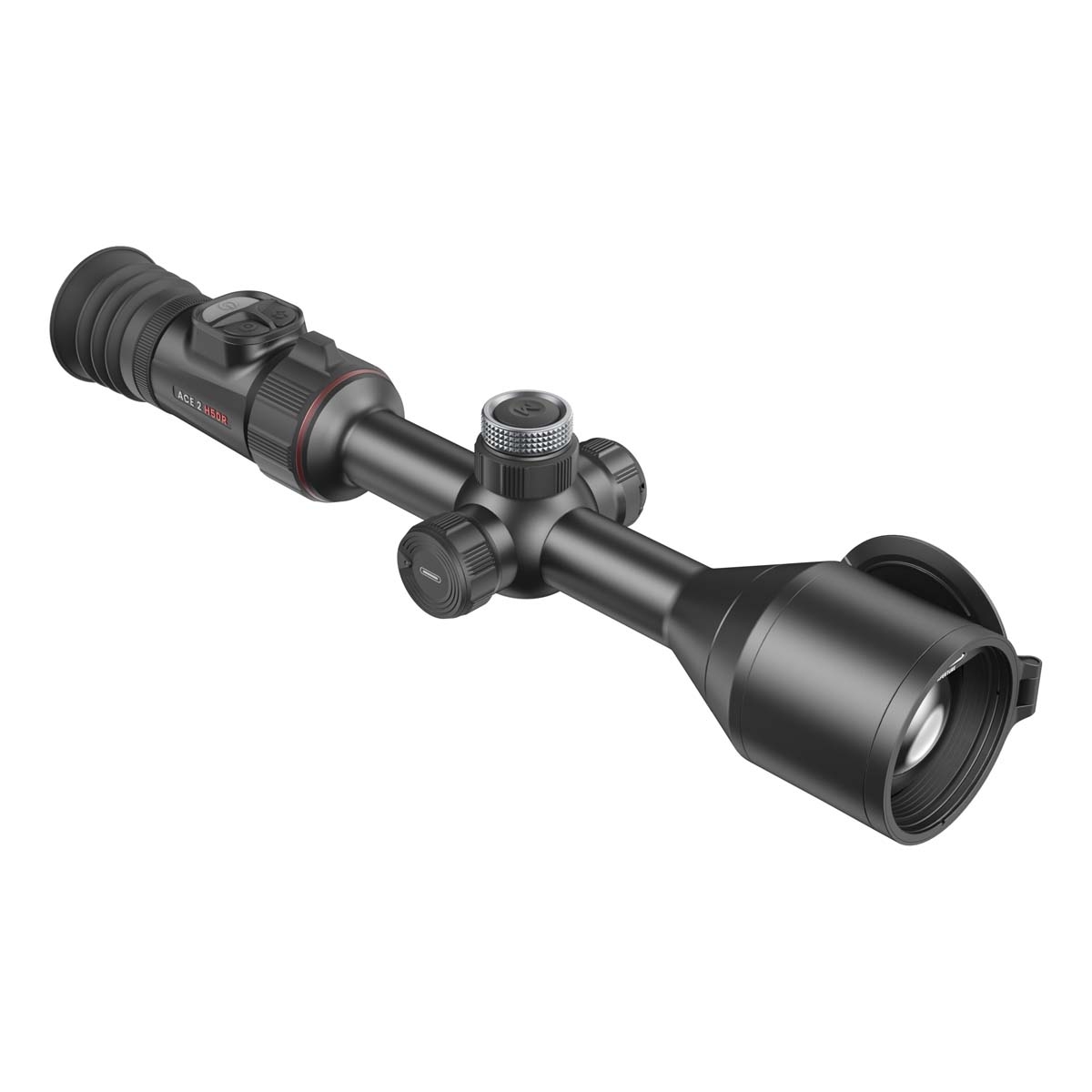

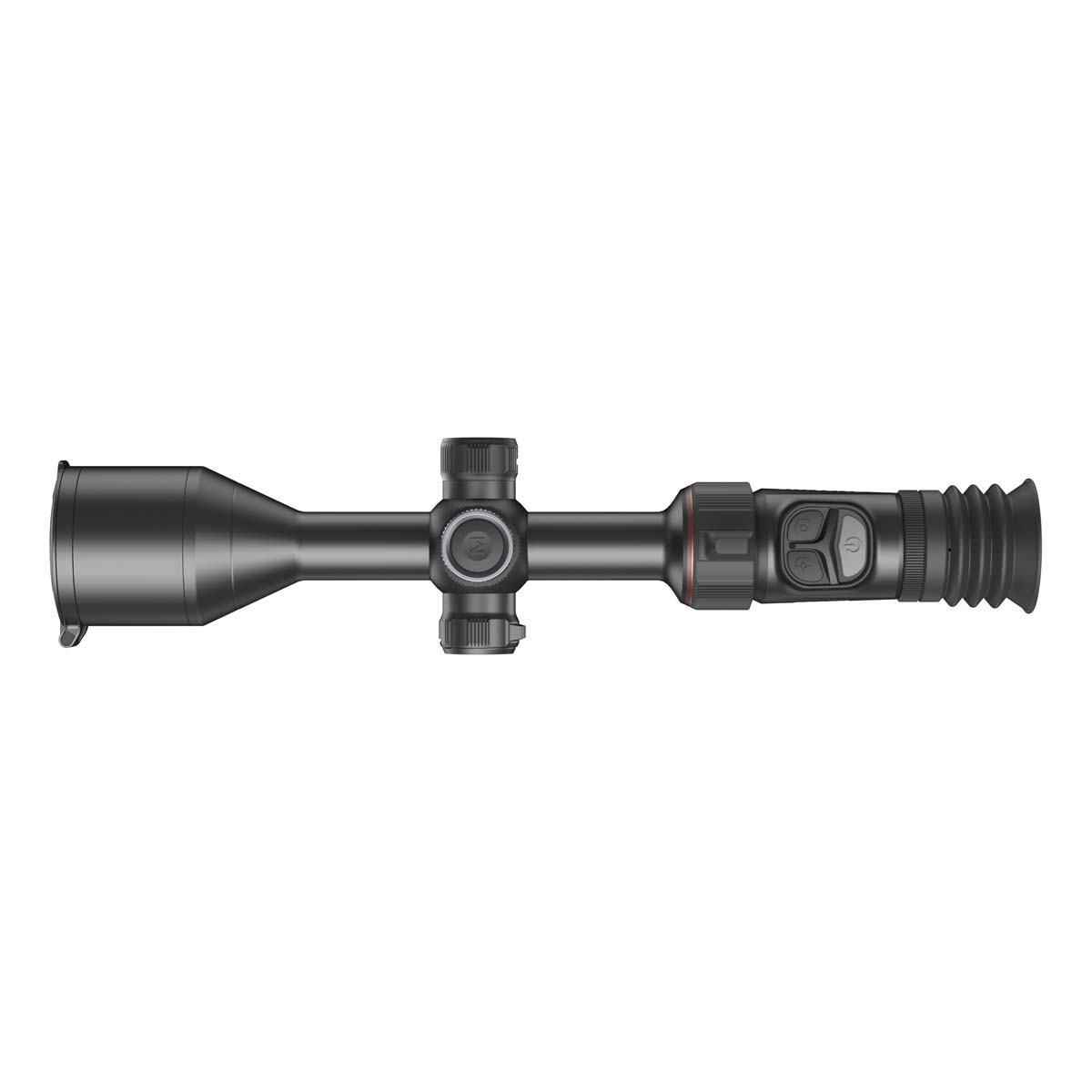

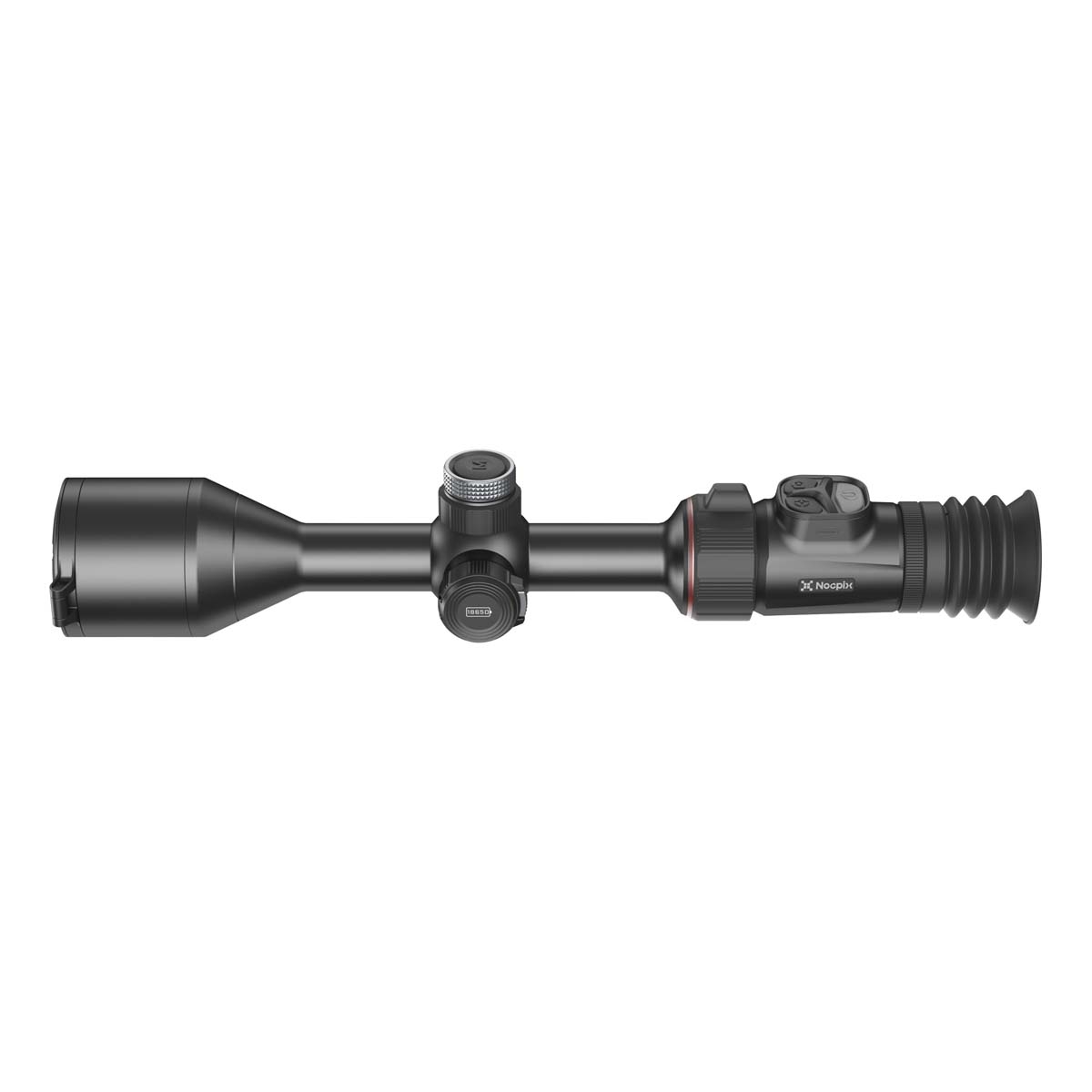

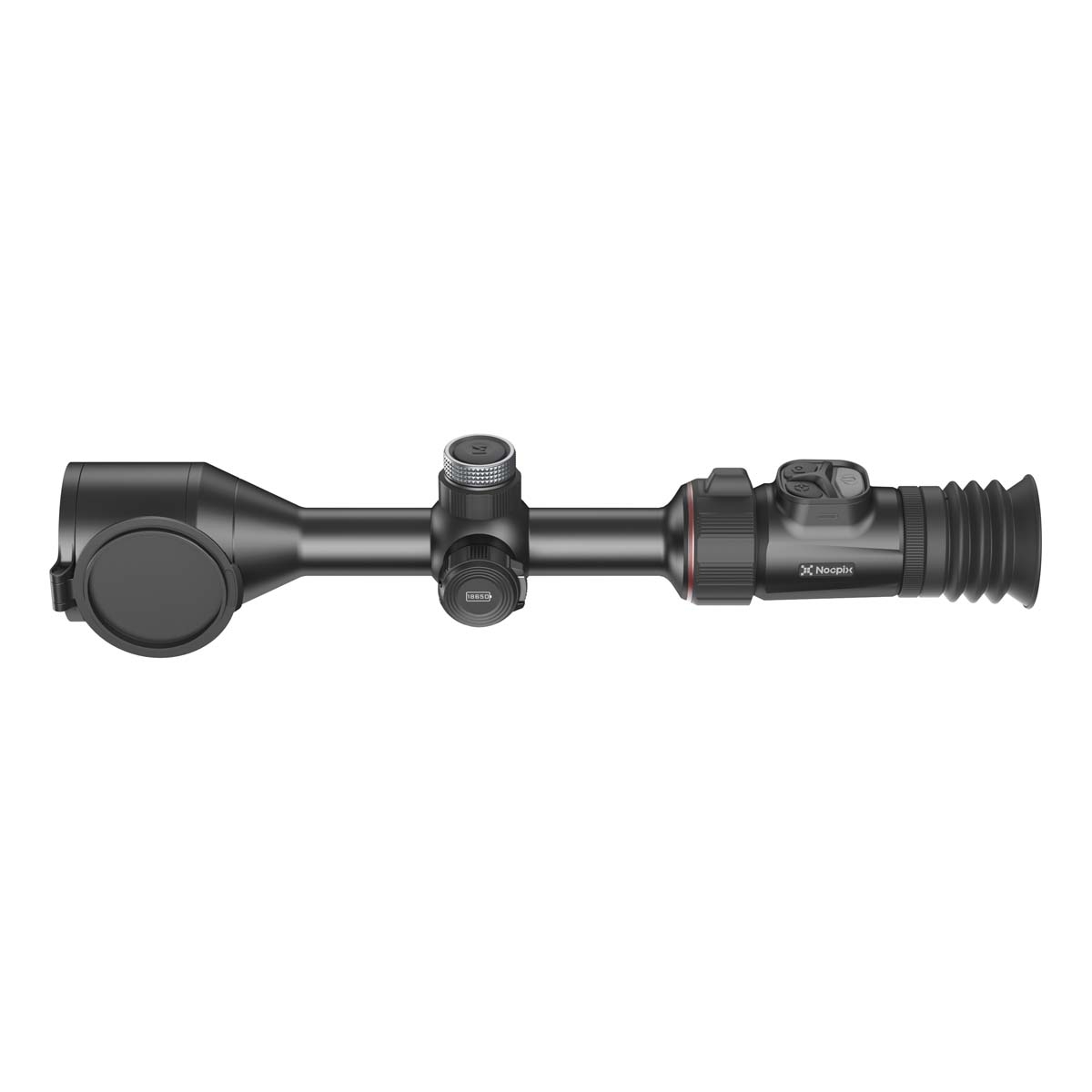

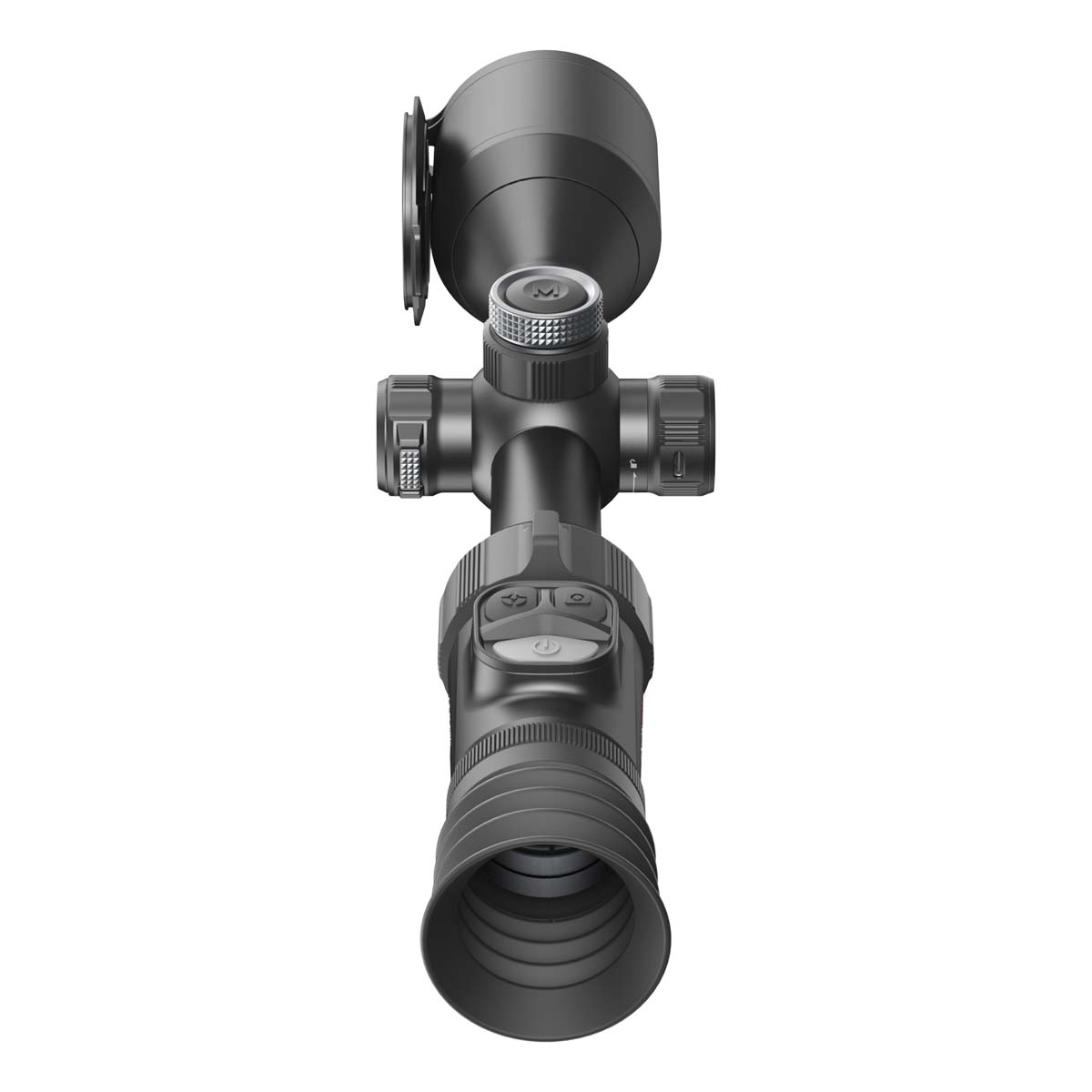

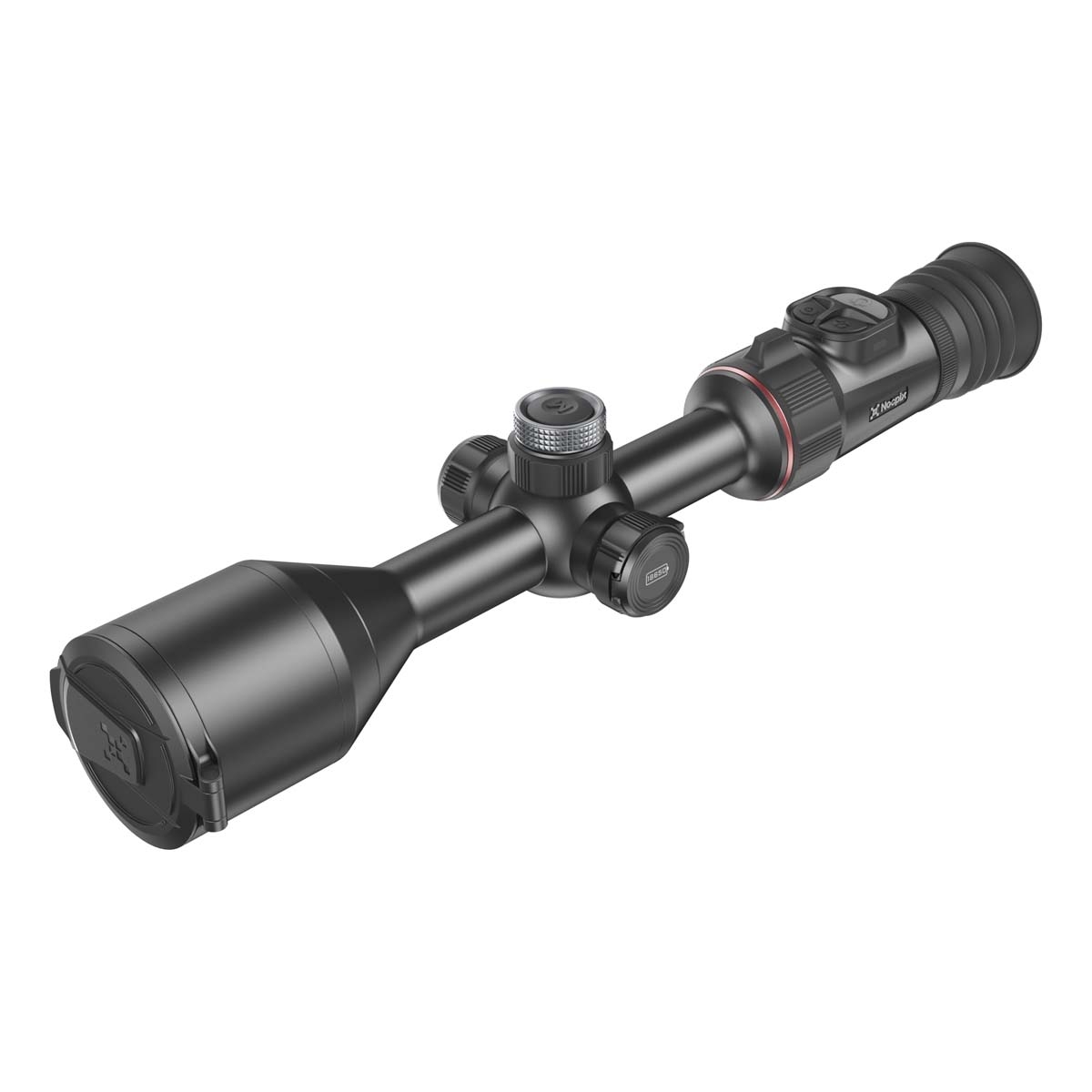

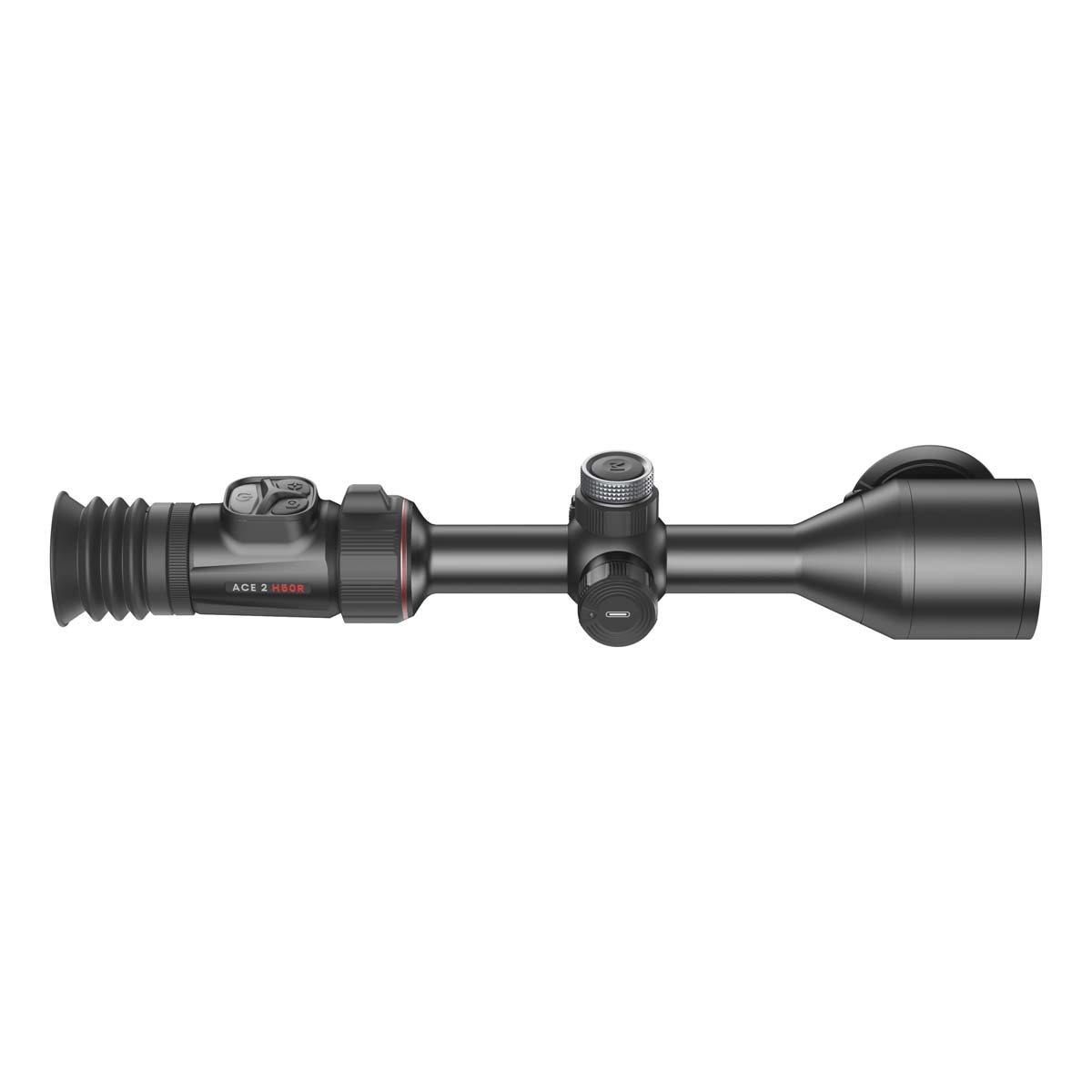

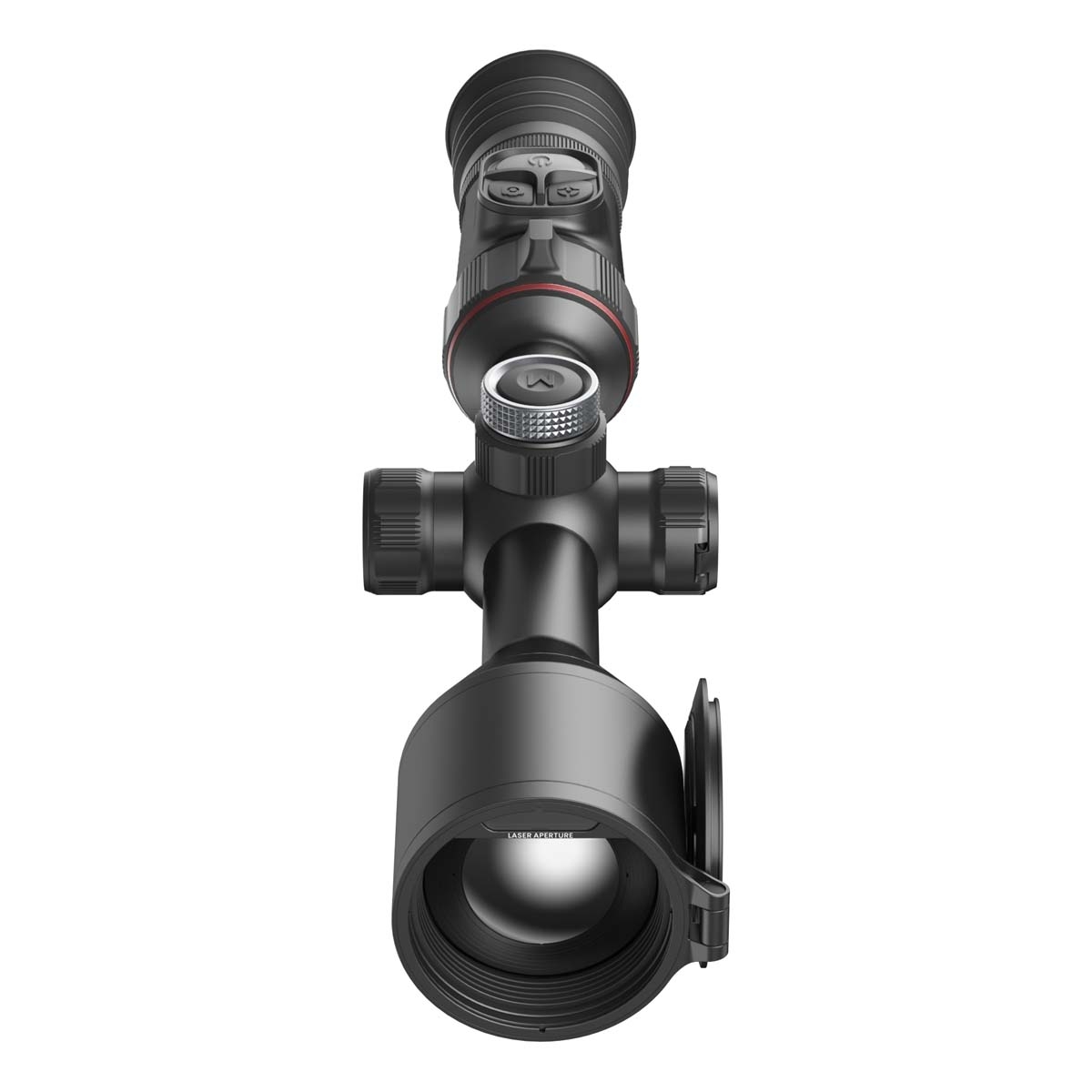

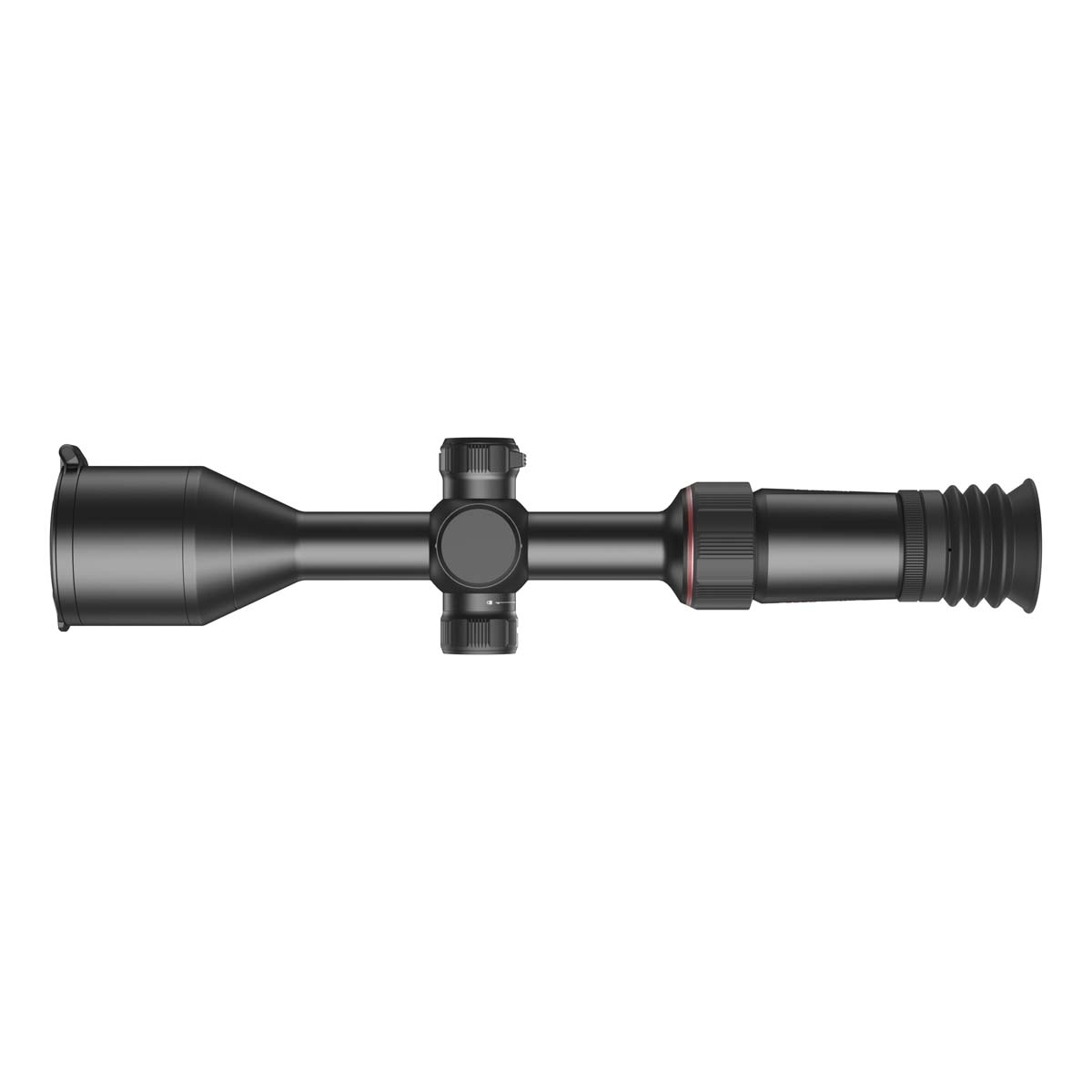

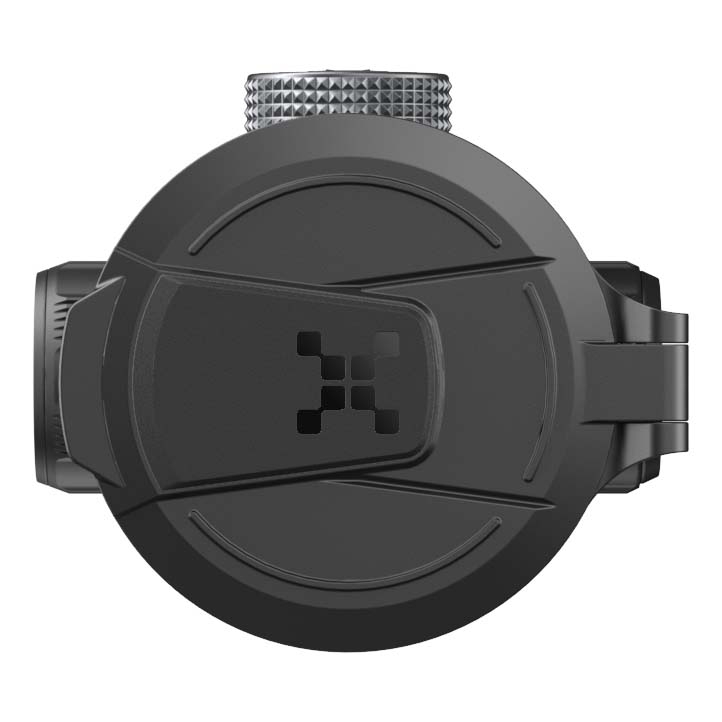

Nocpix ACE 2 H50R Thermal (640x512) Riflescope w/LRF

The Nocpix ACE 2 H50R Thermal Scope combines a 640 x 512 thermal sensor, 12mK NETD sensitivity and 3–24x magnification with integrated laser rangefinding. Built for hunters, it pairs detailed thermal imaging with ballistic calculation and a round 2560 x 2560 AMOLED display.

A magnesium alloy body keeps weight to 920g, while central focusing, 60mm eye relief and selectable Motion and Still modes provide practical control over the viewing experience.

Thermal Imaging & Clarity

The Gen 3 sensor operates at 60Hz and works with R+ 2.0 image processing to reduce environmental temperature noise and enhance contrast and detail. Dual Clarity Mode lets you switch between Motion mode for smooth rendering of moving subjects and Still mode for finer detail in stationary scenes and foliage.

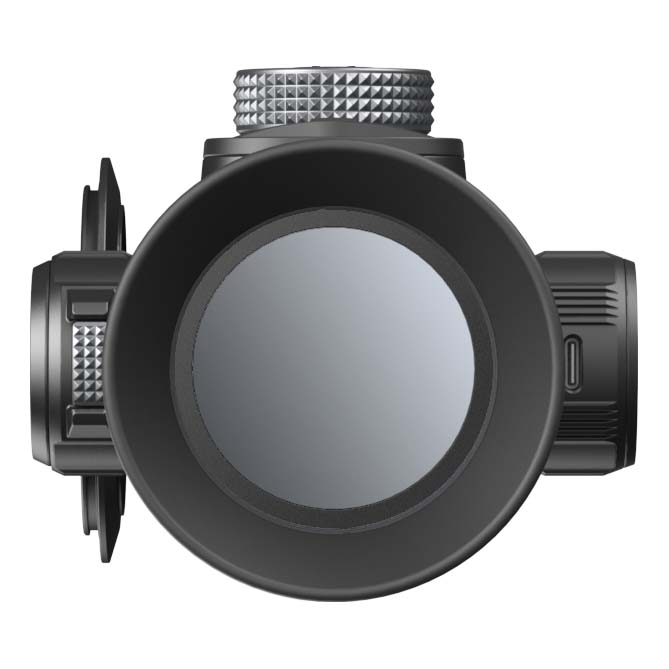

The Vision+ system combines a high-resolution AMOLED display with a round viewing format designed to support comfortable observation. Ocular Zoom 2.0 and the central focus system provide adjustment of the view.

Rangefinding & Ballistic Support

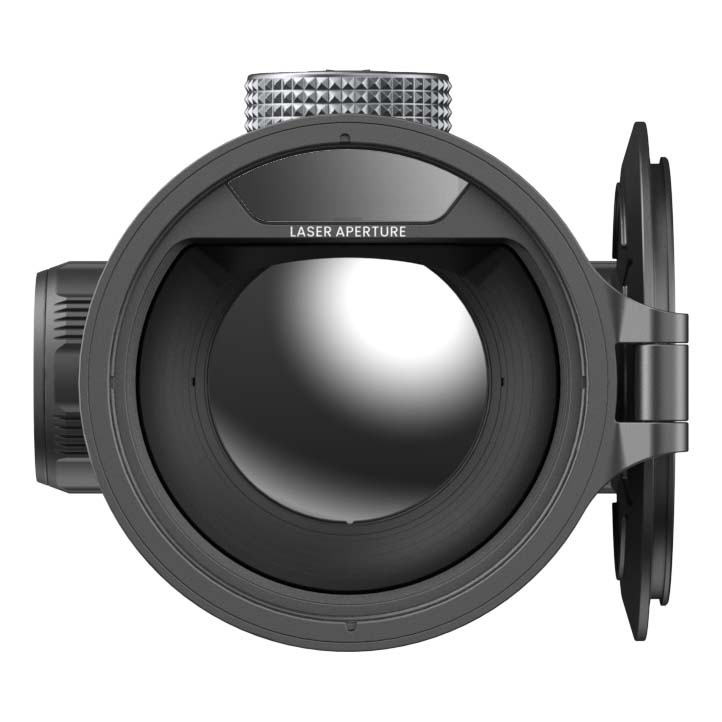

The integrated LRF 2.0 laser rangefinder measures distances up to 1200m. Ballistic Calculation 2.0 incorporates inclination and wind drift, bringing distance measurement and ballistic support together within the scope.

Construction & Recording

The full magnesium alloy body has stated impact resistance of 7000J. Built-in and replaceable batteries provide a flexible power arrangement, with two 18650 batteries and a charger included. Recoil-activated video and 64GB of internal storage support recording during use.

Nocpix ACE 2 H50R Thermal Scope Key Features

• 640 x 512 Gen 3 thermal sensor with 12mK NETD sensitivity.
• 60Hz frame rate and R+ 2.0 image processing.
• Dual Clarity Mode with Motion and Still settings.
• 3–24x magnification with Ocular Zoom 2.0.
• Integrated LRF 2.0 with ranging up to 1200m.
• Ballistic Calculation 2.0 with inclination and wind drift support.
• Vision+ system with a round 2560 x 2560 AMOLED display.
• Central focus system and 60mm eye relief.
• Target tracking and recoil-activated video.
• Magnesium alloy body weighing 920g.

Nocpix ACE 2 H50R Thermal Scope Specifications

• Thermal sensor resolution: 640 x 512.
• Pixel size: 12µm.
• Frame rate: 60Hz.
• NETD: 12mK.
• Magnification: 3–24x.
• Detection range: 2600m.
• Laser rangefinder distance: up to 1200m.
• Display: 1.03-inch round AMOLED.
• Display resolution: 2560 x 2560.
• Eye relief: 60mm.
• Exit pupil: 10mm.
• Battery configuration: built-in and replaceable batteries.
• Internal storage: 64GB.
• Weight: 920g.
• Impact resistance: 7000J.

Included Accessories

• ACE 2 Series thermal imaging scope.
• Heated target for zeroing.
• Lens cloth.
• Two 18650 batteries.
• Type-C cable.
• Quick start guide.
• Battery charger.
• Portable bag.

Nocpix ACE 2 H50R Thermal Scope Review

The Nocpix ACE 2 H50R brings thermal observation, laser ranging and ballistic calculation into one riflescope. Its specification offers particular appeal to hunters seeking sensitive thermal imaging, adjustable image presentation and integrated recording, with a high-resolution round display at the centre of the viewing experience.

Performance & Key Features

The combination of a 640 x 512 sensor, 12mK NETD and R+ 2.0 processing is the foundation of the H50R's imaging capabilities. Motion and Still modes provide a choice between smooth movement rendering and enhanced stationary detail. The 3–24x magnification range offers considerable adjustment, while the integrated 1200m laser rangefinder and ballistic calculation add useful measurement and calculation functions.

Build Quality & Handling

The magnesium alloy body and stated 7000J impact resistance are the main durability credentials. At 920g, the scope remains below one kilogram, although its weight is still a consideration when planning a rifle setup. Central focusing, a round display and 60mm eye relief support its emphasis on viewing comfort.

Is It Easy to Use?

Selectable clarity modes give users a direct way to tailor the image to moving or stationary subjects. Rangefinding is integrated into the scope, and recoil-activated video reduces the need to start recordings manually. The supplied heated target, two batteries and charger are useful additions for setup and ongoing use.

Key Takeaways

The H50R's strongest features are its thermal sensitivity, high-resolution display and combination of ranging and ballistic support. Dual Clarity Mode adds flexibility for different observation situations, while onboard storage and recoil-activated video round out the package. Its 920g weight deserves consideration alongside those capabilities. For Uttings customers seeking a feature-rich thermal riflescope with integrated distance measurement, it is a strong option to consider on specification.

Nocpix ACE 2 H50R Thermal Scope FAQs

What thermal sensor does the H50R use?

The H50R uses a 640 x 512 Gen 3 thermal sensor with 12µm pixels. It combines 12mK NETD sensitivity with a 60Hz frame rate and R+ 2.0 image processing.

What magnification does it offer?

The scope provides a magnification range of 3–24x. It also features Ocular Zoom 2.0 and a central focus system.

What is the difference between Motion and Still modes?

Motion mode prioritises smooth rendering of moving subjects. Still mode enhances fine detail in stationary scenes, including foliage. Users can switch between the two to suit the subject and surroundings.

What are the detection and laser ranging distances?

The stated thermal detection range is 2600m. The integrated LRF 2.0 laser rangefinder measures distances up to 1200m.

Does the H50R include ballistic calculation?

Yes. Ballistic Calculation 2.0 includes inclination and wind drift support. It complements the integrated laser rangefinder.

What display does the Vision+ system use?

The Vision+ system uses a 1.03-inch round AMOLED display with 2560 x 2560 resolution. The scope provides 60mm eye relief and a 10mm exit pupil.

Can the battery be replaced?

Yes. The scope has both a built-in battery and a replaceable battery. Two 18650 batteries, a charger and a Type-C cable are included.

Does it support recoil-activated video?

Yes. The H50R includes recoil-activated video recording. It also has 64GB of internal storage.

How much does the scope weigh?

The H50R weighs 920g and uses a full magnesium alloy body. Its stated impact resistance is 7000J.
