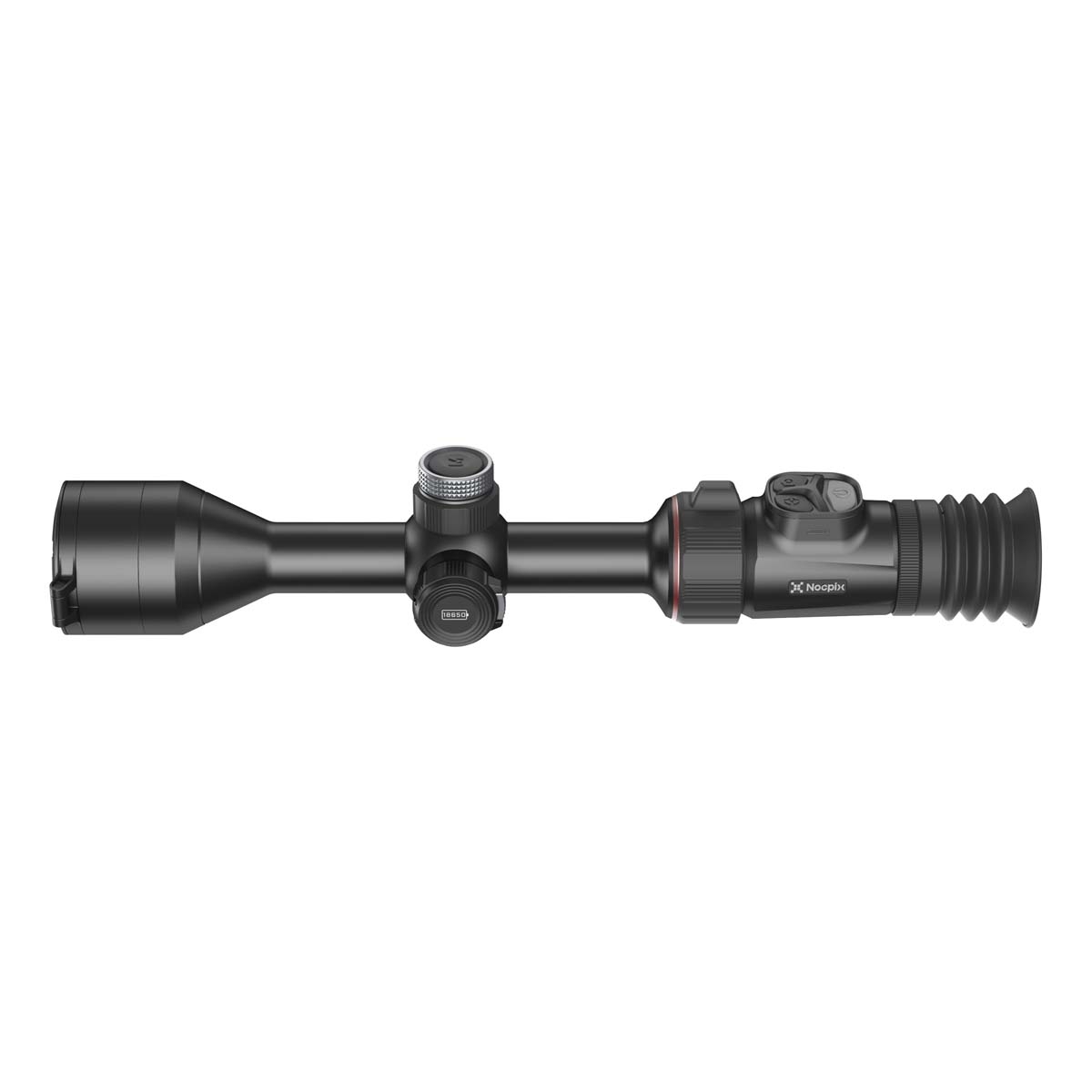

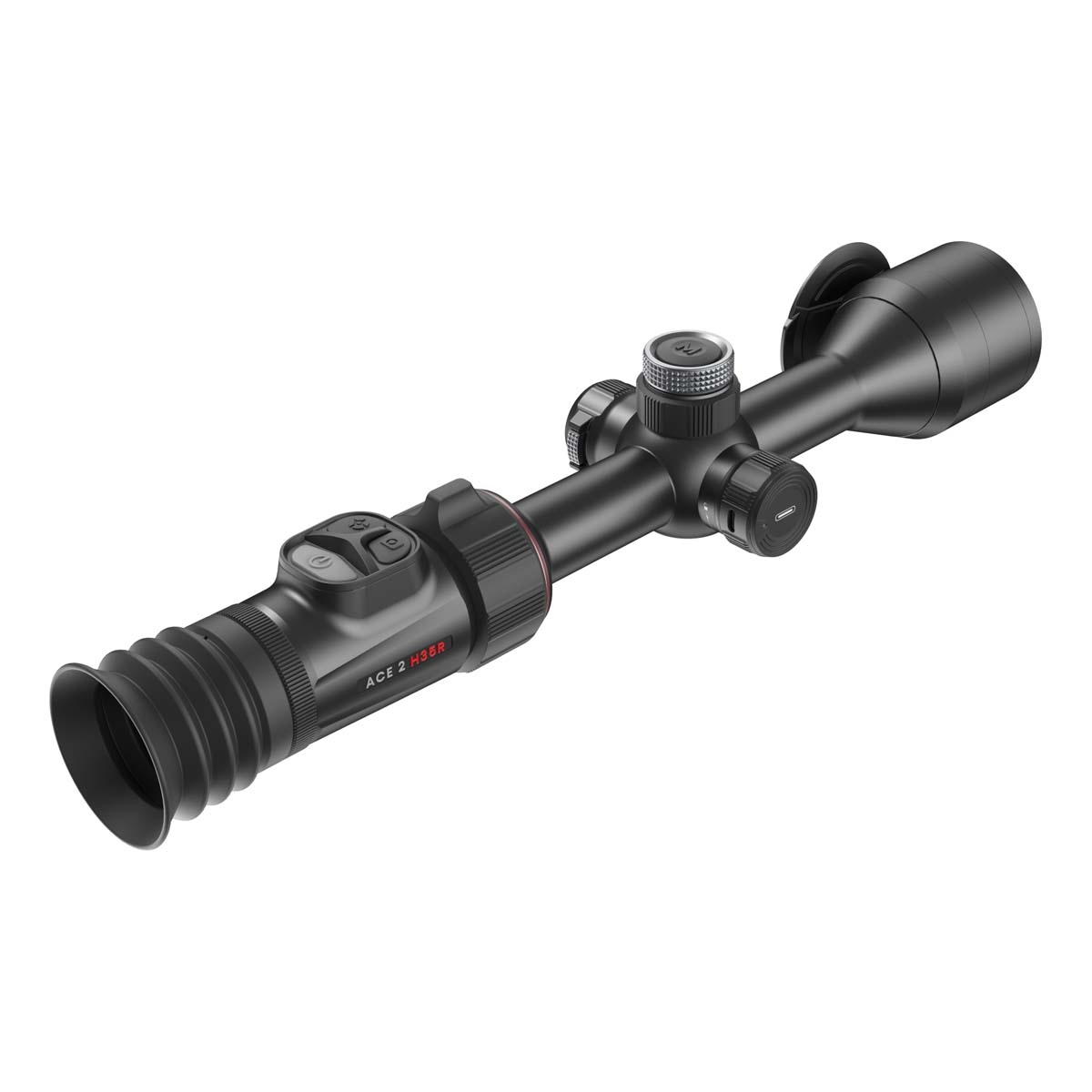

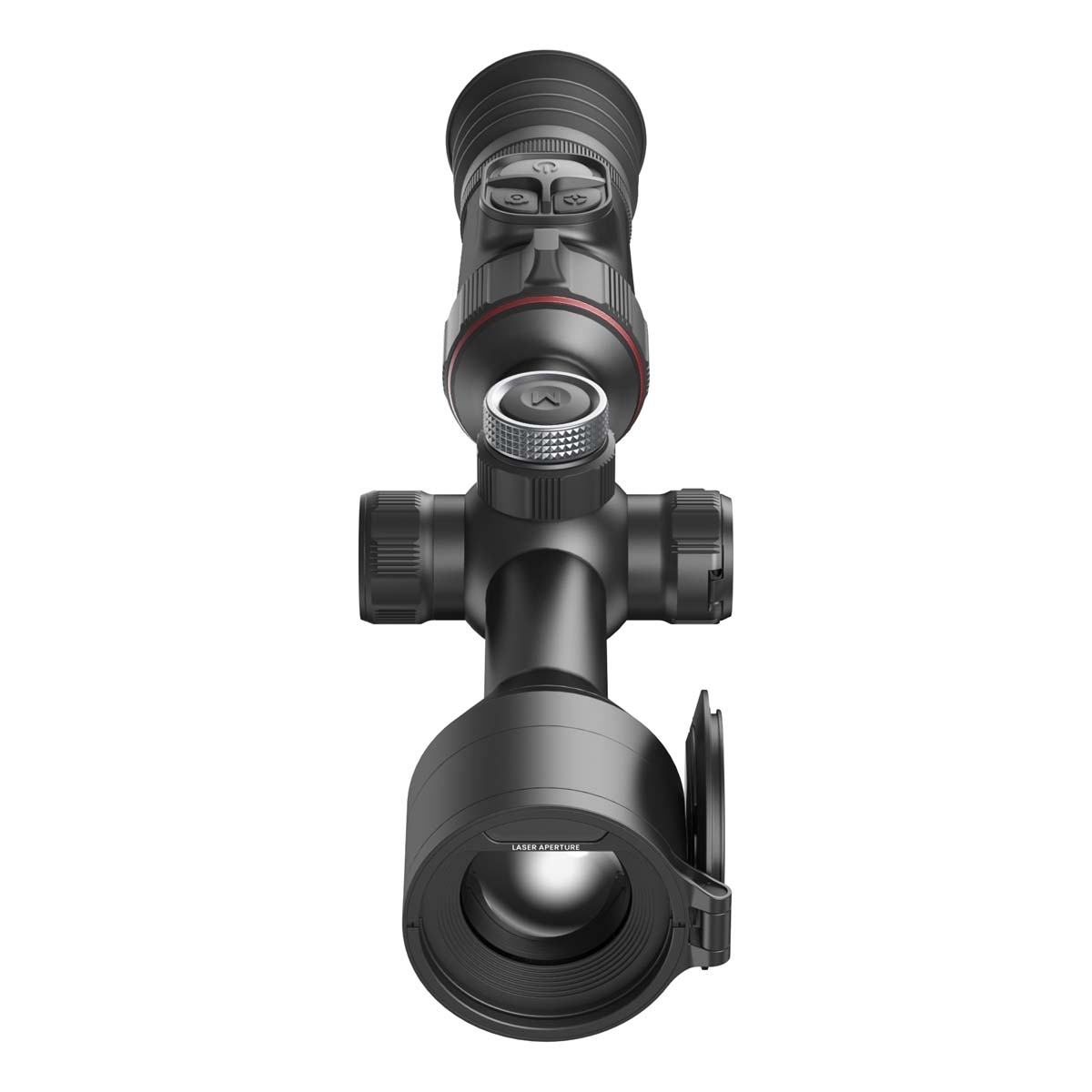

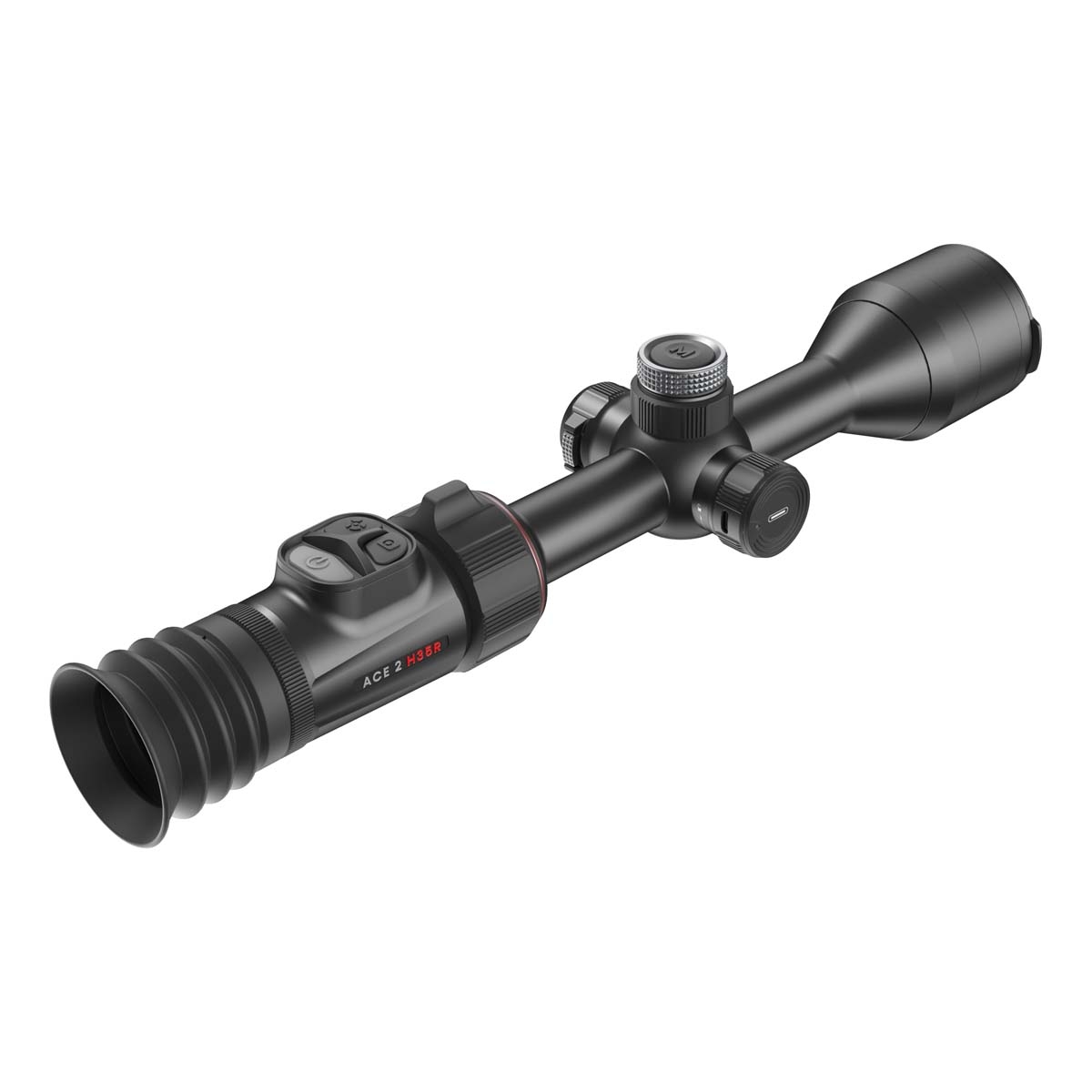

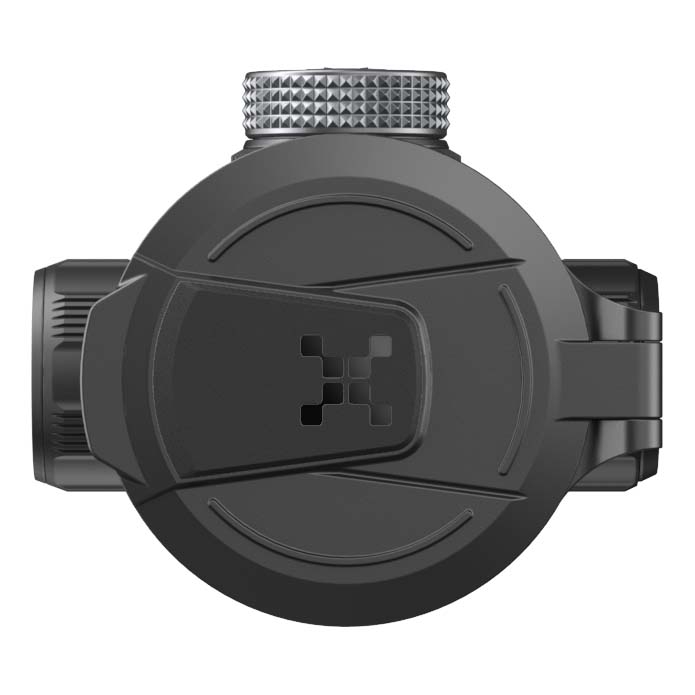

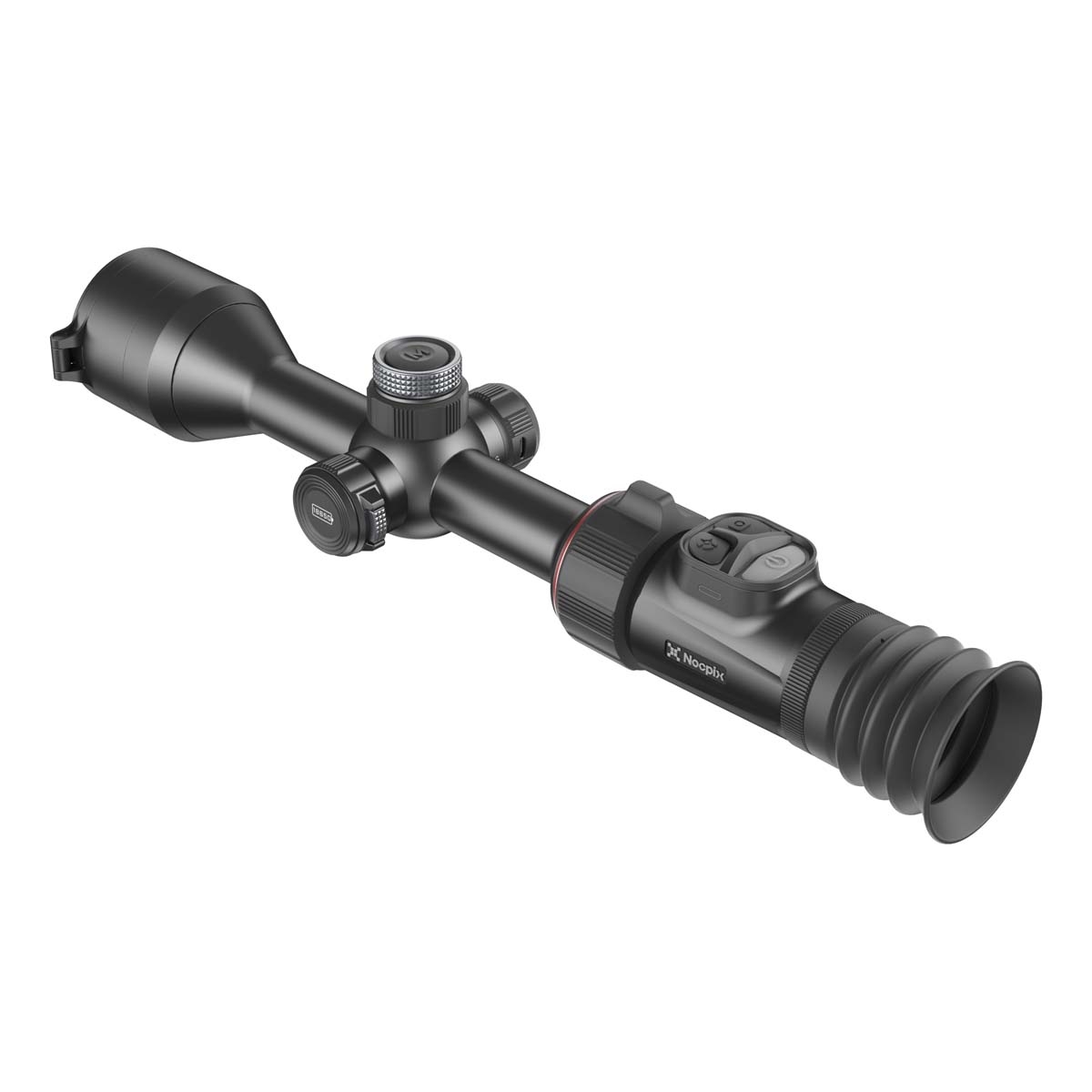

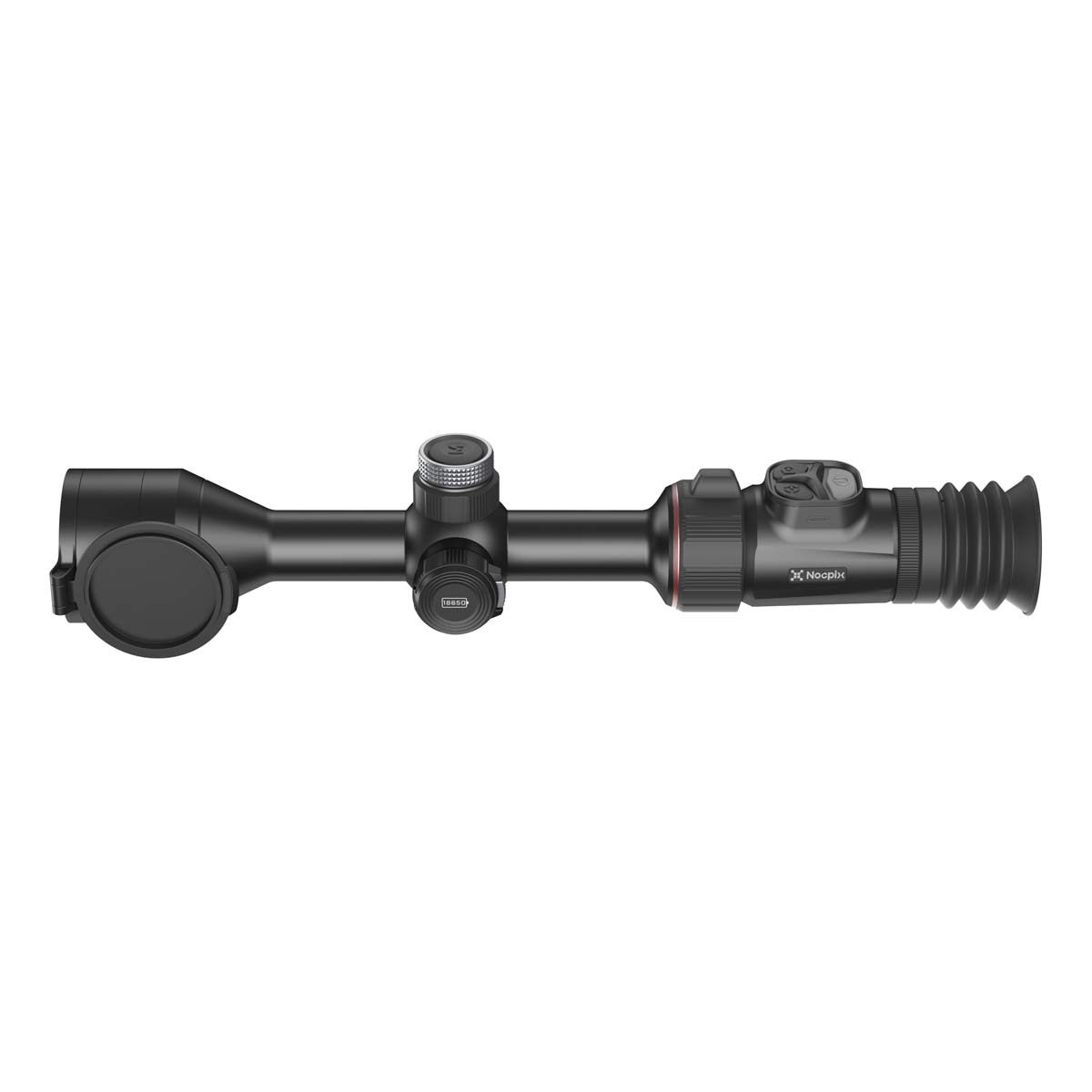

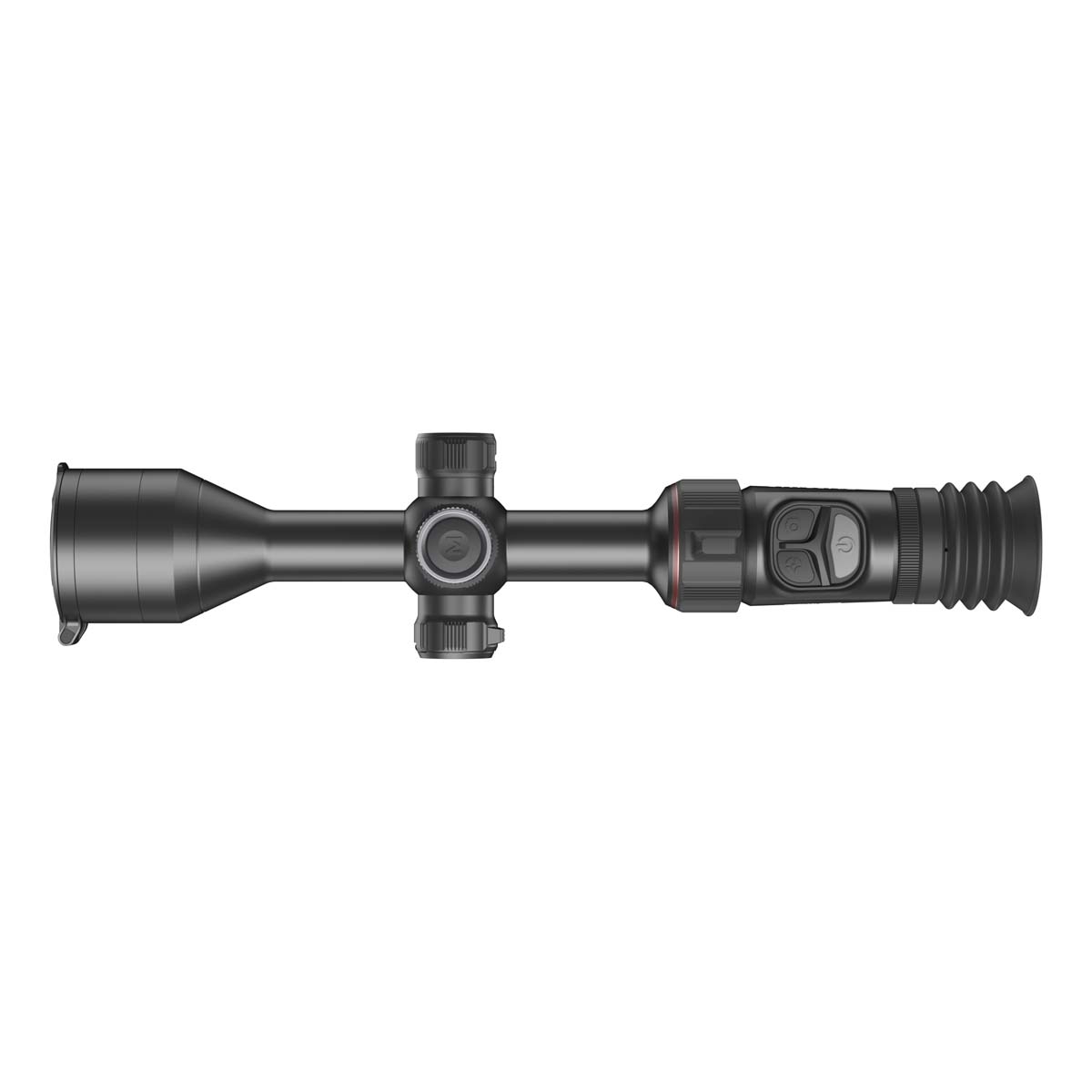

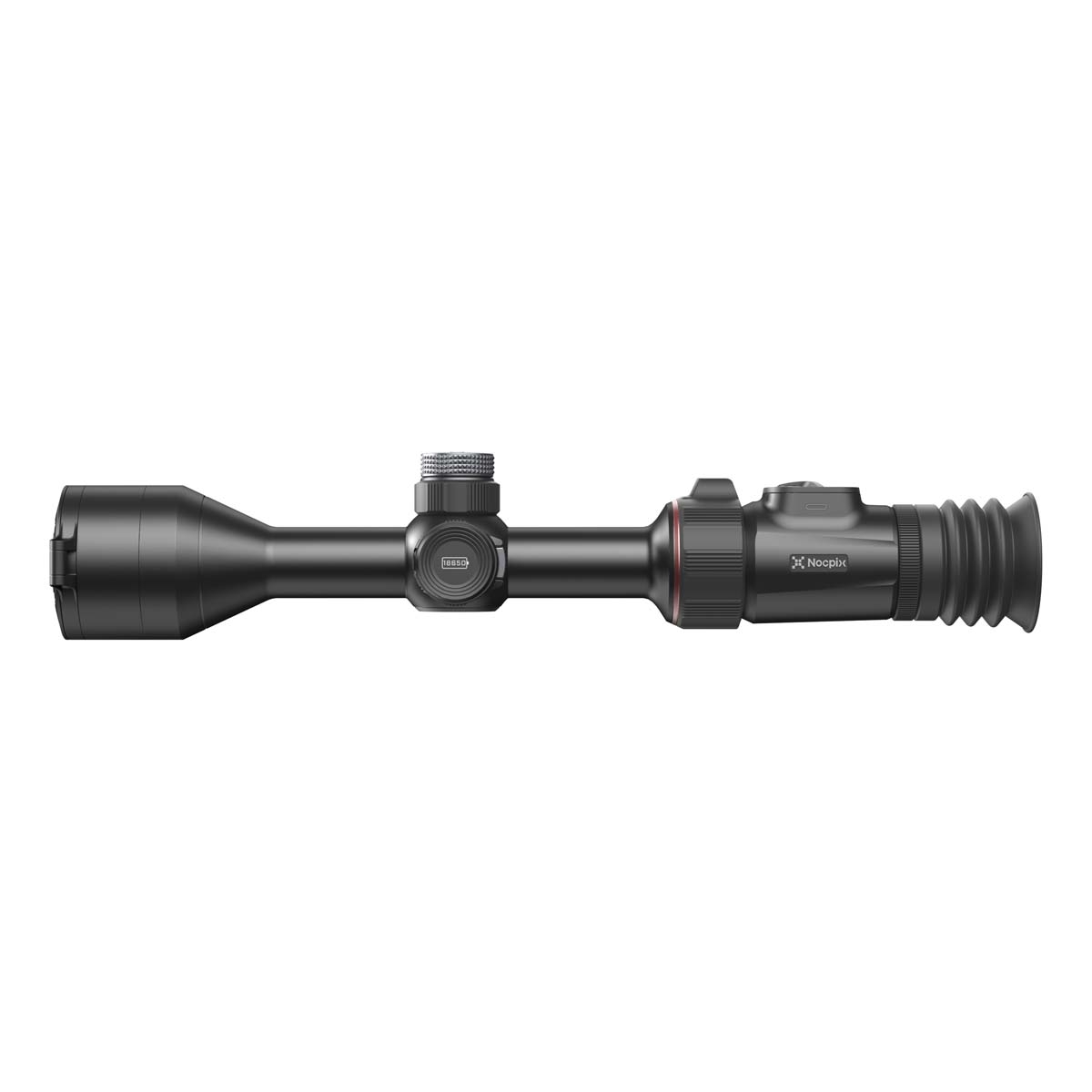

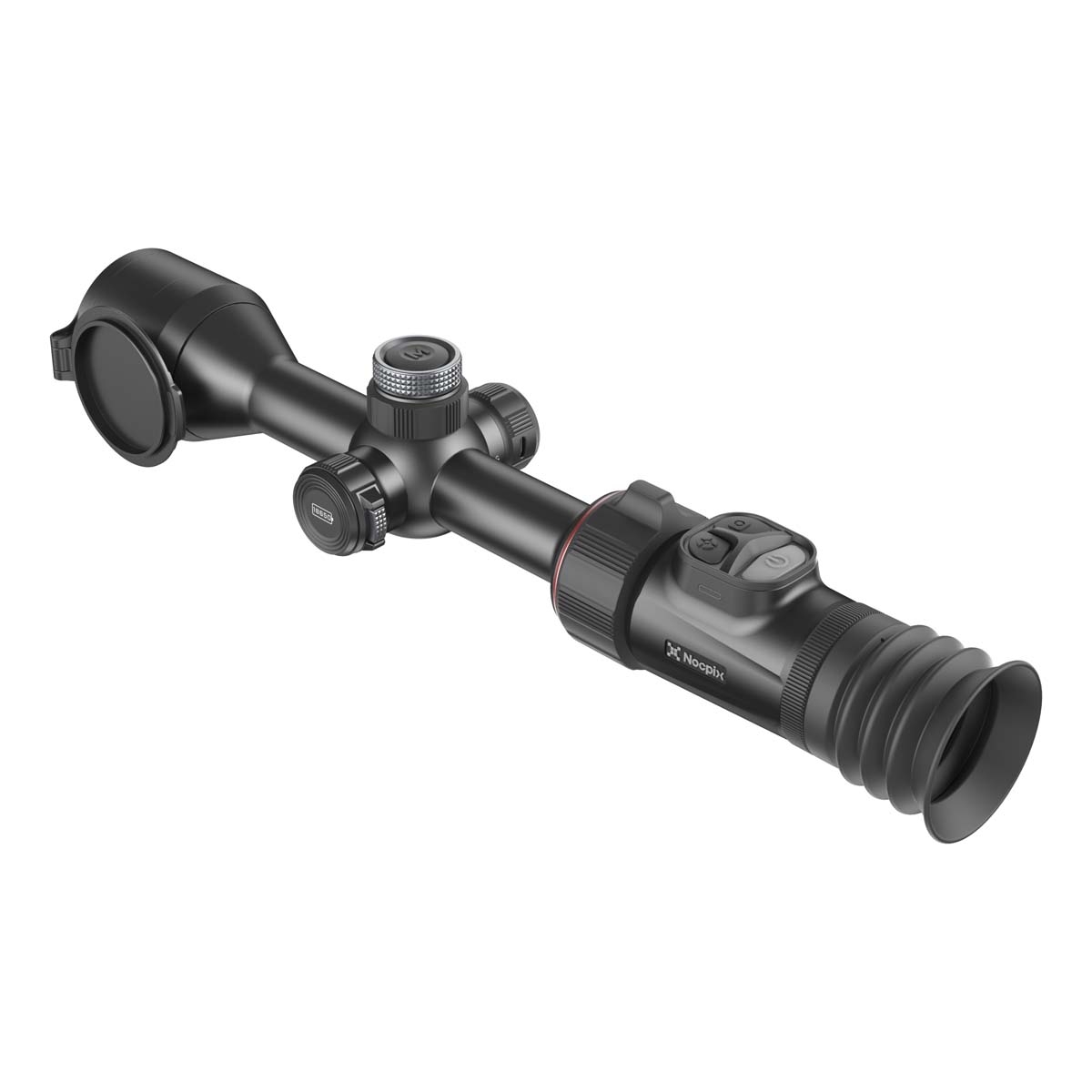

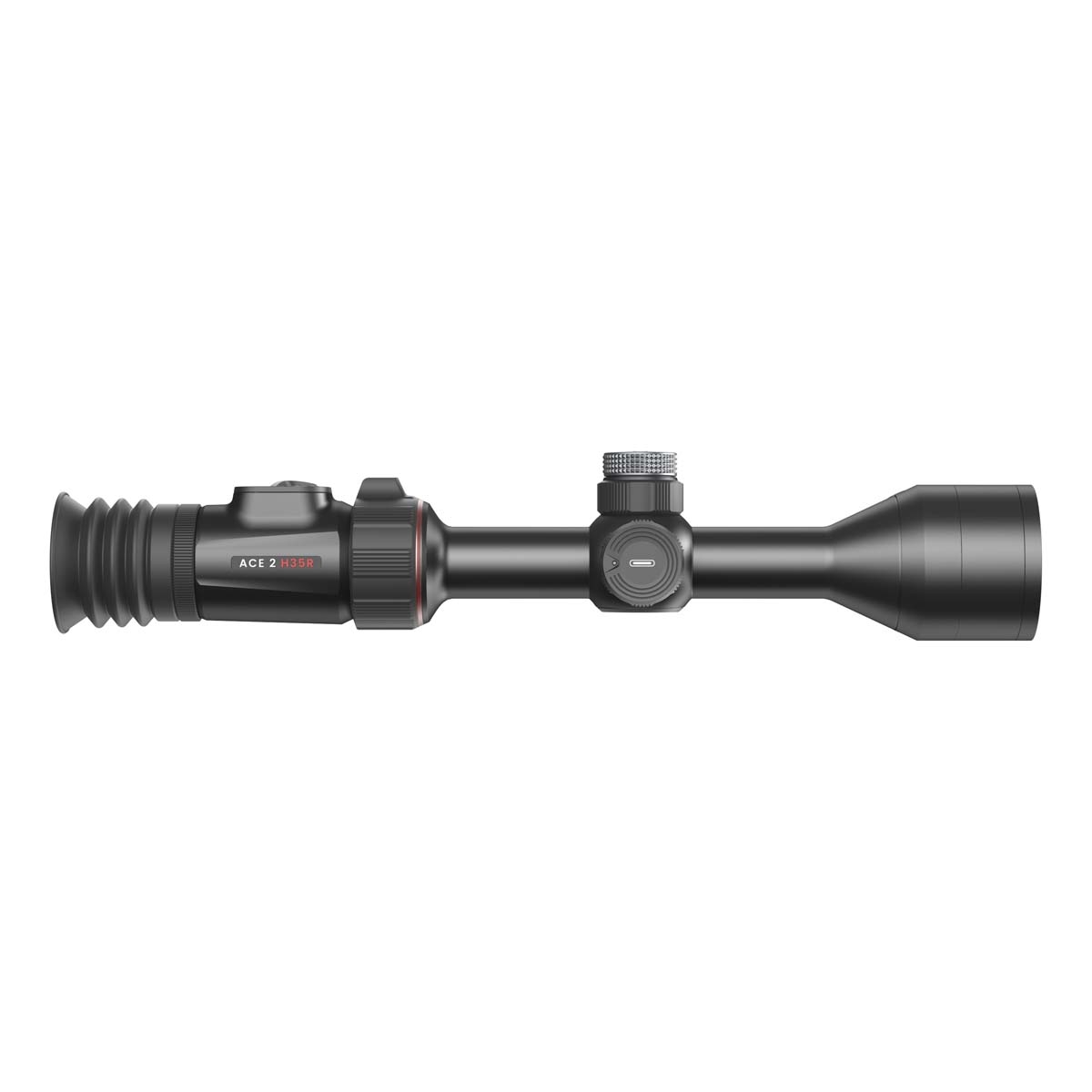

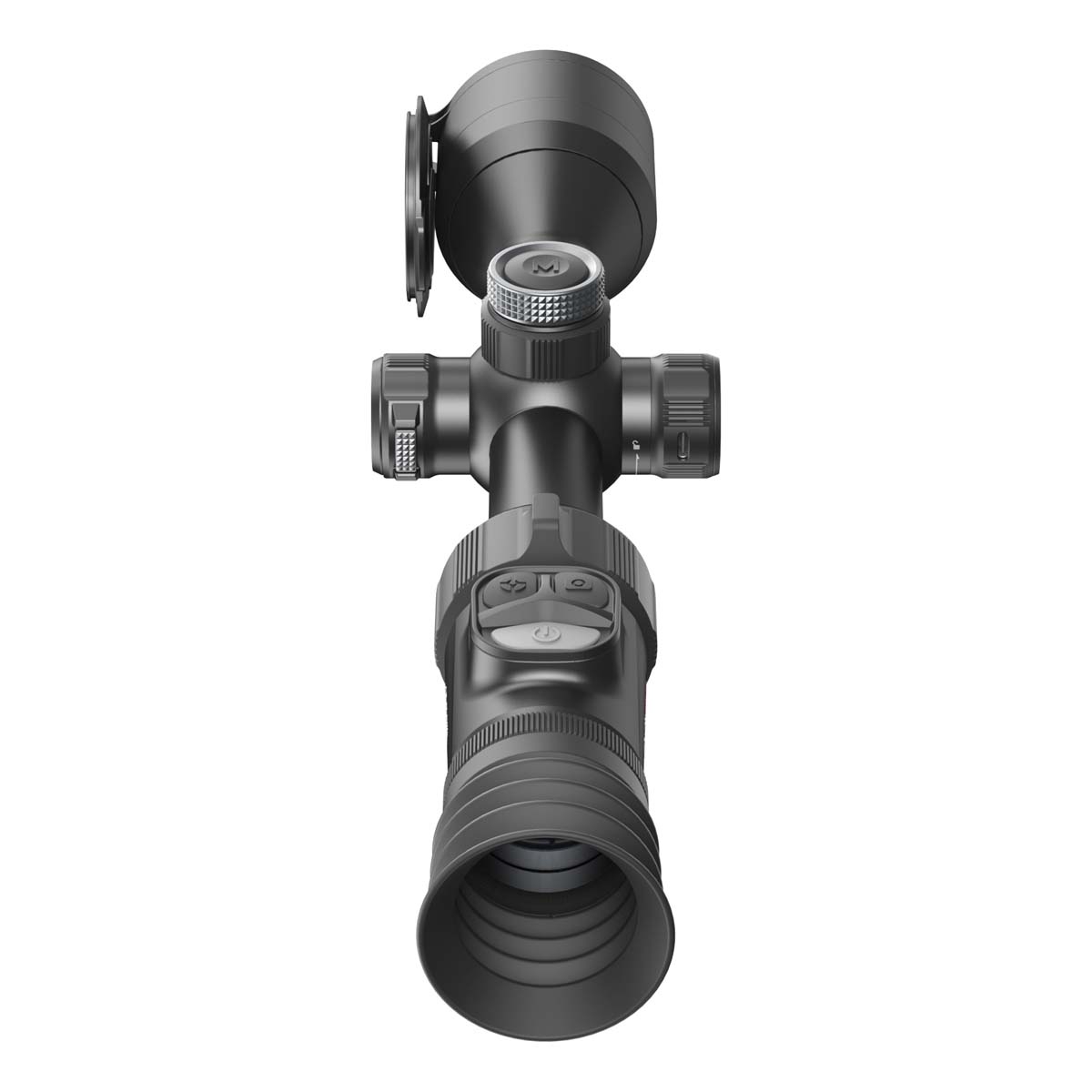

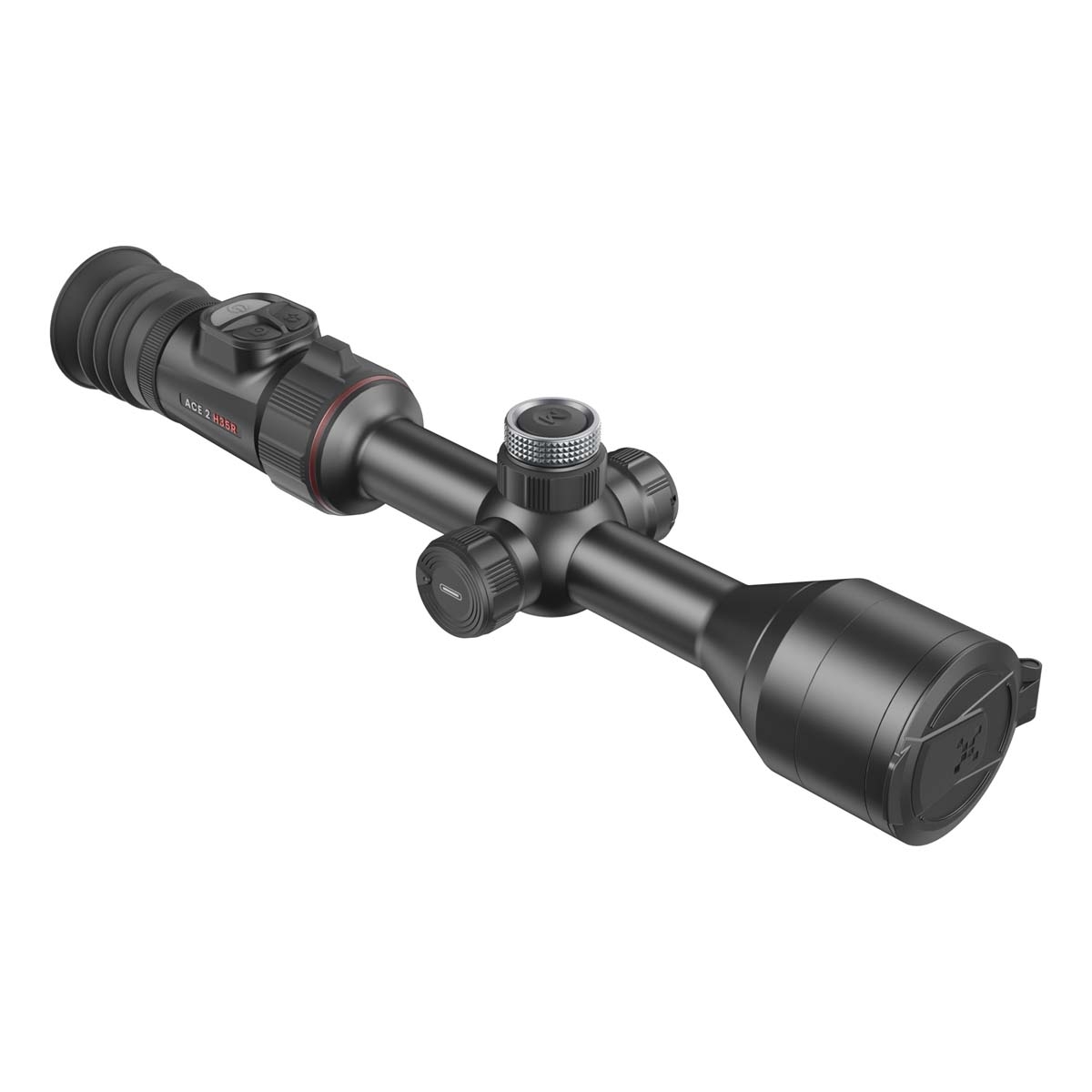

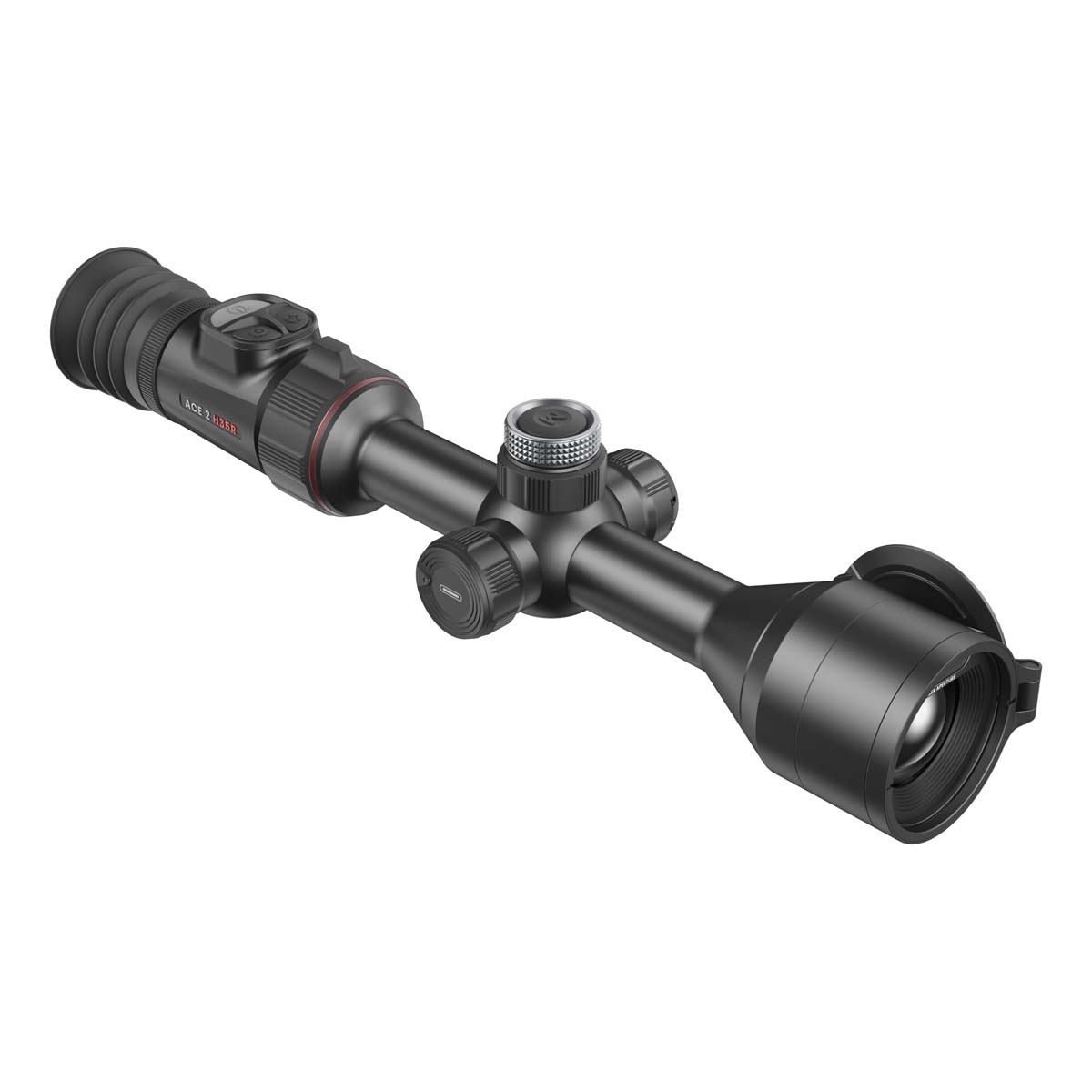

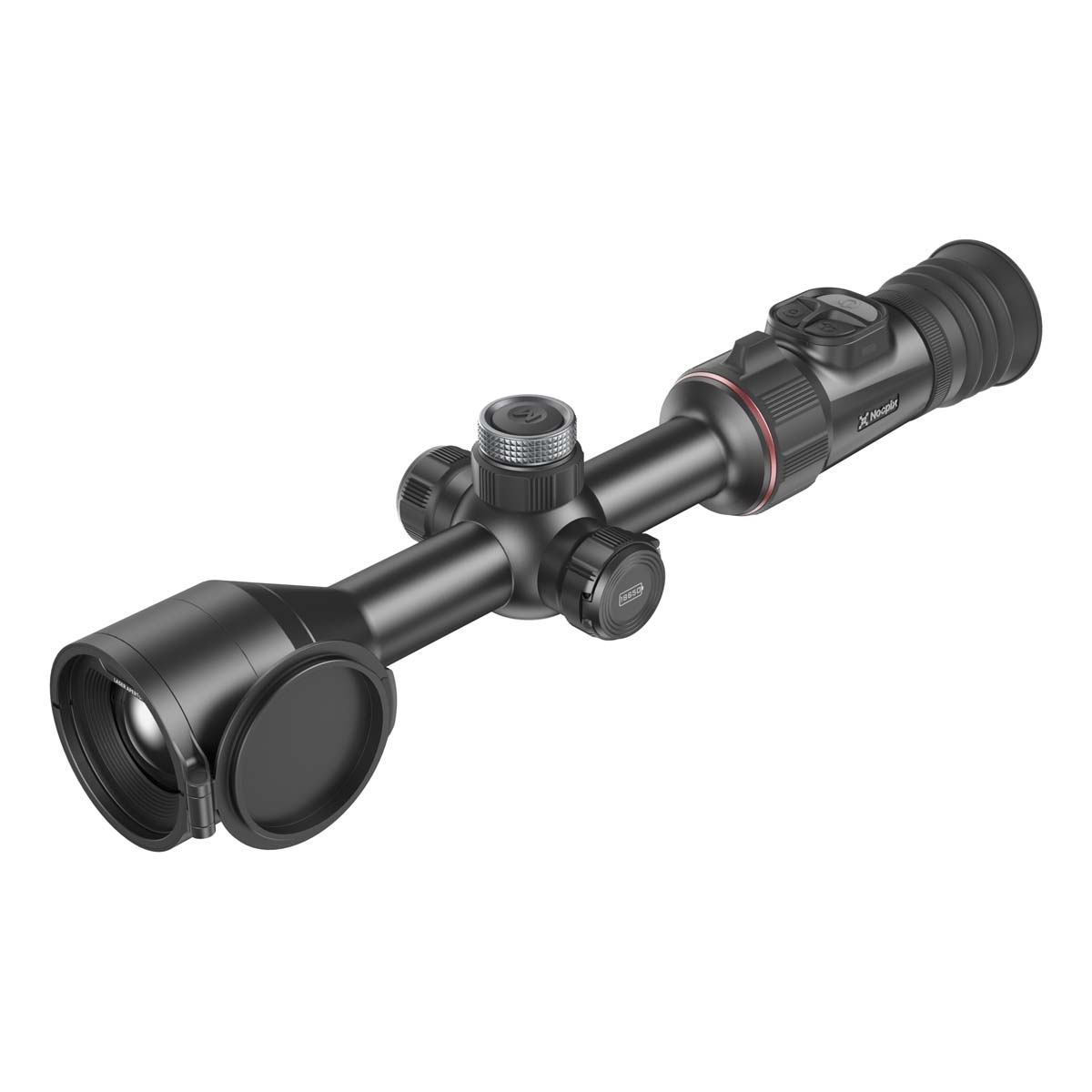

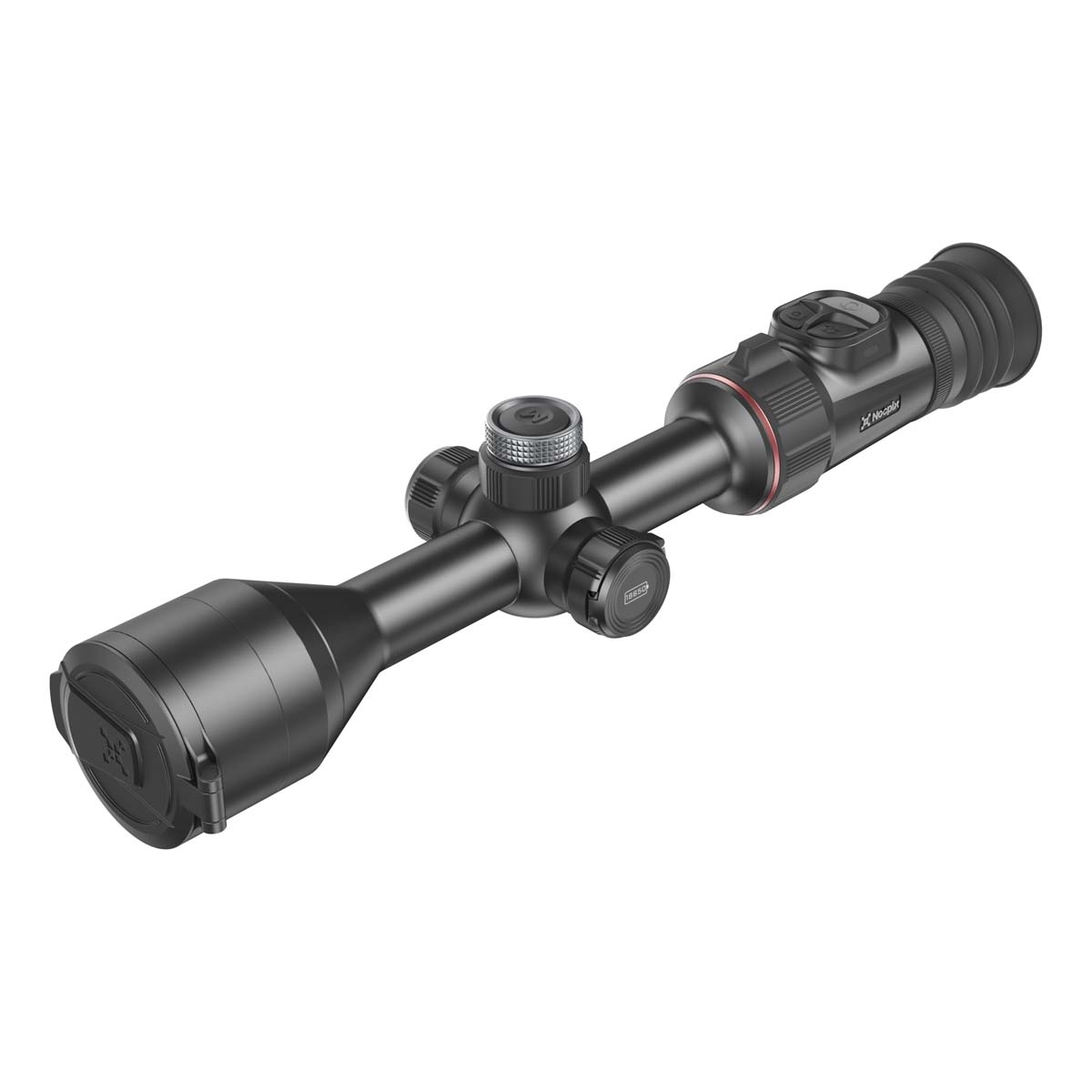

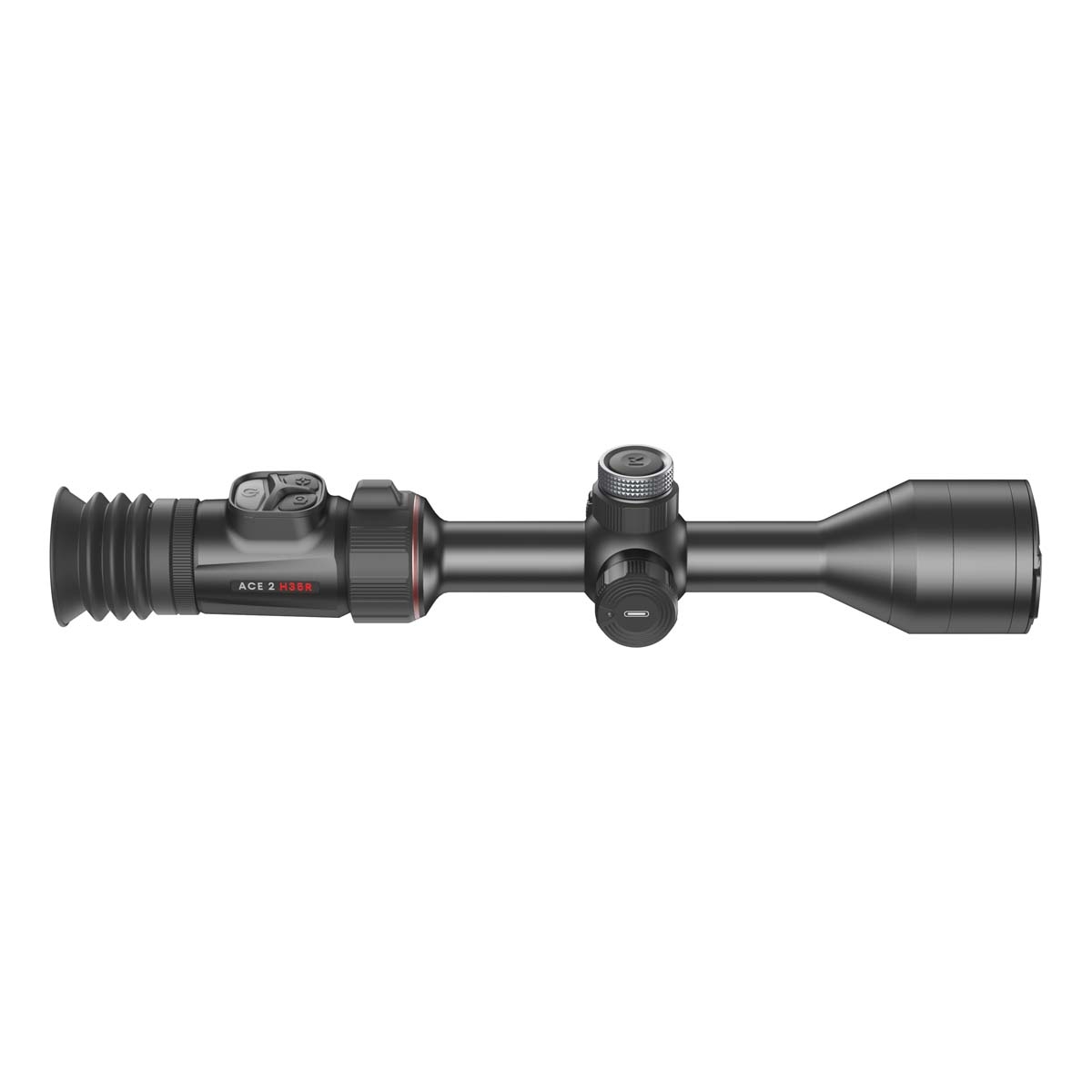

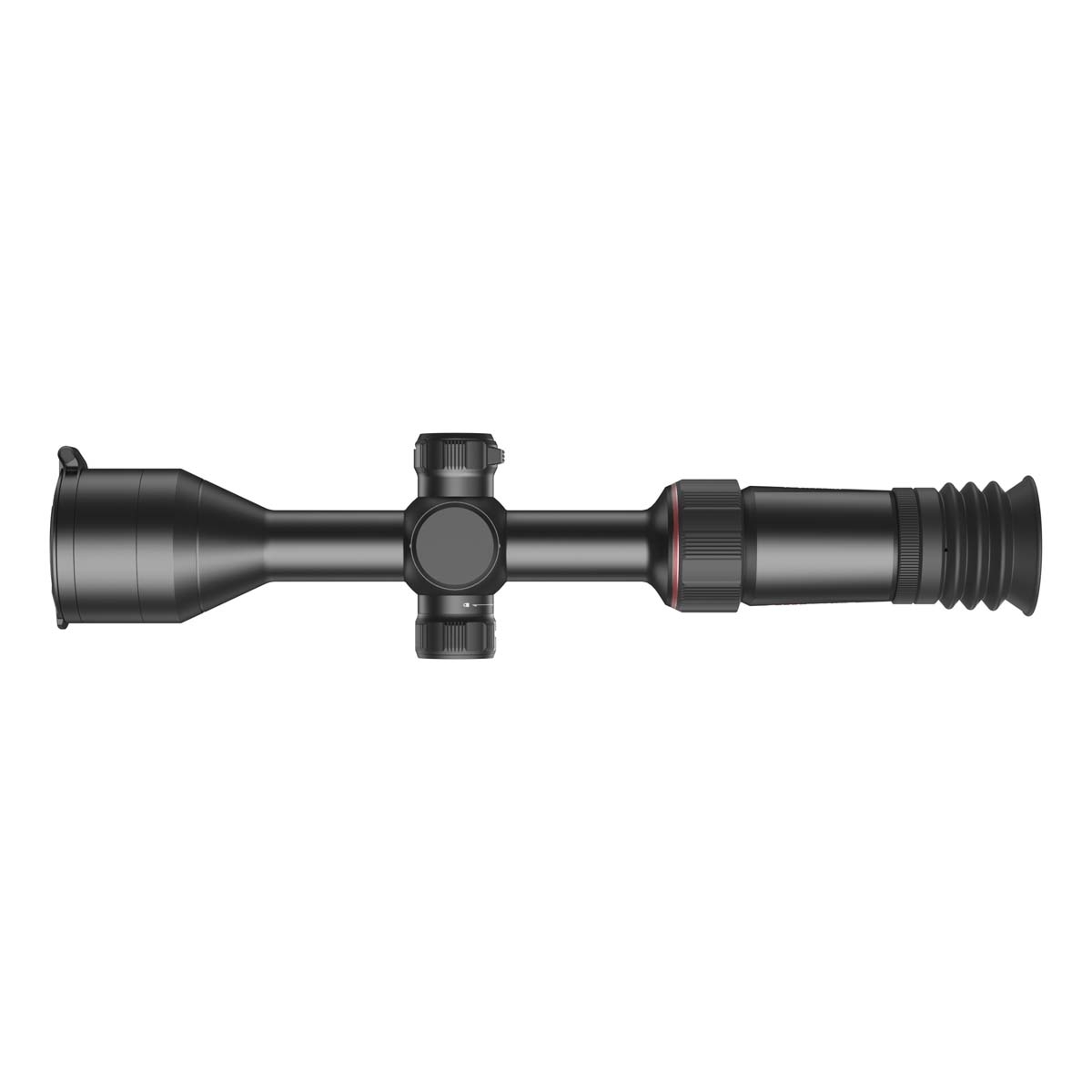

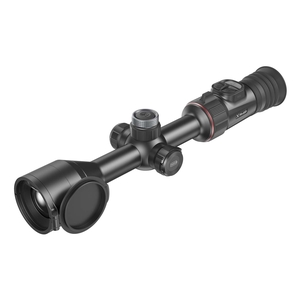

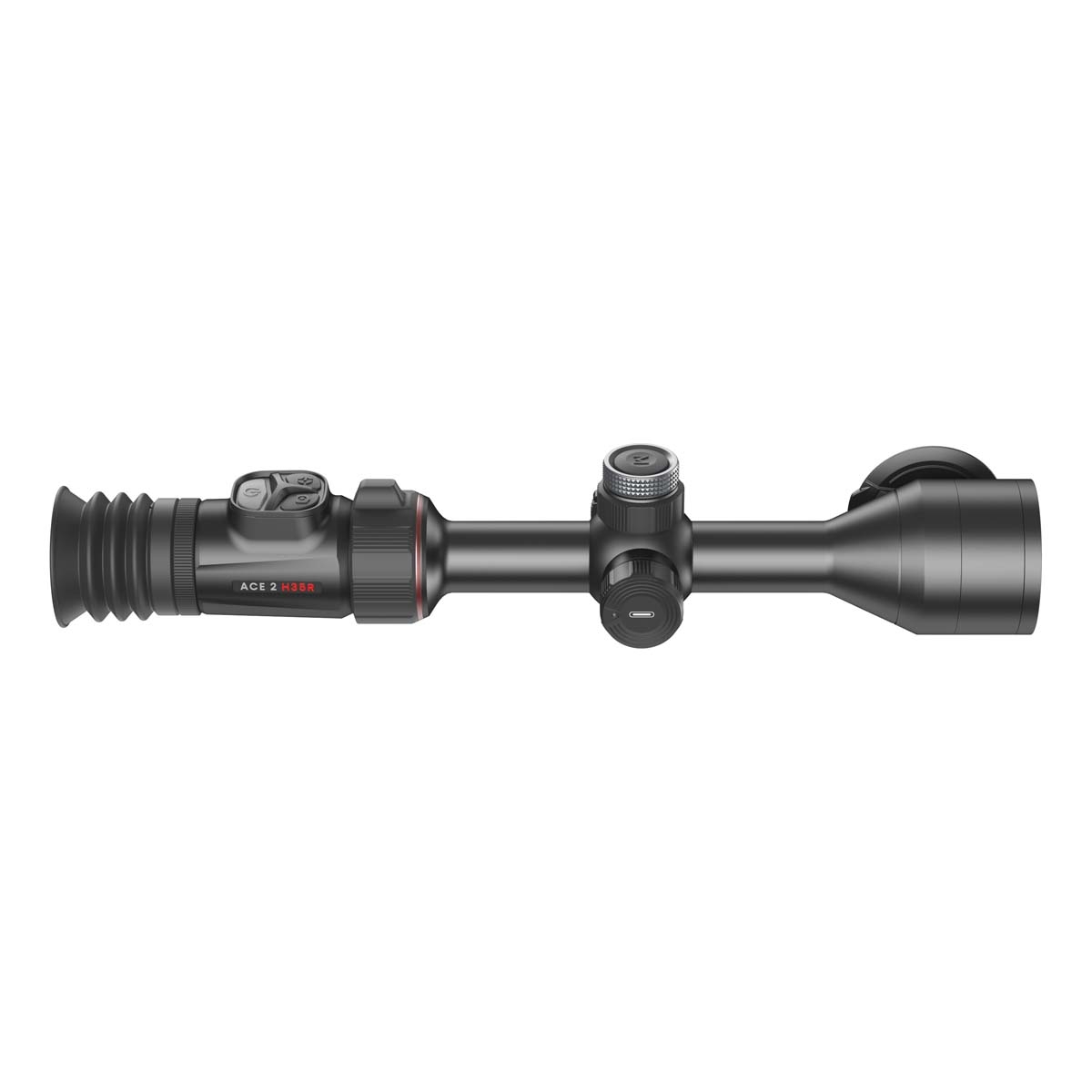

Nocpix ACE 2 H35R Thermal (640x512) Riflescope w/LRF

The Nocpix ACE 2 H35R Thermal Scope combines a 640 x 512 thermal sensor with 12mK NETD sensitivity, a 35mm objective lens and 2–20x magnification. Designed for hunters, it brings detailed thermal imaging, integrated laser rangefinding and ballistic calculation together in a magnesium alloy body weighing 850g.

A round 2560 x 2560 display and Vision+ viewing system provide a clear, immersive view, while Dual Clarity Mode lets you adapt the image to moving subjects or detailed observation of a stationary scene.

Thermal Imaging & Viewing

The Gen 3 sensor operates at 60Hz, with R+ 2.0 image processing designed to reduce environmental temperature noise and enhance contrast and detail. Motion mode prioritises smooth rendering of moving targets, while Still mode emphasises finer detail in foliage and subjects.

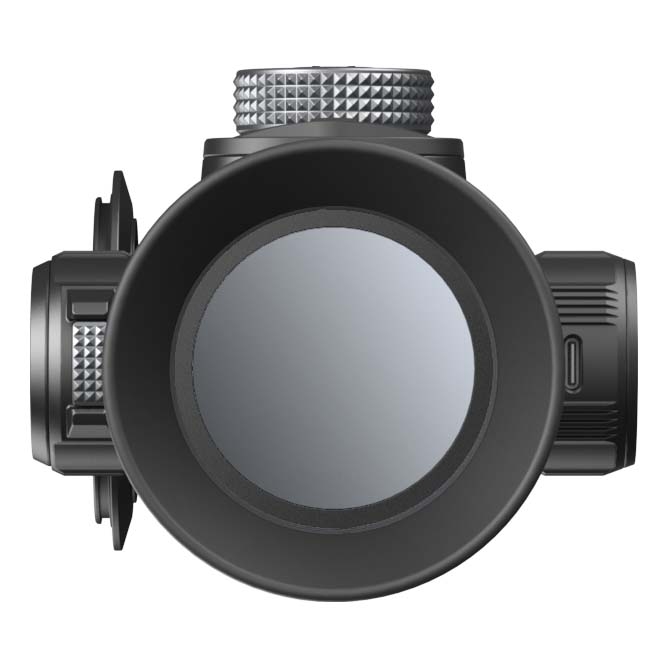

The Vision+ system combines an AMOLED display with a round viewing format and 60mm eye relief. A central focus system and Ocular Zoom 2.0 complete the viewing controls.

Integrated Rangefinding & Ballistics

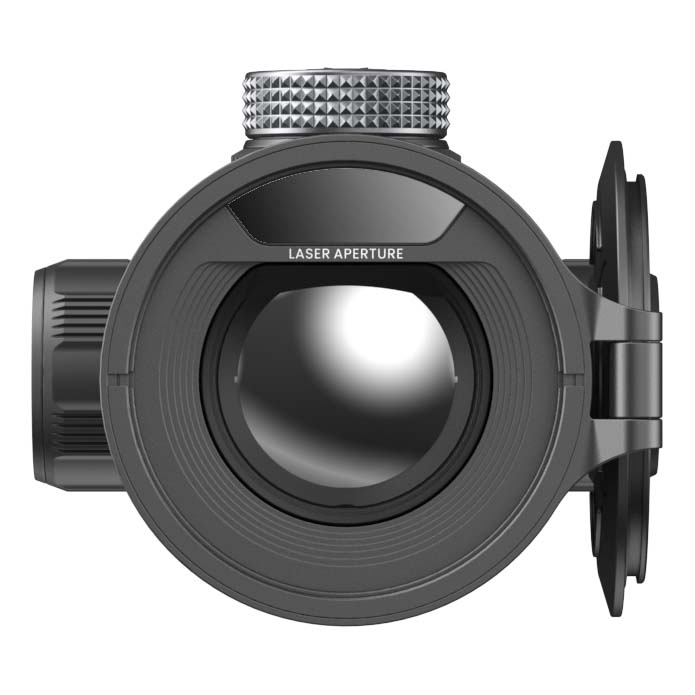

The integrated LRF 2.0 laser rangefinder measures distances up to 1200m. Ballistic Calculation 2.0 incorporates inclination and wind drift, bringing distance measurement and ballistic support into the scope.

Construction & Power

A full magnesium alloy body keeps the scope's weight to 850g, with stated impact resistance of 7000J. Built-in and replaceable batteries support extended use, and two 18650 batteries and a charger are included.

Nocpix ACE 2 H35R Thermal Scope Key Features

• 640 x 512 Gen 3 thermal sensor with 12mK NETD sensitivity.
• Dual Clarity Mode with dedicated Motion and Still settings.
• R+ 2.0 image processing for improved contrast and detail.
• Integrated LRF 2.0 with a maximum ranging distance of 1200m.
• Ballistic Calculation 2.0 with inclination and wind drift support.
• Vision+ system with a high-resolution round AMOLED display.
• Central focus system, Ocular Zoom 2.0 and target tracking.
• Recoil-activated video and 64GB internal storage.
• Full magnesium alloy construction.

Nocpix ACE 2 H35R Thermal Scope Specifications

• Thermal sensor resolution: 640 x 512.
• Frame rate: 60Hz.
• NETD: 12mK.
• Objective lens: 35mm.
• Aperture: f/0.9.
• Magnification: 2–20x.
• Detection range: 1800m.
• Laser rangefinder distance: up to 1200m.
• Display resolution: 2560 x 2560.
• Display shape: round.
• Eye relief: 60mm.
• Exit pupil: 10mm.
• Battery configuration: built-in and replaceable batteries.
• Internal storage: 64GB.
• Weight: 850g.
• Impact resistance: 7000J.

Included Accessories

• ACE 2 Series thermal imaging scope.
• Heated target for zeroing.
• Lens cloth.
• Two 18650 batteries.
• Type-C cable.
• Quick start guide.
• Battery charger.
• Portable bag.

Nocpix ACE 2 H35R Thermal Scope Review

The Nocpix ACE 2 H35R offers a comprehensive specification for hunters seeking thermal imaging, rangefinding and ballistic support in one riflescope. Its principal strengths are the 12mK thermal sensitivity, selectable image modes and high-resolution round display. This assessment focuses on its features and specifications rather than hands-on testing.

Performance & Key Features

The 640 x 512 sensor, 60Hz frame rate and R+ 2.0 processing form the core of the imaging system. Dual Clarity Mode adds useful flexibility, with Motion and Still settings addressing different observation needs. The 2–20x magnification range is complemented by integrated 1200m laser ranging and ballistic calculation with inclination and wind drift support.

Build Quality & Handling

The magnesium alloy body combines an 850g weight with stated 7000J impact resistance. Central focusing and 60mm eye relief are notable handling features, while the round display is designed to provide a natural viewing experience.

Is It Easy to Use?

The central focus system and selectable clarity modes provide direct ways to adjust the view to the scene. Integrated rangefinding keeps distance measurement within the scope, while recoil-activated video supports recording without manually starting each clip. The supplied heated target, batteries and charger are practical additions for initial setup and use.

Key Takeaways

The ACE 2 H35R brings together sensitive thermal imaging, a detailed display and integrated ranging in an 850g package. Its selectable image modes are a particular point of interest for hunters alternating between moving subjects and stationary observation. The stated 1800m detection range and 1200m laser ranging distance describe separate capabilities and should not be treated as identification or effective shooting ranges. For Uttings customers seeking these features in one thermal riflescope, the H35R is worth considering.

Nocpix ACE 2 H35R Thermal Scope FAQs

What thermal sensor does the H35R use?

The H35R uses a 640 x 512 Gen 3 thermal sensor with 12mK NETD sensitivity. It operates at a 60Hz frame rate and is supported by R+ 2.0 image processing.

What is the magnification range?

The scope provides 2–20x magnification. It pairs this range with a 35mm f/0.9 objective lens and Ocular Zoom 2.0.

How do Motion and Still modes differ?

Motion mode prioritises smooth rendering of fast-moving subjects. Still mode enhances fine detail in stationary scenes, including foliage, allowing you to select the presentation best suited to your observation.

How far can the integrated laser rangefinder measure?

The integrated LRF 2.0 measures distances up to 1200m. The scope also includes Ballistic Calculation 2.0 with inclination and wind drift support.

What display and eye relief does it offer?

The H35R has a round 2560 x 2560 AMOLED display within its Vision+ system. Eye relief is 60mm, and the exit pupil measures 10mm.

Does the scope have a replaceable battery?

Yes. The H35R combines a built-in battery with a replaceable battery. Two 18650 batteries, a battery charger and a Type-C cable are included.

Can it record video automatically?

Yes. Recoil-activated video is included, along with 64GB of internal storage.

How much does the H35R weigh?

The scope weighs 850g and has a full magnesium alloy body. Its stated impact resistance is 7000J.
