Vanguard Veo 5 264AO28 Tripod

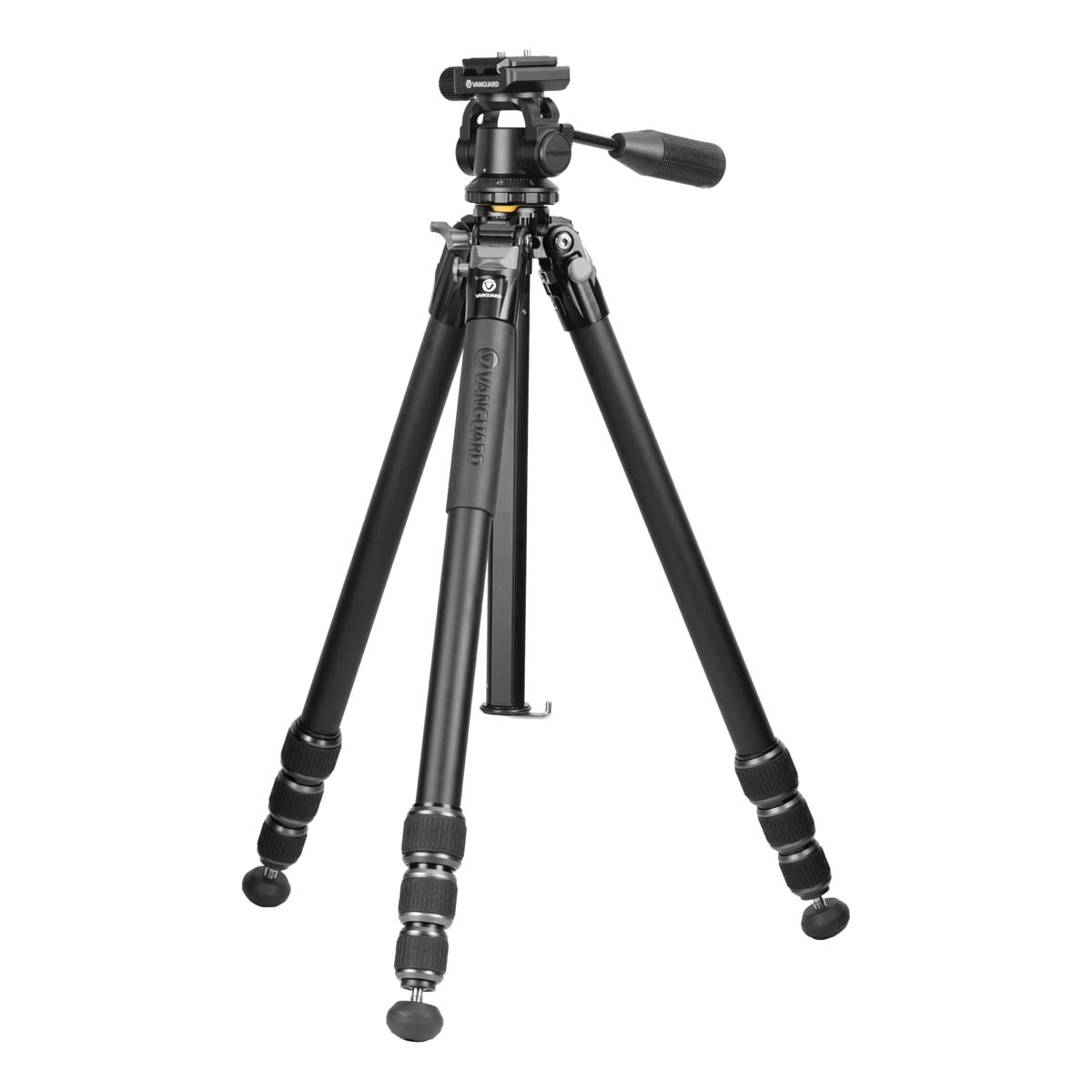

The Vanguard VEO 5 264AO is a full-size aluminium tripod designed for birdwatchers and nature enthusiasts using a spotting scope. With an 8kg load capacity, a maximum height of 167cm and an Arca-compatible VEO PH-28 two-way pan head, it combines substantial support with convenient one-handed scope control.

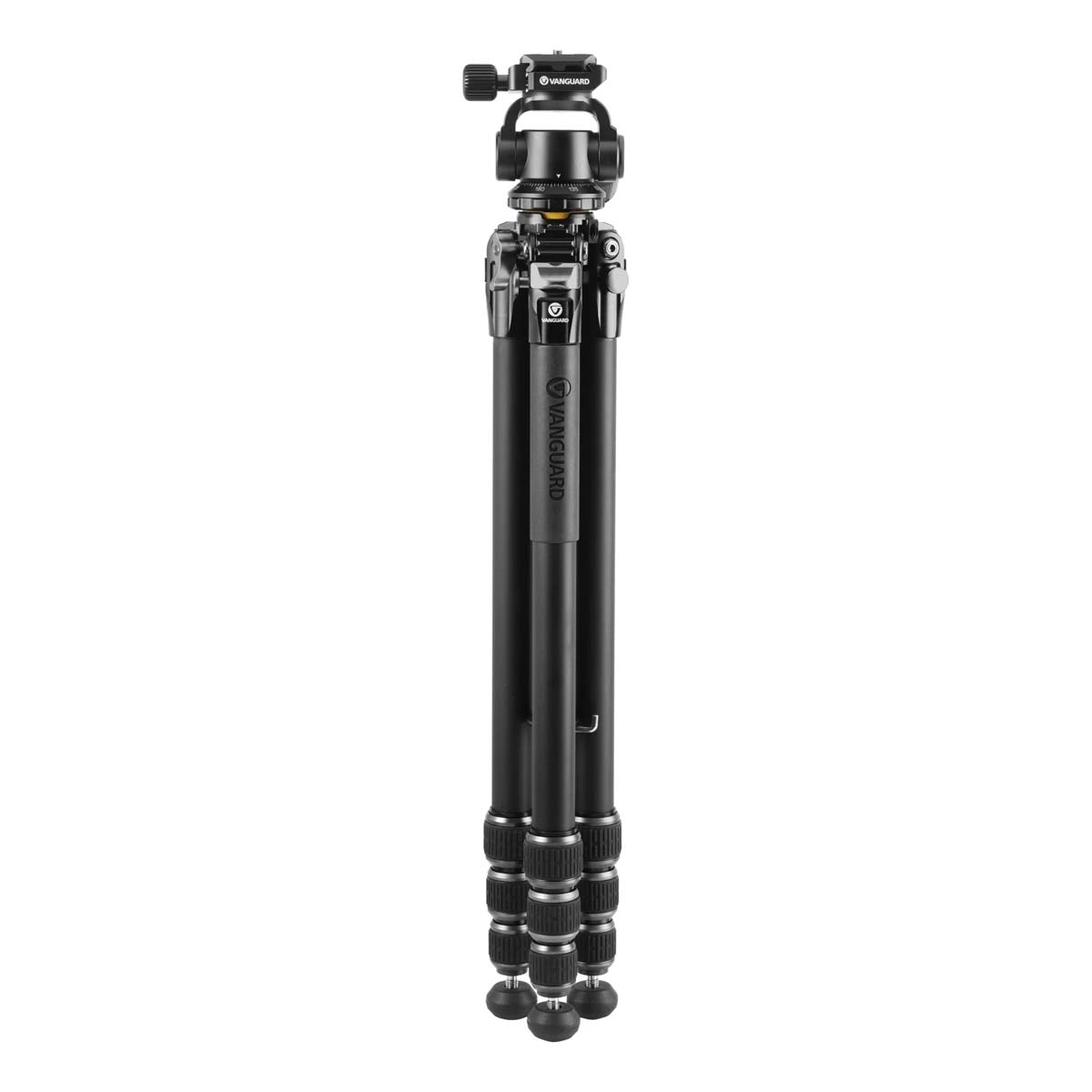

Its four-section legs and hexagonal centre column allow it to fold to 58cm long and just 9.25cm in diameter. A luxury padded shoulder bag is included for storage and transport.

Precision-Machined Aluminium Construction

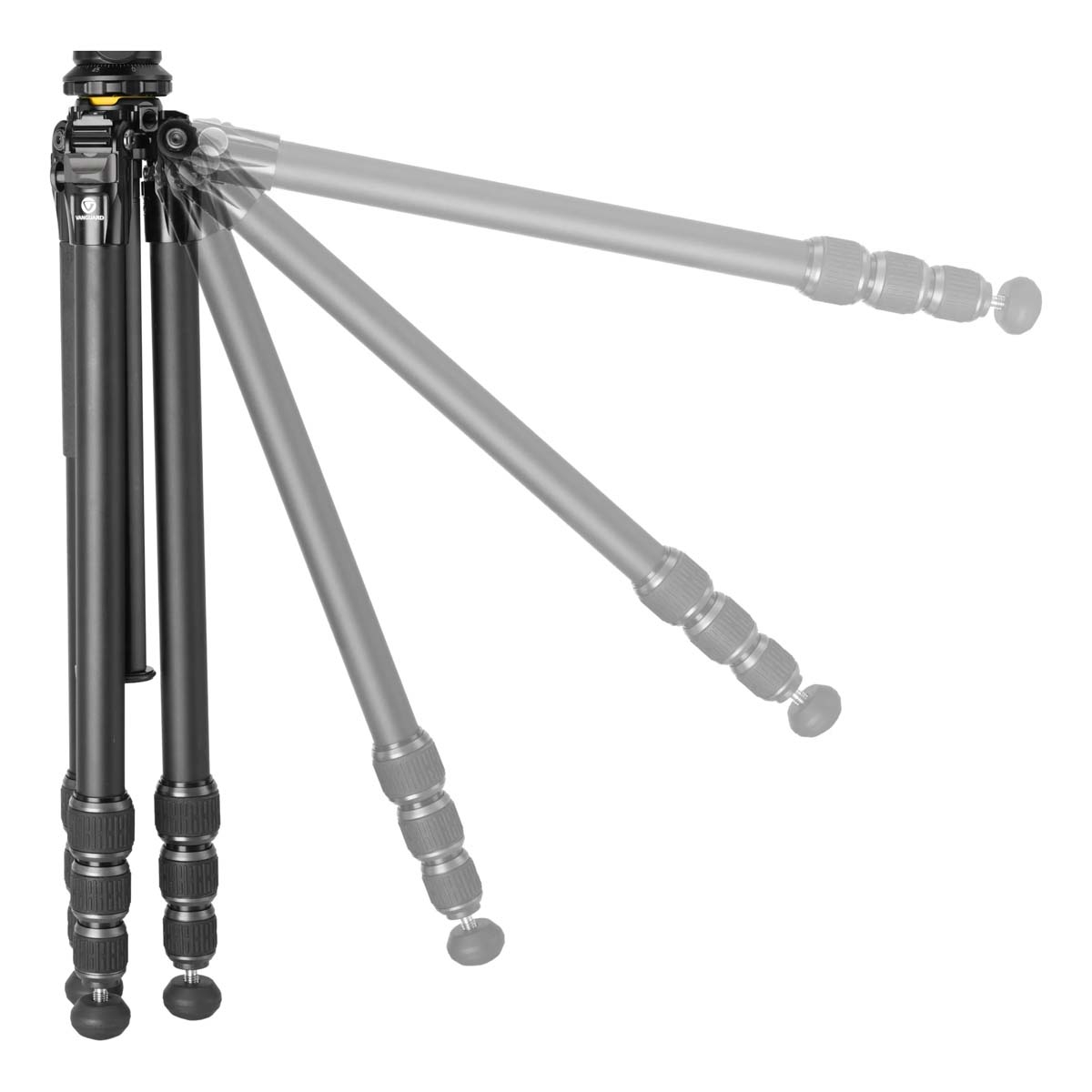

Key load-bearing aluminium components are CNC machined to reduce weight and achieve precise tolerances for smooth movement. The 26mm legs feature silent, quick-set twist locks designed for easy cleaning, with three selectable leg angles of 23°, 50° and 80°.

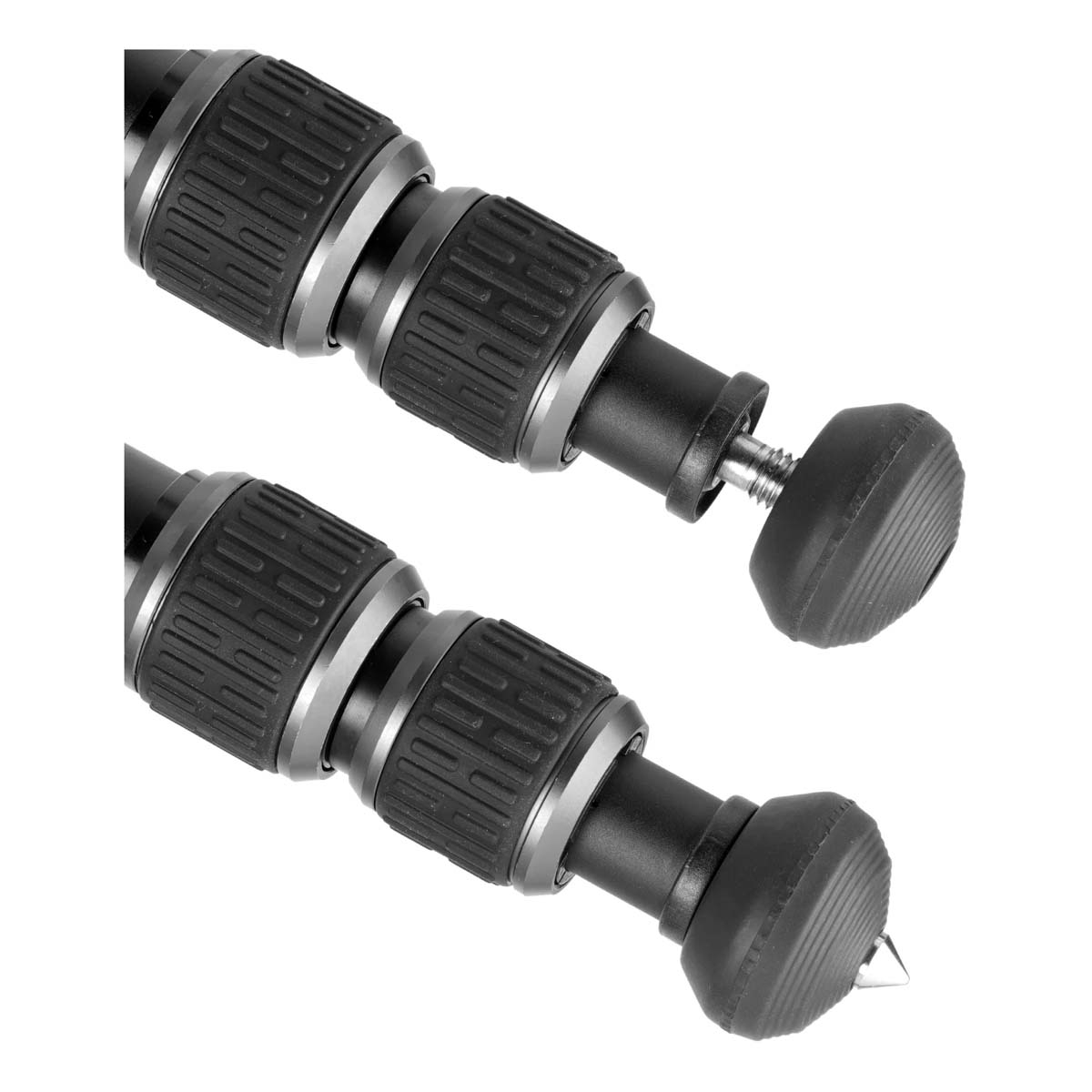

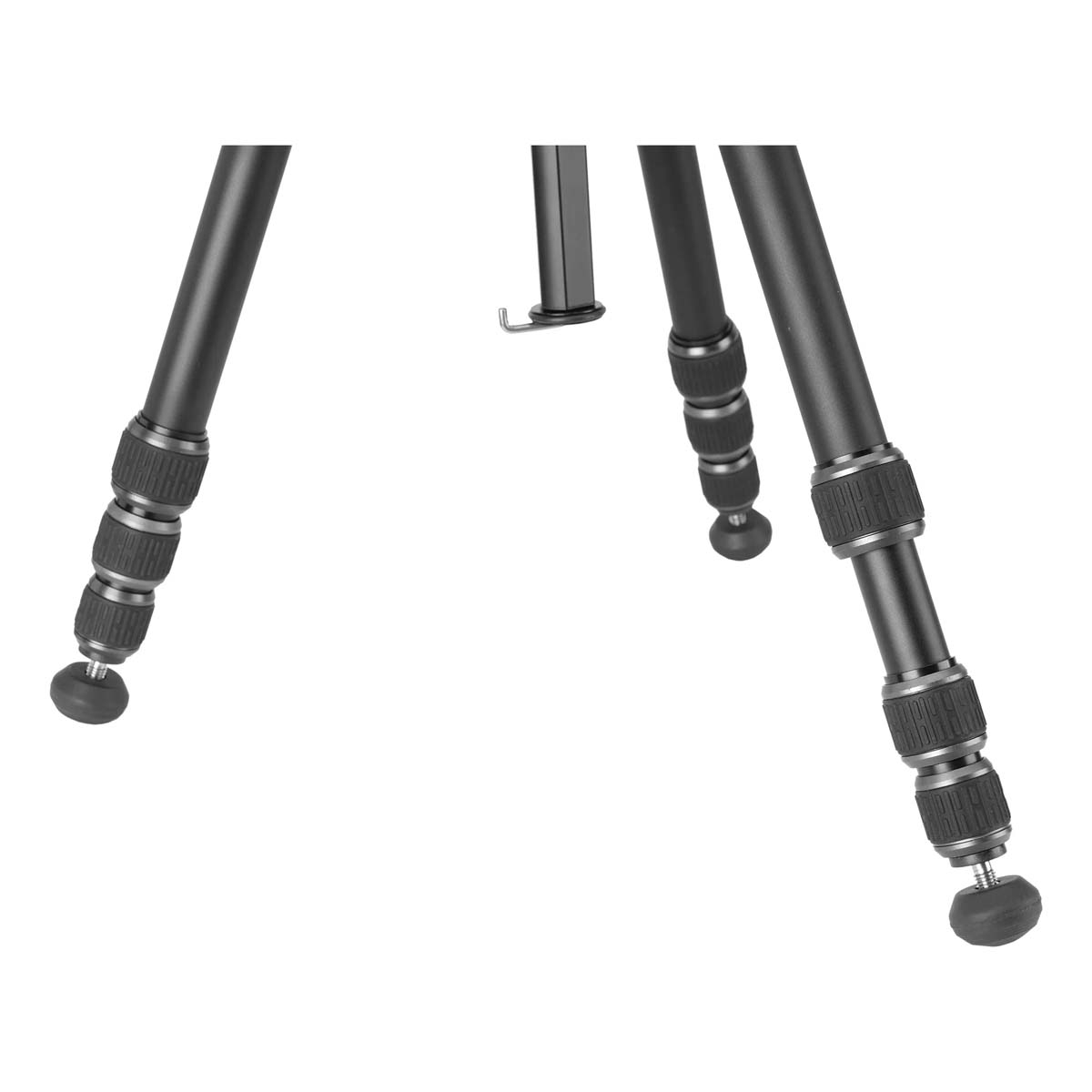

Retractable rubber and spiked feet allow you to adapt the contact points to the terrain. A retractable hook provides an attachment point for additional weight when extra stability is needed.

One-Handed Tracking and Locking

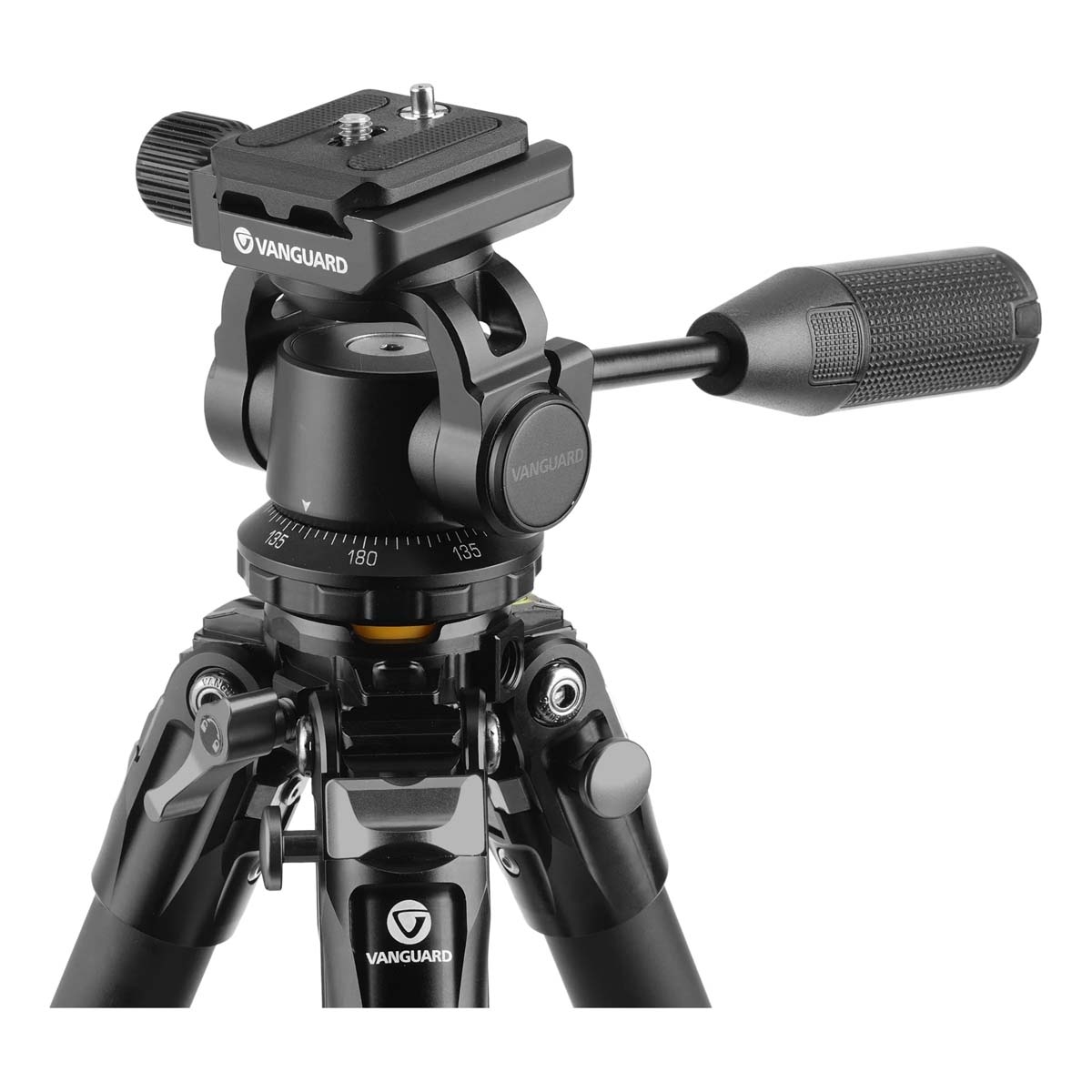

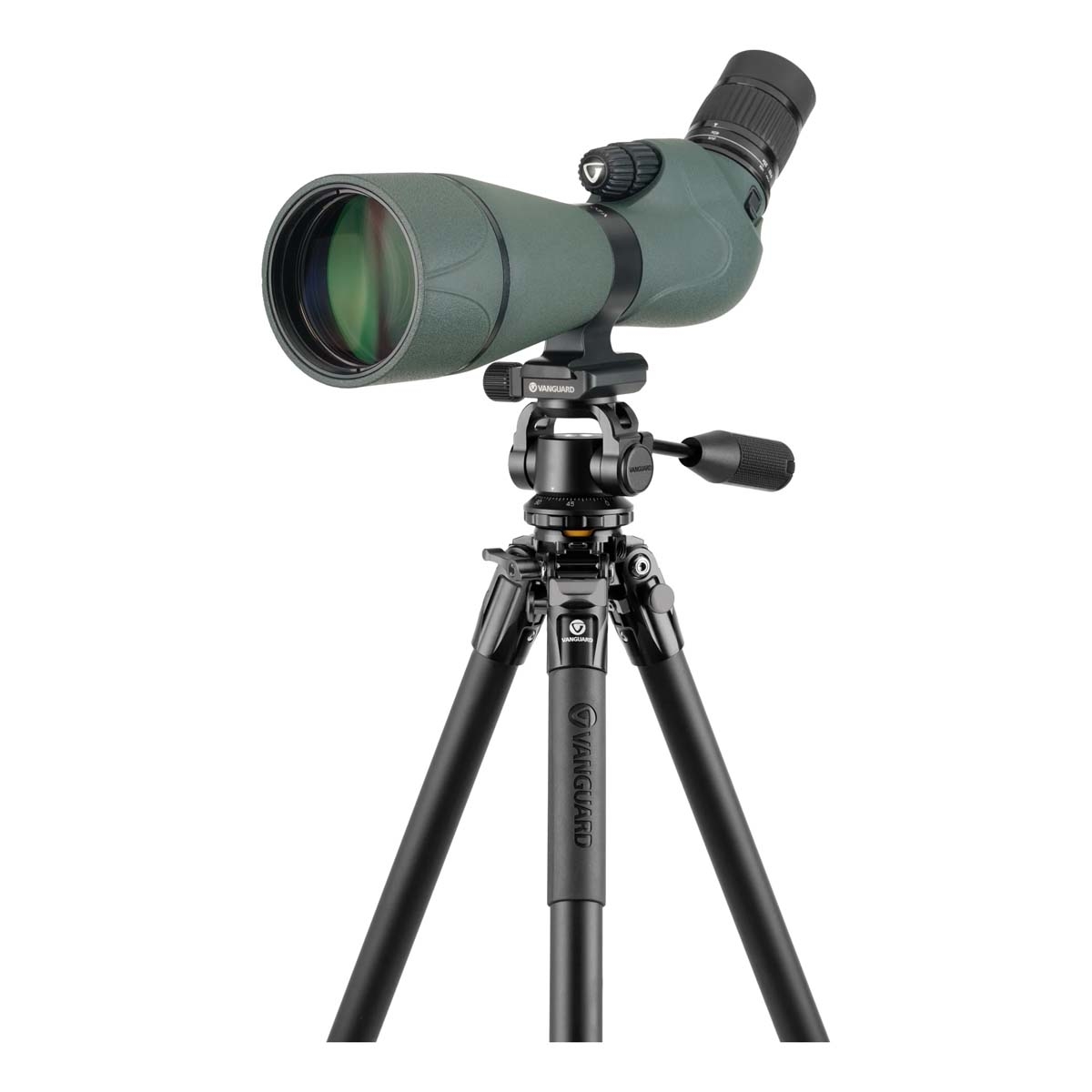

The VEO PH-28 spotting-scope head uses a single telescopic pan handle to control movement and locking. Loosen the handle to pan through 360° and tilt from -91° to +30°, then turn it to secure the scope in position. This leaves your other hand free to adjust focus or zoom while following wildlife.

Scopes with an Arca-compatible foot attach directly to the head clamp. For other scopes, the included QS-55P quick release plate features a non-twist spring pin designed to prevent the plate from unscrewing from the scope base.

Flexible Height and Low-Angle Setup

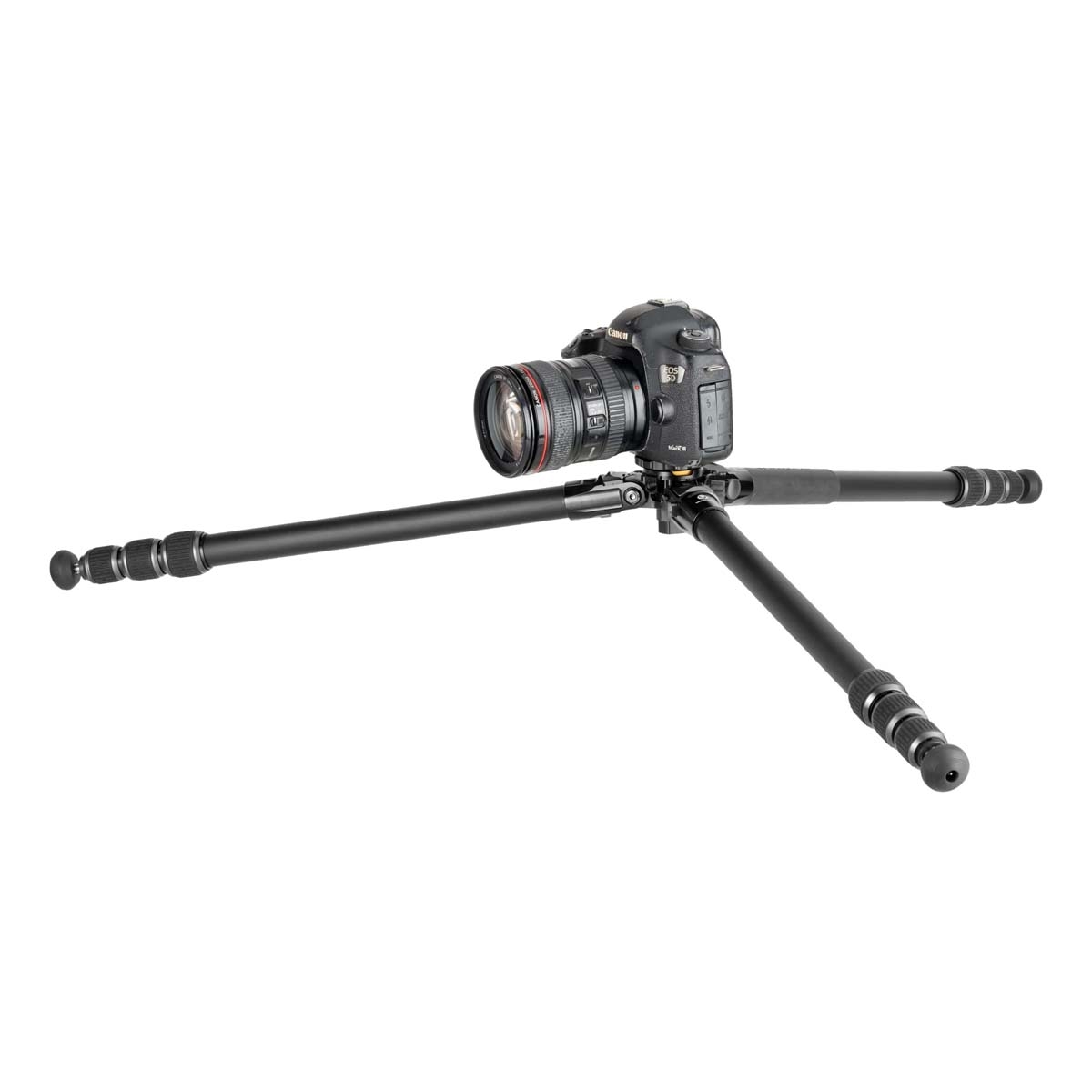

The tripod reaches 141cm with the centre column down and 167cm with it fully extended. For low-level observation, the split centre column incorporates a built-in low-angle adaptor which, combined with the adjustable leg angles, allows a minimum height of 21cm.

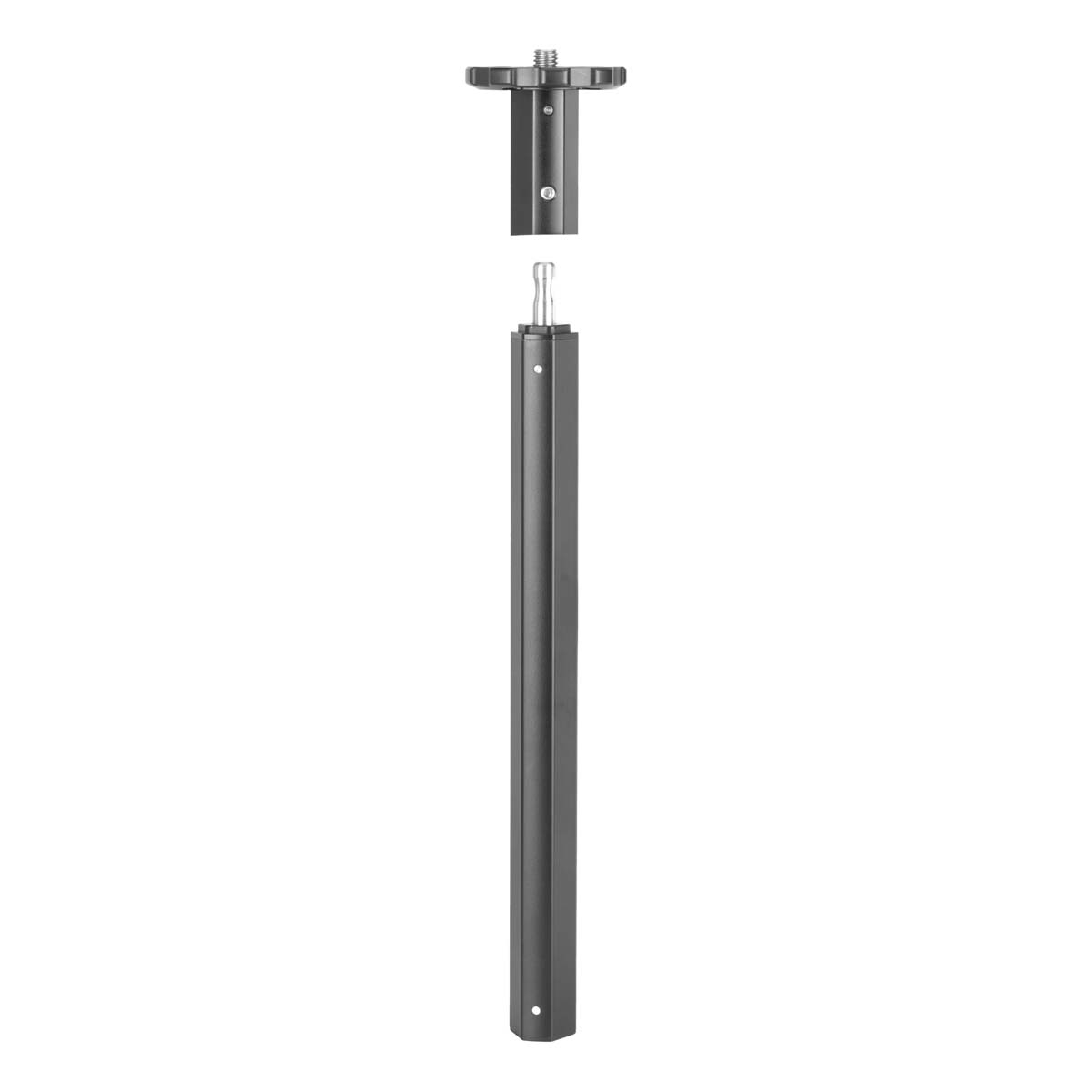

The column can be split using the supplied hex key. If the additional column height is unnecessary, removing its lower portion also reduces the weight carried. The column is reversible, and its hexagonal profile incorporates three curved edges to allow firm contact with traditional hide clamps designed for round columns.

Accessory Mounting and Transport

The central canopy has 3/8-inch threaded mounting points for tripod support arms. Bayonet slots provide additional stability when used with support arms incorporating a matching fitting, such as the optional VEO TSA DLX.

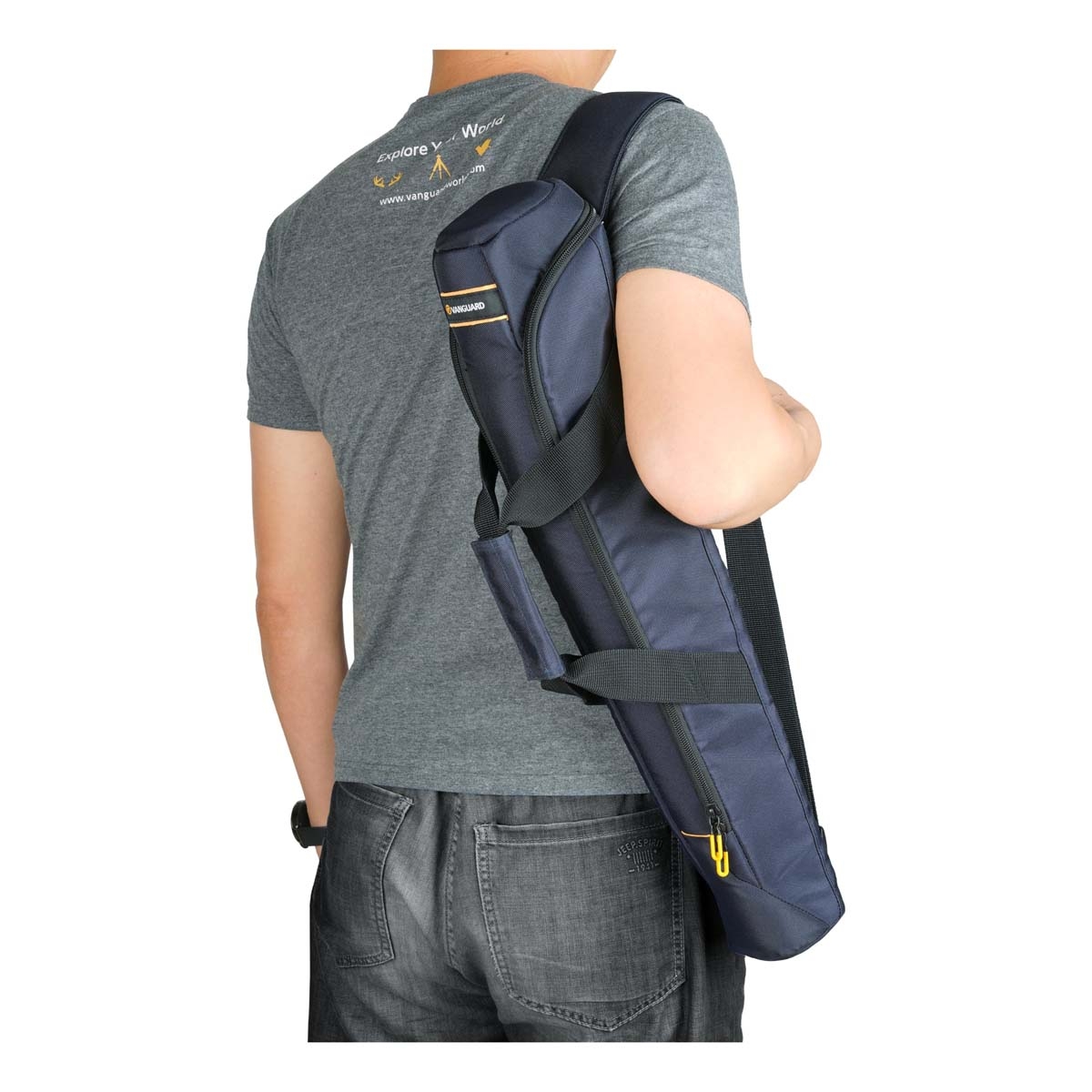

The included padded shoulder bag offers quick top access and full-length access. At 2200g, the tripod combines full-size working height with a compact folded profile for carrying and packing.

Vanguard VEO 5 264AO Key Features

• Aluminium spotting-scope tripod with an 8kg maximum load capacity.
• VEO PH-28 two-way pan head with telescopic handle for movement and locking control.
• Arca-compatible clamp and included QS-55P quick release plate.
• Four-section, 26mm legs with silent, easy-clean twist locks.
• Hexagonal centre column for a compact folded diameter.
• Built-in low-angle adaptor and three selectable leg angles.
• Retractable rubber and spiked feet, plus a retractable weight hook.
• Accessory mounting threads with bayonet slots.
• Luxury padded shoulder bag included.

Vanguard VEO 5 264AO Specifications

• Tripod type: traditional full-size tripod.
• Material: aluminium.
• Weight: 2200g.
• Folded length: 58cm.
• Folded diameter: 9.25cm.
• Maximum height with centre column extended: 167cm.
• Maximum height with centre column down: 141cm.
• Minimum height: 21cm.
• Maximum load capacity: 8kg.
• Leg diameter: 26mm.
• Leg sections: four.
• Leg locks: easy-clean twist locks.
• Leg angles: 23°, 50° and 80°.
• Feet: retractable rubber and spiked feet.
• Centre column: hexagonal, reversible and split, with built-in low-angle adaptor.
• Multi-angle centre column: no; compatible with the optional VEO MT-12.
• Head attachment: reversible 1/4-inch and 3/8-inch thread.
• Head: VEO PH-28 two-way pan head.
• Pan range: 360°.
• Tilt range: -91° to +30°.
• Quick release system: Arca compatible, with QS-55P plate.
• Separate pan lock: no.
• Dedicated friction control: no.
• Bubble level: on the head.
• Monopod leg: no.
• Tripod bag: luxury padded shoulder bag.

Vanguard VEO 5 264AO Review

The Vanguard VEO 5 264AO offers a useful combination of full-height support, compact folding dimensions and controls designed around spotting-scope observation. Its appeal extends beyond its 8kg capacity: the split centre column, adaptable feet and direct Arca mounting provide flexibility for birdwatchers working from different positions.

Performance and Key Features

The VEO PH-28 head keeps tracking and locking under the control of a single telescopic handle, leaving one hand available for optical adjustments. Its 360° pan and -91° to +30° tilt range allow broad positioning freedom. The tripod also offers a substantial working-height range, from 21cm with the low-angle configuration to 167cm with the centre column extended.

Build Quality and Handling

CNC-machined aluminium components and 26mm legs form the supporting structure, with retractable spikes and a weight hook providing options for field setup. The hexagonal column allows the legs to fold closely together, producing a 9.25cm folded diameter. At 2200g, it is still a meaningful addition to your equipment load, although the 58cm folded length and padded shoulder bag help with transport.

Is It Easy to Use?

Quick-set twist locks, selectable leg angles and handle-operated head locking make routine setup straightforward. Direct mounting is available for an Arca-compatible scope foot, while the supplied QS-55P plate provides an alternative. Low-angle conversion requires removing and splitting the centre column with the supplied hex key, so it involves an additional setup step.

Key Takeaways

The VEO 5 264AO is a strong option for Uttings customers seeking a versatile aluminium support for spotting-scope use. Its one-handed head control, compact folded profile and low-angle capability are its main strengths. There is no separate pan lock or dedicated friction adjustment, which is worth considering if you prefer independent controls. It is particularly suited to birdwatchers who need both standing-height observation and lower viewing positions from one tripod.

Vanguard VEO 5 264AO FAQs

What is the maximum load capacity?

The tripod supports a maximum load of 8kg. Your spotting scope and any equipment mounted with it should remain within that capacity.

Can I mount an Arca-compatible spotting scope directly?

Yes, a scope with an Arca-compatible foot can attach directly to the VEO PH-28 clamp. For scopes requiring a separate plate, the kit includes the QS-55P with a non-twist spring pin.

How does the telescopic pan handle work?

The handle controls both movement and locking. Loosen it to pan or tilt the scope, then turn it to lock the position, keeping your other hand available for focus and zoom adjustments.

How tall is the tripod with the centre column down?

The maximum height with the centre column down is 141cm. Extending the column fully increases the maximum height to 167cm.

How do I set it up for low-angle observation?

Remove the centre column, loosen its locking screw with the supplied hex key and split the column to use the built-in low-angle adaptor. Combined with the leg-angle settings, this allows setup down to 21cm.

Will the hexagonal centre column fit a traditional hide clamp?

The column is designed to fit traditional hide clamps intended for round centre columns. Three curved edges on its hexagonal profile provide firm contact with the clamp.

Does it have spiked feet?

Yes, the legs feature retractable rubber and spiked feet. This allows you to select the appropriate contact surface for the terrain without carrying a separate set of feet.

Can I attach a tripod support arm?

The canopy includes 3/8-inch threads for support arms. These mounting points also have bayonet slots for additional stability with compatible arms, including the optional VEO TSA DLX.

Are the leg locks designed for cleaning?

Yes, the tripod uses easy-clean twist locks. They are also designed for silent operation and quick adjustment during setup.

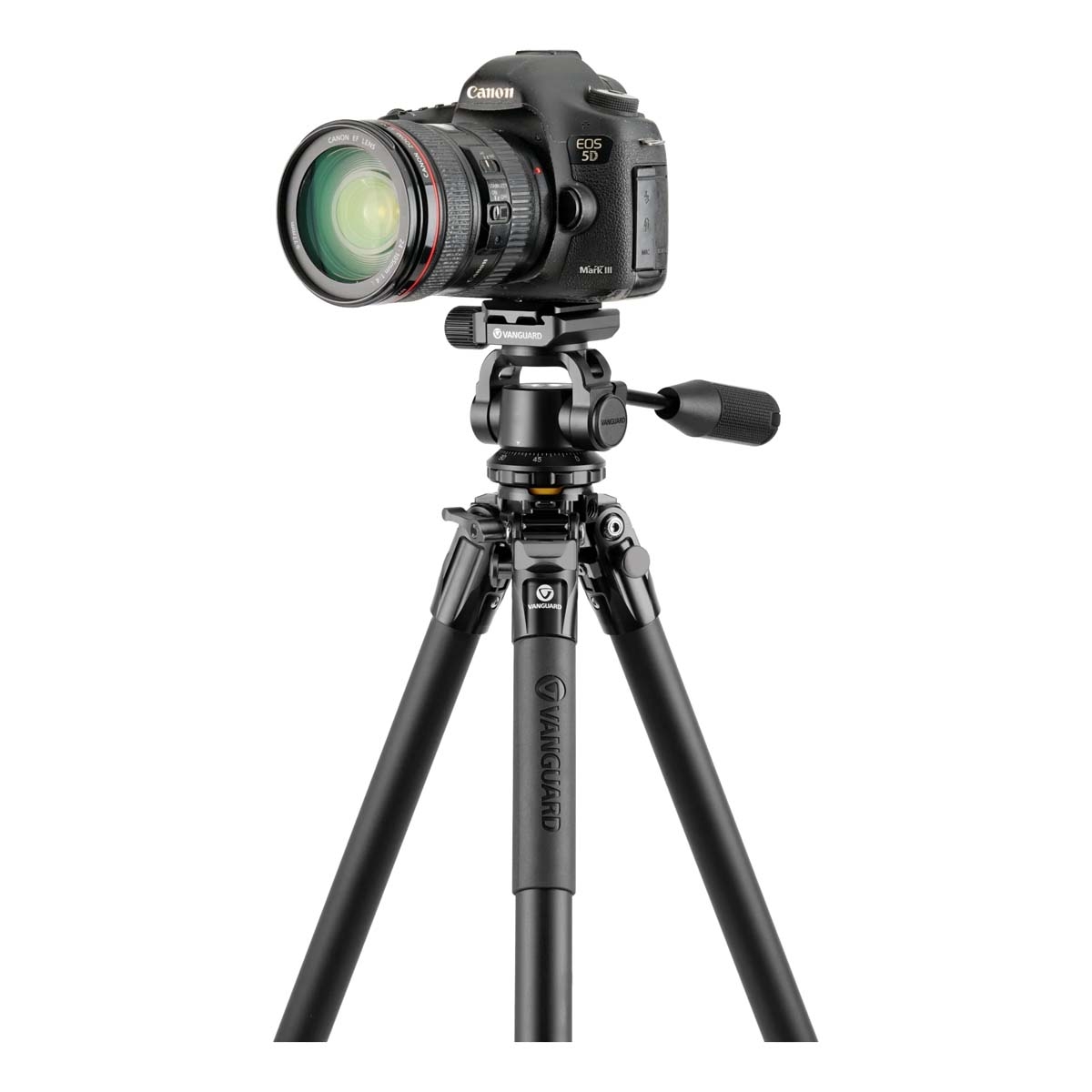

Can it be used with a mirrorless camera or DSLR?

It is suitable for mirrorless cameras and DSLRs, although the head is designed primarily for spotting scopes. There is no separate pan lock or dedicated friction control, so camera users should consider whether this control arrangement meets their needs.

How compact is it for transport?

The tripod folds to 58cm long with a diameter of 9.25cm and weighs 2200g. It includes a luxury padded shoulder bag with both top and full-length access.
