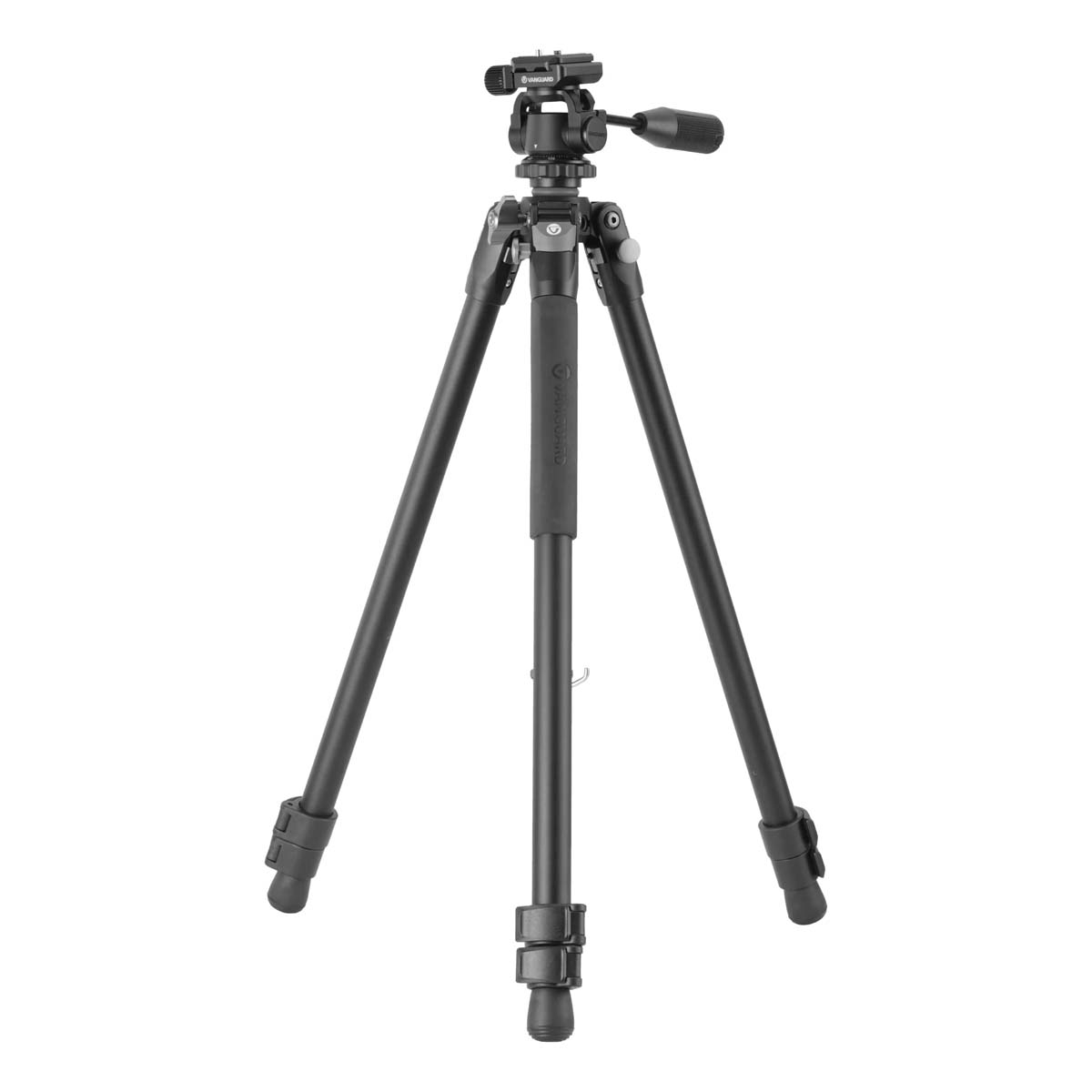

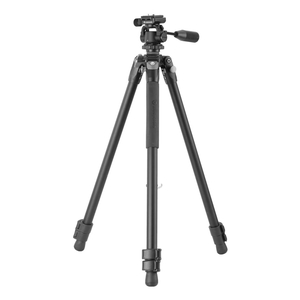

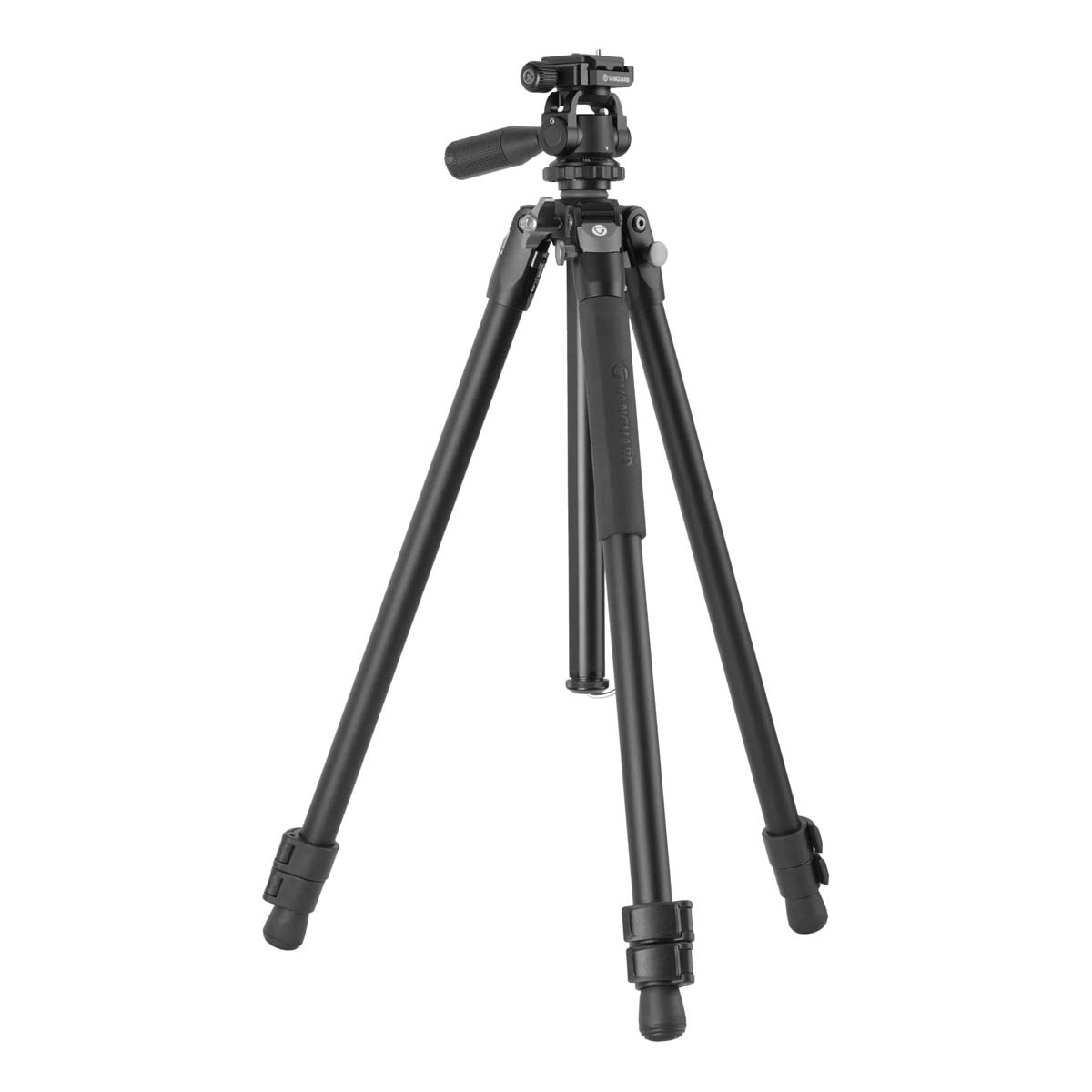

Vanguard Vesta 3 263AO Tripod

The Vanguard VESTA 3 263AO is a full-size aluminium birdwatching tripod designed to provide a solid base for spotting scopes and digiscoping. Combining a 6kg load capacity with an Arca-compatible PH-26 two-way pan head, it offers straightforward positioning and one-handed control, leaving your other hand free to adjust focus and zoom.

Spotting scopes with an Arca-shaped foot can attach directly to the head. For other scopes, the included QS-55P quick release plate provides a mounting option with a non-twist spring pin to help prevent the plate from unscrewing during use.

Aluminium Construction and Adjustable Legs

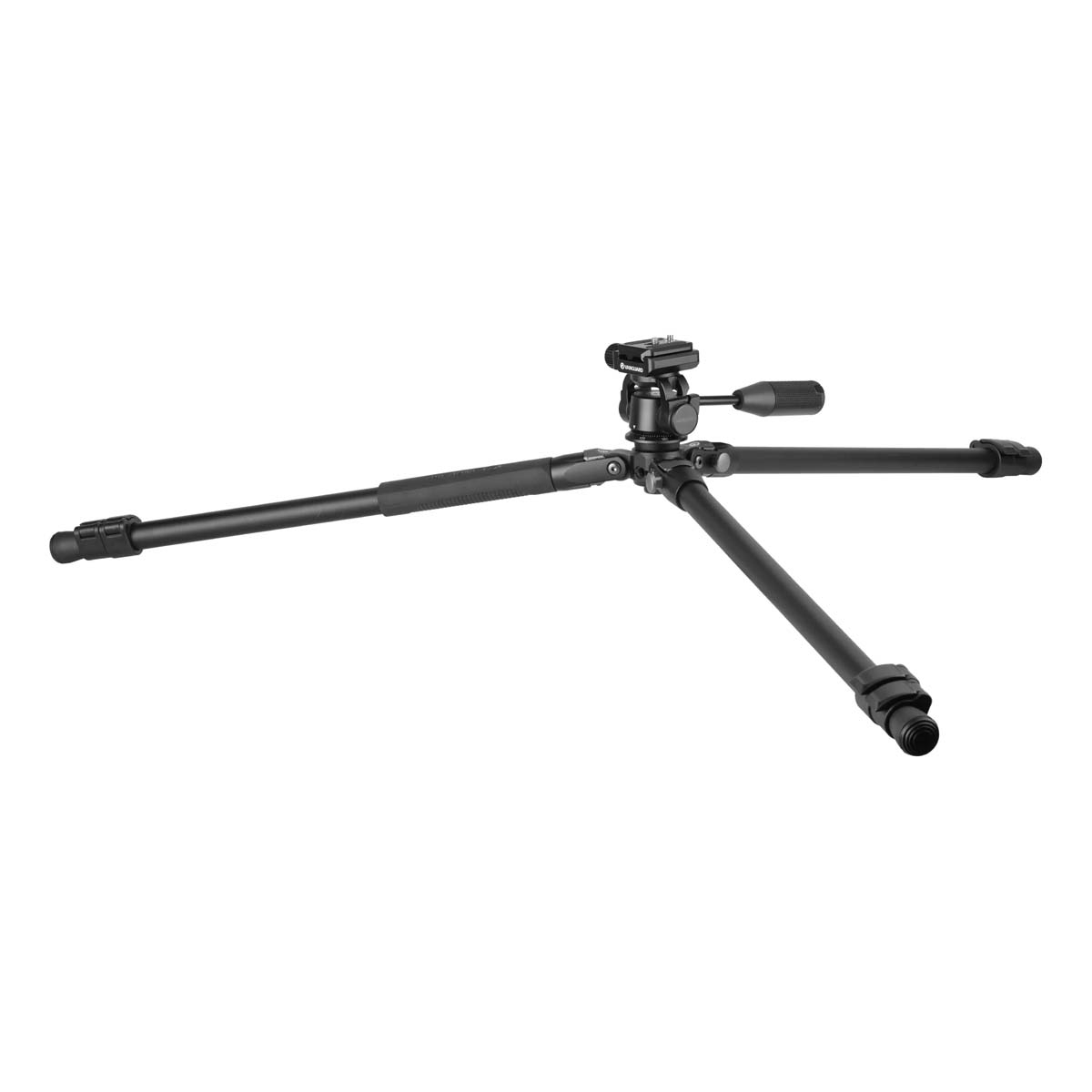

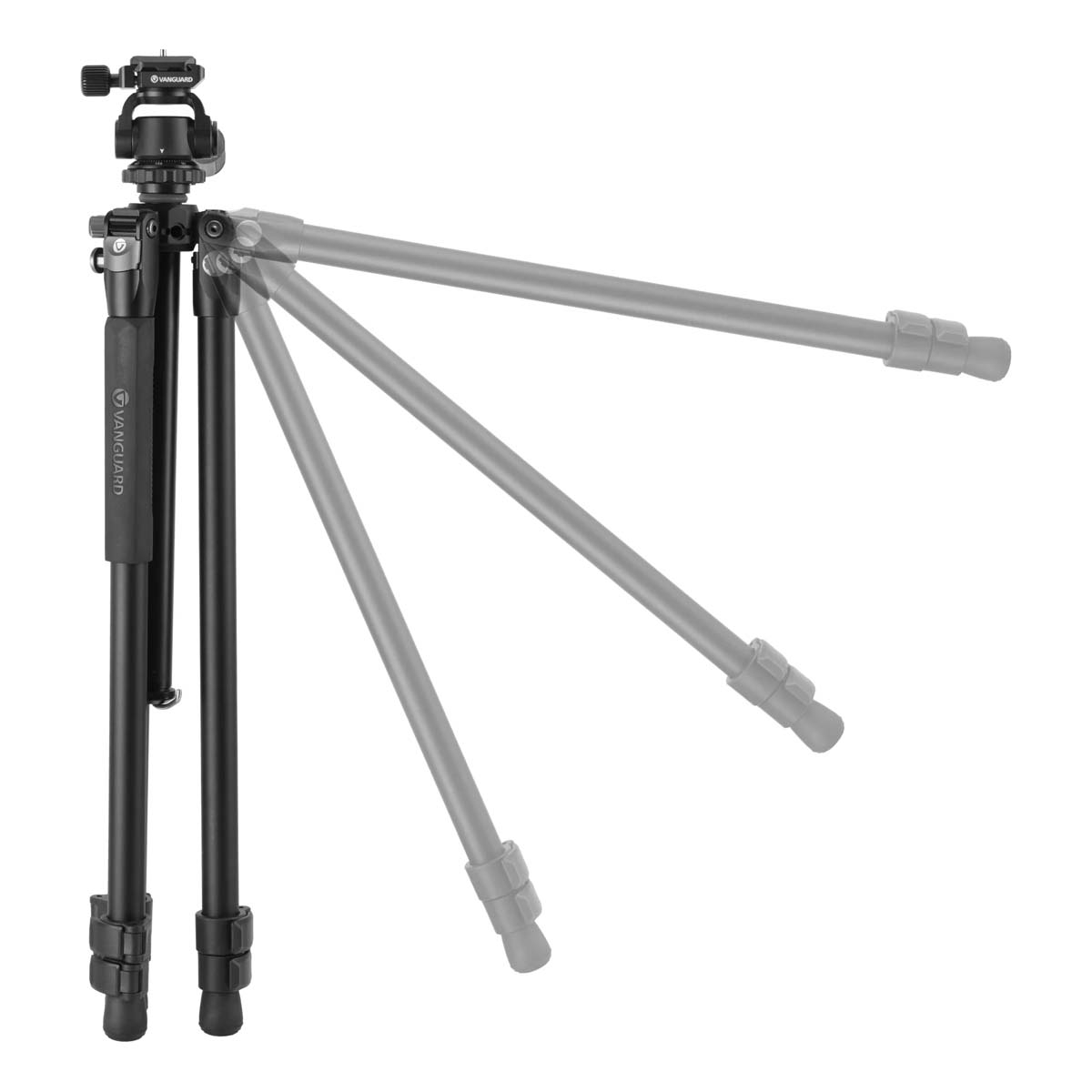

The three-section aluminium legs have a 26mm diameter and flip locks for easy deployment. Three selectable leg angles of 20°, 50° and 80° provide flexibility when positioning the tripod, while rubber feet form the contact points with the ground.

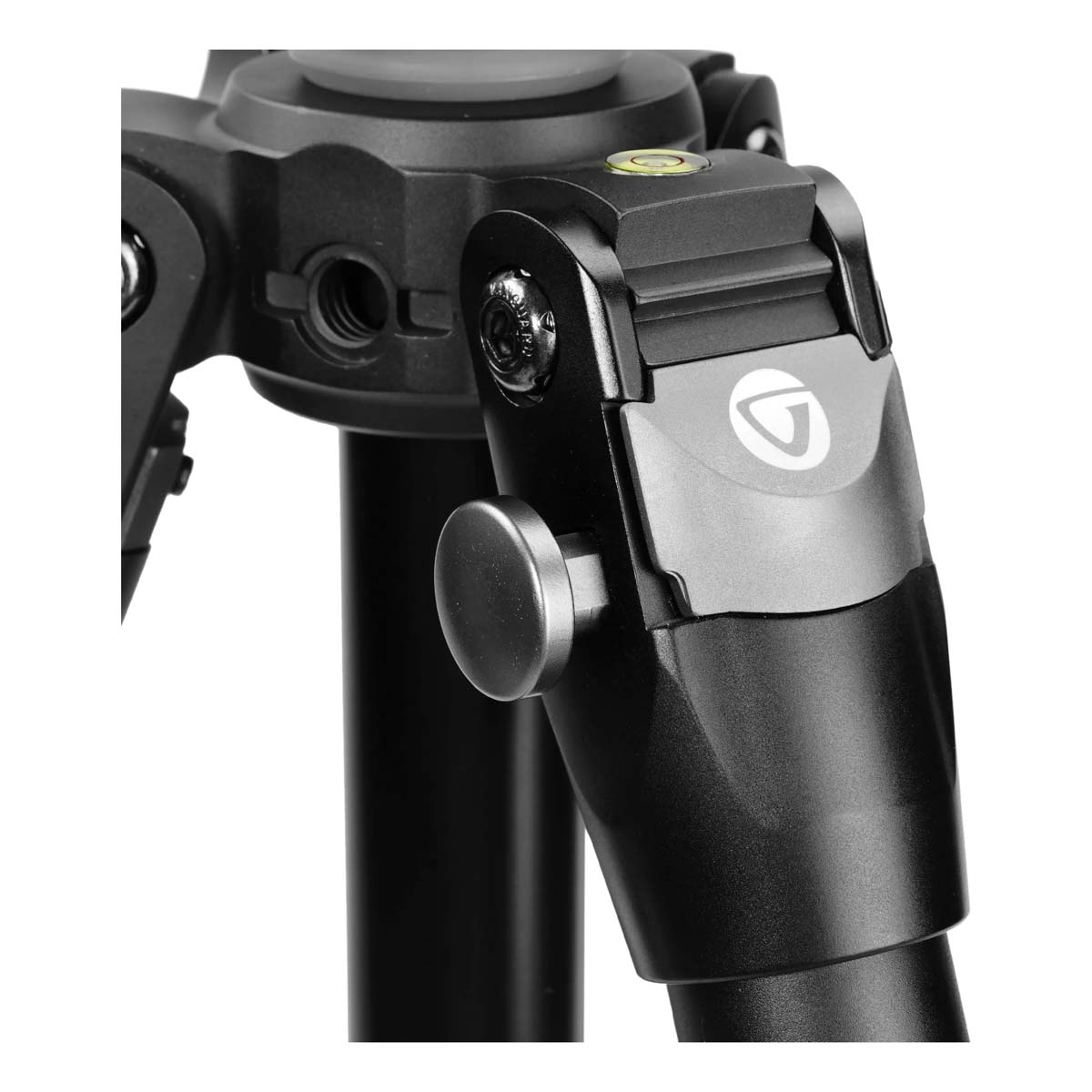

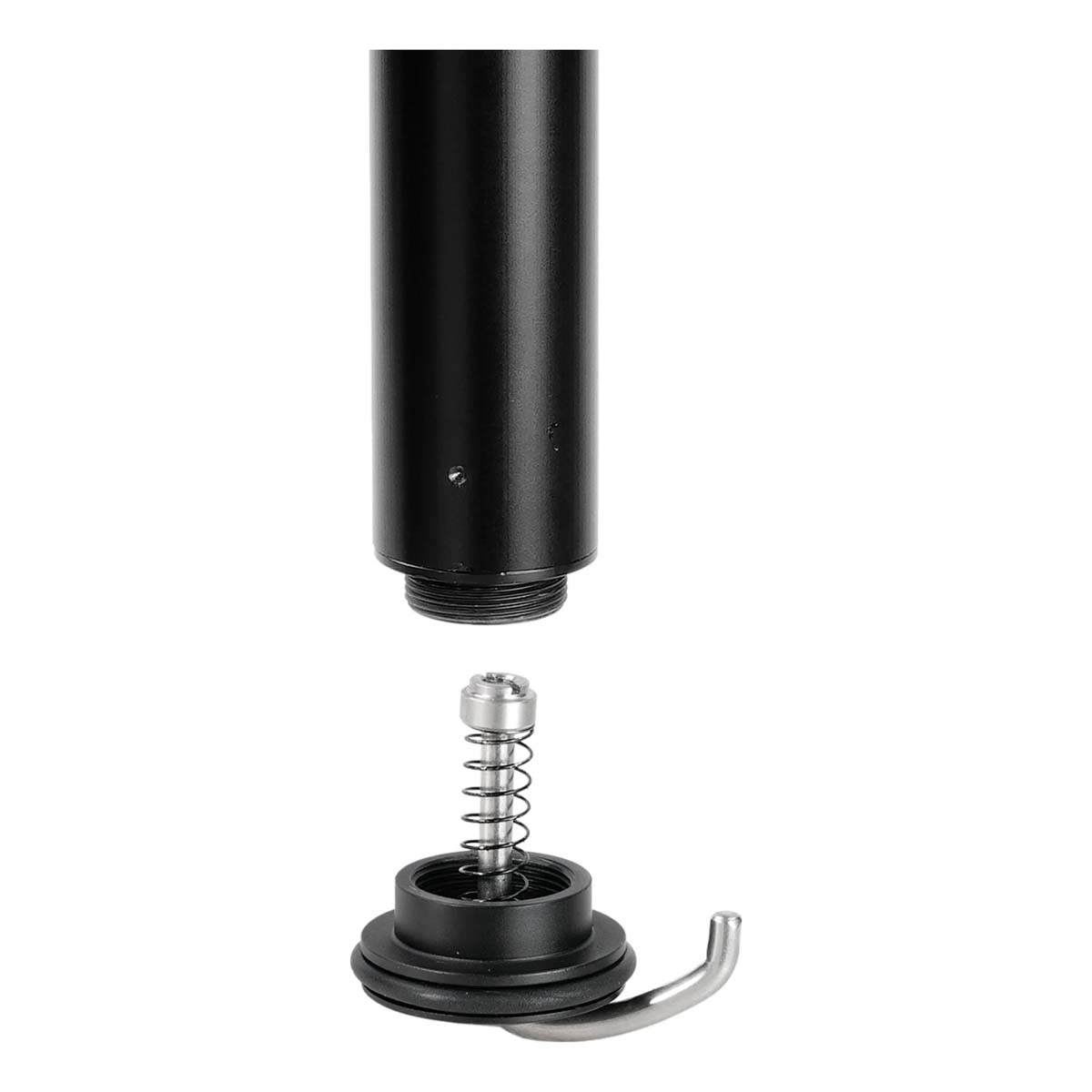

The tripod reaches 139cm with the centre column down and features a reversible central column. A hook allows additional weight to be suspended from the tripod, and two bubble levels assist with setup.

One-Handed Scope Control

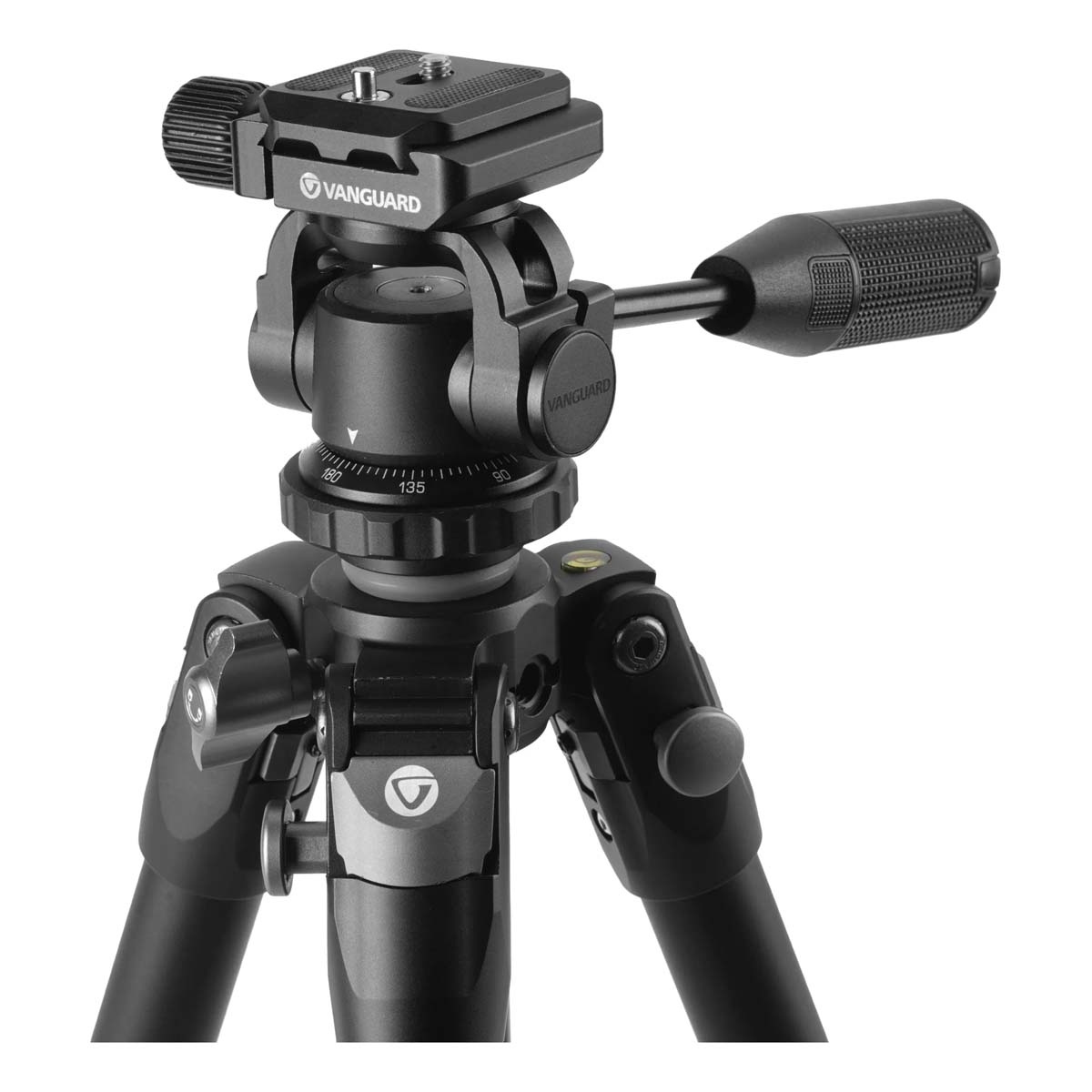

The PH-26 head is CNC machined from lightweight aluminium alloy and provides 360° panning with a tilt range of -91° to +30°. Its textured pan handle controls movement with one hand, allowing you to reposition the scope while keeping the other hand available for optical adjustments.

Transport and Storage

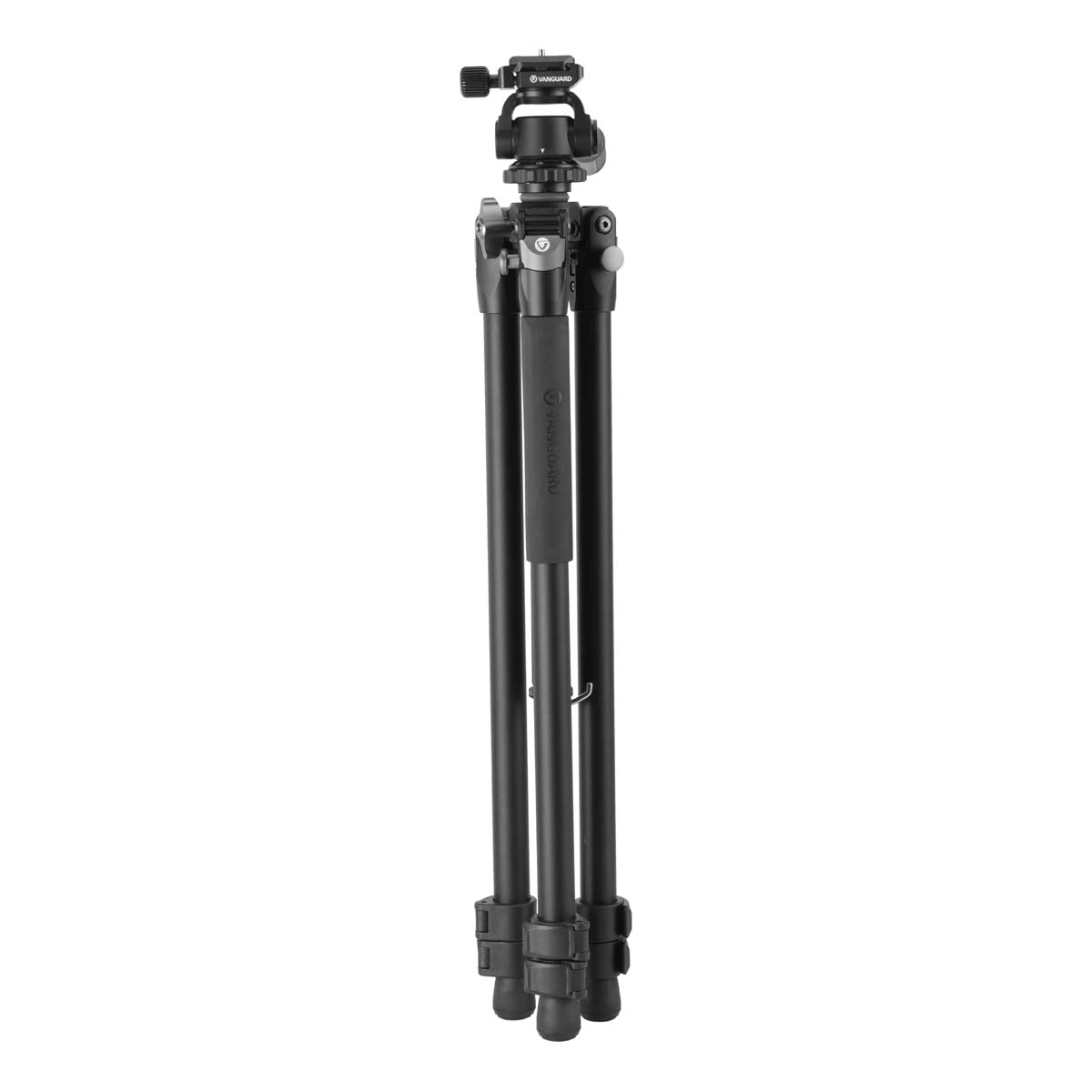

Weighing 2085g and folding to 67.5cm, the VESTA 3 263AO comes with a tripod bag for transport. The kit also includes its quick release plate, two Allen keys and a 3/8-inch screw adaptor.

Vanguard VESTA 3 263AO Key Features

• Full-size aluminium tripod designed for spotting scopes and birdwatching.
• 6kg maximum load capacity.
• Three-section, 26mm legs with flip locks and three selectable leg angles.
• PH-26 two-way pan head with textured handle for one-handed movement control.
• 360° panning and a tilt range of -91° to +30°.
• Arca-compatible clamp for direct attachment of scopes with a compatible foot.
• QS-55P quick release plate with non-twist spring pin.
• Reversible centre column, weight hook and two bubble levels.
• Tripod bag included.

Vanguard VESTA 3 263AO Specifications

• Material: aluminium.
• Weight: 2085g.
• Folded length: 67.5cm.
• Maximum height with centre column down: 139cm.
• Minimum height: 22.5cm.
• Maximum load capacity: 6kg.
• Leg diameter: 26mm.
• Leg sections: three.
• Leg locks: flip locks.
• Leg angles: 20°, 50° and 80°.
• Feet: rubber.
• Centre column: reversible; no multi-angle function.
• Head: PH-26 two-way pan head.
• Head attachment thread: 1/4-inch or 3/8-inch.
• Pan range: 360°.
• Tilt range: -91° to +30°.
• Quick release system: Arca compatible, with QS-55P plate.
• Separate pan lock: no.
• Dedicated friction control: no; movement fluidity is adjusted through the handle controls.
• Bubble levels: two.
• Included accessories: quick release plate, two Allen keys, 3/8-inch screw adaptor and tripod bag.

Vanguard VESTA 3 263AO Review

The Vanguard VESTA 3 263AO brings together the core features needed for supported spotting-scope observation: a substantial load capacity, adjustable aluminium legs and a head designed for one-handed operation. Its mounting options make it particularly relevant to birdwatchers choosing between direct Arca attachment and a conventional quick release plate.

Performance and Key Features

The PH-26 head is central to this tripod's appeal, offering a full 360° pan and a broad tilt range for positioning your scope. Control through a single handle keeps your other hand available for focus and zoom adjustments. The 6kg capacity accommodates scope setups within that limit, while direct Arca mounting removes the need for the supplied plate when your scope has a compatible foot.

Build Quality and Handling

The 26mm aluminium legs and CNC-machined aluminium-alloy head provide a construction focused on supporting observation equipment. Flip locks and three leg-angle settings give useful setup flexibility. At 2085g and 67.5cm folded, this is a full-size support to account for when packing, with an included bag to make transport more convenient.

Is It Easy to Use?

The flip-lock legs, textured pan handle and Arca-compatible clamp provide a straightforward setup and control arrangement. A compatible scope foot fits directly into the clamp, while the supplied QS-55P plate accommodates scopes requiring a separate mounting plate. Two bubble levels help with levelling before observation.

Key Takeaways

The VESTA 3 263AO is a practical choice for Uttings customers seeking a dedicated spotting-scope tripod for birdwatching and digiscoping. Its strongest features are the one-handed head control, flexible Arca mounting and 6kg capacity. There is no separate pan lock or dedicated friction control, although movement fluidity can be adjusted through the handle controls. Choose it when full-size support and straightforward scope handling are priorities.

Vanguard VESTA 3 263AO FAQs

What spotting-scope weight can this tripod support?

The maximum load capacity is 6kg. Your complete mounted setup should remain within this limit, including any attached digiscoping equipment.

Can an Arca-compatible spotting scope attach directly to the head?

Yes, a spotting scope with an Arca-compatible foot can fit directly into the PH-26 clamp. This allows attachment without using the separate QS-55P quick release plate.

What if my scope does not have an Arca-compatible foot?

The kit includes a QS-55P Arca-compatible quick release plate for mounting your scope. Its non-twist spring pin is designed to prevent the plate from unscrewing from the scope base.

Can I control the head with one hand?

Yes, the textured pan handle provides one-handed control of head movement. This leaves your other hand free to adjust the scope's focus and zoom.

What movement range does the PH-26 head offer?

The head pans through 360° and tilts from -91° to +30°. It is a two-way head designed for spotting-scope and video use.

How high does the tripod reach without extending the centre column?

With the centre column down, the maximum height is 139cm. The central column is also reversible, although it does not offer a multi-angle function.

Can the legs be set at different angles?

The legs offer three selectable angles: 20°, 50° and 80°. Each leg has three sections secured by flip locks.

Is it suitable for digiscoping?

Yes, the VESTA 3 263AO is intended to provide a solid tripod base for digiscoping. Its head allows scope positioning while keeping one hand available for focus and zoom adjustments.

Does the head have separate pan and friction controls?

There is no separate pan lock or dedicated friction control. Movement fluidity can be adjusted through the handle controls.

What comes with the tripod?

The kit includes the PH-26 head, QS-55P quick release plate, two Allen keys, a 3/8-inch screw adaptor and a tripod bag. The tripod weighs 2085g and folds to 67.5cm for transport.
