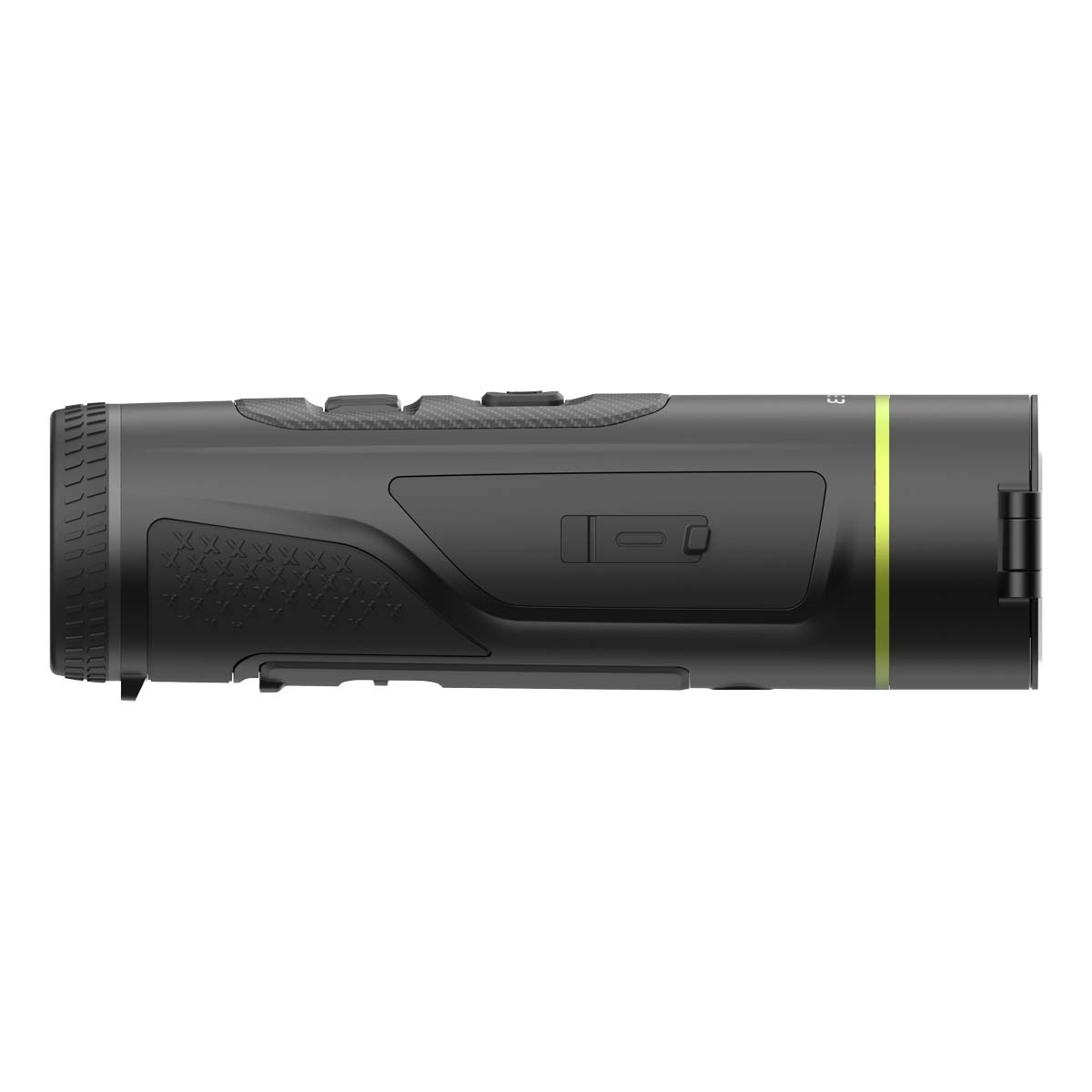

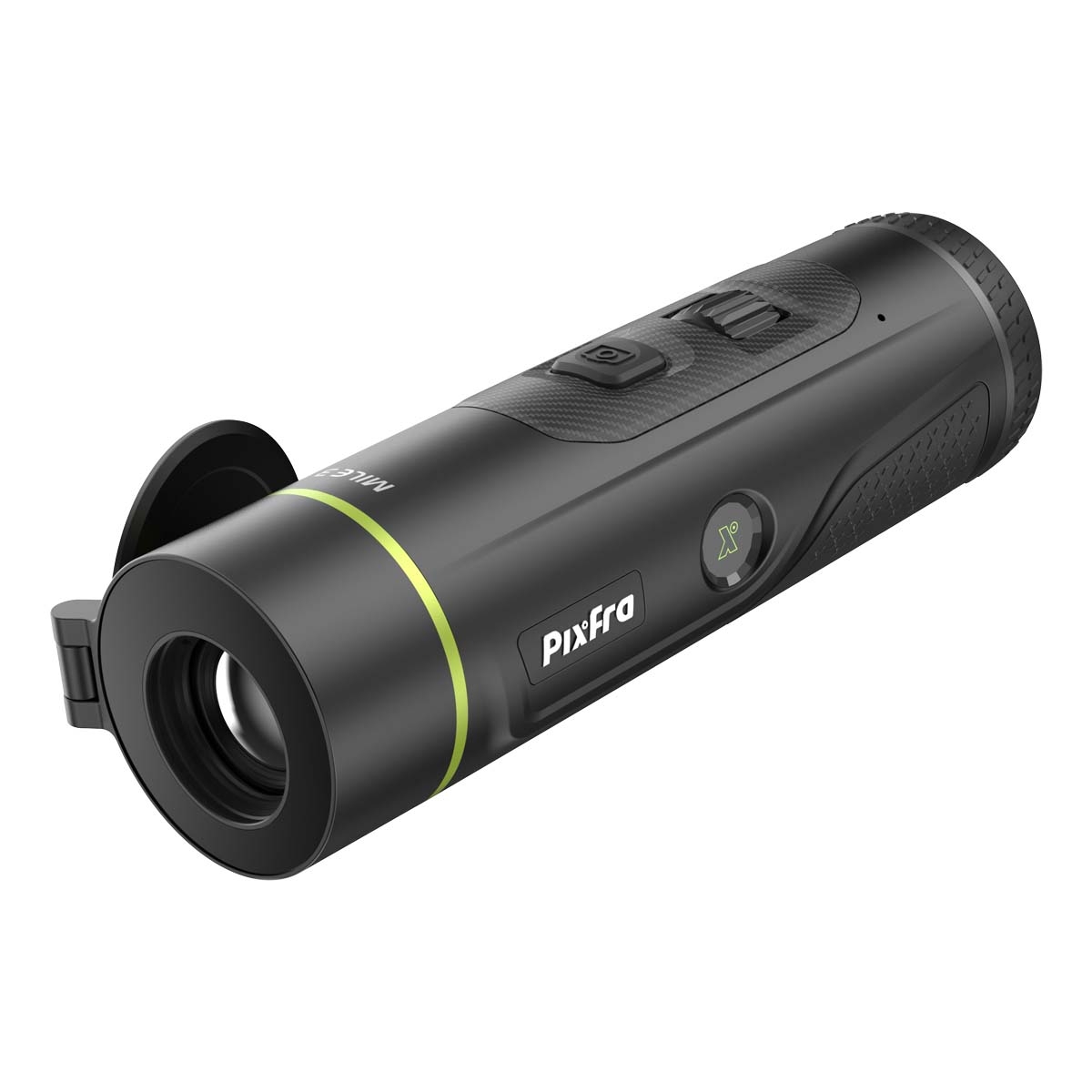

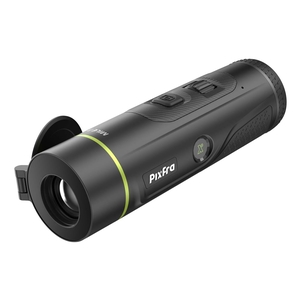

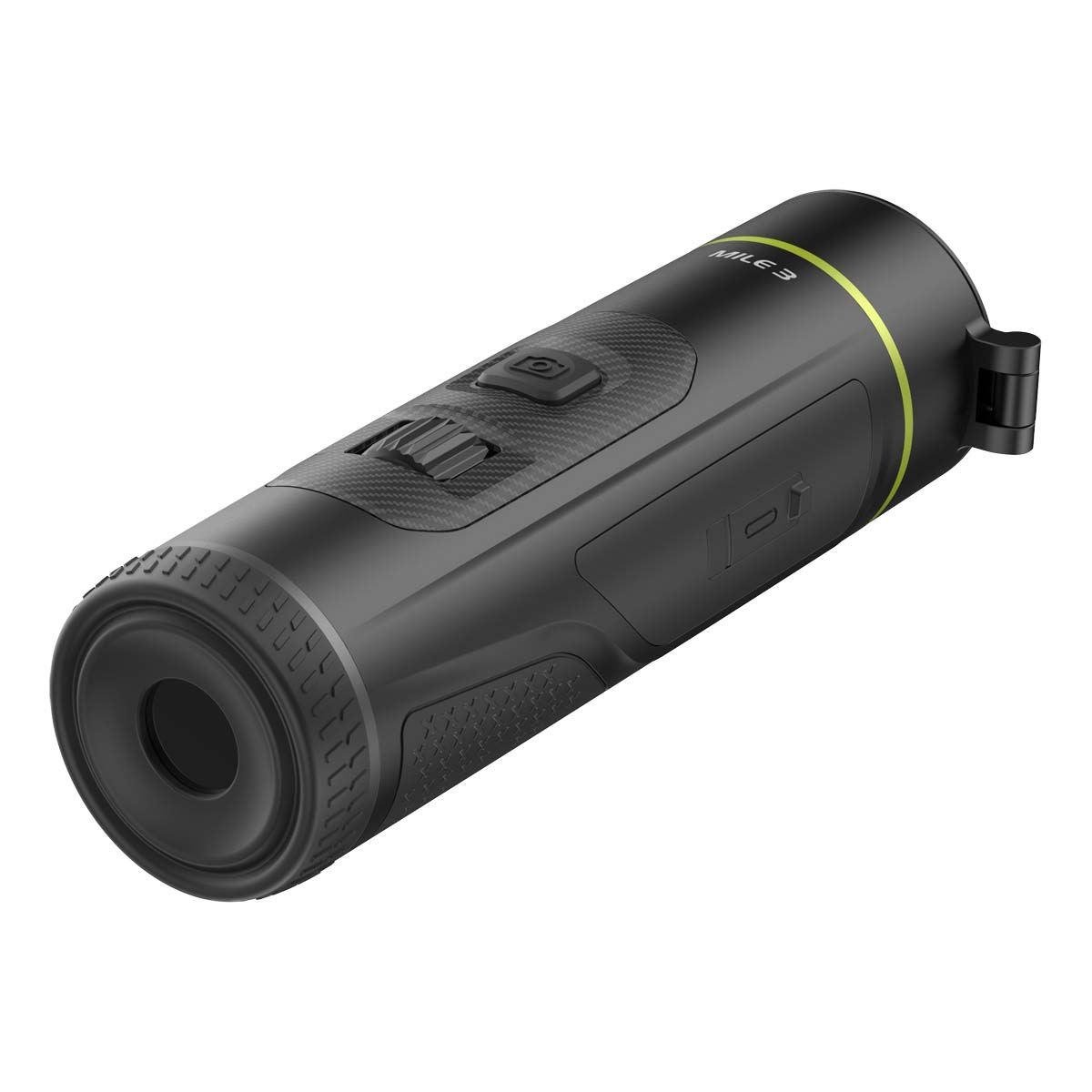

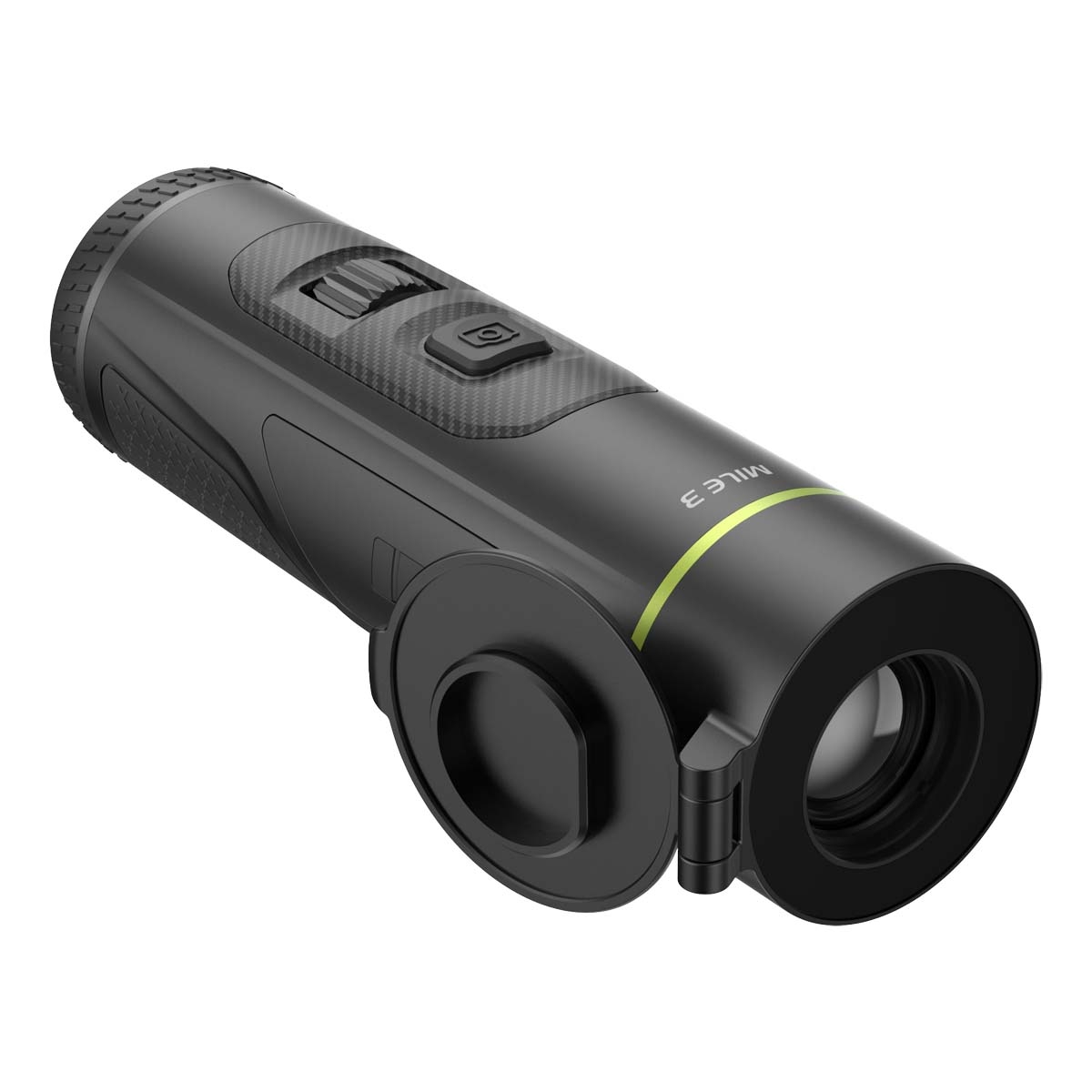

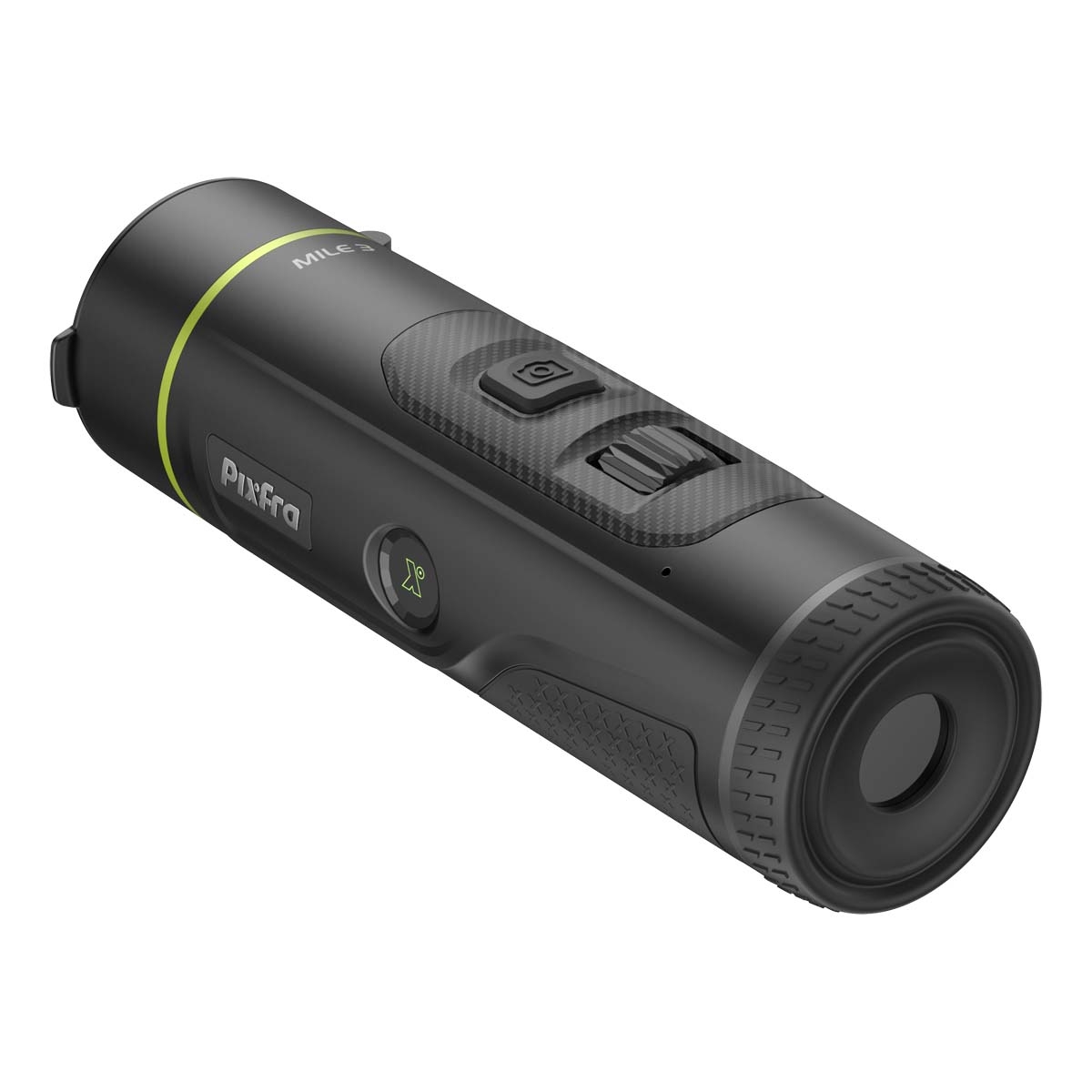

Pixfra Mile 3 M625 LRF (640x512) Thermal Imager - 25mm

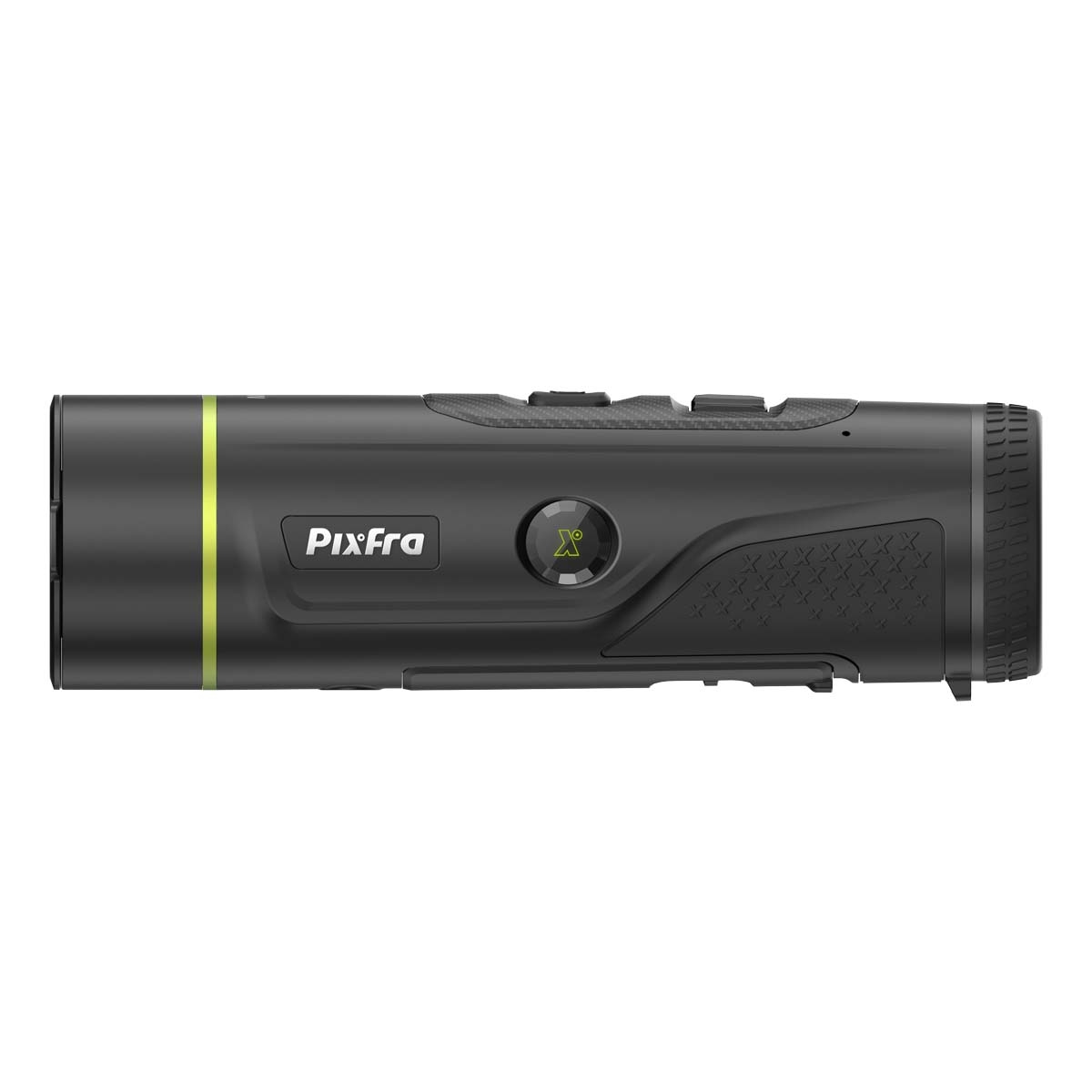

The Pixfra PFI-M625 LRF Thermal Monocular Camera combines a 640 × 512 thermal detector, 25 mm F1.0 lens and integrated laser rangefinder in a compact magnesium alloy body. For users seeking portable thermal observation with distance measurement, it offers a 1,300 m thermal detection distance and laser ranging to 1,000 m with ±1 m accuracy.

Thermal Imaging & Display

The vanadium oxide detector features a 12 μm pixel pitch, 50 Hz frame rate and thermal sensitivity of ≤15 mK NETD at F1.0. PIPS 3.0 Pro technology accompanies a 0.49-inch OLED display with 1920 × 1080 resolution.

The 25 mm lens provides 1.2× visual equivalent magnification, with 1×–8× digital zoom and manual focus down to 1 m. Field of view measures 30.6 × 24.4 m at 100 m. Six colour palettes, picture-in-picture and hot spot tracking provide a choice of viewing functions.

Integrated Laser Rangefinder

The built-in laser rangefinder measures distances up to 1,000 m, with an accuracy specification of ±1 m. Its laser safety classification is Class 1.

Construction & Handling

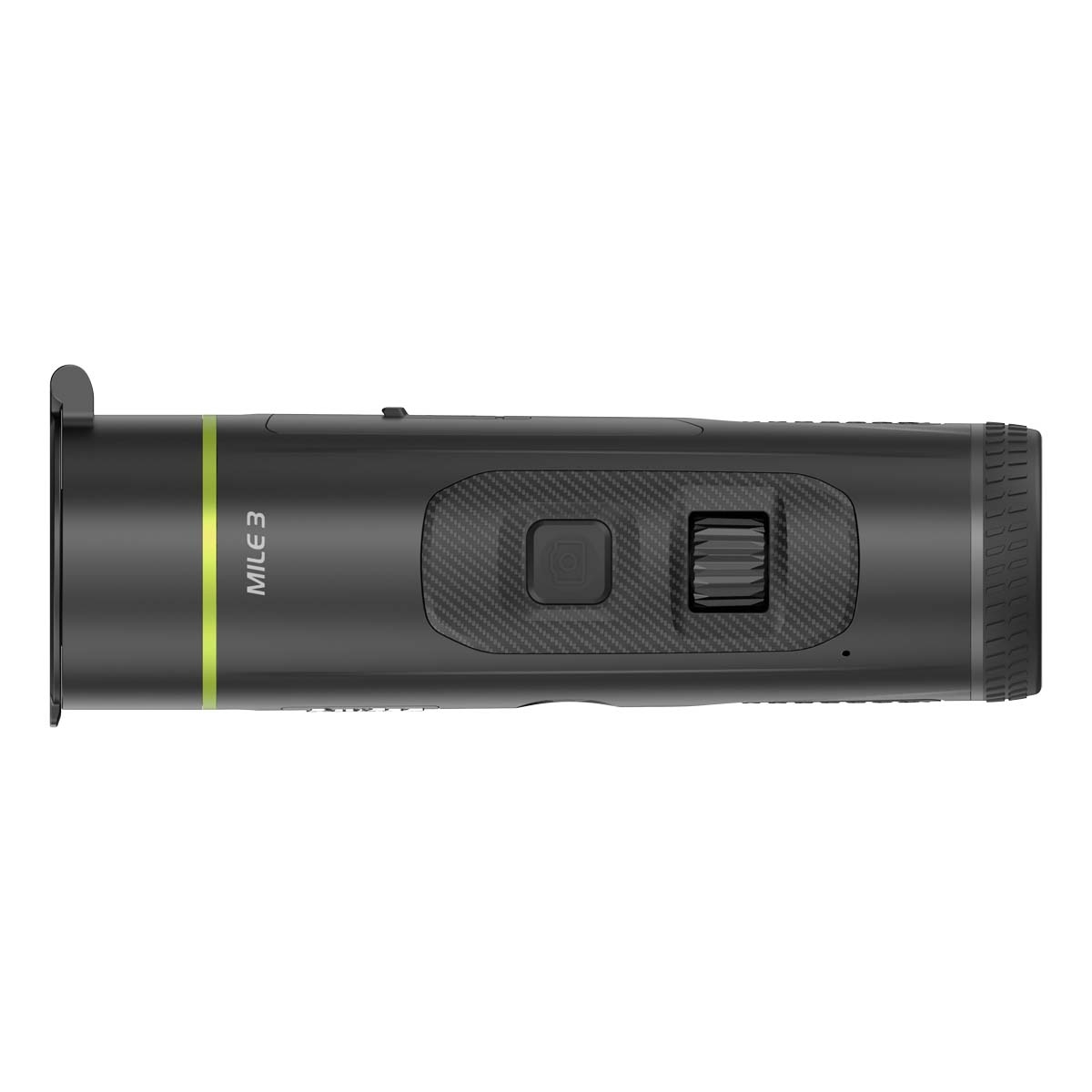

The durable magnesium alloy body measures 167.7 × 61.4 × 50 mm and weighs no more than 313 g. A single control wheel combines three functions, while the eyepiece offers dioptre adjustment from -5 D to +3 D and 15 mm eye relief.

Weather Protection & Power

IP67 protection and an operating temperature range of -30°C to +55°C support outdoor use. The quick-change rechargeable 18650 lithium battery provides at least five hours of operation at 25°C with Wi-Fi switched off. The monocular also features a USB Type-C connection and a 5 V DC power supply specification.

Recording & Connectivity

Video recording, snapshots and a microphone are included, alongside built-in 64 GB storage and a local album. Additional functions include a Wi-Fi hotspot, compass, standby mode and defective pixel correction. FFC calibration can be set to automatic, semi-automatic or manual.

Pixfra PFI-M625 LRF Thermal Monocular Camera Key Features

• 640 × 512 thermal detector with 12 μm pixel pitch and 50 Hz frame rate.
• 25 mm F1.0 lens with manual focus down to 1 m.
• Thermal sensitivity of ≤15 mK NETD at F1.0.
• Integrated 1,000 m laser rangefinder with ±1 m accuracy and Class 1 laser classification.
• PIPS 3.0 Pro technology.
• 1920 × 1080 OLED display with six colour palettes.
• 1.2× visual equivalent magnification and 1×–8× digital zoom.
• Video recording, snapshots and built-in 64 GB storage.
• Three functions combined in one control wheel.
• Quick-change rechargeable 18650 battery.
• Compact magnesium alloy body with IP67 protection.

Pixfra PFI-M625 LRF Thermal Monocular Camera Specifications

• Detector: vanadium oxide uncooled focal plane detector.
• Thermal resolution: 640 × 512 pixels.
• Pixel pitch: 12 μm.
• Frame rate: 50 Hz.
• Spectral range: 8–14 μm.
• Thermal sensitivity: ≤15 mK NETD at F1.0.
• Lens: 25 mm, F1.0.
• Field of view: 17.4° horizontal × 13.9° vertical; 30.6 × 24.4 m at 100 m.
• Focus: manual.
• Close focus distance: 1 m.
• Thermal detection distance: 1,300 m.
• Visual equivalent magnification: 1.2×.
• Digital zoom: 1×–8×.
• Display: 0.49-inch OLED, 1920 × 1080 pixels.
• Colour palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot and Sepia.
• Dioptre adjustment: -5 D to +3 D.
• Eye relief: 15 mm.
• Laser range: 1,000 m.
• Laser accuracy: ±1 m.
• Laser safety: Class 1.
• Storage: built-in 64 GB.
• FFC calibration: automatic, semi-automatic and manual.
• Battery: rechargeable 18650 lithium battery.
• Operating time: ≥5 hours at 25°C with Wi-Fi off.
• Power supply: 5 V DC.
• USB connection: Type-C.
• Protection rating: IP67.
• Operating temperature: -30°C to +55°C.
• Operating humidity: ≤95%.
• Dimensions: 167.7 × 61.4 × 50 mm.
• Net weight: ≤313 g.

Pixfra PFI-M625 LRF Thermal Monocular Camera Review

The Pixfra PFI-M625 LRF Thermal Monocular Camera brings thermal viewing and laser distance measurement together in a portable device. Its combination of a 640 × 512 detector, broad viewing coverage and integrated recording makes it an option for users who want to observe, measure and capture with one monocular.

Performance & Key Features

The 25 mm F1.0 lens provides a 17.4° horizontal field of view, covering 30.6 m at 100 m, alongside 1.2× visual equivalent magnification. A 50 Hz frame rate, ≤15 mK NETD sensitivity at F1.0 and PIPS 3.0 Pro technology form the core imaging specification. The laser rangefinder adds distance measurement to 1,000 m with ±1 m accuracy, distinct from the 1,300 m thermal detection distance. Six palettes, picture-in-picture and digital zoom provide further viewing options.

Build Quality & Handling

The magnesium alloy body and IP67 rating provide the main durability credentials, with operation specified between -30°C and +55°C. Dimensions of 167.7 × 61.4 × 50 mm and a net weight of no more than 313 g keep the design compact. A quick-change 18650 battery allows replacement when required.

Is It Easy to Use?

The three-function control wheel brings several controls together, while dioptre adjustment accommodates eyepiece focusing. Lens focus is manual, and users can choose automatic, semi-automatic or manual FFC calibration. Built-in video recording, snapshots and a local album keep capture and review functions within the monocular.

Key Takeaways

The PFI-M625 LRF combines a 640 × 512 thermal detector, wide viewing coverage and laser ranging in a compact body. Its 1.2× visual equivalent magnification is modest, with additional enlargement supplied by digital zoom. Battery endurance is rated at at least five hours at 25°C with Wi-Fi off. For Uttings customers seeking portable thermal observation with integrated distance measurement and recording, it is worth considering.

Pixfra PFI-M625 LRF Thermal Monocular Camera FAQs

How far can the laser rangefinder measure?

The integrated laser rangefinder has a range of 1,000 m and an accuracy specification of ±1 m. Its laser safety classification is Class 1.

What is the thermal detection distance?

The thermal detection distance is 1,300 m. This is separate from the laser rangefinder’s 1,000 m measurement range and should not be treated as an identification distance.

What detector and lens does the monocular use?

It uses a 640 × 512 vanadium oxide uncooled detector with a 12 μm pixel pitch and 50 Hz frame rate. The lens is a 25 mm F1.0 design. Thermal sensitivity is ≤15 mK NETD at F1.0.

What magnification and digital zoom are available?

Visual equivalent magnification is 1.2×, with digital zoom adjustable from 1× to 8×. A picture-in-picture function is also included.

How wide is the field of view?

The angular field of view is 17.4° horizontally and 13.9° vertically. At 100 m, this corresponds to an area measuring 30.6 m wide by 24.4 m high.

How close can it focus, and is the eyepiece adjustable?

Close focus distance is 1 m, with manual lens focus. The eyepiece offers dioptre adjustment from -5 D to +3 D and 15 mm eye relief.

What display and colour palettes are included?

The monocular has a 0.49-inch OLED display with 1920 × 1080 resolution. The six palettes are White Hot, Black Hot, Iron Red, Alarm, Green Hot and Sepia.

Can it record video and take still images?

Yes, it supports video recording and snapshots, with a microphone and built-in 64 GB storage. A local album is also available.

How long does the battery last?

The rechargeable 18650 lithium battery provides at least five hours of operation at 25°C with Wi-Fi switched off. It uses a quick-change battery design. Power specifications also include a 5 V DC supply and USB Type-C connection.

What weather protection does it have?

The monocular has IP67 protection and a magnesium alloy body. Its operating temperature range is -30°C to +55°C, with operating humidity of up to 95%.

How large and heavy is the monocular?

It measures 167.7 × 61.4 × 50 mm. Net weight is no more than 313 g.

Does it include Wi-Fi and hot spot tracking?

Yes, a Wi-Fi hotspot and hot spot tracking are included. Additional functions include a compass, picture-in-picture, standby mode and defective pixel correction.
