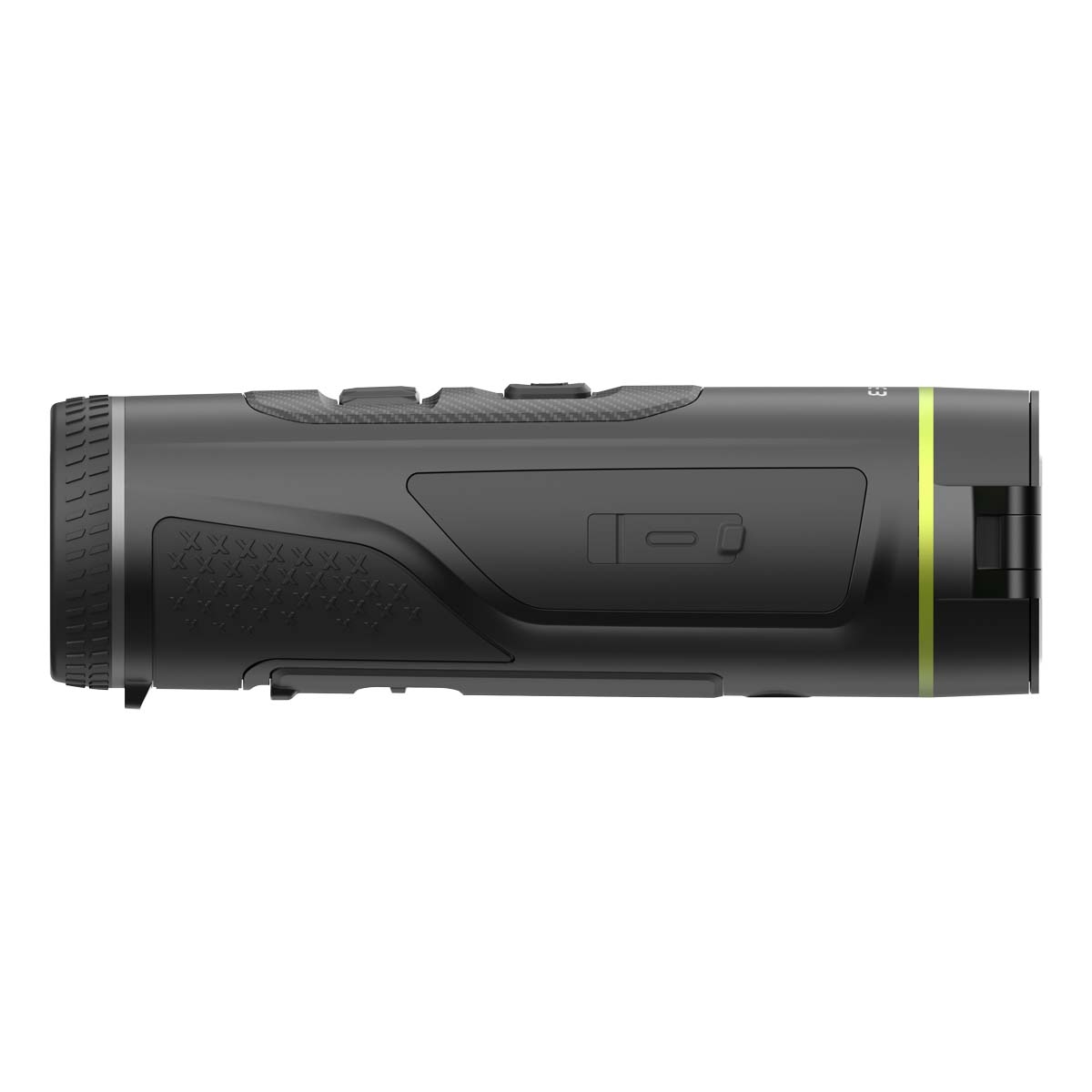

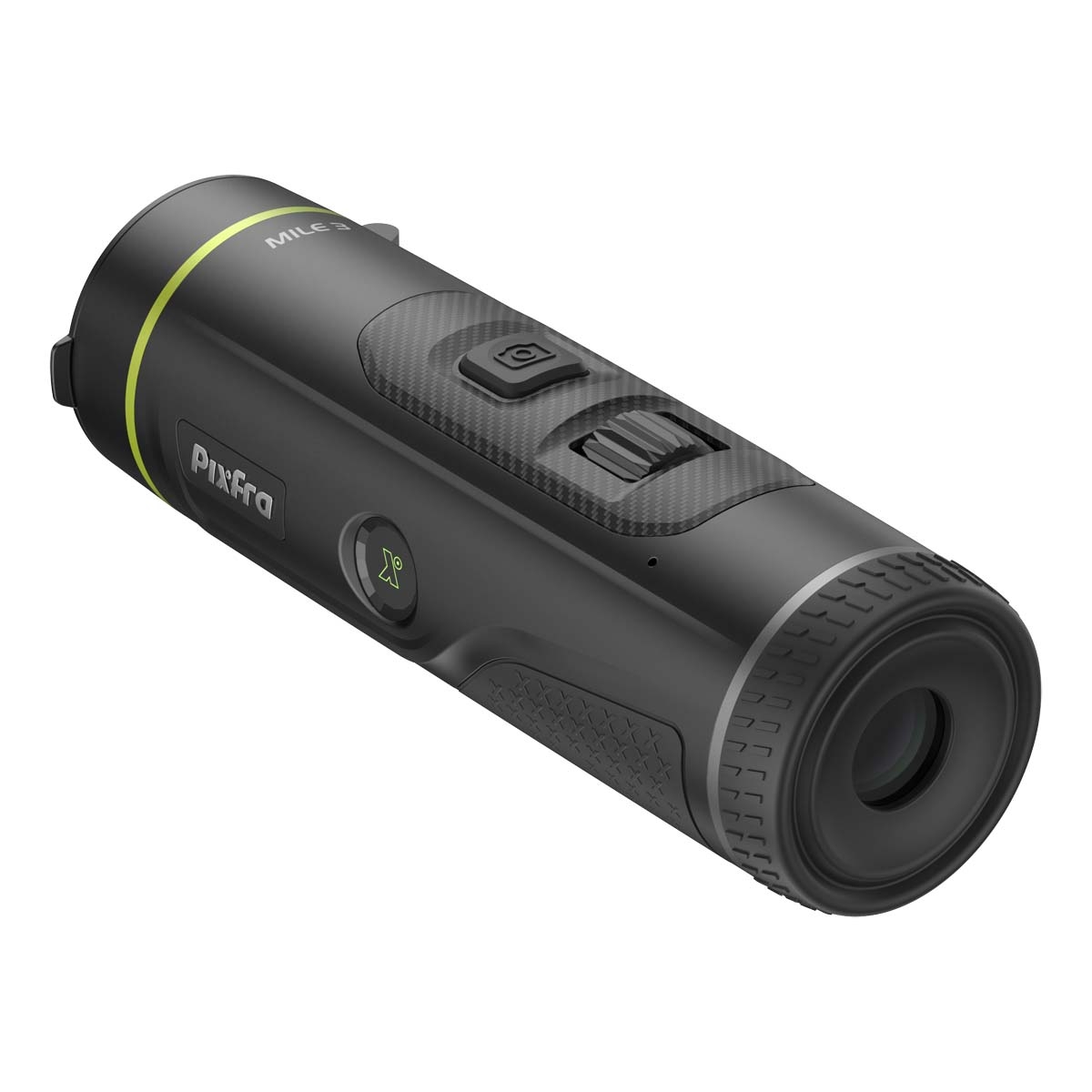

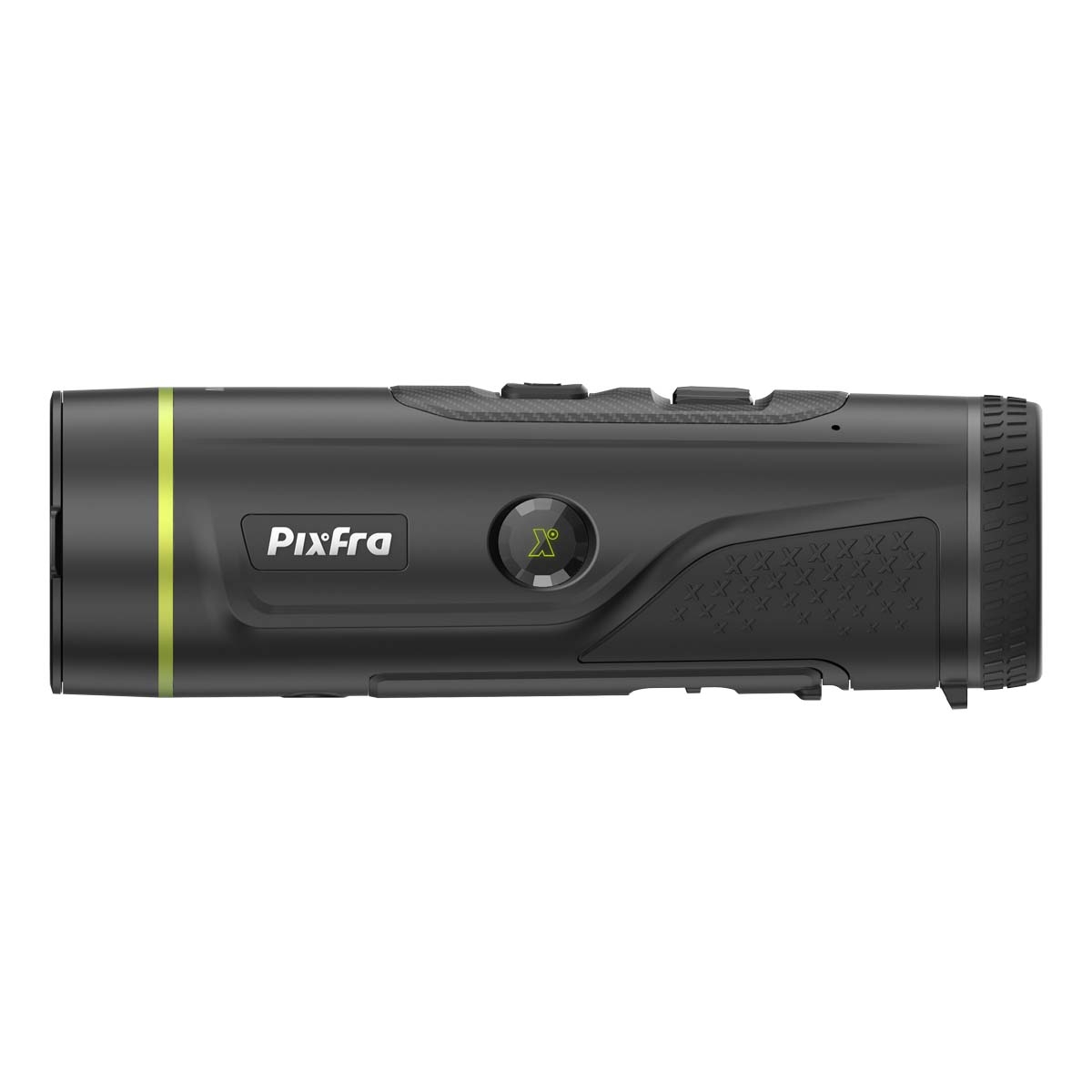

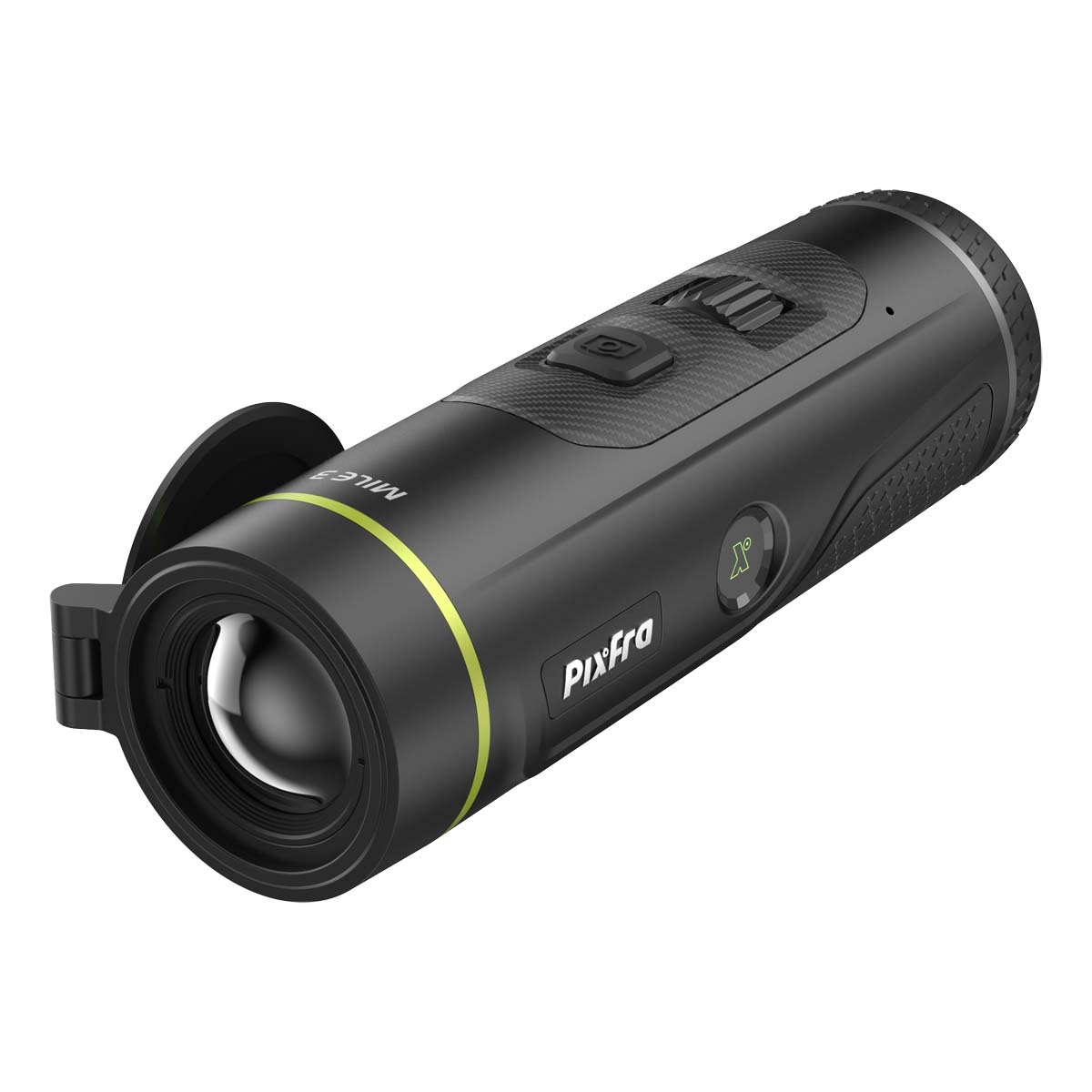

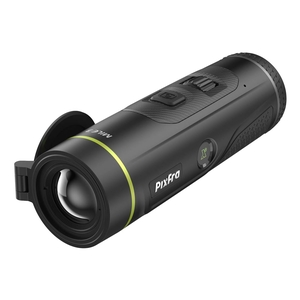

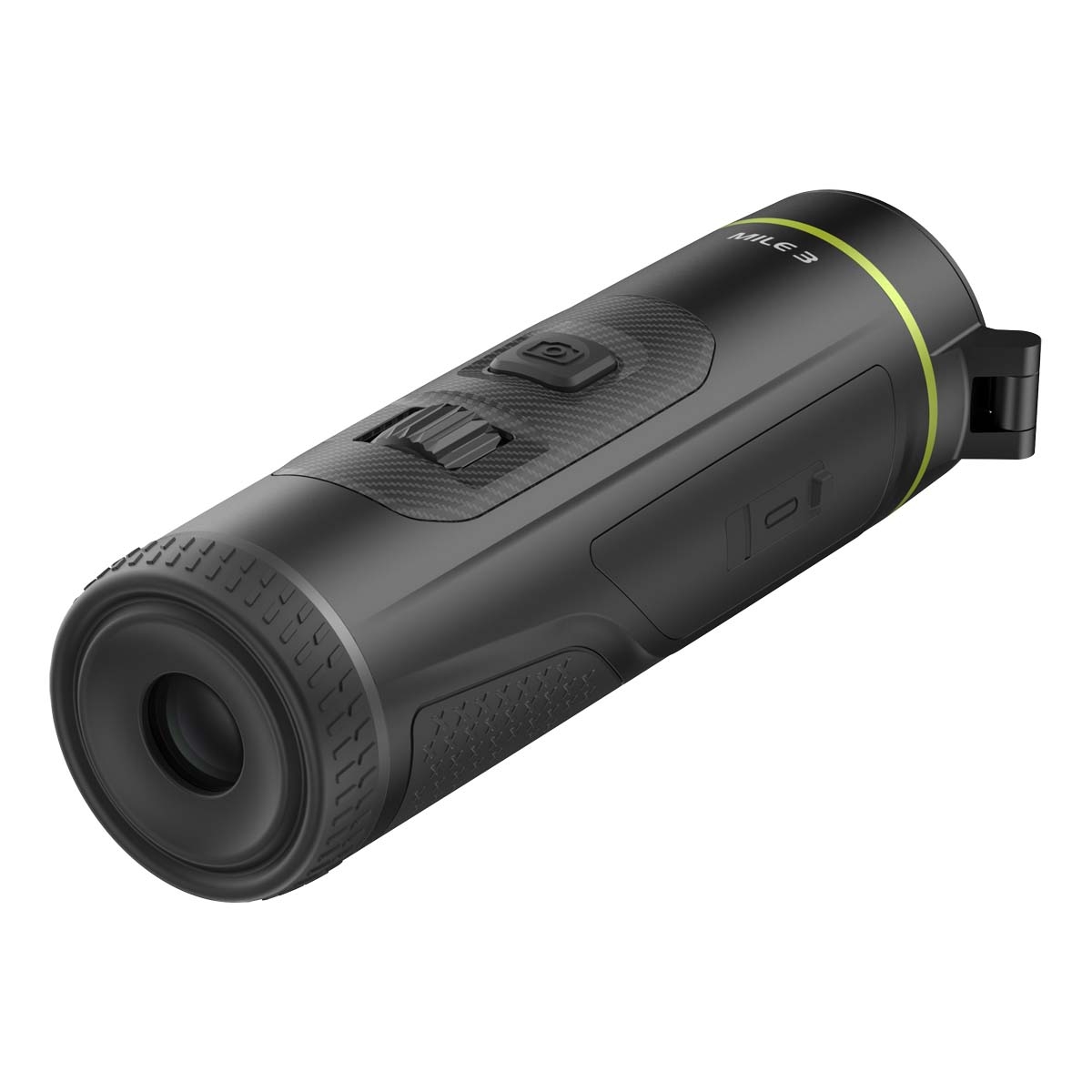

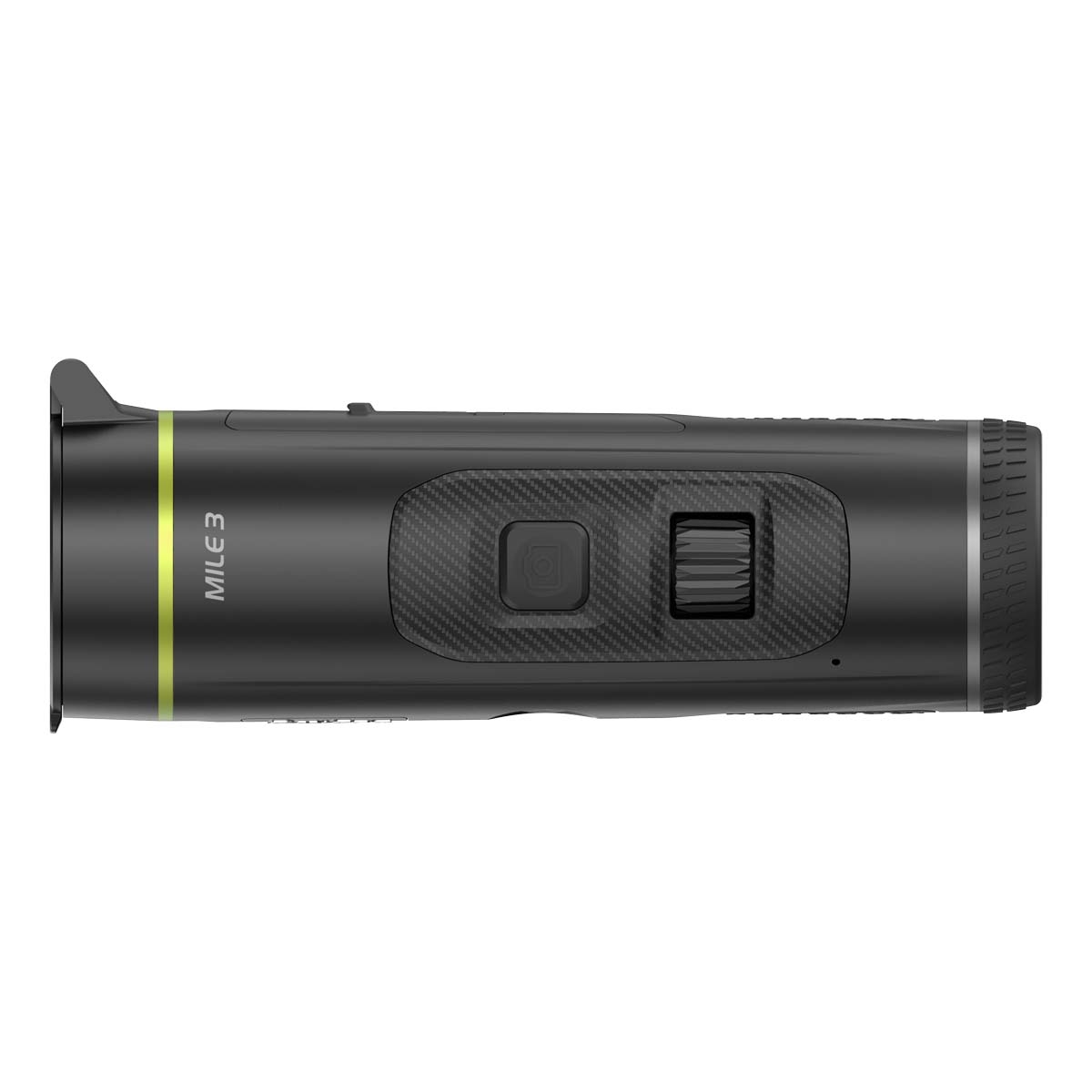

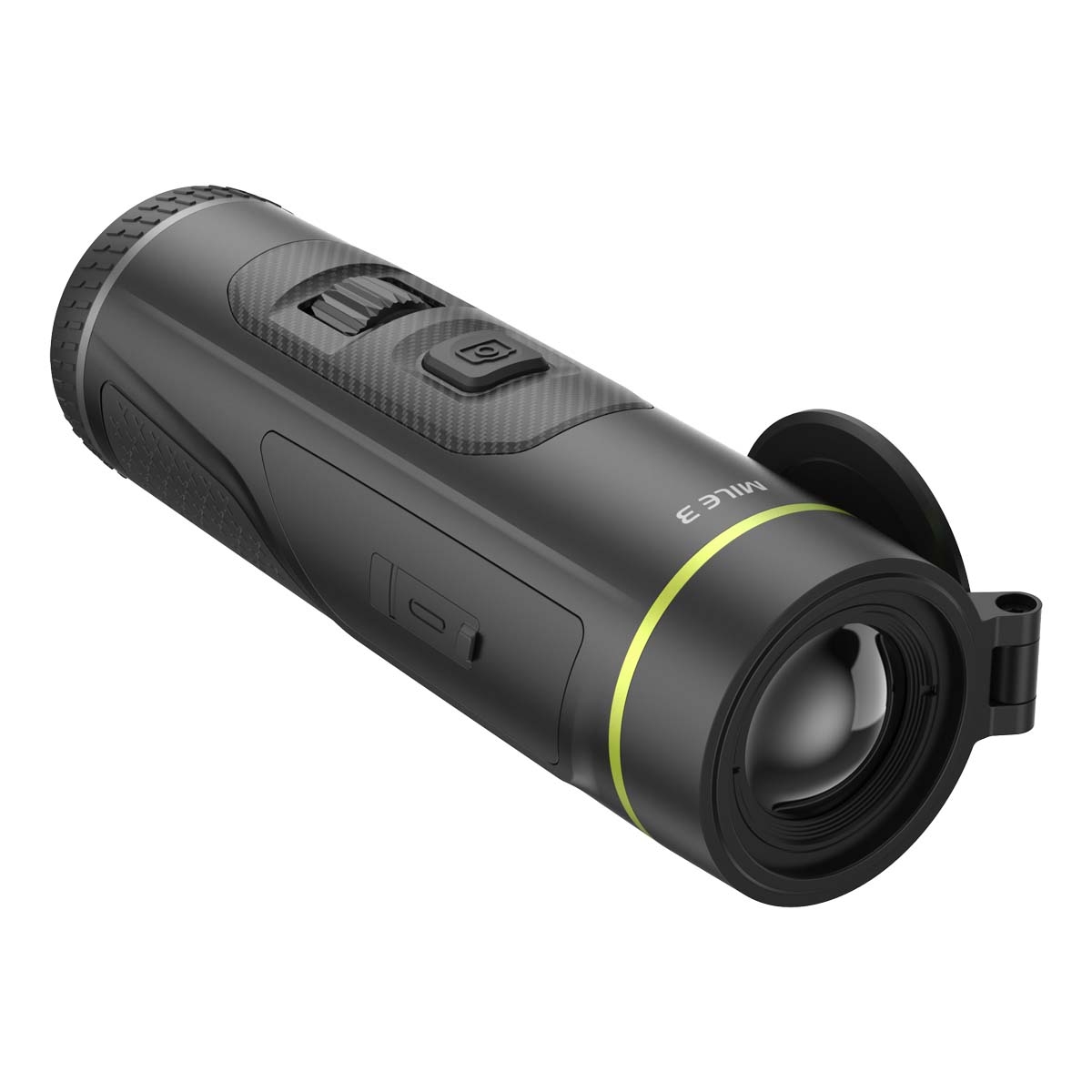

Pixfra Mile 3 M625 (640x512) Thermal Imager - 25mm

The Pixfra PFI-M625 Thermal Monocular Camera combines a 640 × 512 thermal detector with a 25 mm F0.9 lens and a 1920 × 1080 OLED display. Designed for portable thermal observation, it offers a 30.6 m horizontal field of view at 100 m, PIPS 3.0 Pro technology and a compact magnesium alloy body weighing no more than 290 g.

Thermal Imaging & Viewing

The vanadium oxide detector features a 12 μm pixel pitch, 50 Hz frame rate and thermal sensitivity of ≤15 mK NETD at F1.0. The lens provides 1.2× visual equivalent magnification, with 1×–8× digital zoom and manual focus down to 1 m. Detection distance is 1,300 m.

A 0.49-inch OLED display presents the image in a choice of six palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot and Sepia. Picture-in-picture and hot spot tracking provide additional viewing functions.

Construction & Handling

The durable magnesium alloy body measures 160.0 × 52.6 × 50.5 mm, keeping the design compact and portable. One control wheel combines three functions, while dioptre adjustment from -5 D to +3 D and 15 mm eye relief provide eyepiece adjustment and viewing specifications.

Weather Protection & Battery Power

The PFI-M625 has IP67 protection and an operating temperature range of -30°C to +55°C. Its quick-change rechargeable 18650 lithium battery delivers at least five hours of operation at 25°C with Wi-Fi switched off. A USB Type-C connection and 5 V DC power supply specification complete the power options.

Recording & Connectivity

Video recording, snapshots and a microphone are supported, with built-in 64 GB storage and a local album. The monocular also includes a Wi-Fi hotspot, compass, standby mode and defective pixel correction, plus automatic, semi-automatic and manual FFC calibration.

Pixfra PFI-M625 Thermal Monocular Camera Key Features

• 640 × 512 thermal detector with 12 μm pixel pitch and 50 Hz frame rate.
• 25 mm F0.9 lens with manual focus down to 1 m.
• Thermal sensitivity of ≤15 mK NETD at F1.0.
• PIPS 3.0 Pro technology.
• 0.49-inch full HD OLED display with six colour palettes.
• 1.2× visual equivalent magnification and 1×–8× digital zoom.
• Video recording, snapshots and built-in 64 GB storage.
• Three functions combined in one control wheel.
• Quick-change rechargeable 18650 battery.
• Compact magnesium alloy body with IP67 protection.

Pixfra PFI-M625 Thermal Monocular Camera Specifications

• Detector: vanadium oxide uncooled focal plane detector.
• Thermal resolution: 640 × 512 pixels.
• Pixel pitch: 12 μm.
• Frame rate: 50 Hz.
• Spectral range: 8–14 μm.
• Thermal sensitivity: ≤15 mK NETD at F1.0.
• Lens: 25 mm, F0.9.
• Field of view: 17.4° horizontal × 13.9° vertical; 30.6 × 24.4 m at 100 m.
• Focus: manual.
• Close focus distance: 1 m.
• Detection distance: 1,300 m.
• Visual equivalent magnification: 1.2×.
• Digital zoom: 1×–8×.
• Display: 0.49-inch OLED, 1920 × 1080 pixels.
• Dioptre adjustment: -5 D to +3 D.
• Eye relief: 15 mm.
• Storage: built-in 64 GB.
• FFC calibration: automatic, semi-automatic and manual.
• Battery: rechargeable 18650 lithium battery.
• Operating time: ≥5 hours at 25°C with Wi-Fi off.
• Power supply: 5 V DC.
• USB connection: Type-C.
• Protection rating: IP67.
• Operating temperature: -30°C to +55°C.
• Operating humidity: ≤95%.
• Dimensions: 160.0 × 52.6 × 50.5 mm.
• Net weight: ≤290 g.

Pixfra PFI-M625 Thermal Monocular Camera Review

The Pixfra PFI-M625 Thermal Monocular Camera pairs a 640 × 512 thermal sensor with a 25 mm lens, low starting magnification and a compact body. For users seeking portable thermal observation with integrated recording, its key attractions are the generous viewing coverage, full HD OLED display and quick-change battery design.

Performance & Key Features

The 17.4° horizontal field of view covers 30.6 m at 100 m, making scene coverage a central feature of this specification. Imaging combines a 50 Hz frame rate, ≤15 mK NETD sensitivity at F1.0 and PIPS 3.0 Pro technology. The 1.2× visual equivalent magnification is complemented by 1×–8× digital zoom, while six palettes and picture-in-picture offer different viewing options. Detection distance is 1,300 m; this figure should not be treated as an identification range.

Build Quality & Handling

The magnesium alloy body, IP67 rating and -30°C to +55°C operating range provide the main durability credentials. With a length of 160 mm and net weight of no more than 290 g, the design places a clear emphasis on portability. The quick-change 18650 battery is another practical feature for users who value replaceable power.

Is It Easy to Use?

The control layout combines three functions in one wheel, supported by adjustable dioptre and a choice of automatic, semi-automatic or manual FFC calibration. Focus requires manual adjustment, with a close focus distance of 1 m. Recording, snapshots and a local album are integrated into the device, alongside 64 GB of storage.

Key Takeaways

The PFI-M625 is a strong option to consider when scene coverage, a 640 × 512 detector and compact dimensions are priorities. Its 1.2× visual equivalent magnification is modest, with additional enlargement provided by digital zoom. Battery operation is rated at at least five hours under the stated conditions of 25°C with Wi-Fi off. For Uttings customers seeking a portable thermal monocular with recording and a replaceable battery, this combination deserves consideration.

Pixfra PFI-M625 Thermal Monocular Camera FAQs

What thermal detector does the monocular use?

It uses a vanadium oxide uncooled focal plane detector with 640 × 512 effective pixels. Pixel pitch is 12 μm and the frame rate is 50 Hz. Thermal sensitivity is ≤15 mK NETD at F1.0.

What magnification does the 25 mm lens provide?

The 25 mm F0.9 lens provides 1.2× visual equivalent magnification. Digital zoom is adjustable from 1× to 8×. Picture-in-picture is also available.

How much ground does the field of view cover?

At 100 m, the field of view measures 30.6 m horizontally and 24.4 m vertically. The corresponding angular field of view is 17.4° × 13.9°.

What are the detection and minimum focusing distances?

Detection distance is 1,300 m, while close focus distance is 1 m. Focus is adjusted manually. The detection figure does not establish an identification distance.

What display and colour palettes are available?

The monocular features a 0.49-inch OLED display with 1920 × 1080 resolution. Available palettes are White Hot, Black Hot, Iron Red, Alarm, Green Hot and Sepia.

Can it capture video and still images?

Yes, video recording and snapshots are supported. It includes a microphone, built-in 64 GB storage and a local album.

How long does the rechargeable battery last?

The rechargeable 18650 lithium battery provides at least five hours of operation at 25°C with Wi-Fi switched off. The monocular uses a quick-change battery design. It also features a USB Type-C connection and a 5 V DC power supply specification.

What protection does it offer for outdoor use?

The magnesium alloy body has an IP67 protection rating. Operating temperature is -30°C to +55°C, and operating humidity is ≤95%.

How compact is the monocular?

It measures 160.0 × 52.6 × 50.5 mm and has a net weight of no more than 290 g. The body is made from magnesium alloy.

What adjustment and additional functions are included?

Dioptre adjustment runs from -5 D to +3 D, with 15 mm eye relief. Additional functions include a Wi-Fi hotspot, compass, hot spot tracking and picture-in-picture. Automatic, semi-automatic and manual FFC calibration are supported, along with standby mode and defective pixel correction.
