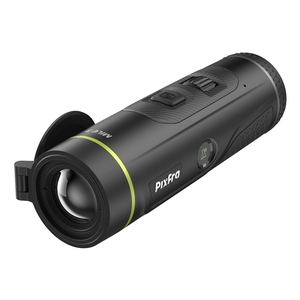

Pixfra Mile 3 M325 (384x288) Thermal Imager - 25mm

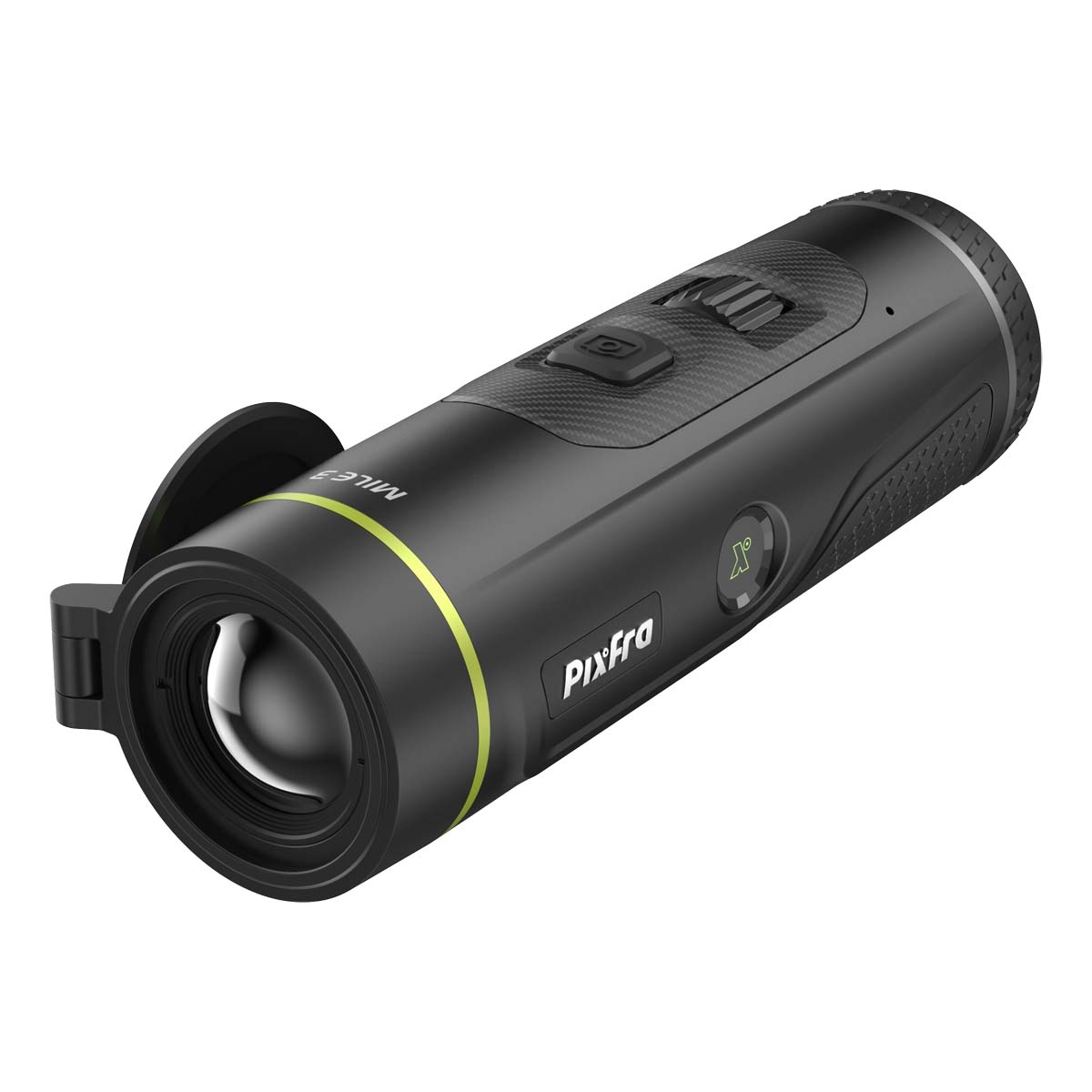

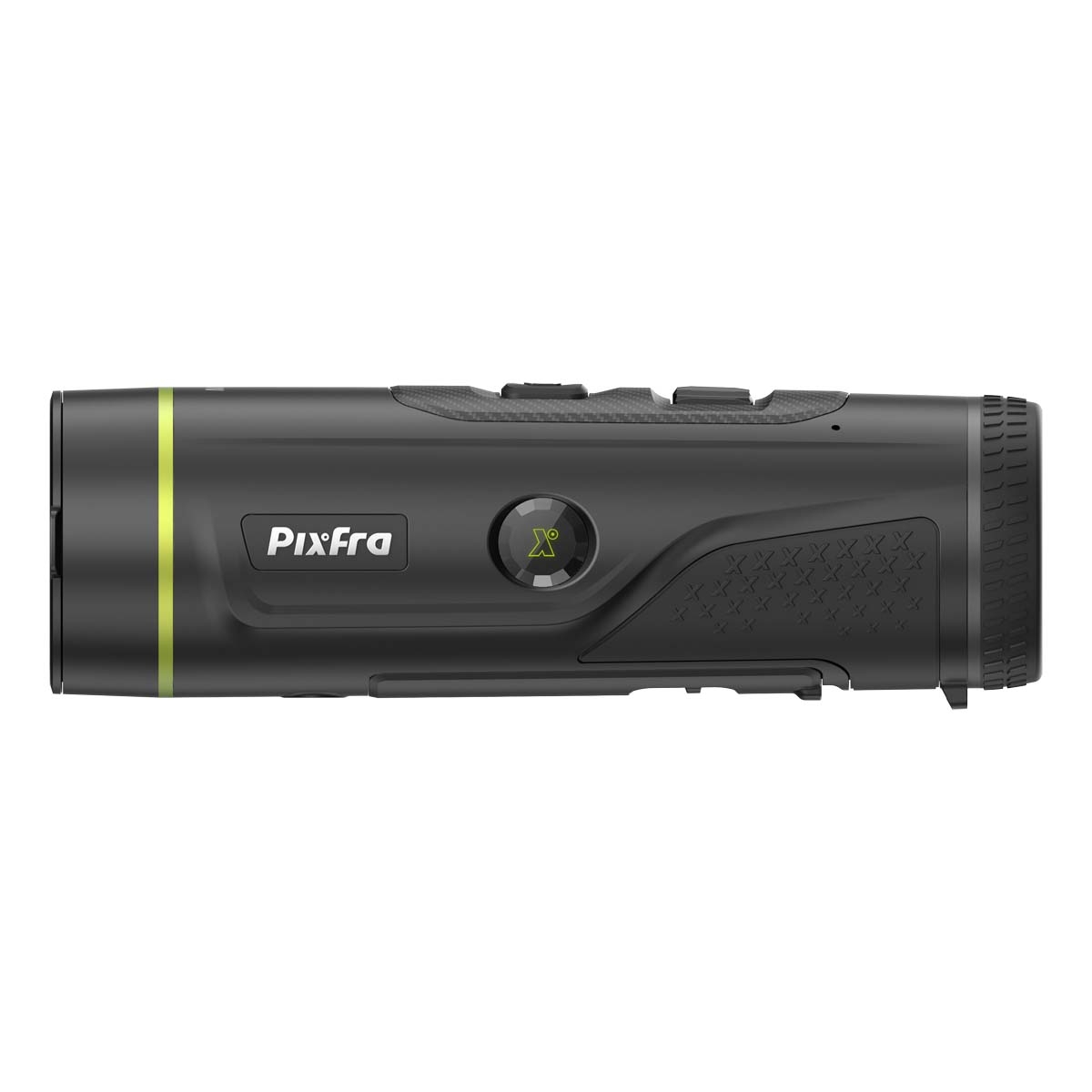

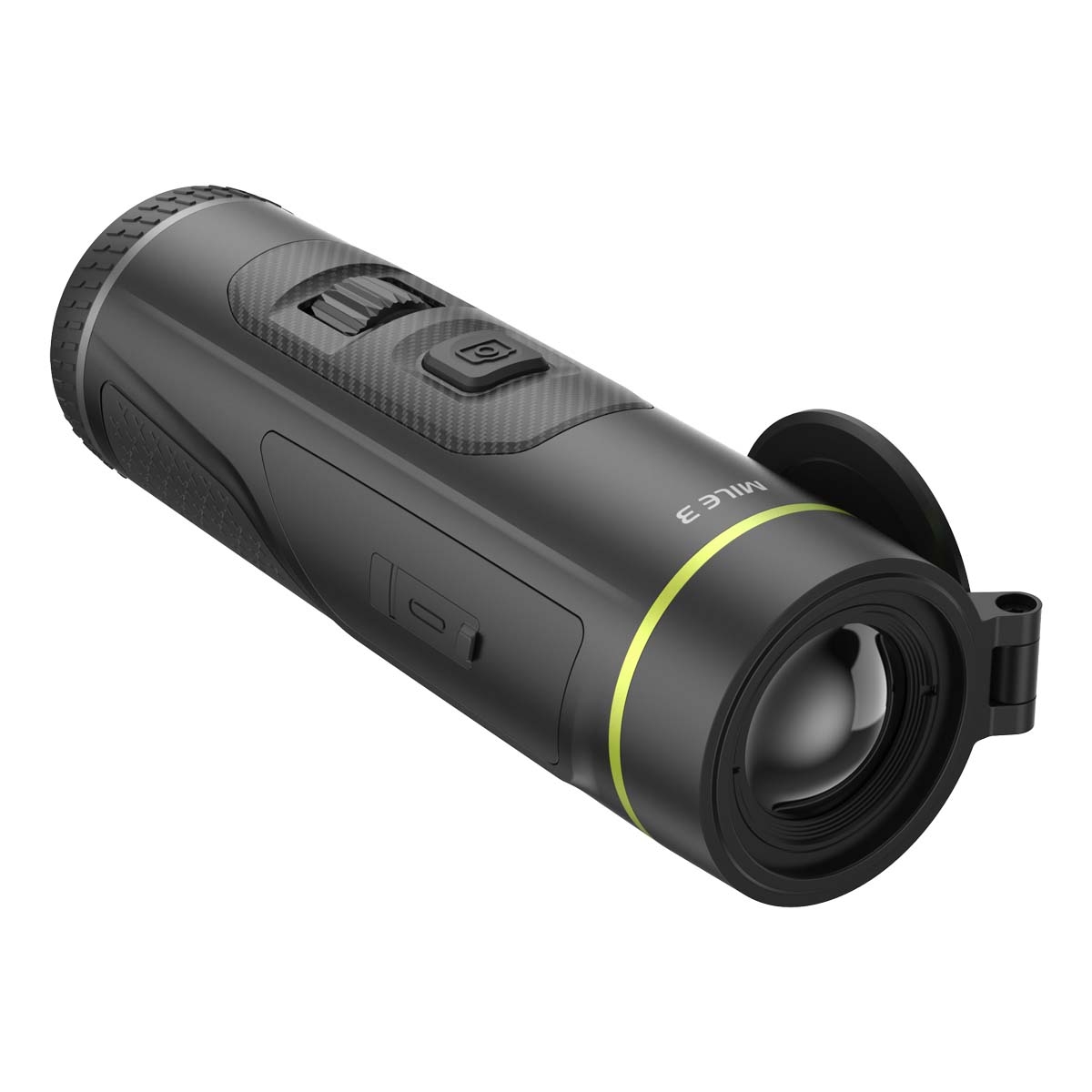

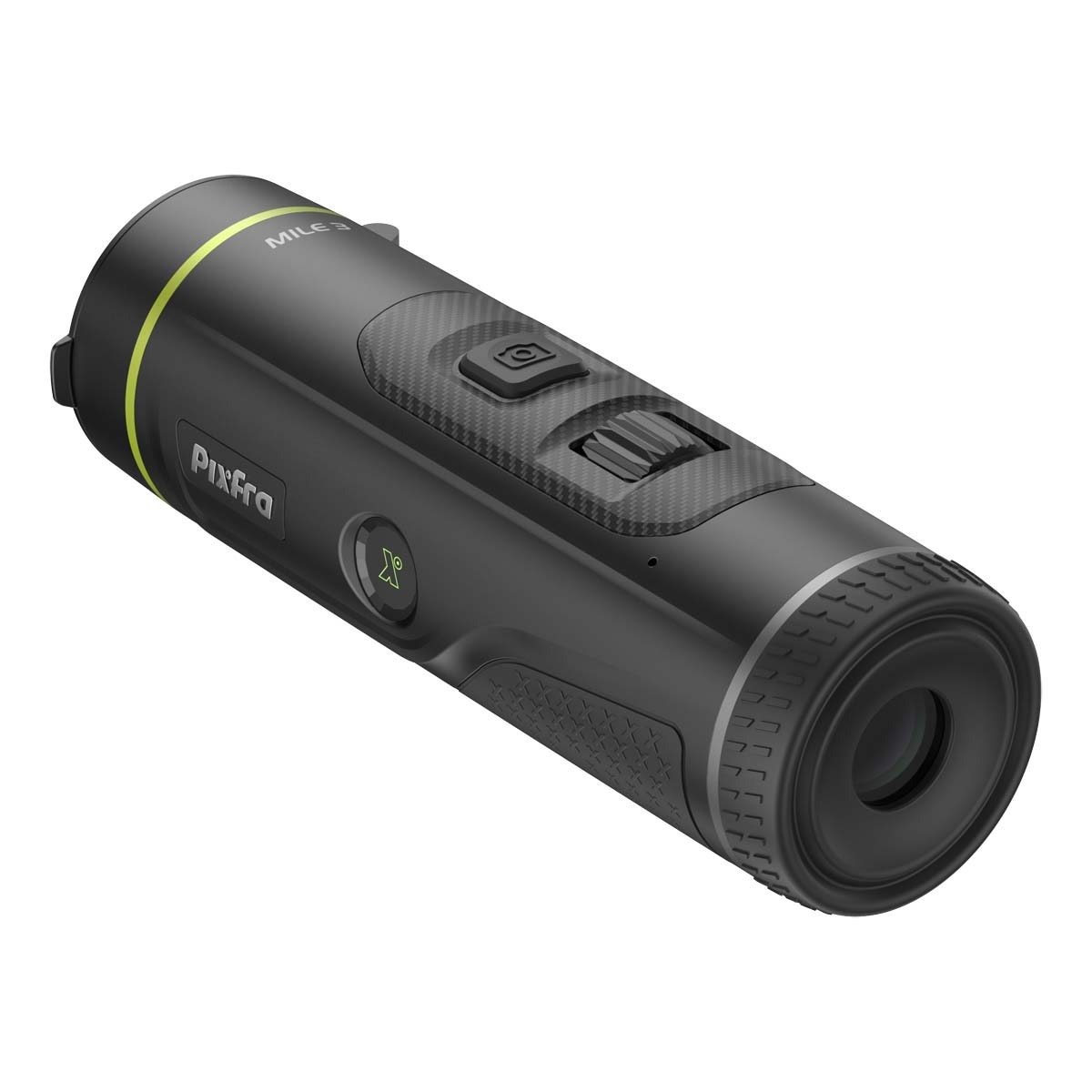

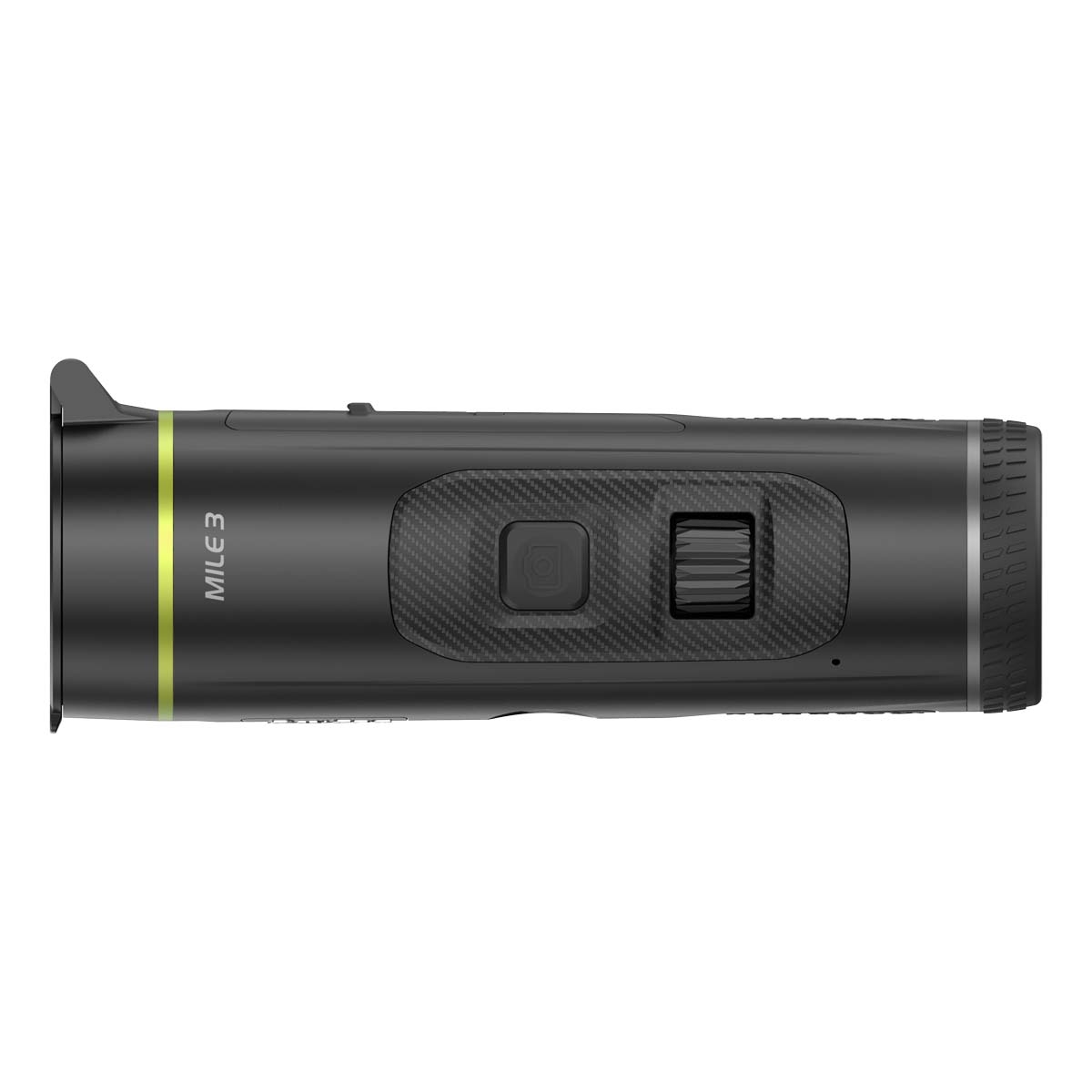

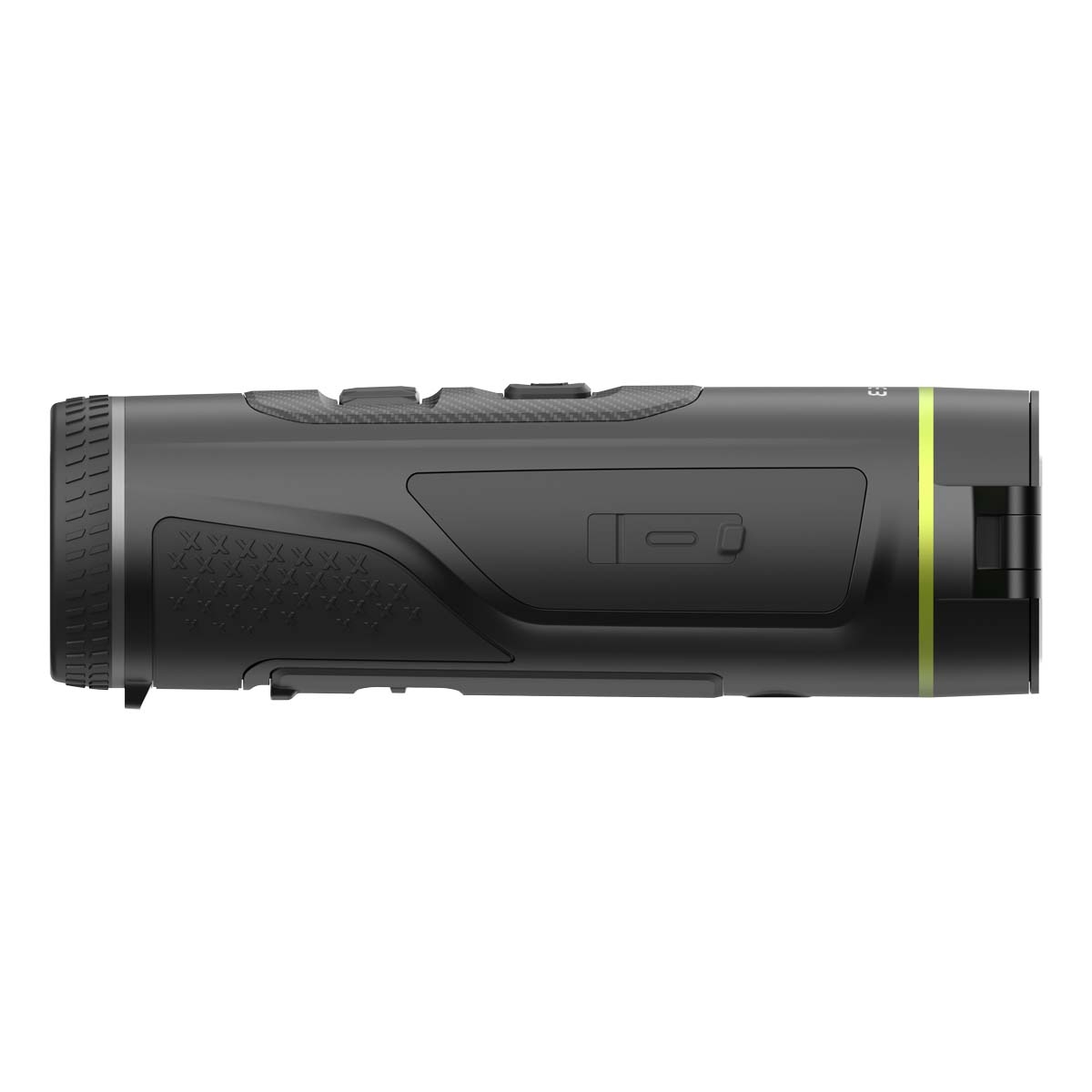

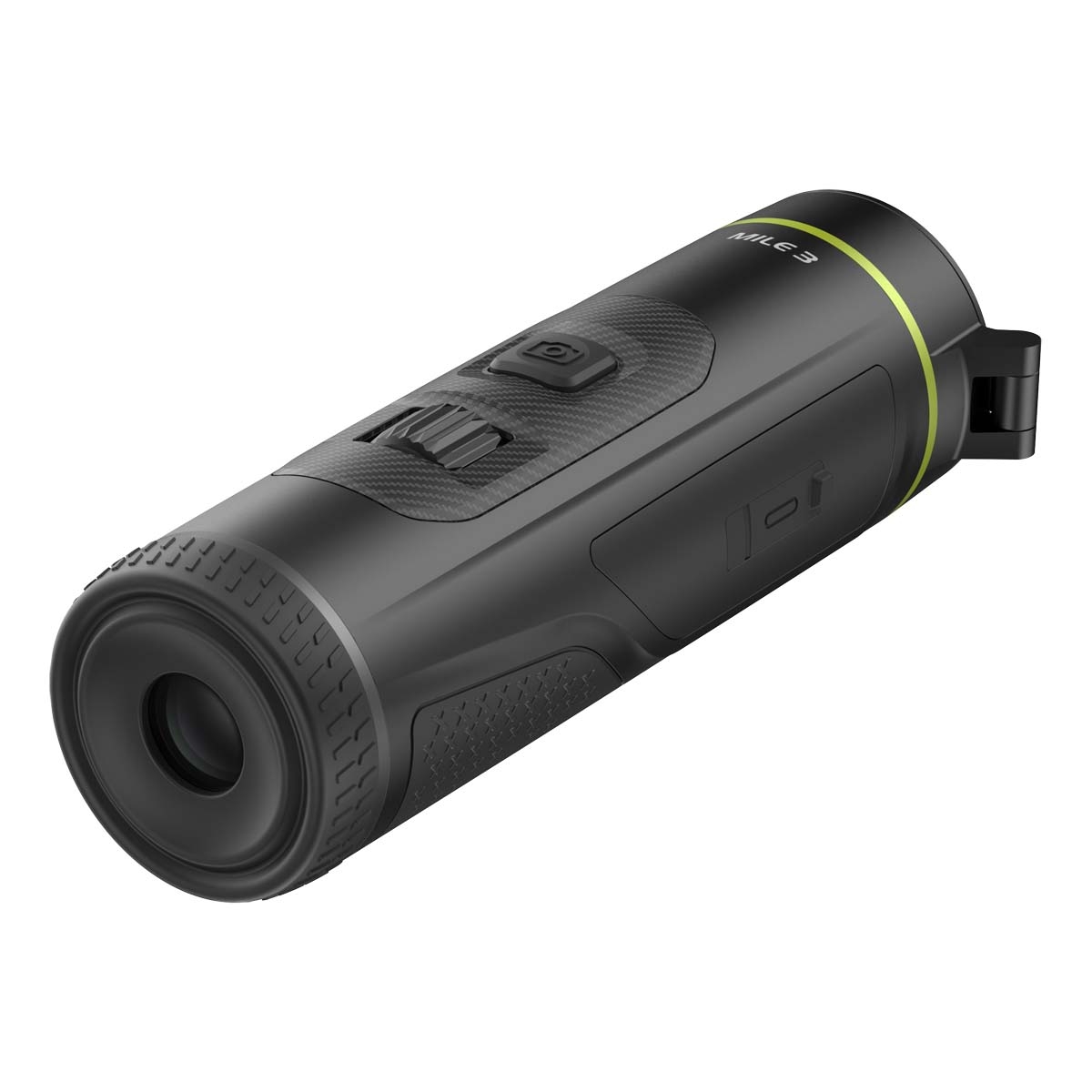

Pixfra Mile 3 M325 Thermal Imaging Monocular

The Pixfra Mile 3 M325 is a compact thermal imaging monocular built around a 384 × 288 vanadium oxide detector and a 25 mm F0.9 objective lens. Its ≤15 mK thermal sensitivity, PIPS 3.0 Pro image processing and 50 Hz frame rate deliver detailed thermal images across a detection range of up to 1,300 metres.

A lightweight magnesium alloy body, integrated three-function control wheel and replaceable 18650 battery system make the M325 practical for prolonged handheld observation. Video recording with audio, still-image capture and 64 GB of built-in storage provide extensive options for documenting observations.

Detailed Thermal Imaging

The M325 combines a 12 μm pixel pitch with class-leading ≤15 mK NETD sensitivity, helping it distinguish small differences in temperature under challenging environmental conditions. PIPS 3.0 Pro processing enhances fine detail, reduces image noise and improves detector responsiveness in colder conditions.

Its 25 mm focal length provides an 11° × 8.2° field of view, equivalent to 19.3 × 14.3 metres at 100 metres. A one-metre close-focus distance supports observation at shorter ranges, while the 1,300-metre detection capability extends its reach across open ground.

OLED Display and Viewing Options

The 0.49-inch OLED display has a resolution of 1920 × 1080 pixels. Six selectable colour palettes allow the thermal image to be adapted to different subjects and conditions: White Hot, Black Hot, Iron Red, Alarm, Green Hot and Sepia.

The monocular offers 1.8× visual-equivalent magnification with 1× to 8× digital zoom. A dioptre adjustment range of -5 D to +3 D and 15 mm eye relief allow the viewing system to be adjusted to the user.

Compact Construction and Handling

Measuring 160 × 52.6 × 50.5 mm and weighing no more than 300 g, the M325 is designed for comfortable handheld use and easy storage in a pocket or pack. Its magnesium alloy body provides a durable yet portable construction.

The integrated three-function control wheel brings focus, magnification and menu navigation together in one control, supporting convenient one-handed operation. Additional functions include picture-in-picture, hot-spot tracking, an electronic compass and automatic, semi-automatic or manual FFC calibration.

Weather Protection and Power

An IP67 protection rating equips the M325 for use in demanding outdoor conditions. It is specified for operation in temperatures from -30°C to 55°C and humidity levels of up to 95%.

The quick-change power system uses rechargeable 18650 lithium batteries. Battery operating time is rated at a minimum of 5.5 hours at 25°C with Wi-Fi switched off, while USB Type-C connectivity supports a 5 V DC power supply.

Pixfra Mile 3 M325 Key Features

• 384 × 288 vanadium oxide uncooled thermal detector
• ≤15 mK NETD thermal sensitivity
• 25 mm F0.9 objective lens
• Up to 1,300-metre detection distance
• 50 Hz frame rate and 12 μm pixel pitch
• PIPS 3.0 Pro image processing
• 1.8× visual-equivalent magnification and 1× to 8× digital zoom
• 1920 × 1080, 0.49-inch OLED display
• Six thermal colour palettes
• Integrated three-function control wheel
• Video recording with audio and still-image capture
• 64 GB of built-in storage
• Wi-Fi hotspot and Pixfra app connectivity
• Replaceable rechargeable 18650 battery system
• IP67 protection rating
• Compact magnesium alloy body weighing no more than 300 g

Pixfra Mile 3 M325 Specifications

• Detector type: vanadium oxide uncooled focal plane detector
• Sensor resolution: 384 × 288 pixels
• Frame rate: 50 Hz
• Pixel pitch: 12 μm
• Spectral range: 8-14 μm
• Thermal sensitivity: ≤15 mK at F1.0
• Focal length: 25 mm
• Aperture: F0.9
• Angular field of view: 11° horizontal × 8.2° vertical
• Linear field of view at 100 metres: 19.3 m horizontal × 14.3 m vertical
• Close-focus distance: 1 m
• Detection distance: 1,300 m
• Visual-equivalent magnification: 1.8×
• Digital zoom: 1× to 8×
• Display: 1920 × 1080, 0.49-inch OLED
• Colour palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot and Sepia
• Dioptre adjustment: -5 D to +3 D
• Eye relief: 15 mm
• Storage: built-in 64 GB
• Battery type: rechargeable 18650 lithium battery
• Battery operating time: minimum 5.5 hours at 25°C with Wi-Fi off
• Connection: USB Type-C
• Protection rating: IP67
• Operating temperature: -30°C to 55°C
• Operating humidity: up to 95%
• Dimensions: 160 × 52.6 × 50.5 mm
• Net weight: no more than 300 g

Pixfra Mile 3 M325 Thermal Imaging Monocular Review

The Pixfra Mile 3 M325 brings high thermal sensitivity, extensive digital functionality and a portable magnesium alloy construction together in a compact handheld monocular. Its 25 mm lens, broad field of view and one-metre close focus give it a versatile observation range, while its 1,300-metre detection capability supports longer-distance scanning.

PIPS 3.0 Pro processing, a high-resolution OLED display and multiple image palettes strengthen the viewing experience. Recording, app connectivity and generous internal storage also make the M325 suitable for users who want to capture and manage their observations.

M325 Performance & Key Features

The 384 × 288 detector combines with a 12 μm pixel pitch, 50 Hz refresh rate and ≤15 mK sensitivity to produce a responsive, detailed thermal picture. The fast F0.9 aperture supports the detector, while PIPS 3.0 Pro enhances detail and reduces noise.

• Detection range of up to 1,300 metres
• Wide 19.3 × 14.3-metre field of view at 100 metres
• Six viewing palettes and 1× to 8× digital zoom
• Video, audio and still-image capture
• Hot-spot tracking, picture-in-picture and compass functions

Build Quality & Handling

The durable magnesium alloy body has an IP67 rating and is specified for temperatures between -30°C and 55°C. At no more than 300 g and just 160 mm long, it remains compact enough for comfortable handheld observation and convenient storage.

The replaceable 18650 battery system allows the power source to be changed quickly, while the three-function control wheel keeps the main adjustments within easy reach.

Is the Pixfra Mile 3 M325 Easy to Use?

The integrated wheel places focus, zoom and menu navigation within a single control, reducing the need to move between multiple buttons. Automatic, semi-automatic and manual FFC settings allow calibration behaviour to be selected according to the user's preference.

Its local album, standby mode and clear OLED display make everyday operation straightforward, while Wi-Fi connectivity enables remote access to digital functions through the Pixfra app.

Key Takeaways of the Pixfra Mile 3 M325

The M325 combines a sensitive 384 × 288 thermal detector with a 25 mm F0.9 lens, PIPS 3.0 Pro processing and a maximum detection distance of 1,300 metres. Its 1.8× visual-equivalent magnification and wide field of view give it a practical optical profile for scanning, with digital zoom available when closer inspection is required. A compact IP67 magnesium alloy body, replaceable battery and integrated control wheel make it well suited to extended outdoor observation. It is a strong choice for customers seeking a portable thermal monocular with capable imaging, recording and connectivity features.

Pixfra Mile 3 M325 Thermal Imaging Monocular FAQs

What thermal sensor does the Pixfra Mile 3 M325 use?

The M325 uses a 384 × 288 vanadium oxide uncooled focal plane detector. It has a 12 μm pixel pitch, 50 Hz frame rate and ≤15 mK NETD sensitivity for detecting fine differences in temperature.

How far can the Pixfra Mile 3 M325 detect a heat source?

The specified detection distance is up to 1,300 metres. Identification distance is not stated in the supplied specifications and should not be treated as equivalent to the detection figure.

What magnification does the M325 provide?

The monocular has 1.8× visual-equivalent magnification and a digital zoom range from 1× to 8×. Its field of view measures 19.3 metres horizontally and 14.3 metres vertically at a distance of 100 metres.

What display and colour palettes are available?

The M325 uses a 0.49-inch OLED display with a resolution of 1920 × 1080 pixels. Its six palettes are White Hot, Black Hot, Iron Red, Alarm, Green Hot and Sepia.

Is the Pixfra Mile 3 M325 weatherproof?

The monocular carries an IP67 protection rating. It is specified to operate from -30°C to 55°C and in relative humidity levels of up to 95%.

How long does the M325 battery last?

The rechargeable 18650 lithium battery is rated for at least 5.5 hours of operation at 25°C with Wi-Fi switched off. The quick-change battery design allows a depleted battery to be replaced rather than requiring the monocular to remain connected for recharging.

Can the M325 record video and take photographs?

Yes. It can record video with audio through its built-in microphone and capture still images, with files stored on the integrated 64 GB memory.

Can the Pixfra Mile 3 M325 connect to a smartphone?

Yes. Its Wi-Fi hotspot allows connection to a compatible smartphone or tablet through the Pixfra app, providing remote control over its digital features.

How large and heavy is the M325?

The monocular measures 160 × 52.6 × 50.5 mm and has a net weight of no more than 300 g. Its streamlined dimensions are intended to make it comfortable to carry in a pocket or pack.

What additional viewing functions does the M325 include?

Functions include hot-spot tracking, picture-in-picture, an electronic compass, local album access and standby mode. It also provides automatic, semi-automatic and manual FFC calibration, along with defective-pixel correction.
