Opticron MM4 62 GA VHD Angled Telescope with HR3 16-48x Eyepiece

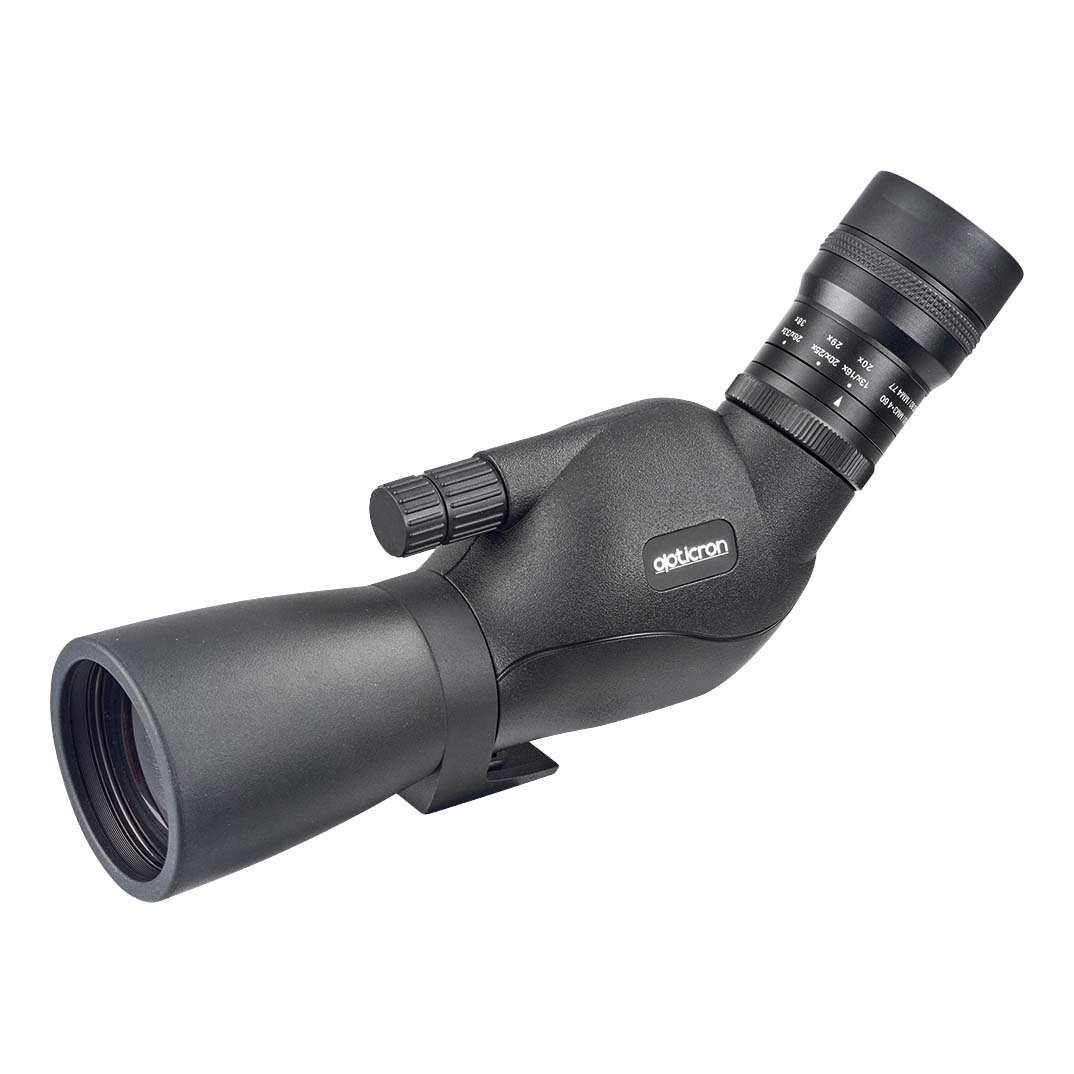

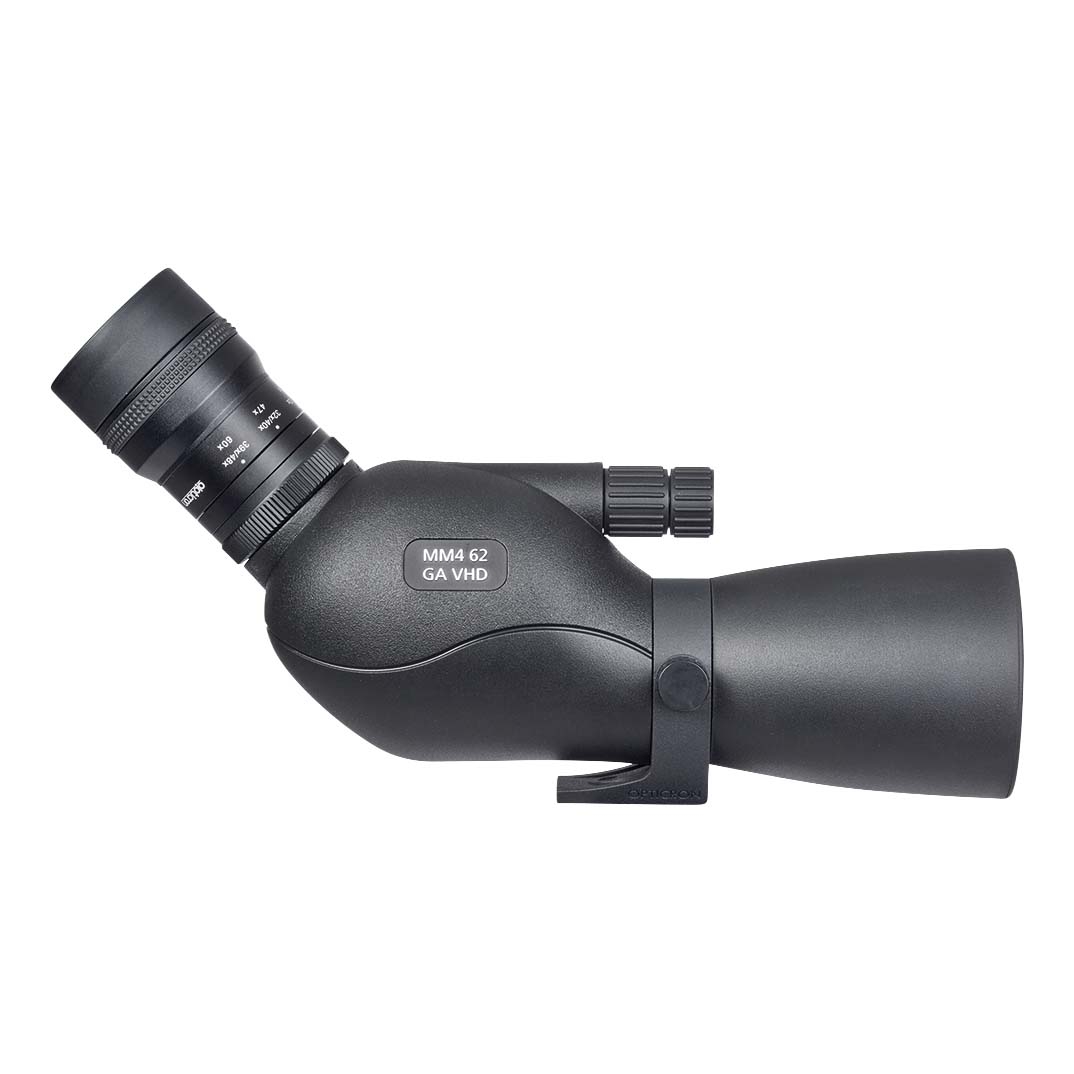

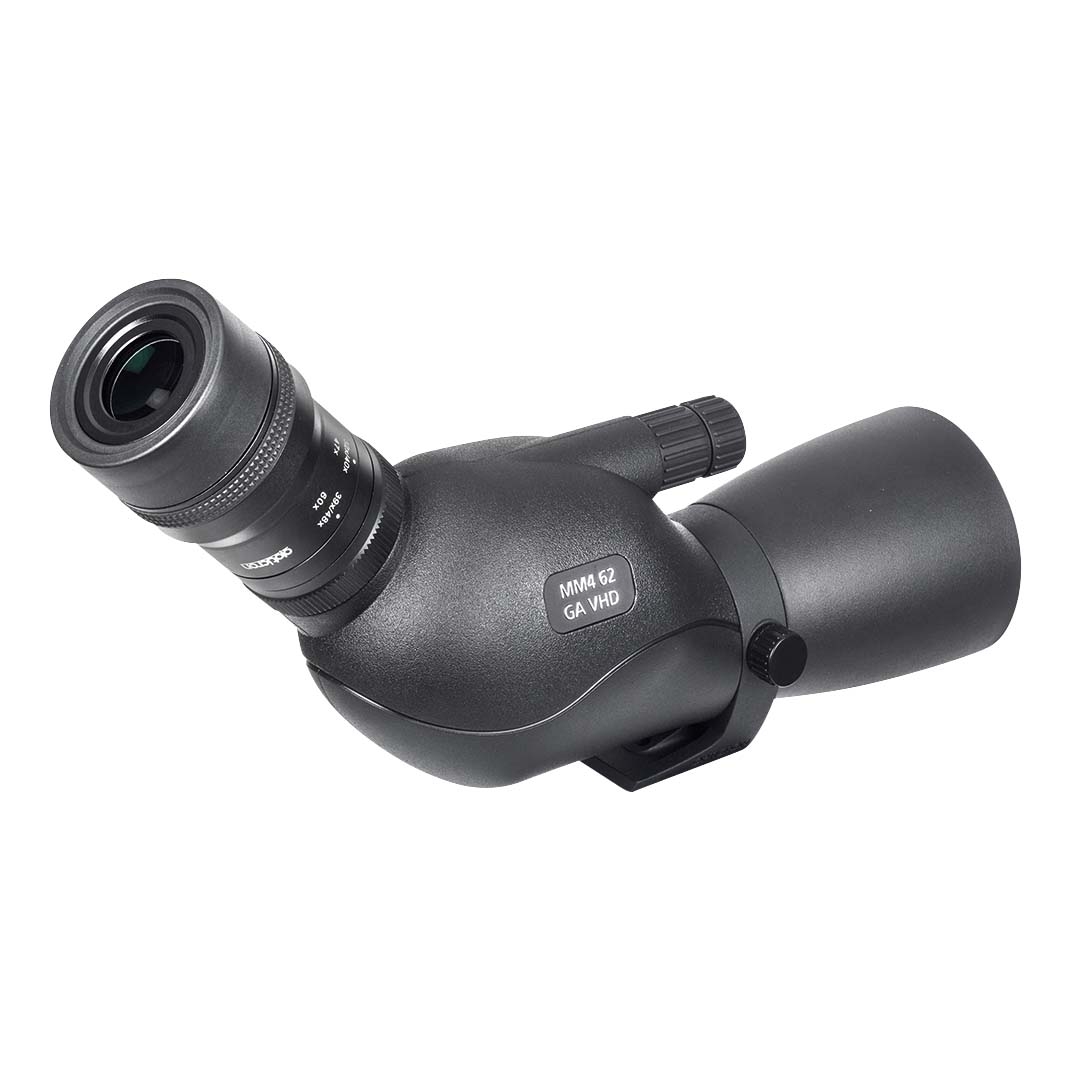

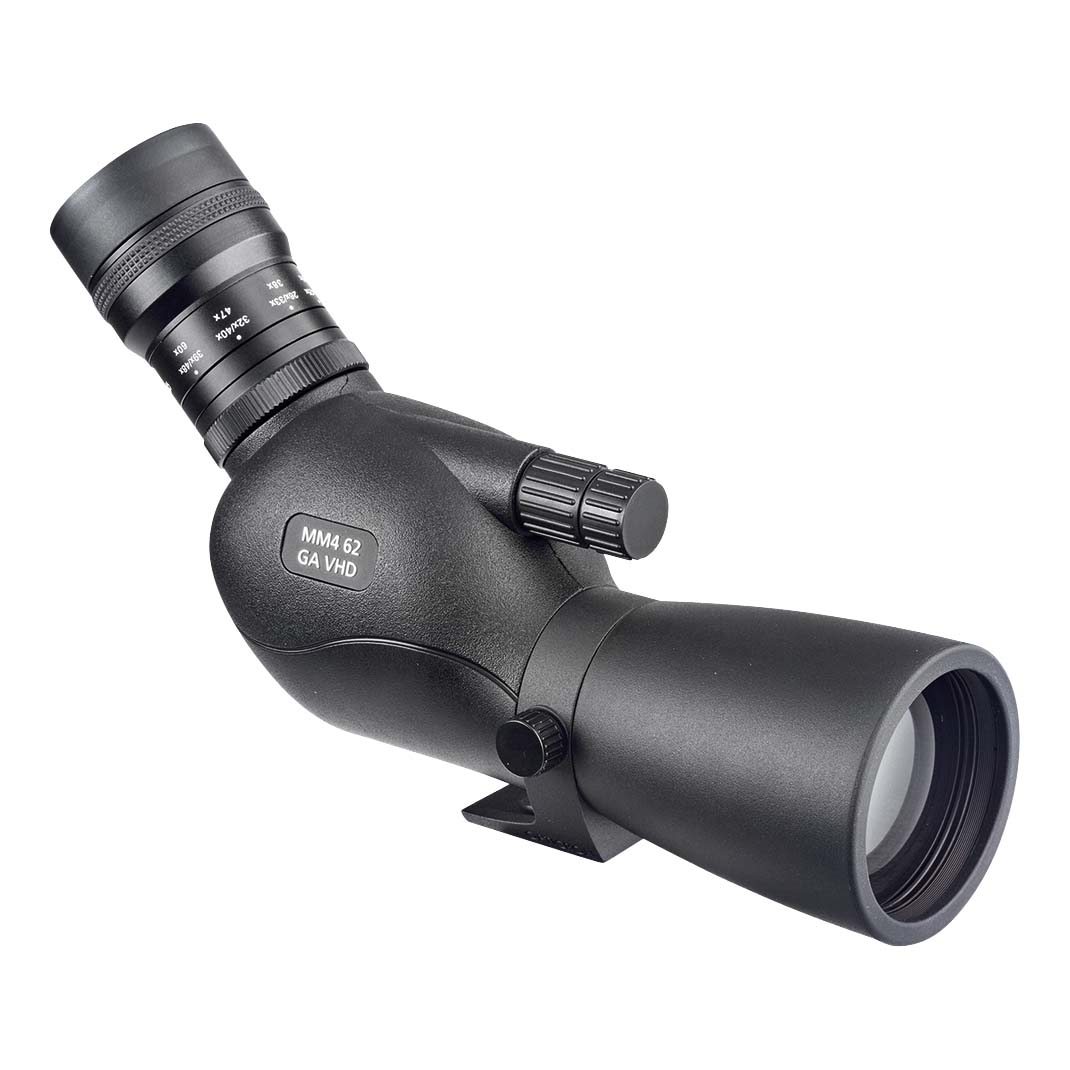

The Opticron MM4 62 GA VHD/45 Travelscope with HR3 16-48x eyepiece is a compact angled fieldscope designed for high-quality long-range observation while remaining easy to carry in the field. Manufactured in Japan, it combines a 62mm ED triplet objective, fully multi-coated optics and a versatile zoom eyepiece in a lightweight, portable format.

The 45° angled body uses lightweight polycarbonate and alloy construction protected by soft-touch textured rubber armour. Nitrogen waterproofing helps protect the internal optics, while the wide-wheel focuser incorporates a precise 9:1 dual-focus system. A large rotating tripod sleeve provides approximately +/-90° adjustment for flexible viewing positions.

Key Features

• 62mm ED triplet objective lens
• Fully multi-coated optical system
• Supplied with Opticron HR3 16-48x zoom eyepiece
• 45° angled viewing body
• Nitrogen waterproof construction
• Wide-wheel focuser with 9:1 ratio dual-focus system

Supplied Accessories

• Opticron HR3 16-48x eyepiece
• Objective lens cover

Specifications

• Colour: Black
• Body type: 45° angled
• Objective lens diameter: 62mm
• Magnification: 16-48x
• Close focus: 3.9m
• Prism type: Porro
• Waterproof: Yes
• Tripod mount: Rotating sleeve

Key Takeaways

This MM4 62 GA VHD/45 kit combines Opticron's compact 62mm ED angled fieldscope with the HR3 16-48x zoom eyepiece. Its angled viewing position, dual-focus system, waterproof construction and rotating tripod sleeve make it a versatile option for detailed observation in the field.

FAQs

What eyepiece is supplied with the Opticron MM4 62 GA VHD/45?

The kit includes the Opticron HR3 16-48x zoom eyepiece.

Is the Opticron MM4 62 GA VHD/45 waterproof?

Yes. The scope is nitrogen waterproof.

What is the close focus distance?

The minimum close focus distance is 3.9 metres.

What type of viewing angle does this model use?

It uses a 45° angled body.
