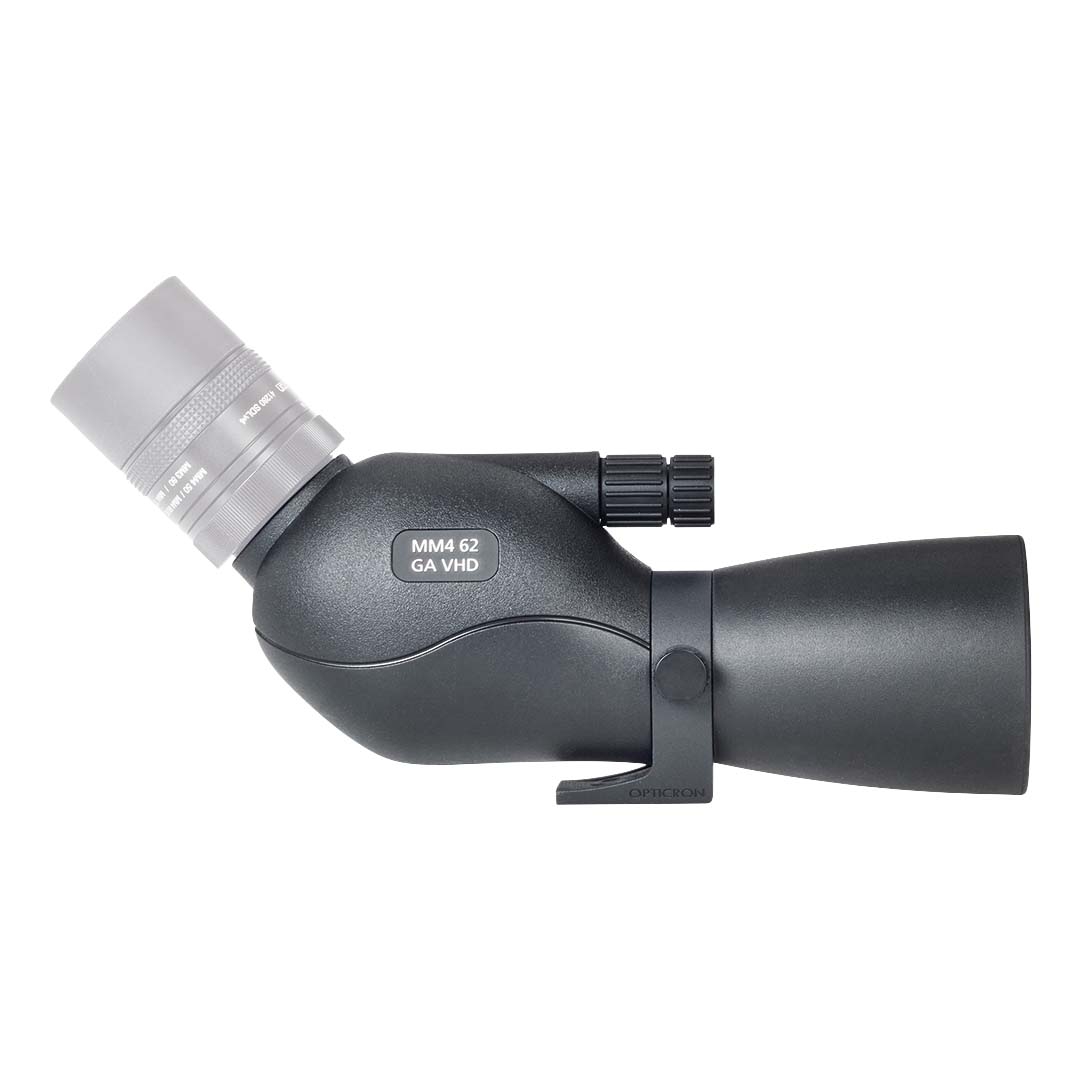

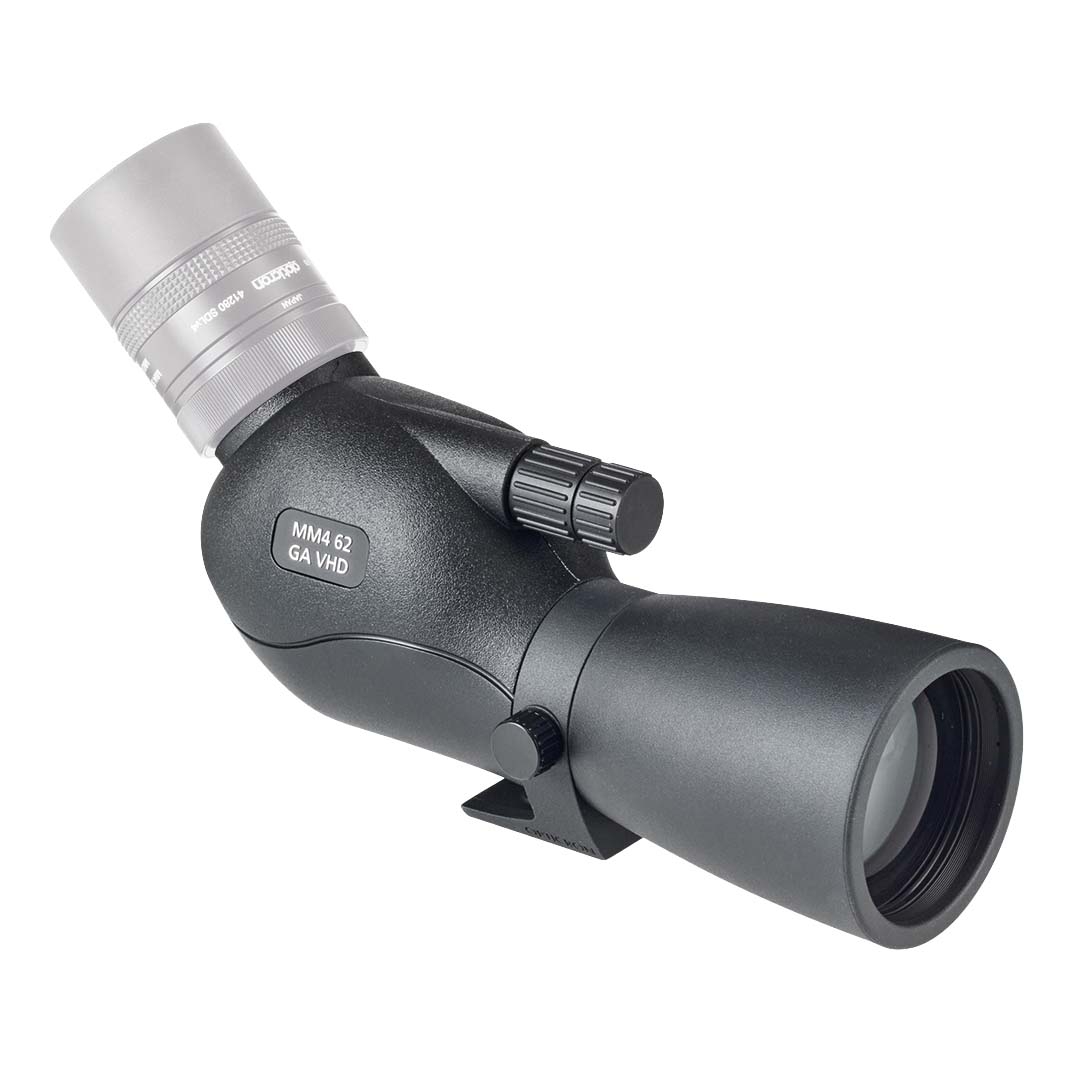

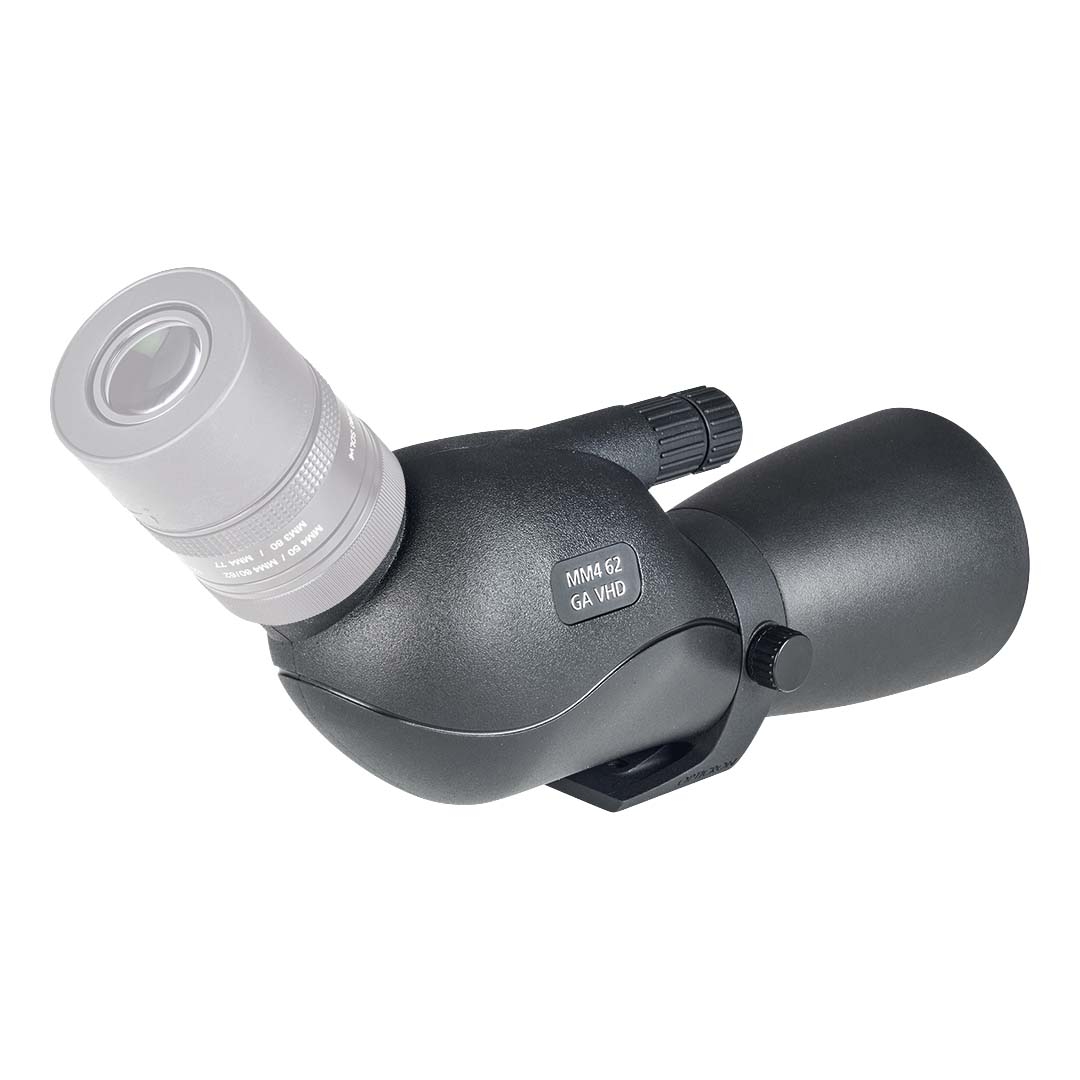

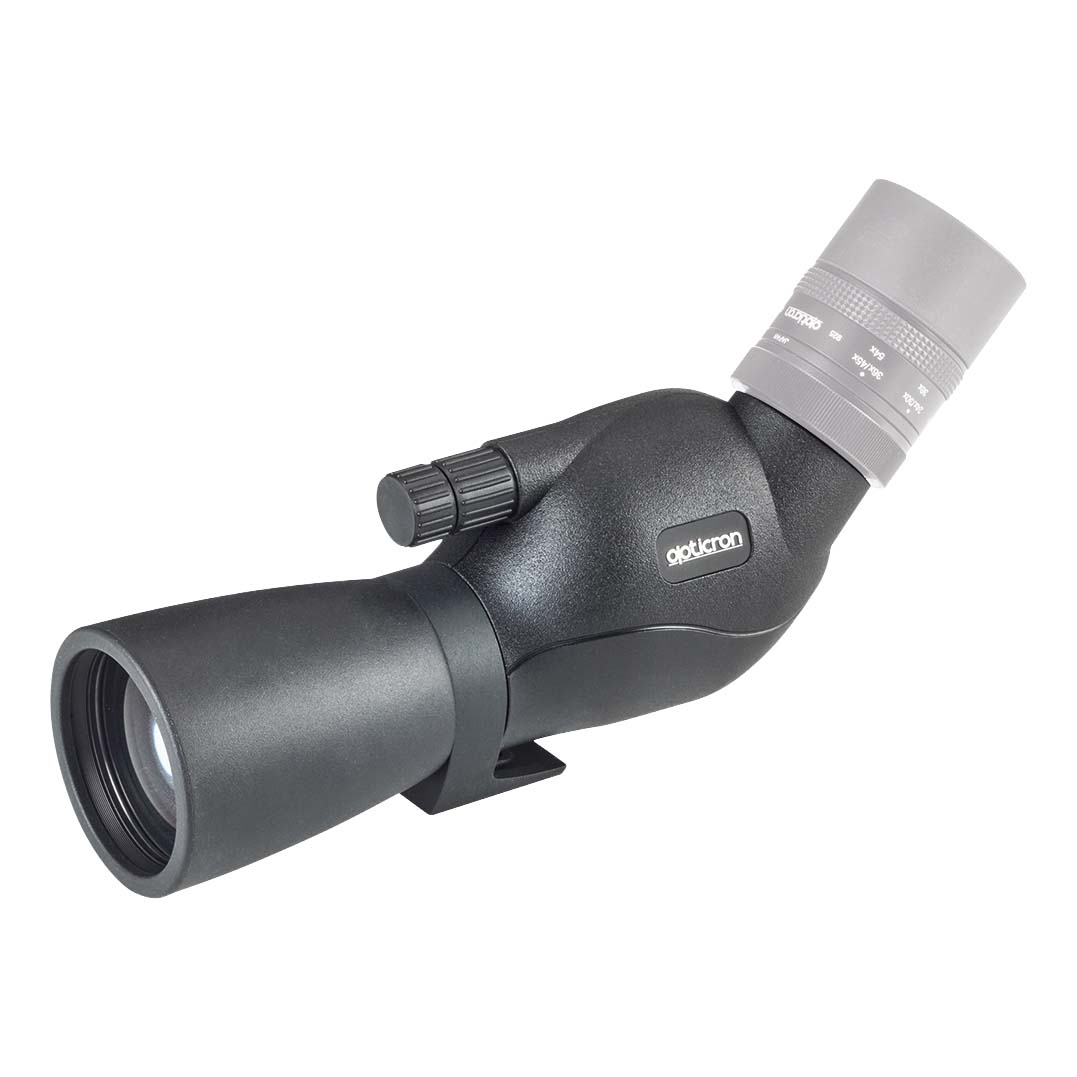

Opticron MM4 62 GA VHD Angled Telescope - Body Only

The Opticron MM4 62 GA VHD/45 Travelscope is a compact, lightweight fieldscope designed for high-quality long-range observation while remaining easy to carry in the field. Manufactured in Japan, it combines a 62mm ED triplet objective with a fully multi-coated optical system to deliver a bright, sharp image from a body measuring just 235mm long.

Its lightweight polycarbonate and alloy construction is protected by soft-touch rubber armour, while nitrogen waterproofing helps protect the internal optics. A wide-wheel focuser with a 9:1 dual-focus system provides precise adjustment, and the rotating tripod sleeve allows the scope to be positioned through approximately 90° either side.

Key Features

• 62mm ED triplet objective lens
• Fully multi-coated optical system
• Lightweight polycarbonate and alloy body with rubber armour
• Nitrogen waterproof construction
• Wide-wheel focuser with 9:1 ratio dual-focus system
• Rotating tripod sleeve with approximately +/-90° adjustment

Eyepiece Compatibility

The MM4 62 GA VHD/45 is compatible with Opticron HR2, HR3, HDF and SDL eyepieces. Recommended options for general observation include the SDLv4 15-45x and HR3 16-48x eyepieces.

Supplied Accessories

• Integrated rubber objective lens cover

Specifications

• Colour: Black
• Body type: 45° angled
• Objective lens diameter: 62mm
• Close focus: 3.9m
• Prism type: Porro
• Waterproof: Yes
• Tripod mount: Rotating sleeve
• Dimensions: 235 x 100 x 74mm
• Weight: 788g

Key Takeaways

The Opticron MM4 62 GA VHD/45 combines a compact 62mm fieldscope body with ED optics, precise dual focusing and broad eyepiece compatibility. Its relatively low weight and short 235mm body make it particularly well suited to users who need high-magnification observation without carrying a full-size fieldscope.

FAQs

Which eyepieces are compatible with the Opticron MM4 62 GA VHD/45?

It is compatible with Opticron HR2, HR3, HDF and SDL eyepieces.

Is the Opticron MM4 62 GA VHD/45 waterproof?

Yes. The scope is nitrogen waterproof.

How much does the Opticron MM4 62 GA VHD/45 weigh?

The body weighs 788g.

What is the close focus distance?

The minimum close focus distance is 3.9 metres.
