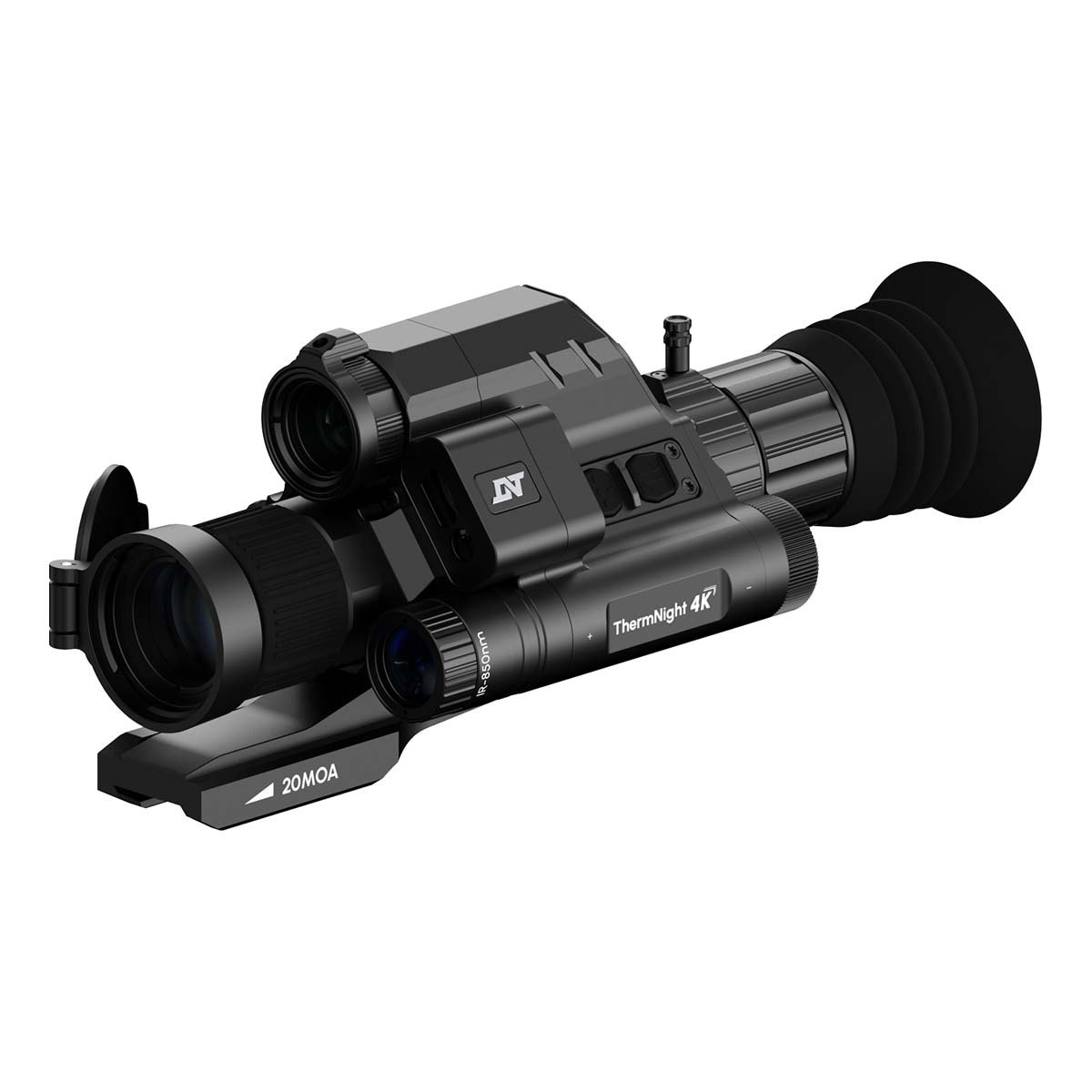

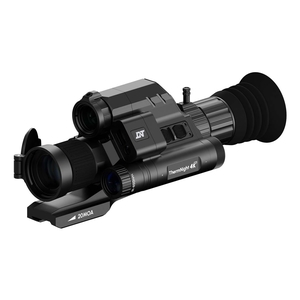

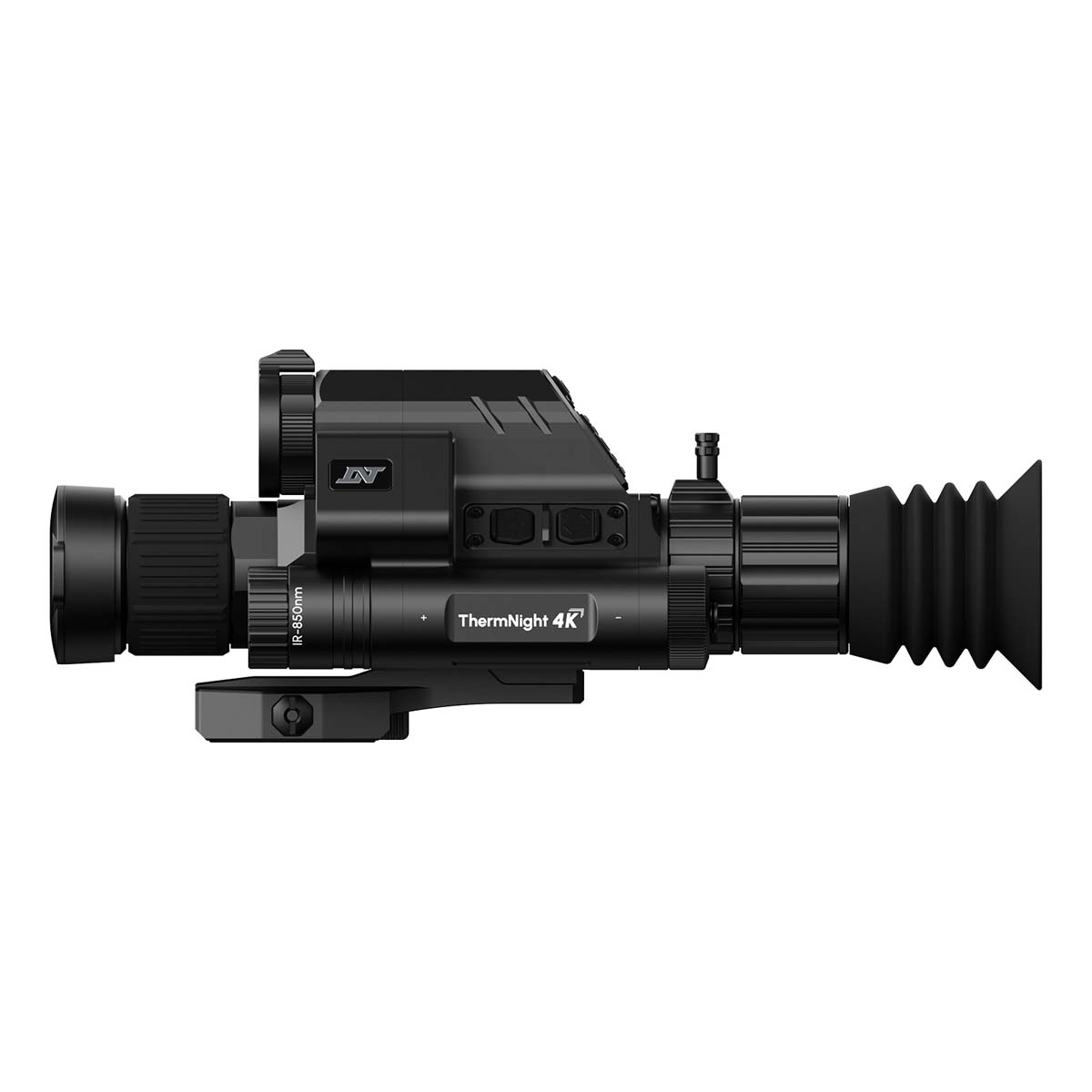

DNT Optics Thermnight 4K Thermal (256x192) & Night Vision Multispectral Riflescope - 50mm w/LRF

DNT ThermNight 4K Thermal & Night Vision Multispectral Scope Imaging System

The ThermNight 4K uses Picture-in-Picture functionality to display the primary view alongside a secondary zoomed window, allowing thermal detection and detailed digital imagery to be viewed together. Digital and thermal channels can also be swapped between the main display and PIP window at the press of a button.

Thermal Detection

The uncooled thermal detector offers a 256 × 192 resolution, 12 × 12 μm pixel size and NETD rating of ≤18 mK. Its 19 mm f/1.0 objective lens provides a 9.2° × 6.9° thermal field of view, with a linear field of view of 16.2 × 12.1 yards at 100 yards.

Thermal magnification starts at 2× and extends digitally through 3×, 4×, 5×, 6×, 7× and 8×, supporting both close-to-mid-range scanning and more detailed observation.

4K Digital Day & Night Imaging

A 3840 × 2160 CMOS sensor provides high-resolution digital day and night imagery through a 50 mm f/1.8 objective lens. The digital channel has 3× base magnification, with digital magnification options of 3×, 4.5×, 6×, 9×, 12×, 18× and 24×.

The detachable IR illuminator is designed to assist visibility in low-light conditions and is stated to provide visibility at up to 450 yards.

Rangefinding & Ballistic Support

The integrated laser rangefinder provides a ranging distance of 5–2000 metres / 5–2100 yards. The DNT Ballistic Engine is built into the system to support calculated shooting solutions using the measured range.

DNT ThermNight 4K Thermal & Night Vision Multispectral Scope Key Features

• Dual-spectrum thermal and digital imaging system
• 3840 × 2160 4K digital day/night CMOS sensor
• 256 × 192 thermal sensor with 12 μm pixel pitch
• ≤18 mK NETD thermal sensitivity
• Integrated 2100-yard laser rangefinder
• DNT Ballistic Engine
• Picture-in-Picture viewing
• Thermal Zoom Lock
• Thermal Auto Zeroing
• Detachable IR illuminator
• 9 reticle styles and 5 reticle colours
• 64GB onboard storage
• Recoil-activated recording
• Auto standby and power-off
• Wi-Fi connectivity and DNT App support

DNT ThermNight 4K Thermal & Night Vision Multispectral Scope Specifications

Digital Day/Night

• Sensor resolution: 3840 × 2160 pixels
• Sensor frame rate: 30 fps
• Objective lens: 50 mm f/1.8
• Base magnification: 3×
• Digital magnification: 3×, 4.5×, 6×, 9×, 12×, 18×, 24×
• Field of view: 8.8° horizontal × 4.9° vertical × 10.1° diagonal
• Linear field of view at 100 yards: 15.4 × 8.6 × 17.6 yards

Thermal Sensor

• Sensor type: Uncooled thermal detector
• Sensor resolution: 256 × 192 pixels
• Sensor frame rate: 40 fps
• Pixel size: 12 × 12 μm
• NETD: ≤18 mK at 25°C / 77°F
• Objective focal length: 19 mm f/1.0
• Base magnification: 2×
• Digital magnification: 2×, 3×, 4×, 5×, 6×, 7×, 8×
• Field of view: 9.2° horizontal × 6.9° vertical × 11.5° diagonal
• Linear field of view at 100 yards: 16.2 × 12.1 × 20.2 yards

Display & Ocular

• Display type: 0.49-inch Micro-OLED
• Display resolution: 1920 × 1080 pixels
• Display refresh rate: 60 Hz
• Eye relief: 65 mm

Physical Specifications

• Net weight: 737 g / 26.0 oz
• Dimensions: 196 × 82 × 78 mm / 7.7 × 3.2 × 3.1 in
• Operating temperature: -20 to 50°C / -4 to 122°F
• Ingress protection rating: IP67
• Recoil rating: 800Gs / .50 BMG

Power, Storage & Connectivity

• Battery type: Rechargeable 21700 flat-top Li-ion battery
• Operating time: 5 hours 45 minutes
• External power supply: 5V USB-C
• Ranging distance: 5–2000 m / 5–2100 yd
• Built-in storage: 64GB
• Connections: Wi-Fi / DNT App

Package Contents

• DNT ThermNight 4K TNC4K219R
• Flip-up cover
• Rubber lens cover
• Threaded eye cup

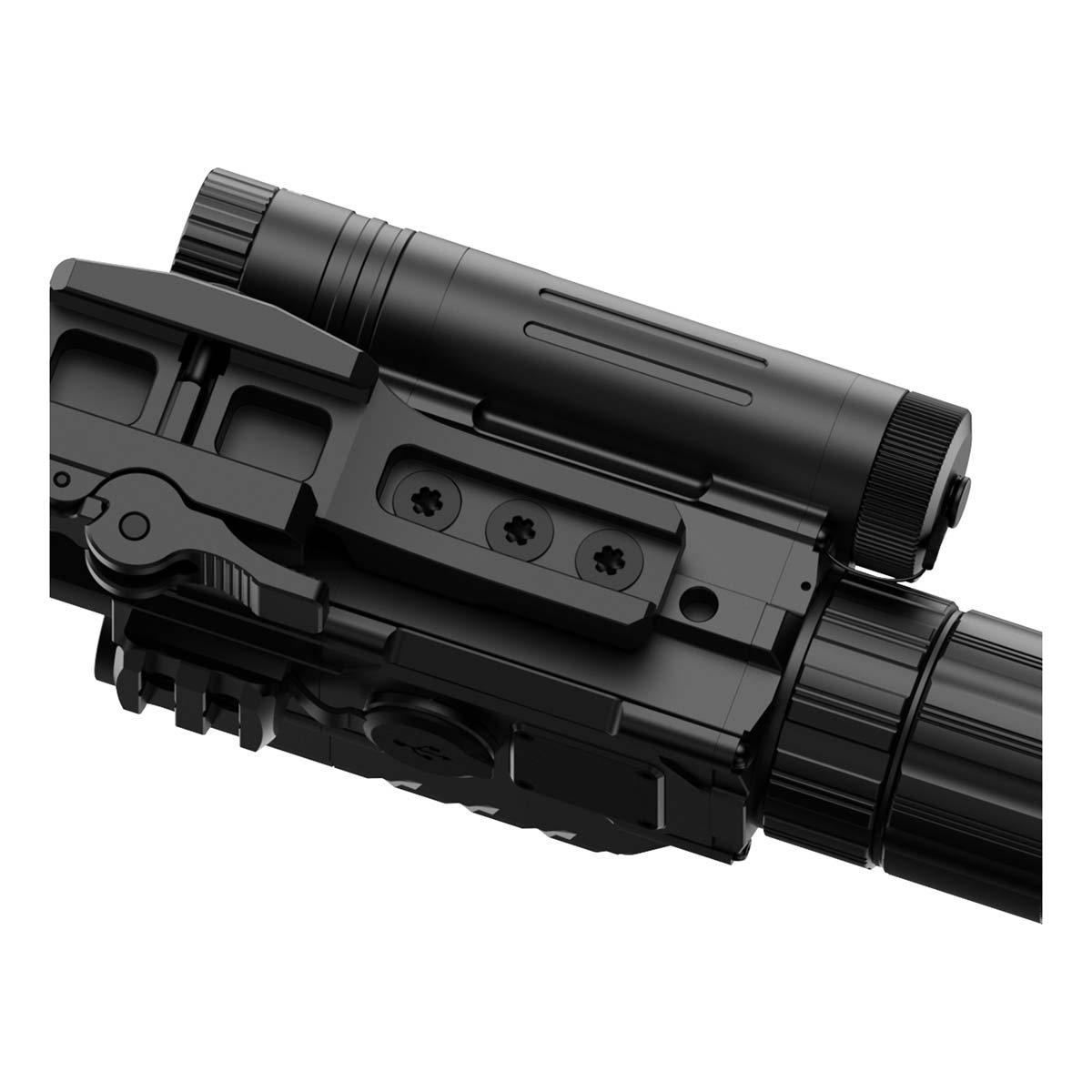

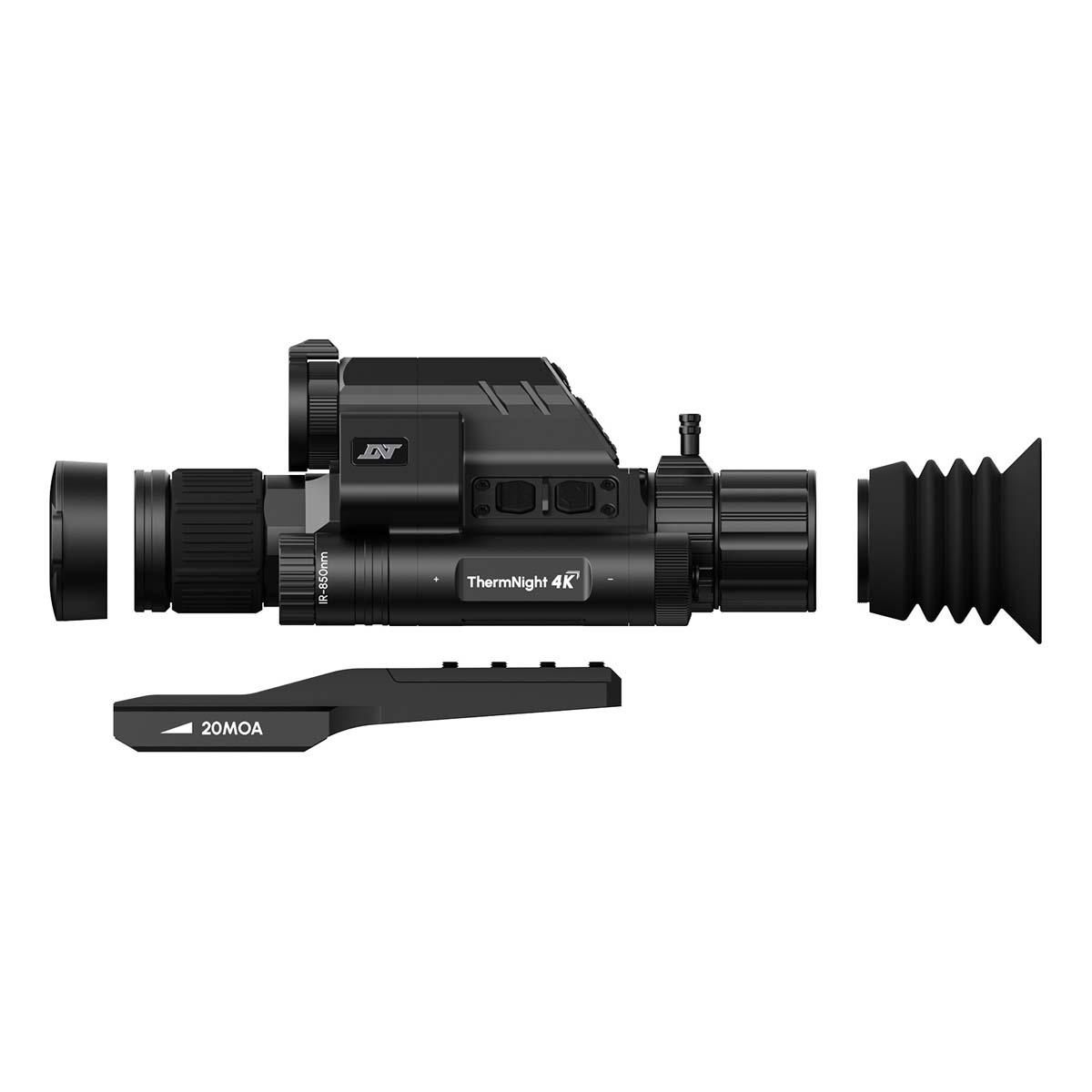

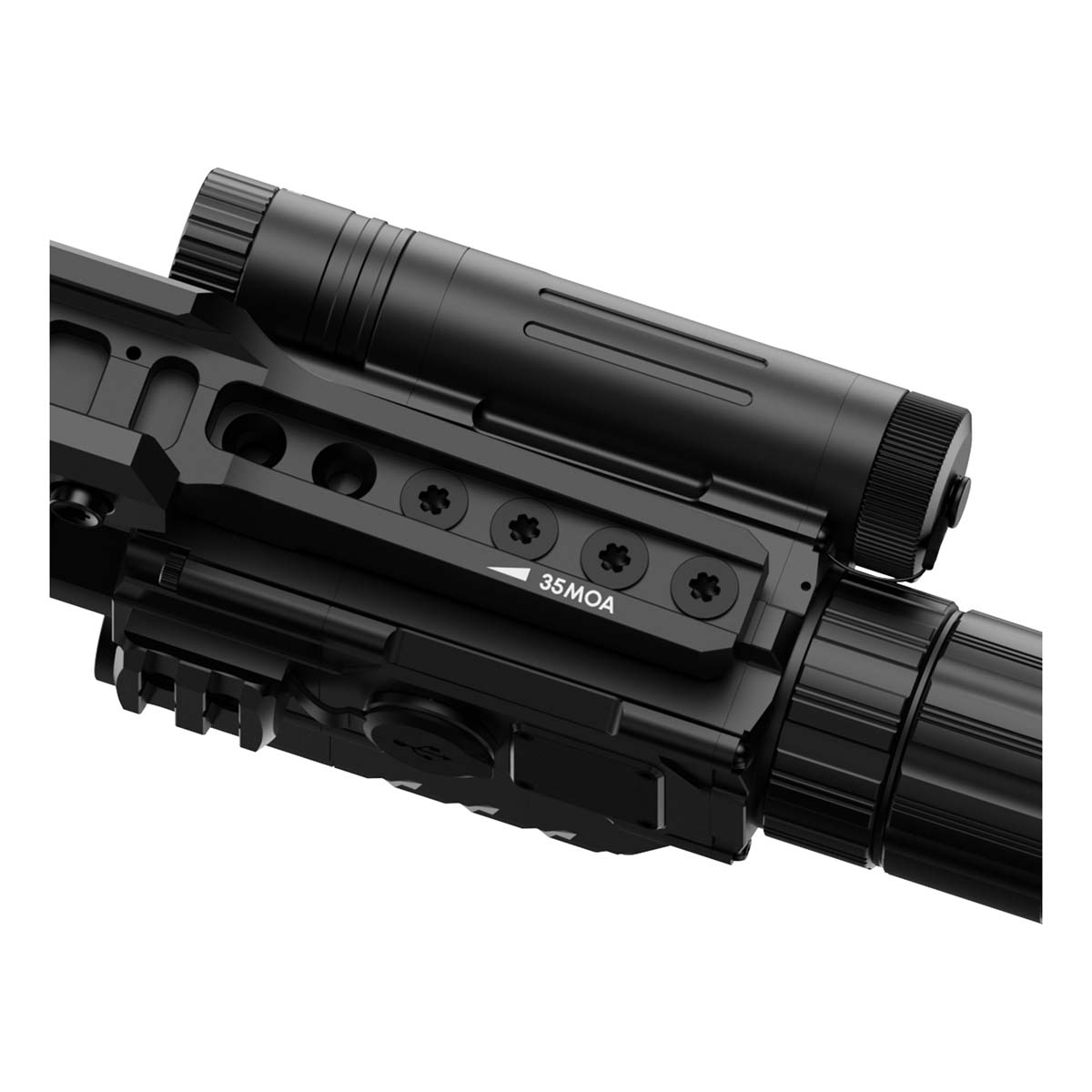

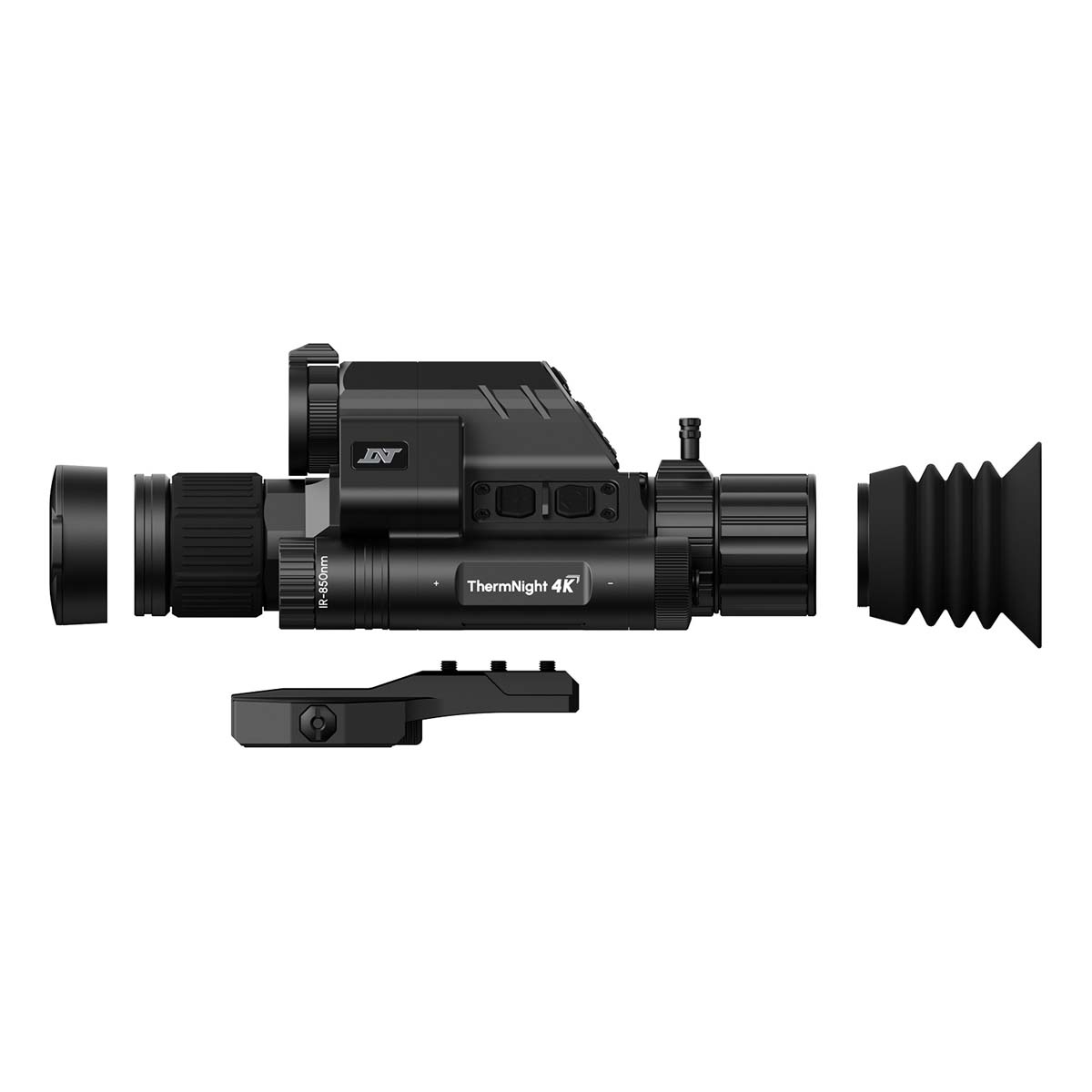

• Two mounts
• USB-C data cable
• Microfibre cloth
• Throw lever
• Quick start guide
• User manual
• Battery pack

DNT ThermNight 4K Thermal & Night Vision Multispectral Scope Review

The DNT ThermNight 4K is a multispectral riflescope designed to combine rapid thermal detection with detailed digital day and night identification. Its dual-sensor arrangement, integrated rangefinder and ballistic functionality make it particularly suited to users who want thermal and digital capability within a single optic.

The combination of a wide thermal view, high-resolution 4K digital channel and Picture-in-Picture display is the defining feature, allowing both detection and identification information to remain readily accessible.

DNT ThermNight 4K Performance & Key Features

The thermal channel uses a 256 × 192 sensor with ≤18 mK sensitivity, while the digital system uses a 3840 × 2160 CMOS sensor. The two imaging systems complement one another: thermal imaging provides rapid target detection, while the 4K digital channel is intended to provide greater visual detail for identification.

• 2× base thermal magnification with up to 8× digital magnification
• 3× digital base magnification with up to 24× digital magnification
• Integrated laser rangefinder with up to 2100-yard range
• Picture-in-Picture multispectral viewing
• Detachable IR illuminator for low-light digital use

Build Quality & Handling

At 737 g and 196 mm long, the ThermNight 4K integrates thermal, digital, ranging and recording technology into a single housing. An IP67 ingress protection rating and recoil rating of 800Gs / .50 BMG provide clear indicators of its suitability for demanding field use.

The 0.49-inch Micro-OLED display offers a 1920 × 1080 resolution with a 60 Hz refresh rate, while 65 mm of eye relief is provided for viewing comfort.

Is the DNT ThermNight 4K Thermal & Night Vision Multispectral Scope Easy to Use?

The ability to display thermal and digital channels simultaneously through Picture-in-Picture reduces the need to switch between separate observation devices. The primary and secondary views can also be swapped at the push of a button, making it straightforward to prioritise either thermal detection or digital detail.

Thermal Auto Zeroing, Thermal Zoom Lock, recoil-activated recording and the integrated ballistic system further reduce the number of separate functions or accessories that need to be managed in the field.

Key Takeaways of the DNT ThermNight 4K Thermal & Night Vision Multispectral Scope

The ThermNight 4K combines a high-sensitivity thermal detector, 4K digital imaging, a long-range laser rangefinder and ballistic functionality in a single multispectral optic. Its main strength is the ability to detect targets thermally and then use the high-resolution digital channel for more detailed identification without changing devices. With 64GB of storage, recoil-activated recording, Wi-Fi connectivity and an IP67-rated housing, it offers a broad feature set for users looking for an integrated thermal and night vision riflescope. It is particularly well suited to hunting and shooting situations where detection, identification and range information need to be available quickly from one optic.

DNT ThermNight 4K Thermal & Night Vision Multispectral Scope FAQs

What thermal resolution does the DNT ThermNight 4K use?

The thermal channel uses a 256 × 192-pixel uncooled thermal detector. It has a 12 × 12 μm pixel size and a NETD rating of ≤18 mK at 25°C / 77°F.

Does the DNT ThermNight 4K provide true 4K digital imaging?

Yes. The digital day/night channel uses a 3840 × 2160-pixel CMOS sensor. It operates at a sensor frame rate of 30 fps and is paired with a 50 mm f/1.8 objective lens.

What magnification range does the DNT ThermNight 4K provide?

The thermal channel has a 2× base magnification with digital settings of 2× through 8×. The digital day/night channel starts at 3× and provides magnification settings of 3×, 4.5×, 6×, 9×, 12×, 18× and 24×.

Can the thermal and digital views be displayed together?

Yes. Picture-in-Picture technology allows the primary image to be displayed alongside a secondary zoomed window. The thermal and digital channels can also be swapped between the main display and the PIP window at the push of a button.

Does the DNT ThermNight 4K include a laser rangefinder?

Yes. The integrated laser rangefinder has a stated ranging distance of 5–2000 metres or 5–2100 yards. It is combined with the DNT Ballistic Engine to provide ballistic functionality within the optic.

How wide is the thermal field of view?

The thermal channel provides a 9.2° horizontal × 6.9° vertical field of view, with an 11.5° diagonal field of view. At 100 yards, this equates to a linear field of view of 16.2 × 12.1 × 20.2 yards.

Does the DNT ThermNight 4K have an IR illuminator?

Yes. A detachable IR illuminator is included as part of the system. It is intended to assist the digital day/night channel in low-light conditions and is stated to provide visibility at distances of up to 450 yards.

How long does the DNT ThermNight 4K battery last?

The scope uses a rechargeable 21700 flat-top Li-ion battery. Its stated operating time is 5 hours and 45 minutes, and it also supports a 5V USB-C external power supply.

Is the DNT ThermNight 4K waterproof?

The ThermNight 4K has an IP67 ingress protection rating. It is also designed to operate across temperatures from -20°C to 50°C / -4°F to 122°F.

Can the DNT ThermNight 4K record video?

Yes. The scope includes recoil-activated recording and 64GB of built-in storage. It also supports Wi-Fi connectivity and connection to the DNT App.

What recoil level is the DNT ThermNight 4K rated for?

The scope carries an 800Gs / .50 BMG recoil rating. This provides a clear specification for its resistance to recoil forces when mounted on compatible firearms.

What display does the DNT ThermNight 4K use?

It uses a 0.49-inch Micro-OLED display with a resolution of 1920 × 1080 pixels. The display refresh rate is 60 Hz and the optic provides 65 mm of eye relief.
