Vanguard Vesta Go 234AP Tripod

Vanguard VESTA GO 234AP Aluminium Spotting Scope Travel Tripod Construction

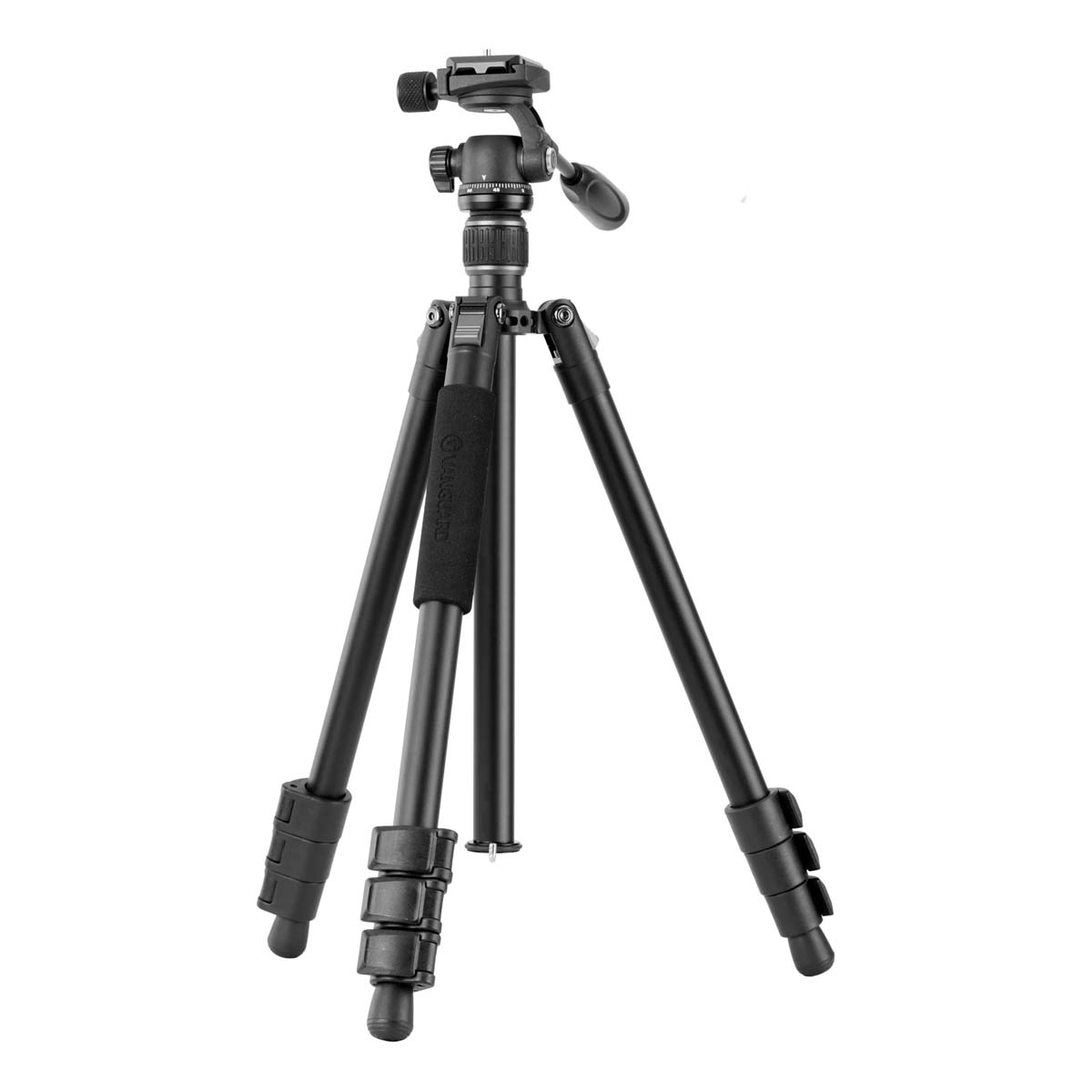

The VESTA GO 234AP is a CNC-machined aluminium travel tripod built around four-section, 23mm diameter legs. Simple lever locks allow the legs to be extended and collapsed quickly, while the compact folded diameter of approximately 12cm makes the tripod comfortable to carry in the hand.

Despite its travel-focused dimensions, the tripod extends to 154cm at full height or 122.5cm with the central column lowered. A spring hook at the base of the central column allows additional weight to be suspended from the tripod when extra stability is required.

Vanguard VESTA GO 234AP Aluminium Spotting Scope Travel Tripod Head

The supplied VEO PH-24 is an Arca Swiss compatible 2-way pan head designed for controlled observation and video use. Its handle controls the vertical tilt lock and release, while a separate pan lock allows independent control of horizontal movement.

The head provides 360-degree panoramic rotation and a vertical tilt range from -60 degrees to +90 degrees. A built-in spirit bubble level assists with accurate positioning, while the supplied QS-55P quick release plate features a non-twist spring pin designed to provide a secure fit with compatible spotting scopes.

Spotting scopes equipped with an Arca compatible foot can also be fitted directly into the head clamp without using the quick release plate, providing a direct and secure connection.

Vanguard VESTA GO 234AP Aluminium Spotting Scope Travel Tripod Low-Angle Performance

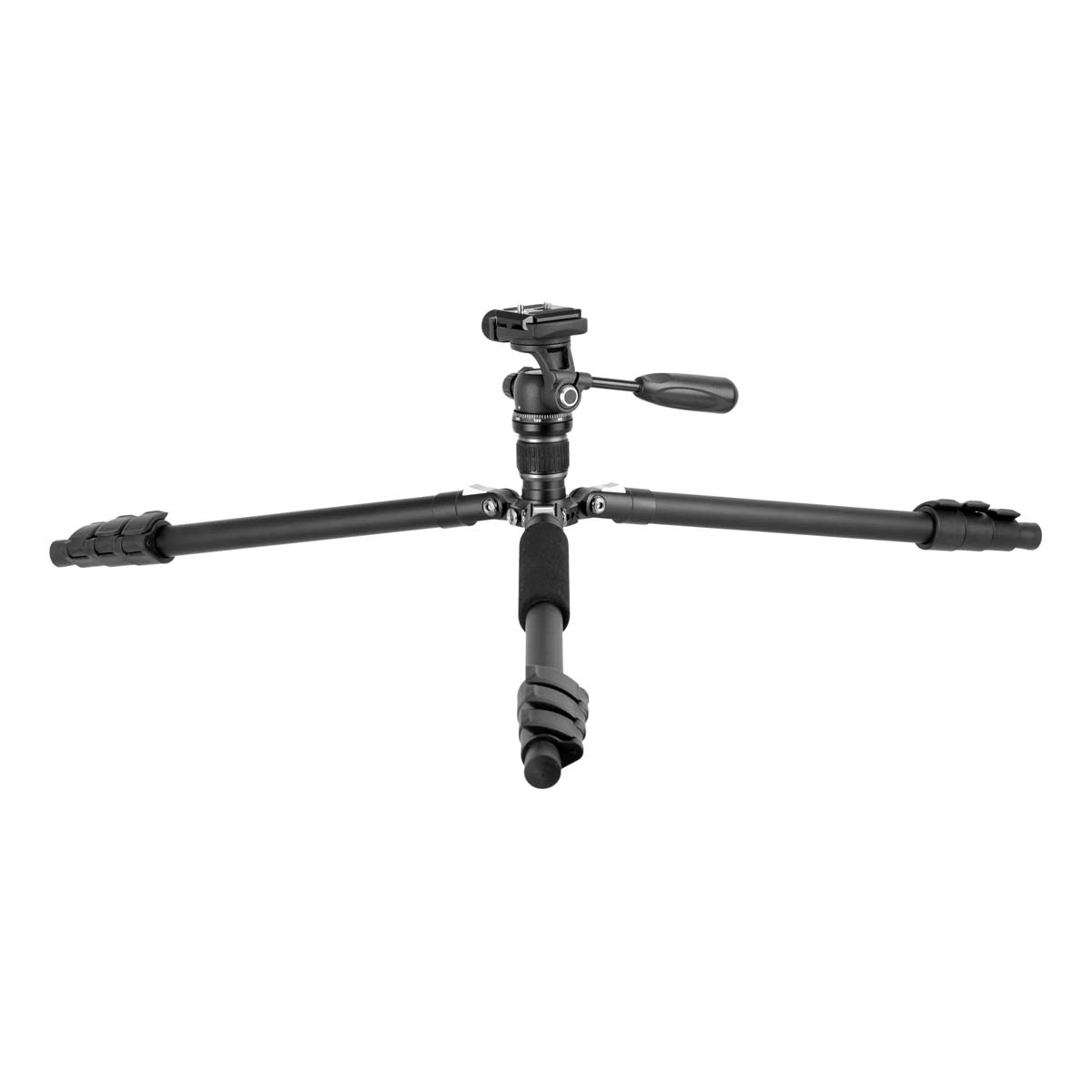

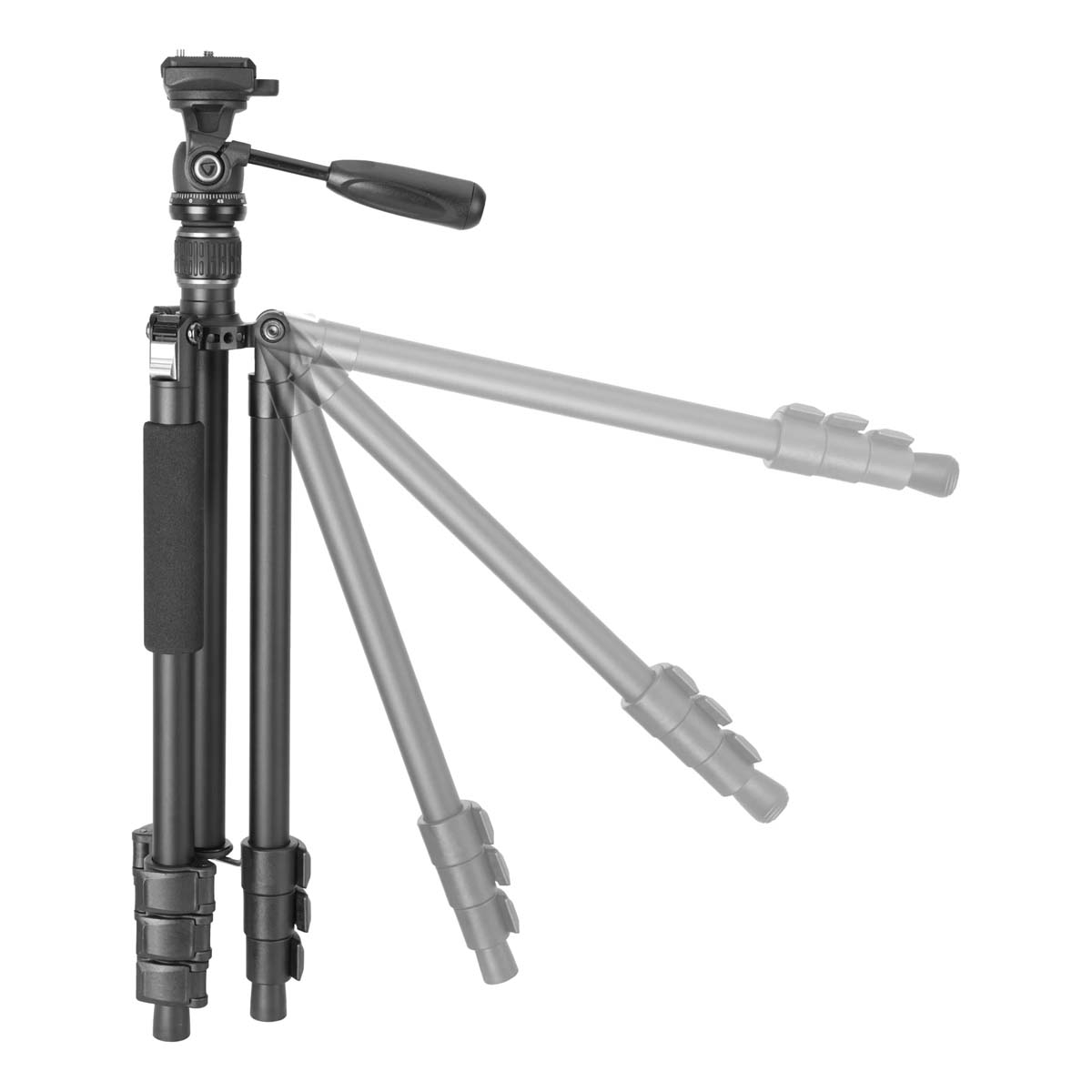

Three easy-set leg angles of 20, 50 and 80 degrees provide flexibility when positioning the tripod on different terrain or working at reduced heights. The split central column incorporates a low-angle adaptor, allowing the tripod to reach approximately 22cm from the ground for low-level observation, macro work or low-angle photography.

Vanguard VESTA GO 234AP Aluminium Spotting Scope Travel Tripod Key Features

• Lightweight aluminium travel tripod with VEO PH-24 2-way pan head.
• Arca Swiss compatible head and quick release system.
• Maximum load capacity of 5kg.

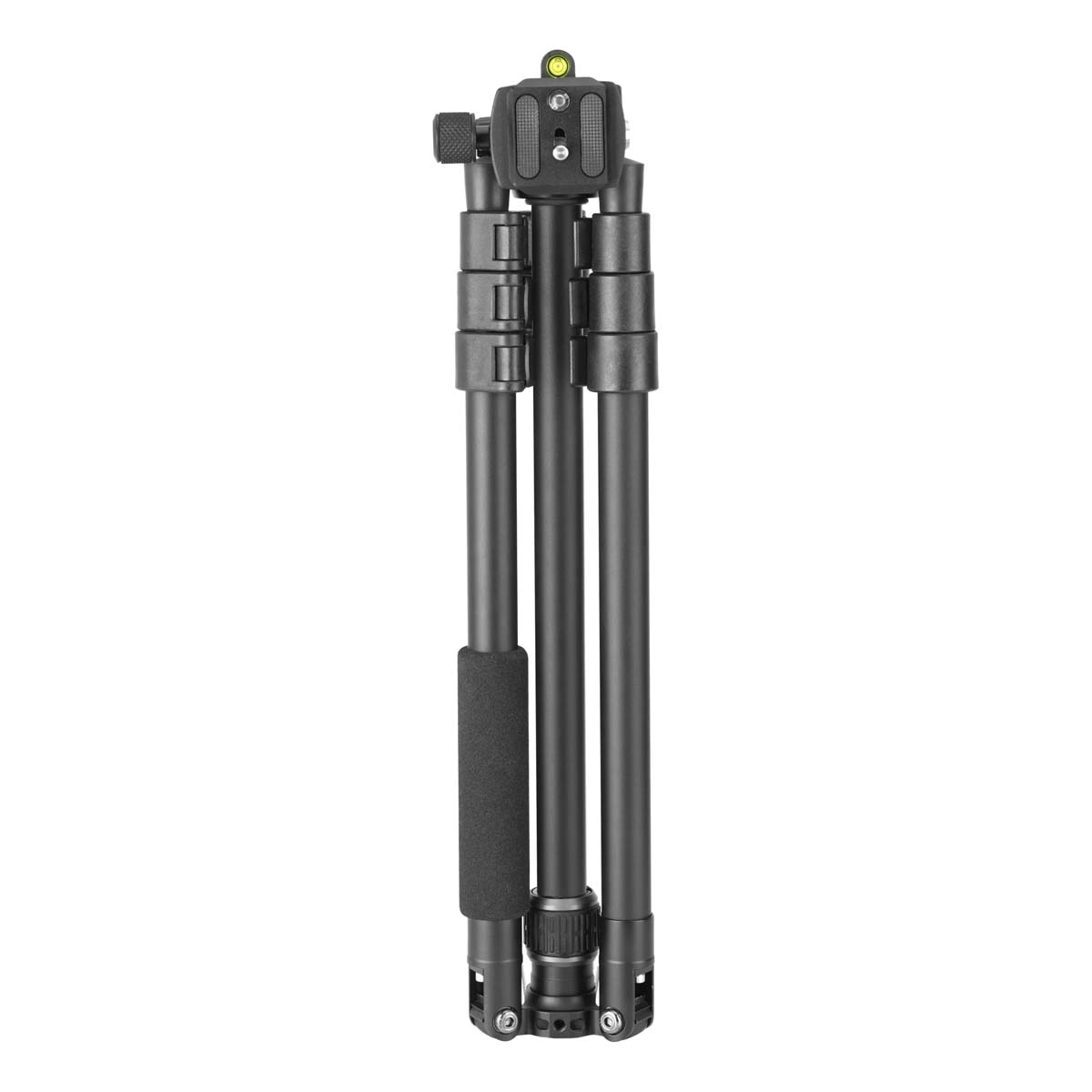

• Folds to just 44.5cm for easier transportation.
• Weighs 1465g.
• Maximum extended height of 154cm.
• 122.5cm maximum height with the central column down.
• Four-section 23mm diameter aluminium legs.

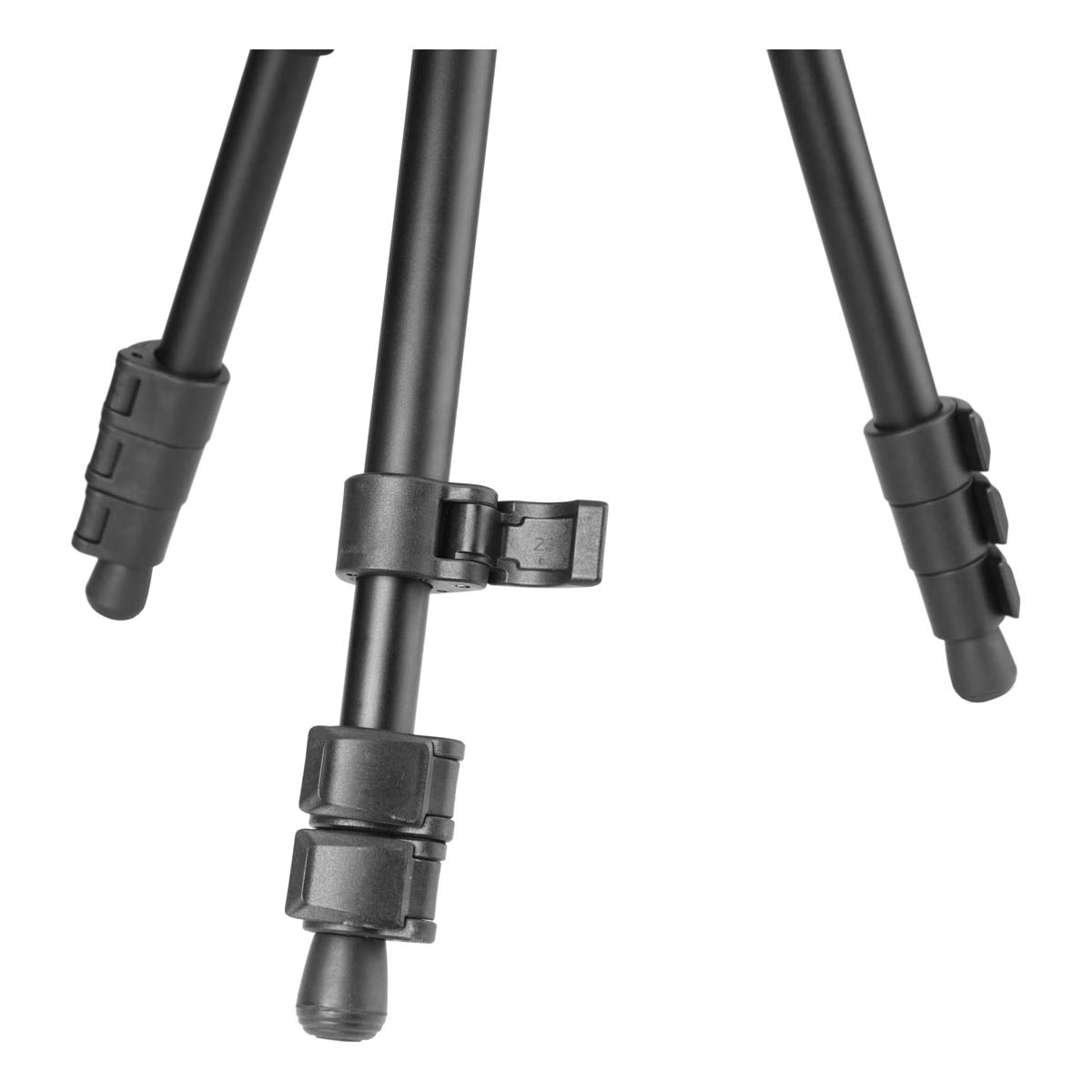

• Lever leg locks for quick setup and breakdown.
• Three easy-set leg angles at 20, 50 and 80 degrees.
• Split central column with integrated low-angle capability.
• Approximately 22cm minimum height.

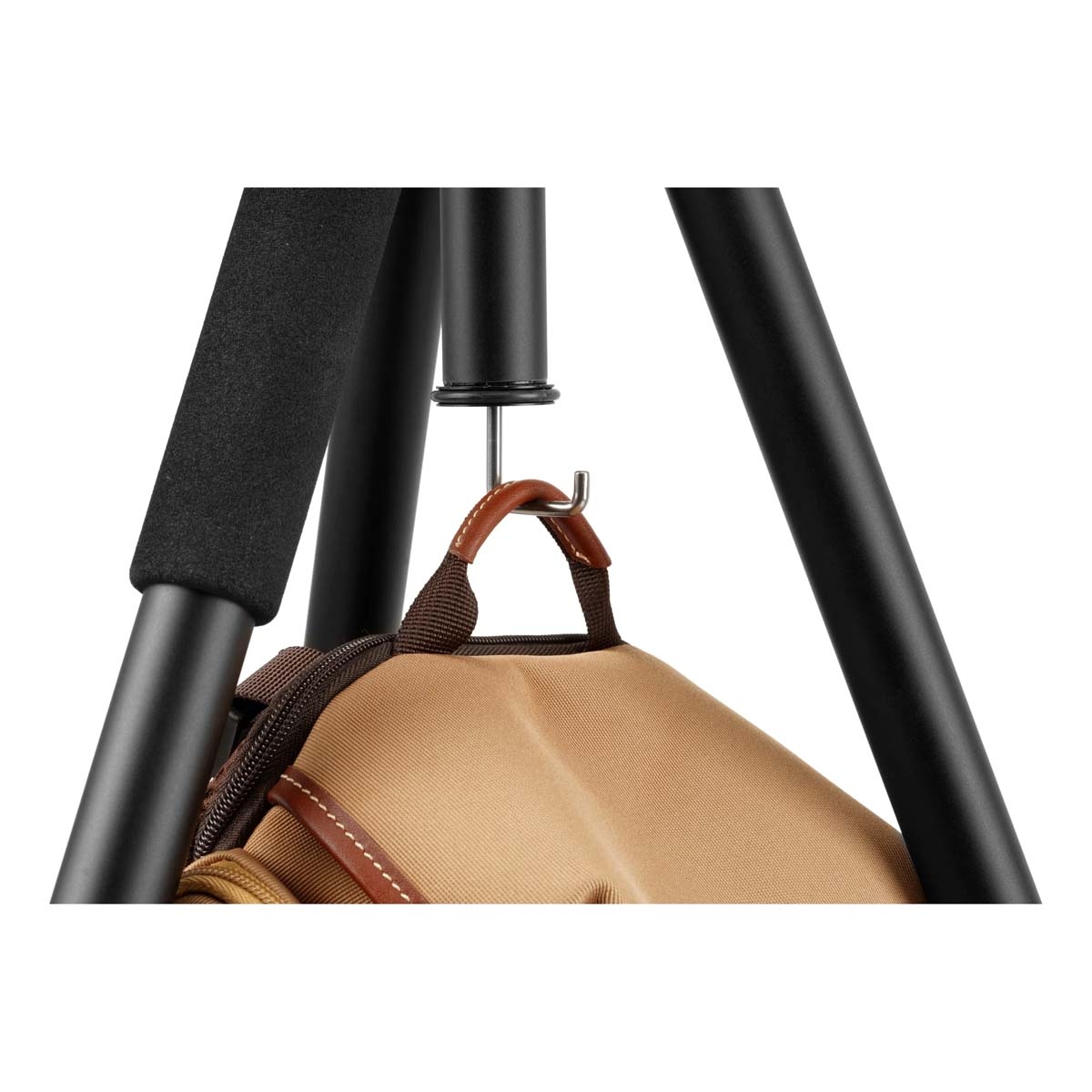

• Spring hook for hanging additional stabilising weight.
• 360-degree panoramic head movement.
• Vertical tilt range from -60 degrees to +90 degrees.
• Separate pan lock.
• QS-55P quick release plate included.
• Built-in spirit bubble level.
• Two 3/8-inch accessory thread holes with non-twist bayonet slots.
• 1/4-inch thread adaptor.

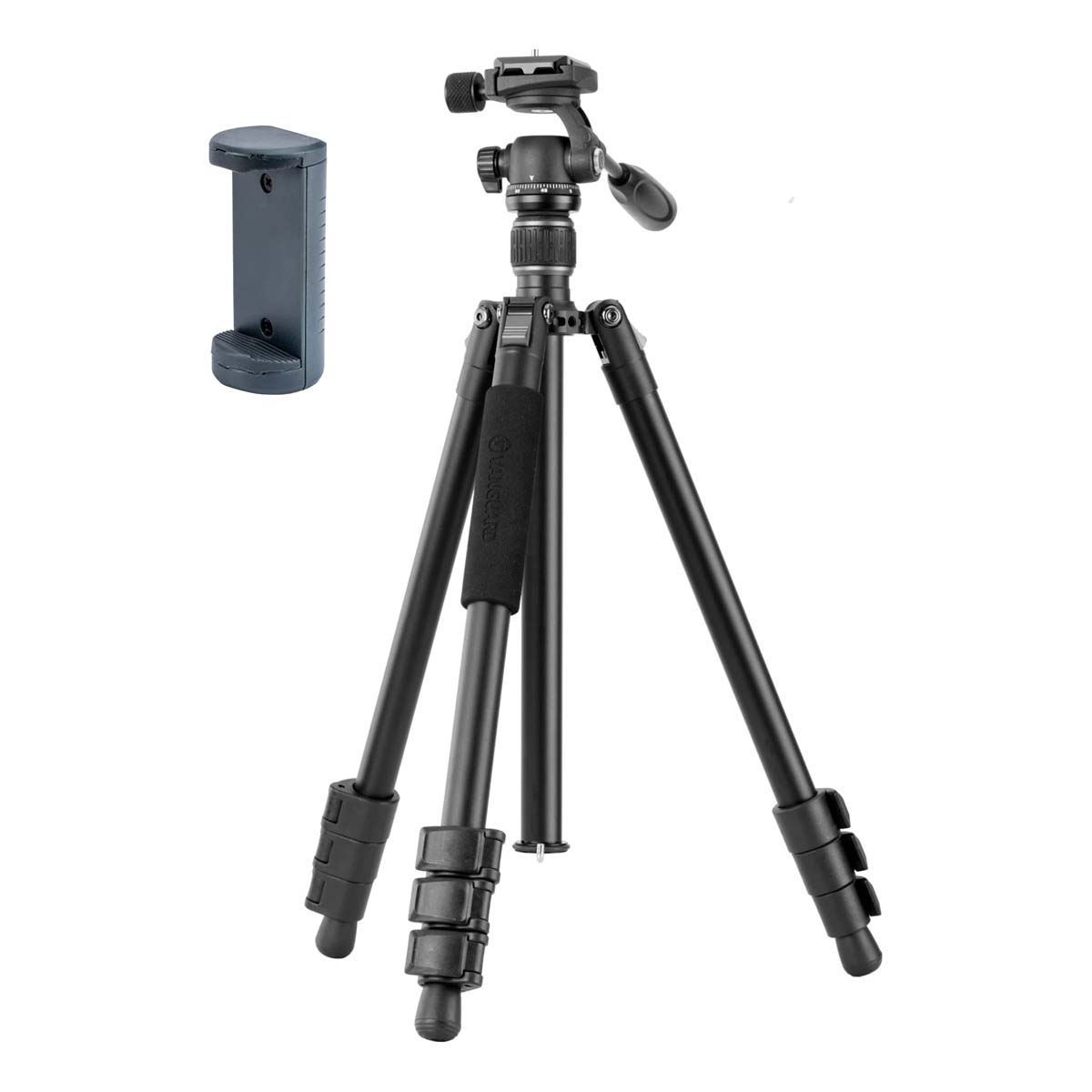

• Smartphone adaptor included.
• Rubber feet for secure positioning without damaging surfaces.

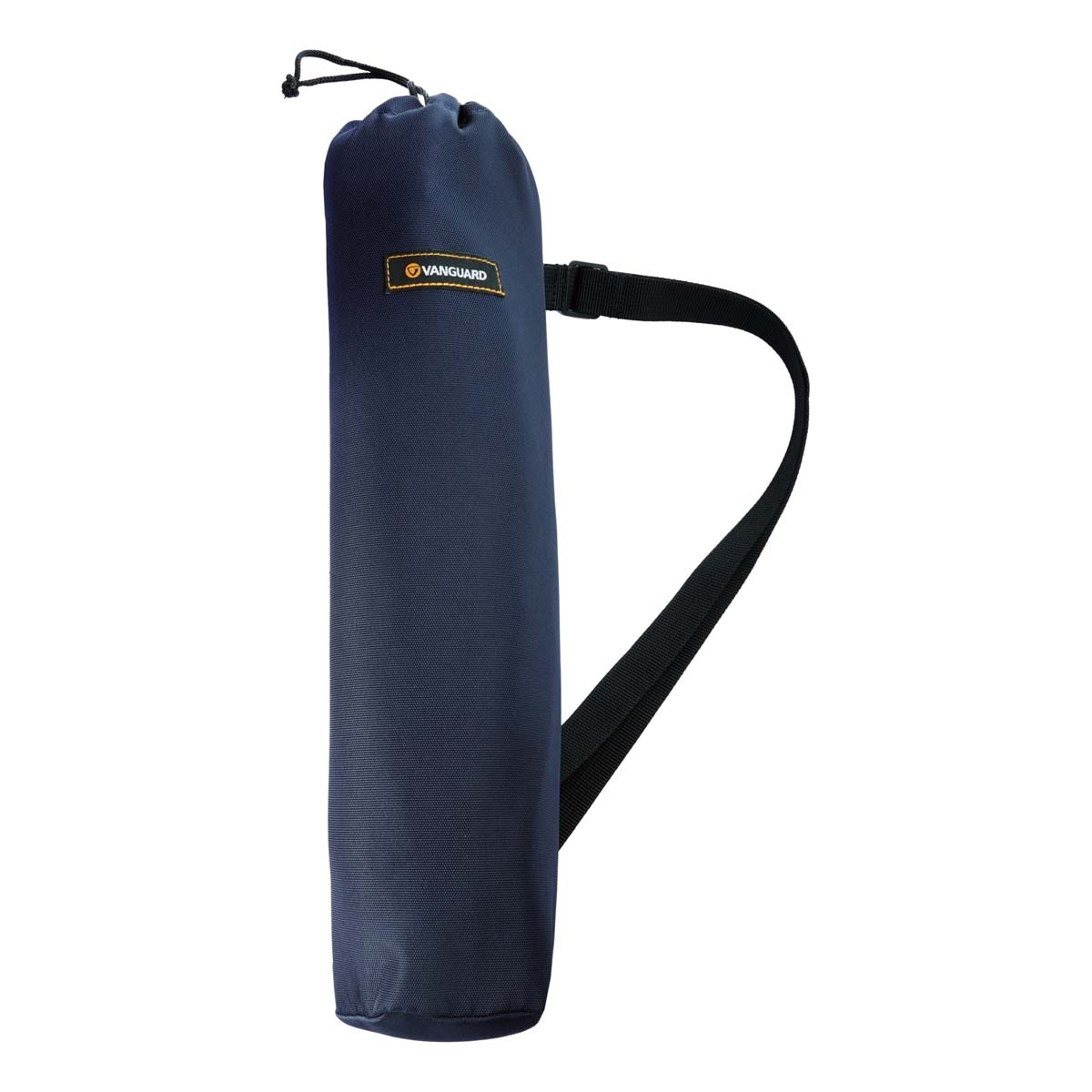

• Tripod carrying bag included.

Vanguard VESTA GO 234AP Aluminium Spotting Scope Travel Tripod Compatibility

The VESTA GO 234AP is designed for use with spotting scopes, mirrorless camera systems and smaller full-frame or DSLR camera kits within its 5kg maximum load capacity. It is not specified for professional DSLR camera systems.

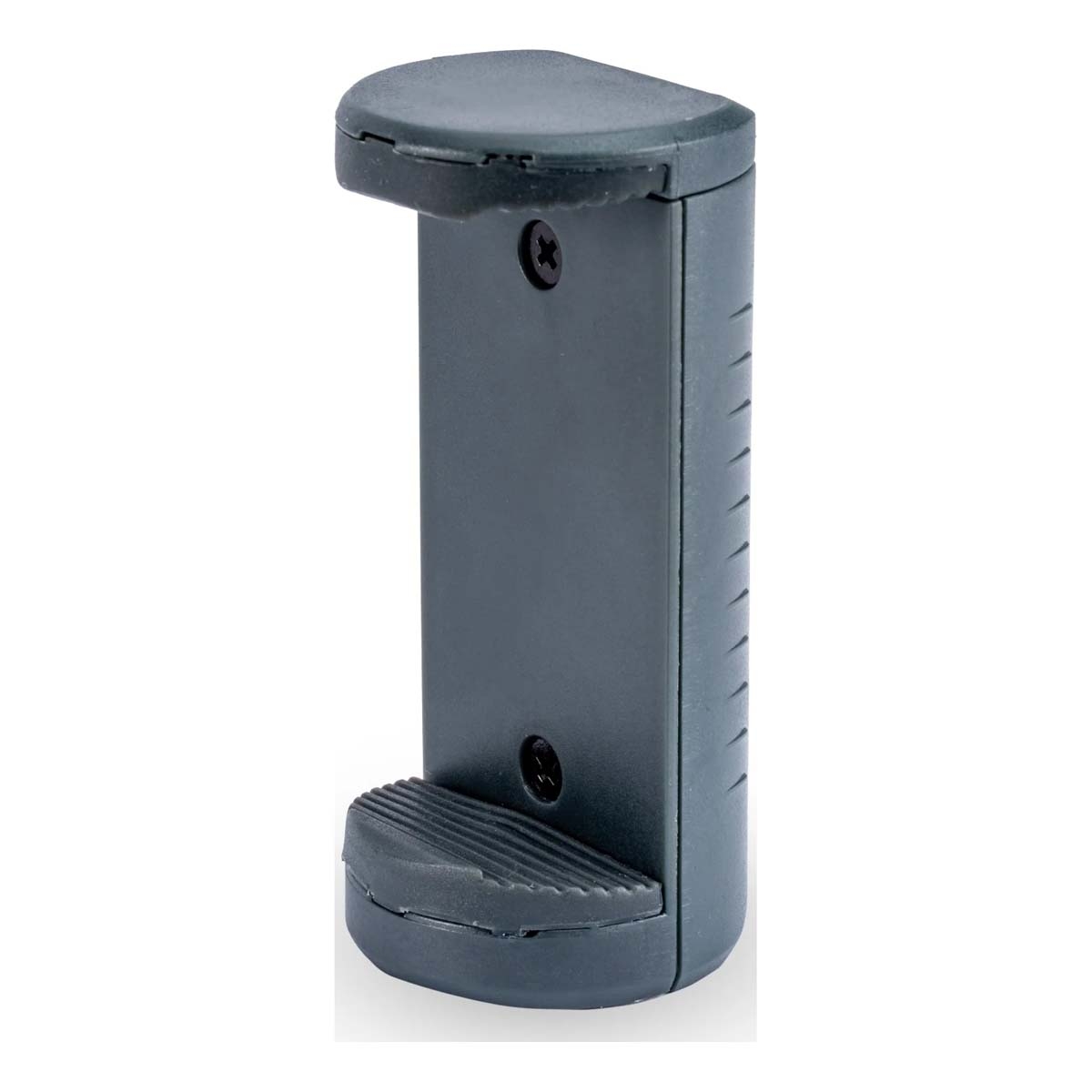

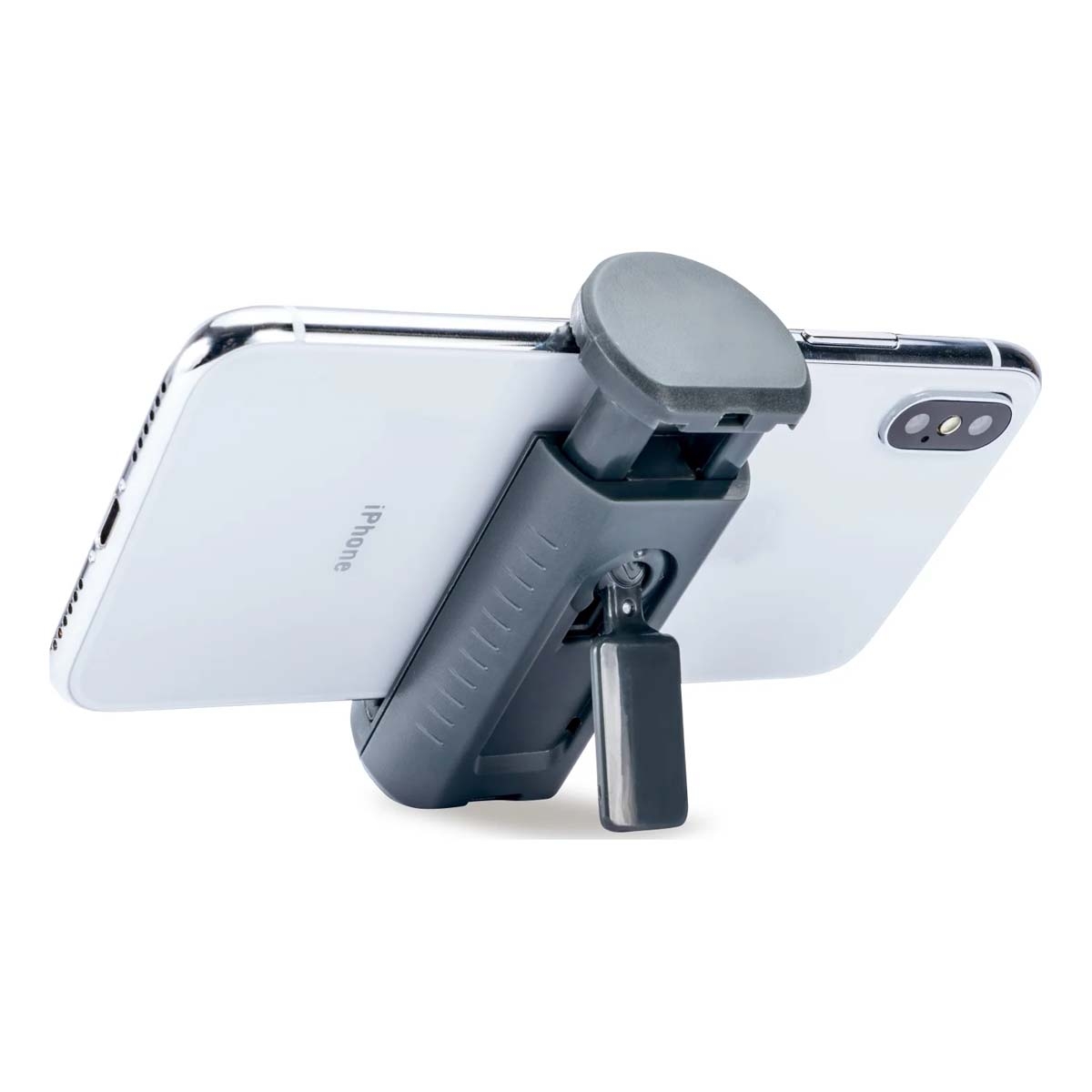

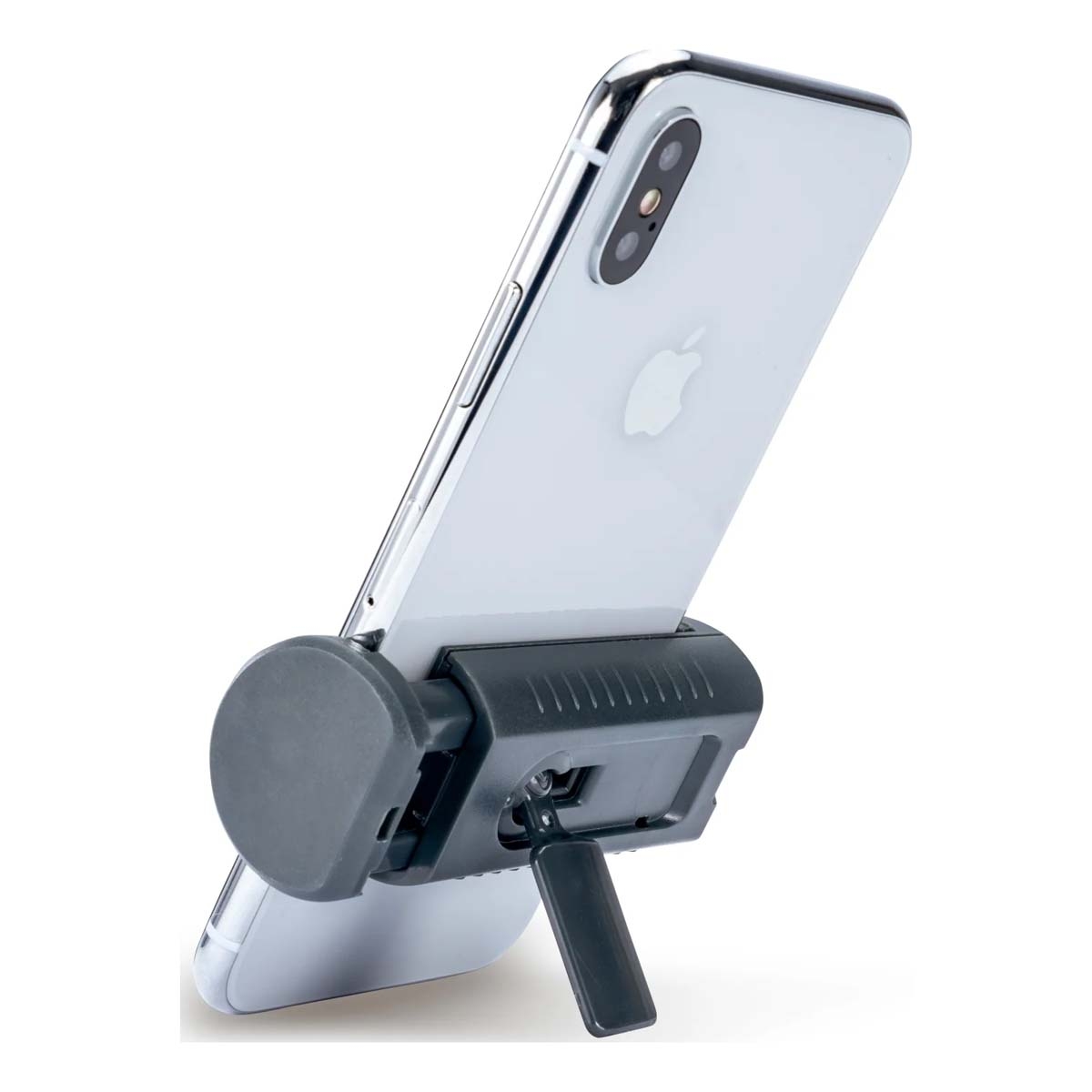

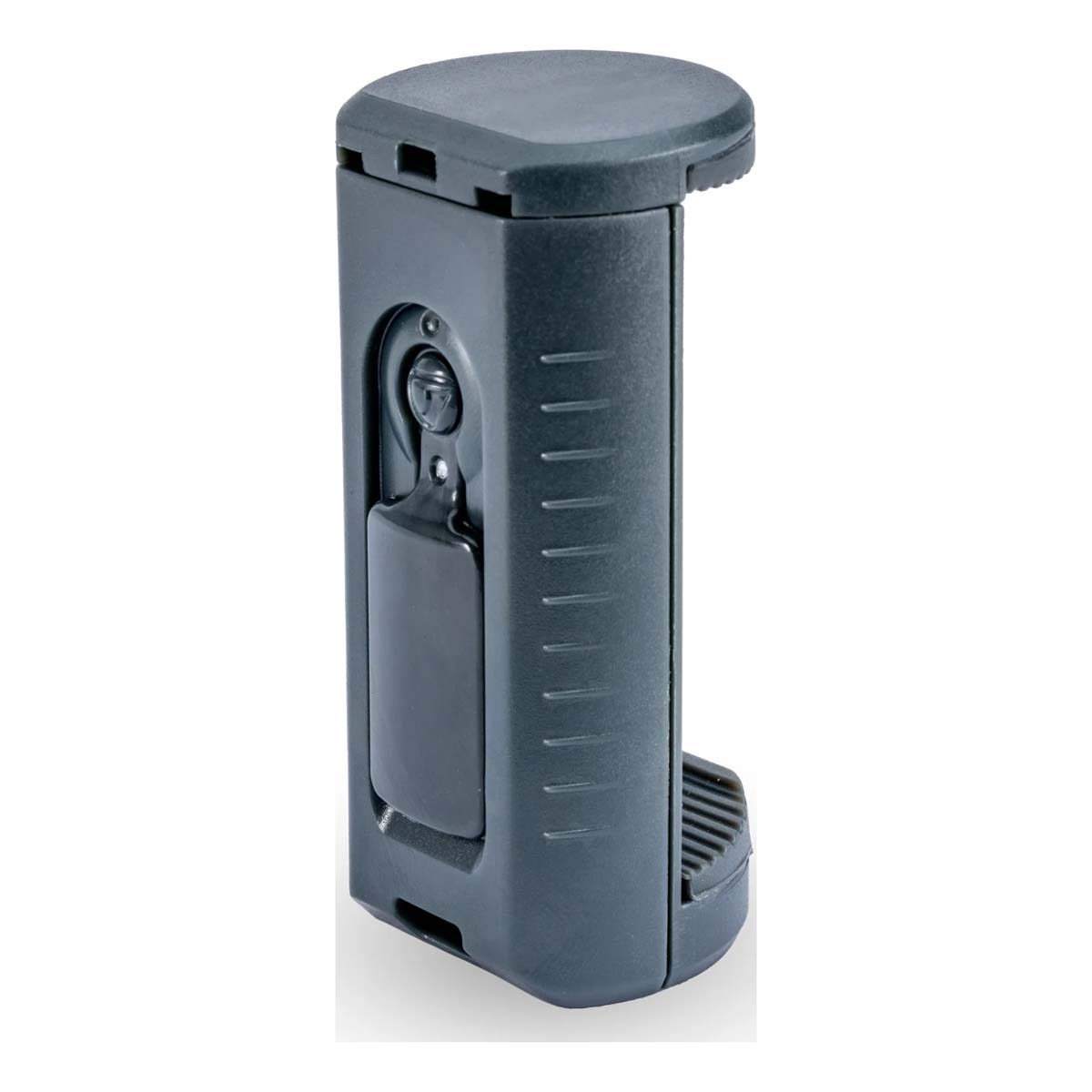

The included smartphone adaptor accepts smartphones between 54mm and 87mm wide. It can be attached to the quick release plate or to a compatible accessory arm using a 1/4-inch thread.

Accessory Mounting

Two 3/8-inch threaded mounting points with non-twist bayonet slots are incorporated into the tripod canopy, alongside a 1/4-inch thread adaptor. These mounting points allow up to two compatible support arms or other suitable accessories to be added to the tripod.

The 2-way pan head can also be adapted for portrait-orientation photography by using a compatible four-sided Arca quick release plate. This additional plate is not included.

Vanguard VESTA GO 234AP Aluminium Spotting Scope Travel Tripod Specifications

• Tripod style: Travel tripod.
• Material: Aluminium.
• Weight: 1465g.
• Folded length: 44.5cm.
• Maximum extended height: 154cm.
• Maximum height with central column down: 122.5cm.
• Minimum height: 22cm.
• Maximum load capacity: 5kg.
• Leg diameter: 23mm.
• Leg sections: 4.
• Leg locks: Lever or flip locks.
• Leg angles: 20, 50 and 80 degrees.
• Feet: Rubber.
• Hanging hook: Yes.
• Monopod leg: No.
• Multi-angle central column: No.
• Reversible central column: No.
• Low-angle adaptor: Built into split central column.
• Head attachment thread: 1/4 inch.
• Head: VEO PH-24.
• Head base diameter: 42mm.
• Head style: 2-way pan head.
• Arca Swiss compatible: Yes.
• Quick release plate: QS-55P.
• Separate pan lock: Yes.
• Panorama swivel: 360 degrees.
• Separate friction control: No.
• Spirit bubble level: 1.
• Vertical tilt: -60 degrees to +90 degrees.
• Smartphone compatibility: 54mm to 87mm wide.
• Tripod bag: Included.
• Suitable for spotting scopes: Yes.
• Suitable for mirrorless cameras: Yes.
• Suitable for smaller full-frame and DSLR cameras: Yes.
• Suitable for professional DSLR cameras: No.
• Warranty: 2 years.
• Extended warranty: 4 years.

Vanguard VESTA GO 234AP Aluminium Spotting Scope Travel Tripod Review

The Vanguard VESTA GO 234AP is a portable aluminium travel tripod that combines a manageable 1465g weight and 44.5cm folded length with a practical 154cm maximum operating height. Its 5kg load capacity and supplied VEO PH-24 2-way pan head make it particularly relevant to users of spotting scopes, mirrorless systems and smaller DSLR cameras.

Its strongest feature is versatility. Adjustable leg angles, a split central column, an Arca Swiss compatible head, accessory mounting points and an included smartphone adaptor provide multiple ways to configure the tripod for observation, photography and video.

Vanguard VESTA GO 234AP Aluminium Spotting Scope Travel Tripod Performance & Key Features

The combination of a 5kg maximum load capacity and 23mm four-section aluminium legs gives the VESTA GO 234AP useful support capacity while retaining travel-friendly proportions. The included 2-way head is particularly suitable for controlled panning and tilting when following wildlife through a spotting scope or recording video.

• 5kg maximum load capacity.
• 154cm maximum working height.
• 44.5cm folded length for easier transportation.
• Arca Swiss compatible 2-way pan head.
• Three leg angles and integrated low-angle capability.

VESTA GO Build Quality & Handling

The aluminium construction balances portability with the stability needed for typical spotting scopes and everyday camera equipment. At 1465g, it remains sufficiently light for travel and field use, while rubber feet provide a secure contact point without damaging the supporting surface.

Lever locks make extending the four-section legs straightforward, and the spring hook beneath the central column provides the option of adding extra weight when greater stability is required.

Is the VESTA GO 234AP Easy to Use?

The VESTA GO 234AP is designed around relatively simple mechanical controls. Lever leg locks allow rapid height adjustment, while three predefined leg angles make it straightforward to adapt the tripod to different shooting positions.

The VEO PH-24 head uses its handle to lock or release vertical tilt, with a separate control for panning. The QS-55P quick release plate simplifies equipment attachment, while spotting scopes with an Arca compatible foot can be fitted directly into the head clamp.

Key Takeaways of the VESTA GO 234AP

The VESTA GO 234AP combines a compact 44.5cm folded size with a useful 154cm maximum height, 5kg load capacity and a versatile Arca Swiss compatible 2-way pan head. Its split central column, three leg angles and approximately 22cm minimum height also make it more adaptable when low positioning is required. It is designed for spotting scopes, mirrorless cameras and smaller DSLR systems rather than heavier professional DSLR equipment. For Uttings.co.uk customers looking for a portable aluminium tripod for wildlife observation, video or general photography, it provides a practical balance of portability, adjustment and equipment compatibility.

Vanguard VESTA GO 234AP Aluminium Spotting Scope Travel Tripod FAQs

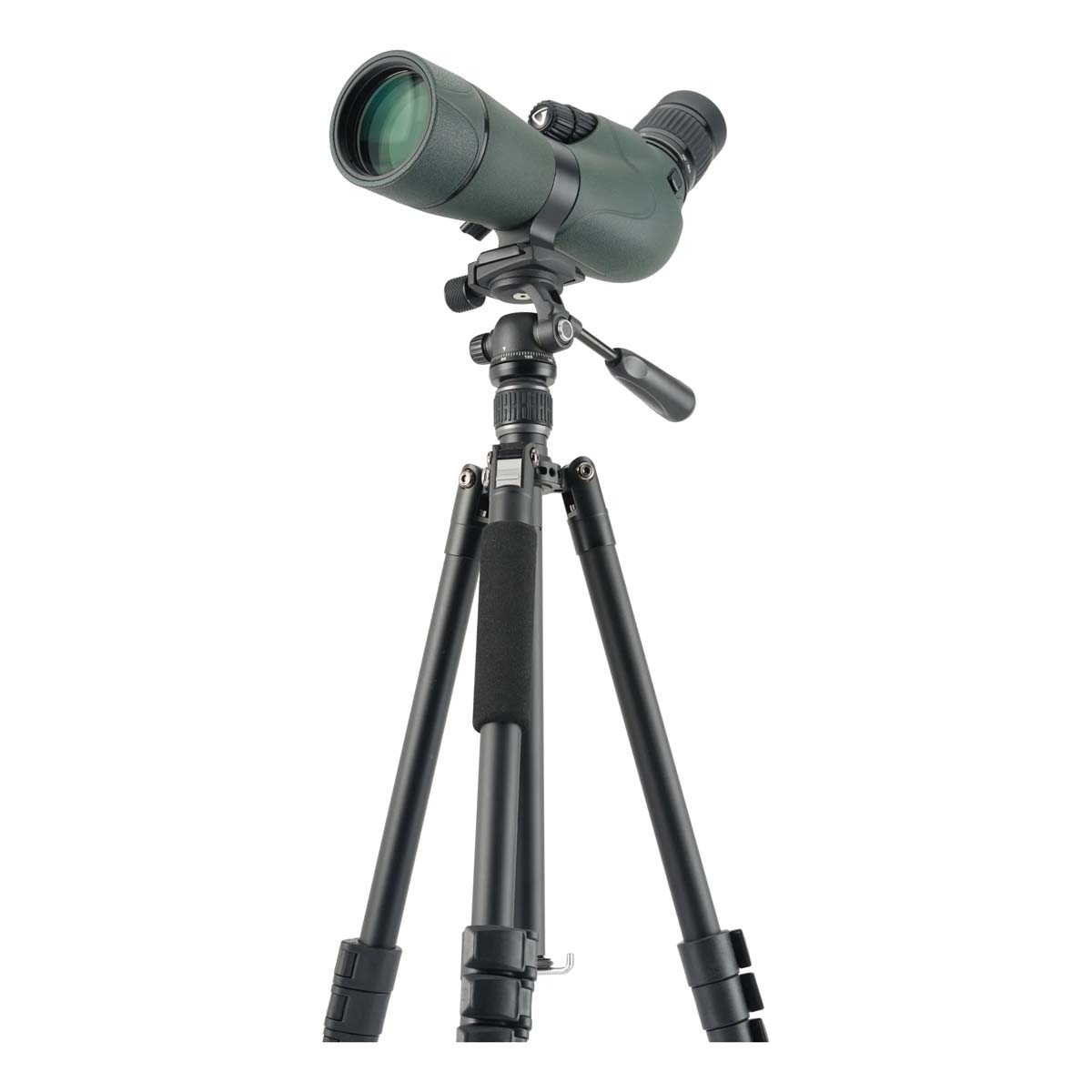

Is the Vanguard VESTA GO 234AP suitable for a spotting scope?

Yes. The VESTA GO 234AP is designed for use with most spotting scopes and has a maximum load capacity of 5kg. The supplied VEO PH-24 2-way pan head provides controlled horizontal and vertical movement, making it particularly appropriate for following wildlife or other moving subjects through a spotting scope.

How much weight can the Vanguard VESTA GO 234AP support?

The tripod has a maximum load capacity of 5kg. It is suitable for spotting scopes, mirrorless cameras and smaller full-frame or DSLR camera kits. It is not specified as suitable for professional DSLR camera systems.

How tall is the Vanguard VESTA GO 234AP?

The tripod extends to a maximum height of 154cm. With the central column lowered, its maximum height is 122.5cm. This provides flexibility between maximum viewing height and configurations that minimise central-column extension.

How compact is the VESTA GO 234AP when folded?

The tripod folds down to 44.5cm and weighs 1465g. Its compact folded diameter is approximately 12cm, helping make it convenient to grip and carry while travelling or walking between locations.

How low can the Vanguard VESTA GO 234AP go?

The specified minimum height is approximately 22cm. A split central column incorporates a low-angle adaptor, while the legs can be independently set to 20, 50 or 80 degrees. This configuration makes the tripod suitable for low-angle photography and observation.

What head comes with the Vanguard VESTA GO 234AP?

The tripod is supplied with a VEO PH-24 Arca Swiss compatible 2-way pan head. The head provides 360-degree panoramic rotation and vertical tilt from -60 degrees to +90 degrees. Vertical tilt is locked and released using the handle, while horizontal movement has a separate pan lock.

Does the VESTA GO 234AP use an Arca Swiss compatible quick release system?

Yes. The VEO PH-24 head is Arca Swiss compatible and is supplied with a QS-55P quick release plate. The plate incorporates a non-twist spring pin designed to help create a secure connection with compatible spotting scopes.

Can an Arca compatible spotting scope be attached directly to the tripod?

Yes. A spotting scope with an Arca compatible mounting foot can be inserted directly into the clamp on the VEO PH-24 head. This removes the need to use the supplied quick release plate and creates a direct connection between the scope and tripod head.

Can the Vanguard VESTA GO 234AP be used with a smartphone?

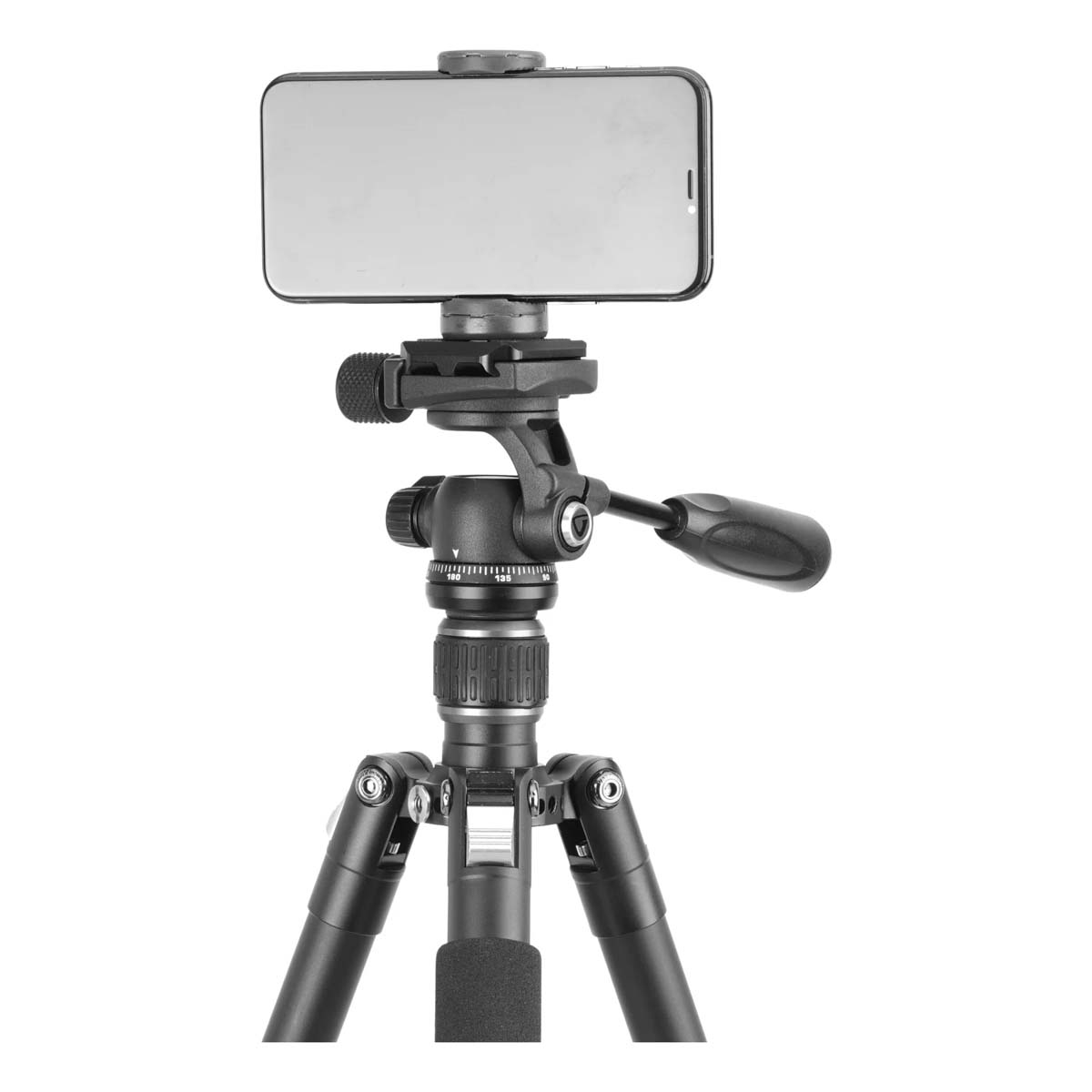

Yes. A smartphone adaptor is included and can hold smartphones between 54mm and 87mm wide. It can be connected to the quick release plate or to a compatible accessory arm fitted with a 1/4-inch thread. A smartphone remote control is not included.

Does the VESTA GO 234AP have accessory mounting points?

Yes. Two 3/8-inch thread holes with non-twist bayonet slots are incorporated into the tripod canopy, together with a 1/4-inch thread adaptor. These allow compatible support arms and accessories to be mounted to the tripod.

What type of leg locks does the Vanguard VESTA GO 234AP use?

The aluminium VESTA GO 234AP uses lever, or flip, leg locks. The tripod has four leg sections with a maximum leg diameter of 23mm. The lever-lock arrangement is designed for quick setup and breakdown.

Does the Vanguard VESTA GO 234AP come with a tripod bag?

Yes. A tripod bag is included with the VESTA GO 234AP. A QS-55P quick release plate and smartphone adaptor are also included as part of the tripod kit.
